质粒名称: | pLSLZ.D.R |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 51510 |
存储实验室: | Daniel Voytas |
载体骨架基本信息 |
|
载体名称: | pCAMBIA1300 |
载体出品公司: | Clontech |
载体抗性: | 氨苄青霉素 |
空载体大小: | 10531 bp |
完整质粒大小: | 15212bp |
载体修饰: | 人细胞色素c氧化酶亚基VIII(human cytochrome C oxidase subunit VIII) |
载体类型: | 哺乳细胞表达 |
筛选标记: | 新霉素(G418) |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | Zif268:FokI |
物种来源: | -- |
插入大小: | 897 bp |
基因突变: | -- |
GenBank编号 | -- |
启动子 | CMV |
标签/融合蛋白: | 人细胞色素c氧化酶亚基VIII(N端) |
克隆方法: | 限制性内切酶 |
5' 克隆位点: | AgeI(未破坏) |
3' 克隆位点: | NotI (未破坏) |
5' 测序引物 | CMV-F |
3' 测序引物 | SV40pA-R |
文献引用方法 |
|
材料和方法部分: | pLSLZ.D.R was a gift from Daniel Voytas (Addgene plasmid # 51510 ; http://n2t.net/addgene:51510 ; RRID:Addgene_51510) |
参考文献部分: | DNA Replicons for Plant Genome Engineering. Baltes NJ, Gil-Humanes J, Cermak T, Atkins PA, Voytas DF. Plant Cell. 2014 Jan 17. 10.1105/tpc.113.119792 PubMed 24443519 |
买家导航
载体基本信息

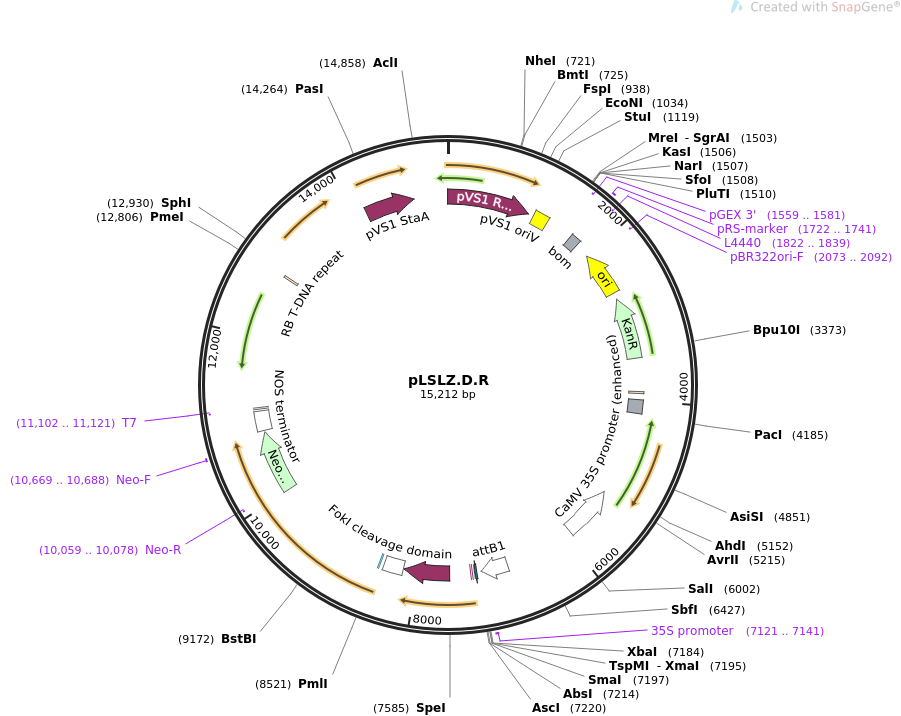

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pLSLZ.D.R 15212 bp ds-DNA circular SYN 06-AUG-2018 DEFINITION Single component LSL vector. Contains 2x35S:Zif268:FokI followed by the us:NPTII template. This sequence is between the LIR and SIR.. ACCESSION . VERSION . KEYWORDS pLSLZ.D.R SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 15212) AUTHORS Baltes NJ, Gil-Humanes J, Cermak T, Atkins PA, Voytas DF TITLE DNA Replicons for Plant Genome Engineering. JOURNAL Plant Cell. 2014 Jan 17. PUBMED 24443519 REFERENCE 2 (bases 1 to 15212) AUTHORS . TITLE Direct Submission JOURNAL Exported Aug 6, 2018 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..15212 /organism="synthetic DNA construct" /mol_type="other DNA" rep_origin 1129..1323 /label=pVS1 oriV /note="origin of replication for the Pseudomonas plasmid pVS1 (Heeb et al., 2000)" primer_bind complement(1559..1581) /label=pGEX 3' /note="pGEX vectors, reverse primer" misc_feature 1667..1807 /label=bom /note="basis of mobility region from pBR322" primer_bind 1722..1741 /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" primer_bind complement(1822..1839) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(1993..2581) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(2073..2092) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(2668..3462) /codon_start=1 /gene="aphA-3" /product="aminoglycoside phosphotransferase" /label=KanR /note="confers resistance to kanamycin" /translation="MAKMRISPELKKLIEKYRCVKDTEGMSPAKVYKLVGENENLYLKM TDSRYKGTTYDVEREKDMMLWLEGKLPVPKVLHFERHDGWSNLLMSEADGVLCSEEYED EQSPEKIIELYAECIRLFHSIDISDCPYTNSLDSRLAELDYLLNNDLADVDCENWEEDT PFKDPRELYDFLKTEKPEEELVFSHGDLGDSNIFVKDGKVSGFIDLGRSGRADKWYDIA FCVRSIREDIGEEQYVELFFDLLGIKPDWEKIKYYILLDELF" misc_feature 3887..3911 /label=LB T-DNA repeat /note="left border repeat from nopaline C58 T-DNA" polyA_signal 3989..4163 /label=CaMV poly(A) signal /note="cauliflower mosaic virus polyadenylation signal" promoter complement(5253..5930) /label=CaMV 35S promoter (enhanced) /note="cauliflower mosaic virus 35S promoter with a duplicated enhancer region" promoter 6833..7177 /label=CaMV 35S promoter /note="strong constitutive promoter from cauliflower mosaic virus" primer_bind 7121..7141 /label=35S promoter /note="CaMV 35S promoter, forward primer" protein_bind 7237..7261 /gene="mutant version of attB" /label=attB1 /bound_moiety="BP Clonase(TM)" /note="recombination site for the Gateway(R) BP reaction" CDS 7295..7315 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 7586..8170 /codon_start=1 /product="nonspecific DNA cleavage domain of the FokI endonuclease (Li et al., 1992)" /label=FokI cleavage domain /note="must dimerize to be catalytically active" /translation="LVKSELEEKKSELRHKLKYVPHEYIELIEIARNSTQDRILEMKVM EFFMKVYGYRGKHLGGSRKPDGAIYTVGSPIDYGVIVDTKAYSGGYNLPIGQADEMQRY VEENQTRNKHINPNEWWKVYPSSVTEFKFLFVSGHFKGNYKAQLTRLNHITNCNGAVLS VEELLIGGEMIKAGTLTLEEVRRKFNNGEINF" terminator 8184..8436 /label=NOS terminator /note="nopaline synthase terminator and poly(A) signal" protein_bind 8481..8501 /gene="mutant version of attB" /label=attB5 /bound_moiety="BP Clonase(TM)" /note="core recombination site for the Gateway(R) BP reaction" CDS 10008..10799 /codon_start=1 /gene="aph(3')-II (or nptII)" /product="aminoglycoside phosphotransferase from Tn5" /label=NeoR/KanR /note="confers resistance to neomycin, kanamycin, and G418 (Geneticin(R))" /translation="IEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRPV LFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLSS HLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQG LAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIAL ATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF" primer_bind complement(10059..10078) /label=Neo-R /note="Neomycin resistance gene, reverse primer" primer_bind 10669..10688 /label=Neo-F /note="Neomycin resistance gene, forward primer" terminator 10826..11078 /label=NOS terminator /note="nopaline synthase terminator and poly(A) signal" primer_bind complement(11102..11121) /label=T7 /note="T7 promoter, forward primer" promoter complement(11103..11121) /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" misc_feature 12821..12845 /label=RB T-DNA repeat /note="right border repeat from nopaline C58 T-DNA" CDS 14145..14774 /codon_start=1 /product="stability protein from the Pseudomonas plasmid pVS1 (Heeb et al., 2000)" /label=pVS1 StaA /translation="MKVIAVLNQKGGSGKTTIATHLARALQLAGADVLLVDSDPQGSAR DWAAVREDQPLTVVGIDRPTIDRDVKAIGRRDFVVIDGAPQAADLAVSAIKAADFVLIP VQPSPYDIWATADLVELVKQRIEVTDGRLQAAFVVSRAIKGTRIGGEVAEALAGYELPI LESRITQRVSYPGTAAAGTTVLESEPEGDAAREVQALAAEIKSKLI" CDS 15208..1063 /codon_start=1 /product="replication protein from the Pseudomonas plasmid pVS1 (Heeb et al., 2000)" /label=pVS1 RepA /translation="GRKPSGPVQIGAALGDDLVEKLKAAQAAQRQRIEAEARPGESWQA AADRIRKESRQPPAAGAPSIRKPPKGDEQPDFFVPMLYDVGTRDSRSIMDVAVFRLSKR DRRAGEVIRYELPDGHVEVSAGPAGMASVWDYDLVLMAVSHLTESMNRYREGKGDKPGR VFRPHVADVLKFCRRADGGKQKDDLVETCIRLNTTHVAMQRTKKAKNGRLVTVSEGEAL ISRYKIVKSETGRPEYIEIELADWMYREITEGKNPDVLTVHPDYFLIDPGIGRFLYRLA RRAAGKAEARWLFKTIYERSGSAGEFKKFCFTVRKLIGSNDLPEYDLKEEAGQAGPILV MRYRNLIEGEASAGS" ORIGIN 1 caaaccatcc ggcccggtac aaatcggcgc ggcgctgggt gatgacctgg tggagaagtt 61 gaaggccgcg caggccgccc agcggcaacg catcgaggca gaagcacgcc ccggtgaatc 121 gtggcaagcg gccgctgatc gaatccgcaa agaatcccgg caaccgccgg cagccggtgc 181 gccgtcgatt aggaagccgc ccaagggcga cgagcaacca gattttttcg ttccgatgct 241 ctatgacgtg ggcacccgcg atagtcgcag catcatggac gtggccgttt tccgtctgtc 301 gaagcgtgac cgacgagctg gcgaggtgat ccgctacgag cttccagacg ggcacgtaga 361 ggtttccgca gggccggccg gcatggccag tgtgtgggat tacgacctgg tactgatggc 421 ggtttcccat ctaaccgaat ccatgaaccg ataccgggaa gggaagggag acaagcccgg 481 ccgcgtgttc cgtccacacg ttgcggacgt actcaagttc tgccggcgag ccgatggcgg 541 aaagcagaaa gacgacctgg tagaaacctg cattcggtta aacaccacgc acgttgccat 601 gcagcgtacg aagaaggcca agaacggccg cctggtgacg gtatccgagg gtgaagcctt 661 gattagccgc tacaagatcg taaagagcga aaccgggcgg ccggagtaca tcgagatcga 721 gctagctgat tggatgtacc gcgagatcac agaaggcaag aacccggacg tgctgacggt 781 tcaccccgat tactttttga tcgatcccgg catcggccgt tttctctacc gcctggcacg 841 ccgcgccgca ggcaaggcag aagccagatg gttgttcaag acgatctacg aacgcagtgg 901 cagcgccgga gagttcaaga agttctgttt caccgtgcgc aagctgatcg ggtcaaatga 961 cctgccggag tacgatttga aggaggaggc ggggcaggct ggcccgatcc tagtcatgcg 1021 ctaccgcaac ctgatcgagg gcgaagcatc cgccggttcc taatgtacgg agcagatgct 1081 agggcaaatt gccctagcag gggaaaaagg tcgaaaaggc ctctttcctg tggatagcac 1141 gtacattggg aacccaaagc cgtacattgg gaaccggaac ccgtacattg ggaacccaaa 1201 gccgtacatt gggaaccggt cacacatgta agtgactgat ataaaagaga aaaaaggcga 1261 tttttccgcc taaaactctt taaaacttat taaaactctt aaaacccgcc tggcctgtgc 1321 ataactgtct ggccagcgca cagccgaaga gctgcaaaaa gcgcctaccc ttcggtcgct 1381 gcgctcccta cgccccgccg cttcgcgtcg gcctatcgcg gccgctggcc gctcaaaaat 1441 ggctggccta cggccaggca atctaccagg gcgcggacaa gccgcgccgt cgccactcga 1501 ccgccggcgc ccacatcaag gcaccctgcc tcgcgcgttt cggtgatgac ggtgaaaacc 1561 tctgacacat gcagctcccg gaaacggtca cagcttgtct gtaagcggat gccgggagca 1621 gacaagcccg tcagggcgcg tcagcgggtg ttggcgggtg tcggggcgca gccatgaccc 1681 agtcacgtag cgatagcgga gtgtatactg gcttaactat gcggcatcag agcagattgt 1741 actgagagtg caccatatgc ggtgtgaaat accgcacaga tgcgtaagga gaaaataccg 1801 catcaggcgc tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg 1861 gcgagcggta tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa 1921 cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc 1981 gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc 2041 aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag 2101 ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct 2161 cccttcggga agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta 2221 ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc 2281 cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc 2341 agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt 2401 gaagtggtgg cctaactacg gctacactag aaggacagta tttggtatct gcgctctgct 2461 gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc 2521 tggtagcggt ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca 2581 agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta 2641 agggattttg gtcatgcatt ctaggtacta aaacaattca tccagtaaaa tataatattt 2701 tattttctcc caatcaggct tgatccccag taagtcaaaa aatagctcga catactgttc 2761 ttccccgata tcctccctga tcgaccggac gcagaaggca atgtcatacc acttgtccgc 2821 cctgccgctt ctcccaagat caataaagcc acttactttg ccatctttca caaagatgtt 2881 gctgtctccc aggtcgccgt gggaaaagac aagttcctct tcgggctttt ccgtctttaa 2941 aaaatcatac agctcgcgcg gatctttaaa tggagtgtct tcttcccagt tttcgcaatc 3001 cacatcggcc agatcgttat tcagtaagta atccaattcg gctaagcggc tgtctaagct 3061 attcgtatag ggacaatccg atatgtcgat ggagtgaaag agcctgatgc actccgcata 3121 cagctcgata atcttttcag ggctttgttc atcttcatac tcttccgagc aaaggacgcc 3181 atcggcctca ctcatgagca gattgctcca gccatcatgc cgttcaaagt gcaggacctt 3241 tggaacaggc agctttcctt ccagccatag catcatgtcc ttttcccgtt ccacatcata 3301 ggtggtccct ttataccggc tgtccgtcat ttttaaatat aggttttcat tttctcccac 3361 cagcttatat accttagcag gagacattcc ttccgtatct tttacgcagc ggtatttttc 3421 gatcagtttt ttcaattccg gtgatattct cattttagcc atttattatt tccttcctct 3481 tttctacagt atttaaagat accccaagaa gctaattata acaagacgaa ctccaattca 3541 ctgttccttg cattctaaaa ccttaaatac cagaaaacag ctttttcaaa gttgttttca 3601 aagttggcgt ataacatagt atcgacggag ccgattttga aaccgcggtg atcacaggca 3661 gcaacgctct gtcatcgtta caatcaacat gctaccctcc gcgagatcat ccgtgtttca 3721 aacccggcag cttagttgcc gttcttccga atagcatcgg taacatgagc aaagtctgcc 3781 gccttacaac ggctctcccg ctgacgccgt cccggactga tgggctgcct gtatcgagtg 3841 gtgattttgt gccgagctgc cggtcgggga gctgttggct ggctggtggc aggatatatt 3901 gtggtgtaaa caaattgacg cttagacaac ttaataacac attgcggacg tttttaatgt 3961 actgaattaa cgccgaatta attcggggga tctggatttt agtactggat tttggtttta 4021 ggaattagaa attttattga tagaagtatt ttacaaatac aaatacatac taagggtttc 4081 ttatatgctc aacacatgag cgaaacccta taggaaccct aattccctta tctgggaact 4141 actcacacat tattatggag aaaatagagc ttgtcgatcg ttaattaatc acctccaaga 4201 tcccggacga gtgctggggc gtcggtttcc actatcggcg agtacttcta cacagccatc 4261 ggtccagacg gccgcgcttc tgcgggcgat ttgtgtacgc ccgacagtcc cggctccgga 4321 tcggacgatt gcgtcgcatc gaccctgcgc ccaagctgca tcatcgaaat tgccgtcaac 4381 caagctctga tagagttggt caagaccaat gcggagcata tacgcccgga gccgcggcga 4441 tcctgcaagc tccggatgcc tccgctcgaa gtagcgcgtc tgctgctcca tacaagccaa 4501 ccacggcctc cagaagaaga tgttggcgac ctcgtattgg gaatccccga acatcgcctc 4561 gctccagtca atgaccgctg ttatgcggcc attgtccgtc aggacattgt tggagccgaa 4621 atccgcgtgc acgaggtgcc ggacttcggg gcagtcctcg gcccaaagca tcagctcatc 4681 gagagcctgc gcgacggacg cactgacggt gtcgtccatc acagtttgcc agtgatacac 4741 atggggatca gcaatcgcgc atatgaaatc acgccatgta gtgtattgac cgattccttg 4801 cggtccgaat gggccgaacc cgctcgtctg gctaagatcg gccgcagcga tcgcatccat 4861 ggcctccgcg accggctgca gaacagcggg cagttcggtt tcaggcaggt cttgcaacgt 4921 gacaccctgt gcacggcggg agatgcaata ggtcaggctc tcgctgaatt ccccaatgtc 4981 aagcacttcc ggaatcggga gcgcggccga tgcaaagtgc cgataaacat aacgatcttt 5041 gtagaaacca tcggcgcagc tatttacccg caggacatat ccacgccctc ctacatcgaa 5101 gctgaaagca cgagattctt cgccctccga gagctgcatc aggtcggaca cgctgtcgaa 5161 cttttcgatc agaaacttct cgacagacgt cgcggtgagt tcaggctttt tcatcctagg 5221 agagatagat ttgtagagag agactggtga tttcagcgtg tcctctccaa atgaaatgaa 5281 cttccttata tagaggaagg tcttgcgaag gatagtggga ttgtgcgtca tcccttacgt 5341 cagtggagat atcacatcaa tccacttgct ttgaagacgt ggttggaacg tcttcttttt 5401 ccacgatgct cctcgtgggt gggggtccat ctttgggacc actgtcggca gaggcatctt 5461 gaacgatagc ctttccttta tcgcaatgat ggcatttgta ggtgccacct tccttttcta 5521 ctgtcctttt gatgaagtga cagatagctg ggcaatggaa tccgaggagg tttcccgata 5581 ttaccctttg ttgaaaagtc tcaatagccc tttggtcttc tgagactgta tctttgatat 5641 tcttggagta gacgagagtg tcgtgctcca ccatgttatc acatcaatcc acttgctttg 5701 aagacgtggt tggaacgtct tctttttcca cgatgctcct cgtgggtggg ggtccatctt 5761 tgggaccact gtcggcagag gcatcttgaa cgatagcctt tcctttatcg caatgatggc 5821 atttgtaggt gccaccttcc ttttctactg tccttttgat gaagtgacag atagctgggc 5881 aatggaatcc gaggaggttt cccgatatta ccctttgttg aaaagtctca atagcccttt 5941 ggtcttctga gactgtatct ttgatattct tggagtagac gagagtgtcg tgctccacca 6001 tgtcgactat cggacgagct caaagtttaa cgcgttagca gaaggcatgt tgttgtgact 6061 ccgaggggtt gcctcaaact ctatcttata accggcgtgg aggcatggag gcaggggtat 6121 tttggtcatt ttaatagata gtggaaaatg acgtggaatt tacttaaaga cgaagtcttt 6181 gcgacaaggg ggggcccacg ccgaatttaa tattaccggc gtggcccccc cttatcgcga 6241 gtgctttagc acgagcggtc cagatttaaa gtagaaaatt tcccgcccac tagggttaaa 6301 ggtgttcaca ctataaaagc atatacgatg tgatggtatt tgatggagcg tatattgtat 6361 caggtatttc cgttggatac gaattattcg tacgaccctc ggcgcgtcca agcttggcgt 6421 gcctgcaggt caacatggtg gagcacgaca cacttgtcta ctccaaaaat atcaaagata 6481 cagtctcaga agaccaaagg gcaattgaga cttttcaaca aagggtaata tccggaaacc 6541 tcctcggatt ccattgccca gctatctgtc actttattgt gaagatagtg gaaaaggaag 6601 gtggctccta caaatgccat cattgcgata aaggaaaggc catcgttgaa gatgcctctg 6661 ccgacagtgg tcccaaagat ggacccccac ccacgaggag catcgtggaa aaagaagacg 6721 ttccaaccac gtcttcaaag caagtggatt gatgtgataa catggtggag cacgacacac 6781 ttgtctactc caaaaatatc aaagatacag tctcagaaga ccaaagggca attgagactt 6841 ttcaacaaag ggtaatatcc ggaaacctcc tcggattcca ttgcccagct atctgtcact 6901 ttattgtgaa gatagtggaa aaggaaggtg gctcctacaa atgccatcat tgcgataaag 6961 gaaaggccat cgttgaagat gcctctgccg acagtggtcc caaagatgga cccccaccca 7021 cgaggagcat cgtggaaaaa gaagacgttc caaccacgtc ttcaaagcaa gtggattgat 7081 gtgatatctc cactgacgta agggatgacg cacaatccca ctatccttcg caagaccctt 7141 cctctatata aggaagttca tttcatttgg agaggacctc gactctagag gatccccggg 7201 taccgggccc cccctcgagg cgcgccaagc tatcaaacaa gtttgtacaa aaaagcaggc 7261 tccgaattcg cccttcacca tggcttcctc ccctccaaag aaaaagagaa aggttcttga 7321 attgccttac gcttgtccag ttgagtcttg tgatagacgt tttagtaggt cagacgaact 7381 cactaggcat attagaatcc acacaggaca gaagcctttc cagtgtagaa tctgtatgag 7441 gaactttagt cgtagcgatc atttgactac acatatcaga acccatactg gtgagaaacc 7501 attcgcatgt gacatctgtg gtcgtaagtt cgcaagaagt gatgaaagga agcgtcatac 7561 aaagatccat cttcgtcaga aggaactagt gaaatctgaa ttggaagaga agaaatctga 7621 acttagacat aaattgaaat atgtgccaca tgaatatatt gaattgattg aaatcgcaag 7681 aaattcaact caggatagaa tccttgaaat gaaggtgatg gagttcttta tgaaggttta 7741 tggttatcgt ggtaaacatt tgggtggatc aaggaaacca gacggagcaa tttatactgt 7801 cggatctcct attgattacg gtgtgatcgt tgatactaag gcatattcag gaggttataa 7861 tcttccaatt ggtcaagcag atgaaatgca aagatatgtc gaagagaatc aaacaagaaa 7921 caagcatatc aaccctaatg aatggtggaa agtctatcca tcttcagtaa cagaatttaa 7981 gttcttgttt gtgagtggtc atttcaaagg aaactacaaa gctcagctta caagattgaa 8041 tcatatcact aattgtaatg gagctgttct tagtgtagaa gagcttttga ttggtggaga 8101 aatgattaaa gctggtacat tgacacttga ggaagtgaga aggaaattta ataacggtga 8161 gataaacttt taataggacg tccgatcgtt caaacatttg gcaataaagt ttcttaagat 8221 tgaatcctgt tgccggtctt gcgatgatta tcatataatt tctgttgaat tacgttaagc 8281 atgtaataat taacatgtaa tgcatgacgt tatttatgag atgggttttt atgattagag 8341 tcccgcaatt atacatttaa tacgcgatag aaaacaaaat atagcgcgca aactaggata 8401 aattatcgcg cgcggtgtca tctatgttac tagatcggga attgatcccc cctcgacagc 8461 ttccggaaag ggcgaattcg caactttgta tacaaaagtt gccgagcttt gggtacgtca 8521 cgtggctcga gcgcgtagtc ctcggtaagc agtcttactt ccatgatttc tttaactatg 8581 ccggaatcca tcgcagcgta atgctctaca ccacgccgaa cacctgggtg gacgatatca 8641 ccgtggtgac gcatgtcgcg caagactgta accacgcgtc tgttgactgg caggtggtgg 8701 ccaatggtga tgtcagcgtt gaactgcgtg atgcggatca acaggtggtt gcaactggac 8761 aaggcactag cgggactttg caagtggtga atccgcacct ctggcaaccg ggtgaaggtt 8821 atctctatga actgtgcgtc acagccaaaa gccagacaga gtgtgatatc tacccgcttc 8881 gcgtcggcat ccggtcagtg gcagtgaagg gcgaacagtt cctgattaac cacaaaccgt 8941 tctactttac tggctttggt cgtcatgaag atgcggactt gcgtggcaaa ggattcgata 9001 acgtgctgat ggtgcacgac cacgcattaa tggactggat tggggccaac tcctaccgta 9061 cctcgcatta cccttacgct gaagagatgc tcgactgggc agatgaacat ggcatcgtgg 9121 tgattgatga aactgctgct gtcggcttta acctctcttt aggcattggt ttcgaagcgg 9181 gcaacaagcc gaaagaactg tacagcgaag aggcagtcaa cggggaaact cagcaagcgc 9241 acttacaggc gattaaagag ctgatagcgc gtgacaaaaa ccacccaagc gtggtgatgt 9301 ggagtattgc caacgaaccg gatacccgtc cgcaaggtgc acgggaatat ttcgcgccac 9361 tggcggaagc aacgcgtaaa ctcgacccga cgcgtccgat cacctgcgtc aatgtaatgt 9421 tctgcgacgc tcacaccgat accatcagcg atctctttga tgtgctgtgc ctgaaccgtt 9481 attacggatg gtatgtccaa agcggcgatt tggaaacggc agagaaggta ctggaaaaag 9541 aacttctggc ctggcaggag aaactgcatc agccgattat catcaccgaa tacggcgtgg 9601 atacgttagc cgggctgcac tcaatgtaca ccgacatgtg gagtgaagag tatcagtgtg 9661 catggctgga tatgtatcac cgcgtctttg atcgcgtcag cgccgtcgtc ggtgaacagg 9721 tatggaattt cgccgatttt gcgacctcgc aaggcatatt gcgcgttggc ggtaacaaga 9781 aagggatctt cactcgcgac cgcaaaccga agtcggcggc ttttctgctg caaaaacgct 9841 ggactggcat gaacttcggt gaaaaaccgc agcagggagg caaacaacgc agggaggcaa 9901 acaatgatat cacaactctc ctgacgcgtc atcgtcggct acagcctcgg gaattgctac 9961 ctagctcgag caagatccaa ggagatataa caatggcttc ctcctggatt gaacaagatg 10021 gattgcacgc aggttctccg gccgcttggg tggagaggct attcggctat gactgggcac 10081 aacagacaat cggctgctct gatgccgccg tgttccggct gtcagcgcag ggtagaccgg 10141 ttctttttgt caagaccgac ctgtccggtg ccctgaatga actgcaagac gaggcagcgc 10201 ggctatcgtg gctggccacg acgggcgtac cttgcgctgc tgtgctcgac gttgtcactg 10261 aagcgggaag ggactggctg ctattgggcg aagtgccggg gcaggatctc ctgtcatctc 10321 accttgctcc tgccgagaaa gtatccatca tggctgatgc aatgcggcgg ctgcatacgc 10381 ttgatccggc tacctgccca ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta 10441 ctcggatgga agccggtctt gtcgatcagg atgatctgga cgaagagcat caggggctcg 10501 cgccagccga actgttcgcc aggctcaagg cgagaatgcc cgacggcgag gatctcgtcg 10561 tgacccatgg cgatgcctgc ttgccgaata tcatggtgga aaatggccgc ttttctggat 10621 tcatcgactg tggccggctg ggtgtggcgg accgctatca ggacatagcg ttggctaccc 10681 gtgatattgc tgaagagctt ggcggcgaat gggctgaccg cttcctcgtg ctttacggta 10741 tcgccgctcc cgattcgcag cgcatcgcct tctatcgcct tcttgacgag ttcttctgat 10801 aaccgcggag agctcgaatt tccccgatcg ttcaaacatt tggcaataaa gtttcttaag 10861 attgaatcct gttgccggtc ttgcgatgat tatcatataa tttctgttga attacgttaa 10921 gcatgtaata attaacatgt aatgcatgac gttatttatg agatgggttt ttatgattag 10981 agtcccgcaa ttatacattt aatacgcgat agaaaacaaa atatagcgcg caaactagga 11041 taaattatcg cgcgcggtgt catctatgtt actagatcgt gggcccgtcc agttccattc 11101 gccctatagt gagtcgtatt aaacctgcat taatgaatcg gccaacgcgc ggggagaggc 11161 ggtttgcgta ttgagtgtac ttcaagtcag tgggaaatca ataaaatgat tattttatga 11221 atatatttca ttgtgcaagt agatagaaat tacatatgtt acataacaca cgaaataaac 11281 aaaaaaagac aatccaaaaa caaacacccc aaaaaaaata atcactttag ataaactcgt 11341 atgaggagag gcacgttcag tgactcgacg attcccgagc aaaaaaagtc tccccgtcac 11401 acatgtagtg ggtgacgcaa ttatctttaa agtaatcctt ctgttgactt gtcattgata 11461 acatccagtc ttcgtcagga ttgcaaagaa ttatagaagg gatcccacct tttattttct 11521 tcttttttcc atatttaggg ttgacagtga aatcagactg gcaacctatt aattgcttcc 11581 acaatgggac gaacttgaag gggatgtcgt cgatgatatt ataggtggcg tgttcatcgt 11641 agttggtgaa atcgatggta ccgttccaat agttgtgtcg tccgagactt ctagcccagg 11701 tggtctttcc ggtacgagtt ggtccgcaga tgtagaggct ggggtgtcgg attccattcc 11761 ttccattgtc cttgttaaat cggccatcca ttcaaggtca gattgagctt gttggtatga 11821 gacaggatgt atgtaagtat aagcgtctat gcttacatgg tatagatggg tttccctcca 11881 ggagtgtaga tcttcgtggc agcgaagatc tgattctgtg aagggcgaca catacggttc 11941 aggttgtgga gggaataatt tgttggctga atattccagc cattgaagct ttgttgccca 12001 ttcatgaggg aattcttcct tgatcatgtc aagatattcc tccttagacg ttgcagtctg 12061 gataatagtt ctccatcgtg cgtcagattt gcgaggagaa accttatgat ctcggaaatc 12121 tcctctggtt ttaatatctc cgtcctttga tatgtaatca aggacttgtt tagagtttct 12181 agctggctgg atattagggt gatttccttc aaaatcgaaa aaagaaggat ccctaataca 12241 aggtttttta tcaagctgga gaagagcatg atagtgggta gtgccatctt gatgaagctc 12301 agaagcaaca ccaaggaaga aaataagaaa aggtgtgagt ttctcccaga gaaactggaa 12361 taaatcatct ctttgagatg agcacttggg ataggtaagg aaaacatatt tagattggag 12421 tctgaagttc ttactagcag aaggcatgtt gttgtgactc cgaggggttg cctcaaactc 12481 tatcttataa ccggcgtgga ggcatggagg caggggtatt ttggtcattt taatagatag 12541 tggaaaatga cgtggaattt acttaaagac gaagtctttg cgacaagggg gggcccacgc 12601 cgaatttaat attaccggcg tggccccccc ttatcgcgag tgctttagca cgagcggtcc 12661 agatttaaag tagaaaattt cccgcccact agggttaaag gtgttcacac tataaaagca 12721 tatacgatgt gatggtattt gatggagcgt atattgtatc aggtatttcc gttggatacg 12781 aattattcgt acgaccctca tagtttaaac tatcagtgtt tgacaggata tattggcggg 12841 taaacctaag agaaaagagc gtttattaga ataacggata tttaaaaggg cgtgaaaagg 12901 tttatccgtt cgtccatttg tatgtgcatg ccaaccacag ggttcccctc gggatcaaag 12961 tactttgatc caacccctcc gctgctatag tgcagtcggc ttctgacgtt cagtgcagcc 13021 gtcttctgaa aacgacatgt cgcacaagtc ctaagttacg cgacaggctg ccgccctgcc 13081 cttttcctgg cgttttcttg tcgcgtgttt tagtcgcata aagtagaata cttgcgacta 13141 gaaccggaga cattacgcca tgaacaagag cgccgccgct ggcctgctgg gctatgcccg 13201 cgtcagcacc gacgaccagg acttgaccaa ccaacgggcc gaactgcacg cggccggctg 13261 caccaagctg ttttccgaga agatcaccgg caccaggcgc gaccgcccgg agctggccag 13321 gatgcttgac cacctacgcc ctggcgacgt tgtgacagtg accaggctag accgcctggc 13381 ccgcagcacc cgcgacctac tggacattgc cgagcgcatc caggaggccg gcgcgggcct 13441 gcgtagcctg gcagagccgt gggccgacac caccacgccg gccggccgca tggtgttgac 13501 cgtgttcgcc ggcattgccg agttcgagcg ttccctaatc atcgaccgca cccggagcgg 13561 gcgcgaggcc gccaaggccc gaggcgtgaa gtttggcccc cgccctaccc tcaccccggc 13621 acagatcgcg cacgcccgcg agctgatcga ccaggaaggc cgcaccgtga aagaggcggc 13681 tgcactgctt ggcgtgcatc gctcgaccct gtaccgcgca cttgagcgca gcgaggaagt 13741 gacgcccacc gaggccaggc ggcgcggtgc cttccgtgag gacgcattga ccgaggccga 13801 cgccctggcg gccgccgaga atgaacgcca agaggaacaa gcatgaaacc gcaccaggac 13861 ggccaggacg aaccgttttt cattaccgaa gagatcgagg cggagatgat cgcggccggg 13921 tacgtgttcg agccgcccgc gcacggctca accgtgcggc tgcatgaaat cctggccggt 13981 ttgtctgatg ccaagctggc ggcctggccg gccagcttgg ccgctgaaga aaccgagcgc 14041 cgccgtctaa aaaggtgatg tgtatttgag taaaacagct tgcgtcatgc ggtcgctgcg 14101 tatatgatgc gatgagtaaa taaacaaata cgcaagggga acgcatgaag gttatcgctg 14161 tacttaacca gaaaggcggg tcaggcaaga cgaccatcgc aacccatcta gcccgcgccc 14221 tgcaactcgc cggggccgat gttctgttag tcgattccga tccccagggc agtgcccgcg 14281 attgggcggc cgtgcgggaa gatcaaccgc taaccgttgt cggcatcgac cgcccgacga 14341 ttgaccgcga cgtgaaggcc atcggccggc gcgacttcgt agtgatcgac ggagcgcccc 14401 aggcggcgga cttggctgtg tccgcgatca aggcagccga cttcgtgctg attccggtgc 14461 agccaagccc ttacgacata tgggccaccg ccgacctggt ggagctggtt aagcagcgca 14521 ttgaggtcac ggatggaagg ctacaagcgg cctttgtcgt gtcgcgggcg atcaaaggca 14581 cgcgcatcgg cggtgaggtt gccgaggcgc tggccgggta cgagctgccc attcttgagt 14641 cccgtatcac gcagcgcgtg agctacccag gcactgccgc cgccggcaca accgttcttg 14701 aatcagaacc cgagggcgac gctgcccgcg aggtccaggc gctggccgct gaaattaaat 14761 caaaactcat ttgagttaat gaggtaaaga gaaaatgagc aaaagcacaa acacgctaag 14821 tgccggccgt ccgagcgcac gcagcagcaa ggctgcaacg ttggccagcc tggcagacac 14881 gccagccatg aagcgggtca actttcagtt gccggcggag gatcacacca agctgaagat 14941 gtacgcggta cgccaaggca agaccattac cgagctgcta tctgaataca tcgcgcagct 15001 accagagtaa atgagcaaat gaataaatga gtagatgaat tttagcggct aaaggaggcg 15061 gcatggaaaa tcaagaacaa ccaggcaccg acgccgtgga atgccccatg tgtggaggaa 15121 cgggcggttg gccaggcgta agcggctggg ttgtctgccg gccctgcaat ggcactggaa 15181 cccccaagcc cgaggaatcg gcgtgacggt cg //
