pLacO-ISce1

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pLacO-ISce1
出品公司: Addgene
目录编号: 58505
存储实验室: Tom Misteli

载体骨架基本信息
载体名称: pBluescript II KS
空载体大小: 3500 bp
完整质粒大小: 13500 bp
载体类型: 细菌表达
载体抗性: 氨苄霉素
生长温度: 30 ℃
宿主菌: stbl2
高拷贝/低拷贝: 不清楚
培养基指南:  为了避免质粒发生重组,请务必使用30度培养。该质粒,比较容易发生重组事件。

插入基因信息
插入基因名称: Lac repeats adjacent to 6 copies of the ISce1 restriction site
物种来源: bacterial lac operator repeats
插入大小: 10000 bp
启动子:
克隆方法: 限制性内切酶
5’克隆位点: XhoI(未破坏)
3’克隆位点: XhoI(未破坏)
5’测序引物 M13 pUC forward primer
3’测序引物 M13pUC reverse primer

文献引用方法
材料和方法部分: pLacO-ISce1 was a gift from Tom Misteli (Addgene plasmid # 58505 ; http://n2t.net/addgene:58505 ; RRID:Addgene_58505)
参考文献部分:
Spatial dynamics of chromosome translocations in living cells. Roukos V, Voss TC, Schmidt CK, Lee S, Wangsa D, Misteli T. Science. 2013 Aug 9;341(6146):660-4. doi: 10.1126/science.1237150. 10.1126/science.1237150 PubMed 23929981

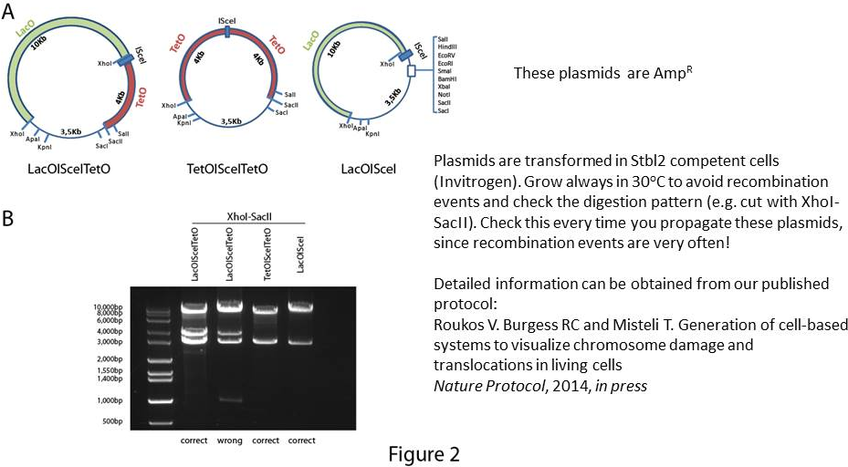

载体图谱质粒图谱和多克隆位点信息

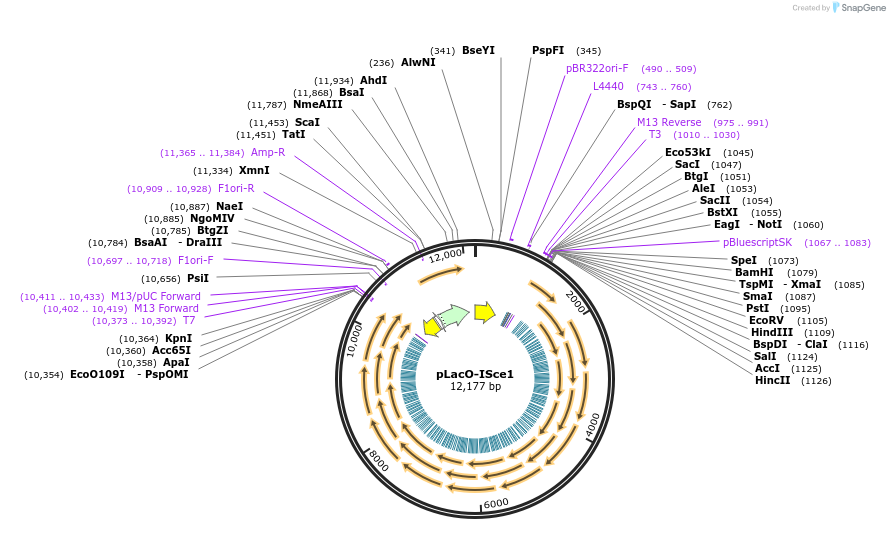

pLacO-ISce1载体图谱

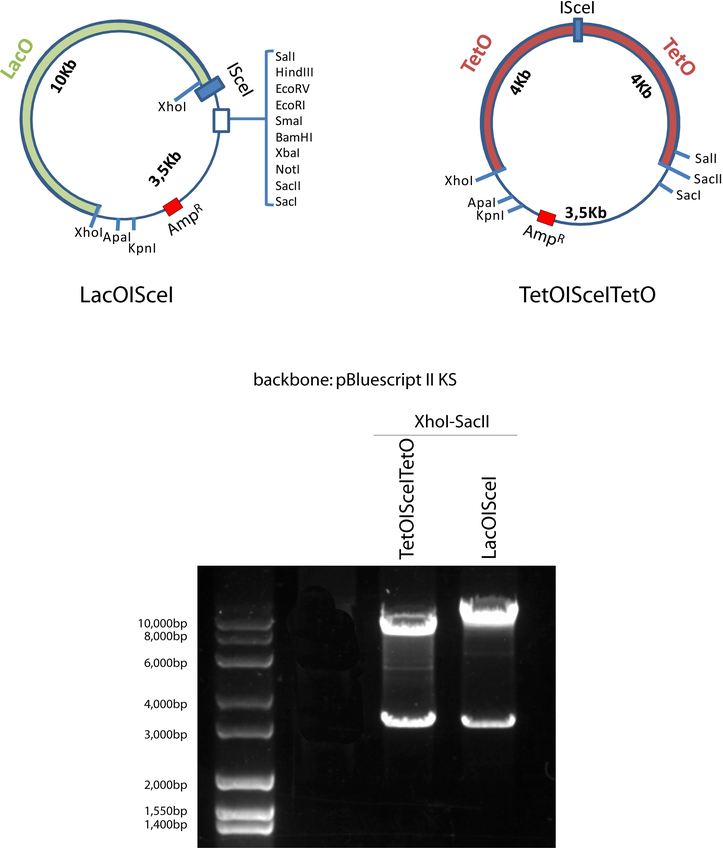

pLacO-ISce1载体图谱
pLacO-ISce1载体图谱

载体简介

载体序列

LOCUS       pLacO-ISce1               3401 bp ds-DNA     circular SYN 08-SEP-2021
DEFINITION  provides 256 Lac operator repeats adjacent to the ISce1 restriction
            site.
ACCESSION   .
VERSION     .
KEYWORDS    pLacO-ISce1
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3401)
  AUTHORS   Roukos V, Voss TC, Schmidt CK, Lee S, Wangsa D, Misteli T
  TITLE     Spatial dynamics of chromosome translocations in living cells.
  JOURNAL   Science. 2013 Aug 9;341(6146):660-4. doi: 10.1126/science.1237150.
  PUBMED    23929981
REFERENCE   2  (bases 1 to 3401)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 8, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..3401
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     protein_bind    2..18
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     protein_bind    38..54
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     protein_bind    74..90
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     protein_bind    110..126
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     protein_bind    146..162
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     protein_bind    182..198
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     protein_bind    218..234
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     complement(462..478)
                     /label=SK primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(462..478)
                     /label=pBluescriptSK
                     /note="For pBluescript vector"
     primer_bind     complement(515..535)
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        complement(515..533)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     primer_bind     complement(554..570)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(554..570)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(567..589)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    578..594
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(602..632)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    647..668
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(785..802)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(956..1544)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(1036..1055)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(1715..2575)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     2338..2357
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(2576..2680)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      2707..3163
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2794..2813)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     3004..3025
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     3289..3311
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     3303..3320
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     3304..3320
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     3330..3349
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        3330..3348
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
ORIGIN
        1 attgtgagcg gataacaatt tgtggccaca tgtggaattg tgagcggata acaatttgtg
       61 gccacatgtg gaattgtgag cggataacaa tttgtggcca catgtggaat tgtgagcgga
      121 taacaatttg tggccacatg tggaattgtg agcggataac aatttgtggc cacatgtgga
      181 attgtgagcg gataacaatt tgtggccaca tgtggaattg tgagcggata acaatttgtg
      241 gaattcggcg cctctagagt cgatccctcg aggtcgatag ggataacagg gtaatgtcga
      301 gtagggataa cagggtaatg tcgagtaggg ataacagggt aatgtcgagt agggataaca
      361 gggtaatgtc gagtagggat aacagggtaa tgtcgagtag ggataacagg gtaatgtcga
      421 cggtatcgat aagcttgata tcgaattcct gcagcccggg ggatccacta gttctagagc
      481 ggccgccacc gcggtggagc tccagctttt gttcccttta gtgagggtta attgcgcgct
      541 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac
      601 acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac
      661 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc
      721 tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgctcttccg
      781 cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc
      841 actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt
      901 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc
      961 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa
     1021 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc
     1081 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg
     1141 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc
     1201 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc
     1261 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca
     1321 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact
     1381 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg
     1441 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt
     1501 ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct
     1561 tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga
     1621 gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa
     1681 tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac
     1741 ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga
     1801 taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc
     1861 cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca
     1921 gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta
     1981 gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct acaggcatcg
     2041 tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc
     2101 gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg
     2161 ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt
     2221 ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt
     2281 cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata
     2341 ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc
     2401 gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac
     2461 ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa
     2521 ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct
     2581 tcctttttca atattattga agcatttatc agggttattg tctcatgagc ggatacatat
     2641 ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc
     2701 cacctgacgc gccctgtagc ggcgcattaa gcgcggcggg tgtggtggtt acgcgcagcg
     2761 tgaccgctac acttgccagc gccctagcgc ccgctccttt cgctttcttc ccttcctttc
     2821 tcgccacgtt cgccggcttt ccccgtcaag ctctaaatcg ggggctccct ttagggttcc
     2881 gatttagtgc tttacggcac ctcgacccca aaaaacttga ttagggtgat ggttcacgta
     2941 gtgggccatc gccctgatag acggtttttc gccctttgac gttggagtcc acgttcttta
     3001 atagtggact cttgttccaa actggaacaa cactcaaccc tatctcggtc tattcttttg
     3061 atttataagg gattttgccg atttcggcct attggttaaa aaaatgagct gatttaacaa
     3121 aaatttaacg cgaattttaa caaaatatta acgcttacaa tttccattcg ccattcaggc
     3181 tgcgcaactg ttgggaaggg cgatcggtgc gggcctcttc gctattacgc cagctggcga
     3241 aagggggatg tgctgcaagg cgattaagtt gggtaacgcc agggttttcc cagtcacgac
     3301 gttgtaaaac gacggccagt gagcgcgcgt aatacgactc actatagggc gaattgggta
     3361 ccgggccccc cctcgaggga tcgaggaatt ccacatgtgg a
//
