pLentipuro载体基本信息

质粒名称: pLenti-puro
出品公司: Addgene
目录编号: 39481
存储实验室: Ie-Ming Shih

载体骨架基本信息
载体名称: pLenti4/TO/V5-DEST
载体出品公司: Invitrogen
空载体大小: --
完整质粒大小: --
载体修饰: 移除2个EcoRV位点之间的网关元件,并用嘌呤霉素抗性基因替换Zeocin抗性基因
载体类型: 哺乳动物表达,慢病毒
筛选标记: 嘌呤霉素
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: Stbl3
拷贝数: 高拷贝

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子: CMV
标签/融合蛋白: V5和6XHis(主干上的C终端)
克隆方法: 限制性内切酶
5’克隆位点: --
3’克隆位点: --
5’测序引物 CMV-fwd
3’测序引物 V5-rev and BGH-Rev

文献引用方法
材料和方法部分: pLenti-puro was a gift from Ie-Ming Shih (Addgene plasmid # 39481 ; http://n2t.net/addgene:39481 ; RRID:Addgene_39481)
参考文献部分: ARID1A, a factor that promotes formation of SWI/SNF-mediated chromatin remodeling, is a tumor suppressor in gynecologic cancers. Guan B, Wang TL, Shih IeM. Cancer Res. 2011 Nov 1;71(21):6718-27. Epub 2011 Sep 7. 10.1158/0008-5472.CAN-11-1562 PubMed 21900401

pLentipuro载体图谱质粒图谱和多克隆位点信息

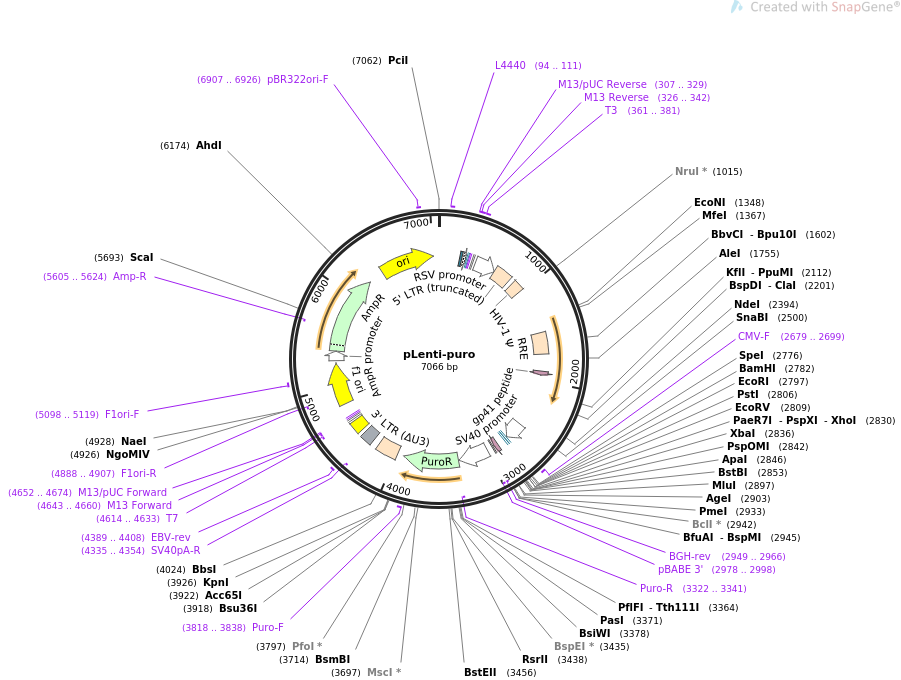

pLenti-puro载体图谱

pLentipuro载体简介

pLentipuro载体序列

LOCUS       pLenti-puro                7066 bp ds-DNA     circular SYN 26-MAY-2021
DEFINITION  Tetracycline inducible 3rd generation lentiviral vector.
ACCESSION   .
VERSION     .
KEYWORDS    pLenti-puro
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7066)
  AUTHORS   Guan B, Wang TL, Shih IeM
  TITLE     ARID1A, a factor that promotes formation of SWI/SNF-mediated
            chromatin remodeling, is a tumor suppressor in gynecologic cancers.
  JOURNAL   Cancer Res. 2011 Nov 1;71(21):6718-27. Epub 2011 Sep 7.
  PUBMED    21900401
REFERENCE   2  (bases 1 to 7066)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 26, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7066
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     94..111
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    228..249
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        264..294
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    302..318
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     307..329
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     326..342
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     326..342
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     361..381
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        363..381
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     promoter        409..635
                     /label=RSV promoter
                     /note="Rous sarcoma virus enhancer/promoter"
     LTR             636..816
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    863..988
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1481..1714
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             1899..1943
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     promoter        2525..2728
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     2679..2699
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     protein_bind    2730..2748
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    2751..2769
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     CDS             2858..2899
                     /codon_start=1
                     /product="epitope tag from simian virus 5"
                     /label=V5 tag
                     /translation="GKPIPNPLLGLDST"
     CDS             2909..2926
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     primer_bind     complement(2949..2966)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     primer_bind     complement(2978..2998)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        2983..3312
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3163..3298
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3322..3921
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(3322..3341)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     3818..3838
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     LTR             3993..4226
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4298..4419
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4335..4354)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4389..4408
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      4459..4594
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(4614..4633)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(4615..4633)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(4643..4660)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(4643..4659)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4652..4674)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     rep_origin      4801..5256
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4888..4907)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     5098..5119
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     promoter        5282..5386
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5387..6247
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(5605..5624)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      6418..7006
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6907..6926
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 ttctttcctg cgttatcccc tgattctgtg gataaccgta ttaccgcctt tgagtgagct
       61 gataccgctc gccgcagccg aacgaccgag cgcagcgagt cagtgagcga ggaagcggaa
      121 gagcgcccaa tacgcaaacc gcctctcccc gcgcgttggc cgattcatta atgcagctgg
      181 cacgacaggt ttcccgactg gaaagcgggc agtgagcgca acgcaattaa tgtgagttag
      241 ctcactcatt aggcacccca ggctttacac tttatgcttc cggctcgtat gttgtgtgga
      301 attgtgagcg gataacaatt tcacacagga aacagctatg accatgatta cgccaagcgc
      361 gcaattaacc ctcactaaag ggaacaaaag ctggagctgc aagcttaatg tagtcttatg
      421 caatactctt gtagtcttgc aacatggtaa cgatgagtta gcaacatgcc ttacaaggag
      481 agaaaaagca ccgtgcatgc cgattggtgg aagtaaggtg gtacgatcgt gccttattag
      541 gaaggcaaca gacgggtctg acatggattg gacgaaccac tgaattgccg cattgcagag
      601 atattgtatt taagtgccta gctcgataca taaacgggtc tctctggtta gaccagatct
      661 gagcctggga gctctctggc taactaggga acccactgct taagcctcaa taaagcttgc
      721 cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc
      781 tcagaccctt ttagtcagtg tggaaaatct ctagcagtgg cgcccgaaca gggacttgaa
      841 agcgaaaggg aaaccagagg agctctctcg acgcaggact cggcttgctg aagcgcgcac
      901 ggcaagaggc gaggggcggc gactggtgag tacgccaaaa attttgacta gcggaggcta
      961 gaaggagaga gatgggtgcg agagcgtcag tattaagcgg gggagaatta gatcgcgatg
     1021 ggaaaaaatt cggttaaggc cagggggaaa gaaaaaatat aaattaaaac atatagtatg
     1081 ggcaagcagg gagctagaac gattcgcagt taatcctggc ctgttagaaa catcagaagg
     1141 ctgtagacaa atactgggac agctacaacc atcccttcag acaggatcag aagaacttag
     1201 atcattatat aatacagtag caaccctcta ttgtgtgcat caaaggatag agataaaaga
     1261 caccaaggaa gctttagaca agatagagga agagcaaaac aaaagtaaga ccaccgcaca
     1321 gcaagcggcc gctgatcttc agacctggag gaggagatat gagggacaat tggagaagtg
     1381 aattatataa atataaagta gtaaaaattg aaccattagg agtagcaccc accaaggcaa
     1441 agagaagagt ggtgcagaga gaaaaaagag cagtgggaat aggagctttg ttccttgggt
     1501 tcttgggagc agcaggaagc actatgggcg cagcgtcaat gacgctgacg gtacaggcca
     1561 gacaattatt gtctggtata gtgcagcagc agaacaattt gctgagggct attgaggcgc
     1621 aacagcatct gttgcaactc acagtctggg gcatcaagca gctccaggca agaatcctgg
     1681 ctgtggaaag atacctaaag gatcaacagc tcctggggat ttggggttgc tctggaaaac
     1741 tcatttgcac cactgctgtg ccttggaatg ctagttggag taataaatct ctggaacaga
     1801 tttggaatca cacgacctgg atggagtggg acagagaaat taacaattac acaagcttaa
     1861 tacactcctt aattgaagaa tcgcaaaacc agcaagaaaa gaatgaacaa gaattattgg
     1921 aattagataa atgggcaagt ttgtggaatt ggtttaacat aacaaattgg ctgtggtata
     1981 taaaattatt cataatgata gtaggaggct tggtaggttt aagaatagtt tttgctgtac
     2041 tttctatagt gaatagagtt aggcagggat attcaccatt atcgtttcag acccacctcc
     2101 caaccccgag gggacccgac aggcccgaag gaatagaaga agaaggtgga gagagagaca
     2161 gagacagatc cattcgatta gtgaacggat ctcgacggta tcgataagct tgggagttcc
     2221 gcttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
     2281 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
     2341 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
     2401 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
     2461 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
     2521 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
     2581 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
     2641 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
     2701 acggtgggag gtctatataa gcagagctct ccctatcagt gatagagatc tccctatcag
     2761 tgatagagat cgtcgactag tggatccagt gtggtggaat tctgcagata tccagcacag
     2821 tggcggccgc tcgagtctag agggcccgcg gttcgaaggt aagcctatcc ctaaccctct
     2881 cctcggtctc gattctacgc gtaccggtca tcatcaccat caccattgag tttaaacctg
     2941 ctgatcagcc tcgactgtgc cttctagtcg accctgtgga atgtgtgtca gttagggtgt
     3001 ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca
     3061 gcaaccaggt gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat
     3121 ctcaattagt cagcaaccat agtcccgccc ctaactccgc ccatcccgcc cctaactccg
     3181 cccagttccg cccattctcc gccccatggc tgactaattt tttttattta tgcagaggcc
     3241 gaggccgcct cggcctctga gctattccag aagtagtgag gaggcttttt tggaggccta
     3301 ggcttttgca aaaagcttac catgaccgag tacaagccca cggtgcgcct cgccacccgc
     3361 gacgacgtcc ccagggccgt acgcaccctc gccgccgcgt tcgccgacta ccccgccacg
     3421 cgccacaccg tcgatccgga ccgccacatc gagcgggtca ccgagctgca agaactcttc
     3481 ctcacgcgcg tcgggctcga catcggcaag gtgtgggtcg cggacgacgg cgccgcggtg
     3541 gcggtctgga ccacgccgga gagcgtcgaa gcgggggcgg tgttcgccga gatcggcccg
     3601 cgcatggccg agttgagcgg ttcccggctg gccgcgcagc aacagatgga aggcctcctg
     3661 gcgccgcacc ggcccaagga gcccgcgtgg ttcctggcca ccgtcggcgt ctcgcccgac
     3721 caccagggca agggtctggg cagcgccgtc gtgctccccg gagtggaggc ggccgagcgc
     3781 gccggggtgc ccgccttcct ggagacctcc gcgccccgca acctcccctt ctacgagcgg
     3841 ctcggcttca ccgtcaccgc cgacgtcgag gtgcccgaag gaccgcgcac ctggtgcatg
     3901 acccgcaagc ccggtgcctg aggtaccttt aagaccaatg acttacaagg cagctgtaga
     3961 tcttagccac tttttaaaag aaaagggggg actggaaggg ctaattcact cccaacgaag
     4021 acaagatctg ctttttgctt gtactgggtc tctctggtta gaccagatct gagcctggga
     4081 gctctctggc taactaggga acccactgct taagcctcaa taaagcttgc cttgagtgct
     4141 tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc tcagaccctt
     4201 ttagtcagtg tggaaaatct ctagcagtag tagttcatgt catcttatta ttcagtattt
     4261 ataacttgca aagaaatgaa tatcagagag tgagaggaac ttgtttattg cagcttataa
     4321 tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca
     4381 ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctggc tctagctatc
     4441 ccgcccctaa ctccgcccat cccgccccta actccgccca gttccgccca ttctccgccc
     4501 catggctgac taattttttt tatttatgca gaggccgagg ccgcctcggc ctctgagcta
     4561 ttccagaagt agtgaggagg cttttttgga ggcctaggga cgtacccaat tcgccctata
     4621 gtgagtcgta ttacgcgcgc tcactggccg tcgttttaca acgtcgtgac tgggaaaacc
     4681 ctggcgttac ccaacttaat cgccttgcag cacatccccc tttcgccagc tggcgtaata
     4741 gcgaagaggc ccgcaccgat cgcccttccc aacagttgcg cagcctgaat ggcgaatggg
     4801 acgcgccctg tagcggcgca ttaagcgcgg cgggtgtggt ggttacgcgc agcgtgaccg
     4861 ctacacttgc cagcgcccta gcgcccgctc ctttcgcttt cttcccttcc tttctcgcca
     4921 cgttcgccgg ctttccccgt caagctctaa atcgggggct ccctttaggg ttccgattta
     4981 gtgctttacg gcacctcgac cccaaaaaac ttgattaggg tgatggttca cgtagtgggc
     5041 catcgccctg atagacggtt tttcgccctt tgacgttgga gtccacgttc tttaatagtg
     5101 gactcttgtt ccaaactgga acaacactca accctatctc ggtctattct tttgatttat
     5161 aagggatttt gccgatttcg gcctattggt taaaaaatga gctgatttaa caaaaattta
     5221 acgcgaattt taacaaaata ttaacgctta caatttaggt ggcacttttc ggggaaatgt
     5281 gcgcggaacc cctatttgtt tatttttcta aatacattca aatatgtatc cgctcatgag
     5341 acaataaccc tgataaatgc ttcaataata ttgaaaaagg aagagtatga gtattcaaca
     5401 tttccgtgtc gcccttattc ccttttttgc ggcattttgc cttcctgttt ttgctcaccc
     5461 agaaacgctg gtgaaagtaa aagatgctga agatcagttg ggtgcacgag tgggttacat
     5521 cgaactggat ctcaacagcg gtaagatcct tgagagtttt cgccccgaag aacgttttcc
     5581 aatgatgagc acttttaaag ttctgctatg tggcgcggta ttatcccgta ttgacgccgg
     5641 gcaagagcaa ctcggtcgcc gcatacacta ttctcagaat gacttggttg agtactcacc
     5701 agtcacagaa aagcatctta cggatggcat gacagtaaga gaattatgca gtgctgccat
     5761 aaccatgagt gataacactg cggccaactt acttctgaca acgatcggag gaccgaagga
     5821 gctaaccgct tttttgcaca acatggggga tcatgtaact cgccttgatc gttgggaacc
     5881 ggagctgaat gaagccatac caaacgacga gcgtgacacc acgatgcctg tagcaatggc
     5941 aacaacgttg cgcaaactat taactggcga actacttact ctagcttccc ggcaacaatt
     6001 aatagactgg atggaggcgg ataaagttgc aggaccactt ctgcgctcgg cccttccggc
     6061 tggctggttt attgctgata aatctggagc cggtgagcgt gggtctcgcg gtatcattgc
     6121 agcactgggg ccagatggta agccctcccg tatcgtagtt atctacacga cggggagtca
     6181 ggcaactatg gatgaacgaa atagacagat cgctgagata ggtgcctcac tgattaagca
     6241 ttggtaactg tcagaccaag tttactcata tatactttag attgatttaa aacttcattt
     6301 ttaatttaaa aggatctagg tgaagatcct ttttgataat ctcatgacca aaatccctta
     6361 acgtgagttt tcgttccact gagcgtcaga ccccgtagaa aagatcaaag gatcttcttg
     6421 agatcctttt tttctgcgcg taatctgctg cttgcaaaca aaaaaaccac cgctaccagc
     6481 ggtggtttgt ttgccggatc aagagctacc aactcttttt ccgaaggtaa ctggcttcag
     6541 cagagcgcag ataccaaata ctgttcttct agtgtagccg tagttaggcc accacttcaa
     6601 gaactctgta gcaccgccta catacctcgc tctgctaatc ctgttaccag tggctgctgc
     6661 cagtggcgat aagtcgtgtc ttaccgggtt ggactcaaga cgatagttac cggataaggc
     6721 gcagcggtcg ggctgaacgg ggggttcgtg cacacagccc agcttggagc gaacgaccta
     6781 caccgaactg agatacctac agcgtgagct atgagaaagc gccacgcttc ccgaagggag
     6841 aaaggcggac aggtatccgg taagcggcag ggtcggaaca ggagagcgca cgagggagct
     6901 tccaggggga aacgcctggt atctttatag tcctgtcggg tttcgccacc tctgacttga
     6961 gcgtcgattt ttgtgatgct cgtcaggggg gcggagccta tggaaaaacg ccagcaacgc
     7021 ggccttttta cggttcctgg ccttttgctg gccttttgct cacatg
//

pLentipuro载体图谱质粒图谱pdf版和相关资料下载

pLentipuro载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
