pLenti.PGK.chFP.W

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pLenti.PGK.chFP.W
出品公司: 爱迪基因
目录编号: 51008
存储实验室: Rusty Lansford

载体骨架基本信息
载体名称: pRRLsin.cPPT.PGKp.eGFP.W
载体出品公司: L Naldini
载体抗性: 氨苄青霉素
空载体大小: --
完整质粒大小: 7375 bp
载体修饰: pLenti.pgk:chFP慢病毒载体衍生自pRRLsin.cPPT.PGKp.eGFP.W慢病毒载体,其包含组成型表达的人磷酸甘油酸激酶启动子(De Palma等,2003)。
载体类型: 哺乳细胞表达,慢病毒
筛选标记: --
高拷贝/低拷贝: 低拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: mChFP,mCherry FP
物种来源: --
插入大小: 711 bp
基因突变: --
GenBank编号 --
启动子 human PGK
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: BamH1(未破坏)
3' 克隆位点: Sal11(未破坏)
5' 测序引物 T3
3' 测序引物 SV40pA-R

文献引用方法
材料和方法部分: pLenti.PGK.chFP.W was a gift from Rusty Lansford (Addgene plasmid # 51008 ; http://n2t.net/addgene:51008 ; RRID:Addgene_51008)

载体图谱质粒图谱和多克隆位点信息

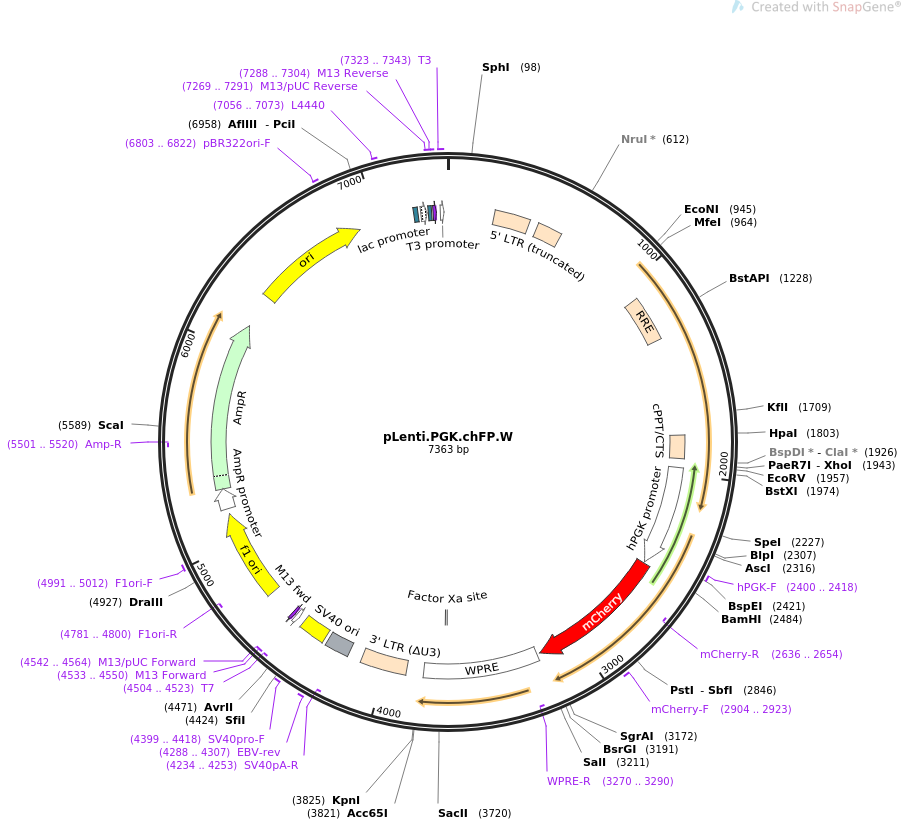

pLenti.PGK.chFP.W质粒图谱

载体简介

载体序列

LOCUS       pLenti.PGK.chFP.W                7363 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  Lentivector that expresses chFP from internal human PGK promoter.
ACCESSION   .
VERSION     .
KEYWORDS    pLenti.PGK.chFP.W
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7363)
  TITLE     Lentivirus
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 7363)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7363
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     LTR             236..416
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    460..585
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1078..1311
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1807..1924
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        1971..2481
                     /label=hPGK promoter
                     /note="human phosphoglycerate kinase 1 promoter"
     primer_bind     2400..2418
                     /label=hPGK-F
                     /note="Human PGK promoter, forward primer"
     CDS             2491..3201
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(2636..2654)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     2904..2923
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     misc_feature    3217..3805
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(3270..3290)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(3688..3699)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             3892..4125
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4197..4318
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4234..4253)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4288..4307
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      4337..4472
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     4399..4418
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(4504..4523)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(4505..4523)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(4533..4550)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(4533..4549)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4542..4564)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     rep_origin      4694..5149
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4781..4800)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4991..5012
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     promoter        5178..5282
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5283..6143
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(5501..5520)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      6314..6902
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6803..6822
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     7056..7073
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    7190..7211
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        7226..7256
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    7264..7280
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     7269..7291
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     7288..7304
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     7288..7304
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     7323..7343
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        7325..7343
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
ORIGIN
        1 agcttaatgt agtcttatgc aatactcttg tagtcttgca acatggtaac gatgagttag
       61 caacatgcct tacaaggaga gaaaaagcac cgtgcatgcc gattggtgga agtaaggtgg
      121 tacgatcgtg ccttattagg aaggcaacag acgggtctga catggattgg acgaaccact
      181 gaattgccgc attgcagaga tattgtattt aagtgcctag ctcgatacaa taaacgggtc
      241 tctctggtta gaccagatct gagcctggga gctctctggc taactaggga acccactgct
      301 taagcctcaa taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga
      361 ctctggtaac tagagatccc tcagaccctt ttagtcagtg tggaaaatct ctagcagtgg
      421 cgcccgaaca gggacctgaa agcgaaaggg aaaccagagc tctctcgacg caggactcgg
      481 cttgctgaag cgcgcacggc aagaggcgag gggcggcgac tggtgagtac gccaaaaatt
      541 ttgactagcg gaggctagaa ggagagagat gggtgcgaga gcgtcagtat taagcggggg
      601 agaattagat cgcgatggga aaaaattcgg ttaaggccag ggggaaagaa aaaatataaa
      661 ttaaaacata tagtatgggc aagcagggag ctagaacgat tcgcagttaa tcctggcctg
      721 ttagaaacat cagaaggctg tagacaaata ctgggacagc tacaaccatc ccttcagaca
      781 ggatcagaag aacttagatc attatataat acagtagcaa ccctctattg tgtgcatcaa
      841 aggatagaga taaaagacac caaggaagct ttagacaaga tagaggaaga gcaaaacaaa
      901 agtaagacca ccgcacagca agcggccgct gatcttcaga cctggaggag gagatatgag
      961 ggacaattgg agaagtgaat tatataaata taaagtagta aaaattgaac cattaggagt
     1021 agcacccacc aaggcaaaga gaagagtggt gcagagagaa aaaagagcag tgggaatagg
     1081 agctttgttc cttgggttct tgggagcagc aggaagcact atgggcgcag cctcaatgac
     1141 gctgacggta caggccagac aattattgtc tggtatagtg cagcagcaga acaatttgct
     1201 gagggctatt gaggcgcaac agcatctgtt gcaactcaca gtctggggca tcaagcagct
     1261 ccaggcaaga atcctggctg tggaaagata cctaaaggat caacagctcc tggggatttg
     1321 gggttgctct ggaaaactca tttgcaccac tgctgtgcct tggaatgcta gttggagtaa
     1381 taaatctctg gaacagattt ggaatcacac gacctggatg gagtgggaca gagaaattaa
     1441 caattacaca agcttaatac actccttaat tgaagaatcg caaaaccagc aagaaaagaa
     1501 tgaacaagaa ttattggaat tagataaatg ggcaagtttg tggaattggt ttaacataac
     1561 aaattggctg tggtatataa aattattcat aatgatagta ggaggcttgg taggtttaag
     1621 aatagttttt gctgtacttt ctatagtgaa tagagttagg cagggatatt caccattatc
     1681 gtttcagacc cacctcccaa ccccgagggg acccgacagg cccgaaggaa tagaagaaga
     1741 aggtggagag agagacagag acagatccat tcgattagtg aacggatctc gacggtatcg
     1801 gttaactttt aaaagaaaag gggggattgg ggggtacagt gcaggggaaa gaatagtaga
     1861 cataatagca acagacatac aaactaaaga attacaaaaa caaattacaa aaattcaaaa
     1921 ttttatcgat cacgagacta gcctcgagaa gcttgatatc gaattcccac ggggttgggg
     1981 ttgcgccttt tccaaggcag ccctgggttt gcgcagggac gcggctgctc tgggcgtggt
     2041 tccgggaaac gcagcggcgc cgaccctggg tctcgcacat tcttcacgtc cgttcgcagc
     2101 gtcacccgga tcttcgccgc tacccttgtg ggccccccgg cgacgcttcc tgctccgccc
     2161 ctaagtcggg aaggttcctt gcggttcgcg gcgtgccgga cgtgacaaac ggaagccgca
     2221 cgtctcacta gtaccctcgc agacggacag cgccagggag caatggcagc gcgccgaccg
     2281 cgatgggctg tggccaatag cggctgctca gcggggcgcg ccgagagcag cggccgggaa
     2341 ggggcggtgc gggaggcggg gtgtggggcg gtagtgtggg ccctgttcct gcccgcgcgg
     2401 tgttccgcat tctgcaagcc tccggagcgc acgtcggcag tcggctccct cgttgaccga
     2461 atcaccgacc tctctcccca gggggatccg atggtgagca agggcgagga ggataacatg
     2521 gccatcatca aggagttcat gcgcttcaag gtgcacatgg agggctccgt gaacggccac
     2581 gagttcgaga tcgagggcga gggcgagggc cgcccctacg agggcaccca gaccgccaag
     2641 ctgaaggtga ccaagggtgg ccccctgccc ttcgcctggg acatcctgtc ccctcagttc
     2701 atgtacggct ccaaggccta cgtgaagcac cccgccgaca tccccgacta cttgaagctg
     2761 tccttccccg agggcttcaa gtgggagcgc gtgatgaact tcgaggacgg cggcgtggtg
     2821 accgtgaccc aggactcctc cctgcaggac ggcgagttca tctacaaggt gaagctgcgc
     2881 ggcaccaact tcccctccga cggccccgta atgcagaaga agaccatggg ctgggaggcc
     2941 tcctccgagc ggatgtaccc cgaggacggc gccctgaagg gcgagatcaa gcagaggctg
     3001 aagctgaagg acggcggcca ctacgacgct gaggtcaaga ccacctacaa ggccaagaag
     3061 cccgtgcagc tgcccggcgc ctacaacgtc aacatcaagt tggacatcac ctcccacaac
     3121 gaggactaca ccatcgtgga acagtacgaa cgcgccgagg gccgccactc caccggcggc
     3181 atggacgagc tgtacaagta aagcggccgc gtcgacaatc aacctctgga ttacaaaatt
     3241 tgtgaaagat tgactggtat tcttaactat gttgctcctt ttacgctatg tggatacgct
     3301 gctttaatgc ctttgtatca tgctattgct tcccgtatgg ctttcatttt ctcctccttg
     3361 tataaatcct ggttgctgtc tctttatgag gagttgtggc ccgttgtcag gcaacgtggc
     3421 gtggtgtgca ctgtgtttgc tgacgcaacc cccactggtt ggggcattgc caccacctgt
     3481 cagctccttt ccgggacttt cgctttcccc ctccctattg ccacggcgga actcatcgcc
     3541 gcctgccttg cccgctgctg gacaggggct cggctgttgg gcactgacaa ttccgtggtg
     3601 ttgtcgggga agctgacgtc ctttccatgg ctgctcgcct gtgttgccac ctggattctg
     3661 cgcgggacgt ccttctgcta cgtcccttcg gccctcaatc cagcggacct tccttcccgc
     3721 ggcctgctgc cggctctgcg gcctcttccg cgtcttcgcc ttcgccctca gacgagtcgg
     3781 atctcccttt gggccgcctc cccgcctgga attcgagctc ggtaccttta agaccaatga
     3841 cttacaaggc agctgtagat cttagccact ttttaaaaga aaagggggga ctggaagggc
     3901 taattcactc ccaacgaaga caagatctgc tttttgcttg tactgggtct ctctggttag
     3961 accagatctg agcctgggag ctctctggct aactagggaa cccactgctt aagcctcaat
     4021 aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac tctggtaact
     4081 agagatccct cagacccttt tagtcagtgt ggaaaatctc tagcagtagt agttcatgtc
     4141 atcttattat tcagtattta taacttgcaa agaaatgaat atcagagagt gagaggaact
     4201 tgtttattgc agcttataat ggttacaaat aaagcaatag catcacaaat ttcacaaata
     4261 aagcattttt ttcactgcat tctagttgtg gtttgtccaa actcatcaat gtatcttatc
     4321 atgtctggct ctagctatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca
     4381 tggctgacta atttttttta tttatgcaga ggccgaggcc gcctcggcct ctgagctatt
     4441 ccagaagtag tgaggaggct tttttggagg cctaggcttt tgcgtcgaga cgtacccaat
     4501 tcgccctata gtgagtcgta ttacgcgcgc tcactggccg tcgttttaca acgtcgtgac
     4561 tgggaaaacc ctggcgttac ccaacttaat cgccttgcag cacatccccc tttcgccagc
     4621 tggcgtaata gcgaagaggc ccgcaccgat cgcccttccc aacagttgcg cagcctgaat
     4681 ggcgaatggc gcgacgcgcc ctgtagcggc gcattaagcg cggcgggtgt ggtggttacg
     4741 cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc tttcttccct
     4801 tcctttctcg ccacgttcgc cggctttccc cgtcaagctc taaatcgggg gctcccttta
     4861 gggttccgat ttagtgcttt acggcacctc gaccccaaaa aacttgatta gggtgatggt
     4921 tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg
     4981 ttctttaata gtggactctt gttccaaact ggaacaacac tcaaccctat ctcggtctat
     5041 tcttttgatt tataagggat tttgccgatt tcggcctatt ggttaaaaaa tgagctgatt
     5101 taacaaaaat ttaacgcgaa ttttaacaaa atattaacgt ttacaatttc ccaggtggca
     5161 cttttcgggg aaatgtgcgc ggaaccccta tttgtttatt tttctaaata cattcaaata
     5221 tgtatccgct catgagacaa taaccctgat aaatgcttca ataatattga aaaaggaaga
     5281 gtatgagtat tcaacatttc cgtgtcgccc ttattccctt ttttgcggca ttttgccttc
     5341 ctgtttttgc tcacccagaa acgctggtga aagtaaaaga tgctgaagat cagttgggtg
     5401 cacgagtggg ttacatcgaa ctggatctca acagcggtaa gatccttgag agttttcgcc
     5461 ccgaagaacg ttttccaatg atgagcactt ttaaagttct gctatgtggc gcggtattat
     5521 cccgtattga cgccgggcaa gagcaactcg gtcgccgcat acactattct cagaatgact
     5581 tggttgagta ctcaccagtc acagaaaagc atcttacgga tggcatgaca gtaagagaat
     5641 tatgcagtgc tgccataacc atgagtgata acactgcggc caacttactt ctgacaacga
     5701 tcggaggacc gaaggagcta accgcttttt tgcacaacat gggggatcat gtaactcgcc
     5761 ttgatcgttg ggaaccggag ctgaatgaag ccataccaaa cgacgagcgt gacaccacga
     5821 tgcctgtagc aatggcaaca acgttgcgca aactattaac tggcgaacta cttactctag
     5881 cttcccggca acaattaata gactggatgg aggcggataa agttgcagga ccacttctgc
     5941 gctcggccct tccggctggc tggtttattg ctgataaatc tggagccggt gagcgtgggt
     6001 ctcgcggtat cattgcagca ctggggccag atggtaagcc ctcccgtatc gtagttatct
     6061 acacgacggg gagtcaggca actatggatg aacgaaatag acagatcgct gagataggtg
     6121 cctcactgat taagcattgg taactgtcag accaagttta ctcatatata ctttagattg
     6181 atttaaaact tcatttttaa tttaaaagga tctaggtgaa gatccttttt gataatctca
     6241 tgaccaaaat cccttaacgt gagttttcgt tccactgagc gtcagacccc gtagaaaaga
     6301 tcaaaggatc ttcttgagat cctttttttc tgcgcgtaat ctgctgcttg caaacaaaaa
     6361 aaccaccgct accagcggtg gtttgtttgc cggatcaaga gctaccaact ctttttccga
     6421 aggtaactgg cttcagcaga gcgcagatac caaatactgt ccttctagtg tagccgtagt
     6481 taggccacca cttcaagaac tctgtagcac cgcctacata cctcgctctg ctaatcctgt
     6541 taccagtggc tgctgccagt ggcgataagt cgtgtcttac cgggttggac tcaagacgat
     6601 agttaccgga taaggcgcag cggtcgggct gaacgggggg ttcgtgcaca cagcccagct
     6661 tggagcgaac gacctacacc gaactgagat acctacagcg tgagctatga gaaagcgcca
     6721 cgcttcccga agggagaaag gcggacaggt atccggtaag cggcagggtc ggaacaggag
     6781 agcgcacgag ggagcttcca gggggaaacg cctggtatct ttatagtcct gtcgggtttc
     6841 gccacctctg acttgagcgt cgatttttgt gatgctcgtc aggggggcgg agcctatgga
     6901 aaaacgccag caacgcggcc tttttacggt tcctggcctt ttgctggcct tttgctcaca
     6961 tgttctttcc tgcgttatcc cctgattctg tggataaccg tattaccgcc tttgagtgag
     7021 ctgataccgc tcgccgcagc cgaacgaccg agcgcagcga gtcagtgagc gaggaagcgg
     7081 aagagcgccc aatacgcaaa ccgcctctcc ccgcgcgttg gccgattcat taatgcagct
     7141 ggcacgacag gtttcccgac tggaaagcgg gcagtgagcg caacgcaatt aatgtgagtt
     7201 agctcactca ttaggcaccc caggctttac actttatgct tccggctcgt atgttgtgtg
     7261 gaattgtgag cggataacaa tttcacacag gaaacagcta tgaccatgat tacgccaagc
     7321 gcgcaattaa ccctcactaa agggaacaaa agctggagct gca
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
