pMDIAI

价格:1800元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pMDIAI
出品公司: Addgene
目录编号: 51655
存储实验室: Sheng Yang

载体骨架基本信息
载体名称: pMD18-T Simple
载体出品公司: Takara
空载体大小: 2600 bp
完整质粒大小: 4104bp
载体类型: genetic modification
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: apramycin antibiotic resistance gene
插入大小: 1500 bp
启动子: 未知
克隆方法: TOPO Cloning
5’测序引物 M13F
3’测序引物 M13R

文献引用方法
材料和方法部分: pMDIAI was a gift from Sheng Yang (Addgene plasmid # 51655 ; http://n2t.net/addgene:51655 ; RRID:Addgene_51655)
参考文献部分: High-Efficiency Scarless Genetic Modification in Escherichia coli by Using Lambda Red Recombination and I-SceI Cleavage. Yang J, Sun B, Huang H, Jiang Y, Diao L, Chen B, Xu C, Wang X, Liu J, Jiang W, Yang S. Appl Environ Microbiol. 2014 Jul 1;80(13):3826-3834. Epub 2014 Apr 18. 10.1128/AEM.00313-14 PubMed 24747889

载体图谱质粒图谱和多克隆位点信息

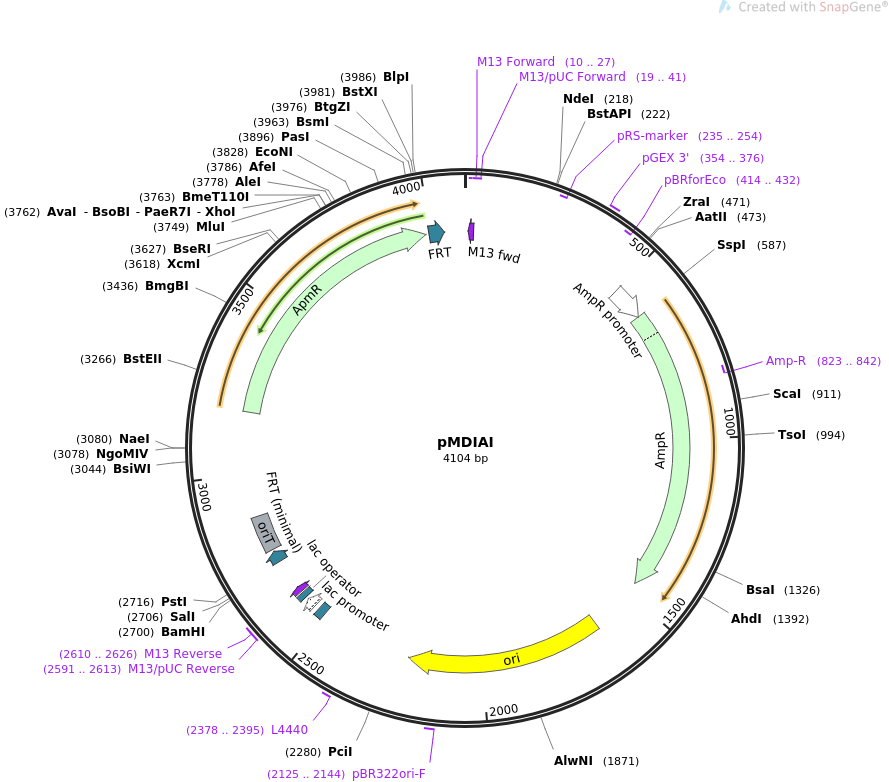

pMDIAI载体图谱

载体简介

载体序列

LOCUS       pMDIAI                4104 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  E coli genetic modification.
ACCESSION   .
VERSION     .
KEYWORDS    pMDIAI
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4104)
  AUTHORS   Yang J, Sun B, Huang H, Jiang Y, Diao L, Chen B, Xu C, Wang X, Liu
            J, Jiang W, Yang S
  TITLE     High-Efficiency Scarless Genetic Modification in Escherichia coli by
            Using Lambda Red Recombination and I-SceI Cleavage.
  JOURNAL   Appl Environ Microbiol. 2014 Jul 1;80(13):3826-3834. Epub 2014 Apr
            18.
  PUBMED    24747889
REFERENCE   2  (bases 1 to 4104)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4104
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(10..27)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(10..26)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(19..41)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     complement(235..254)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     354..376
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(414..432)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        500..604
                     /gene="bla"
                     /label=AmpR promoter
     CDS             605..1465
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(823..842)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      1636..2224
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     2125..2144
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     2378..2395
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    2512..2533
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        2548..2578
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    2586..2602
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     2591..2613
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     2610..2626
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     2610..2626
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     protein_bind    2721..2754
                     /label=FRT (minimal)
                     /bound_moiety="FLP recombinase from the Saccharomyces
                     cerevisiae 2u plasmid"
                     /note="supports FLP-mediated excision but not integration
                     (Turan and Bode, 2011)"
     oriT            2761..2870
                     /note="incP origin of transfer"
     CDS             3186..3986
                     /codon_start=1
                     /gene="aac(3)IV"
                     /product="aminoglycoside 3-N-acetyltransferase type IV
                               "
                     /label=ApmR
                     /note="confers resistance to apramycin (Paget and Davies,
                     1996)"
                     /translation="MSSAVECNVVQYEWRKAELIGQLLNLGVTPGGVLLVHSSFRSVRP
                     LEDGPLGLIEALRAALGPGGTLVMPSWSGLDDEPFDPATSPVTPDLGVVSDTFWRLPNV
                     KRSAHPFAFAAAGPQAEQIISDPLPLPPHSPASPVARVHELDGQVLLLGVGHDANTTLH
                     LAELMAKVPYGVPRHCTILQDGKLVRVDYLENDHCCERFALADRWLKEKSLQKEGPVGH
                     AFARLIRSRDIVATALGQLGRDPLIFLHPPEAGCEECDAARQSIG"
     protein_bind    3996..4042
                     /label=FRT
                     /bound_moiety="FLP recombinase from the Saccharomyces
                     cerevisiae 2u plasmid"
                     /note="FLP-mediated recombination occurs in the 8-bp core
                     sequence TCTAGAAA (Turan and Bode, 2011)."
ORIGIN
        1 ttctttggca ctggccgtcg ttttacaacg tcgtgactgg gaaaaccctg gcgttaccca
       61 acttaatcgc cttgcagcac atcccccttt cgccagctgg cgtaatagcg aagaggcccg
      121 caccgatcgc ccttcccaac agttgcgcag cctgaatggc gaatggcgcc tgatgcggta
      181 ttttctcctt acgcatctgt gcggtatttc acaccgcata tggtgcactc tcagtacaat
      241 ctgctctgat gccgcatagt taagccagcc ccgacacccg ccaacacccg ctgacgcgcc
      301 ctgacgggct tgtctgctcc cggcatccgc ttacagacaa gctgtgaccg tctccgggag
      361 ctgcatgtgt cagaggtttt caccgtcatc accgaaacgc gcgagacgaa agggcctcgt
      421 gatacgccta tttttatagg ttaatgtcat gataataatg gtttcttaga cgtcaggtgg
      481 cacttttcgg ggaaatgtgc gcggaacccc tatttgttta tttttctaaa tacattcaaa
      541 tatgtatccg ctcatgagac aataaccctg ataaatgctt caataatatt gaaaaaggaa
      601 gagtatgagt attcaacatt tccgtgtcgc ccttattccc ttttttgcgg cattttgcct
      661 tcctgttttt gctcacccag aaacgctggt gaaagtaaaa gatgctgaag atcagttggg
      721 tgcacgagtg ggttacatcg aactggatct caacagcggt aagatccttg agagttttcg
      781 ccccgaagaa cgttttccaa tgatgagcac ttttaaagtt ctgctatgtg gcgcggtatt
      841 atcccgtatt gacgccgggc aagagcaact cggtcgccgc atacactatt ctcagaatga
      901 cttggttgag tactcaccag tcacagaaaa gcatcttacg gatggcatga cagtaagaga
      961 attatgcagt gctgccataa ccatgagtga taacactgcg gccaacttac ttctgacaac
     1021 gatcggagga ccgaaggagc taaccgcttt tttgcacaac atgggggatc atgtaactcg
     1081 ccttgatcgt tgggaaccgg agctgaatga agccatacca aacgacgagc gtgacaccac
     1141 gatgcctgta gcaatggcaa caacgttgcg caaactatta actggcgaac tacttactct
     1201 agcttcccgg caacaattaa tagactggat ggaggcggat aaagttgcag gaccacttct
     1261 gcgctcggcc cttccggctg gctggtttat tgctgataaa tctggagccg gtgagcgtgg
     1321 gtctcgcggt atcattgcag cactggggcc agatggtaag ccctcccgta tcgtagttat
     1381 ctacacgacg gggagtcagg caactatgga tgaacgaaat agacagatcg ctgagatagg
     1441 tgcctcactg attaagcatt ggtaactgtc agaccaagtt tactcatata tactttagat
     1501 tgatttaaaa cttcattttt aatttaaaag gatctaggtg aagatccttt ttgataatct
     1561 catgaccaaa atcccttaac gtgagttttc gttccactga gcgtcagacc ccgtagaaaa
     1621 gatcaaagga tcttcttgag atcctttttt tctgcgcgta atctgctgct tgcaaacaaa
     1681 aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa gagctaccaa ctctttttcc
     1741 gaaggtaact ggcttcagca gagcgcagat accaaatact gttcttctag tgtagccgta
     1801 gttaggccac cacttcaaga actctgtagc accgcctaca tacctcgctc tgctaatcct
     1861 gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt accgggttgg actcaagacg
     1921 atagttaccg gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca cacagcccag
     1981 cttggagcga acgacctaca ccgaactgag atacctacag cgtgagctat gagaaagcgc
     2041 cacgcttccc gaagggagaa aggcggacag gtatccggta agcggcaggg tcggaacagg
     2101 agagcgcacg agggagcttc cagggggaaa cgcctggtat ctttatagtc ctgtcgggtt
     2161 tcgccacctc tgacttgagc gtcgattttt gtgatgctcg tcaggggggc ggagcctatg
     2221 gaaaaacgcc agcaacgcgg cctttttacg gttcctggcc ttttgctggc cttttgctca
     2281 catgttcttt cctgcgttat cccctgattc tgtggataac cgtattaccg cctttgagtg
     2341 agctgatacc gctcgccgca gccgaacgac cgagcgcagc gagtcagtga gcgaggaagc
     2401 ggaagagcgc ccaatacgca aaccgcctct ccccgcgcgt tggccgattc attaatgcag
     2461 ctggcacgac aggtttcccg actggaaagc gggcagtgag cgcaacgcaa ttaatgtgag
     2521 ttagctcact cattaggcac cccaggcttt acactttatg cttccggctc gtatgttgtg
     2581 tggaattgtg agcggataac aatttcacac aggaaacagc tatgaccatg attacgaact
     2641 cgtcctcggt tcccggcgat cctctggaga ttatattacc ctgttatccc taattccggg
     2701 gatccgtcga cctgcagttc gaagttccta ttctctagaa agtataggaa cttcgaagtt
     2761 cccgccagcc tcgcagagca ggattcccgt tgagcaccgc caggtgcgaa taagggacag
     2821 tgaagaagga acacccgctc gcgggtgggc ctacttcacc tatcctgccc ggctgacgcc
     2881 gttggataca ccaaggaaag tctacacgaa ccctttggca aaatcctgta tatcgtgcga
     2941 aaaaggatgg atataccgaa aaaatcgcta taatgacccc gaagcagggt tatgcagcgg
     3001 aaaatgcagc tcacggtaac tgatgccgta tttgcagtac cagcgtacgg cccacagaat
     3061 gatgtcacgc tgaaaatgcc ggcctttgaa tgggttcatg tgcagctcca taagcaaaag
     3121 gggatgataa gtttatcacc accgactatt tgcaacagtg ccgttgatcg tgctatgatc
     3181 gactgatgtc atcagcggtg gagtgcaatg tcgtgcaata cgaatggcga aaagccgagc
     3241 tcatcggtca gcttctcaac cttggggtta cccccggcgg tgtgctgctg gtccacagct
     3301 ccttccgtag cgtccggccc ctcgaagatg ggccacttgg actgatcgag gccctgcgtg
     3361 ctgcgctggg tccgggaggg acgctcgtca tgccctcgtg gtcaggtctg gacgacgagc
     3421 cgttcgatcc tgccacgtcg cccgttacac cggaccttgg agttgtctct gacacattct
     3481 ggcgcctgcc aaatgtaaag cgcagcgccc atccatttgc ctttgcggca gcggggccac
     3541 aggcagagca gatcatctct gatccattgc ccctgccacc tcactcgcct gcaagcccgg
     3601 tcgcccgtgt ccatgaactc gatgggcagg tacttctcct cggcgtggga cacgatgcca
     3661 acacgacgct gcatcttgcc gagttgatgg caaaggttcc ctatggggtg ccgagacact
     3721 gcaccattct tcaggatggc aagttggtac gcgtcgatta tctcgagaat gaccactgct
     3781 gtgagcgctt tgccttggcg gacaggtggc tcaaggagaa gagccttcag aaggaaggtc
     3841 cagtcggtca tgcctttgct cggttgatcc gctcccgcga cattgtggcg acagccctgg
     3901 gtcaactggg ccgagatccg ttgatcttcc tgcatccgcc agaggcggga tgcgaagaat
     3961 gcgatgccgc tcgccagtcg attggctgag ctcataagtt cctattccga agttcctatt
     4021 ctctagaaag tataggaact tcgaagcagc tccagcctac acattaccct gttatcccta
     4081 ataatcgtcc acttgccgtc atgc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
