pMaCTag-P34

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pMaCTagP34载体基本信息

质粒名称: pMaCTag-P34
出品公司: Addgene
目录编号: 120030
存储实验室: Michael Knop

载体骨架基本信息
载体名称: pFA6a
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 2412 bp
完整质粒大小: --
载体修饰: --
载体类型: PCR模板
筛选标记: 嘌呤霉素
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: 3xFLAG
物种来源: H. sapiens (human)
插入大小: --
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: 3xFLAG(主干上的C终端)
克隆方法: 限制性内切酶
5' 克隆位点: BamHI(未破坏)
3' 克隆位点: SpeI  (未破坏)
5' 测序引物 SP6
3' 测序引物 AAACCACAACTAGAATGCAGTG

文献引用方法
材料和方法部分: pMaCTag-P34 was a gift from Michael Knop (Addgene plasmid # 120030 ; http://n2t.net/addgene:120030 ; RRID:Addgene_120030)
参考文献部分: CRISPR-Cas12a-assisted PCR tagging of mammalian genes. Fueller J, Herbst K, Meurer M, Gubicza K, Kurtulmus B, Knopf JD, Kirrmaier D, Buchmuller BC, Pereira G, Lemberg MK, Knop M. J Cell Biol. 2020 Jun 1;219(6). pii: 151766. doi: 10.1083/jcb.201910210. 10.1083/jcb.201910210 PubMed 32406907

pMaCTagP34载体图谱质粒图谱和多克隆位点信息

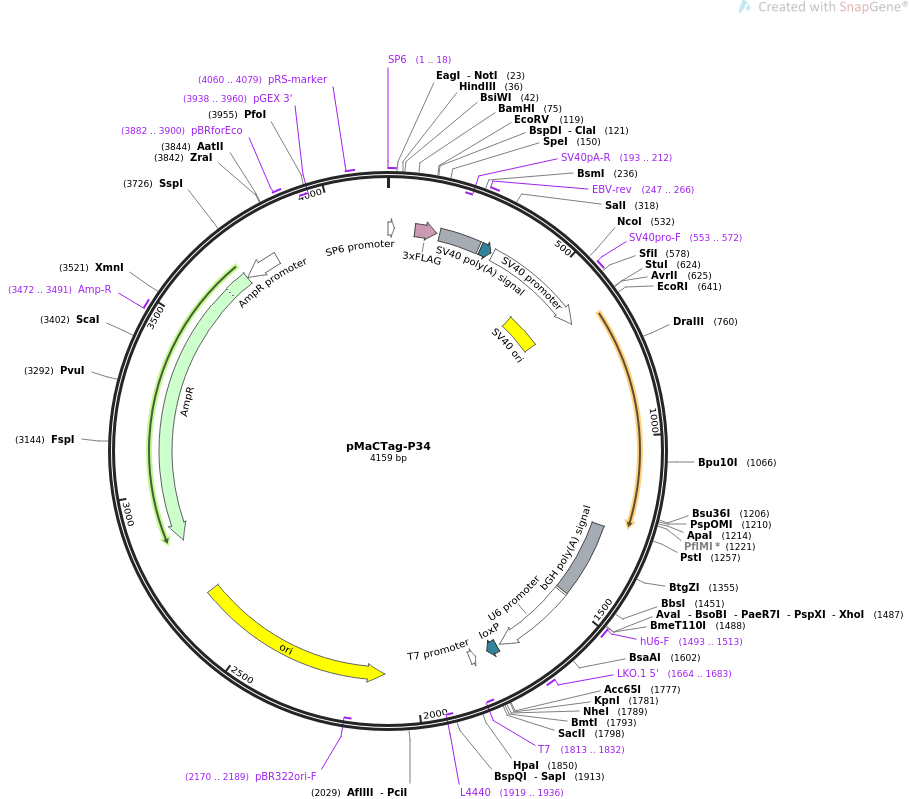

pMaCTag-P34质粒图谱

pMaCTagP34载体简介

pMaCTagP34载体序列

LOCUS       pMaCTag-P34              4159 bp ds-DNA     circular SYN 08-JAN-2019
DEFINITION  Template for C-terminal PCR tagging of mammalian genes (Puromycin
            selection) with 3xFLAG.
ACCESSION   .
VERSION     .
KEYWORDS    pMaCTag-P34
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4159)
  AUTHORS   Fueller J, Meurer M, Herbst K, Gubicza K, Kurtulmus B, Knopf JD,
            Kirrmaier D, Buchmuller B, Pereira G, Lemberg MK, Knop M
  TITLE     CRISPR/Cas12a-assisted PCR tagging of mammalian genes
  JOURNAL   bioRxiv
REFERENCE   2  (bases 1 to 4159)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jan 8, 2019 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4159
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        1..19
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     1..18
                     /label=SP6
                     /note="SP6 promoter, forward primer"
     CDS             81..146
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     polyA_signal    156..277
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(193..212)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     247..266
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     protein_bind    284..317
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     promoter        324..640
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      491..626
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     553..572
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     polyA_signal    1262..1486
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     promoter        1493..1733
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     1493..1513
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     1664..1683
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     protein_bind    1743..1776
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     primer_bind     complement(1813..1832)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(1814..1832)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(1919..1936)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(2090..2678)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(2170..2189)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(2849..3709)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     3472..3491
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(3710..3814)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     3882..3900
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(3938..3960)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     4060..4079
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
ORIGIN
        1 atttaggtga cactatagaa cgcggccgcc agctgaagct tcgtacgtca ggtggaggag
       61 gtagtggcgg aggcggatcc gactacaaag accatgacgg tgattataaa gatcatgata
      121 tcgattacaa ggatgacgat gacaagtaga ctagtaactt gtttattgca gcttataatg
      181 gttacaaata aagcaatagc atcacaaatt tcacaaataa agcatttttt tcactgcatt
      241 ctagttgtgg tttgtccaaa ctcatcaatg tatcttagtc gatataactt cgtatagcat
      301 acattatacg aagttatgtc gacggtgtgg aaagtcccca ggctccccag caggcagaag
      361 tatgcaaagc atgcatctca attagtcagc aaccaggtgt ggaaagtccc caggctcccc
      421 agcaggcaga agtatgcaaa gcatgcatct caattagtca gcaaccatag tcccgcccct
      481 aactccgccc atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg
      541 actaattttt tttatttatg cagaggccga ggccgcctcg gcctctgagc tattccagaa
      601 gtagtgagga ggcttttttg gaggcctagg cttttgcaaa gaattcgcca ccatgactga
      661 gtacaagcct actgtgcgtt tagccaccag ggatgatgtg ccacgagccg tgaggacact
      721 agcagccgcc tttgctgact acccagctac aaggcacacc gtggaccctg acagacacat
      781 tgaaagagtc acagaacttc aggagctgtt tttaactagg gtgggcctgg atattggcaa
      841 agtctgggtg gccgatgatg gagcagcagt tgcagtgtgg accaccccag agtctgttga
      901 agctggagct gtctttgcag aaattggacc aagaatggcc gagttatctg gcagcaggct
      961 ggctgctcaa cagcagatgg aaggattatt agctccccac agacccaagg agcctgcctg
     1021 gttcctggca acagttggag tttctccaga ccatcagggc aagggcttag gatctgctgt
     1081 ggtgctgcct ggtgtggaag cagctgagag agctggggtg ccagcatttc tggagacatc
     1141 agctcctaga aacctgccct tctatgaacg gctgggcttc acagtgactg ctgatgtgga
     1201 ggtgcctgag ggccccagaa cctggtgcat gacaagaaaa ccaggagcct gactgcagcg
     1261 actgtgcctt ctagttgcca gccatctgtt gtttgcccct cccccgtgcc ttccttgacc
     1321 ctggaaggtg ccactcccac tgtcctttcc taataaaatg aggaaattgc atcgcattgt
     1381 ctgagtaggt gtcattctat tctggggggt ggggtggggc aggacagcaa gggggaggat
     1441 tgggaagaca atagcaggca tgctggggat gcggtgggct ctatggctcg aggagggcct
     1501 atttcccatg attccttcat atttgcatat acgatacaag gctgttagag agataattgg
     1561 aattaatttg actgtaaaca caaagatatt agtacaaaat acgtgacgta gaaagtaata
     1621 atttcttggg tagtttgcag ttttaaaatt atgttttaaa atggactatc atatgcttac
     1681 cgtaacttga aagtatttcg atttcttggc tttatatatc ttgtggaaag gacgaaacac
     1741 cgataacttc gtatagcata cattatacga agttatggta ccgatgcagc tagcccgcgg
     1801 atctgccggt ctccctatag tgagtcgtat taatttcgat aagccaggtt aacctgcatt
     1861 aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct tccgcttcct
     1921 cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca gctcactcaa
     1981 aggcggtaat acggttatcc acagaatcag gggataacgc aggaaagaac atgtgagcaa
     2041 aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc
     2101 tccgcccccc tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga
     2161 caggactata aagataccag gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc
     2221 cgaccctgcc gcttaccgga tacctgtccg cctttctccc ttcgggaagc gtggcgcttt
     2281 ctcatagctc acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc aagctgggct
     2341 gtgtgcacga accccccgtt cagcccgacc gctgcgcctt atccggtaac tatcgtcttg
     2401 agtccaaccc ggtaagacac gacttatcgc cactggcagc agccactggt aacaggatta
     2461 gcagagcgag gtatgtaggc ggtgctacag agttcttgaa gtggtggcct aactacggct
     2521 acactagaag aacagtattt ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa
     2581 gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt
     2641 gcaagcagca gattacgcgc agaaaaaaag gatctcaaga agatcctttg atcttttcta
     2701 cggggtctga cgctcagtgg aacgaaaact cacgttaagg gattttggtc atgagattat
     2761 caaaaaggat cttcacctag atccttttaa attaaaaatg aagttttaaa tcaatctaaa
     2821 gtatatatga gtaaacttgg tctgacagtt accaatgctt aatcagtgag gcacctatct
     2881 cagcgatctg tctatttcgt tcatccatag ttgcctgact ccccgtcgtg tagataacta
     2941 cgatacggga gggcttacca tctggcccca gtgctgcaat gataccgcga gacccacgct
     3001 caccggctcc agatttatca gcaataaacc agccagccgg aagggccgag cgcagaagtg
     3061 gtcctgcaac tttatccgcc tccatccagt ctattaattg ttgccgggaa gctagagtaa
     3121 gtagttcgcc agttaatagt ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt
     3181 cacgctcgtc gtttggtatg gcttcattca gctccggttc ccaacgatca aggcgagtta
     3241 catgatcccc catgttgtgc aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca
     3301 gaagtaagtt ggccgcagtg ttatcactca tggttatggc agcactgcat aattctctta
     3361 ctgtcatgcc atccgtaaga tgcttttctg tgactggtga gtactcaacc aagtcattct
     3421 gagaatagtg tatgcggcga ccgagttgct cttgcccggc gtcaatacgg gataataccg
     3481 cgccacatag cagaacttta aaagtgctca tcattggaaa acgttcttcg gggcgaaaac
     3541 tctcaaggat cttaccgctg ttgagatcca gttcgatgta acccactcgt gcacccaact
     3601 gatcttcagc atcttttact ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa
     3661 atgccgcaaa aaagggaata agggcgacac ggaaatgttg aatactcata ctcttccttt
     3721 ttcaatatta ttgaagcatt tatcagggtt attgtctcat gagcggatac atatttgaat
     3781 gtatttagaa aaataaacaa ataggggttc cgcgcacatt tccccgaaaa gtgccacctg
     3841 acgtctaaga aaccattatt atcatgacat taacctataa aaataggcgt atcacgaggc
     3901 cctttcgtct cgcgcgtttc ggtgatgacg gtgaaaacct ctgacacatg cagctcccgg
     3961 agacggtcac agcttgtctg taagcggatg ccgggagcag acaagcccgt cagggcgcgt
     4021 cagcgggtgt tggcgggtgt cggggctggc ttaactatgc ggcatcagag cagattgtac
     4081 tgagagtgca ccatatggac atattgtcgt tagaacgcgg ctacaattaa tacataacct
     4141 tatgtatcat acacatacg
//

pMaCTagP34载体图谱质粒图谱pdf版和相关资料下载

pMaCTagP34载体质粒应用举例
