pN094

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pN094
出品公司: Addgene
目录编号: 167155
存储实验室: Karen Sarkisyan

载体骨架基本信息
载体名称: Level1-like (position 6)
空载体大小: 4456 bp
载体类型: 植物表达
载体抗性: 氨苄青霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: p35s-npgA-ocsT
物种来源: Aspergillus nidulans
插入大小: 2198 bp
启动子: p35s
克隆方法: 限制性内切酶
5’克隆位点: BsaI(在克隆过程中被破坏)
3’克隆位点: BsaI(在克隆过程中被破坏)
5’测序引物 ggtggcaggatatattgtggtgtaaac
3’测序引物 ttcacgcccttttaaatatcc

文献引用方法
材料和方法部分: pN094 was a gift from Karen Sarkisyan (Addgene plasmid # 167155 ; http://n2t.net/addgene:167155 ; RRID:Addgene_167155)
参考文献部分: Plants with genetically encoded autoluminescence. Mitiouchkina T, Mishin AS, Somermeyer LG, Markina NM, Chepurnyh TV, Guglya EB, Karataeva TA, Palkina KA, Shakhova ES, Fakhranurova LI, Chekova SV, Tsarkova AS, Golubev YV, Negrebetsky VV, Dolgushin SA, Shalaev PV, Shlykov D, Melnik OA, Shipunova VO, Deyev SM, Bubyrev AI, Pushin AS, Choob VV, Dolgov SV, Kondrashov FA, Yampolsky IV, Sarkisyan KS. Nat Biotechnol. 2020 Apr 27. pii: 10.1038/s41587-020-0500-9. doi: 10.1038/s41587-020-0500-9. 10.1038/s41587-020-0500-9 PubMed 32341562

载体图谱质粒图谱和多克隆位点信息

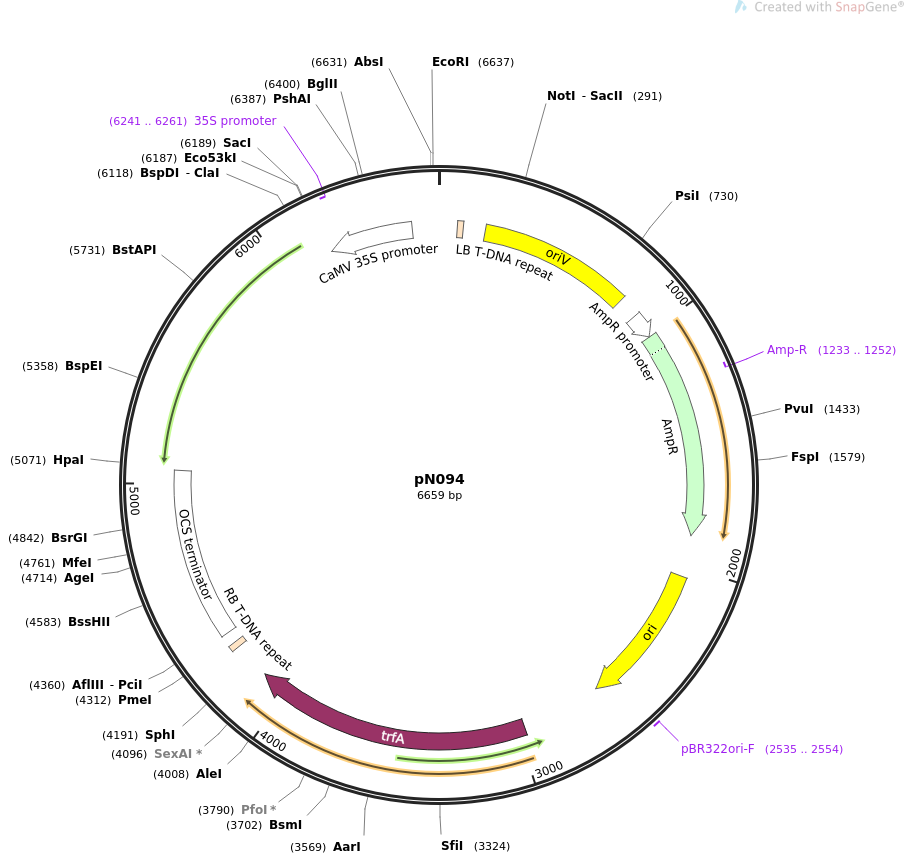

pN094质粒图谱

载体简介

载体序列

LOCUS       pN094                6659 bp ds-DNA     circular SYN 17-JUN-2021
DEFINITION  MoClo-compatible Level1 (position 6) vector encoding Aspergillus
            nidulans 4'-phosphopantetheinyl transferase NpgA under control of
            0.4 kb 35S promoter, for expression in plants.
ACCESSION   .
VERSION     .
KEYWORDS    pN094
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6659)
  AUTHORS   Mitiouchkina T, Mishin AS, Somermeyer LG, Markina NM, Chepurnyh TV,
            Guglya EB, Karataeva TA, Palkina KA, Shakhova ES, Fakhranurova LI,
            Chekova SV, Tsarkova AS, Golubev YV, Negrebetsky VV, Dolgushin SA,
            Shalaev PV, Shlykov D, Melnik OA, Shipunova VO, Deyev SM, Bubyrev
            AI, Pushin AS, Choob VV, Dolgov SV, Kondrashov FA, Yampolsky IV,
            Sarkisyan KS
  TITLE     Plants with genetically encoded autoluminescence.
  JOURNAL   Nat Biotechnol. 2020 Apr 27. pii: 10.1038/s41587-020-0500-9. doi:
            10.1038/s41587-020-0500-9.
  PUBMED    32341562
REFERENCE   2  (bases 1 to 6659)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jun 17, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6659
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     misc_feature    76..100
                     /label=LB T-DNA repeat
                     /note="left border repeat from nopaline C58 T-DNA"
     rep_origin      192..823
                     /label=oriV
                     /note="incP origin of replication"
     promoter        910..1014
                     /gene="bla"
                     /label=AmpR promoter
     CDS             1015..1875
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(1233..1252)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      2046..2634
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     2535..2554
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             2970..4118
                     /codon_start=1
                     /product="trans-acting replication protein that binds to
                     and activates oriV"
                     /label=trfA
                     /translation="MNRTFDRKAYRQELIDAGFSAEDAETIASRTVMRAPRETFQSVGS
                     MVQQATAKIERDSVQLAPPALPAPSAAVERSRRLEQEAAGLAKSMTIDTRGTMTTKKRK
                     TAGEDLAKQVSEAKQAALLKHTKQQIKEMQLSLFDIAPWPDTMRAMPNDTARSALFTTR
                     NKKIPREALQNKVIFHVNKDVKITYTGVELRADDDELVWQQVLEYAKRTPIGEPITFTF
                     YELCQDLGWSINGRYYTKAEECLSRLQATAMGFTSDRVGHLESVSLLHRFRVLDRGKKT
                     SRCQVLIDEEIVVLFAGDHYTKFIWEKYRKLSPTARRMFDYFSSHREPYPLKLETFRLM
                     CGSDSTRVKKWREQVGEACEELRGSGLVEHAWVNDDLVHCKR"
     misc_feature    4274..4298
                     /label=RB T-DNA repeat
                     /note="right border repeat from nopaline C58 T-DNA"
     terminator      4347..5054
                     /label=OCS terminator
                     /note="octopine synthase terminator"
     promoter        complement(6204..6549)
                     /label=CaMV 35S promoter
                     /note="strong constitutive promoter from cauliflower mosaic
                     virus"
     primer_bind     complement(6241..6261)
                     /label=35S promoter
                     /note="CaMV 35S promoter, forward primer"
ORIGIN
        1 gtggggccca ctgcatccac cccagtacat taaaaacgtc cgcaatgtgt tattaagttg
       61 tctaagcgtc aatttgttta caccacaata tatcctgcca ccagccagcc aacagctccc
      121 cgaccggcag ctcggcacaa aatcaccact cgatacaggc agcccatcag tcagatcagg
      181 atctcctttg cgacgctcac cgggctggtt gccctcgccg ctgggctggc ggccgtctat
      241 ggccctgcaa acgcgccaga aacgccgtcg aagccgtgtg cgagacaccg cggccgccgg
      301 cgttgtggat acctcgcgga aaacttggcc ctcactgaca gatgaggggc ggacgttgac
      361 acttgagggg ccgactcacc cggcgcggcg ttgacagatg aggggcaggc tcgatttcgg
      421 ccggcgacgt ggagctggcc agcctcgcaa atcggcgaaa acgcctgatt ttacgcgagt
      481 ttcccacaga tgatgtggac aagcctgggg ataagtgccc tgcggtattg acacttgagg
      541 ggcgcgacta ctgacagatg aggggcgcga tccttgacac ttgaggggca gagtgctgac
      601 agatgagggg cgcacctatt gacatttgag gggctgtcca caggcagaaa atccagcatt
      661 tgcaagggtt tccgcccgtt tttcggccac cgctaacctg tcttttaacc tgcttttaaa
      721 ccaatattta taaaccttgt ttttaaccag ggctgcgccc tgtgcgcgtg accgcgcacg
      781 ccgaaggggg gtgccccccc ttctcgaacc ctcccggccc gctaacgcgg gcctcccatc
      841 cccccagggg ctgcgcccct cggccgcgaa cggcctcacc ccaaaaatgg cagcgctggc
      901 caattcgtgc gcggaacccc tatttgttta tttttctaaa tacattcaaa tatgtatccg
      961 ctcatgagac aataaccttg ataaatgctt caataatatt gaaaaaggaa gagtatgagt
     1021 attcaacatt tccgtgtcgc ccttattccc ttttttgcgg cattttgcct tcctgttttt
     1081 gctcacccag aaacgctggt gaaagtaaaa gatgctgaag atcagttggg tgcacgagtg
     1141 ggttacatcg aactggatct caacagcggt aagatccttg agagttttcg ccccgaagaa
     1201 cgttttccaa tgatgagcac ttttaaagtt ctgctatgtg gcgcggtatt atcccgtatt
     1261 gacgccgggc aagagcaact cggtcgccgc atacactatt ctcagaatga cttggttgag
     1321 tactcaccag tcacagaaaa gcatcttacg gatggcatga cagtaagaga attatgcagt
     1381 gctgccataa ccatgagtga taacactgcg gccaacttac ttctgacaac gatcggagga
     1441 ccgaaggagc taaccgcttt tttgcacaac atgggggatc atgtaactcg ccttgatcgt
     1501 tgggaaccgg agctgaatga agccatacca aacgacgagc gtgacaccac gatgcctgta
     1561 gcaatggcaa caacgttgcg caaactatta actggcgaac tacttactct agcttcccgg
     1621 caacaattaa tagactggat ggaggcggat aaagttgcag gaccacttct gcgctcggcc
     1681 cttccggctg gctggtttat tgctgataaa tctggagccg gtgagcgtgg ttctcgcggt
     1741 atcattgcag cactggggcc agatggtaag ccctcccgta tcgtagttat ctacacgacg
     1801 gggagtcagg caactatgga tgaacgaaat agacagatcg ctgagatagg tgcctcactg
     1861 attaagcatt ggtaactgtc agaccaagtt tactcatata tactttagat tgatttaaaa
     1921 cttcattttt aatttaaaag gatctaggtg aagatccttt ttgataatct catgaccaaa
     1981 atcccttaac gtgagttttc gttccactga gcgtcagacc ccgtagaaaa gatcaaagga
     2041 tcttcttgag atcctttttt tctgcgcgta atctgctgct tgcaaacaaa aaaaccaccg
     2101 ctaccagcgg tggtttgttt gccggatcaa gagctaccaa ctctttttcc gaaggtaact
     2161 ggcttcagca gagcgcagat accaaatact gttcttctag tgtagccgta gttaggccac
     2221 cacttcaaga actctgtagc accgcctaca tacctcgctc tgctaatcct gttaccagtg
     2281 gctgctgcca gtggcgataa gtcgtgtctt accgggttgg actcaagacg atagttaccg
     2341 gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca cacagcccag cttggagcga
     2401 acgacctaca ccgaactgag atacctacag cgtgagctat gagaaagcgc cacgcttccc
     2461 gaagggagaa aggcggacag gtatccggta agcggcaggg tcggaacagg agagcgcacg
     2521 agggagcttc cagggggaaa cgcctggtat ctttatagtc ctgtcgggtt tcgccacctc
     2581 tgacttgagc gtcgattttt gtgatgctcg tcaggggggc ggagcctatg gaaaaacgcc
     2641 agcaacgcgg cctttttacg gttcctggca gatcctagat gtggcgcaac gatgccggcg
     2701 acaagcagga gcgcaccgac ttcttccgca tcaagtgttt tggctctcag gccgaggccc
     2761 acggcaagta tttgggcaag gggtcgctgg tattcgtgca gggcaagatt cggaatacca
     2821 agtacgagaa ggacggccag acggtctacg ggaccgactt cattgccgat aaggtggatt
     2881 atctggacac caaggcacca ggcgggtcaa atcaggaata agggcacatt gccccggcgt
     2941 gagtcggggc aatcccgcaa ggagggtgaa tgaatcggac gtttgaccgg aaggcataca
     3001 ggcaagaact gatcgacgcg gggttttccg ccgaggatgc cgaaaccatc gcaagccgca
     3061 ccgtcatgcg tgcgccccgc gaaaccttcc agtccgtcgg ctcgatggtc cagcaagcta
     3121 cggccaagat cgagcgcgac agcgtgcaac tggctccccc tgccctgccc gcgccatcgg
     3181 ccgccgtgga gcgttcgcgt cgtcttgaac aggaggcggc aggtttggcg aagtcgatga
     3241 ccatcgacac gcgaggaact atgacgacca agaagcgaaa aaccgccggc gaggacctgg
     3301 caaaacaggt cagcgaggcc aagcaggccg cgttgctgaa acacacgaag cagcagatca
     3361 aggaaatgca gctttccttg ttcgatattg cgccgtggcc ggacacgatg cgagcgatgc
     3421 caaacgacac ggcccgctct gccctgttca ccacgcgcaa caagaaaatc ccgcgcgagg
     3481 cgctgcaaaa caaggtcatt ttccacgtca acaaggacgt gaagatcacc tacaccggcg
     3541 tcgagctgcg ggccgacgat gacgaactgg tgtggcagca ggtgttggag tacgcgaagc
     3601 gcacccctat cggcgagccg atcaccttca cgttctacga gctttgccag gacctgggct
     3661 ggtcgatcaa tggccggtat tacacgaagg ccgaggaatg cctgtcgcgc ctacaggcga
     3721 cggcgatggg cttcacgtcc gaccgcgttg ggcacctgga atcggtgtcg ctgctgcacc
     3781 gcttccgcgt cctggaccgt ggcaagaaaa cgtcccgttg ccaggtcctg atcgacgagg
     3841 aaatcgtcgt gctgtttgct ggcgaccact acacgaaatt catatgggag aagtaccgca
     3901 agctgtcgcc gacggcccga cggatgttcg actatttcag ctcgcaccgg gagccgtacc
     3961 cgctcaagct ggaaaccttc cgcctcatgt gcggatcgga ttccacccgc gtgaagaagt
     4021 ggcgcgagca ggtcggcgaa gcctgcgaag agttgcgagg cagcggcctg gtggaacacg
     4081 cctgggtcaa tgatgacctg gtgcattgca aacgctaggg ccttgtgggg tcagttccgg
     4141 ctgggggttc agcagccagc gcctgatctg gggaaccctg tggttggcat gcacatacaa
     4201 atggacgaac ggataaacct tttcacgccc ttttaaatat ccgattattc taataaacgc
     4261 tcttttctct taggtttacc cgccaatata tcctgtcaaa cactgatagt ttaaaccact
     4321 tcgtgcagaa gacaagctca gcggtcctgc tgagcctcga catgttgtcg caaaattcgc
     4381 cctggacccg cccaacgatt tgtcgtcact gtcaaggttt gacctgcact tcatttgggg
     4441 cccacataca ccaaaaaaat gctgcataat tctcggggca gcaagtcggt tacccggccg
     4501 ccgtgctgga ccgggttgaa tggtgcccgt aactttcggt agagcggacg gccaatactc
     4561 aacttcaagg aatctcaccc atgcgcgccg gcggggaacc ggagttccct tcagtgagcg
     4621 ttattagttc gccgctcggt gtgtcgtaga tactagcccc tggggcactt ttgaaatttg
     4681 aataagattt atgtaatcag tcttttaggt ttgaccggtt ctgccgcttt ttttaaaatt
     4741 ggatttgtaa taataaaacg caattgtttg ttattgtggc gctctatcat agatgtcgct
     4801 ataaacctat tcagcacaat atattgtttt cattttaata ttgtacatat aagtagtagg
     4861 gtacaatcag taaattgaac ggagaatatt attcataaaa atacgatagt aacgggtgat
     4921 atattcatta gaatgaaccg aaaccggcgg taaggatctg agctacacat gctcaggttt
     4981 tttacaacgt gcacaacaga attgaaagca aatatcatgc gatcataggc ttctcgcata
     5041 tctcattaaa gcaggaccta ttaagctagt taactacctc gagacagaca attacagact
     5101 ccagtggcgc aaggctgtat gtctctctct atgtcgagct ttttaaatgg tcgccaggga
     5161 tcttgactcc taattcctga gccatcaggg cctccccctg gtcggctgga ggcacctata
     5221 ccgccccctc gtgcagcagt ggcgaacaag tagtcacctc ccagagcagc cacctctatc
     5281 ctaacatcct cgaccaagtt tttgtaaagg gttgttcgta ccccggtata aggctctcca
     5341 aagtctccgg cggaatctcc ggattcggcc actgctgctg gggcaacgac attactaaat
     5401 tccaactccc tgagccatgg tgccagcagg gcttcccctg tcatcttgat gtatgcttcc
     5461 ttaagagccc aataagtgta aaacaatcgg taaccatagt ccaccaacct atcggcgctc
     5521 aaggagcttg atgacacccc atccaatctt ctgatgtttg ccatctctgc ggtggaaaaa
     5581 acctctgaga aaatatctat gtactgcctc aaactttcaa gggatcgctc ctcaccgttt
     5641 cgcccctgtc gctcattcac gcaagtaatg tctatgccaa cctctggctt aagtttggaa
     5701 tcacctccag agttgggtgt aaatgcagtg cctgctattg ccaccatgct tgcttgatgg
     5761 gatacgttga actcgacatt aattccagtg tagccatcct taaagctgtc ctcttgagaa
     5821 ccagagggtg gtatataaca gggccttcta tggggatctg gagttcttga tattacaatg
     5881 ctagaccatg ggattcggca attcctgtga acaaacaagt acttgagaag attggatgcg
     5941 agagacatat gcttatcctt cagatggtag tacttttgga cacttatctg gtctgcaggc
     6001 tgcagagttt ccaacagtgg caaggctgcg gtagaagcag tcaaaggtct agtatctata
     6061 taccatcttg tcaaaattgg actggtacta gcgcttgagg tgtcttggac cattgtatcg
     6121 ataattgtaa atgtaattgt aatgttgttt gttgtttgtt gttgttggta attgttgtaa
     6181 aaatgagctc ttatactcga gcgtgtcctc tccaaatgaa atgaacttcc ttatatagag
     6241 gaagggtctt gcgaaggata gtgggattgt gcgtcatccc ttacgtcagt ggagatgtca
     6301 catcaatcca cttgctttgt agacgtggtt ggaacctctt ctttttccac gatgctcctc
     6361 gtgggtgggg gtccatcttt gggaccactg tcggcagaga gatcttgaat gatagccttt
     6421 cctttatcgc aatgatggca tttgtaggag ccaccttcct tttctactgt cctttcgatg
     6481 aagtgacaga tagctgggca atggaatccg aggaggtttc ccgaaattat cctttgttga
     6541 aaagtctcaa tagccctttg atcttctgag actgtatctt tgacattttt ggagtagacc
     6601 agagtgtcgt gctccaccat gttgacctcc ctcgaggaat tccacattgt cttcacaga
//


载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
