pNH10

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pNH10
出品公司: 爱迪基因
目录编号: 40861
存储实验室: Adam Bogdanove

载体骨架基本信息
载体名称: pTC14
载体抗性: 四环素
空载体大小: 3013 bp
完整质粒大小: 3101 bp
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: repeat NH10
物种来源: Xanthomonas oryzae
插入大小: 88 bp
克隆方法: 限制性内切酶
5' 克隆位点: XbaI(未破坏)
3' 克隆位点: XhoI (未破坏)
5' 测序引物 pTC14_F2 (caagcctgattgggagaaaa)

文献引用方法
材料和方法部分: pNH10 was a gift from Adam Bogdanove (Addgene plasmid # 40861 ; http://n2t.net/addgene:40861 ; RRID:Addgene_40861)
参考文献部分: Efficient design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting. Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller JA, Somia NV, Bogdanove AJ, Voytas DF. Nucleic Acids Res. 2011 Apr 14. ():. 10.1093/nar/gkr218 PubMed 21493687

载体图谱质粒图谱和多克隆位点信息

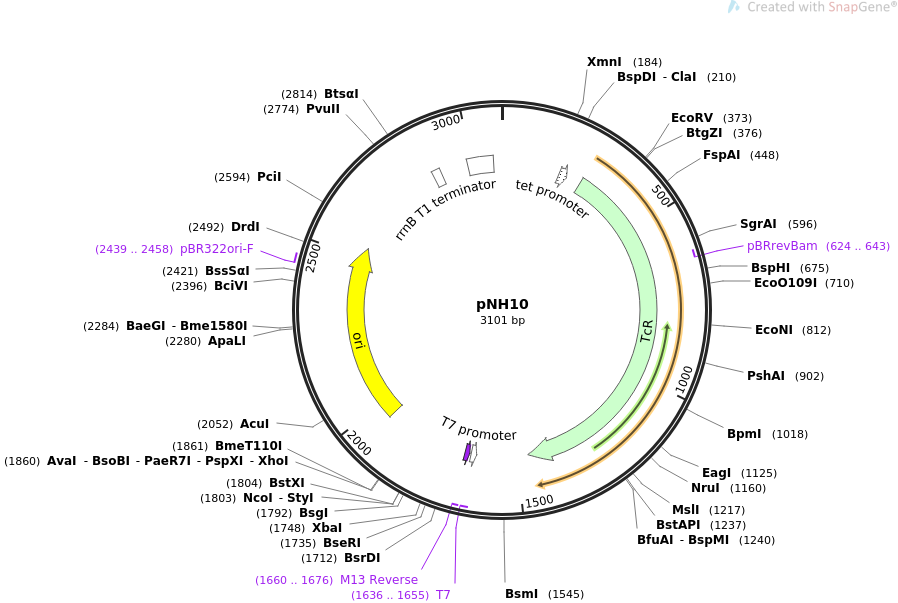

pNH10质粒图谱

载体简介

载体序列

LOCUS       pNH10                3101 bp ds-DNA     circular SYN 13-MAY-2021
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pNH10
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3101)
  AUTHORS   Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller
            JA, Somia NV, Bogdanove AJ, Voytas DF
  TITLE     Efficient design and assembly of custom TALEN and other TAL
            effector-based constructs for DNA targeting.
  JOURNAL   Nucleic Acids Res. 2011 Apr 14. ():.
  PUBMED    21493687
REFERENCE   2  (bases 1 to 3101)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 13, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..3101
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        196..224
                     /label=tet promoter
                     /note="E. coli promoter for tetracycline efflux protein
                     gene"
     CDS             272..1462
                     /codon_start=1
                     /gene="tet"
                     /product="tetracycline efflux protein"
                     /label=TcR
                     /note="confers resistance to tetracycline"
                     /translation="MKSNNALIVILGTVTLDAVGIGLVMPVLPGLLRDIVHSDSIASHY
                     GVLLALYALMQFLCAPVLGALSDRFGRRPVLLASLLGATIDYAIMATTPVLWILYAGRI
                     VAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLHAPF
                     LAAAVLNGLNLLLGCFLMQESHKGERRPMPLRAFNPVSSFRWARGMTIVAALMTVFFIM
                     QLVGQVPAALWVIFGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGEKQAII
                     AGMAADALGYVLLAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQGQLQGSL
                     AALTSLTSIIGPLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSRATST"
     primer_bind     complement(624..643)
                     /label=pBRrevBam
                     /note="pBR322 vectors, tet region, downstream of BamHI,
                     reverse primer"
     primer_bind     complement(1636..1655)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(1637..1655)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(1660..1676)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(1660..1676)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     rep_origin      1950..2538
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     2439..2458
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     terminator      2868..2895
                     /label=rrnB T2 terminator
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     terminator      2987..3073
                     /gene="Escherichia coli rrnB"
                     /label=rrnB T1 terminator
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
ORIGIN
        1 ctgcattaat gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc
       61 gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct
      121 cactcaaagg cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg
      181 aattaattct catgtttgac agcttatcat cgattagctt taatgcggta gtttatcaca
      241 gttaaattgc taacgcagtc aggcaccgtg tatgaaatct aacaatgcgc tcatcgtcat
      301 cctcggcacc gtcaccctgg atgctgtagg cataggcttg gttatgccgg tactgccggg
      361 cctcttgcgg gatatcgtcc attccgacag catcgccagt cactatggcg tgctgctagc
      421 gctatatgcg ttgatgcaat ttctatgcgc acccgttctc ggagcactgt ccgaccgctt
      481 tggccgccgc ccagtcctgc tcgcttcgct acttggagcc actatcgact acgcgatcat
      541 ggcgaccaca cccgtcctgt ggattctcta cgccggacgc atcgtggccg gcatcaccgg
      601 cgccacaggt gcggttgctg gcgcctatat cgccgacatc accgatgggg aagatcgggc
      661 tcgccacttc gggctcatga gcgcttgttt cggcgtgggt atggtggcag gccccgtggc
      721 cgggggactg ttgggcgcca tctccttaca tgcaccattc cttgcggcgg cggtgctcaa
      781 cggcctcaac ctactactgg gctgcttcct aatgcaggag tcgcataagg gagagcgccg
      841 acccatgccc ttgagagcct tcaacccagt cagctccttc cggtgggcgc ggggcatgac
      901 tatcgtcgcc gcacttatga ctgtcttctt tatcatgcaa ctcgtaggac aggtgccggc
      961 agcgctctgg gtcattttcg gcgaggaccg ctttcgctgg agcgcgacga tgatcggcct
     1021 gtcgcttgcg gtattcggaa tcttgcacgc cctcgctcaa gccttcgtca ctggtcccgc
     1081 caccaaacgt ttcggcgaga agcaggccat tatcgccggc atggcggccg acgcgctggg
     1141 ctacgtcttg ctggcgttcg cgacgcgagg ctggatggcc ttccccatta tgattcttct
     1201 cgcttccggc ggcatcggga tgcccgcgtt gcaggccatg ctgtccaggc aggtagatga
     1261 cgaccatcag ggacagcttc aaggatcgct cgcggctctt accagcctaa cttcgatcat
     1321 tggaccgctg atcgtcacgg cgatttatgc cgcctcggcg agcacatgga acgggttggc
     1381 atggattgta ggcgccgccc tataccttgt ctgcctcccc gcgttgcgtc gcggtgcatg
     1441 gagccgggcc acctcgacct gaatggaagc cggcggcacc tcgctaacgg attcaccact
     1501 ccaagaattg gagccaatca attcttgcgg agaactgtga atgcgcaaac caacccttga
     1561 tcggggaaga acagtatgtc gagctatttt ttgacttact ggggatcaag cctgattggg
     1621 agaaaataaa atatccccta tagtgagtcg tattacatgg tcatagctgt ttcctggcag
     1681 ctctggcccg tgtctcaaaa tctctgatgt tacattgcac aagataaaaa tatatcatca
     1741 tgcctcctct agaggtctcc gctcgaaacg gtgcagcggc tgttgccggt gctgtgccag
     1801 gaccatggcc tgaccccgga ccaagtggtg gctatcgcca gcaatcacgg cgggagaccc
     1861 tcgagccacc catgaccaaa atcccttaac gtgagttacg cgtcgttcca ctgagcgtca
     1921 gaccccgtag aaaagatcaa aggatcttct tgagatcctt tttttctgcg cgtaatctgc
     1981 tgcttgcaaa caaaaaaacc accgctacca gcggtggttt gtttgccgga tcaagagcta
     2041 ccaactcttt ttccgaaggt aactggcttc agcagagcgc agataccaaa tactgttctt
     2101 ctagtgtagc cgtagttagg ccaccacttc aagaactctg tagcaccgcc tacatacctc
     2161 gctctgctaa tcctgttacc agtggctgct gccagtggcg ataagtcgtg tcttaccggg
     2221 ttggactcaa gacgatagtt accggataag gcgcagcggt cgggctgaac ggggggttcg
     2281 tgcacacagc ccagcttgga gcgaacgacc tacaccgaac tgagatacct acagcgtgag
     2341 ctatgagaaa gcgccacgct tcccgaaggg agaaaggcgg acaggtatcc ggtaagcggc
     2401 agggtcggaa caggagagcg cacgagggag cttccagggg gaaacgcctg gtatctttat
     2461 agtcctgtcg ggtttcgcca cctctgactt gagcgtcgat ttttgtgatg ctcgtcaggg
     2521 gggcggagcc tatggaaaaa cgccagcaac gcggcctttt tacggttcct ggccttttgc
     2581 tggccttttg ctcacatgtt ctttcctgcg ttatcccctg attctgtgga taaccgtatt
     2641 accgcctttg agtgagctga taccgctcgc cgcagccgaa cgaccgagcg cagcgagtca
     2701 gtgagcgagg aagcggaaga gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg
     2761 attcattaat gcagctggca cgacaggttt cccgactgga aagcgggcag tgagcgcaac
     2821 gcaattaata cgcgtaccgc tagccaggaa gagtttgtag aaacgcaaaa aggccatccg
     2881 tcaggatggc cttctgctta gtttgatgcc tggcagttta tggcgggcgt cctgcccgcc
     2941 accctccggg ccgttgcttc acaacgttca aatccgctcc cggcggattt gtcctactca
     3001 ggagagcgtt caccgacaaa caacagataa aacgaaaggc ccagtcttcc gactgagcct
     3061 ttcgttttat ttgatgcctg gcagttccct actctcgcgt t
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
