质粒名称: | pNL-EGFP/CMV/WPREdU3 |
---|---|
出品公司: | Addgene |
目录编号: | 17579 |
存储实验室: | Jakob Reiser |
载体骨架基本信息 |
|
载体名称: | pUC18 |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | 8998 bp |
完整质粒大小: | -- |
载体修饰: | -- |
载体类型: | 慢病毒载体 |
筛选标记: | -- |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | EGFP |
物种来源: | Aequorea victoria |
插入大小: | 761 bp |
基因突变: | -- |
GenBank编号 | U55763 |
启动子 | -- |
标签/融合蛋白: | -- |
克隆方法: | 限制性内切酶 |
5' 克隆位点: | NheI、AfeI、AgeI(销毁后未知) |
3' 克隆位点: | XhoI,BsrGI(销毁时未知) |
5' 测序引物 | -- |
3' 测序引物 | -- |
文献引用方法 |
|
材料和方法部分: | pNL-EGFP/CMV/WPREdU3 was a gift from Jakob Reiser (Addgene plasmid # 17579 ; http://n2t.net/addgene:17579 ; RRID:Addgene_17579) |
参考文献部分: | Optimized lentiviral transduction of mouse bone marrow-derived mesenchymal stem cells. Ricks DM, Kutner R, Zhang XY, Welsh DA, Reiser J. Stem Cells Dev. 2008 Jun . 17(3):441-50. 10.1089/scd.2007.0194 PubMed 18513160 |
买家导航
载体基本信息

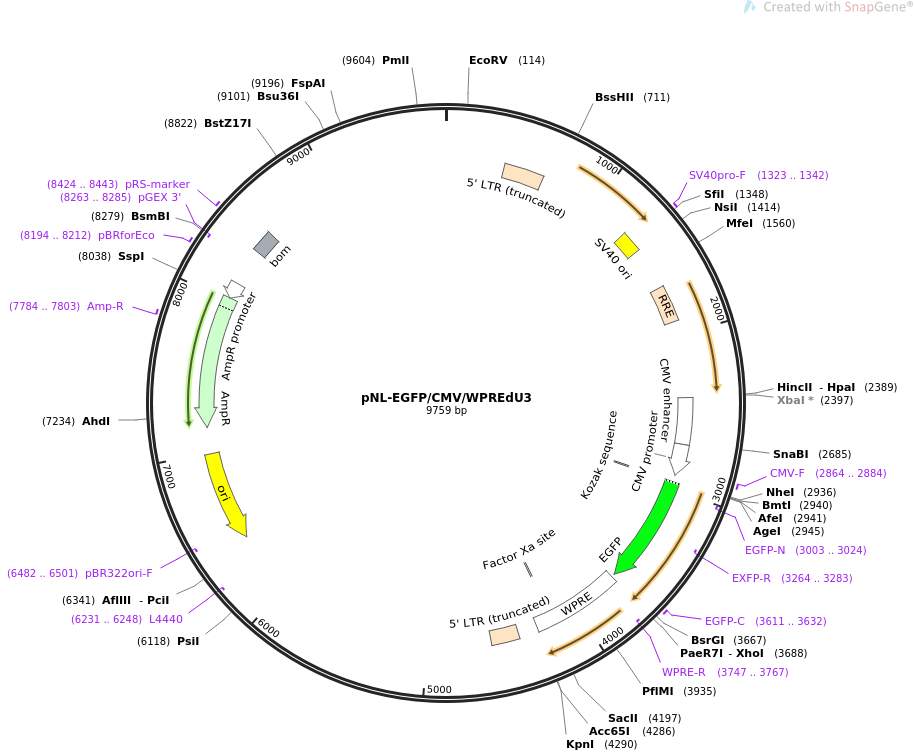

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pNL-EGFP/CMV/WPREdU3 9759 bp ds-DNA circular SYN 06-AUG-2018 DEFINITION synthetic circular DNA ACCESSION . VERSION . KEYWORDS pNL-EGFP/CMV/WPREdU3 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 9759) AUTHORS Ricks DM, Kutner R, Zhang XY, Welsh DA, Reiser J TITLE Optimized lentiviral transduction of mouse bone marrow-derived mesenchymal stem cells. JOURNAL Stem Cells Dev. 2008 Jun . 17(3):441-50. PUBMED 18513160 REFERENCE 2 (bases 1 to 9759) AUTHORS . TITLE Direct Submission JOURNAL Exported Aug 6, 2018 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..9759 /organism="synthetic DNA construct" /mol_type="other DNA" LTR 377..634 /label=5' LTR (truncated) /note="truncated 5' long terminal repeat (LTR) from HIV-1" rep_origin 1261..1396 /label=SV40 ori /note="SV40 origin of replication" primer_bind 1323..1342 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" misc_feature 1674..1907 /label=RRE /note="The Rev response element (RRE) of HIV-1 allows for Rev-dependent mRNA export from the nucleus to the cytoplasm." enhancer 2406..2709 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" promoter 2710..2913 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 2864..2884 /label=CMV-F /note="Human CMV immediate early promoter, forward primer" regulatory 2952..2961 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" CDS 2958..3674 /codon_start=1 /product="enhanced GFP" /label=EGFP /note="mammalian codon-optimized" /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL EFVTAAGITLGMDELYK" primer_bind complement(3003..3024) /label=EGFP-N /note="EGFP, reverse primer" primer_bind complement(3264..3283) /label=EXFP-R /note="For distinguishing EGFP variants, reverse primer" primer_bind 3611..3632 /label=EGFP-C /note="EGFP, forward primer" misc_feature 3694..4282 /label=WPRE /note="woodchuck hepatitis virus posttranscriptional regulatory element" primer_bind complement(3747..3767) /label=WPRE-R /note="WPRE, reverse primer" CDS complement(4165..4176) /codon_start=1 /product="Factor Xa recognition and cleavage site" /label=Factor Xa site /translation="IEGR" LTR 4409..4589 /label=5' LTR (truncated) /note="truncated 5' long terminal repeat (LTR) from HIV-1" primer_bind complement(6231..6248) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(6402..6990) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(6482..6501) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(7161..8021) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 7784..7803 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(8022..8126) /gene="bla" /label=AmpR promoter primer_bind 8194..8212 /label=pBRforEco /note="pBR322 vectors, upsteam of EcoRI site, forward primer" primer_bind complement(8263..8285) /label=pGEX 3' /note="pGEX vectors, reverse primer" misc_feature 8371..8509 /label=bom /note="basis of mobility region from pBR322" primer_bind 8424..8443 /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" ORIGIN 1 tggaagggct aatttggtcc caaaaaagac aagagatcct tgatctgtgg atctaccaca 61 cacaaggcta cttccctgat tggcagaact acacaccagg gccagggatc agatatccac 121 tgacctttgg atggtgcttc aagttagtac cagttgaacc agagcaagta gaagaggcca 181 aataaggaga gaagaacagc ttgttacacc ctatgagcca gcatgggatg gaggacccgg 241 agggagaagt attagtgtgg aagtttgaca gcctcctagc atttcgtcac atggcccgag 301 agctgcatcc ggagtactac aaagactgct gacatcgagc tttctacaag ggactttccg 361 ctggggactt tccagggagg tgtggcctgg gcgggactgg ggagtggcga gccctcagat 421 gctacatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga 481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct 541 tgagtgctca aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc 601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag 661 cgaaagtaaa gccagaggag atctctcgac gcaggactcg gcttgctgaa gcgcgcacgg 721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga 781 aggagagaga tgggtgcgag agcgtcggta ttaagcgggg gagaattaga taaatgggaa 841 aaaattcggt taaggccagg gggaaagaaa caatataaac taaaacatat agtatgggca 901 agcagggagc tagaacgatt cgcagttaat cctggccttt tagagacatc agaaggctgt 961 agacaaatac tgggacagct acaaccatcc cttcagacag gatcagaaga acttagatca 1021 ttatataata caatagcagt cctctattgt gtgcatcaaa ggatagatgt aaaagacacc 1081 aaggaagcct tagataagat agaggaagag caaaacaaaa gtaagaaaaa ggcacagcaa 1141 gcagcagctg acacaggaaa caacagccag gtcagccaaa attaccctat agtgcagaac 1201 ctccaggggc aaatggtaca tcaggccata tcacctagaa ctttaaatat gactccgccc 1261 atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt 1321 tttatttatg cagaggccga ggccgcctcg gcctctgagc tattccagaa gtagtgagga 1381 ggcttttttg gaggcctagg cttttgcaaa tgcataaaag aaaagggggg attggggggt 1441 acagtgcagg ggaaagaata gtagacataa tagcaacaga catacaaact aaagaattac 1501 aaaaacaaat tacaaaaatt caaaattttc gggtttatta cagggacagc agagatccac 1561 aattggagaa gtgaattata taaatataaa gtagtaaaaa ttgaaccatt aggagtagca 1621 cccaccaagg caaagagaag agtggtgcag agagaaaaaa gagcagtggg aataggagct 1681 ttgttccttg ggttcttggg agcagcagga agcactatgg gcgcagcgtc aatgacgctg 1741 acggtacagg ccagacaatt attgtctggt atagtgcagc agcagaacaa tttgctgagg 1801 gctattgagg cgcaacagca tctgttgcaa ctcacagtct ggggcatcaa gcagctccag 1861 gcaagaatcc tggctgtgga aagataccta aaggatcaac agctcctggg gatttggggt 1921 tgctctggaa aactcatttg caccactgct gtgccttgga atgctagttg gagtaataaa 1981 tctctggaac agatttggaa taacatgacc tggatggagt gggacagaga aattaacaat 2041 tacacaagct taatacactc cttaattgaa gaatcgcaaa accagcaaga aaagaatgaa 2101 caagaattat tggaattaga taaatgggca agtttgtgga attggtttaa cataacaaat 2161 tggctgtggt atataaaatt attcataatg atagtaggag gcttggtagg tttaagaata 2221 gtttttgctg tactttctgt agtgaataga gttaggcagg gatattcacc attatcgttt 2281 cagacccacc tcccaatccc gaggggaccc gacaggcccg aaggaataga agaagaaggt 2341 ggagagagag acagagacag atccattcga ttagtgaacg gatctagtta actagatcta 2401 gagtccgtta cataacttac ggtaaatggc ccgcctggct gaccgcccaa cgacccccgc 2461 ccattgacgt caataatgac gtatgttccc atagtaacgc caatagggac tttccattga 2521 cgtcaatggg tggagtattt acggtaaact gcccacttgg cagtacatca agtgtatcat 2581 atgccaagta cgccccctat tgacgtcaat gacggtaaat ggcccgcctg gcattatgcc 2641 cagtacatga ccttatggga ctttcctact tggcagtaca tctacgtatt agtcatcgct 2701 attaccatgg tgatgcggtt ttggcagtac atcaatgggc gtggatagcg gtttgactca 2761 cggggatttc caagtctcca ccccattgac gtcaatggga gtttgttttg gcaccaaaat 2821 caacgggact ttccaaaatg tcgtaacaac tccgccccat tgacgcaaat gggcggtagg 2881 cgtgtacggt gggaggtcta tataagcaga gctggtttag tgaaccgtca gatccgctag 2941 cgctaccggt cgccaccatg gtgagcaagg gcgaggagct gttcaccggg gtggtgccca 3001 tcctggtcga gctggacggc gacgtaaacg gccacaagtt cagcgtgtcc ggcgagggcg 3061 agggcgatgc cacctacggc aagctgaccc tgaagttcat ctgcaccacc ggcaagctgc 3121 ccgtgccctg gcccaccctc gtgaccaccc tgacctacgg cgtgcagtgc ttcagccgct 3181 accccgacca catgaagcag cacgacttct tcaagtccgc catgcccgaa ggctacgtcc 3241 aggagcgcac catcttcttc aaggacgacg gcaactacaa gacccgcgcc gaggtgaagt 3301 tcgagggcga caccctggtg aaccgcatcg agctgaaggg catcgacttc aaggaggacg 3361 gcaacatcct ggggcacaag ctggagtaca actacaacag ccacaacgtc tatatcatgg 3421 ccgacaagca gaagaacggc atcaaggtga acttcaagat ccgccacaac atcgaggacg 3481 gcagcgtgca gctcgccgac cactaccagc agaacacccc catcggcgac ggccccgtgc 3541 tgctgcccga caaccactac ctgagcaccc agtccgccct gagcaaagac cccaacgaga 3601 agcgcgatca catggtcctg ctggagttcg tgaccgccgc cgggatcact ctcggcatgg 3661 acgagctgta caagtccgga ctcagatctc gagaatcaac ctctggatta caaaatttgt 3721 gaaagattga ctggtattct taactatgtt gctcctttta cgctatgtgg atacgctgct 3781 ttaatgcctt tgtatcatgc tattgcttcc cgtatggctt tcattttctc ctccttgtat 3841 aaatcctggt tgctgtctct ttatgaggag ttgtggcccg ttgtcaggca acgtggcgtg 3901 gtgtgcactg tgtttgctga cgcaaccccc actggttggg gcattgccac cacctgtcag 3961 ctcctttccg ggactttcgc tttccccctc cctattgcca cggcggaact catcgccgcc 4021 tgccttgccc gctgctggac aggggctcgg ctgttgggca ctgacaattc cgtggtgttg 4081 tcggggaagc tgacgtcctt tccatggctg ctcgcctgtg ttgccacctg gattctgcgc 4141 gggacgtcct tctgctacgt cccttcggcc ctcaatccag cggaccttcc ttcccgcggc 4201 ctgctgccgg ctctgcggcc tcttccgcgt cttcgccttc gccctcagac gagtcggatc 4261 tccctttggg ccgcctcccc gcctgggtac ctttaagacc aatgacttac aaggcagctg 4321 tagatcttag ccacttttta aaagaaaagg ggggactgga agggctaatt cactcccaaa 4381 gaagacaaag ctgctttttg cctgtactgg gtctctctgg ttagaccaga tctgagcctg 4441 ggagctctct ggctaactag ggaacccact gcttaagcct caataaagct tgccttgagt 4501 gcttcaagta gtgtgtgccc gtctgttgtg tgactctggt aactagagat ccctcagacc 4561 cttttagtca gtgtggaaaa tctctagcac cccccaggag gtagaggttg cagtgagcca 4621 agatcgcgcc actgcattcc agcctgggca agaaaacaag actgtctaaa ataataataa 4681 taagttaagg gtattaaata tatttataca tggaggtcat aaaaatatat atatttgggc 4741 tgggcgcagt ggctcacacc tgcgcccggc cctttgggag gccgaggcag gtggatcacc 4801 tgagtttggg agttccagac cagcctgacc aacatggaga aaccccttct ctgtgtattt 4861 ttagtagatt ttattttatg tgtattttat tcacaggtat ttctggaaaa ctgaaactgt 4921 ttttcctcta ctctgatacc acaagaatca tcagcacaga ggaagacttc tgtgatcaaa 4981 tgtggtggga gagggaggtt ttcaccagca catgagcagt cagttctgcc gcagactcgg 5041 cgggtgtcct tcggttcagt tccaacaccg cctgcctgga gagaggtcag accacagggt 5101 gagggctcag tccccaagac ataaacaccc aagacataaa cacccaacag gtccaccccg 5161 cctgctgccc aggcagagcc gattcaccaa gacgggaatt aggatagaga aagagtaagt 5221 cacacagagc cggctgtgcg ggagaacgga gttctattat gactcaaatc agtctcccca 5281 agcattcggg gatcagagtt tttaaggata acttagtgtg tagggggcca gtgagttgga 5341 gatgaaagcg tagggagtcg aaggtgtcct tttgcgccga gtcagttcct gggtgggggc 5401 cacaagatcg gatgagccag tttatcaatc cgggggtgcc agctgatcca tggagtgcag 5461 ggtctgcaaa atatctcaag cactgattga tcttaggttt tacaatagtg atgttacccc 5521 aggaacaatt tggggaaggt cagaatcttg tagcctgtag ctgcatgact cctaaaccat 5581 aatttctttt ttgttttttt ttttttattt ttgagacagg gtctcactct gtcacctagg 5641 ctggagtgca gtggtgcaat cacagctcac tgcagcctca acgtcgtaag ctcaagcgat 5701 cctcccacct cagcctgcct ggtagctgag actacaagcg acgccccagt taatttttgt 5761 atttttggta gaggcagcgt tttgccgtgt ggccctggct ggtctcgaac tcctgggctc 5821 aagtgatcca gcctcagcct cccaaagtgc tgggacaacc ggggccagtc actgcacctg 5881 gccctaaacc ataatttcta atcttttggc taatttgtta gtcctacaaa ggcagtctag 5941 tccccaggca aaaagggggt ttgtttcggg aaagggctgt tactgtcttt gtttcaaact 6001 ataaactaag ttcctcctaa acttagttcg gcctacaccc aggaatgaac aaggagagct 6061 tggaggttag aagcacgatg gaattggtta ggtcagatct ctttcactgt ctgagttata 6121 attttgcaat ggtggttcaa agactgcccg cttctgacac cagtcgctgc attaatgaat 6181 cggccaacgc gcggggagag gcggtttgcg tattggcgct cttccgcttc ctcgctcact 6241 gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat cagctcactc aaaggcggta 6301 atacggttat ccacagaatc aggggataac gcaggaaaga acatgtgagc aaaaggccag 6361 caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag gctccgcccc 6421 cctgacgagc atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc gacaggacta 6481 taaagatacc aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt tccgaccctg 6541 ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct ttctcaatgc 6601 tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac 6661 gaaccccccg ttcagcccga ccgctgcgcc ttatccggta actatcgtct tgagtccaac 6721 ccggtaagac acgacttatc gccactggca gcagccactg gtaacaggat tagcagagcg 6781 aggtatgtag gcggtgctac agagttcttg aagtggtggc ctaactacgg ctacactaga 6841 aggacagtat ttggtatctg cgctctgctg aagccagtta ccttcggaaa aagagttggt 6901 agctcttgat ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt ttgcaagcag 6961 cagattacgc gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc tacggggtct 7021 gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt atcaaaaagg 7081 atcttcacct agatcctttt aaattaaaaa tgaagtttta aatcaatcta aagtatatat 7141 gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg aggcacctat ctcagcgatc 7201 tgtctatttc gttcatccat agttgcctga ctccccgtcg tgtagataac tacgatacgg 7261 gagggcttac catctggccc cagtgctgca atgataccgc gagacccacg ctcaccggct 7321 ccagatttat cagcaataaa ccagccagcc ggaagggccg agcgcagaag tggtcctgca 7381 actttatccg cctccatcca gtctattaat tgttgccggg aagctagagt aagtagttcg 7441 ccagttaata gtttgcgcaa cgttgttgcc attgctacag gcatcgtggt gtcacgctcg 7501 tcgtttggta tggcttcatt cagctccggt tcccaacgat caaggcgagt tacatgatcc 7561 cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc cgatcgttgt cagaagtaag 7621 ttggccgcag tgttatcact catggttatg gcagcactgc ataattctct tactgtcatg 7681 ccatccgtaa gatgcttttc tgtgactggt gagtactcaa ccaagtcatt ctgagaatag 7741 tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac gggataatac cgcgccacat 7801 agcagaactt taaaagtgct catcattgga aaacgttctt cggggcgaaa actctcaagg 7861 atcttaccgc tgttgagatc cagttcgatg taacccactc gtgcacccaa ctgatcttca 7921 gcatctttta ctttcaccag cgtttctggg tgagcaaaaa caggaaggca aaatgccgca 7981 aaaaagggaa taagggcgac acggaaatgt tgaatactca tactcttcct ttttcaatat 8041 tattgaagca tttatcaggg ttattgtctc atgagcggat acatatttga atgtatttag 8101 aaaaataaac aaataggggt tccgcgcaca tttccccgaa aagtgccacc tgacgtctaa 8161 gaaaccatta ttatcatgac attaacctat aaaaataggc gtatcacgag gccctttcgt 8221 cttcaagaac tgcctcgcgc gtttcggtga tgacggtgaa aacctctgac acatgcagct 8281 cccggagacg gtcacagctt gtctgtaagc ggatgccggg agcagacaag cccgtcaggg 8341 cgcgtcagcg ggtgttggcg ggtgtcgggg cgcagccatg acccagtcac gtagcgatag 8401 cggagtgtac tggcttaact atgcggcatc agagcagatt gtactgagag tgcaccatat 8461 gcggtgtgaa ataccgcaca gatgcgtaag gagaaaatac cgcatcaggc gccattcgcc 8521 attcaggctg cgcaactgtt gggaagggcg atcggtgcgg gcctcttcgc tattacgcca 8581 ggggaggcag agattgcagt aagctgagat cgcagcactg cactccagcc tgggcgacag 8641 agtaagactc tgtctcaaaa ataaaataaa taaatcaatc agatattcca atcttttcct 8701 ttatttattt atttattttc tattttggaa acacagtcct tccttattcc agaattacac 8761 atatattcta tttttcttta tatgctccag ttttttttag accttcacct gaaatgtgtg 8821 tatacaaaat ctaggccagt ccagcagagc ctaaaggtaa aaaataaaat aataaaaaat 8881 aaataaaatc tagctcactc cttcacatca aaatggagat acagctgtta gcattaaata 8941 ccaaataacc catcttgtcc tcaataattt taagcgcctc tctccaccac atctaactcc 9001 tgtcaaaggc atgtgcccct tccgggcgct ctgctgtgct gccaaccaac tggcatgtgg 9061 actctgcagg gtccctaact gccaagcccc acagtgtgcc ctgaggctgc cccttccttc 9121 tagcggctgc ccccactcgg ctttgctttc cctagtttca gttacttgcg ttcagccaag 9181 gtctgaaact aggtgcgcac agagcggtaa gactgcgaga gaaagagacc agctttacag 9241 ggggtttatc acagtgcacc ctgacagtcg tcagcctcac agggggttta tcacattgca 9301 ccctgacagt cgtcagcctc acagggggtt tatcacagtg cacccttaca atcattccat 9361 ttgattcaca atttttttag tctctactgt gcctaacttg taagttaaat ttgatcagag 9421 gtgtgttccc agaggggaaa acagtatata cagggttcag tactatcgca tttcaggcct 9481 ccacctgggt cttggaatgt gtcccccgag gggtgatgac tacctcagtt ggatctccac 9541 aggtcacagt gacacaagat aaccaagaca cctcccaagg ctaccacaat gggccgccct 9601 ccacgtgcac atggccggag gaactgccat gtcggaggtg caagcacacc tgcgcatcag 9661 agtccttggt gtggagggag ggaccagcgc agcttccagc catccacctg atgaacagaa 9721 cctagggaaa gccccagttc tacttacacc aggaaaggc //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
