pNN4

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pNN4
出品公司: 爱迪基因
目录编号: 31010
存储实验室: Adam Bogdanove, Daniel Voytas

载体骨架基本信息
载体名称: pTC14
载体抗性: 四环素
空载体大小: 2989 bp
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: repeat NN4
物种来源: Xanthamonas oryzae
插入大小: 104 bp
克隆方法: 限制性内切酶
5' 克隆位点: XbaI(未破坏)
3' 克隆位点: XhoI (未破坏)
5' 测序引物 pTC14_F2 (caagcctgattgggagaaaa)

文献引用方法
材料和方法部分: pNN4 was a gift from Adam Bogdanove & Daniel Voytas (Addgene plasmid # 31010 ; http://n2t.net/addgene:31010 ; RRID:Addgene_31010)
参考文献部分: Efficient design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting. Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller JA, Somia NV, Bogdanove AJ, Voytas DF. Nucleic Acids Res. 2011 Apr 14. ():. 10.1093/nar/gkr218 PubMed 21493687

载体图谱质粒图谱和多克隆位点信息

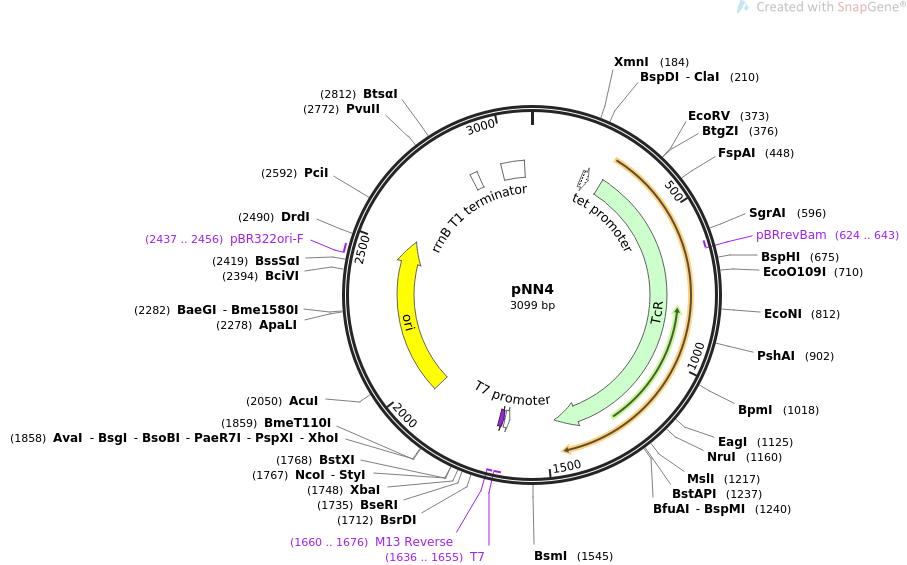

pNN4质粒图谱

载体简介

载体序列

LOCUS      pNN4               3099 bp ds-DNA     circular SYN 13-MAY-2021
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pNN4
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3099)
  AUTHORS   Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller
            JA, Somia NV, Bogdanove AJ, Voytas DF
  TITLE     Efficient design and assembly of custom TALEN and other TAL
            effector-based constructs for DNA targeting.
  JOURNAL   Nucleic Acids Res. 2011 Apr 14. ():.
  PUBMED    21493687
REFERENCE   2  (bases 1 to 3099)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 13, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..3099
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        196..224
                     /label=tet promoter
                     /note="E. coli promoter for tetracycline efflux protein
                     gene"
     CDS             272..1462
                     /codon_start=1
                     /gene="tet"
                     /product="tetracycline efflux protein"
                     /label=TcR
                     /note="confers resistance to tetracycline"
                     /translation="MKSNNALIVILGTVTLDAVGIGLVMPVLPGLLRDIVHSDSIASHY
                     GVLLALYALMQFLCAPVLGALSDRFGRRPVLLASLLGATIDYAIMATTPVLWILYAGRI
                     VAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLHAPF
                     LAAAVLNGLNLLLGCFLMQESHKGERRPMPLRAFNPVSSFRWARGMTIVAALMTVFFIM
                     QLVGQVPAALWVIFGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGEKQAII
                     AGMAADALGYVLLAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQGQLQGSL
                     AALTSLTSIIGPLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSRATST"
     primer_bind     complement(624..643)
                     /label=pBRrevBam
                     /note="pBR322 vectors, tet region, downstream of BamHI,
                     reverse primer"
     primer_bind     complement(1636..1655)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(1637..1655)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(1660..1676)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(1660..1676)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     rep_origin      1948..2536
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     2437..2456
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     terminator      2866..2893
                     /label=rrnB T2 terminator
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     terminator      2985..3071
                     /gene="Escherichia coli rrnB"
                     /label=rrnB T1 terminator
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
ORIGIN
        1 ctgcattaat gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc
       61 gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct
      121 cactcaaagg cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg
      181 aattaattct catgtttgac agcttatcat cgattagctt taatgcggta gtttatcaca
      241 gttaaattgc taacgcagtc aggcaccgtg tatgaaatct aacaatgcgc tcatcgtcat
      301 cctcggcacc gtcaccctgg atgctgtagg cataggcttg gttatgccgg tactgccggg
      361 cctcttgcgg gatatcgtcc attccgacag catcgccagt cactatggcg tgctgctagc
      421 gctatatgcg ttgatgcaat ttctatgcgc acccgttctc ggagcactgt ccgaccgctt
      481 tggccgccgc ccagtcctgc tcgcttcgct acttggagcc actatcgact acgcgatcat
      541 ggcgaccaca cccgtcctgt ggattctcta cgccggacgc atcgtggccg gcatcaccgg
      601 cgccacaggt gcggttgctg gcgcctatat cgccgacatc accgatgggg aagatcgggc
      661 tcgccacttc gggctcatga gcgcttgttt cggcgtgggt atggtggcag gccccgtggc
      721 cgggggactg ttgggcgcca tctccttaca tgcaccattc cttgcggcgg cggtgctcaa
      781 cggcctcaac ctactactgg gctgcttcct aatgcaggag tcgcataagg gagagcgccg
      841 acccatgccc ttgagagcct tcaacccagt cagctccttc cggtgggcgc ggggcatgac
      901 tatcgtcgcc gcacttatga ctgtcttctt tatcatgcaa ctcgtaggac aggtgccggc
      961 agcgctctgg gtcattttcg gcgaggaccg ctttcgctgg agcgcgacga tgatcggcct
     1021 gtcgcttgcg gtattcggaa tcttgcacgc cctcgctcaa gccttcgtca ctggtcccgc
     1081 caccaaacgt ttcggcgaga agcaggccat tatcgccggc atggcggccg acgcgctggg
     1141 ctacgtcttg ctggcgttcg cgacgcgagg ctggatggcc ttccccatta tgattcttct
     1201 cgcttccggc ggcatcggga tgcccgcgtt gcaggccatg ctgtccaggc aggtagatga
     1261 cgaccatcag ggacagcttc aaggatcgct cgcggctctt accagcctaa cttcgatcat
     1321 tggaccgctg atcgtcacgg cgatttatgc cgcctcggcg agcacatgga acgggttggc
     1381 atggattgta ggcgccgccc tataccttgt ctgcctcccc gcgttgcgtc gcggtgcatg
     1441 gagccgggcc acctcgacct gaatggaagc cggcggcacc tcgctaacgg attcaccact
     1501 ccaagaattg gagccaatca attcttgcgg agaactgtga atgcgcaaac caacccttga
     1561 tcggggaaga acagtatgtc gagctatttt ttgacttact ggggatcaag cctgattggg
     1621 agaaaataaa atatccccta tagtgagtcg tattacatgg tcatagctgt ttcctggcag
     1681 ctctggcccg tgtctcaaaa tctctgatgt tacattgcac aagataaaaa tatatcatca
     1741 tgcctcctct agaggtctcg ccaggaccat ggcctgaccc cggaccaagt ggtggctatc
     1801 gccagcaaca atggcggcaa gcaagcgctc gaaacggtgc agcggctgtt ggagaccctc
     1861 gagccaccca tgaccaaaat cccttaacgt gagttacgcg tcgttccact gagcgtcaga
     1921 ccccgtagaa aagatcaaag gatcttcttg agatcctttt tttctgcgcg taatctgctg
     1981 cttgcaaaca aaaaaaccac cgctaccagc ggtggtttgt ttgccggatc aagagctacc
     2041 aactcttttt ccgaaggtaa ctggcttcag cagagcgcag ataccaaata ctgttcttct
     2101 agtgtagccg tagttaggcc accacttcaa gaactctgta gcaccgccta catacctcgc
     2161 tctgctaatc ctgttaccag tggctgctgc cagtggcgat aagtcgtgtc ttaccgggtt
     2221 ggactcaaga cgatagttac cggataaggc gcagcggtcg ggctgaacgg ggggttcgtg
     2281 cacacagccc agcttggagc gaacgaccta caccgaactg agatacctac agcgtgagct
     2341 atgagaaagc gccacgcttc ccgaagggag aaaggcggac aggtatccgg taagcggcag
     2401 ggtcggaaca ggagagcgca cgagggagct tccaggggga aacgcctggt atctttatag
     2461 tcctgtcggg tttcgccacc tctgacttga gcgtcgattt ttgtgatgct cgtcaggggg
     2521 gcggagccta tggaaaaacg ccagcaacgc ggccttttta cggttcctgg ccttttgctg
     2581 gccttttgct cacatgttct ttcctgcgtt atcccctgat tctgtggata accgtattac
     2641 cgcctttgag tgagctgata ccgctcgccg cagccgaacg accgagcgca gcgagtcagt
     2701 gagcgaggaa gcggaagagc gcccaatacg caaaccgcct ctccccgcgc gttggccgat
     2761 tcattaatgc agctggcacg acaggtttcc cgactggaaa gcgggcagtg agcgcaacgc
     2821 aattaatacg cgtaccgcta gccaggaaga gtttgtagaa acgcaaaaag gccatccgtc
     2881 aggatggcct tctgcttagt ttgatgcctg gcagtttatg gcgggcgtcc tgcccgccac
     2941 cctccgggcc gttgcttcac aacgttcaaa tccgctcccg gcggatttgt cctactcagg
     3001 agagcgttca ccgacaaaca acagataaaa cgaaaggccc agtcttccga ctgagccttt
     3061 cgttttattt gatgcctggc agttccctac tctcgcgtt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
