质粒名称: | pNO183 |
---|---|
出品公司: | Addgene |
目录编号: | 101068 |
存储实验室: | Jeffrey Tabor |
载体骨架基本信息 |
|
载体名称: | pProTet.E333 |
载体出品公司: | -- |
空载体大小: | -- |
完整质粒大小: | 5684 bp |
载体修饰: | -- |
载体类型: | 细菌表达,合成生物学 |
筛选标记: | -- |
载体抗性: | 氯霉素 |
生长温度: | 37 ℃ |
宿主菌: | DH5a |
拷贝数: | 高拷贝 |
插入基因信息 |
|
插入基因名称: | ppsR2 |
物种来源: | Rhodopseudomonas palustris CGA009 |
插入大小: | 1395 bp |
基因突变: | -- |
GenBank编号 | WP_011157097.1 |
启动子: | -- |
标签/融合蛋白: | -- |
克隆方法: | -- |
5’克隆位点: | -- |
3’克隆位点: | -- |
5’测序引物 | -- |
3’测序引物 | -- |
文献引用方法 |
|
材料和方法部分: | pNO183 was a gift from Jeffrey Tabor (Addgene plasmid # 101068 ; http://n2t.net/addgene:101068 ; RRID:Addgene_101068) |
参考文献部分: | Engineering an E. coli near-infrared light sensor. Ong NTX, Olson EJ, Tabor JJ. ACS Synth Biol. 2017 Nov 1. doi: 10.1021/acssynbio.7b00289. 10.1021/acssynbio.7b00289 PubMed 29091422 |
买家导航
载体基本信息

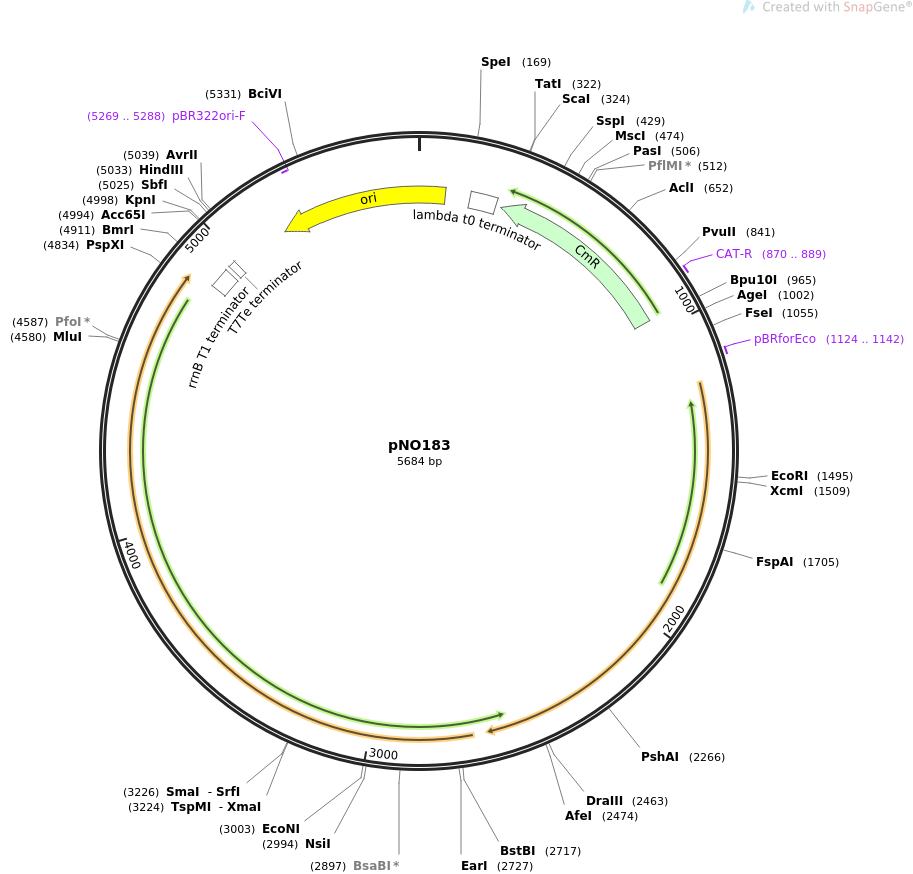

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pNO183 5684 bp ds-DNA circular SYN 12-MAY-2021 DEFINITION ppsR2-bphP1 bicistronic operon plasmid. ACCESSION . VERSION . KEYWORDS pNO183 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 5684) AUTHORS Ong NTX, Olson EJ, Tabor JJ TITLE Engineering an E. coli near-infrared light sensor. JOURNAL ACS Synth Biol. 2017 Nov 1. doi: 10.1021/acssynbio.7b00289. PUBMED 29091422 REFERENCE 2 (bases 1 to 5684) AUTHORS . TITLE Direct Submission JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..5684 /organism="synthetic DNA construct" /mol_type="other DNA" terminator 181..275 /label=lambda t0 terminator /note="transcription terminator from phage lambda" CDS complement(296..955) /codon_start=1 /gene="cat" /product="chloramphenicol acetyltransferase" /label=CmR /note="confers resistance to chloramphenicol" /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAFL KTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETFSS LWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNVANM DNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGGA" primer_bind 870..889 /label=CAT-R /note="Chloramphenicol resistance gene, reverse primer" primer_bind 1124..1142 /label=pBRforEco /note="pBR322 vectors, upsteam of EcoRI site, forward primer" terminator 4873..4944 /label=rrnB T1 terminator /note="transcription terminator T1 from the E. coli rrnB gene" terminator 4960..4987 /label=T7Te terminator /note="phage T7 early transcription terminator" rep_origin complement(5189..93) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(5269..5288) /label=pBR322ori-F /note="pBR322 origin, forward primer" ORIGIN 1 ggtagctctt gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag 61 cagcagatta cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg 121 tctgacgctc agtggaacga aaactcacgt taagggattt tggtcatgac tagtgcttgg 181 attctcacca ataaaaaacg cccggcggca accgagcgtt ctgaacaaat ccagatggag 241 ttctgaggtc attactggat ctatcaacag gagtccaagc gagctcgata tcaaattacg 301 ccccgccctg ccactcatcg cagtactgtt gtaattcatt aagcattctg ccgacatgga 361 agccatcaca aacggcatga tgaacctgaa tcgccagcgg catcagcacc ttgtcgcctt 421 gcgtataata tttgcccatg gtgaaaacgg gggcgaagaa gttgtccata ttggccacgt 481 ttaaatcaaa actggtgaaa ctcacccagg gattggctga gacgaaaaac atattctcaa 541 taaacccttt agggaaatag gccaggtttt caccataaca cgccacatct tgcgaatata 601 tgtgtagaaa ctgccggaaa tcgtcgtggt attcactcca gagcgatgaa aacgtttcag 661 tttgctcatg gaaaacggtg taacaagggt gaacactatc ccatatcacc agctcaccgt 721 ctttcattgc catacgaaat tccggatgag cattcatcag gcgggcaaga atgtgaataa 781 aggccggata aaacttgtgc ttatttttct ttacggtctt taaaaaggcc gtaatatcca 841 gctgaacggt ctggttatag gtacattgag caactgactg aaatgcctca aaatgttctt 901 tacgatgcca ttgggatata tcaacggtgg tatatccagt gatttttttc tccattttag 961 cttccttagc tcctgaaaat ctcgataact caaaaaatac gaccggtagt gatcttattt 1021 cattatggtg aaagttggaa cctcttacgg gccggccaac gtctcatttt cgccagatat 1081 cgacgtctaa gaaaccatta ttatcatgac attaacctat aaaaataggc gtatcacgag 1141 gccctttcgt cttcacctcg agaaaaagag tattgactta aagtctaacc tataggtata 1201 atgtgtggac atcgcgtccc aatagctcta gagaaggtta ccatggcgtc aaagtccgtt 1261 catgccgaca tcacccttct gctcgatatg gagggtgtga ttcgcgaagc caccctgtct 1321 ccgacgatgg cggccgagag cgtggacggt tggctggggc gtcgctggag cgacatcgcc 1381 ggcgccgaag gcggcgacaa ggttcgccgc atggtcgaag acgcccgccg cagcggcatc 1441 tcggctttcc gccagatcaa tcagcctttc ccgagcggcg tcgaaatccc gatcgaattc 1501 accacgatgc tgctgggcga tcgcaccggc atgatcgcgg tcggcaagaa catgcaggcg 1561 gtcaccgagc tgcattcccg gctgatcgct gcgcagcagg cgatggagcg cgactattgg 1621 cggttgcgtg aattggagac tcgctaccgc ctggtgttcg acgctgccgc cgatgcggtg 1681 atgatcgtct ccgccggcga catgcgcatc gtcgaagcca accgggcggc ggtgaatgcg 1741 atcagccgcg tcgagcgcgg caatgacgac cttgcggggc gtgatttcct cgccgaagtg 1801 gcggctgccg atcgcgatgc ggtgcgcgac atgctggccc aggtgcgtca gcgcggcacc 1861 gcactcagcg tcctcgttca tctcggccgt tacgaccgcg cctggatgct gcgcggttcg 1921 ctgatgtcgt ccgagcgtcg tcaggttttc ctgctgcact tcaccccggt gaccacgact 1981 cccgcgatcg acgacgtcga cgatgatgcc gtgctgcgcg ggctgatcga tcgcattccc 2041 gacgggttcg tcgcactgga ttcggaaggc gtcgttcgtc acgccaacca ggcgtttctc 2101 gatctggtcc agatcggctc caagcctgcg gcggtcggac gatcgctggg cgtctggatg 2161 ggtcgtccgg gcgccgatct gtccagcttg ctgacgctgc tgcggcgcta caagacggtg 2221 cggctgttcc aaacgacgat ccgcggcgag ctcggcaccg agactgaagt cgaggtgtcg 2281 gccgtcgacg gcgaggacga ccaatacatc ggcgttctga tgcgcaatgt cgcgcgacgc 2341 ctcgacgctg cggacgacca cgatgccttg cgtcaggcgc tcggcccgat cagcaagcag 2401 ctcgggcgat cctcgctgcg caagctggtg aagaacgccg tgagcattgt cgagcagcac 2461 tacgtgaagg aagcgctgtt gcgatccaag ggcaatcgca cggcaactgc cgaactgctc 2521 ggattgagcc ggcagagcct ttatgcaaaa ctcaactgct acggcttcga cgacaaaggt 2581 gtcgttgctt ctgctgccga cggtgcagag ggcgcctcag acgacgcaga ggattgagac 2641 accatctaca aaatagatag aggataatat ggcaggtcat gcctctggca gccccgcatt 2701 cgggaccgcc gatctttcga attgcgaacg tgaagagatc cacctcgccg gctcgatcca 2761 gccgcatggc gcgcttctgg tcgtcagcga gccggatcat cgcatcatcc aggccagcgc 2821 caacgccgcg gaatttctga atctcggaag cgtgctcggc gttccgctcg ccgagatcga 2881 cggcgatctg ttgatcaaga tcctgccgca tctcgatccc accgccgaag gcatgccggt 2941 cgcggtgcgc tgccggatcg gcaatccctc cacggagtac gacggtctga tgcatcggcc 3001 tccggaaggc gggctgatca tcgagctcga acgtgccggc ccgccgatcg atctgtccgg 3061 cacgctggcg ccggcgctgg agcggatccg cacggcgggc tcgctgcgcg cgctgtgcga 3121 tgacaccgcg ctgctgtttc agcagtgcac cggctacgac cgggtgatgg tgtatcgctt 3181 cgacgagcag ggccacggcg aagtgttctc cgagcgccac gtgcccgggc tcgaatccta 3241 tttcggcaac cgctatccgt cgtcggacat tccgcagatg gcgcggcggc tgtacgagcg 3301 gcagcgcgtc cgcgtgctgg tcgacgtcag ctatcagccg gtgccgctgg agccgcggct 3361 gtcgccgctg accgggcgcg atctcgacat gtcgggctgc ttcctgcgct cgatgtcgcc 3421 gatccatctg cagtacctga agaacatggg cgtgcgcgcc accctggtgg tgtcgctggt 3481 ggtcggcggc aagctgtggg gcctggttgc ctgtcaccat tatctgccgc gcttcatcca 3541 tttcgagctg cgggcgatct gcgaactgct cgccgaagcg atcgcgacgc ggatcaccgc 3601 gcttgagagc ttcgcgcaga gccagtcgga gctgttcgtg cagcggctcg aacagcgcat 3661 gatcgaagcg atcacccgtg aaggcgattg gcgcgcagcg attttcgaca ccagccaatc 3721 gatcctgcag ccgctgcacg ccgacggttg cgcgctggtg tacgaagacc agatcaggac 3781 catcggtgac gtaccttcca cgcaggatgt tcgcgagatc gccgggtggc tcgatcgcca 3841 gccacgtgcg gcggtgacct cgaccgcgtc gctcggactc gacgtgccgg agctcgcgca 3901 tctgacgcgg atggcgagcg gcgtggtcgc ggcgccgatt tcggatcatc gcggcgagtt 3961 tctgatgtgg ttccgccccg agcgcgtcca caccgttacc tggggcggcg atccgaagaa 4021 gccgttcacg atgggcgata caccggcgga tctgtcgccg cggcgctcct tcgccaaatg 4081 gcatcaggtt gtcgaaggca cgtccgatcc gtggacggcc gccgatctcg ccgcggctcg 4141 caccatcggt cagaccgtcg ccgacatcgt gctgcaattc cgcgcggtgc ggacactgat 4201 cgcccgcgaa cagtacgaac agttttcgtc ccaggtgcac gcttcgatgc agccggtgct 4261 gatcaccgac gccgaaggcc gcatcctgct gatgaacgac tcgttccgcg acatgttgcc 4321 ggcggggtcg ccatccgccg tccatctcga cgatctcgcc gggttcttcg tcgaatcgaa 4381 cgatttcctg cgcaacgtcg ccgaactgat cgatcacggc cgcgggtggc gcggcgaagt 4441 tctgctgcgc ggcgcaggta atcgcccgtt gccgctggca gtgcgcgccg atccggtgac 4501 gcgcacggag gaccagtcgc tcggcttcgt gctgatcttc agcgacgcta ccgatcgtcg 4561 caccgcagat gccgcacgca cgcgtttcca ggaaggcatt cttgccagcg cacgtcccgg 4621 cgtgcggctc gactccaagt ccgacctctt gcacgagaag ctgctgtccg cgctggtcga 4681 gaacgcgcag cttgccgcat tggaaattac ttacggcgtc gaaaccggac gcatcgccga 4741 gctgctcgaa ggcgttcgcc agtcgatgct gcgcaccgcc gaagtgctcg gccatctggt 4801 gcagcacgcg gcgcgcacgg ccggcagcga cagctcgagc aatggctcgc agaacaagaa 4861 gtagccaggc atcaaataaa acgaaaggct cagtcgaaag actgggactt tcgttttatc 4921 tgttgtttgt cggtgaacgc tctctactag agtcacactg gctcaccttc gggtgggcct 4981 ttctgcgttt ataggtaccc gtggatcctc tagagtcgac ctgcaggcat gcaagcttcc 5041 taggcgttcg gctgcggcga gcggtatcag ctcactcaaa ggcggtaata cggttatcca 5101 cagaatcagg ggataacgca tgcaagaaca tgtgagcaaa aggccagcaa aaggccagga 5161 accgtaaaaa ggccgcgttg ctggcgtttt tccataggct ccgcccccct gacgagcatc 5221 acaaaaatcg acgctcaagt cagaggtggc gaaacccgac aggactataa agataccagg 5281 cgtttccccc tggaagctcc ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat 5341 acctgtccgc ctttctccct tcgggaagcg tggcgctttc tcatagctca cgctgtaggt 5401 atctcagttc ggtgtaggtc gttcgctcca agctgggctg tgtgcacgaa ccccccgttc 5461 agcccgaccg ctgcgcctta tccggtaact atcgtcttga gtccaacccg gtaagacacg 5521 acttatcgcc actggcagca gccactggta acaggattag cagagcgagg tatgtaggcg 5581 gtgctacaga gttcttgaag tggtggccta actacggcta cactagaagg acagtatttg 5641 gtatctgcgc tctgctgaag ccagttacct tcggaaaaag agtt //
