pOBCol2.3-GFPemd

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pOBCol2.3-GFPemd
出品公司: 爱迪基因
目录编号: 110210
存储实验室: David Rowe

载体骨架基本信息
载体名称: pUC18
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 2700 bp
完整质粒大小: 7500 bp
载体修饰: MCS中的Hind3和EcoR1位点通过适配器转换成Sal1位点。
载体类型: 哺乳细胞表达
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: eGFPemerald,Emerald
物种来源: A. victoria
插入大小: 720 bp
基因突变: --
GenBank编号 --
启动子 2.3 kb rat type 1 collagen + first intron
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: Hind3(克隆过程中销毁)
3' 克隆位点: EcoR1(克隆过程中销毁)
5' 测序引物 M13reverse
3' 测序引物 M13forward

文献引用方法
材料和方法部分: pOBCol2.3-GFPemd was a gift from David Rowe (Addgene plasmid # 110210 ; http://n2t.net/addgene:110210 ; RRID:Addgene_110210)
参考文献部分: Use of type I collagen green fluorescent protein transgenes to identify subpopulations of cells at different stages of the osteoblast lineage. Kalajzic I, Kalajzic Z, Kaliterna M, Gronowicz G, Clark SH, Lichtler AC, Rowe D. J Bone Miner Res. 2002 Jan;17(1):15-25. doi: 10.1359/jbmr.2002.17.1.15. 10.1359/jbmr.2002.17.1.15 PubMed 11771662

载体图谱质粒图谱和多克隆位点信息

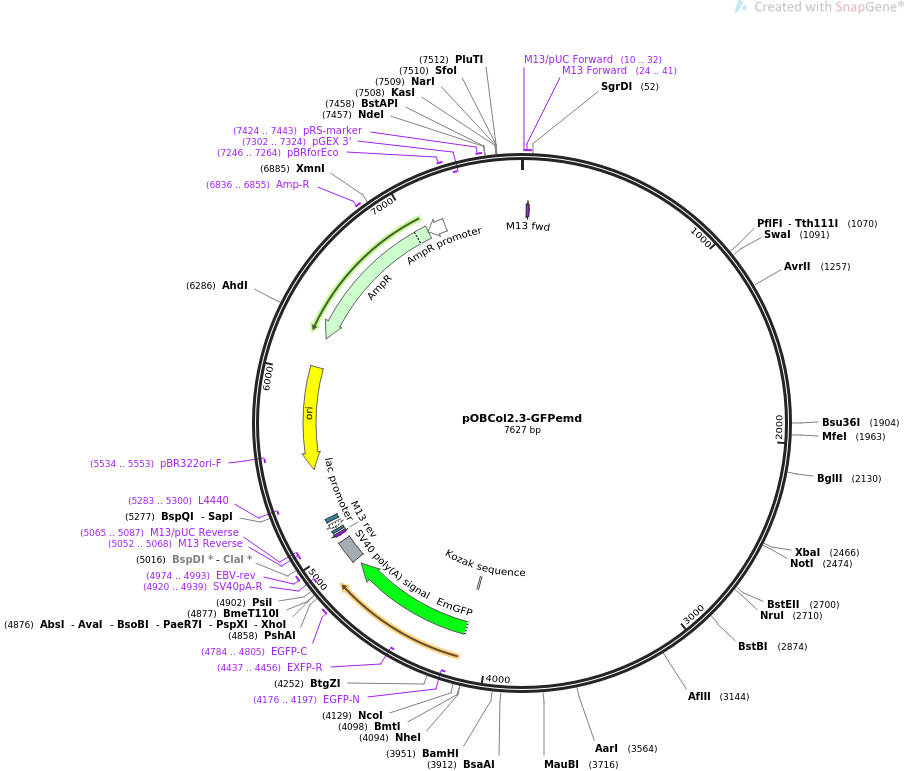

pOBCol2.3-GFPemd质粒图谱

载体简介

载体序列

LOCUS       pOBCol2.3-GFPemd                7627 bp ds-DNA     circular SYN 07-AUG-2018
DEFINITION  Labels cells in the late osteoblast lineage..
ACCESSION   .
VERSION     .
KEYWORDS    pOBCol2.3-GFPemd
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7627)
  AUTHORS   Kalajzic I, Kalajzic Z, Kaliterna M, Gronowicz G, Clark SH, Lichtler
            AC, Rowe D
  TITLE     Use of type I collagen green fluorescent protein transgenes to
            identify subpopulations of cells at different stages of the
            osteoblast lineage.
  JOURNAL   J Bone Miner Res. 2002 Jan;17(1):15-25. doi:
            10.1359/jbmr.2002.17.1.15.
  PUBMED    11771662
REFERENCE   2  (bases 1 to 7627)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 7, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7627
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     10..32
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     24..41
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     25..41
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     regulatory      4125..4134
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             4131..4850
                     /codon_start=1
                     /product="Emerald GFP"
                     /label=EmGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFARYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHKVYITADKQKNGIK
                     VNFKTRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(4176..4197)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(4437..4456)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     4784..4805
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     polyA_signal    4883..5017
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4920..4939)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4974..4993
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(5052..5068)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(5052..5068)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(5065..5087)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    5076..5092
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5100..5130)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5145..5166
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(5283..5300)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5454..6042)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5534..5553)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6213..7073)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6836..6855
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(7074..7178)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7246..7264
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(7302..7324)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     7424..7443
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
ORIGIN
        1 cagggttttc ccagtcacga cgttgtaaaa cgacggccag tgccaagctg cgtcgacgca
       61 gcttggaacc cactgcccac aactcctggg gcaaaaacct ggagtcagac atggggtgaa
      121 ggctgtcaca cggcacagac acgtcaagca ccccccccaa ttctagtagt ctcctagcct
      181 ccaccagaac cccagaccct tgatgtggca gtcaccagtc cacacctgtt aggctcttgt
      241 ctcttcttcc agatgagcct ggggggcggg ggggtgctag atcaggagca gggaaaagta
      301 gctttggata agtgcttttc ccaatacaaa acccaacaaa gagtgggcag atcacactgt
      361 gtagtgcttc gtggaaccct accctagaca actgccttga acacctattc cctctgatgt
      421 acaccatccc cgtccactgt tagggagtgg gcatcctttg gaactgacca ctgtggaagg
      481 caggacttta ctgagttccg gaactaccat ctcagcttct cagccccagc cttaccctac
      541 aggcactggc ataggcgggg gcagatcctg ggccacaagt cactgccaca tggttgggat
      601 aattgatgaa gtcctgtcct tccattgctg tctccagttc tgcttctctg gaaactctat
      661 atttttccct ttaattatag cctctgcagt ctccctctgc caccccaccc gcaccgctta
      721 gcctaactgc ccacggccag cgacgtggct ccctcccctt ctgctccctt ggtctttttt
      781 attttttttt ctttgccttc gttgcacaaa actagctcag ggagggcgtg aagggggggg
      841 gagcaatgga atcttggatg gtttggagga ggcgggactc cttgcttcca cgtttacagc
      901 tctgaagacg gctgtggggg aagtgataca ggacgtctat gggccctgag aggagacccc
      961 tatgcttccc tgccacccac acagtttaac aaaatgaagt tcctaagtag agtgggggtc
     1021 aggcagagca cctttgcagg gttgatggga gcccagggaa agaaaggaca ctgtctttta
     1081 gggacacatt taaatataag ccacttttct tgggggacga caaatgaccc tttcctgatt
     1141 gcagaggtgg ggaacaatgg ctgagatttt cagcaaagaa gcgaggacat gaggagtagc
     1201 cttcaaataa agtcactcag ctaccaaaaa caagtttctg ccacacaccg agttcaccta
     1261 ggtgtcccca gaccagatcc aagtacagta aggaaagcag gttctctaca gagagaacac
     1321 ggctctatgg ccaatgcctt ctacctgctc tttctggatt gatactgcta cctaagaggg
     1381 cctctaacca attcctggct gtagccacag ctgacacaag acctttttct aagacatccc
     1441 tggtcacagg cctcctgtag caaattccag ccctgggatg gaggtggtca ggaaagagtt
     1501 tatacaagaa gacccaggcc acagctttaa ggactcagaa acccccctgc ccacacggct
     1561 gcccatcata acgcagaagg tttcttctgg aaggacaagg atgtcaaact tctccccaag
     1621 cctaatcctc agagatgtct ccctctgtta cacctggggc tggagaaagg tgggtctttc
     1681 atggagccac attcatggca gaacagatag ccaccccact cctttcaaac aaccacatat
     1741 ctgactctta gtatctgtga agagatgtct aatttgttcc caaatattcc taccctgcat
     1801 acctgggccc acaccatgag gtattctcct ccctctaaca gtcacatctg cttagctgcc
     1861 tggttcttcg gatttggaga gatgcttgcc taacttattc ttccttaggt cttcccaagg
     1921 atgccagaaa gactatgaga catggccaag aggacctttt cccaattgtg cctgacactg
     1981 aaccctttgt aatgttcccc aactcagatt cccaattcta catccttctg atttgaggtc
     2041 ccagaaggaa agtgcaaggg gcatccccta cccacaatca gtatatcgag ggcccagcca
     2101 cactcagtga tagcacctct ggcccatgta gatctggggg acaagggtgg cagaattgca
     2161 aaggggggag ggggctgggt ggactccttt cccttccttt ccctcctccc ccctcttcgt
     2221 tccaaattgg gggccgggcc aggcagttct gattggctgg gggccgggct gctggctccc
     2281 cctctccaag aggcagggtt cctcccagcc ctcctccatc aggatggtat aaaaggggcc
     2341 caggccagtc gtcggagcag acgggagttt cacctccgga cggagcagga ggcacacgga
     2401 gtgaggccac gcatgagccg aagctaaccc cccaccccag ccgcaaagag tctacatgtc
     2461 tagggtctag aggcggccgc cttcagcttt gtggacctcc ggctcctgct cctcttaggg
     2521 gccactgccc tcctgacgca tggccaagaa gacagtaagt tccaaactct ggggaggtta
     2581 tggtttcttg ctatcgcgtt ctgcataggg gtcctagcaa taaagactta aacggaagcg
     2641 cggggtgctc cagagttagg agggatgaga aggtgatgga gaggaactgg gaagagagag
     2701 gtcaccctcg cgagcagagg agagtgagcg gatctcagaa gtggagccct ggttgagatg
     2761 gcacggcagg aaatttcaag catctatctg tagcgcgacg ggaaaagtgg gaatctgggc
     2821 aggggttggg tcagagtacg tcgaagatca aataagacct ctggaataga gattcgaagc
     2881 tcaagatgta aaagcaatca aaaaggctgc gggatgattc ataaggaaag attgtttgcc
     2941 ctctctgcag gctagacagt gttgctgggg cctccggggt gctgggctct gggagtgggg
     3001 tggggggagg aagggacgca cggagagggc gggttgctgg atgagaaagt ttggctaaga
     3061 cttgactggg cgcggtccct gtgcctcctg ctggtcaacc ttgagcacta cgagtcctgg
     3121 tacagtactt tacagcgcgc gggcttaaga gggaaaacct gggctattgc cgggcctgga
     3181 ccctcatctc cagactagga aaataaaagc acagatggat gtgatagctt tggtctttga
     3241 aagtgaccca ggccagtaaa attgggtccg ccccgtgcat tgcttagcgt tgcccgccac
     3301 ctagtggttg ctttgatccg gtgctagaga ggtgggcgtg gttaactaat cattgctatt
     3361 tgtagacttg agttctttct ttggctaagg agtgacccca aagctctact ggctttgaag
     3421 gaaggaccgg gcaagctttg attcctggga gcggagagtt agggtgtatc taactttagg
     3481 gatatatttt actactctgg acaaggctcc acggaagtca ccctcctcca ttttagcccc
     3541 gcccattccg tcccacctgc ccaaggaaag gaggtgggac cagggctgga atttcccttc
     3601 tctcctccca cccccgcctc cggtctcccc gcaaaccacg tcccacaaac ttccacctac
     3661 tttgtaggag ccctcctact ctccgtcagg aggacttcta tttcatttgg ttcccgcgcg
     3721 cgtgggctga agttgagttt ggaagcaacc ccagtctaaa gctttgttta aattcctggg
     3781 aacttggaag taacagccct ggccaggctt cttggtgctg tcactgaacg ccgttacaga
     3841 gcagacctgc atttaaggat ttaagggaag aaaatagggg ttgggggaag atgtgggaag
     3901 tggaaaatct acgtgcacct cttagacagg ggaaagggtg agtaaggctg ggatccggtg
     3961 gtggtgcaaa tcaaagaact gctcctcagt ggatgttgcc tttacttcta ggcctgtacg
     4021 gaagtgttac ttctgctcta aaagctgctg caggtcttag ttaactaaga ctctagggaa
     4081 gatcccccat caagctagct tggcattccg gtactgttgg taaagccacc atggtgagca
     4141 agggcgagga gctgttcacc ggggtggtgc ccatcctggt cgagctggac ggcgacgtaa
     4201 acggccacaa gttcagcgtg tccggcgagg gcgagggcga tgccacctac ggcaagctga
     4261 ccctgaagtt catctgcacc accggcaagc tgcccgtgcc ctggcccacc ctcgtgacca
     4321 ccttgaccta cggcgtgcag tgcttcgccc gctaccccga ccacatgaag cagcacgact
     4381 tcttcaagtc cgccatgccc gaaggctacg tccaggagcg caccatcttc ttcaaggacg
     4441 acggcaacta caagacccgc gccgaggtga agttcgaggg cgacaccctg gtgaaccgca
     4501 tcgagctgaa gggcatcgac ttcaaggagg acggcaacat cctggggcac aagctggagt
     4561 acaactacaa cagccacaag gtctatatca ccgccgacaa gcagaagaac ggcatcaagg
     4621 tgaacttcaa gacccgccac aacatcgagg acggcagcgt gcagctcgcc gaccactacc
     4681 agcagaacac ccccatcggc gacggccccg tgctgctgcc cgacaaccac tacctgagca
     4741 cccagtccgc cctgagcaaa gaccccaacg agaagcgcga tcacatggtc ctgctggagt
     4801 tcgtgaccgc cgccgggatc actctcggca tggacgagct gtacaagtaa ctcgactaga
     4861 gtcggggcgg ccgacctcga ggaacttgtt tattgcagct tataatggtt acaaataaag
     4921 caatagcatc acaaatttca caaataaagc atttttttca ctgcattcta gttgtggttt
     4981 gtccaaactc atcaatgtat cttatcatgt ctggatcgat cccccgaatt ggtcgaccaa
     5041 ttcgtaatca tgtcatagct gtttcctgtg tgaaattgtt atccgctcac aattccacac
     5101 aacatacgag ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt gagctaactc
     5161 acattaattg cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc gtgccagctg
     5221 cattaatgaa tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ctcttccgct
     5281 tcctcgctca ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac
     5341 tcaaaggcgg taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga
     5401 gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat
     5461 aggctccgcc cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac
     5521 ccgacaggac tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct
     5581 gttccgaccc tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg
     5641 ctttctcata gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg
     5701 ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt
     5761 cttgagtcca acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg
     5821 attagcagag cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac
     5881 ggctacacta gaagaacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga
     5941 aaaagagttg gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tggttttttt
     6001 gtttgcaagc agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt
     6061 tctacggggt ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgaga
     6121 ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa aatgaagttt taaatcaatc
     6181 taaagtatat atgagtaaac ttggtctgac agttaccaat gcttaatcag tgaggcacct
     6241 atctcagcga tctgtctatt tcgttcatcc atagttgcct gactccccgt cgtgtagata
     6301 actacgatac gggagggctt accatctggc cccagtgctg caatgatacc gcgagaccca
     6361 cgctcaccgg ctccagattt atcagcaata aaccagccag ccggaagggc cgagcgcaga
     6421 agtggtcctg caactttatc cgcctccatc cagtctatta attgttgccg ggaagctaga
     6481 gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg ccattgctac aggcatcgtg
     6541 gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg gttcccaacg atcaaggcga
     6601 gttacatgat cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt
     6661 gtcagaagta agttggccgc agtgttatca ctcatggtta tggcagcact gcataattct
     6721 cttactgtca tgccatccgt aagatgcttt tctgtgactg gtgagtactc aaccaagtca
     6781 ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat acgggataat
     6841 accgcgccac atagcagaac tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga
     6901 aaactctcaa ggatcttacc gctgttgaga tccagttcga tgtaacccac tcgtgcaccc
     6961 aactgatctt cagcatcttt tactttcacc agcgtttctg ggtgagcaaa aacaggaagg
     7021 caaaatgccg caaaaaaggg aataagggcg acacggaaat gttgaatact catactcttc
     7081 ctttttcaat attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt
     7141 gaatgtattt agaaaaataa acaaataggg gttccgcgca catttccccg aaaagtgcca
     7201 cctgacgtct aagaaaccat tattatcatg acattaacct ataaaaatag gcgtatcacg
     7261 aggccctttc gtctcgcgcg tttcggtgat gacggtgaaa acctctgaca catgcagctc
     7321 ccggagacgg tcacagcttg tctgtaagcg gatgccggga gcagacaagc ccgtcagggc
     7381 gcgtcagcgg gtgttggcgg gtgtcggggc tggcttaact atgcggcatc agagcagatt
     7441 gtactgagag tgcaccatat gcggtgtgaa ataccgcaca gatgcgtaag gagaaaatac
     7501 cgcatcaggc gccattcgcc attcaggctg cgcaactgtt gggaagggcg atcggtgcgg
     7561 gcctcttcgc tattacgcca gctggcgaaa gggggatgtg ctgcaaggcg attaagttgg
     7621 gtaacgc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
