质粒名称: | pQCXIN-TetR-mCherry |
---|---|
出品公司: | Addgene |
目录编号: | 59417 |
存储实验室: | Tom Misteli |
载体骨架基本信息 |
|
载体名称: | pQCXIN |
载体出品公司: | Clontech |
空载体大小: | 7400 bp |
完整质粒大小: | 8738 bp |
载体类型: | 逆病毒表达载体 |
筛选标记: | 新霉素(G418) |
载体抗性: | 氨苄霉素 |
生长温度: | 37 ℃ |
宿主菌: | DH5a |
拷贝数: | 低拷贝 |
插入基因信息 |
|
插入基因名称: | Tet repressor protein (TetR) |
标签/融合蛋白: | mCherry(C端) |
克隆方法: | 限制性内切酶 |
5’克隆位点: | AgeI(不清楚是否被破坏) |
3’克隆位点: | EcoRI (不清楚是否被破坏) |
5’测序引物 | ACGCCATCCACGCTGTTTTGACCT |
3’测序引物 | AAGCGGCTTCGGCCAGTAACGTTA |
文献引用方法 |
|
材料和方法部分: | pQCXIN-TetR-mCherry was a gift from Tom Misteli (Addgene plasmid # 59417 ; http://n2t.net/addgene:59417 ; RRID:Addgene_59417) |
参考文献部分: | Spatial dynamics of chromosome translocations in living cells. Roukos V, Voss TC, Schmidt CK, Lee S, Wangsa D, Misteli T. Science. 2013 Aug 9;341(6146):660-4. doi: 10.1126/science.1237150. 10.1126/science.1237150 PubMed 23929981 |
买家导航
载体基本信息

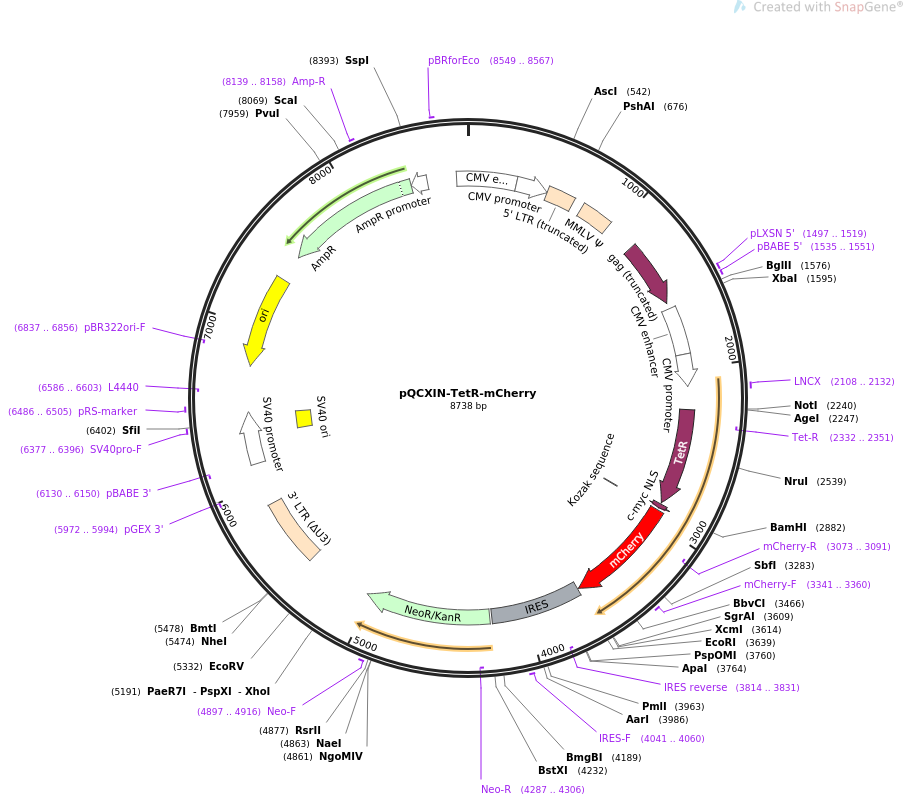

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pQCXIN-TetR-mCherry 8738 bp ds-DNA circular SYN 12-MAY-2021 DEFINITION retroviral construct expressing the Tet repressor (TetR) tagged with mCherry. ACCESSION . VERSION . KEYWORDS pQCXIN-TetR-mCherry SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 8738) AUTHORS Roukos V, Voss TC, Schmidt CK, Lee S, Wangsa D, Misteli T TITLE Spatial dynamics of chromosome translocations in living cells. JOURNAL Science. 2013 Aug 9;341(6146):660-4. doi: 10.1126/science.1237150. PUBMED 23929981 REFERENCE 2 (bases 1 to 8738) AUTHORS . TITLE Direct Submission JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..8738 /organism="synthetic DNA construct" /mol_type="other DNA" promoter 309..512 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" LTR 513..688 /label=5' LTR (truncated) /note="truncated long terminal repeat from Moloney murine sarcoma virus" misc_feature 751..950 /label=MMLV Psi /note="packaging signal of Moloney murine leukemia virus (MMLV)" CDS 1151..1567 /label=gag (truncated) /note="truncated Moloney murine leukemia virus (MMLV) gag gene lacking the start codon" primer_bind 1497..1519 /label=pLXSN 5' /note="Murine stem cell virus, forward primer. Also called MSCV" primer_bind 1535..1551 /label=pBABE 5' /note="Psi packaging signal, forward primer for pBABE vectors" enhancer 1604..1907 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" promoter 1908..2111 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 2108..2132 /label=LNCX /note="Human CMV promoter, forward primer" CDS 2259..2876 /codon_start=1 /gene="tetR from transposon Tn10" /product="tetracycline repressor TetR" /label=TetR /note="TetR binds to the tetracycline operator tetO to inhibit transcription. This inhibition can be relieved by adding tetracycline or doxycycline." /translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWHV KNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLGTR PTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERETPTT DSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESG" primer_bind complement(2332..2351) /label=Tet-R /note="Tetracycline resistance gene, reverse primer" CDS 2886..2912 /codon_start=1 /product="nuclear localization signal of human c-Myc proto-oncogene (Dang and Lee, 1988)" /label=c-myc NLS /translation="PAAKRVKLD" regulatory 2922..2931 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" CDS 2928..3638 /codon_start=1 /product="monomeric derivative of DsRed fluorescent protein (Shaner et al., 2004)" /label=mCherry /note="mammalian codon-optimized" /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA EGRHSTGGMDELYK" primer_bind complement(3073..3091) /label=mCherry-R /note="mCherry, reverse primer" primer_bind 3341..3360 /label=mCherry-F /note="mCherry, forward primer" misc_feature 3647..4219 /label=IRES /note="internal ribosome entry site (IRES) of the encephalomyocarditis virus (EMCV)" primer_bind complement(3814..3831) /label=IRES reverse /note="IRES internal ribosome entry site, reverse primer. Also called pCDH-rev" primer_bind 4041..4060 /label=IRES-F /note="IRES internal ribosome entry site, forward primer" CDS 4233..5027 /codon_start=1 /gene="aph(3')-II (or nptII)" /product="aminoglycoside phosphotransferase from Tn5" /label=NeoR/KanR /note="confers resistance to neomycin, kanamycin, and G418 (Geneticin(R))" /translation="MAEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF" primer_bind complement(4287..4306) /label=Neo-R /note="Neomycin resistance gene, reverse primer" primer_bind 4897..4916 /label=Neo-F /note="Neomycin resistance gene, forward primer" LTR 5444..5869 /label=3' LTR (Delta-U3) /note="self-inactivating 3' long terminal repeat (LTR) from Moloney murine leukemia virus" primer_bind complement(5972..5994) /label=pGEX 3' /note="pGEX vectors, reverse primer" primer_bind complement(6130..6150) /label=pBABE 3' /note="SV40 enhancer, reverse primer for pBABE vectors" promoter 6135..6464 /label=SV40 promoter /note="SV40 enhancer and early promoter" rep_origin 6315..6450 /label=SV40 ori /note="SV40 origin of replication" primer_bind 6377..6396 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" primer_bind 6486..6505 /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" primer_bind complement(6586..6603) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(6757..7345) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(6837..6856) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(7516..8376) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 8139..8158 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(8377..8481) /gene="bla" /label=AmpR promoter primer_bind 8549..8567 /label=pBRforEco /note="pBR322 vectors, upsteam of EcoRI site, forward primer" enhancer 8667..308 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" ORIGIN 1 tccgcgttac ataacttacg gtaaatggcc cgcctggctg accgcccaac gacccccgcc 61 cattgacgtc aataatgacg tatgttccca tagtaacgcc aatagggact ttccattgac 121 gtcaatgggt ggagtattta cggtaaactg cccacttggc agtacatcaa gtgtatcata 181 tgccaagtac gccccctatt gacgtcaatg acggtaaatg gcccgcctgg cattatgccc 241 agtacatgac cttatgggac tttcctactt ggcagtacat ctacgtatta gtcatcgcta 301 ttaccatggt gatgcggttt tggcagtaca tcaatgggcg tggatagcgg tttgactcac 361 ggggatttcc aagtctccac cccattgacg tcaatgggag tttgttttgg caccaaaatc 421 aacgggactt tccaaaatgt cgtaacaact ccgccccatt gacgcaaatg ggcggtaggc 481 gtgtacggtg ggaggtctat ataagcagag ctcaataaaa gagcccacaa cccctcactc 541 ggcgcgccag tcttccgata gactgcgtcg cccgggtacc cgtattccca ataaagcctc 601 ttgctgtttg catccgaatc gtggtctcgc tgttccttgg gagggtctcc tctgagtgat 661 tgactaccca cgacgggggt ctttcatttg ggggctcgtc cgggatttgg agacccctgc 721 ccagggacca ccgacccacc accgggaggt aagctggcca gcaacttatc tgtgtctgtc 781 cgattgtcta gtgtctatgt ttgatgttat gcgcctgcgt ctgtactagt tagctaacta 841 gctctgtatc tggcggaccc gtggtggaac tgacgagttc tgaacacccg gccgcaaccc 901 tgggagacgt cccagggact ttgggggccg tttttgtggc ccgacctgag gaagggagtc 961 gatgtggaat ccgaccccgt caggatatgt ggttctggta ggagacgaga acctaaaaca 1021 gttcccgcct ccgtctgaat ttttgctttc ggtttggaac cgaagccgcg cgtcttgtct 1081 gctgcagcgc tgcagcatcg ttctgtgttg tctctgtctg actgtgtttc tgtatttgtc 1141 tgaaaattag ggccagactg ttaccactcc cttaagtttg accttaggtc actggaaaga 1201 tgtcgagcgg atcgctcaca accagtcggt agatgtcaag aagagacgtt gggttacctt 1261 ctgctctgca gaatggccaa cctttaacgt cggatggccg cgagacggca cctttaaccg 1321 agacctcatc acccaggtta agatcaaggt cttttcacct ggcccgcatg gacacccaga 1381 ccaggtcccc tacatcgtga cctgggaagc cttggctttt gacccccctc cctgggtcaa 1441 gccctttgta caccctaagc ctccgcctcc tcttcctcca tccgccccgt ctctccccct 1501 tgaacctcct cgttcgaccc cgcctcgatc ctccctttat ccagccctca ctccttctct 1561 aggcgccgga attgaagatc tgggggatcg atcctctaga gtccgttaca taacttacgg 1621 taaatggccc gcctggctga ccgcccaacg acccccgccc attgacgtca ataatgacgt 1681 atgttcccat agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac 1741 ggtaaactgc ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg 1801 acgtcaatga cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact 1861 ttcctacttg gcagtacatc tacgtattag tcatcgctat taccatggtg atgcggtttt 1921 ggcagtacat caatgggcgt gaatagcggt ttgactcacg gggatttcca agtctccacc 1981 ccattgacgt caatgggagt ttgttttggc accaaaatca acgggacttt ccaaaatgtc 2041 gtaacaactc cgccccattg acgcaaatgg gcggtaggcg tgtacggtgg gaggtctata 2101 taagcagagc tcgtttagtg aaccgtcaga tcgcctggag acgccatcca cgctgttttg 2161 acctccatag aagacaccgg gaccgatcca gcctccgcgg ccgggaacgg tgcattggaa 2221 cgctgcagga attgatccgc ggccgcaccg gtaccatgat gtccagatta gataaaagta 2281 aagtgattaa cagcgcatta gagctgctta atgaggtcgg aatcgaaggt ttaacaaccc 2341 gtaaactcgc ccagaagcta ggtgtagagc agcctacatt gtattggcat gtaaaaaata 2401 agcgggcttt gctcgacgcc ttagccattg agatgttaga taggcaccat actcactttt 2461 gccctttaga aggggaaagc tggcaagatt ttttacgtaa taacgctaaa agttttagat 2521 gtgctttact aagtcatcgc gatggagcaa aagtacattt aggtacacgg cctacagaaa 2581 aacagtatga aactctcgaa aatcaattag cctttttatg ccaacaaggt ttttcactag 2641 agaatgcatt atatgcactc agcgctgtgg ggcattttac tttaggttgc gtattggaag 2701 atcaagagca tcaagtcgct aaagaagaaa gggaaacacc tactactgat agtatgccgc 2761 cattattacg acaagctatc gaattatttg atcaccaagg tgcagagcca gccttcttat 2821 tcggccttga attgatcata tgcggattag aaaaacaact taaatgtgaa agtgggtccg 2881 cggatcccgc agcaaagcgt gtaaagctag acgcagatcc cgccaccatg gtgagcaagg 2941 gcgaggagga taacatggcc atcatcaagg agttcatgcg cttcaaggtg cacatggagg 3001 gctccgtgaa cggccacgag ttcgagatcg agggcgaggg cgagggccgc ccctacgagg 3061 gcacccagac cgccaagctg aaggtgacca agggtggccc cctgcccttc gcctgggaca 3121 tcctgtcccc tcagttcatg tacggctcca aggcctacgt gaagcacccc gccgacatcc 3181 ccgactactt gaagctgtcc ttccccgagg gcttcaagtg ggagcgcgtg atgaacttcg 3241 aggacggcgg cgtggtgacc gtgacccagg actcctccct gcaggacggc gagttcatct 3301 acaaggtgaa gctgcgcggc accaacttcc cctccgacgg ccccgtaatg cagaagaaga 3361 ccatgggctg ggaggcctcc tccgagcgga tgtaccccga ggacggcgcc ctgaagggcg 3421 agatcaagca gaggctgaag ctgaaggacg gcggccacta cgacgctgag gtcaagacca 3481 cctacaaggc caagaagccc gtgcagctgc ccggcgccta caacgtcaac atcaagttgg 3541 acatcacctc ccacaacgag gactacacca tcgtggaaca gtacgaacgc gccgagggcc 3601 gccactccac cggcggcatg gacgagctgt acaagtaaga attccgcccc tctccctccc 3661 ccccccctaa cgttactggc cgaagccgct tggaataagg ccggtgtgcg tttgtctata 3721 tgttattttc caccatattg ccgtcttttg gcaatgtgag ggcccggaaa cctggccctg 3781 tcttcttgac gagcattcct aggggtcttt cccctctcgc caaaggaatg caaggtctgt 3841 tgaatgtcgt gaaggaagca gttcctctgg aagcttcttg aagacaaaca acgtctgtag 3901 cgaccctttg caggcagcgg aaccccccac ctggcgacag gtgcctctgc ggccaaaagc 3961 cacgtgtata agatacacct gcaaaggcgg cacaacccca gtgccacgtt gtgagttgga 4021 tagttgtgga aagagtcaaa tggctctcct caagcgtatt caacaagggg ctgaaggatg 4081 cccagaaggt accccattgt atgggatctg atctggggcc tcggtgcaca tgctttacat 4141 gtgtttagtc gaggttaaaa aacgtctagg ccccccgaac cacggggacg tggttttcct 4201 ttgaaaaaca cgatgataag cttgccacaa ccatggctga acaagatgga ttgcacgcag 4261 gttctccggc cgcttgggtg gagaggctat tcggctatga ctgggcacaa cagacaatcg 4321 gctgctctga tgccgccgtg ttccggctgt cagcgcaggg gcgcccggtt ctttttgtca 4381 agaccgacct gtccggtgcc ctgaatgaac tgcaggacga ggcagcgcgg ctatcgtggc 4441 tggccacgac gggcgttcct tgcgcagctg tgctcgacgt tgtcactgaa gcgggaaggg 4501 actggctgct attgggcgaa gtgccggggc aggatctcct gtcatctcac cttgctcctg 4561 ccgagaaagt atccatcatg gctgatgcaa tgcggcggct gcatacgctt gatccggcta 4621 cctgcccatt cgaccaccaa gcgaaacatc gcatcgagcg agcacgtact cggatggaag 4681 ccggtcttgt cgatcaggat gatctggacg aagagcatca ggggctcgcg ccagccgaac 4741 tgttcgccag gctcaaggcg cgcatgcccg acggcgagga tctcgtcgtg acccatggcg 4801 atgcctgctt gccgaatatc atggtggaaa atggccgctt ttctggattc atcgactgtg 4861 gccggctggg tgtggcggac cgctatcagg acatagcgtt ggctacccgt gatattgctg 4921 aagagcttgg cggcgaatgg gctgaccgct tcctcgtgct ttacggtatc gccgctcccg 4981 attcgcagcg catcgccttc tatcgccttc ttgacgagtt cttctgagcg ggatcggcta 5041 gagtcgaccc ggacgggacg ctcctgcgcc tgatacagaa cgaattgctt gcaggcatct 5101 catgagtgtg tcttcccgtt ttccgcctga ggtcactgcg tggatggagc gctggcgcct 5161 gctgcgcgac ggcgagctgc tcaccaccca ctcgagggct gcagcgctgc agaggccgag 5221 tgcagaactg ctccaaaggg acctcaaggc tttccgaggg acactaggct gactccatcg 5281 agccagtgta gagataagct tatcgattag tccaatttgt taaagacagg atatcagtgg 5341 tccaggctct agttttgact caacaatatc accagctgaa gcctatagag tacgagccat 5401 agataaaata aaagatttta tttagtctcc agaaaaaggg gggaatgaaa gaccccacct 5461 gtaggtttgg caagctagct taagtaacgc cattttgcaa ggcatggaaa aatacataac 5521 tgagaataga gaagttcaga tcaaggtcag gaacagatgg aacagggtcg accctagaga 5581 accatcagat gtttccaggg tgccccaagg acctgaaatg accctgtgcc ttatttgaac 5641 taaccaatca gttcgcttct cgcttctgtt cgcgcgcttc tgctccccga gctcaataaa 5701 agagcccaca acccctcact cggggcgcca gtcctccgat tgactgagtc gcccgggtac 5761 ccgtgtatcc aataaaccct cttgcagttg catccgactt gtggtctcgc tgttccttgg 5821 gagggtctcc tctgagtgat tgactacccg tcagcggggg tctttcattt gggggctcgt 5881 ccgggatcgg gagacccctg cccagggacc accgacccac caccgggagg taagctggct 5941 gcctcgcgcg tttcggtgat gacggtgaaa acctctgaca catgcagctc ccggagacgg 6001 tcacagcttg tctgtaagcg gatgccggga gcagacaagc ccgtcagggc gcgtcagcgg 6061 gtgttggcgg gtgtcggggc gcagccatga cccagtcacg tagcgatagc ggagtgtaga 6121 tccggctgtg gaatgtgtgt cagttagggt gtggaaagtc cccaggctcc ccagcaggca 6181 gaagtatgca aagcatgcat ctcaattagt cagcaaccag gtgtggaaag tccccaggct 6241 ccccagcagg cagaagtatg caaagcatgc atctcaatta gtcagcaacc atagtcccgc 6301 ccctaactcc gcccatcccg cccctaactc cgcccagttc cgcccattct ccgccccatg 6361 gctgactaat tttttttatt tatgcagagg ccgaggccgc ctcggcctct gagctattcc 6421 agaagtagtg aggaggcttt tttggaggcc taggcttttg caaaaagctt actggcttaa 6481 ctatgcggca tcagagcaga ttgtactgag agtgcaccat atgcggtgtg aaataccgca 6541 cagatgcgta aggagaaaat accgcatcag gcgctcttcc gcttcctcgc tcactgactc 6601 gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg cggtaatacg 6661 gttatccaca gaatcagggg ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa 6721 ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc gcccccctga 6781 cgagcatcac aaaaatcgac gctcaagtca gaggtggcga aacccgacag gactataaag 6841 ataccaggcg tttccccctg gaagctccct cgtgcgctct cctgttccga ccctgccgct 6901 taccggatac ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc atagctcacg 6961 ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc 7021 ccccgttcag cccgaccgct gcgccttatc cggtaactat cgtcttgagt ccaacccggt 7081 aagacacgac ttatcgccac tggcagcagc cactggtaac aggattagca gagcgaggta 7141 tgtaggcggt gctacagagt tcttgaagtg gtggcctaac tacggctaca ctagaaggac 7201 agtatttggt atctgcgctc tgctgaagcc agttaccttc ggaaaaagag ttggtagctc 7261 ttgatccggc aaacaaacca ccgctggtag cggtggtttt tttgtttgca agcagcagat 7321 tacgcgcaga aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc 7381 tcagtggaac gaaaactcac gttaagggat tttggtcatg agattatcaa aaaggatctt 7441 cacctagatc cttttaaatt aaaaatgaag ttttaaatca atctaaagta tatatgagta 7501 aacttggtct gacagttacc aatgcttaat cagtgaggca cctatctcag cgatctgtct 7561 atttcgttca tccatagttg cctgactccc cgtcgtgtag ataactacga tacgggaggg 7621 cttaccatct ggccccagtg ctgcaatgat accgcgagac ccacgctcac cggctccaga 7681 tttatcagca ataaaccagc cagccggaag ggccgagcgc agaagtggtc ctgcaacttt 7741 atccgcctcc atccagtcta ttaattgttg ccgggaagct agagtaagta gttcgccagt 7801 taatagtttg cgcaacgttg ttgccattgc tgcaggcatc gtggtgtcac gctcgtcgtt 7861 tggtatggct tcattcagct ccggttccca acgatcaagg cgagttacat gatcccccat 7921 gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc gttgtcagaa gtaagttggc 7981 cgcagtgtta tcactcatgg ttatggcagc actgcataat tctcttactg tcatgccatc 8041 cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag tcattctgag aatagtgtat 8101 gcggcgaccg agttgctctt gcccggcgtc aacacgggat aataccgcgc cacatagcag 8161 aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct caaggatctt 8221 accgctgttg agatccagtt cgatgtaacc cactcgtgca cccaactgat cttcagcatc 8281 ttttactttc accagcgttt ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa 8341 gggaataagg gcgacacgga aatgttgaat actcatactc ttcctttttc aatattattg 8401 aagcatttat cagggttatt gtctcatgag cggatacata tttgaatgta tttagaaaaa 8461 taaacaaata ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg tctaagaaac 8521 cattattatc atgacattaa cctataaaaa taggcgtatc acgaggccct ttcgtcttca 8581 agaattagct tggccattgc atacgttgta tccatatcat aatatgtaca tttatattgg 8641 ctcatgtcca acattaccgc catgttgaca ttgattattg actagttatt aatagtaatc 8701 aattacgggg tcattagttc atagcccata tatggagt //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
