载体基本信息

质粒名称: pRL1063a
出品公司: Addgene
目录编号: 70687
存储实验室: Peter Wolk

载体骨架基本信息
载体名称: pRL1058
载体出品公司: Wolk Lab
空载体大小: --
完整质粒大小: --
载体修饰: 8939bp中的7835bp是一个转座子,其末端由转移起点连接
载体类型: --
筛选标记: 博莱霉素
载体抗性: 卡那霉素、链霉素、博莱霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: --

插入基因信息
插入基因名称: Transposon Tn5-1063,pRL1063a as a whole is presented in GenBank: U55385.2
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子: --
标签/融合蛋白: --
克隆方法: --
5’克隆位点: --
3’克隆位点: --
5’测序引物 --
3’测序引物 --

文献引用方法
材料和方法部分: pRL1063a was a gift from Peter Wolk (Addgene plasmid # 70687 ; http://n2t.net/addgene:70687 ; RRID:Addgene_70687)
参考文献部分: Use of a transposon with luciferase as a reporter to identify environmentally responsive genes in a cyanobacterium. Wolk CP, Cai Y, Panoff JM. Proc Natl Acad Sci U S A. 1991 Jun 15;88(12):5355-9. PubMed 11607193

载体图谱质粒图谱和多克隆位点信息

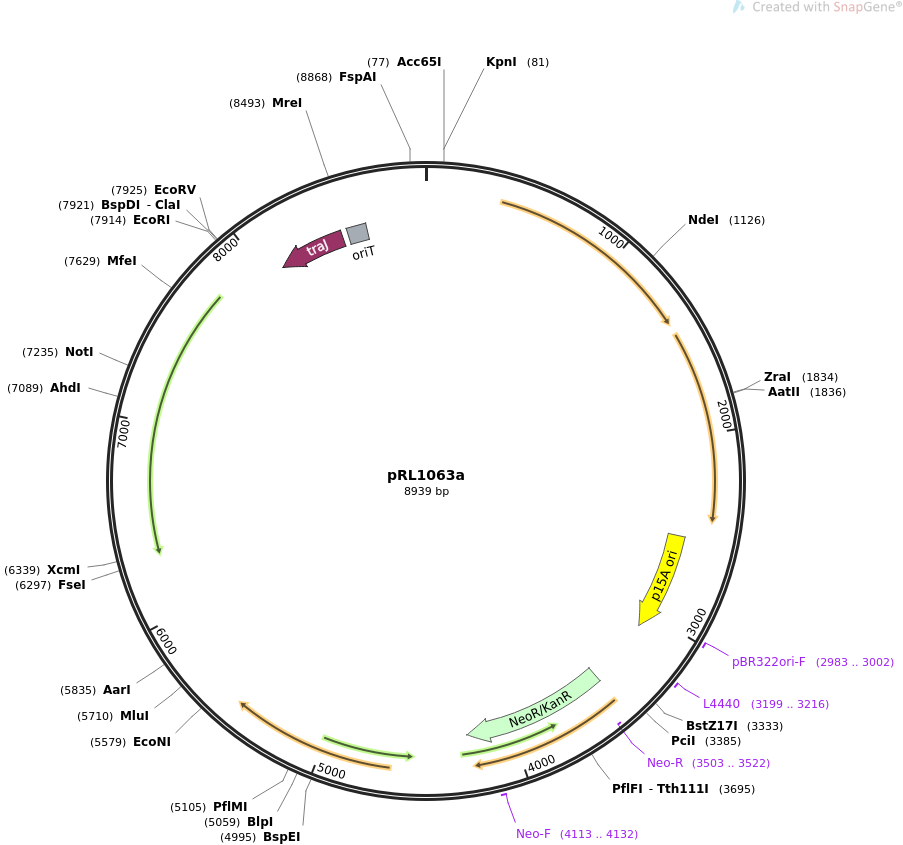

pRL1063a载体图谱

载体简介

载体序列

LOCUS       pRL1063a                8939 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  pRL1058 with Vibrio fischeri luxAB for sensing.
ACCESSION   .
VERSION     .
KEYWORDS    pRL1063a
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8939)
  AUTHORS   Wolk CP, Cai Y, Panoff JM
  TITLE     Use of a transposon with luciferase as a reporter to identify
            environmentally responsive genes in a cyanobacterium.
  JOURNAL   Proc Natl Acad Sci U S A. 1991 Jun 15;88(12):5355-9.
  PUBMED    11607193
REFERENCE   2  (bases 1 to 8939)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..8939
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     rep_origin      2538..3082
                     /direction=RIGHT
                     /label=p15A ori
                     /note="Plasmids containing the medium-copy-number p15A
                     origin of replication can be propagated in E. coli cells
                     that contain a second plasmid with the ColE1 origin.
                     "
     primer_bind     2983..3002
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     3199..3216
                     /label=L4440
                     /note="L4440 vector, forward primer"
     CDS             3449..4243
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3503..3522)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4113..4132
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     CDS             complement(8100..8471)
                     /codon_start=1
                     /gene="traJ"
                     /product="oriT-recognizing protein"
                     /label=traJ
                     /translation="MADETKPTRKGSPPIKVYCLPDERRAIEEKAAAAGMSLSAYLLAV
                     GQGYKITGVVDYEHVRELARINGDLGRLGGLLKLWLTDDPRTARFGDATILALLAKIEE
                     KQDELGKVMMGVVRPRAEP"
     oriT            8504..8613
                     /note="incP origin of transfer"
ORIGIN
        1 ctgactctta tacacaagta gcgtcctgaa cggaaccttt cccgttttcc aggcgggatc
       61 ctctagagga tccccgggta ccgagctcat tgatagcatt gaatctagta attgtaagct
      121 ctattcgcta attggaagtt cacatgatct tggggaaaat ttggttgtat taagaaattt
      181 ttatcaatca gtgacgaagg cagccttagc attagatgat ggtttattgg atttagagat
      241 agacattatt gaacctcgat ttgaggacgt tacaagtatt actgttaagg agcgtagatt
      301 aaaaaatgaa attgaaaatg aattattaga attggcttaa ataaacagaa tcaccaaaaa
      361 ggaatagagt atgaagtttg gaaatatttg tttttcgtat caaccaccag gtgaaactca
      421 taagcaagta atggatcgct ttgttcggct tggtatcgcc tcagaagagg tagggtttga
      481 tacatattgg accttagaac atcattttac agagtttggt cttacgggaa atttatttgt
      541 tgctgcggct aacctgttag gaagaactaa aacattaaat gttggcacta tgggggttgt
      601 tattccgaca gcacacccag ttcgacagtt agaagacgtt ttattattag atcaaatgtc
      661 gaaaggtcgt tttaattttg gaaccgttcg agggctatac cataaagatt ttcgagtatt
      721 tggtgttgat atggaagagt ctcgagcaat tactcaaaat ttctaccaga tgataatgga
      781 aagcttacag acaggaacca ttagctctga tagtgattac attcaatttc ctaaggttga
      841 tgtatatccc aaagtgtact caaaaaatgt accaacctgt atgactgctg agtccgcaag
      901 tacgacagaa tggctagcaa tacaagggct accaatggtt cttagttgga ttattggtac
      961 taatgaaaaa aaagcacaga tggaactcta taatgaaatt gcgacagaat atggtcatga
     1021 tatatctaaa atagatcatt gtatgactta tatttgttct gttgatgatg atgcacaaaa
     1081 ggcgcaagat gtttgtcggg agtttctgaa aaattggtat gactcatatg taaatgcgac
     1141 caatatcttt aatgatagca atcaaactcg tggttatgat tatcataaag gtcaatggcg
     1201 tgattttgtt ttacaaggac atacaaacac caatcgacgt gttgattata gcaatggtat
     1261 taaccctgta ggcactcctg agcagtgtat tgaaatcatt caacgtgata ttgatgcaac
     1321 gggtattaca aacattacat gcggatttga agctaatgga actgaagatg aaataattgc
     1381 ttccatgcga cgctttatga cacaagtcgc tcctttctta aaagaaccta aataaattac
     1441 ttatttgata ctagagataa taaggaacaa gttatgaaat ttggattatt ttttctaaac
     1501 tttcagaaag atggaataac atctgaagaa acgttggata atatggtaaa gactgtcacg
     1561 ttaattgatt caactaaata tcattttaat actgcctttg ttaatgaaca tcacttttca
     1621 aaaaatggta ttgttggagc acctattacc gcagctggtt ttttattagg gttaacaaat
     1681 aaattacata ttggttcatt aaatcaagta attaccaccc atcaccctgt acgtgtagca
     1741 gaagaagcca gtttattaga tcaaatgtca gagggacgct tcattcttgg ttttagtgac
     1801 tgcgaaagtg atttcgaaat ggaatttttt agacgtcata tctcatcaag gcaacaacaa
     1861 tttgaagcat gctatgaaat aattaatgac gcattaacta caggttattg tcatccccaa
     1921 aacgactttt atgattttcc aaaggtttca attaatccac actgttacag tgagaatgga
     1981 cctaagcaat atgtatccgc tacatcaaaa gaagtcgtca tgtgggcagc gaaaaaggca
     2041 ctgcctttaa catttaagtg ggaggataat ttagaaacca aagaacgcta tgcaattcta
     2101 tataataaaa cagcacaaca atatggtatt gatatttcgg atgttgatca tcaattaact
     2161 gtaattgcga acttaaatgc tgatagaagt acggctcaag aagaagtgag agaatactta
     2221 aaagactata tcactgaaac ttaccctcaa atggacagag atgaaaaaat taactgcatt
     2281 attgaagaga atgcagttgg gtctcatgat gactattatg aatcgacaaa attagcagtg
     2341 gaaaaaacag ggtctaaaaa tattttatta tcctttgaat caatgtccga tattaaagat
     2401 gtaaaagata ttattgatat gttgaaccaa aaaatcgaaa tgaatttacc ataataaaat
     2461 taaaggcaat ttctatatta gattgccttt ttggggatcc tctagaaata ttttatctga
     2521 ttaataagat gatcttcttg agatcgtttt ggtctgcgcg taatctcttg ctctgaaaac
     2581 gaaaaaaccg ccttgcaggg cggtttttcg aaggttctct gagctaccaa ctctttgaac
     2641 cgaggtaact ggcttggagg agcgcagtca ccaaaacttg tcctttcagt ttagccttaa
     2701 ccggcgcatg acttcaagac taactcctct aaatcaatta ccagtggctg ctgccagtgg
     2761 tgcttttgca tgtctttccg ggttggactc aagacgatag ttaccggata aggcgcagcg
     2821 gtcggactga acggggggtt cgtgcataca gtccagcttg gagcgaactg cctacccgga
     2881 actgagtgtc aggcgtggaa tgagacaaac gcggccataa cagcggaatg acaccggtaa
     2941 accgaaaggc aggaacagga gagcgcacga gggagccgcc aggggaaacg cctggtatct
     3001 ttatagtcct gtcgggtttc gccaccactg atttgagcgt cagatttcgt gatgcttgtc
     3061 aggggggcgg agcctatgga aaaacggctt tgccgcggcc ctctcacttc cctgttaagt
     3121 atcttcctgg catcttccag gaaatctccg ccccgttcgt aagccatttc cgctcgccgc
     3181 agtcgaacga ccgagcgtag cgagtcagtg agcgaggaag cggaatatat cctgtatcac
     3241 atattctgct gacgcaccgg tgcagccttt tttctcctgc cacatgaagc acttcactga
     3301 caccctcatc agtgccaaca tagtaagcca gtatacactc cgctagagga tctcaatgaa
     3361 tattggttga cacgggcgta taagacatgt tatactgttg aataacaagg acggatctga
     3421 tcaagagaca ggatgaggat cgtttcgcat gattgaacaa gatggattgc acgcaggttc
     3481 tccggccgct tgggtggaga ggctattcgg ctatgactgg gcacaacaga caatcggctg
     3541 ctctgatgcc gccgtgttcc ggctgtcagc gcaggggcgc ccggttcttt ttgtcaagac
     3601 cgacctgtcc ggtgccctga atgaactgca ggacgaggca gcgcggctat cgtggctggc
     3661 cacgacgggc gttccttgcg cagctgtgct cgacgttgtc actgaagcgg gaagggactg
     3721 gctgctattg ggcgaagtgc cggggcagga tctcctgtca tctcaccttg ctcctgccga
     3781 gaaagtatcc atcatggctg atgcaatgcg gcggctgcat acgcttgatc cggctacctg
     3841 cccattcgac caccaagcga aacatcgcat cgagcgagca cgtactcgga tggaagccgg
     3901 tcttgtcgat caggatgatc tggacgaaga gcatcagggg ctcgcgccag ccgaactgtt
     3961 cgccaggctc aaggcgcgca tgcccgacgg cgaggatctc gtcgtgaccc atggcgatgc
     4021 ctgcttgccg aatatcatgg tggaaaatgg ccgcttttct ggattcatcg actgtggccg
     4081 gctgggtgtg gcggaccgct atcaggacat agcgttggct acccgtgata ttgctgaaga
     4141 gcttggcggc gaatgggctg accgcttcct cgtgctttac ggtatcgccg ctcccgattc
     4201 gcagcgcatc gccttctatc gccttcttga cgagttcttc tgagcgggac tctggggttc
     4261 gaaatgaccg accaagcgac gcccaacctg ccatcacgag atttcgattc caccgccgcc
     4321 ttctatgaaa ggttgggctt cggaatcgtt ttccgggacg ccggctggat gatcctccag
     4381 cgcggggatc tcatgctgga gttcttcgcc caccccgggc tcgatcccct cgcgagttgg
     4441 ttcagctgct gcctgaggct ggacgacctc gcggagttct accggcagtg caaatccgtc
     4501 ggcatccagg aaaccagcag cggctatccg cgcatccatg cccccgaact gcaggagtgg
     4561 ggaggcacga tggccgcttt ggtcgacccg gacgggacgc tcctgcgcct gatacagaac
     4621 gaattgcttg caggcatctc atgagtgtgt cttcccgttt tccgcctgag gtcactgcgt
     4681 ggatggagcg ctggcgcctg ctgcgcgacg gcgagctgct caccacccac tcgagctgga
     4741 tacttcccgt ccgccagggg gacatgccgg cgatgctgaa ggtcgcgcgc attcccgatg
     4801 aagaggccgg ttaccgcctg ttgacctggt gggacgggca gggcgccgcc cgagtcttcg
     4861 cctcggcggc gggcgctctg ctcatggagc gcgcgtccgg ggccggggac cttgcacaga
     4921 tagcgtggtc cggccaggac gacgaggctt gcaggatcct ctgcgacacc gccgctcgtc
     4981 tgcacgcgcc gcggtccgga ccgccgcccg atctccatcc gctacaggaa tggttccagc
     5041 cgcttttccg gttggccgct gagcacgcgg cacttgcgcc cgccgccagc gtagcgcgcc
     5101 aacttctggc ggcgccgcgc gaggtgtgcc cgctccacgg cgacctgcac cacgagaacg
     5161 tgctcgactt cggcgaccgc ggctggctgg ccagcgaccc gcacggactg ctcggcgagc
     5221 gcaccttcga ctatgccaac atcttcacga atcccgatct cagcgacccc ggtcgcccgc
     5281 ttgcgatcct gccgggcagg ctggaggctc gactcagcat tgtggtcgcg acgaccgggt
     5341 ttgagcccga acggcttctt cgctggatca ttgcatggac gggcttgtcg gcagcctggt
     5401 tcatcggcga cggcgacggc gagggcgctg cgattgatct ggccgtaaac gccatggcac
     5461 gccggttgct tgactagcgc ggtcaccgat ctcacctggt cgtcgagcta ggtcaggccg
     5521 tgtcgggcgt gatccgctgg aagtcgttgc gggccacacc cgccgcctcg aagccctgca
     5581 ccaggccggc atcgtggtgt gcgtggccga gggactatgg aaggtgccgg acgatctgcc
     5641 cgagcagggc cgccgctatg acgcccggga gtcagcgcag aatggtgaac cagagcaagg
     5701 gaatatgtta cgcgtgacgc agtagcggta aacggcagac aaaaaaatgt cgcacaatgt
     5761 gcgccatttt tcacttcaca ggtggaattg tacccttggt ggcgtgacgg tggagctgaa
     5821 atcgcacctg cccatcgagc ggcaggcccg cgtgatcggt gccacctggc ttgaccagca
     5881 gttgatcgac ggtggctcgg gcttgggcga cctgggcttt agcagtgagg ccaagtaggc
     5941 gatacagcag cgcgcggact tcctggccga acagggactg gccgagcggc gcgggcagcg
     6001 cgtgatcctc accggaatct gctcggcagc agcgggctcg ggaactggcg caggccgcga
     6061 aggacattgc cgccgatacc ggcctggagc atcgccccgt ggccgacggc cagcgcgttg
     6121 ccggcgtcta ccggcgcccc gtcatgctcg ccagcgggcg aaatgggatg cttgatgacg
     6181 ccaaggggtc cagcctcgtg cggtggaagc ccatcgaaca gcggcttggg gagcagctcg
     6241 ccgcgacggt gcgcggtggc ggcgtgtctt gggagattgg acgacagcgt gggccggccc
     6301 ctgtctcttg atcagatctt gatcccctgc gccatcagat ccttggcggc aagaaagcca
     6361 tccagtttac tttgcagggc ttcccaacct tcccagaggg cgccccagct ggcaattccg
     6421 gttcgcttgc tgtccataaa accgcccagt ctagctatcg ccatgtaagc ccactgcaag
     6481 ctacctgctt tctctttgcg cttgcgtttt cccttgtcca gatagcccag tagctgacat
     6541 tcatccgggg tcagcaccgt ttctgcggac tggctttcta cgtgttccgc ttcctttagc
     6601 agcccttgcg ccctgagtgc ttgcggcagc gtgaagcttt ctctgagctg taacagcctg
     6661 accgcaacaa acgagaggat cgagaccatc cgctccagat tatccggctc ctccatgcgt
     6721 tgcctctcgg ctcctgctcc ggttttccat gccttatgga actcctcgat ccgccagcga
     6781 tgggtataaa tgtcgatgac gcgcaaggct tgggctagcg actcgaccgg ttcgccggtc
     6841 agcaacaacc atttcaacgg ggtctcaccc ttgggcgggt taatctcctc ggccagcacc
     6901 gcgttgagcg tgatattccc ctgttttagc gtgatgcgcc cactgcgcag gctcaagctc
     6961 gccttgcggg ctggtcgatt tttacgttta ccgcgtttat ccaccacgcc cttttgcgga
     7021 atgctgatct gatagccacc caactccggt tggttcttca gatggtcgat cagatacaac
     7081 ccagactcta cgtccttgcg tgggtgcttg gagcgcacca cgaagcgctc gttatgcgcc
     7141 agcctgtcct gcagataagc atgaatatcg gcttcgcggt cacagaccgc aatcacgttg
     7201 ctcatcatgc tgcccatgcg taaccggcta gttgcggccg ctgccagcca tttgccactc
     7261 tccttttcat ccgcatcggc agggtcatcc gggcgcatcc accactcctg atgcagtaat
     7321 cctacggtgc ggaatgtggt ggcctcgagc aagagaacgg agtgaaccca ccatccgcgg
     7381 gatttatcct gaatagagcc cagcttgcca agctcttcgg cgacctggtg gcgataactc
     7441 aaagaggtgg tgtcctcaat ggccagcagt tcgggaaact cctgagccaa cttgactgtt
     7501 tgcatggcgc cagcctttct gatcgcctcg gcagaaacgt tgggattgcg gtaaaatcgg
     7561 taagcgcctt cctgcatggc ttcactaccc tctgatgtga tggggattga tttaccagaa
     7621 tattttgcca attgggcggc gacgttaacc aagcgggcag tacggcgtgg atcacccagc
     7681 gccgccgaag agaacacaga tttagcccag tcggccgcac gatgaagagc agaagttatc
     7741 atgaacgtta ccatgttagg aggtcacatg gaatatcaga ttctggaaaa cgggaaaggt
     7801 tccgttcagg acgctacttg tgtataagag tcaggtgagt tatgttgttg ctttactttt
     7861 tagcttgctt gctggaacta cattaggtat ttggggtatt gctattgtta caggaattca
     7921 tcgatatcta gatctcgagc tcgcgaaagc ttgcatgcct gcaggtcccc gggatcgtct
     7981 tgccttgctc gtcggtgatg tacttcacca gctccgcgaa gtcgctcttc ttgatggagc
     8041 gcatggggac gtgcttggca atcacgcgca ccccccggcc gttttagcgg ctaaaaaagt
     8101 catggctctg ccctcgggcg gaccacgccc atcatgacct tgccaagctc gtcctgcttc
     8161 tcttcgatct tcgccagcag ggcgaggatc gtggcatcac cgaaccgcgc cgtgcgcggg
     8221 tcgtcggtga gccagagttt cagcaggccg cccaggcggc ccaggtcgcc attgatgcgg
     8281 gccagctcgc ggacgtgctc atagtccacg acgcccgtga ttttgtagcc ctggccgacg
     8341 gccagcaggt aggccgacag gctcatgccg gccgccgccg ccttttcctc aatcgctctt
     8401 cgttcgtctg gaaggcagta caccttgata ggtgggctgc ccttcctggt tggcttggtt
     8461 tcatcagcca tccgcttgcc ctcatctgtt acgccggcgg tagccggcca gcctcgcaga
     8521 gcaggattcc cgttgagcac cgccaggtgc gaataaggga cagtgaagaa ggaacacccg
     8581 ctcgcgggtg ggcctacttc acctatcctg cccggctgac gccgttggat acaccaagga
     8641 aagtctacac gaaccctttg gcaaaatcct gtatatcgtg cgaaaaagga tggatatacc
     8701 gaaaaaatcg ctataatgac cccgaagcag ggttatgcag cggaagatcg tcgacctgca
     8761 ggcatgcaag ctttcgcgag ctcgagatct agaatcgtcc attccgacag catcgccagt
     8821 cactatggcg tgctgctagc gctatatgcg ttgatgcaat ttctatgcgc acccgttctc
     8881 ggagcactgt ccgaccgctt tggccgccgc ccagtcctgc tcgcttcgct acttggagc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
