质粒名称: | pRosa26-EF1a-hCas9IRESneo |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 67987 |
存储实验室: | Kosuke Yusa |
载体骨架基本信息 |
|
载体名称: | pBluescriptII |
载体抗性: | 氨苄青霉素 |
空载体大小: | 3000 bp |
完整质粒大小: | 19400 bp |
载体类型: | 哺乳细胞表达 |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 30 ℃ |
插入基因信息 |
|
插入基因名称: | EF1a-hCas9IRESneopA |
物种来源: | Synthetic |
克隆方法: | Gateway克隆 |
5' 测序引物 | TCTTCCCTCGTGATCTGCAA |
文献引用方法 |
|
材料和方法部分: | pRosa26-EF1a-hCas9IRESneo was a gift from Kosuke Yusa (Addgene plasmid # 67987 ; http://n2t.net/addgene:67987 ; RRID:Addgene_67987) |
参考文献部分: | A CRISPR Dropout Screen Identifies Genetic Vulnerabilities and Therapeutic Targets in Acute Myeloid Leukemia. Tzelepis K, Koike-Yusa H, De Braekeleer E, Li Y, Metzakopian E, Dovey OM, Mupo A, Grinkevich V, Li M, Mazan M, Gozdecka M, Ohnishi S, Cooper J, Patel M, McKerrell T, Chen B, Domingues AF, Gallipoli P, Teichmann S, Ponstingl H, McDermott U, Saez-Rodriguez J, Huntly BJ, Iorio F, Pina C, Vassiliou GS, Yusa K. Cell Rep. 2016 Oct 18;17(4):1193-1205. doi: 10.1016/j.celrep.2016.09.079. 10.1016/j.celrep.2016.09.079 PubMed 27760321 |
买家导航
载体基本信息

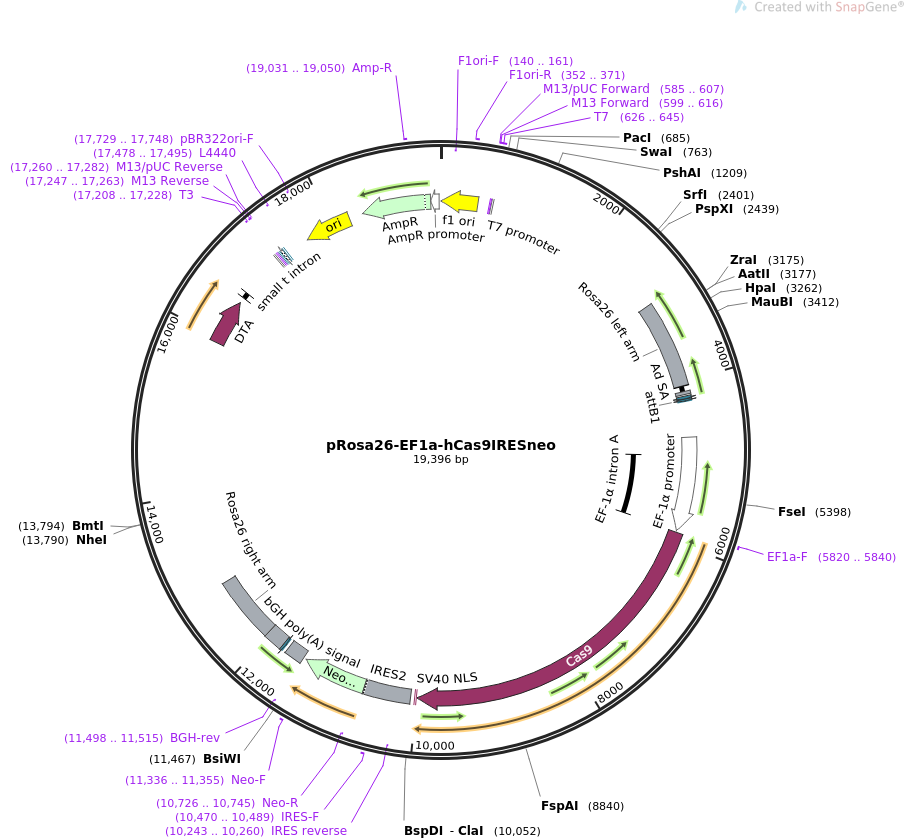

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pRosa26-EF1a-hCas9IRESneo 19396 bp ds-DNA circular SYN 06-AUG-2018 DEFINITION Mouse Rosa26 targeting vector carrying the EF1a-hCas9-IRES-neo cassette. ACCESSION . VERSION . KEYWORDS pRosa26-EF1a-hCas9IRESneo SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 19396) AUTHORS Tzelepis K, Koike-Yusa H, De Braekeleer E, Li Y, Metzakopian E, Dovey OM, Mupo A, Grinkevich V, Li M, Mazan M, Gozdecka M, Ohnishi S, Cooper J, Patel M, McKerrell T, Chen B, Domingues AF, Gallipoli P, Teichmann S, Ponstingl H, McDermott U, Saez-Rodriguez J, Huntly BJ, Iorio F, Pina C, Vassiliou GS, Yusa K TITLE A CRISPR Dropout Screen Identifies Genetic Vulnerabilities and Therapeutic Targets in Acute Myeloid Leukemia. JOURNAL Cell Rep. 2016 Oct 18;17(4):1193-1205. doi: 10.1016/j.celrep.2016.09.079. PUBMED 27760321 REFERENCE 2 (bases 1 to 19396) AUTHORS . TITLE Direct Submission JOURNAL Exported Aug 6, 2018 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..19396 /organism="synthetic DNA construct" /mol_type="other DNA" rep_origin complement(3..458) /direction=LEFT /label=f1 ori /note="f1 bacteriophage origin of replication; arrow indicates direction of (+) strand synthesis" primer_bind complement(140..161) /label=F1ori-F /note="F1 origin, forward primer" primer_bind 352..371 /label=F1ori-R /note="F1 origin, reverse primer" primer_bind 585..607 /label=M13/pUC Forward /note="In lacZ gene" primer_bind 599..616 /label=M13 Forward /note="In lacZ gene. Also called M13-F20 or M13 (-21) Forward" primer_bind 600..616 /label=M13 fwd /note="common sequencing primer, one of multiple similar variants" primer_bind 626..645 /label=T7 /note="T7 promoter, forward primer" promoter 626..644 /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" misc_feature 2969..4051 /label=Rosa26 left arm /note="left homology arm from intron 1 of the mouse Rosa26 gene (Soriano, 1999)" misc_feature 4058..4161 /label=Ad SA /note="adenovirus major late transcript splice acceptor (Friedrich and Soriano, 1991)" protein_bind 4181..4214 /label=loxP /bound_moiety="Cre recombinase" /note="Cre-mediated recombination occurs in the 8-bp core sequence (GCATACAT)." protein_bind 4215..4239 /gene="mutant version of attB" /label=attB1 /bound_moiety="BP Clonase(TM)" /note="recombination site for the Gateway(R) BP reaction" promoter 4691..5871 /label=EF-1-alpha promoter /note="strong constitutive promoter for human elongation factor EF-1-alpha" intron 4921..5863 /label=EF-1-alpha intron A /note="intron upstream of the start codon of human EF-1-alpha" primer_bind 5820..5840 /label=EF1a-F /note="Human elongation factor-1a promoter, forward primer" CDS 5890..9993 /codon_start=1 /product="Cas9 (Csn1) endonuclease from the Streptococcus pyogenes Type II CRISPR/Cas system" /label=Cas9 /note="generates RNA-guided double strand breaks in DNA" /translation="MDKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKK NLIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEES FLVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIK FRGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRL ENLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQ IGDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVR QQLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLL RKQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARG NSRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEY FTVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFD SVEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEER LKTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFM QLIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGR HKPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLY LYYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVP SEEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKH VAQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYL NAVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKT EITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSK ESILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGI TIMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNE LALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILAD ANLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVL DATLIHQSITGLYETRIDLSQLGGD" CDS 10006..10026 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" misc_feature 10076..10662 /label=IRES2 /note="internal ribosome entry site (IRES) of the encephalomyocarditis virus (EMCV)" primer_bind complement(10243..10260) /label=IRES reverse /note="IRES internal ribosome entry site, reverse primer. Also called pCDH-rev" primer_bind 10470..10489 /label=IRES-F /note="IRES internal ribosome entry site, forward primer" CDS 10663..11466 /codon_start=1 /gene="aph(3')-II (or nptII)" /product="aminoglycoside phosphotransferase from Tn5" /label=NeoR/KanR /note="confers resistance to neomycin, kanamycin, and G418 (Geneticin(R))" /translation="MGSAIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQ GRPVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQD LLSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQ DIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF" primer_bind complement(10726..10745) /label=Neo-R /note="Neomycin resistance gene, reverse primer" primer_bind 11336..11355 /label=Neo-F /note="Neomycin resistance gene, forward primer" primer_bind complement(11498..11515) /label=BGH-rev /note="Bovine growth hormone terminator, reverse primer. Also called BGH reverse" polyA_signal 11504..11728 /label=bGH poly(A) signal /note="bovine growth hormone polyadenylation signal" protein_bind complement(11773..11797) /gene="mutant version of attB" /label=attB2 /bound_moiety="BP Clonase(TM)" /note="recombination site for the Gateway(R) BP reaction" polyA_signal 11807..12031 /label=bGH poly(A) signal /note="bovine growth hormone polyadenylation signal" misc_feature 12044..12854 /label=Rosa26 right arm /note="right homology arm from intron 1 of the mouse Rosa26 gene (Soriano, 1999)" CDS 15928..16500 /codon_start=1 /gene="Corynebacterium diphtheriae tox" /product="diphtheria toxin fragment A" /label=DTA /translation="DDVVDSSKSFVMENFSSYHGTKPGYVDSIQKGIQKPKSGTQGNYD DDWKGFYSTDNKYDAAGYSVDNENPLSGKAGGVVKVTYPGLTKVLALKVDNAETIKKEL GLSLTEPLMEQVGTEEFIKRFGDGASRVVLSLPFAEGSSSVEYINNWEQAKALSVELEI NFETRGKRGQDAMYEYMAQACAGNRVRR" intron 16577..16642 /label=small t intron /note="SV40 (simian virus 40) small t antigen intron" primer_bind complement(17208..17228) /label=T3 /note="T3 promoter, forward primer" promoter complement(17208..17226) /label=T3 promoter /note="promoter for bacteriophage T3 RNA polymerase" primer_bind complement(17247..17263) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(17247..17263) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(17260..17282) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 17271..17287 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(17295..17325) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 17340..17361 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(17478..17495) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(17649..18237) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(17729..17748) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(18408..19268) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 19031..19050 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(19269..19373) /gene="bla" /label=AmpR promoter ORIGIN 1 ctaaattgta agcgttaata ttttgttaaa attcgcgtta aatttttgtt aaatcagctc 61 attttttaac caataggccg aaatcggcaa aatcccttat aaatcaaaag aatagaccga 121 gatagggttg agtgttgttc cagtttggaa caagagtcca ctattaaaga acgtggactc 181 caacgtcaaa gggcgaaaaa ccgtctatca gggcgatggc ccactacgtg aaccatcacc 241 ctaatcaagt tttttggggt cgaggtgccg taaagcacta aatcggaacc ctaaagggag 301 cccccgattt agagcttgac ggggaaagcc ggcgaacgtg gcgagaaagg aagggaagaa 361 agcgaaagga gcgggcgcta gggcgctggc aagtgtagcg gtcacgctgc gcgtaaccac 421 cacacccgcc gcgcttaatg cgccgctaca gggcgcgtcc cattcgccat tcaggctgcg 481 caactgttgg gaagggcgat cggtgcgggc ctcttcgcta ttacgccagc tggcgaaagg 541 gggatgtgct gcaaggcgat taagttgggt aacgccaggg ttttcccagt cacgacgttg 601 taaaacgacg gccagtgagc gcgcgtaata cgactcacta tagggcgaat tggagctcgt 661 ttaaacggcg cgccggtacc ttaattaaac cagcaatgtg gatataagca ttaagtttta 721 gttttaaaaa ggtcaatttt ccaaacattc agcaatcata tttaaattta cagctaggaa 781 caagagcctt gggtcatgtc ctaccaaaga acataactca atattctaca catgacaatc 841 tgaataacct taaagcctct aatcccataa caggccacaa attttggaca gagaactaat 901 gatcctcctg agaaaactgg aagaaatcca gggaaaagaa attcctgtgt cctccaaact 961 cagaaatctc taattatgtc agtattctct gctttagtcc taggtcagat tgcacacatc 1021 taaaataacc tcttaaagtt ttcctcctag cgacctaaac cattattaat atcaaattaa 1081 ccatcaaaac actttcctct caatatgctg cacacaaacc tcctcctgga acctcctcca 1141 tctggatcct ccccaatcaa aagtataggt atttaacata taagcaagga agtaatgtaa 1201 acatgacctt ggtcacaaat atgtcatcta aaaacaattt agtcaaggta tggaggaaat 1261 tcgagaacct gaatcttttt aagtattttg agcacaggaa caattggcaa aaggaatcca 1321 ggtatagaca aaacccagag cccagagctc tgggcgaaaa atgagttgct ggtgaagacg 1381 ttacacaagt aacatgagaa agcagaaaat gcaggtcatc cacgcacccc tgacccaggc 1441 cagcagggcg ggctgcagca tcagtacaca ggagaaagat ccttattcct aagaatgaga 1501 aaggcaaagg cgcccgatag aataaattag catagaaggg gctttcccag gagttaaaac 1561 tttccttctg agcgattacc tactaaaacc agggcttttg cccactacca tttacctagg 1621 atcttggctt gcacggattc ataggggcat atccctcccc ctcttcttta gagtcgttct 1681 taaaagatcg ctctccacgc cctaggcagg gaaaacgaca aaatctggct caattccagg 1741 ctagaaccct acaaattcaa cagggatatc gcaaggatac tggggcatac gccacaggga 1801 gtccaagaat gtgaggtggg ggtggcgaag gtaatgtctt tggtgtggga aaagcagcag 1861 ccatctgaga taggaactgg aaaaccagag gagaggcgtt caggaagatt atggagggga 1921 ggactgggcc cccacgagcg accagagttg tcacaaggcc gcaagaacag gggaggtggg 1981 gggctcaggg acagaaaaaa aagtatgtgt attttgagag cagggttggg aggcctctcc 2041 tgaaaagggt ataaacgtgg agtaggcaat acccaggcaa aaaggggaga ccagagtagg 2101 gggaggggaa gagtcctgac ccagggaaga cattaaaaag gtagtggggt cgactagatg 2161 aaggagagcc tttctctctg ggcaagagcg gtgcaatggt gtgtaaaggt agctgagaag 2221 acgaaaaggg caagcatctt cctgctacca ggctggggag gcccaggccc acgaccccga 2281 ggagagggaa cgcagggaga ctgaggtgac ccttctttcc cccggggccc ggtcgtgtgg 2341 ttcggtgtct cttttctgtt ggacccttac cttgacccag gcgctgccgg ggcctgggcc 2401 cgggctgcgg cgcacggcac tcccgggagg cagcgagact cgagttaggc ccaacgcggc 2461 gccacggcgt ttcctggccg ggaatggccc gtacccgtga ggtgggggtg gggggcagaa 2521 aaggcggagc gagcccgagg cggggrgggg gagggccagg ggcggagggg gccggcacta 2581 ctgtgttggc ggactggcgg gactagggct gcgtgagtct ctgagcgcag gcgggcggcg 2641 gccgcccctc ccccggcggc ggcagcggcg gcagcggcgg cagctcactc agcccgctgc 2701 ccgagcggaa acgccactga ccgcacgggg attcccagtg ccggcgccag gggcacgcgg 2761 gacacgcccc ctcccgccgc gccattggcc tctccgccca ccgccccaca cttattggcc 2821 ggtgcgccgc caatcagcgg aggctgccgg ggccgcctaa agaagaggct gtgctttggg 2881 gctccggctc ctcagagagc ctcggctagg taggggatcg ggactctggc gggagggcgg 2941 cttggtgcgt ttgcggggat gggcggccgc ggcaggccct ccgagcgtgg tggagccgtt 3001 ctgtgagaca gccgggtacg agtcgtgacg ctggaagggg caagcgggtg gtgggcagga 3061 atgcggtccg ccctgcagca accggagggg gagggagaag ggagcggaaa agtctccacc 3121 ggacgcggcc atggctcggg gggggggggg cagcggagga gcgcttccgg ccgacgtctc 3181 gtcgctgatt ggcttctttt cctcccgccg tgtgtgaaaa cacaaatggc gtgttttggt 3241 tggcgtaagg cgcctgtcag ttaacggcag ccggagtgcg cagccgccgg cagcctcgct 3301 ctgcccactg ggtggggcgg gaggtaggtg gggtgaggcg agctggacgt gcgggcgcgg 3361 tcggcctctg gcggggcggg ggrggggagg gagggtcagc gaaagtagct cgcgcgcgag 3421 cggccgccca ccctcccctt cctctggggg agtcgtttta cccgccgccg gccgggcctc 3481 gtcgtctgat tggctctcgg ggcccagaaa actggccctt gccattggct cgtgttcgtg 3541 caagttgagt ccatccgccg gccagcgggg gcggcgagga ggcgctccca ggttccggcc 3601 ctcccctcgg ccccgcgccg cagagtctgg ccgcgcgccc ctgcgcaacg tggcaggaag 3661 cgcgcgctgg gggcggggac gggcagtagg gctgagcggc tgcggggcgg gtgcaagcac 3721 gtttccgact tgagttgcct caagaggggc gtgctgagcc agacctccat cgcgcactcc 3781 ggggagtgga gggaaggagc gagggctcag ttgggctgtt ttggaggcag gaagcacttg 3841 ctctcccaaa gtcgctctga gttgttatca gtaagggagc tgcagtggag taggcgggga 3901 gaaggccgca cccttctccg gaggggggag gggagtgttg caataccttt ctgggagttc 3961 tctgctgcct cctggcttct gaggaccgcc ctgggcctgg gagaatccct tccccctctt 4021 ccctcgtgat ctgcaactcc agtcttacta gtatctgtag ggcgcagtag tccagggttt 4081 ccttgatgat gtcatactta tcctgtccct tttttttcca cagctcgcgg ttgaggacaa 4141 actcttcgcg gtctttccag tggggatcga cggtggatcc ataacttcgt atagcataca 4201 ttatacgaag ttatacaagt ttgtacaaaa aagcaggctg gcgccggaac caattcagtc 4261 gactggatcc acgcgtgagg ggcgcggaag ccggggcgga ggaggagcca accccgggct 4321 gggctgagac ccgcagagga agacgctcta gggatttgtc ccggactagc gagatggcaa 4381 ggctgaggac gggaggctga ttgagaggcg aaggtacacc ctaatctcaa tacaaccttt 4441 ggagctaagc cagcaatggt agagggaaga ttctgcacgt cccttccagg cggcctcccc 4501 gtcaccaccc cccccaaccc gccccgaccg gagctgagag taattcatac aaaaggactc 4561 gcccctgcct tggggaatcc cagggaccgt cgttaaactc ccactaacgt agaacccaga 4621 gatcgctgcg ttcccgcccc ctcacccgcc cgctctcgtc atcactgagg tggagaagag 4681 catgcgtgag gctccggtgc ccgtcagtgg gcagagcgca catcgcccac agtccccgag 4741 aagttggggg gaggggtcgg caattgaacc ggtgcctaga gaaagtggcg cggggtaaac 4801 tgggaaagtg atgtcgtgta ctggctccgc ctttttcccg agggtggggg agaaccgtat 4861 ataagtgcag tagtcgccgt gaacgttctt tttcgcaacg ggtttgccgc cagaacacag 4921 gtaagtgccg tgtgtggttc ccgcgggcct ggcctcttta cgggttatgg cccttgcgtg 4981 ccttgaatta cttccacgcc cctggctgca gtacgtgatt cttgatcccg agcttcgggt 5041 tggaagtggg tgggagagtt cgaggccttg cgcttaagga gccccttcgc ctcgtgcttg 5101 agttgaggcc tggcctgggc gctggggccg ccgcgtgcga atctggtggc accttcgcgc 5161 ctgtctcgct gctttcgata agtctctagc catttaaaat ttttgatgac ctgctgcgac 5221 gctttttttc tggcaagata gtcttgtaaa tgcgggccaa gatctgcaca ctggtatttc 5281 ggtttttggg gccgcgggcg gcgacggggc ccgtgcgtcc cagcgcacat gttcggcgag 5341 gcggggcctg cgagcgcggc caccgagaat cggacggggg tagtctcaag ctggccggcc 5401 tgctctggtg cctggcctcg cgccgccgtg tatcgccccg ccctgggcgg caaggctggc 5461 ccggtcggca ccagttgcgt gagcggaaag atggccgctt cccggccctg ctgcagggag 5521 ctcaaaatgg aggacgcggc gctcgggaga gcgggcgggt gagtcaccca cacaaaggaa 5581 aagggccttt ccgtcctcag ccgtcgcttc atgtgactcc acggagtacc gggcgccgtc 5641 caggcacctc gattagttct cgagcttttg gagtacgtcg tctttaggtt ggggggaggg 5701 gttttatgcg atggagtttc cccacactga gtgggtggag actgaagtta ggccagcttg 5761 gcacttgatg taattctcct tggaatttgc cctttttgag tttggatctt ggttcattct 5821 caagcctcag acagtggttc aaagtttttt tcttccattt caggtgtcgt ggaagcttgg 5881 tcgaccacca tggacaagaa gtactccatt gggctcgata tcggcacaaa cagcgtcggc 5941 tgggccgtca ttacggacga gtacaaggtg ccgagcaaaa aattcaaagt tctgggcaat 6001 accgatcgcc acagcataaa gaagaacctc attggcgccc tcctgttcga ctccggggag 6061 acggccgaag ccacgcggct caaaagaaca gcacggcgca gatatacccg cagaaagaat 6121 cggatctgct acctgcagga gatctttagt aatgagatgg ctaaggtgga tgactctttc 6181 ttccataggc tggaggagtc ctttttggtg gaggaggata aaaagcacga gcgccaccca 6241 atctttggca atatcgtgga cgaggtggcg taccatgaaa agtacccaac catatatcat 6301 ctgaggaaga agcttgtaga cagtactgat aaggctgact tgcggttgat ctatctcgcg 6361 ctggcgcata tgatcaaatt tcggggacac ttcctcatcg agggggacct gaacccagac 6421 aacagcgatg tcgacaaact ctttatccaa ctggttcaga cttacaatca gcttttcgaa 6481 gagaacccga tcaacgcatc cggagttgac gccaaagcaa tcctgagcgc taggctgtcc 6541 aaatcccggc ggctcgaaaa cctcatcgca cagctccctg gggagaagaa gaacggcctg 6601 tttggtaatc ttatcgccct gtcactcggg ctgaccccca actttaaatc taacttcgac 6661 ctggccgaag atgccaagct tcaactgagc aaagacacct acgatgatga tctcgacaat 6721 ctgctggccc agatcggcga ccagtacgca gacctttttt tggcggcaaa gaacctgtca 6781 gacgccattc tgctgagtga tattctgcga gtgaacacgg agatcaccaa agctccgctg 6841 agcgctagta tgatcaagcg ctatgatgag caccaccaag acttgacttt gctgaaggcc 6901 cttgtcagac agcaactgcc tgagaagtac aaggaaattt tcttcgatca gtctaaaaat 6961 ggctacgccg gatacattga cggcggagca agccaggagg aattttacaa atttattaag 7021 cccatcttgg aaaaaatgga cggcaccgag gagctgctgg taaagcttaa cagagaagat 7081 ctgttgcgca aacagcgcac tttcgacaat ggaagcatcc cccaccagat tcacctgggc 7141 gaactgcacg ctatcctcag gcggcaagag gatttctacc cctttttgaa agataacagg 7201 gaaaagattg agaaaatcct cacatttcgg ataccctact atgtaggccc cctcgcccgg 7261 ggaaattcca gattcgcgtg gatgactcgc aaatcagaag agaccatcac tccctggaac 7321 ttcgaggaag tcgtggataa gggggcctct gcccagtcct tcatcgaaag gatgactaac 7381 tttgataaaa atctgcctaa cgaaaaggtg cttcctaaac actctctgct gtacgagtac 7441 ttcacagttt ataacgagct caccaaggtc aaatacgtca cagaagggat gagaaagcca 7501 gcattcctgt ctggagagca gaagaaagct atcgtggacc tcctcttcaa gacgaaccgg 7561 aaagttaccg tgaaacagct caaagaagac tatttcaaaa agattgaatg tttcgactct 7621 gttgaaatca gcggagtgga ggatcgcttc aacgcatccc tgggaacgta tcacgatctc 7681 ctgaaaatca ttaaagacaa ggacttcctg gacaatgagg agaacgagga cattcttgag 7741 gacattgtcc tcacccttac gttgtttgaa gatagggaga tgattgaaga acgcttgaaa 7801 acttacgctc atctcttcga cgacaaagtc atgaaacagc tcaagaggcg ccgatataca 7861 ggatgggggc ggctgtcaag aaaactgatc aatgggatcc gagacaagca gagtggaaag 7921 acaatcctgg attttcttaa gtccgatgga tttgccaacc ggaacttcat gcagttgatc 7981 catgatgact ctctcacctt taaggaggac atccagaaag cacaagtttc tggccagggg 8041 gacagtcttc acgagcacat cgctaatctt gcaggtagcc cagctatcaa aaagggaata 8101 ctgcagaccg ttaaggtcgt ggatgaactc gtcaaagtaa tgggaaggca taagcccgag 8161 aatatcgtta tcgagatggc ccgagagaac caaactaccc agaagggaca gaagaacagt 8221 agggaaagga tgaagaggat tgaagagggt ataaaagaac tggggtccca aatccttaag 8281 gaacacccag ttgaaaacac ccagcttcag aatgagaagc tctacctgta ctacctgcag 8341 aacggcaggg acatgtacgt ggatcaggaa ctggacatca atcggctctc cgactacgac 8401 gtggatcata tcgtgcccca gtcttttctc aaagatgatt ctattgataa taaagtgttg 8461 acaagatccg ataaaaatag agggaagagt gataacgtcc cctcagaaga agttgtcaag 8521 aaaatgaaaa attattggcg gcagctgctg aacgccaaac tgatcacaca acggaagttc 8581 gataatctga ctaaggctga acgaggtggc ctgtctgagt tggataaagc cggcttcatc 8641 aaaaggcagc ttgttgagac acgccagatc accaagcacg tggcccaaat tctcgattca 8701 cgcatgaaca ccaagtacga tgaaaatgac aaactgattc gagaggtgaa agttattact 8761 ctgaagtcta agctggtctc agatttcaga aaggactttc agttttataa ggtgagagag 8821 atcaacaatt accaccatgc gcatgatgcc tacctgaatg cagtggtagg cactgcactt 8881 atcaaaaaat atcccaagct tgaatctgaa tttgtttacg gagactataa agtgtacgat 8941 gttaggaaaa tgatcgcaaa gtctgagcag gaaataggca aggccaccgc taagtacttc 9001 ttttacagca atattatgaa ttttttcaag accgagatta cactggccaa tggagagatt 9061 cggaagcgac cacttatcga aacaaacgga gaaacaggag aaatcgtgtg ggacaagggt 9121 agggatttcg cgacagtccg gaaggtcctg tccatgccgc aggtgaacat cgttaaaaag 9181 accgaagtac agaccggagg cttctccaag gaaagtatcc tcccgaaaag gaacagcgac 9241 aagctgatcg cacgcaaaaa agattgggac cccaagaaat acggcggatt cgattctcct 9301 acagtcgctt acagtgtact ggttgtggcc aaagtggaga aagggaagtc taaaaaactc 9361 aaaagcgtca aggaactgct gggcatcaca atcatggagc gatcaagctt cgaaaaaaac 9421 cccatcgact ttctcgaggc gaaaggatat aaagaggtca aaaaagacct catcattaag 9481 cttcccaagt actctctctt tgagcttgaa aacggccgga aacgaatgct cgctagtgcg 9541 ggcgagctgc agaaaggtaa cgagctggca ctgccctcta aatacgttaa tttcttgtat 9601 ctggccagcc actatgaaaa gctcaaaggg tctcccgaag ataatgagca gaagcagctg 9661 ttcgtggaac aacacaaaca ctaccttgat gagatcatcg agcaaataag cgaattctcc 9721 aaaagagtga tcctcgccga cgctaacctc gataaggtgc tttctgctta caataagcac 9781 agggataagc ccatcaggga gcaggcagaa aacattatcc acttgtttac tctgaccaac 9841 ttgggcgcgc ctgcagcctt caagtacttc gacaccacca tagacagaaa gcggtacacc 9901 tctacaaagg aggtcctgga cgccacactg attcatcagt caattacggg gctctatgaa 9961 acaagaatcg acctctctca gctcggtgga gacagcaggg ctgaccccaa gaagaagagg 10021 aaggtgtgaa agggttcgat ccctaccggt atcgatgtgc ggccgccgcc ccccccccct 10081 ctccctcccc cccccctaac gttactggcc gaagccgctt ggaataaggc cggtgtgcgt 10141 ttgtctatat gttattttcc accatattgc cgtcttttgg caatgtgagg gcccggaaac 10201 ctggccctgt cttcttgacg agcattccta ggggtctttc ccctctcgcc aaaggaatgc 10261 aaggtctgtt gaatgtcgtg aaggaagcag ttcctctgga agcttcttga agacaaacaa 10321 cgtctgtagc gaccctttgc aggcagcgga accccccacc tggcgacagg tgcctctgcg 10381 gccaaaagcc acgtgtataa gatacacctg caaaggcggc acaaccccag tgccacgttg 10441 tgagttggat agttgtggaa agagtcaaat ggctctcctc aagcgtattc aacaaggggc 10501 tgaaggatgc ccagaaggta ccccattgta tgggatctga tctggggcct cggtgcacat 10561 gctttacatg tgtttagtcg aggttaaaaa aacgtctagg ccccccgaac cacggggacg 10621 tggttttcct ttgaaaaaca cgatgataat atggccacaa ccatgggatc ggccattgaa 10681 caagatggat tgcacgcagg ttctccggcc gcttgggtgg agaggctatt cggctatgac 10741 tgggcacaac agacaatcgg ctgctctgat gccgccgtgt tccggctgtc agcgcagggg 10801 cgcccggttc tttttgtcaa gaccgacctg tccggtgccc tgaatgaact gcaggacgag 10861 gcagcgcggc tatcgtggct ggccacgacg ggcgttcctt gcgcagctgt gctcgacgtt 10921 gtcactgaag cgggaaggga ctggctgcta ttgggcgaag tgccggggca ggatctcctg 10981 tcatctcacc ttgctcctgc cgagaaagta tccatcatgg ctgatgcaat gcggcggctg 11041 catacgcttg atccggctac ctgcccattc gaccaccaag cgaaacatcg catcgagcga 11101 gcacgtactc ggatggaagc cggtcttgtc gatcaggatg atctggacga agagcatcag 11161 gggctcgcgc cagccgaact gttcgccagg ctcaaggcgc gcatgcccga cggcgaggat 11221 ctcgtcgtga cccatggcga tgcctgcttg ccgaatatca tggtggaaaa tggccgcttt 11281 tctggattca tcgactgtgg ccggctgggt gtggcggacc gctatcagga catagcgttg 11341 gctacccgtg atattgctga agagcttggc ggcgaatggg ctgaccgctt cctcgtgctt 11401 tacggtatcg ccgctcccga ttcgcagcgc atcgccttct atcgccttct tgacgagttc 11461 ttctgacgta cgcgatgatc tagagctcgc tgatcagcct cgactgtgcc ttctagttgc 11521 cagccatctg ttgtttgccc ctcccccgtg ccttccttga ccctggaagg tgccactccc 11581 actgtccttt cctaataaaa tgaggaaatt gcatcgcatt gtctgagtag gtgtcattct 11641 attctggggg gtggggtggg gcaggacagc aagggggagg attgggaaga caatagcagg 11701 catgctgggg atgcggtggg ctctatggct tctgaggcgg aaagaacctg caactagtct 11761 cgagatatct agacccagct ttcttgtaca aagtggtgaa ttccgactgt gccttctagt 11821 tgccagccat ctgttgtttg cccctccccc gtgccttcct tgaccctgga aggtgccact 11881 cccactgtcc tttcctaata aaatgaggaa attgcatcgc attgtctgag taggtgtcat 11941 tctattctgg ggggtggggt ggggcaggac agcaaggggg aggattggga agacaatagc 12001 aggcatgctg gggatgcggt gggctctatg ggtcgacctc gagagatggg cgggagtctt 12061 ctgggcaggc ttaaaggcta acctggtgtg tgggcgttgt cctgcagggg aattgaacag 12121 gtgtaaaatt ggagggacaa gacttcccac agattttcgg ttttgtcggg aagtttttta 12181 ataggggcaa ataaggaaaa tgggaggata ggtagtcatc tggggtttta tgcagcaaaa 12241 ctacaggtta ttattgcttg tgatccgcct cggagtattt tccatcgagg tagattaaag 12301 acatgctcac ccgagtttta tactctcctg cttgagatcc ttactacagt atgaaattac 12361 agtgtcgcga gttagactat gtaagcagaa ttttaatcat ttttaaagag cccagtactt 12421 catatccatt tctcccgctc cttctgcagc cttatcaaaa ggtattttag aacactcatt 12481 ttagccccat tttcatttat tatactggct tatccaaccc ctagacagag cattggcatt 12541 ttccctttcc tgatcttaga agtctgatga ctcatgaaac cagacagatt agttacatac 12601 accacaaatc gaggctgtag ctggggcctc aacactgcag ttcttttata actccttagt 12661 acactttttg ttgatccttt gccttgatcc ttaattttca gtgtctatca cctctcccgt 12721 caggtggtgt tccacatttg ggcctattct cagtccaggg agttttacaa caatagatgt 12781 attgagaatc caacctaaag cttaactttc cactcccatg aatgcctctc tcctttttct 12841 ccatttataa actgagctat taaccattaa tggtttccag gtggatgtct cctcccccaa 12901 tattacctga tgtatcttac atattgccag gctgatattt taagacatta aaaggtatat 12961 ttcattattg agccacatgg tattgattac tgcttactaa aattttgtca ttgtacacat 13021 ctgtaaaagg tggttccttt tggaatgcaa agttcaggtg tttgttgtct ttcctgacct 13081 aaggtcttgt gagcttgtat tttttctatt taagcagtgc tttctcttgg actggcttga 13141 ctcatggcat tctacacgtt attgctggtc taaatgtgat tttgccaagc ttcttcagga 13201 cctataattt tgcttgactt gtagccaaac acaagtaaaa tgattaagca acaaatgtat 13261 ttgtgaagct tggtttttag gttgttgtgt tgtgtgtgct tgtgctctat aataatacta 13321 tccaggggct ggagaggtgg ctcggagttc aagagcacag actgctcttc cagaagtcct 13381 gagttcaatt cccagcaacc acatggtggc tcacaaccat ctgtaatggg atctgatgcc 13441 ctcttctggt gtgtctgaag accacaagtg tattcacatt aaataaataa atcctccttc 13501 ttcttctttt tttttttttt aaagagaata ctgtctccag tagaatttac tgaagtaatg 13561 aaatactttg tgtttgttcc aatatggtag ccaataatca aattactctt taagcactgg 13621 aaatgttacc aaggaactaa tttttatttg aagtgtaact gtggacagag gagccataac 13681 tgcagacttg tgggatacag aagaccaatg cagactttaa tgtcttttct cttacactaa 13741 gcaataaaga aataaaaatt gaacttctag tatcctattt gtttaaactg ctagctttac 13801 ttaacttttg tgcttcatct atacaaagct gaaagctaag tctgcagcca ttactaaaca 13861 tgaaagcaag taatgataat tttggatttc aaaaatgtag ggccagagtt tagccagcca 13921 gtggtggtgc ttgcctttat gcctttaatc ccagcactct ggaggcagag acaggcagat 13981 ctctgagttt gagcccagcc tggtctacac atcaagttct atctaggata gccaggaata 14041 cacacagaaa ccctgttggg gaggggggct ctgagatttc ataaaattat aattgaagca 14101 ttccctaatg agccactatg gatgtggcta aatccgtcta cctttctgat gagatttggg 14161 tattattttt tctgtctctg ctgttggttg ggtcttttga cactgtgggc tttctttaaa 14221 gcctccttcc tgccatgtgg tctcttgttt gctactaact tcccatggct taaatggcat 14281 ggctttttgc cttctaaggg cagctgctga gatttgcagc ctgatttcca gggtggggtt 14341 gggaaatctt tcaaacacta aaattgtcct ttaatttttt ttttaaaaaa tgggttatat 14401 aataaacctc ataaaatagt tatgaggagt gaggtggact aatattaaat gagtccctcc 14461 cctataaaag agctattaag gctttttgtc ttatacttaa cttttttttt aaatgtggta 14521 tctttagaac caagggtctt agagttttag tatacagaaa ctgttgcatc gcttaatcag 14581 attttctagt ttcaaatcca gagaatccaa attcttcaca gccaaagtca aattaagaat 14641 ttctgacttt taatgttaat ttgcttactg tgaatataaa aatgatagct tttcctgagg 14701 cagggtctca ctatgtatct ctgcctgatc tgcaacaaga tatgtagact aaagttctgc 14761 ctgcttttgt ctcctgaata ctaaggttaa aatgtagtaa tacttttgga acttgcaggt 14821 cagattcttt tataggggac acactaaggg agcttgggtg atagttggta aaatgtgttt 14881 caagtgatga aaacttgaat tattatcacc gcaacctact ttttaaaaaa aaaagccagg 14941 cctgttagag catgcttaag ggatccctag gacttgctga gcacacaaga gtagttactt 15001 ggcaggctcc tggtgagagc atatttcaaa aaacaaggca gacaaccaag aaactacagt 15061 taaggttacc tgtctttaaa ccatctgcat atacacaggg atattaaaat attccaaata 15121 atatttcatt caagttttcc cccatcaaat tgggacatgg atttctccgg tgaataggca 15181 gagttggaaa ctaaacaaat gttggttttg tgatttgtga aattgttttc aagtgatagt 15241 taaagcccat gagatacaga acaaagctgc tatttcgagg tctcttggtt tatactcaga 15301 agcacttctt tgggtttccc tgcactatcc tgatcatgtg ctaggcctac cttaggctga 15361 ttgttgttca aataaactta agtttcctgt caggtgatgt catatgattt catatatcaa 15421 ggcaaaacat gttatatatg ttaaacattt gtacttaatg tgaaagttag gtctttgtgg 15481 gtttgatttt taattttcaa aacctgagct aaataagtca tttttacatg tcttacattt 15541 ggtggaattg tataattgtg gtttgcaggc aagactctct gacctagtaa ccctacctat 15601 agagcacttt gctgggacta gtggatcctc tagagtcgag cagtgtggtt ttcaagagga 15661 agcaaaaagc ctctccaccc aggcctggaa tgtttccacc caatgtcgag cagtgtggtt 15721 ttgcaagagg aagcaaaaag cctctccacc caggcctgga atgtttccac ccaatgtcga 15781 gcaaaccccg cccagcgtct tgtcattggc gaattcgaac acgcagatgc agtcggggcg 15841 gcgcggtccc aggtccactt cgcatattaa ggtgacgcgt gtggcctcga acaccgagcg 15901 accctgcagg tcctcgccat ggatcctgat gatgttgttg attcttctaa atcttttgtg 15961 atggaaaact tttcttcgta ccacgggact aaacctggtt atgtagattc cattcaaaaa 16021 ggtatacaaa agccaaaatc tggtacacaa ggaaattatg acgatgattg gaaagggttt 16081 tatagtaccg acaataaata cgacgctgcg ggatactctg tagataatga aaacccgctc 16141 tctggaaaag ctggaggcgt ggtcaaagtg acgtatccag gactgacgaa ggttctcgca 16201 ctaaaagtgg ataatgccga aactattaag aaagagttag gtttaagtct cactgaaccg 16261 ttgatggagc aagtcggaac ggaagagttt atcaaaaggt tcggtgatgg tgcttcgcgt 16321 gtagtgctca gccttccctt cgctgagggg agttctagcg ttgaatatat taataactgg 16381 gaacaggcga aagcgttaag cgtagaactt gagattaatt ttgaaacccg tggaaaacgt 16441 ggccaagatg cgatgtatga gtatatggct caagcctgtg caggaaatcg tgtcaggcga 16501 tctctttgtg aaggaacctt acttctgtgg tgtgacataa ttggacaaac tacctacaga 16561 gatttaaagc tctaaggtaa atataaaatt tttaagtgta taatgtgtta aactactgat 16621 tctaattgtt tgtgtatttt agattccaac ctatggaact gatgaatggg agcagtggtg 16681 gaatgcagat ccactagagt cgagggatgc agaaattgat gatctattaa acaataaaga 16741 tgtccactaa aatggaagtt tttcctgtca tactttgtta agaagggtga gaacagagta 16801 cctacatttt gaatggaagg attggagcta cgggggtggg ggtggggtgg gattagataa 16861 atgcctgctc tttactgaag gctctttact attgctttat gataatgttt catagttgga 16921 tatcataatt taaacaagca aaaccaaatt aagggccagc tcattcctcc cactcatgat 16981 ctatagatct atagatctct cgtgggatca ttgtttttct cttgattccc actttgtggt 17041 tctaagtact gtggtttcca aatgtgtcag tttcatagcc tgaagaacga gatcagcagc 17101 ctctgttcca catacacttc attctcagta ttgttttgcc aagttctaat tccatcagaa 17161 gctggtcgat cgactctagc tagatgcggc gtacccagct tttgttccct ttagtgaggg 17221 ttaattgcgc gcttggcgta atcatggtca tagctgtttc ctgtgtgaaa ttgttatccg 17281 ctcacaattc cacacaacat acgagccggg agcataaagt gtaaagcctg gggtgcctaa 17341 tgagtgagct aactcacatt aattgcgttg cgctcactgc ccgctttcca gtcgggaaac 17401 ctgtcgtgcc agctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt 17461 gggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga 17521 gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca 17581 ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg 17641 ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt 17701 cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc 17761 ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct 17821 tcgggaagcg tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc 17881 gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta 17941 tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca 18001 gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag 18061 tggtggccta actacggcta cactagaaga acagtatttg gtatctgcgc tctgctgaag 18121 ccagttacct tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt 18181 agcggtggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa 18241 gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg 18301 attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga 18361 agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta 18421 atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc 18481 cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg 18541 ataccgcgag acccacgctc accggctcca gatttatcag caataaacca gccagccgga 18601 agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt 18661 tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt 18721 gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc 18781 caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc 18841 ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca 18901 gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag 18961 tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg 19021 tcaatacggg ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa 19081 cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa 19141 cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga 19201 gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga 19261 atactcatac tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg 19321 agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt 19381 ccccgaaaag tgccac //
