pSBbi-BH

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pSBbiBH载体基本信息

质粒名称: pSBbi-BH
出品公司: Addgene
目录编号: 60515
存储实验室: Eric Kowarz

载体骨架基本信息
载体名称: pUC19
空载体大小: 2021 bp
载体类型: 哺乳动物表达;转座子
筛选标记: 潮霉素
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: Top10
拷贝数: 高拷贝

插入基因信息
启动子: EF1a/RPBSA
克隆方法: 限制性内切酶
5’测序引物 GCCTCAGACAGTGGTTCAAAG
3’测序引物 AGGCACAGTCGAGGCTGAT

文献引用方法
材料和方法部分: pSBbi-BH was a gift from Eric Kowarz (Addgene plasmid # 60515 ; http://n2t.net/addgene:60515 ; RRID:Addgene_60515)
参考文献部分: Optimized Sleeping Beauty transposons rapidly generate stable transgenic cell lines. Kowarz E, Loescher D, Marschalek R. Biotechnol J. 2015 Feb 4. doi: 10.1002/biot.201400821. 10.1002/biot.201400821 PubMed 25650551

pSBbiBH载体图谱质粒图谱和多克隆位点信息

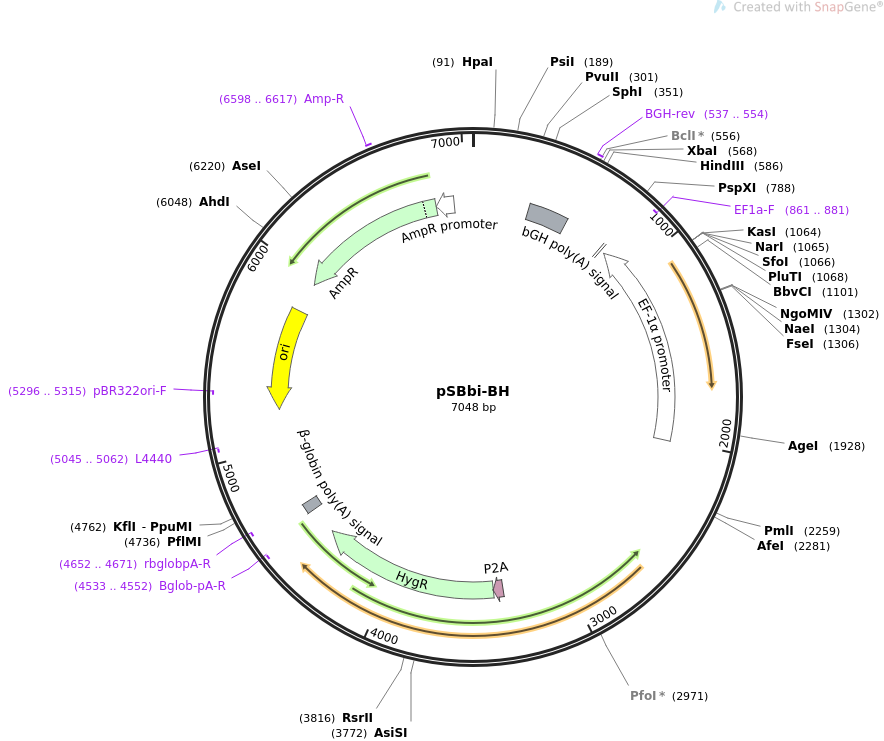

pSBbi-BH载体图谱

pSBbiBH载体简介

pSBbiBH载体序列

LOCUS       pSBbi-BH                7048 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  SB-transposon with constitutive bi-directional promoter, one side:
            SfiI cloning site for GOI (contains filler DNA), other side: BFP and
            hygromycin resistance gene.
ACCESSION   .
VERSION     .
KEYWORDS    pSBbi-BH
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7048)
  AUTHORS   Kowarz E, Loescher D, Marschalek R
  TITLE     Optimized Sleeping Beauty transposons rapidly generate stable
            transgenic cell lines.
  JOURNAL   Biotechnol J. 2015 Feb 4. doi: 10.1002/biot.201400821.
  PUBMED    25650551
REFERENCE   2  (bases 1 to 7048)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7048
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     polyA_signal    324..548
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     537..554
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     regulatory      794..803
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     promoter        complement(829..2010)
                     /label=EF-1-alpha promoter
                     /note="strong constitutive promoter for human elongation
                     factor EF-1-alpha"
     primer_bind     complement(861..881)
                     /label=EF1a-F
                     /note="Human elongation factor-1a promoter, forward primer"
     CDS             3351..3407
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             3408..4433
                     /codon_start=1
                     /gene="aph(4)-Ia"
                     /product="aminoglycoside phosphotransferase from E. coli"
                     /label=HygR
                     /note="confers resistance to hygromycin"
                     /translation="MKKPELTATSVEKFLIEKFDSVSDLMQLSEGEESRAFSFDVGGRG
                     YVLRVNSCADGFYKDRYVYRHFASAALPIPEVLDIGEFSESLTYCISRRAQGVTLQDLP
                     ETELPAVLQPVAEAMDAIAAADLSQTSGFGPFGPQGIGQYTTWRDFICAIADPHVYHWQ
                     TVMDDTVSASVAQALDELMLWAEDCPEVRHLVHADFGSNNVLTDNGRITAVIDWSEAMF
                     GDSQYEVANIFFWRPWLACMEQQTRYFERRHPELAGSPRLRAYMLRIGLDQLYQSLVDG
                     NFDDAAWAQGRCDAIVRSGAGTVGRTQIARRSAAVWTDGCVEVLADSGNRRPSTRPRAK
                     E"
     primer_bind     complement(4533..4552)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_signal    4598..4653
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal (Gil and
                     Proudfoot, 1987)"
     primer_bind     complement(4652..4671)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(5045..5062)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5216..5804)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5296..5315)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5975..6835)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6598..6617
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6836..6940)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ggatccctat acagttgaag tcggaagttt acatacactt aagttggagt cattaaaact
       61 cgtttttcaa ctactccaca aatttcttgt taacaaacaa tagttttggc aagtcagtta
      121 ggacatctac tttgtgcatg acacaagtca tttttccaac aattgtttac agacagatta
      181 tttcacttat aattcactgt atcacaattc cagtgggtca gaagtttaca tacactaagt
      241 tcgactcctc tgcagaatgc ggcgatgttt cggtaagggg tccgctatct agtaggccca
      301 gctggttctt tccgcctcag aagccataga gcccaccgca tccccagcat gcctgctatt
      361 gtcttcccaa tcctccccct tgctgtcctg ccccacccca ccccccagaa tagaatgaca
      421 cctactcaga caatgcgatg caatttcctc attttattag gaaaggacag tgggagtggc
      481 accttccagg gtcaaggaag gcacggggga ggggcaaaca acagatggct ggcaactaga
      541 aggcacagtc gaggctgatc agcgagctct agagaattga tccccaagct tggcctgaca
      601 ggccttcgaa ttagagagaa ggaaagacgc aaccaggaag cccaccaaga gaaagaggca
      661 tttcctgaaa agattcccct ttttggagag ccctacaagg tatttactga acactagaca
      721 ttgaagtcct gatttatcac aatgttgaac cctatgatga aacaattcag tataattgag
      781 ttcgaaactc gagccatggt ggcctcagag gccagcttgg ggtagttttc acgacacctt
      841 aaatggaaga aaaaaacttt gaaccactgt ctgaggcttg agaatgaacc aagatccaaa
      901 ctcaaaaagg gcaaattcca aggagaatta catcaagtgc caagctggcc taacttcagt
      961 ctccacccac tcagtatggg gaaactccat cgcataaaac ccctcccccc aacctaaaga
     1021 cgacgtactc caaaagctcg agaactaatc gaggtgcctg gacggcgccc ggtactccgt
     1081 ggagtcacat gaagcgacgg ctgaggacgg aaaggccctt ttcctttgtg tgggtgactc
     1141 acccgcccgc tctcccgagc gccgcgtcct ccattttgag ctccctgcag cagggccggg
     1201 aagcggccat ctttccgctc acgcaactgg tgccgaccgg gccagccttg ccgcccaggg
     1261 cggggcgata cacggcggcg cgaggccagg caccagagca ggccggccag cttgagacta
     1321 cccccgtccg attctcggtg gccgcgctcg caggccccgc ctcgccgaac atgtgcgctg
     1381 ggacgcacgg gccccgtcgc cgcccgcggc cccaaaaacc gaaataccag tgtgcagatc
     1441 ttggcccgca tttacaagac tatcttgcca gaaaaaaagc gtcgcagcag gtcatcaaaa
     1501 attttaaatg gctagagact tatcgaaagc agcgagacag gcgcgaaggt gccaccagat
     1561 tcgcacgcgg cggccccagc gcccaggcca agcctcaact caagcacgag gcgaaggggc
     1621 tccttaagcg caaggcctcg aactctccca cccacttcca acccgaagct cgggatcaag
     1681 aatcacgtac tgcagccagg ggcgtggaag taattcaagg cacgcaaggg ccataacccg
     1741 taaagaggcc aggcccgcgg gaaccacaca cggcacttac ctgtgttctg gcggcaaacc
     1801 cgttgcgaaa aagaacgttc acggcgacta ctgcacttat atacggttct cccccaccct
     1861 cgggaaaaag gcggagccag tacacgacat cactttccca gtttaccccg cgccaccttc
     1921 tctaggcacc ggttcaattg ccgacccctc cccccaactt ctcggggact gtgggcgatg
     1981 tgcgctctgc ccactgacgg gcaccggagc ctctaggcga gaccctgtct cacaaaataa
     2041 agtaagcccg gactgagtgc ggaaaggcgg gcctggcggg tctggtctcc ccatgcgggc
     2101 caccagaggc cctgcagcct tcagtcgctt gaaggggtaa tggcgcttcc actcacaaac
     2161 atggcggaca gagcgtgtga acgagatgaa cagcccctca aaaatatggc cgccgaggct
     2221 ggacggccgt gccccagcag caccgcctcc gcgccccacg tgatctctcg ccgggcacag
     2281 cgctgaccgc ggaggtccaa ccggaagaat gtccggattg gacattcgga agagggcccg
     2341 ccttccctgg ggaatctctg cgcacgcgca gaacgcttcg accaatgaaa acacaggaag
     2401 ccgtccgcgc aaccgcgttg cgtcacttct gccgcccctg tttcaaggta tatagccgta
     2461 gacggaactt cgcctttctc tcggccttag cgccattttt ttgggtgagt gttttttggt
     2521 tcctgcgttg ggattccgtg tacaatccat agacatctga cctcggcact tagcatcatc
     2581 acagcaaact aactgtagcc tttctctctt tccctgtaga aacctctgca cctgaggcca
     2641 ccatgagcga gctgattaag gagaacatgc acatgaagct gtacatggag ggcaccgtgg
     2701 acaaccatca cttcaagtgc acatccgagg gcgaaggcaa gccctacgag ggcacccaga
     2761 ccatgagaat caaggtggtc gagggcggcc ctctcccctt cgccttcgac atcctggcta
     2821 ctagcttcct ctacggcagc aagaccttca tcaaccacac ccagggcatc cccgacttct
     2881 tcaagcagtc cttccctgag ggcttcacat gggagagagt caccacatac gaagacgggg
     2941 gcgtgctgac cgctacccag gacaccagcc tccaggacgg ctgcctcatc tacaacgtca
     3001 agatcagagg ggtgaacttc acatccaacg gccctgtgat gcagaagaaa acactcggct
     3061 gggaggcctt caccgagacg ctgtaccccg ctgacggcgg cctggaaggc agaaacgaca
     3121 tggccctgaa gctcgtgggc gggagccatc tgatcgcaaa catcaagacc acatatagat
     3181 ccaagaaacc cgctaagaac ctcaagatgc ctggcgtcta ctatgtggac tacagactgg
     3241 aaagaatcaa ggaggccaac aacgagacct acgtcgagca gcacgaggtg gcagtggcca
     3301 gatactgcga cctccctagc aaactggggc acaagctgaa cggcagtgga gctactaact
     3361 tcagcctgct gaagcaggct ggtgacgtcg aggagaatcc tggccccatg aaaaagcctg
     3421 aactcaccgc gacgtctgtc gagaagtttc tgatcgaaaa gttcgacagc gtctccgacc
     3481 tgatgcagct ctcggagggc gaagaatctc gtgctttcag cttcgatgta ggagggcgtg
     3541 gatatgtcct gcgggtaaat agctgcgccg atggtttcta caaagatcgt tatgtttatc
     3601 ggcactttgc atcggccgcg ctcccgattc cggaagtgct tgacattggg gaattcagcg
     3661 agagcctgac ctattgcatc tcccgccgtg cacagggtgt cacgttgcaa gacctgcctg
     3721 aaaccgaact gcccgctgtt ctgcagccgg tcgcggaggc catggatgcg atcgctgcgg
     3781 ccgatcttag ccagacgagc gggttcggcc cattcggacc gcaaggaatc ggtcaataca
     3841 ctacatggcg tgatttcata tgcgcgattg ctgatcccca tgtgtatcac tggcaaactg
     3901 tgatggacga caccgtcagt gcgtccgtcg cgcaggctct cgatgagctg atgctttggg
     3961 ccgaggactg ccccgaagtc cggcacctcg tgcacgcgga tttcggctcc aacaatgtcc
     4021 tgacggacaa tggccgcata acagcggtca ttgactggag cgaggcgatg ttcggggatt
     4081 cccaatacga ggtcgccaac atcttcttct ggaggccgtg gttggcttgt atggagcagc
     4141 agacgcgcta cttcgagcgg aggcatccgg agcttgcagg atcgccgcgg ctccgggcgt
     4201 atatgctccg cattggtctt gaccaactct atcagagctt ggttgacggc aatttcgatg
     4261 atgcagcttg ggcgcagggt cgatgcgacg caatcgtccg atccggagcc gggactgtcg
     4321 ggcgtacaca aatcgcccgc agaagcgcgg ccgtctggac cgatggctgt gtagaagtac
     4381 tcgccgatag tggaaaccga cgccccagca ctcgtccgag ggcaaaggaa tagttcgaag
     4441 gcctgtcgtg aattcactcc tcaggtgcag gctgcctatc agaaggtggt ggctggtgtg
     4501 gccaatgccc tggctcacaa ataccactga gatctttttc cctctgccaa aaattatggg
     4561 gacatcatga agccccttga gcatctgact tctggctaat aaaggaaatt tattttcatt
     4621 gcaatagtgt gttggaattt tttgtgtctc tcactcggaa ggacatatgg gagggcaaat
     4681 catttaaaac atcagaatga gtatttggtt tagagtttgg caacatatgc catatgctgg
     4741 ctgccatgaa ctagctactc gggacccctt accgaaacat cgccgcattc tgcagaggag
     4801 tcgagtgtat gtaaacttct gacccactgg gaatgtgatg aaagaaataa aagctgaaat
     4861 gaatcattct ctctactatt attctgatat ttcacattct taaaataaag tggtgatcct
     4921 aactgaccta agacagggaa tttttactag gattaaatgt caggaattgt gaaaaagtga
     4981 gtttaaatgt atttggctaa ggtgtatgta aacttccgac ttcaactgta tagggatccg
     5041 cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc
     5101 actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt
     5161 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc
     5221 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa
     5281 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc
     5341 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg
     5401 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc
     5461 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc
     5521 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca
     5581 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact
     5641 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg
     5701 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt
     5761 ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct
     5821 tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga
     5881 gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa
     5941 tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac
     6001 ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga
     6061 taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc
     6121 cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca
     6181 gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta
     6241 gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct acaggcatcg
     6301 tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc
     6361 gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg
     6421 ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt
     6481 ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt
     6541 cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata
     6601 ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc
     6661 gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac
     6721 ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa
     6781 ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct
     6841 tcctttttca atattattga agcatttatc agggttattg tctcatgagc ggatacatat
     6901 ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc
     6961 cacctgatgc ggtgtgaaat accgcacaga tgcgtaagga gaaaataccg catcaggaaa
     7021 ttgtaagcgt taatattttg ttaaaatt
//

pSBbiBH载体图谱质粒图谱pdf版和相关资料下载

pSBbiBH载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
