pSBbi-GB

价格:1000元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pSBbi-GB
出品公司: 爱迪基因
目录编号: 60520
存储实验室: Eric Kowarz

载体骨架基本信息
载体名称: pUC19
载体抗性: 氨苄霉素
空载体大小: 2021 bp
载体类型: 哺乳细胞表达,Transposon
筛选标记: 稻瘟
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
启动子 EF1a/RPBSA
克隆方法: 限制性内切酶
5' 测序引物 GCCTCAGACAGTGGTTCAAAG
3' 测序引物 AGGCACAGTCGAGGCTGAT

文献引用方法
材料和方法部分: pSBbi-GB was a gift from Eric Kowarz (爱迪基因 plasmid # 60520)
参考文献部分: ptimized Sleeping Beauty transposons rapidly generate stable transgenic cell lines. Kowarz E, Loescher D, Marschalek R. Biotechnol J. 2015 Feb 4. doi: 10.1002/biot.201400821. 10.1002/biot.201400821 PubMed 25650551

载体图谱质粒图谱和多克隆位点信息

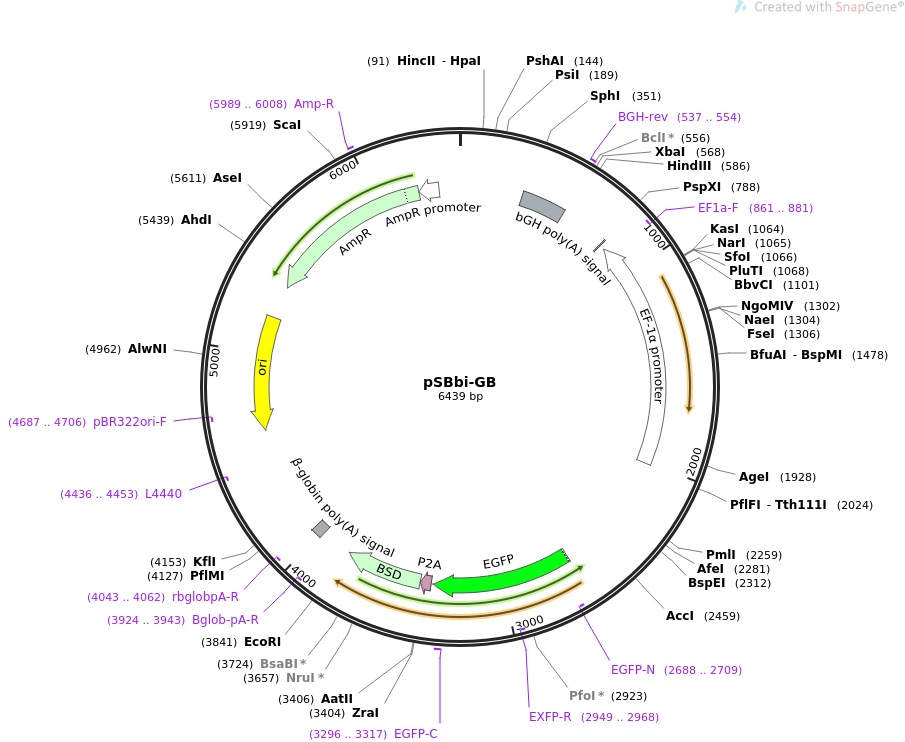

pSBbi-GB质粒图谱

载体简介

载体序列

LOCUS       pSBbi-GB               6439 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  SB-transposon with constitutive bi-directional promoter, one side:
            SfiI cloning site for GOI (contains filler DNA), other side: GFP and
            blasticidin resistance gene.
ACCESSION   .
VERSION     .
KEYWORDS    pSBbi-GB
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6439)
  AUTHORS   Kowarz E, Loescher D, Marschalek R
  TITLE     Optimized Sleeping Beauty transposons rapidly generate stable
            transgenic cell lines.
  JOURNAL   Biotechnol J. 2015 Feb 4. doi: 10.1002/biot.201400821.
  PUBMED    25650551
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|pSBbi-GB|
FEATURES             Location/Qualifiers
     source          1..6439
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     polyA_signal    324..548
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     537..554
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     regulatory      794..803
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     promoter        complement(829..2010)
                     /label=EF-1-alpha promoter
                     /note="strong constitutive promoter for human elongation
                     factor EF-1-alpha"
     primer_bind     complement(861..881)
                     /label=EF1a-F
                     /note="Human elongation factor-1a promoter, forward primer"
     CDS             2643..3359
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MLSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(2688..2709)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(2949..2968)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     3296..3317
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     CDS             3369..3425
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             3426..3824
                     /codon_start=1
                     /gene="Aspergillus terreus BSD"
                     /product="blasticidin S deaminase"
                     /label=BSD
                     /note="confers resistance to blasticidin"
                     /translation="MAMPLSQEESTLIERATATINSIPISEDYSVASAALSSDGRIFTG
                     VNVYHFTGGPCAELVVLGTAAAAAAGNLTCIVAIGNENRGILSPCGRCRQVLLDLHPGI
                     KAIVKDSDGQPTAVGIRELLPSGYVWEG"
     primer_bind     complement(3924..3943)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_site      3989..4044
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal"
     primer_bind     complement(4043..4062)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(4436..4453)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4607..5195)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4687..4706)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5366..6226)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5989..6008
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6227..6331)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ggatccctat acagttgaag tcggaagttt acatacactt aagttggagt cattaaaact
       61 cgtttttcaa ctactccaca aatttcttgt taacaaacaa tagttttggc aagtcagtta
      121 ggacatctac tttgtgcatg acacaagtca tttttccaac aattgtttac agacagatta
      181 tttcacttat aattcactgt atcacaattc cagtgggtca gaagtttaca tacactaagt
      241 tcgactcctc tgcagaatgc ggcgatgttt cggtaagggg tccgctatct agtaggccca
      301 gctggttctt tccgcctcag aagccataga gcccaccgca tccccagcat gcctgctatt
      361 gtcttcccaa tcctccccct tgctgtcctg ccccacccca ccccccagaa tagaatgaca
      421 cctactcaga caatgcgatg caatttcctc attttattag gaaaggacag tgggagtggc
      481 accttccagg gtcaaggaag gcacggggga ggggcaaaca acagatggct ggcaactaga
      541 aggcacagtc gaggctgatc agcgagctct agagaattga tccccaagct tggcctgaca
      601 ggccttcgaa ttagagagaa ggaaagacgc aaccaggaag cccaccaaga gaaagaggca
      661 tttcctgaaa agattcccct ttttggagag ccctacaagg tatttactga acactagaca
      721 ttgaagtcct gatttatcac aatgttgaac cctatgatga aacaattcag tataattgag
      781 ttcgaaactc gagccatggt ggcctcagag gccagcttgg ggtagttttc acgacacctt
      841 aaatggaaga aaaaaacttt gaaccactgt ctgaggcttg agaatgaacc aagatccaaa
      901 ctcaaaaagg gcaaattcca aggagaatta catcaagtgc caagctggcc taacttcagt
      961 ctccacccac tcagtatggg gaaactccat cgcataaaac ccctcccccc aacctaaaga
     1021 cgacgtactc caaaagctcg agaactaatc gaggtgcctg gacggcgccc ggtactccgt
     1081 ggagtcacat gaagcgacgg ctgaggacgg aaaggccctt ttcctttgtg tgggtgactc
     1141 acccgcccgc tctcccgagc gccgcgtcct ccattttgag ctccctgcag cagggccggg
     1201 aagcggccat ctttccgctc acgcaactgg tgccgaccgg gccagccttg ccgcccaggg
     1261 cggggcgata cacggcggcg cgaggccagg caccagagca ggccggccag cttgagacta
     1321 cccccgtccg attctcggtg gccgcgctcg caggccccgc ctcgccgaac atgtgcgctg
     1381 ggacgcacgg gccccgtcgc cgcccgcggc cccaaaaacc gaaataccag tgtgcagatc
     1441 ttggcccgca tttacaagac tatcttgcca gaaaaaaagc gtcgcagcag gtcatcaaaa
     1501 attttaaatg gctagagact tatcgaaagc agcgagacag gcgcgaaggt gccaccagat
     1561 tcgcacgcgg cggccccagc gcccaggcca agcctcaact caagcacgag gcgaaggggc
     1621 tccttaagcg caaggcctcg aactctccca cccacttcca acccgaagct cgggatcaag
     1681 aatcacgtac tgcagccagg ggcgtggaag taattcaagg cacgcaaggg ccataacccg
     1741 taaagaggcc aggcccgcgg gaaccacaca cggcacttac ctgtgttctg gcggcaaacc
     1801 cgttgcgaaa aagaacgttc acggcgacta ctgcacttat atacggttct cccccaccct
     1861 cgggaaaaag gcggagccag tacacgacat cactttccca gtttaccccg cgccaccttc
     1921 tctaggcacc ggttcaattg ccgacccctc cccccaactt ctcggggact gtgggcgatg
     1981 tgcgctctgc ccactgacgg gcaccggagc ctctaggcga gaccctgtct cacaaaataa
     2041 agtaagcccg gactgagtgc ggaaaggcgg gcctggcggg tctggtctcc ccatgcgggc
     2101 caccagaggc cctgcagcct tcagtcgctt gaaggggtaa tggcgcttcc actcacaaac
     2161 atggcggaca gagcgtgtga acgagatgaa cagcccctca aaaatatggc cgccgaggct
     2221 ggacggccgt gccccagcag caccgcctcc gcgccccacg tgatctctcg ccgggcacag
     2281 cgctgaccgc ggaggtccaa ccggaagaat gtccggattg gacattcgga agagggcccg
     2341 ccttccctgg ggaatctctg cgcacgcgca gaacgcttcg accaatgaaa acacaggaag
     2401 ccgtccgcgc aaccgcgttg cgtcacttct gccgcccctg tttcaaggta tatagccgta
     2461 gacggaactt cgcctttctc tcggccttag cgccattttt ttgggtgagt gttttttggt
     2521 tcctgcgttg ggattccgtg tacaatccat agacatctga cctcggcact tagcatcatc
     2581 acagcaaact aactgtagcc tttctctctt tccctgtaga aacctctgca cctgaggcca
     2641 ccatgttgag caagggcgag gagctgttca ccggggtggt gcccatcctg gtcgagctgg
     2701 acggcgacgt aaacggccac aagttcagcg tgtccggcga gggcgagggc gatgccacct
     2761 acggcaagct gaccctgaag ttcatctgca ccaccggcaa gctgcccgtg ccctggccca
     2821 ccctcgtgac caccctgacc tacggcgtgc agtgcttcag ccgctacccc gaccacatga
     2881 agcagcacga cttcttcaag tccgccatgc ccgaaggcta cgtccaggag cgcaccatct
     2941 tcttcaagga cgacggcaac tacaagaccc gcgccgaggt gaagttcgag ggcgacaccc
     3001 tggtgaaccg catcgagctg aagggcatcg acttcaagga ggacggcaac atcctggggc
     3061 acaagctgga gtacaactac aacagccaca acgtctatat catggccgac aagcagaaga
     3121 acggcatcaa ggtgaacttc aagatccgcc acaacatcga ggacggcagc gtgcagctcg
     3181 ccgaccacta ccagcagaac acccccatcg gcgacggccc cgtgctgctg cccgacaacc
     3241 actacctgag cacccagtcc gccctgagca aagaccccaa cgagaagcgc gatcacatgg
     3301 tcctgctgga gttcgtgacc gccgccggga tcactctcgg catggacgag ctgtacaagg
     3361 gcagtggagc tactaacttc agcctgctga agcaggctgg tgacgtcgag gagaatcctg
     3421 gccccatggc catgcctttg tctcaagaag aatccaccct cattgaaaga gcaacggcta
     3481 caatcaacag catccccatc tctgaagact acagcgtcgc cagcgcagct ctctctagcg
     3541 acggccgcat cttcactggt gtcaatgtat atcattttac tgggggacct tgtgcagaac
     3601 tcgtggtgct gggcactgct gctgctgcgg cagctggcaa cctgacttgt atcgtcgcga
     3661 tcggaaatga gaacaggggc atcttgagcc cctgcggacg gtgccgacag gtgcttctcg
     3721 atctgcatcc tgggatcaaa gccatagtga aggacagtga tggacagccg acggcagttg
     3781 ggattcgtga attgctgccc tctggttatg tgtgggaggg ctaattcgaa ggcctgtcgt
     3841 gaattcactc ctcaggtgca ggctgcctat cagaaggtgg tggctggtgt ggccaatgcc
     3901 ctggctcaca aataccactg agatcttttt ccctctgcca aaaattatgg ggacatcatg
     3961 aagccccttg agcatctgac ttctggctaa taaaggaaat ttattttcat tgcaatagtg
     4021 tgttggaatt ttttgtgtct ctcactcgga aggacatatg ggagggcaaa tcatttaaaa
     4081 catcagaatg agtatttggt ttagagtttg gcaacatatg ccatatgctg gctgccatga
     4141 actagctact cgggacccct taccgaaaca tcgccgcatt ctgcagagga gtcgagtgta
     4201 tgtaaacttc tgacccactg ggaatgtgat gaaagaaata aaagctgaaa tgaatcattc
     4261 tctctactat tattctgata tttcacattc ttaaaataaa gtggtgatcc taactgacct
     4321 aagacaggga atttttacta ggattaaatg tcaggaattg tgaaaaagtg agtttaaatg
     4381 tatttggcta aggtgtatgt aaacttccga cttcaactgt atagggatcc gcttcctcgc
     4441 tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg
     4501 cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg tgagcaaaag
     4561 gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc
     4621 gcccccctga cgagcatcac aaaaatcgac gctcaagtca gaggtggcga aacccgacag
     4681 gactataaag ataccaggcg tttccccctg gaagctccct cgtgcgctct cctgttccga
     4741 ccctgccgct taccggatac ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc
     4801 atagctcacg ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg
     4861 tgcacgaacc ccccgttcag cccgaccgct gcgccttatc cggtaactat cgtcttgagt
     4921 ccaacccggt aagacacgac ttatcgccac tggcagcagc cactggtaac aggattagca
     4981 gagcgaggta tgtaggcggt gctacagagt tcttgaagtg gtggcctaac tacggctaca
     5041 ctagaagaac agtatttggt atctgcgctc tgctgaagcc agttaccttc ggaaaaagag
     5101 ttggtagctc ttgatccggc aaacaaacca ccgctggtag cggtggtttt tttgtttgca
     5161 agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg
     5221 ggtctgacgc tcagtggaac gaaaactcac gttaagggat tttggtcatg agattatcaa
     5281 aaaggatctt cacctagatc cttttaaatt aaaaatgaag ttttaaatca atctaaagta
     5341 tatatgagta aacttggtct gacagttacc aatgcttaat cagtgaggca cctatctcag
     5401 cgatctgtct atttcgttca tccatagttg cctgactccc cgtcgtgtag ataactacga
     5461 tacgggaggg cttaccatct ggccccagtg ctgcaatgat accgcgagac ccacgctcac
     5521 cggctccaga tttatcagca ataaaccagc cagccggaag ggccgagcgc agaagtggtc
     5581 ctgcaacttt atccgcctcc atccagtcta ttaattgttg ccgggaagct agagtaagta
     5641 gttcgccagt taatagtttg cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac
     5701 gctcgtcgtt tggtatggct tcattcagct ccggttccca acgatcaagg cgagttacat
     5761 gatcccccat gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc gttgtcagaa
     5821 gtaagttggc cgcagtgtta tcactcatgg ttatggcagc actgcataat tctcttactg
     5881 tcatgccatc cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag tcattctgag
     5941 aatagtgtat gcggcgaccg agttgctctt gcccggcgtc aatacgggat aataccgcgc
     6001 cacatagcag aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct
     6061 caaggatctt accgctgttg agatccagtt cgatgtaacc cactcgtgca cccaactgat
     6121 cttcagcatc ttttactttc accagcgttt ctgggtgagc aaaaacagga aggcaaaatg
     6181 ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat actcatactc ttcctttttc
     6241 aatattattg aagcatttat cagggttatt gtctcatgag cggatacata tttgaatgta
     6301 tttagaaaaa taaacaaata ggggttccgc gcacatttcc ccgaaaagtg ccacctgatg
     6361 cggtgtgaaa taccgcacag atgcgtaagg agaaaatacc gcatcaggaa attgtaagcg
     6421 ttaatatttt gttaaaatt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
