pSBbi-Pur

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pSBbiPur载体基本信息

质粒名称: pSBbi-Pur
出品公司: Addgene
目录编号: 60523
存储实验室: Eric Kowarz

载体骨架基本信息
载体名称: pUC19
空载体大小: 2021 bp
载体类型: 哺乳动物表达;转座子
筛选标记: 嘌呤霉素
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: Top10
拷贝数: 高拷贝

插入基因信息
启动子: EF1a/RPBSA
克隆方法: 限制性内切酶
5’测序引物 GCCTCAGACAGTGGTTCAAAG
3’测序引物 AGGCACAGTCGAGGCTGAT

文献引用方法
材料和方法部分: pSBbi-Pur was a gift from Eric Kowarz (Addgene plasmid # 60523 ; http://n2t.net/addgene:60523 ; RRID:Addgene_60523)
参考文献部分: Optimized Sleeping Beauty transposons rapidly generate stable transgenic cell lines. Kowarz E, Loescher D, Marschalek R. Biotechnol J. 2015 Feb 4. doi: 10.1002/biot.201400821. 10.1002/biot.201400821 PubMed 25650551

pSBbiPur载体图谱质粒图谱和多克隆位点信息

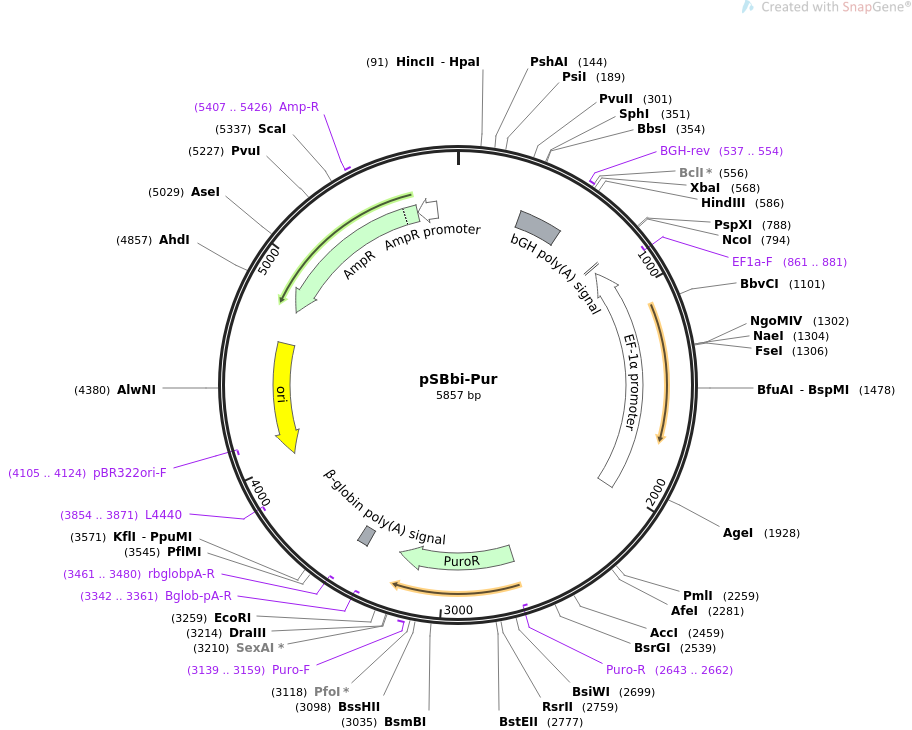

pSBbi-Pur载体图谱

pSBbiPur载体简介

pSBbiPur载体序列

LOCUS       pSBbi-Pur              5857 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  SB-transposon with constitutive bi-directional promoter, one side:
            SfiI cloning site for GOI (contains filler DNA), other side:
            puromycin resistance gene.
ACCESSION   .
VERSION     .
KEYWORDS    pSBbi-Pur
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5857)
  AUTHORS   Kowarz E, Loescher D, Marschalek R
  TITLE     Optimized Sleeping Beauty transposons rapidly generate stable
            transgenic cell lines.
  JOURNAL   Biotechnol J. 2015 Feb 4. doi: 10.1002/biot.201400821.
  PUBMED    25650551
REFERENCE   2  (bases 1 to 5857)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5857
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     polyA_signal    324..548
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     537..554
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     regulatory      794..803
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     promoter        complement(829..2010)
                     /label=EF-1-alpha promoter
                     /note="strong constitutive promoter for human elongation
                     factor EF-1-alpha"
     primer_bind     complement(861..881)
                     /label=EF1a-F
                     /note="Human elongation factor-1a promoter, forward primer"
     CDS             2643..3242
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(2643..2662)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     3139..3159
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     primer_bind     complement(3342..3361)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_signal    3407..3462
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal (Gil and
                     Proudfoot, 1987)"
     primer_bind     complement(3461..3480)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(3854..3871)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4025..4613)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4105..4124)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4784..5644)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5407..5426
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5645..5749)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ggatccctat acagttgaag tcggaagttt acatacactt aagttggagt cattaaaact
       61 cgtttttcaa ctactccaca aatttcttgt taacaaacaa tagttttggc aagtcagtta
      121 ggacatctac tttgtgcatg acacaagtca tttttccaac aattgtttac agacagatta
      181 tttcacttat aattcactgt atcacaattc cagtgggtca gaagtttaca tacactaagt
      241 tcgactcctc tgcagaatgc ggcgatgttt cggtaagggg tccgctatct agtaggccca
      301 gctggttctt tccgcctcag aagccataga gcccaccgca tccccagcat gcctgctatt
      361 gtcttcccaa tcctccccct tgctgtcctg ccccacccca ccccccagaa tagaatgaca
      421 cctactcaga caatgcgatg caatttcctc attttattag gaaaggacag tgggagtggc
      481 accttccagg gtcaaggaag gcacggggga ggggcaaaca acagatggct ggcaactaga
      541 aggcacagtc gaggctgatc agcgagctct agagaattga tccccaagct tggcctgaca
      601 ggccttcgaa ttagtgagaa ggaaagacgc aaccaggaag cccaccaaga gaaagaggca
      661 tttcctgaaa agattcccct ttttggagag ccctacaagg tatttactga acactagaca
      721 ttgaagtcct gatttatcac aatgttgaac cctatgatga aacaattcag tataattgag
      781 ttcgaaactc gagccatggt ggcctcagag gccagcttgg ggtagttttc acgacacctt
      841 aaatggaaga aaaaaacttt gaaccactgt ctgaggcttg agaatgaacc aagatccaaa
      901 ctcaaaaagg gcaaattcca aggagaatta catcaagtgc caagctggcc taacttcagt
      961 ctccacccac tcagtatggg gaaactccat cgcataaaac ccctcccccc aacctaaaga
     1021 cgacgtactc caaaagctcg agaactaatc gaggtgcctg gacggcgccc ggtactccgt
     1081 ggagtcacat gaagcgacgg ctgaggacgg aaaggccctt ttcctttgtg tgggtgactc
     1141 acccgcccgc tctcccgagc gccgcgtcct ccattttgag ctccctgcag cagggccggg
     1201 aagcggccat ctttccgctc acgcaactgg tgccgaccgg gccagccttg ccgcccaggg
     1261 cggggcgata cacggcggcg cgaggccagg caccagagca ggccggccag cttgagacta
     1321 cccccgtccg attctcggtg gccgcgctcg caggccccgc ctcgccgaac atgtgcgctg
     1381 ggacgcacgg gccccgtcgc cgcccgcggc cccaaaaacc gaaataccag tgtgcagatc
     1441 ttggcccgca tttacaagac tatcttgcca gaaaaaaagc gtcgcagcag gtcatcaaaa
     1501 attttaaatg gctagagact tatcgaaagc agcgagacag gcgcgaaggt gccaccagat
     1561 tcgcacgcgg cggccccagc gcccaagcca ggcctcaact caagcacgag gcgaaggggc
     1621 tccttaagcg caaggcctcg aactctccca cccacttcca acccgaagct cgggatcaag
     1681 aatcacgtac tgcagccagg ggcgtggaag taattcaagg cacgcaaggg ccataacccg
     1741 taaagaggcc aggcccgcgg gaaccacaca cggcacttac ctgtgttctg gcggcaaacc
     1801 cgttgcgaaa aagaacgttc acggcgacta ctgcacttat atacggttct cccccaccct
     1861 cgggaaaaag gcggagccag tacacgacat cactttccca gtttaccccg cgccaccttc
     1921 tctaggcacc ggttcaattg ccgacccctc cccccaactt ctcggggact gtgggcgatg
     1981 tgcgctctgc ccactgacgg gcaccggagc ctctaggcga gaccctgtct cacaaaataa
     2041 agtaagcccg gactgagtgc ggaaaggcgg gcctggcggg tctggtctcc ccatgcgggc
     2101 caccagaggc cctgcagcct tcagtcgctt gaaggggtaa tggcgcttcc actcacaaac
     2161 atggcggaca gagcgtgtga acgagatgaa cagcccctca aaaatatggc cgccgaggct
     2221 ggacggccgt gccccagcag caccgcctcc gcgccccacg tgatctctcg ccgggcacag
     2281 cgctgaccgc ggaggtccaa ccggaagaat gtccggattg gacattcgga agagggcccg
     2341 ccttccctgg ggaatctctg cgcacgcgca gaacgcttcg accaatgaaa acacaggaag
     2401 ccgtccgcgc aaccgcgttg cgtcacttct gccgcccctg tttcaaggta tatagccgta
     2461 gacggaactt cgcctttctc tcggccttag cgccattttt ttgggtgagt gttttttggt
     2521 tcctgcgttg ggattccgtg tacaatccat agacatctga cctcggcact tagcatcatc
     2581 acagcaaact aactgtagcc tttctctctt tccctgtaga aacctctgca cctgaggcca
     2641 ccatgaccga gtacaagccc acggtgcgcc tcgccacccg cgacgacgtc cccagggccg
     2701 tacgcaccct cgccgccgcg ttcgccgact accccgccac gcgccacacc gtcgatccgg
     2761 accgccacat cgagcgggtc accgagctgc aagaactctt cctcacgcgc gtcgggctcg
     2821 acatcggcaa ggtgtgggtc gcggacgacg gcgccgcggt ggcggtctgg accacgccgg
     2881 agagcgtcga agcgggggcg gtgttcgccg agatcggccc gcgcatggcc gagttgagcg
     2941 gttcccggct ggccgcgcag caacagatgg aaggcctcct ggcgccgcac cggcccaagg
     3001 agcccgcgtg gttcctggcc accgtcggcg tctcgcccga ccaccagggc aagggtctgg
     3061 gcagcgccgt cgtgctcccc ggagtggagg cggccgagcg cgccggggtg cccgccttcc
     3121 tggagacctc cgcgccccgc aacctcccct tctacgagcg gctcggcttc accgtcaccg
     3181 ccgacgtcga ggtgcccgaa ggaccgcgca cctggtgcat gacccgcaag cccggtgcct
     3241 gattcgaagg cctgtcgtga attcactcct caggtgcagg ctgcctatca gaaggtggtg
     3301 gctggtgtgg ccaatgccct ggctcacaaa taccactgag atctttttcc ctctgccaaa
     3361 aattatgggg acatcatgaa gccccttgag catctgactt ctggctaata aaggaaattt
     3421 attttcattg caatagtgtg ttggaatttt ttgtgtctct cactcggaag gacatatggg
     3481 agggcaaatc atttaaaaca tcagaatgag tatttggttt agagtttggc aacatatgcc
     3541 atatgctggc tgccatgaac tagctactcg ggacccctta ccgaaacatc gccgcattct
     3601 gcagaggagt cgagtgtatg taaacttctg acccactggg aatgtgatga aagaaataaa
     3661 agctgaaatg aatcattctc tctactatta ttctgatatt tcacattctt aaaataaagt
     3721 ggtgatccta actgacctaa gacagggaat ttttactagg attaaatgtc aggaattgtg
     3781 aaaaagtgag tttaaatgta tttggctaag gtgtatgtaa acttccgact tcaactgtat
     3841 agggatccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg cggcgagcgg
     3901 tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat aacgcaggaa
     3961 agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg
     4021 cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga
     4081 ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga agctccctcg
     4141 tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt ctcccttcgg
     4201 gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg taggtcgttc
     4261 gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc gccttatccg
     4321 gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg gcagcagcca
     4381 ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc ttgaagtggt
     4441 ggcctaacta cggctacact agaagaacag tatttggtat ctgcgctctg ctgaagccag
     4501 ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc gctggtagcg
     4561 gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct caagaagatc
     4621 ctttgatctt ttctacgggg tctgacgctc agtggaacga aaactcacgt taagggattt
     4681 tggtcatgag attatcaaaa aggatcttca cctagatcct tttaaattaa aaatgaagtt
     4741 ttaaatcaat ctaaagtata tatgagtaaa cttggtctga cagttaccaa tgcttaatca
     4801 gtgaggcacc tatctcagcg atctgtctat ttcgttcatc catagttgcc tgactccccg
     4861 tcgtgtagat aactacgata cgggagggct taccatctgg ccccagtgct gcaatgatac
     4921 cgcgagaccc acgctcaccg gctccagatt tatcagcaat aaaccagcca gccggaaggg
     4981 ccgagcgcag aagtggtcct gcaactttat ccgcctccat ccagtctatt aattgttgcc
     5041 gggaagctag agtaagtagt tcgccagtta atagtttgcg caacgttgtt gccattgcta
     5101 caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc attcagctcc ggttcccaac
     5161 gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc
     5221 ctccgatcgt tgtcagaagt aagttggccg cagtgttatc actcatggtt atggcagcac
     5281 tgcataattc tcttactgtc atgccatccg taagatgctt ttctgtgact ggtgagtact
     5341 caaccaagtc attctgagaa tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa
     5401 tacgggataa taccgcgcca catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt
     5461 cttcggggcg aaaactctca aggatcttac cgctgttgag atccagttcg atgtaaccca
     5521 ctcgtgcacc caactgatct tcagcatctt ttactttcac cagcgtttct gggtgagcaa
     5581 aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc gacacggaaa tgttgaatac
     5641 tcatactctt cctttttcaa tattattgaa gcatttatca gggttattgt ctcatgagcg
     5701 gatacatatt tgaatgtatt tagaaaaata aacaaatagg ggttccgcgc acatttcccc
     5761 gaaaagtgcc acctgatgcg gtgtgaaata ccgcacagat gcgtaaggag aaaataccgc
     5821 atcaggaaat tgtaagcgtt aatattttgt taaaatt
//

pSBbiPur载体图谱质粒图谱pdf版和相关资料下载

pSBbiPur载体质粒应用举例
