pSEMS-Tom20-Halo7Tag

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pLV-EF1a-V5-Sec61B
出品公司: addgene
目录编号: 111135
存储实验室: Karin Busch

载体骨架基本信息
载体名称: pSEMS(26m)
载体出品公司: Covalys, NEB
空载体大小: 5325bp
完整质粒大小: 6570 bp
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: Receptor of tranlocase of outer mitochondrial membrane Tom20/Tom20
物种来源: H. sapiens (human)
插入大小: 435 bp
启动子: CMV
标签/融合蛋白: Halo7 Tag (C terminal on insert)
克隆方法: 限制性内切酶
5’克隆位点: EcoRV(未破坏)
3’克隆位点: EcoRI(未破坏)
5’测序引物 ATGGTGGGTCGGAACAGCGCCAT
3’测序引物 TTCCACATCATCTTCAGCCAAG

文献引用方法
材料和方法部分: pSEMS-Tom20-Halo7Tag was a gift from Karin Busch (Addgene plasmid # 111135 ; http://n2t.net/addgene:111135 ; RRID:Addgene_111135)
参考文献部分: Nanoscale organization of mitochondrial microcompartments revealed by combining tracking and localization microscopy. Appelhans T, Richter CP, Wilkens V, Hess ST, Piehler J, Busch KB. Nano Lett. 2012 Feb 8;12(2):610-6. doi: 10.1021/nl203343a. Epub 2012 Jan 13. 10.1021/nl203343a PubMed 22201267

载体图谱质粒图谱和多克隆位点信息

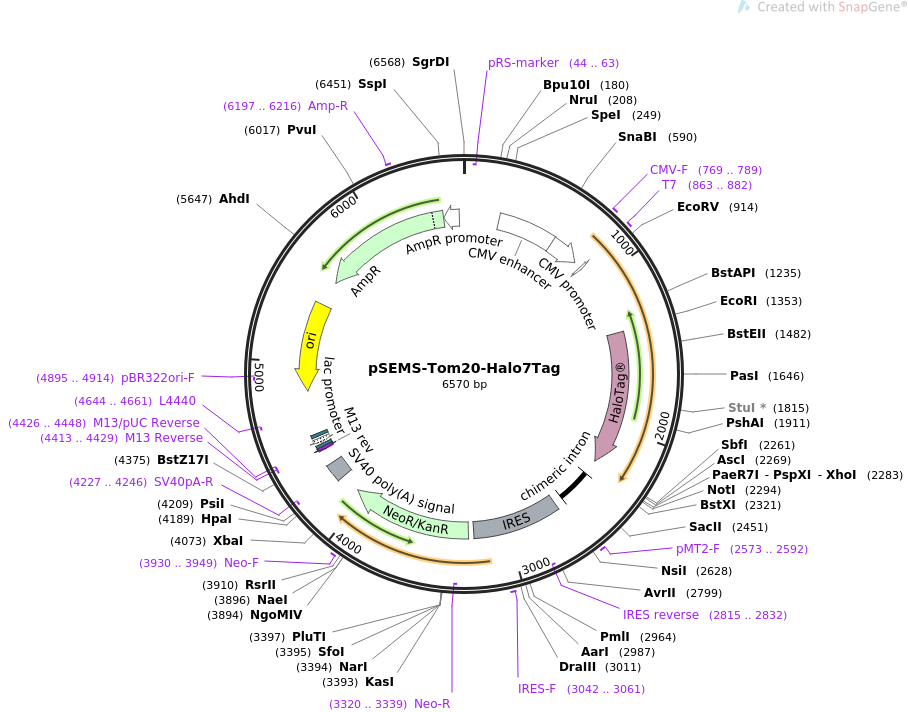

pSEMS-Tom20-Halo7Tag载体图谱

载体简介

载体序列

LOCUS       pSEMS-Tom20-Halo7Tag                6570 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Tom20 with selflabeling tag, e.g. for fluorescence microscopy.
ACCESSION   .
VERSION     .
KEYWORDS    pSEMS-Tom20-Halo7Tag
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6570)
  AUTHORS   Appelhans T, Richter CP, Wilkens V, Hess ST, Piehler J, Busch KB
  TITLE     Nanoscale organization of mitochondrial microcompartments revealed
            by combining tracking and localization microscopy.
  JOURNAL   Nano Lett. 2012 Feb 8;12(2):610-6. doi: 10.1021/nl203343a. Epub 2012
            Jan 13.
  PUBMED    22201267
REFERENCE   2  (bases 1 to 6570)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6570
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(44..63)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     769..789
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     863..882
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             1371..2255
                     /codon_start=1
                     /product="modified bacterial dehalogenase that forms
                     covalent bonds with chloroalkane derivatives"
                     /label=HaloTag(R)
                     /translation="EIGTGFPFDPHYVEVLGERMHYVDVGPRDGTPVLFLHGNPTSSYV
                     WRNIIPHVAPTHRCIAPDLIGMGKSDKPDLGYFFDDHVRFMDAFIEALGLEEVVLVIHD
                     WGSALGFHWAKRNPERVKGIAFMEFIRPIPTWDEWPEFARETFQAFRTTDVGRKLIIDQ
                     NVFIEGTLPMGVVRPLTEVEMDHYREPFLNPVDREPLWRFPNELPIAGEPANIVALVEE
                     YMDWLHQSPVPKLLFWGTPGVLIPPAEAARLAKSLPNCKAVDIGPGLNLLQEDNPDLIG
                     SEIARWLSTLEISG"
     intron          2361..2590
                     /label=chimeric intron
                     /note="chimera between introns from adenovirus and
                     immunoglobulin heavy chain genes"
     primer_bind     2573..2592
                     /label=pMT2-F
                     /note="Synthetic intron, forward primer"
     misc_feature    2648..3221
                     /label=IRES
                     /note="internal ribosome entry site (IRES) of the
                     encephalomyocarditis virus (EMCV)"
     primer_bind     complement(2815..2832)
                     /label=IRES reverse
                     /note="IRES internal ribosome entry site, reverse primer.
                     Also called pCDH-rev"
     primer_bind     3042..3061
                     /label=IRES-F
                     /note="IRES internal ribosome entry site, forward primer"
     CDS             3257..4060
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MGSAIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQ
                     GRPVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQD
                     LLSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGDDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQ
                     DIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3320..3339)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3930..3949
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    4190..4311
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4227..4246)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     complement(4413..4429)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4413..4429)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4426..4448)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4437..4453
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4461..4491)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4506..4527
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4644..4661)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4815..5403)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4895..4914)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5574..6434)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6197..6216
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6435..6539)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gcttggtacc
      901 gagctcggat cgatatcatg gtgggtcgga acagcgccat cgccgccggt gtatgcgggg
      961 cccttttcat tgggtactgc atctacttcg accgcaaaag acgaagtgac cccaacttca
     1021 agaacaggct tcgagaacga agaaagaaac agaagcttgc caaggagaga gctgggcttt
     1081 ccaagttacc tgaccttaaa gatgctgaag ctgttcagaa gttcttcctt gaagaaatac
     1141 agcttggtga agagttacta gctcaaggtg aatatgagaa gggcgtagac catctgacaa
     1201 atgcaattgc tgtgtgtgga cagccacagc agttactgca ggtcttacag caaactcttc
     1261 caccaccagt gttccagatg cttctgacta agctcccaac aattagtcag agaattgtaa
     1321 gtgctcagag cttggctgaa gatgatgtgg aagaattcca tatgggatcc gaaatcggta
     1381 ctggctttcc attcgacccc cattatgtgg aagtcctggg cgagcgcatg cactacgtcg
     1441 atgttggtcc gcgcgatggc acccctgtgc tgttcctgca cggtaacccg acctcctcct
     1501 acgtgtggcg caacatcatc ccgcatgttg caccgaccca tcgctgcatt gctccagacc
     1561 tgatcggtat gggcaaatcc gacaaaccag acctgggtta tttcttcgac gaccacgtcc
     1621 gcttcatgga tgccttcatc gaagccctgg gtctggaaga ggtcgtcctg gtcattcacg
     1681 actggggctc cgctctgggt ttccactggg ccaagcgcaa tccagagcgc gtcaaaggta
     1741 ttgcatttat ggagttcatc cgccctatcc cgacctggga cgaatggcca gaatttgccc
     1801 gcgagacctt ccaggccttc cgcaccaccg acgtcggccg caagctgatc atcgatcaga
     1861 acgtttttat cgagggtacg ctgccgatgg gtgtcgtccg cccgctgact gaagtcgaga
     1921 tggaccatta ccgcgagccg ttcctgaatc ctgttgaccg cgagccactg tggcgcttcc
     1981 caaacgagct gccaatcgcc ggtgagccag cgaacatcgt cgcgctggtc gaagaataca
     2041 tggactggct gcaccagtcc cctgtcccga agctgctgtt ctggggcacc ccaggcgttc
     2101 tgatcccacc ggccgaagcc gctcgcctgg ccaaaagcct gcctaactgc aaggctgtgg
     2161 acatcggccc gggtctgaat ctgctgcaag aagacaaccc ggacctgatc ggcagcgaga
     2221 tcgcgcgctg gctgtctact ctggagattt ccggtcctgc aggtataggc gcgccaggat
     2281 ccctcgagtg aggcggccgc atagataact gatccagtgt gctggaatta attcgctgtc
     2341 tgcgagggcc agctgttggg gtgagtactc cctctcaaaa gcgggcatga cttctgcgct
     2401 aagattgtca gtttccaaaa acgaggagga tttgatattc acctggcccg cggtgatgcc
     2461 tttgagggtg gccgcgtcca tctggtcaga aaagacaatc tttttgttgt caagcttgag
     2521 gtgtggcagg cttgagatct ggccatacac ttgagtgaca atgacatcca ctttgccttt
     2581 ctctccacag gtgtccactc ccaggtccaa ctgcaggtcg agcatgcatc tagggcggcc
     2641 aattccgccc ctctcccycc ccccccccta acgttactgg ccgaagccgc ttggaataag
     2701 gccggtgtgc gtttgtctat atgttatttt ccaccatatt gccgtctttt ggcaatgtga
     2761 gggcccggaa acctggccct gtcttcttga cgagcattcc taggggtctt tcccctctcg
     2821 ccaaaggaat gcaaggtctg ttgaatgtcg tgaaggaagc agttcctctg gaagcttctt
     2881 gaagacaaac aacgtctgta gcgacccttt gcaggcagcg gaacccccca cctggcgaca
     2941 ggtgcctctg cggccaaaag ccacgtgtat aagatacacc tgcaaaggcg gcacaacccc
     3001 agtgccacgt tgtgagttgg atagttgtgg aaagagtcaa atggctctcc tcaagcgtat
     3061 tcaacaaggg gctgaaggat gcccagaagg taccccattg tatgggatct gatctggggc
     3121 ctcggtgcac atgctttaca tgtgtttagt cgaggttaaa aaaacgtcta ggccccccga
     3181 accacgggga cgtggttttc ctttgaaaaa cacgatgata agcttgccac aacccgggat
     3241 aattcctgca gccaatatgg gatcggccat tgaacaagat ggattgcacg caggttctcc
     3301 ggccgcttgg gtggagaggc tattcggcta tgactgggca caacagacaa tcggctgctc
     3361 tgatgccgcc gtgttccggc tgtcagcgca ggggcgcccg gttctttttg tcaagaccga
     3421 cctgtccggt gccctgaatg aactgcagga cgaggcagcg cggctatcgt ggctggccac
     3481 gacgggcgtt ccttgcgcag ctgtgctcga cgttgtcact gaagcgggaa gggactggct
     3541 gctattgggc gaagtgccgg ggcaggatct cctgtcatct caccttgctc ctgccgagaa
     3601 agtatccatc atggctgatg caatgcggcg gctgcatacg cttgatccgg ctacctgccc
     3661 attcgaccac caagcgaaac atcgcatcga gcgagcacgt actcggatgg aagccggtct
     3721 tgtcgatcag gatgatctgg acgaagagca tcaggggctc gcgccagccg aactgttcgc
     3781 caggctcaag gcgcgcatgc ccgacggcga tgatctcgtc gtgacccatg gcgatgcctg
     3841 cttgccgaat atcatggtgg aaaatggccg cttttctgga ttcatcgact gtggccggct
     3901 gggtgtggcg gaccgctatc aggacatagc gttggctacc cgtgatattg ctgaagagct
     3961 tggcggcgaa tgggctgacc gcttcctcgt gctttacggt atcgccgctc ccgattcgca
     4021 gcgcatcgcc ttctatcgcc ttcttgacga gttcttctga ggggatcaat tctctagata
     4081 actgatcata atcagccata ccacatttgt agaggtttta cttgctttaa aaaacctccc
     4141 acacctcccc ctgaacctga aacataaaat gaatgcaatt gttgttgtta acttgtttat
     4201 tgcagcttat aatggttaca aataaagcaa tagcatcaca aatttcacaa ataaagcatt
     4261 tttttcactg cattctagtt gtggtttgtc caaactcatc aatgtatctt aacgcgtcga
     4321 gtgcattcta gttgtggttt gtccaaactc atcaatgtat cttatcatgt ctgtataccg
     4381 tcgacctcta gctagagctt ggcgtaatca tggtcatagc tgtttcctgt gtgaaattgt
     4441 tatccgctca caattccaca caacatacga gccggaagca taaagtgtaa agcctggggt
     4501 gcctaatgag tgagctaact cacattaatt gcgttgcgct cactgcccgc tttccagtcg
     4561 ggaaacctgt cgtgccagct gcattaatga atcggccaac gcgcggggag aggcggtttg
     4621 cgtattgggc gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg
     4681 cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat
     4741 aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc
     4801 gcgttgctgg cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc
     4861 tcaagtcaga ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga
     4921 agctccctcg tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt
     4981 ctcccttcgg gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg
     5041 taggtcgttc gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc
     5101 gccttatccg gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg
     5161 gcagcagcca ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc
     5221 ttgaagtggt ggcctaacta cggctacact agaagaacag tatttggtat ctgcgctctg
     5281 ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc
     5341 gctggtagcg gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct
     5401 caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga aaactcacgt
     5461 taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct tttaaattaa
     5521 aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga cagttaccaa
     5581 tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc catagttgcc
     5641 tgactccccg tcgtgtagat aactacgata cgggagggct taccatctgg ccccagtgct
     5701 gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat aaaccagcca
     5761 gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat ccagtctatt
     5821 aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg caacgttgtt
     5881 gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc attcagctcc
     5941 ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa agcggttagc
     6001 tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc actcatggtt
     6061 atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt ttctgtgact
     6121 ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag ttgctcttgc
     6181 ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt gctcatcatt
     6241 ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag atccagttcg
     6301 atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac cagcgtttct
     6361 gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc gacacggaaa
     6421 tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca gggttattgt
     6481 ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg ggttccgcgc
     6541 acatttcccc gaaaagtgcc acctgacgtc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
