pSFV-Helper1

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pSFVHelper1载体基本信息

质粒名称: pSFV-Helper1
出品公司: 爱迪基因
目录编号: 92073
存储实验室: Henrik Garoff

载体骨架基本信息
载体名称: pGEM1
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 2833 bp
完整质粒大小: 8194 bp
载体修饰: --
载体类型: 辅助质粒,用于哺乳动物细胞的转录和RNA转染
筛选标记: --
高拷贝/低拷贝: --
生长条件: 37 ℃

插入基因信息
插入基因名称: cDNA of SFV genome with deletion removing the nonstructural SFV proteins and also the viral RNA packaging signal.
物种来源: --
插入大小: 5361 bp
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: --
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: pSFV-Helper1 was a gift from Henrik Garoff (Addgene plasmid # 92073 ; http://n2t.net/addgene:92073 ; RRID:Addgene_92073)
参考文献部分: A new generation of animal cell expression vectors based on the Semliki Forest virus replicon. Liljestrom P, Garoff H. Biotechnology (N Y). 1991 Dec;9(12):1356-61. PubMed 1370252

pSFVHelper1载体图谱质粒图谱和多克隆位点信息

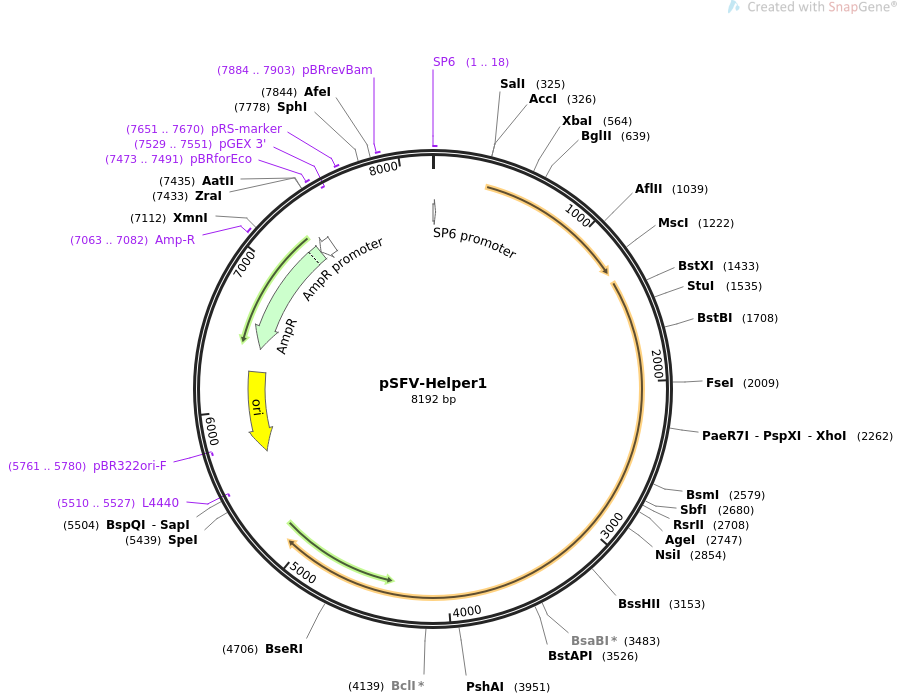

pSFV-Helper1质粒图谱

pSFVHelper1载体简介

pSFVHelper1载体序列

LOCUS       pSFV-Helper1                8192 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  This is a plasmid for transcription of defective helper RNA,
            providing structural Semliki forest virus (SFV) proteins to package
            recombinant SFV genomes into virus like particles..
ACCESSION   .
VERSION     .
KEYWORDS    pSFV-Helper1
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8192)
  AUTHORS   Liljestrom P, Garoff H
  TITLE     A new generation of animal cell expression vectors based on the
            Semliki Forest virus replicon.
  JOURNAL   Biotechnology (N Y). 1991 Dec;9(12):1356-61.
  PUBMED    1370252
REFERENCE   2  (bases 1 to 8192)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..8192
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        1..19
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     1..18
                     /label=SP6
                     /note="SP6 promoter, forward primer"
     primer_bind     complement(5510..5527)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5681..6269)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5761..5780)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6440..7300)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     7063..7082
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(7301..7405)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7473..7491
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(7529..7551)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     7651..7670
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     7884..7903
                     /label=pBRrevBam
                     /note="pBR322 vectors, tet region, downstream of BamHI,
                     reverse primer"
ORIGIN
        1 atttaggtga cactatagat ggcggatgtg tgacatacac gacgccaaaa gattttgttc
       61 cagctcctgc cacctccgct acgcgagaga ttaaccaccc acgatggccg ccaaagtgca
      121 tgttgatatt gaggctgaca gcccattcat caagtctttg cagaaggcat ttccgtcgtt
      181 cgaggtggag tcattgcagg tcacaccaaa tgaccatgca aatgccagag cattttcgca
      241 cctggctacc aaattgatcg agcaggagac tgacaaagac acactcatct tggatatcgg
      301 cagtgcgcct tccaggagaa tgatgtcgac atgaaacgag atgtcaaagt cactccaggg
      361 acgaaacaca cagaggaaag acccaaagtc caggtaattc aagcagcgga gccattggcg
      421 accgcttacc tgtgcggcat ccacagggaa ttagtaagga gactaaatgc tgtgttacgc
      481 cctaacgtgc acacattgtt tgatatgtcg gccgaagact ttgacgcgat catcgcctct
      541 cacttccacc caggagaccc ggttctagag acggacattg catcattcga caaaagccag
      601 gacgactcct tggctcttac aggtttaatg atcctcgaag atctaggggt ggatcagtac
      661 ctgctggact tgatcgaggc agcctttggg gaaatatcca gctgtcacct accaactggc
      721 acgcgcttca agttcggagc tatgatgaaa tcgggcatgt ttctgacttt gtttattaac
      781 actgttttga acatcaccat agcaagcagg gtactggagc agagactcac tgactccgcc
      841 tgtgcggcct tcatcggcga cgacaacatc gttcacggag tgatctccga caagctgatg
      901 gcggagaggt gcgcgtcgtg ggtcaacatg gaggtgaaga tcattgacgc tgtcatgggc
      961 gaaaaacccc catatttttg tgggggattc atagtttttg acagcgtcac acagaccgcc
     1021 tgccgtgttt cagacccact taagcgcctg ttcaagttgg gtaagccgct aacagctgaa
     1081 gacaagcagg acgaagacag gcgacgagca ctgagtgacg aggttagcaa gtggttccgg
     1141 acaggcttgg gggccgaact ggaggtggca ctaacatcta ggtatgaggt agagggctgc
     1201 aaaagtatcc tcatagccat ggccaccttg gcgagggaca ttaaggcgtt taagaaattg
     1261 agaggacctg ttatacacct ctacggcggt cctagattgg tgcgttaata cacagaattc
     1321 tgattatagc gcactattat agcaccatga attacatccc tacgcaaacg ttttacggcc
     1381 gccggtggcg cccgcgcccg gcggcccgtc cctggccgtt gcaggccact ccggtggctc
     1441 ccgtcgtccc cgacttccag gcccagcaga tgcagcaact catcagcgcc gtaaatgcgc
     1501 tgacaatgag acagaacgca attgctcctg ctaggcctcc caaaccaaag aagaagaaga
     1561 caaccaaacc aaagccgaaa acgcagccca agaagatcaa cggaaaaacg cagcagcaaa
     1621 agaagaaaga caagcaagcc gacaagaaga agaagaaacc cggaaaaaga gaaagaatgt
     1681 gcatgaagat tgaaaatgac tgtatcttcg aagtcaaaca cgaaggaaag gtcactgggt
     1741 acgcctgcct ggtgggcgac aaagtcatga aacctgccca cgtgaaagga gtcatcgaca
     1801 acgcggacct ggcaaagcta gctttcaaga aatcgagcaa gtatgacctt gagtgtgccc
     1861 agataccagt tcacatgagg tcggatgcct caaagtacac gcatgagaag cccgagggac
     1921 actataactg gcaccacggg gctgttcagt acagcggagg taggttcact ataccgacag
     1981 gagcgggcaa accgggagac agtggccggc ccatctttga caacaagggt agggtagtcg
     2041 ctatcgtcct gggcggggcc aacgagggct cacgcacagc actgtcggtg gtcacctgga
     2101 acaaagatat ggtgactaga gtgacccccg aggggtccga agagtggtcc gccccgctga
     2161 ttactgccat gtgtgtcctt gccaatgcta ccttcccgtg cttccagccc ccgtgtgtac
     2221 cttgctgcta tgaaaacaac gcagaggcca cactacggat gctcgaggat aacgtggata
     2281 ggccagggta ctacgacctc cttcaggcag ccttgacgtg ccgaaacgga acaagacacc
     2341 ggcgcagcgt gtcgcaacac ttcaacgtgt ataaggctac acgcccttac atcgcgtact
     2401 gcgccgactg cggagcaggg cactcgtgtc atagccccgt agcaattgaa gcggtcaggt
     2461 ccgaagctac cgacgggatg ctgaagattc agttctcggc acaaattggc atagataaga
     2521 gtgacaatca tgactacacg aagataaggt acgcagacgg gcacgccatt gagaatgccg
     2581 tccggtcatc tttgaaggta gccacctccg gagactgttt cgtccatggc acaatgggac
     2641 atttcatact ggcaaagtgc ccaccgggtg aattcctgca ggtctcgatc caggacacca
     2701 gaaacgcggt ccgtgcctgc agaatacaat atcatcatga ccctcaaccg gtgggtagag
     2761 aaaaatttac aattagacca cactatggaa aagagatccc ttgcaccact tatcaacaga
     2821 ccacagcgaa gaccgtggag gaaatcgaca tgcatatgcc gccagatacg ccggacagga
     2881 cgttgctatc acagcaatct ggcaatgtaa agatcacagt cggaggaaag aaggtgaaat
     2941 acaactgcac ctgtggaacc ggaaacgttg gcactactaa ttcggacatg acgatcaaca
     3001 cgtgtctaat agagcagtgc cacgtctcag tgacggacca taagaaatgg cagttcaact
     3061 cacctttcgt cccgagagcc gacgaaccgg ctagaaaagg caaagtccat atcccattcc
     3121 cgttggacaa catcacatgc agagttccaa tggcgcgcga accaaccgtc atccacggca
     3181 aaagagaagt gacactgcac cttcacccag atcatcccac gctcttttcc taccgcacac
     3241 tgggtgagga cccgcagtat cacgaggaat gggtgacagc ggcggtggaa cggaccatac
     3301 ccgtaccagt ggacgggatg gagtaccact ggggaaacaa cgacccagtg aggctttggt
     3361 ctcaactcac cactgaaggg aaaccgcacg gctggccgca tcagatcgta cagtactact
     3421 atgggcttta cccggccgct acagtatccg cggtcgtcgg gatgagctta ctggcgttga
     3481 tatcgatctt cgcgtcgtgc tacatgctgg ttgcggcccg cagtaagtgc ttgacccctt
     3541 atgctttaac accaggagct gcagttccgt ggacgctggg gatactctgc tgcgccccgc
     3601 gggcgcacgc agctagtgtg gcagagacta tggcctactt gtgggaccaa aaccaagcgt
     3661 tgttctggtt ggagtttgcg gcccctgttg cctgcatcct catcatcacg tattgcctca
     3721 gaaacgtgct gtgttgctgt aagagccttt cttttttagt gctactgagc ctcggggcaa
     3781 ccgccagagc ttacgaacat tcgacagtaa tgccgaacgt ggtggggttc ccgtataagg
     3841 ctcacattga aaggccagga tatagccccc tcactttgca gatgcaggtt gttgaaacca
     3901 gcctcgaacc aacccttaat ttggaataca taacctgtga gtacaagacg gtcgtcccgt
     3961 cgccgtacgt gaagtgctgc ggcgcctcag agtgctccac taaagagaag cctgactacc
     4021 aatgcaaggt ttacacaggc gtgtacccgt tcatgtgggg aggggcatat tgcttctgcg
     4081 actcagaaaa cacgcaactc agcgaggcgt acgtcgatcg atcggacgta tgcaggcatg
     4141 atcacgcatc tgcttacaaa gcccatacag catcgctgaa ggccaaagtg agggttatgt
     4201 acggcaacgt aaaccagact gtggatgttt acgtgaacgg agaccatgcc gtcacgatag
     4261 ggggtactca gttcatattc gggccgctgt catcggcctg gaccccgttc gacaacaaga
     4321 tagtcgtgta caaagacgaa gtgttcaatc aggacttccc gccgtacgga tctgggcaac
     4381 cagggcgctt cggcgacatc caaagcagaa cagtggagag taacgacctg tacgcgaaca
     4441 cggcactgaa gctggcacgc ccttcacccg gcatggtcca tgtaccgtac acacagacac
     4501 cttcagggtt caaatattgg ctaaaggaaa aagggacagc cctaaatacg aaggctcctt
     4561 ttggctgcca aatcaaaacg aaccctgtca gggccatgaa ctgcgccgtg ggaaacatcc
     4621 ctgtctccat gaatttgcct gacagcgcct ttacccgcat tgtcgaggcg ccgaccatca
     4681 ttgacctgac ttgcacagtg gctacctgta cgcactcctc ggatttcggc ggcgtcttga
     4741 cactgacgta caagaccgac aagaacgggg actgctctgt acactcgcac tctaacgtag
     4801 ctactctaca ggaggccaca gcaaaagtga agacagcagg taaggtgacc ttacacttct
     4861 ccacggcaag cgcatcacct tcttttgtgg tgtcgctatg cagtgctagg gccacctgtt
     4921 cagcgtcgtg tgagcccccg aaagaccaca tagtcccata tgcggctagc cacagtaacg
     4981 tagtgtttcc agacatgtcg ggcaccgcac tatcatgggt gcagaaaatc tcgggtggtc
     5041 tgggggcctt cgcaatcggc gctatcctgg tgctggttgt ggtcacttgc attgggctcc
     5101 gcagataagt tagggtaggc aatggcattg atatagcaag aaaattgaaa acagaaaaag
     5161 ttagggtaag caatggcata taaccataac tgtataactt gtaacaaagc gcaacaagac
     5221 ctgcgcaatt ggccccgtgg tccgcctcac ggaaactcgg ggcaactcat attgacacat
     5281 taattggcaa taattggaag cttacataag cttaattcga cgaataattg gatttttatt
     5341 ttattttgca attggttttt aatatttcca aaaaaaaaaa aaaaaaaaaa aaaaaaaaaa
     5401 aaaaaaaaaa aaaaaaaaaa aaaaaaaaaa aaaaaaaaac tagtctgcat taatgaatcg
     5461 gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg
     5521 actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca aaggcggtaa
     5581 tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca aaaggccagc
     5641 aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg ctccgccccc
     5701 ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg acaggactat
     5761 aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc
     5821 cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt tctcatagct
     5881 cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg
     5941 aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc
     6001 cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt agcagagcga
     6061 ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc tacactagaa
     6121 gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa agagttggta
     6181 gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt tgcaagcagc
     6241 agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct acggggtctg
     6301 acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta tcaaaaagga
     6361 tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa agtatatatg
     6421 agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc tcagcgatct
     6481 gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact acgatacggg
     6541 agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc tcaccggctc
     6601 cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt ggtcctgcaa
     6661 ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta agtagttcgc
     6721 cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg tcacgctcgt
     6781 cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt acatgatccc
     6841 ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc agaagtaagt
     6901 tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt actgtcatgc
     6961 catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc tgagaatagt
     7021 gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc gcgccacata
     7081 gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa ctctcaagga
     7141 tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac tgatcttcag
     7201 catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa
     7261 aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt tttcaatatt
     7321 attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa tgtatttaga
     7381 aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct gacgtctaag
     7441 aaaccattat tatcatgaca ttaacctata aaaataggcg tatcacgagg ccctttcgtc
     7501 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
     7561 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
     7621 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
     7681 accattcgac gctctccctt atgcgactcc tgcattagga agcagcccag tagtaggttg
     7741 aggccgttga gcaccgccgc cgcaaggaat ggtgcatgca aggagatggc gcccaacagt
     7801 cccccggcca cggggcctgc caccataccc acgccgaaac aagcgctcat gagcccgaag
     7861 tggcgagccc gatcttcccc atcggtgatg tcggcgatat aggcgccagc aaccgcacct
     7921 gtggcgccgg tgatgccggc cacgatgcgt ccggcgtaga ggatctggct agcgatgacc
     7981 ctgctgattg gttcgctgac catttccggg tgcgggacgg cgttaccaga aactcagaag
     8041 gttcgtccaa ccaaaccgac tctgacggca gtttacgaga gagatgatag ggtctgcttc
     8101 agtaagccag atgctacaca attaggcttg tacatattgt cgttagaacg cggctacaat
     8161 taatacataa ccttatgtat catacacata cg
//

pSFVHelper1载体图谱质粒图谱pdf版和相关资料下载

pSFVHelper1载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
