质粒名称: | pSLCAR-CD19-28z |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 135991 |
存储实验室: | Scott McComb |
载体骨架基本信息 |
|
载体名称: | pSL |
载体出品公司: | Heavily modified from LentiCRISPR v1 backbone |
载体抗性: | 氨苄青霉素 |
载体修饰: | 使用BpiI单锅限制性连接将CAR的抗原结合域从CD19交换到所需的特异性 |
载体类型: | 哺乳动物表达,慢病毒 |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | FMC63-28-3z-P2A-EGFP,CD19(FMC63)-CAR, CD28 costim., CD3z stim domains, P2A-GFP marker,Contains: FMC63-scFV, Hinge domain, CD28-transmembrane domain, CD28-ITD, CD3z-ITD |
物种来源: | H. sapiens (human) |
启动子 | EF1a-short |
标签/融合蛋白: | -- |
克隆方法: | 限制性内切酶 |
5' 克隆位点: | BpiI(在克隆过程中被破坏) |
3' 克隆位点: | BpiI(在克隆过程中被破坏) |
5' 测序引物 | CGGGTTTGCCGCCA |
3' 测序引物 | caggagccTGCTCCTCTTACTcc |
文献引用方法 |
|
材料和方法部分: | pSLCAR-CD19-28z was a gift from Scott McComb (Addgene plasmid # 135991 ; http://n2t.net/addgene:135991 ; RRID:Addgene_135991) |
参考文献部分: | A High-Throughput Method for Characterizing Novel Chimeric Antigen Receptors in Jurkat Cells. Bloemberg D, Nguyen T, MacLean S, Zafer A, Gadoury C, Gurnani K, Chattopadhyay A, Ash J, Lippens J, Harcus D, Page M, Fortin A, Pon RA, Gilbert R, Marcil A, Weeratna RD, McComb S. Mol Ther Methods Clin Dev. 2020 Jan 31;16:238-254. doi: 10.1016/j.omtm.2020.01.012. eCollection 2020 Mar 13. 10.1016/j.omtm.2020.01.012 PubMed 32083149 |
买家导航
载体基本信息

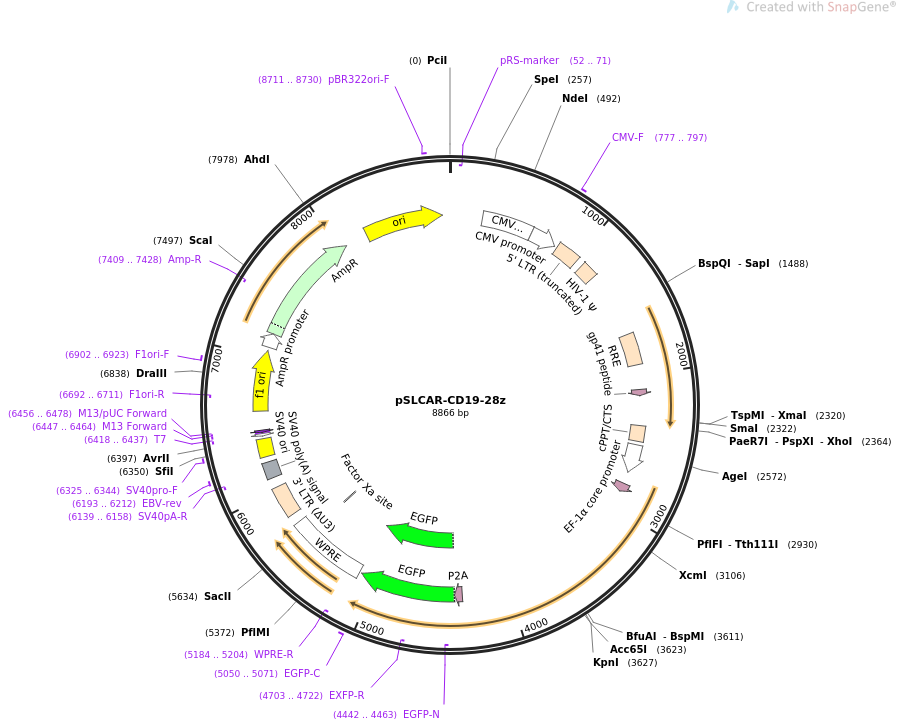

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pSLCAR-CD19-28z 8866 bp ds-DNA circular SYN 12-MAY-2021 DEFINITION Modular CD28-CD3z CAR backbone, For Transient Expression or Lentiviral Production. ACCESSION . VERSION . KEYWORDS pSLCAR-CD19-28z SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 8866) AUTHORS Bloemberg D, Nguyen T, MacLean S, Zafer A, Gadoury C, Gurnani K, Chattopadhyay A, Ash J, Lippens J, Harcus D, Page M, Fortin A, Pon RA, Gilbert R, Marcil A, Weeratna RD, McComb S TITLE A High-Throughput Method for Characterizing Novel Chimeric Antigen Receptors in Jurkat Cells. JOURNAL Mol Ther Methods Clin Dev. 2020 Jan 31;16:238-254. doi: 10.1016/j.omtm.2020.01.012. eCollection 2020 Mar 13. PUBMED 32083149 REFERENCE 2 (bases 1 to 8866) AUTHORS . TITLE Direct Submission JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..8866 /organism="synthetic DNA construct" /mol_type="other DNA" primer_bind complement(52..71) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" enhancer 243..622 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" promoter 624..822 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 777..797 /label=CMV-F /note="Human CMV immediate early promoter, forward primer" LTR 840..1020 /label=5' LTR (truncated) /note="truncated 5' long terminal repeat (LTR) from HIV-1" misc_feature 1067..1192 /label=HIV-1 Psi /note="packaging signal of human immunodeficiency virus type 1" misc_feature 1685..1918 /label=RRE /note="The Rev response element (RRE) of HIV-1 allows for Rev-dependent mRNA export from the nucleus to the cytoplasm." CDS 2103..2147 /codon_start=1 /product="antigenic peptide corresponding to amino acids 655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik et al., 2013)" /label=gp41 peptide /note="recognized by the 2H10 single-chain llama nanobody" /translation="KNEQELLELDKWASL" misc_feature 2370..2487 /label=cPPT/CTS /note="central polypurine tract and central termination sequence of HIV-1" promoter 2513..2724 /label=EF-1-alpha core promoter /note="core promoter for human elongation factor EF-1-alpha" CDS 2813..2878 /codon_start=1 /product="three tandem FLAG(R) epitope tags, followed by an enterokinase cleavage site" /label=3xFLAG /translation="DYKDHDGDYKDHDIDYKDDDDK" CDS 4343..4399 /codon_start=1 /product="2A peptide from porcine teschovirus-1 polyprotein" /label=P2A /note="Eukaryotic ribosomes fail to insert a peptide bond between the Gly and Pro residues, yielding separate polypeptides." /translation="ATNFSLLKQAGDVEENPGP" CDS 4400..5116 /codon_start=1 /product="the original enhanced GFP (Yang et al., 1996)" /label=EGFP /note="mammalian codon-optimized" /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE FVTAAGITLGMDELYK" CDS 4400..5113 /codon_start=1 /product="enhanced GFP" /label=EGFP /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE FVTAAGITLGMDELYK" primer_bind complement(4442..4463) /label=EGFP-N /note="EGFP, reverse primer" primer_bind complement(4703..4722) /label=EXFP-R /note="For distinguishing EGFP variants, reverse primer" primer_bind 5050..5071 /label=EGFP-C /note="EGFP, forward primer" misc_feature 5131..5719 /label=WPRE /note="woodchuck hepatitis virus posttranscriptional regulatory element" primer_bind complement(5184..5204) /label=WPRE-R /note="WPRE, reverse primer" CDS complement(5602..5613) /codon_start=1 /product="Factor Xa recognition and cleavage site" /label=Factor Xa site /translation="IEGR" LTR 5791..6024 /label=3' LTR (Delta-U3) /note="self-inactivating 3' long terminal repeat (LTR) from HIV-1" polyA_signal 6102..6223 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(6139..6158) /label=SV40pA-R /note="SV40 polyA, reverse primer" primer_bind 6193..6212 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" rep_origin 6263..6398 /label=SV40 ori /note="SV40 origin of replication" primer_bind 6325..6344 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" primer_bind complement(6418..6437) /label=T7 /note="T7 promoter, forward primer" promoter complement(6419..6437) /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" primer_bind complement(6447..6464) /label=M13 Forward /note="In lacZ gene. Also called M13-F20 or M13 (-21) Forward" primer_bind complement(6447..6463) /label=M13 fwd /note="common sequencing primer, one of multiple similar variants" primer_bind complement(6456..6478) /label=M13/pUC Forward /note="In lacZ gene" rep_origin 6605..7060 /direction=RIGHT /label=f1 ori /note="f1 bacteriophage origin of replication; arrow indicates direction of (+) strand synthesis" primer_bind complement(6692..6711) /label=F1ori-R /note="F1 origin, reverse primer" primer_bind 6902..6923 /label=F1ori-F /note="F1 origin, forward primer" promoter 7086..7190 /gene="bla" /label=AmpR promoter CDS 7191..8051 /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind complement(7409..7428) /label=Amp-R /note="Ampicillin resistance gene, reverse primer" rep_origin 8222..8810 /direction=RIGHT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind 8711..8730 /label=pBR322ori-F /note="pBR322 origin, forward primer" ORIGIN 1 catgtgtcga cggatcggga gatctcccga tcccctatgg tgcactctca gtacaatctg 61 ctctgatgcc gcatagttaa gccagtatct gctccctgct tgtgtgttgg aggtcgctga 121 gtagtgcgcg agcaaaattt aagctacaac aaggcaaggc ttgaccgaca attgcatgaa 181 gaatctgctt agggttaggc gttttgcgct gcttcgcgat gtacgggcca gatatacgcg 241 ttgacattga ttattgacta gttattaata gtaatcaatt acggggtcat tagttcatag 301 cccatatatg gagttccgcg ttacataact tacggtaaat ggcccgcctg gctgaccgcc 361 caacgacccc cgcccattga cgtcaataat gacgtatgtt cccatagtaa cgccaatagg 421 gactttccat tgacgtcaat gggtggagta tttacggtaa actgcccact tggcagtaca 481 tcaagtgtat catatgccaa gtacgccccc tattgacgtc aatgacggta aatggcccgc 541 ctggcattat gcccagtaca tgaccttatg ggactttcct acttggcagt acatctacgt 601 attagtcatc gctattacca tggtgatgcg gttttggcag tacatcaatg ggcgtggata 661 gcggtttgac tcacggggat ttccaagtct ccaccccatt gacgtcaatg ggagtttgtt 721 ttggcaccaa aatcaacggg actttccaaa atgtcgtaac aactccgccc cattgacgca 781 aatgggcggt aggcgtgtac ggtgggaggt ctatataagc agcgcgtttt gcctgtactg 841 ggtctctctg gttagaccag atctgagcct gggagctctc tggctaacta gggaacccac 901 tgcttaagcc tcaataaagc ttgccttgag tgcttcaagt agtgtgtgcc cgtctgttgt 961 gtgactctgg taactagaga tccctcagac ccttttagtc agtgtggaaa atctctagca 1021 gtggcgcccg aacagggact tgaaagcgaa agggaaacca gaggagctct ctcgacgcag 1081 gactcggctt gctgaagcgc gcacggcaag aggcgagggg cggcgactgg tgagtacgcc 1141 aaaaattttg actagcggag gctagaagga gagagatggg tgcgagagcg tcagtattaa 1201 gcgggggaga attagatcgc gatgggaaaa aattcggtta aggccagggg gaaagaaaaa 1261 atataaatta aaacatatag tatgggcaag cagggagcta gaacgattcg cagttaatcc 1321 tggcctgtta gaaacatcag aaggctgtag acaaatactg ggacagctac aaccatccct 1381 tcagacagga tcagaagaac ttagatcatt atataataca gtagcaaccc tctattgtgt 1441 gcatcaaagg atagagataa aagacaccaa ggaagcttta gacaagatag aggaagagca 1501 aaacaaaagt aagaccaccg cacagcaagc ggccgctgat cttcagacct ggaggaggag 1561 atatgaggga caattggaga agtgaattat ataaatataa agtagtaaaa attgaaccat 1621 taggagtagc acccaccaag gcaaagagaa gagtggtgca gagagaaaaa agagcagtgg 1681 gaataggagc tttgttcctt gggttcttgg gagcagcagg aagcactatg ggcgcagcgt 1741 caatgacgct gacggtacag gccagacaat tattgtctgg tatagtgcag cagcagaaca 1801 atttgctgag ggctattgag gcgcaacagc atctgttgca actcacagtc tggggcatca 1861 agcagctcca ggcaagaatc ctggctgtgg aaagatacct aaaggatcaa cagctcctgg 1921 ggatttgggg ttgctctgga aaactcattt gcaccactgc tgtgccttgg aatgctagtt 1981 ggagtaataa atctctggaa cagatttgga atcacacgac ctggatggag tgggacagag 2041 aaattaacaa ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag 2101 aaaagaatga acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta 2161 acataacaaa ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag 2221 gtttaagaat agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac 2281 cattatcgtt tcagacccac ctcccaaccc cgaggggacc ccgggtttat tacagggaca 2341 gcagagatcc actttggcgc cggctcgagt tttaaaagaa aaggggggat tggggggtac 2401 agtgcagggg aaagaatagt agacataata gcaacagaca tacaaactaa agaattacaa 2461 aaacaaatta caaaaattca aaatttttcg agtggctccg gtgcccgtca gtgggcagag 2521 cgcacatcgc ccacagtccc cgagaagttg gggggagggg tcggcaattg aaccggtgcc 2581 tagagaaggt ggcgcggggt aaactgggaa agtgatgtcg tgtactggct ccgccttttt 2641 cccgagggtg ggggagaacc gtatataagt gcagtagtcg ccgtgaacgt tctttttcgc 2701 aacgggtttg ccgccagaac acaggtgtcg tgacgcggga tccgccacca tgctcaggct 2761 gctcttggct ctcaacttat tcccttcaat tcaagtaaca ggagggtctt cggactacaa 2821 ggatcatgac ggagactata aggatcacga tattgattac aaagatgacg acgacaaaga 2881 catccagatg acacagacta catcctccct gtctgcctct ctgggagaca gagtcaccat 2941 cagttgcagg gcaagtcagg acatctctaa gtatttgaat tggtatcagc agaaaccaga 3001 tggaactgtt aaactcctga tctaccatac atcaagatta cactcaggag tcccatcaag 3061 gttcagtggc agtgggtctg gaacagatta ttctctcacc attagcaacc tggagcaaga 3121 agatattgcc acttactttt gccaacaggg taatacgctt ccgtacacgt tcggaggggg 3181 gactaagttg gaaataacag gctccacctc tggatccggc aagcccggat ctggcgaggg 3241 atccaccaag ggcgaggtga aactgcagga gtcaggacct ggcctggtgg cgccctcaca 3301 gagcctgtcc gtcacatgca ctgtctcagg ggtctcatta cccgactatg gtgtaagctg 3361 gattcgccag cctccacgaa agggtctgga gtggctggga gtaatatggg gtagtgaaac 3421 cacatactat aattcagctc tcaaatccag actgaccatc atcaaggaca actccaagag 3481 ccaagttttc ttaaaaatga acagtctgca aactgatgac acagccattt actactgtgc 3541 caaacattat tactacggtg gtagctatgc tatggactac tggggtcaag gaacctcagt 3601 caccgtctcc tcagcggccg caggtaccac cacaacgccc gctcctcggc caccgacgcc 3661 agcgccaact attgcgagtc agcctctcag tctgcgacct gaggcttgtc gaccagcagc 3721 cggaggcgca gtgcacacga gggggctgga cttcgcctgt gatagaagac ctccttctaa 3781 gcccttttgg gtgctggtgg tggttggtgg agtcctggct tgctatagct tgctagtaac 3841 agtggccttt attattttct gggtgaggag taagaggagc aggctcctgc acagtgacta 3901 catgaacatg actcccaggc ggcccggacc cacccgcaag cattaccagc cctatgcccc 3961 accacgcgac ttcgcagcct atcgctccgc tagcctgaga gtgaagttca gcaggagcgc 4021 agacgccccc gcgtaccagc agggccagaa ccagctctat aacgagctca atctaggacg 4081 aagagaggag tacgatgttt tggacaagag acgtggccgg gaccctgaga tggggggaaa 4141 gccgcagaga aggaagaacc ctcaggaagg cctgtacaat gaactgcaga aagataagat 4201 ggcggaggcc tacagtgaga ttgggatgaa aggcgagcgc cggaggggca aggggcacga 4261 tggcctttac cagggtctca gtacagccac caaggacacc tacgacgccc ttcacatgca 4321 ggccctgccc cctcgcgcta gcgccacgaa cttctctctg ttaaagcaag caggcgacgt 4381 ggaagaaaac cccggtcccg tgagcaaggg cgaggagctg ttcaccgggg tggtgcccat 4441 cctggtcgag ctggacggcg acgtaaacgg ccacaagttc agcgtgtccg gcgagggcga 4501 gggcgatgcc acctacggca agctgaccct gaagttcatc tgcaccaccg gcaagctgcc 4561 cgtgccctgg cccaccctcg tgaccaccct gacctacggc gtgcagtgct tcagccgcta 4621 ccccgaccac atgaagcagc acgacttctt caagtccgcc atgcccgaag gctacgtcca 4681 ggagcgcacc atcttcttca aggacgacgg caactacaag acccgcgccg aggtgaagtt 4741 cgagggcgac accctggtga accgcatcga gctgaagggc atcgacttca aggaggacgg 4801 caacatcctg gggcacaagc tggagtacaa ctacaacagc cacaacgtct atatcatggc 4861 cgacaagcag aagaacggca tcaaggtgaa cttcaagatc cgccacaaca tcgaggacgg 4921 cagcgtgcag ctcgccgacc actaccagca gaacaccccc atcggcgacg gccccgtgct 4981 gctgcccgac aaccactacc tgagcaccca gtccgccctg agcaaagacc ccaacgagaa 5041 gcgcgatcac atggtcctgc tggagttcgt gaccgccgcc gggatcactc tcggcatgga 5101 cgagctgtac aagtaacgcg ttaagtcgac aatcaacctc tggattacaa aatttgtgaa 5161 agattgactg gtattcttaa ctatgttgct ccttttacgc tatgtggata cgctgcttta 5221 atgcctttgt atcatgctat tgcttcccgt atggctttca ttttctcctc cttgtataaa 5281 tcctggttgc tgtctcttta tgaggagttg tggcccgttg tcaggcaacg tggcgtggtg 5341 tgcactgtgt ttgctgacgc aacccccact ggttggggca ttgccaccac ctgtcagctc 5401 ctttccggga ctttcgcttt ccccctccct attgccacgg cggaactcat cgccgcctgc 5461 cttgcccgct gctggacagg ggctcggctg ttgggcactg acaattccgt ggtgttgtcg 5521 gggaaatcat cgtcctttcc ttggctgctc gcctgtgttg ccacctggat tctgcgcggg 5581 acgtccttct gctacgtccc ttcggccctc aatccagcgg accttccttc ccgcggcctg 5641 ctgccggctc tgcggcctct tccgcgtctt tgccttcgcc ctcagacgag tcggatctcc 5701 ctttgggccg cctccccgcg tcgactttaa gaccaatgac ttacaaggca gctgtagatc 5761 ttagccactt tttaaaagaa aaggggggac tggaagggct aattcactcc caacgaagat 5821 aagatctgct ttttgcttgt actgggtctc tctggttaga ccagatctga gcctgggagc 5881 tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct tgagtgcttc 5941 aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc agaccctttt 6001 agtcagtgtg gaaaatctct agcagtacgt atagtagttc atgtcatctt attattcagt 6061 atttataact tgcaaagaaa tgaatatcag agagtgagag gaacttgttt attgcagctt 6121 ataatggtta caaataaagc aatagcatca caaatttcac aaataaagca tttttttcac 6181 tgcattctag ttgtggtttg tccaaactca tcaatgtatc ttatcatgtc tggctctagc 6241 tatcccgccc ctaactccgc ccatcccgcc cctaactccg cccagttccg cccattctcc 6301 gccccatggc tgactaattt tttttattta tgcagaggcc gaggccgcct cggcctctga 6361 gctattccag aagtagtgag gaggcttttt tggaggccta gggacgtacc caattcgccc 6421 tatagtgagt cgtattacgc gcgctcactg gccgtcgttt tacaacgtcg tgactgggaa 6481 aaccctggcg ttacccaact taatcgcctt gcagcacatc cccctttcgc cagctggcgt 6541 aatagcgaag aggcccgcac cgatcgccct tcccaacagt tgcgcagcct gaatggcgaa 6601 tgggacgcgc cctgtagcgg cgcattaagc gcggcgggtg tggtggttac gcgcagcgtg 6661 accgctacac ttgccagcgc cctagcgccc gctcctttcg ctttcttccc ttcctttctc 6721 gccacgttcg ccggctttcc ccgtcaagct ctaaatcggg ggctcccttt agggttccga 6781 tttagtgctt tacggcacct cgaccccaaa aaacttgatt agggtgatgg ttcacgtagt 6841 gggccatcgc cctgatagac ggtttttcgc cctttgacgt tggagtccac gttctttaat 6901 agtggactct tgttccaaac tggaacaaca ctcaacccta tctcggtcta ttcttttgat 6961 ttataaggga ttttgccgat ttcggcctat tggttaaaaa atgagctgat ttaacaaaaa 7021 tttaacgcga attttaacaa aatattaacg cttacaattt aggtggcact tttcggggaa 7081 atgtgcgcgg aacccctatt tgtttatttt tctaaataca ttcaaatatg tatccgctca 7141 tgagacaata accctgataa atgcttcaat aatattgaaa aaggaagagt atgagtattc 7201 aacatttccg tgtcgccctt attccctttt ttgcggcatt ttgccttcct gtttttgctc 7261 acccagaaac gctggtgaaa gtaaaagatg ctgaagatca gttgggtgca cgagtgggtt 7321 acatcgaact ggatctcaac agcggtaaga tccttgagag ttttcgcccc gaagaacgtt 7381 ttccaatgat gagcactttt aaagttctgc tatgtggcgc ggtattatcc cgtattgacg 7441 ccgggcaaga gcaactcggt cgccgcatac actattctca gaatgacttg gttgagtact 7501 caccagtcac agaaaagcat cttacggatg gcatgacagt aagagaatta tgcagtgctg 7561 ccataaccat gagtgataac actgcggcca acttacttct gacaacgatc ggaggaccga 7621 aggagctaac cgcttttttg cacaacatgg gggatcatgt aactcgcctt gatcgttggg 7681 aaccggagct gaatgaagcc ataccaaacg acgagcgtga caccacgatg cctgtagcaa 7741 tggcaacaac gttgcgcaaa ctattaactg gcgaactact tactctagct tcccggcaac 7801 aattaataga ctggatggag gcggataaag ttgcaggacc acttctgcgc tcggcccttc 7861 cggctggctg gtttattgct gataaatctg gagccggtga gcgtgggtct cgcggtatca 7921 ttgcagcact ggggccagat ggtaagccct cccgtatcgt agttatctac acgacgggga 7981 gtcaggcaac tatggatgaa cgaaatagac agatcgctga gataggtgcc tcactgatta 8041 agcattggta actgtcagac caagtttact catatatact ttagattgat ttaaaacttc 8101 atttttaatt taaaaggatc taggtgaaga tcctttttga taatctcatg accaaaatcc 8161 cttaacgtga gttttcgttc cactgagcgt cagaccccgt agaaaagatc aaaggatctt 8221 cttgagatcc tttttttctg cgcgtaatct gctgcttgca aacaaaaaaa ccaccgctac 8281 cagcggtggt ttgtttgccg gatcaagagc taccaactct ttttccgaag gtaactggct 8341 tcagcagagc gcagatacca aatactgttc ttctagtgta gccgtagtta ggccaccact 8401 tcaagaactc tgtagcaccg cctacatacc tcgctctgct aatcctgtta ccagtggctg 8461 ctgccagtgg cgataagtcg tgtcttaccg ggttggactc aagacgatag ttaccggata 8521 aggcgcagcg gtcgggctga acggggggtt cgtgcacaca gcccagcttg gagcgaacga 8581 cctacaccga actgagatac ctacagcgtg agctatgaga aagcgccacg cttcccgaag 8641 ggagaaaggc ggacaggtat ccggtaagcg gcagggtcgg aacaggagag cgcacgaggg 8701 agcttccagg gggaaacgcc tggtatcttt atagtcctgt cgggtttcgc cacctctgac 8761 ttgagcgtcg atttttgtga tgctcgtcag gggggcggag cctatggaaa aacgccagca 8821 acgcggcctt tttacggttc ctggcctttt gctggccttt tgctca //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
