质粒名称: | pST1374-NLS-flag-linker-Cas9 |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 44758 |
存储实验室: | Xingxu Huang |
载体骨架基本信息 |
|
载体名称: | pST1374 (Addgene #13426) |
载体出品公司: | pST1374-based custom vector |
载体抗性: | 氨苄霉素 |
空载体大小: | 5052 bp |
完整质粒大小: | 9318 bp |
载体类型: | 哺乳细胞表达,CRISPR |
筛选标记: | 稻瘟 |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | Human codon optimized Cas9 |
插入大小: | 4266 bp |
基因突变: | codon-optimized |
启动子 | CMV |
标签/融合蛋白: |
Flag (N terminal on insert)
NLS (N terminal on insert)
32 amino acid linker (N terminal on insert)
|
克隆方法: | 限制性内切酶 |
5' 克隆位点: | NheI(未破坏) |
3' 克隆位点: | ApaI(未破坏) |
5' 测序引物 | CMV-fwd |
3' 测序引物 | BGH-rev |
文献引用方法 |
|
材料和方法部分: | pST1374-NLS-flag-linker-Cas9 was a gift from Xingxu Huang (爱迪基因 plasmid # 44758) |
参考文献部分: | Generation of gene-modified mice via Cas9/RNA-mediated gene targeting. Shen B, Zhang J, Wu H, Wang J, Ma K, Li Z, Zhang X, Zhang P, Huang X. Cell Res. 2013 Apr 2. doi: 10.1038/cr.2013.46. 10.1038/cr.2013.46 PubMed 23545779 |
买家导航
载体基本信息

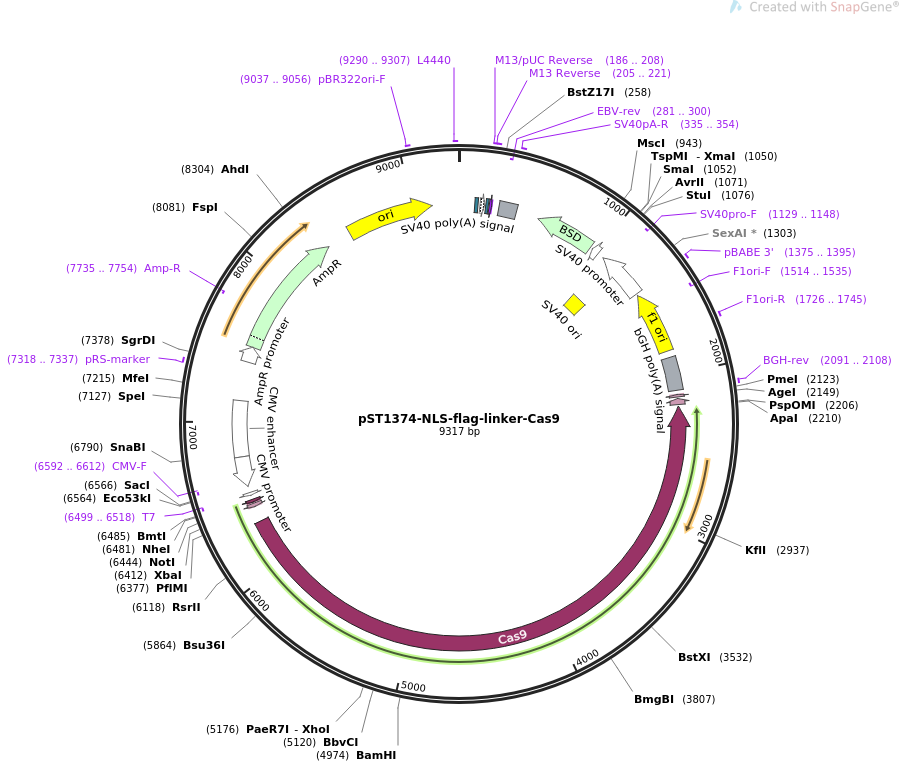

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pST1374-NLS-flag-linker-Cas9 9317 bp ds-DNA circular SYN 10-JAN-2018 DEFINITION synthetic circular DNA ACCESSION . VERSION . KEYWORDS pST1374-NLS-flag-linker-Cas9 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 9317) AUTHORS Shen B, Zhang J, Wu H, Wang J, Ma K, Li Z, Zhang X, Zhang P, Huang X TITLE Generation of gene-modified mice via Cas9/RNA-mediated gene targeting. JOURNAL Cell Res. 2013 Apr 2. doi: 10.1038/cr.2013.46. PUBMED 23545779 COMMENT This file is created by Vector NTI http://www.biofeng.com/ COMMENT ORIGDB|GenBank COMMENT VNTAUTHORNAME|biofeng.com| COMMENT VNTNAME|pST1374-NLS-flag-linker-Cas9| FEATURES Location/Qualifiers source 1..9317 /organism="synthetic DNA construct" /mol_type="other DNA" protein_bind 107..128 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." promoter 143..173 /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 181..197 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." primer_bind 186..208 /label=M13/pUC Reverse /note="In lacZ gene" primer_bind 205..221 /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind 205..221 /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" polyA_signal 270..391 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(281..300) /label=EBV-rev /note="SV40 polyA terminator, reverse primer" primer_bind 335..354 /label=SV40pA-R /note="SV40 polyA, reverse primer" CDS complement(549..947) /codon_start=1 /gene="Aspergillus terreus BSD" /product="blasticidin S deaminase" /label=BSD /note="confers resistance to blasticidin" /translation="MAKPLSQEESTLIERATATINSIPISEDYSVASAALSSDGRIFTG VNVYHFTGGPCAELVVLGTAAAAAAGNLTCIVAIGNENRGILSPCGRCRQVLLDLHPGI KAIVKDSDGQPTAVGIRELLPSGYVWEG" promoter complement(966..1013) /label=EM7 promoter /note="synthetic bacterial promoter " promoter complement(1061..1390) /label=SV40 promoter /note="SV40 enhancer and early promoter" rep_origin 1075..1210 /label=SV40 ori /note="SV40 origin of replication" primer_bind complement(1129..1148) /label=SV40pro-F /note="SV40 promoter/origin, forward primer" primer_bind 1375..1395 /label=pBABE 3' /note="SV40 enhancer, reverse primer for pBABE vectors" rep_origin complement(1404..1832) /direction=LEFT /label=f1 ori /note="f1 bacteriophage origin of replication; arrow indicates direction of (+) strand synthesis" primer_bind complement(1514..1535) /label=F1ori-F /note="F1 origin, forward primer" primer_bind 1726..1745 /label=F1ori-R /note="F1 origin, reverse primer" polyA_signal 1878..2102 /label=bGH poly(A) signal /note="bovine growth hormone polyadenylation signal" primer_bind 2091..2108 /label=BGH-rev /note="Bovine growth hormone terminator, reverse primer. Also called BGH reverse" CDS complement(2131..2148) /codon_start=1 /product="6xHis affinity tag" /label=6xHis /translation="HHHHHH" CDS complement(2158..2199) /codon_start=1 /product="epitope tag from simian virus 5" /label=V5 tag /translation="GKPIPNPLLGLDST" CDS complement(2212..6315) /codon_start=1 /product="Cas9 (Csn1) endonuclease from the Streptococcus pyogenes Type II CRISPR/Cas system" /label=Cas9 /note="generates RNA-guided double strand breaks in DNA" /translation="DKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL YYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPS EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD ATLIHQSITGLYETRIDLSQLGGD" CDS complement(6418..6441) /codon_start=1 /product="FLAG(R) epitope tag, followed by an enterokinase cleavage site" /label=FLAG /translation="DYKDDDDK" CDS complement(6451..6471) /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" primer_bind complement(6499..6518) /label=T7 /note="T7 promoter, forward primer" promoter complement(6500..6518) /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" promoter complement(6563..6766) /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind complement(6592..6612) /label=CMV-F /note="Human CMV immediate early promoter, forward primer" enhancer 6767..7146 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" primer_bind 7318..7337 /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" promoter 7412..7516 /gene="bla" /label=AmpR promoter CDS 7517..8377 /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind complement(7735..7754) /label=Amp-R /note="Ampicillin resistance gene, reverse primer" rep_origin 8548..9136 /direction=RIGHT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind 9037..9056 /label=pBR322ori-F /note="pBR322 origin, forward primer" primer_bind 9290..9307 /label=L4440 /note="L4440 vector, forward primer" ORIGIN 1 agcgcccaat acgcaaaccg cctctccccg cgcgttggcc gattcattaa tgcagctggc 61 acgacaggtt tcccgactgg aaagcgggca gtgagcgcaa cgcaattaat gtgagttagc 121 tcactcatta ggcaccccag gctttacact ttatgcttcc ggctcgtatg ttgtgtggaa 181 ttgtgagcgg ataacaattt cacacaggaa acagctatga ccatgattac gccaagctct 241 agctagaggt cgacggtata cagacatgat aagatacatt gatgagtttg gacaaaccac 301 aactagaatg cagtgaaaaa aatgctttat ttgtgaaatt tgtgatgcta ttgctttatt 361 tgtaaccatt ataagctgca ataaacaagt tggggtgggc gaagaactcc agcatgagat 421 ccccgcgctg gaggatcatc cagccggcgt cccggaaaac gattccgaag cccaaccttt 481 catagaaggc ggcggtggaa tcgaaatctc gtagcacgtg tcagtcctgc tcctcggcca 541 cgaagtgctt agccctccca cacataacca gagggcagca attcacgaat cccaactgcc 601 gtcggctgtc catcactgtc cttcactatg gctttgatcc caggatgcag atcgagaagc 661 acctgtcggc accgtccgca ggggctcaag atgcccctgt tctcatttcc gatcgcgacg 721 atacaagtca ggttgccagc tgccgcagca gcagcagtgc ccagcaccac gagttctgca 781 caaggtcccc cagtaaaatg atatacattg acaccagtga agatgcggcc gtcgctagag 841 agagctgcgc tggcgacgct gtagtcttca gagatgggga tgctgttgat tgtagccgtt 901 gctctttcaa tgagggtgga ttcttcttga gacaaaggct tggccatggt ttagttcctc 961 accttgtcgt attatactat gccgatatac tatgccgatg attaattgtc aacacgtgct 1021 gatcagatcc gaaaatggat atacaagctc ccgggagctt tttgcaaaag cctaggcctc 1081 caaaaaagcc tcctcactac ttctggaata gctcagaggc agaggcggcc tcggcctctg 1141 cataaataaa aaaaattagt cagccatggg gcggagaatg ggcggaactg ggcggagtta 1201 ggggcgggat gggcggagtt aggggcggga ctatggttgc tgactaattg agatgcatgc 1261 tttgcatact tctgcctgct ggggagcctg gggactttcc acacctggtt gctgactaat 1321 tgagatgcat gctttgcata cttctgcctg ctggggagcc tggggacttt ccacacccta 1381 actgacacac attccacaga attaattcgc gttaaatttt tgttaaatca gctcattttt 1441 taaccaatag gccgaaatcg gcaaaatccc ttataaatca aaagaataga ccgagatagg 1501 gttgagtgtt gttccagttt ggaacaagag tccactatta aagaacgtgg actccaacgt 1561 caaagggcga aaaaccgtct atcagggcga tggcccacta cgtgaaccat caccctaatc 1621 aagttttttg gggtcgaggt gccgtaaagc actaaatcgg aaccctaaag ggagcccccg 1681 atttagagct tgacggggaa agccggcgaa cgtggcgaga aaggaaggga agaaagcgaa 1741 aggagcgggc gctagggcgc tggcaagtgt agcggtcacg ctgcgcgtaa ccaccacacc 1801 cgccgcgctt aatgcgccgc tacagggcgc gtggggatac cccctagagc cccagctggt 1861 tctttccgcc tcagaagcca tagagcccac cgcatcccca gcatgcctgc tattgtcttc 1921 ccaatcctcc cccttgctgt cctgccccac cccacccccc agaatagaat gacacctact 1981 cagacaatgc gatgcaattt cctcatttta ttaggaaagg acagtgggag tggcaccttc 2041 cagggtcaag gaaggcacgg gggaggggca aacaacagat ggctggcaac tagaaggcac 2101 agtcgaggct gatcagcggg tttaaactca atggtgatgg tgatgatgac cggtacgcgt 2161 agaatcgaga ccgaggagag ggttagggat aggcttacct tcgaagggcc cctagtcgcc 2221 gccgagctga gacaggtcga tgcgagtctc gtacagtccg gtaattgact ggtgtatcag 2281 ggtggcatcg agaacttctt tggtagaggt gtaccgcttc ctgtcaatag ttgtatcgaa 2341 atacttgaag gcagcaggag cgcccagatt agtcagagta aagaggtgga taatattctc 2401 tgcttgttcg cgaattggct tgtccctgtg cttattatat gcgctcagca ctttatcgag 2461 gtttgcatcg gccagaataa cccgcttgct gaactcgcta atctgttcaa tgatttcgtc 2521 caggtagtgt ttatgttgct caacaaagag ttgcttctgc tcattgtctt cagggctacc 2581 tttgagtttc tcgtagtggg aggccagata caggaagttc acgtatttgg agggcagagc 2641 cagctcgttt cctttctgca gctctccggc ggaggccagc atccgcttcc taccattctc 2701 cagctcaaag agagagtact tgggcagttt gatgatgaga tctttcttca cttctttata 2761 gcccttagct tccaggaaat cgattggatt cttctcgaag ctggatctct ccataatagt 2821 aattccgagc agctccttaa cagacttgag tttcttggac ttgcctttct ccacttttgc 2881 cacgaccaga acggaataag ccactgtagg ggaatcgaaa ccgccatact tctttgggtc 2941 ccaatctttc ttcctggcga tcagcttgtc agagttccgc tttggcagga tgctctcctt 3001 tgagaatccg ccggtctgca cttcggtctt cttcacgata ttgacttgtg gcatggacag 3061 caccttccgc acagttgcga agtccctgcc tttatcccac acgatttctc ctgtttctcc 3121 gtttgtttcg atcagtgggc gcttccggat ttcgccgtta gccagggtta tctcagtctt 3181 aaagaaattc atgatattag agtagaagaa gtacttggcg gtggctttgc caatctcttg 3241 ctcagacttt gctatcatct tcctcacatc gtagacttta tagtcaccgt acacgaactc 3301 agactccagt ttagggtatt tcttgatcag ggcggtgcca acgacagcat tgagataggc 3361 atcgtgagca tgatggtaat tgtttatttc gcgaactttg tagaattgaa agtccttccg 3421 gaagtcagac accagcttgc tcttcagagt tatcactttc acttccctga tcagcttatc 3481 gttctcatcg tacttagtgt tcatcctaga gtcgaggatt tgtgccacgt gtttggtaat 3541 ctggcgtgtt tcgaccagtt gcctcttaat aaagccggcc ttgtcgagtt cgctcagacc 3601 tcctctttct gccttagtca gattgtcaaa cttccgctgg gtgatcagtt tggcgttgag 3661 gagctgccgc cagtaattct tcatcttctt gaccacctct tctgatggaa cattgtcaga 3721 cttaccgcga ttcttatcgg atctggtcag caccttgttg tcaatggagt catctttgag 3781 gaaggactgt ggaacaatat ggtccacgtc ataatcggac agccggttga tgtcgagttc 3841 ctggtcaacg tacatgtccc gcccgttctg gaggtagtac aggtagagtt tctcgttctg 3901 gagctgtgta ttctccacag ggtgctcctt cagtatctga gatcccagct ccttaattcc 3961 ctcttcgatt cttttcatcc gttcccgaga gttcttctgg cccttctggg tggtttggtt 4021 ctcccttgcc atttcgataa cgatattctc tggcttgtgc cgacccatca ctttgacgag 4081 ttcgtccacg accttgactg tctgcagtat tcccttcttt atggcgggtg atccagcgag 4141 gttggcgatg tgctcgtgca ggctgtcgcc ttgaccgctc acctgtgcct tctggatgtc 4201 ctctttaaat gtcagagagt catcgtgaat cagttgcatg aagttcctgt tagcgaatcc 4261 gtcggatttc aggaaatcca ggatggtctt tccgctctgt ttgtcgcgga tgccgtttat 4321 gagtttcctg gagagtctac cccacccagt gtagcgccgc cgcttgagct gtttcatgac 4381 tttatcgtca aacagatggg cataggtctt caggcgctct tcgatcatct ctctatcctc 4441 gaacagagtc agggtcagca cgatatcttc caggatgtcc tcgttctcct cattatcgag 4501 gaaatctttg tctttgatta tcttcagcag atcatggtaa gtgcccaggc tggcattaaa 4561 gcggtcctcc acgccagaga tttccactga gtcaaagcat tcgatcttct taaagtaatc 4621 ctccttgagc tgcttcactg tcacctttct attagtcttg aagagcagat caacgatagc 4681 cttcttctgc tctccggaca ggaaggcagg cttcctcatg ccctcggtca cgtacttcac 4741 tttagtcagc tcgttataga cggtgaaata ctcgtacagg agtgaatgtt tgggcaggac 4801 cttctcgttg ggcaggttct tatcgaaatt ggtcatccgt tcgatgaatg actgggcgct 4861 tgcgccctta tccacgacct cttcgaagtt ccaaggagta attgtctcct cagatttcct 4921 ggtcatccaa gcgaagcggg agttgcctct agccagaggg ccgacgtaat aagggatcct 4981 gaaggtcagg atcttctcta tcttctcccg gttatccttc aggaaaggat agaaatcctc 5041 ctgcctgcgg aggattgcat gcagctctcc caggtgtatc tgatgtggaa tggagccatt 5101 atcaaaggtc ctctgcttcc tcagcaggtc ctccctgttc agcttcacca gcagctcttc 5161 agtaccgtcc atcttctcga ggattggttt gatgaacttg taaaattctt cctgtgatgc 5221 tccgccatcg atgtatccgg catatccatt cttgctctgg tcgaagaata tctctttgta 5281 cttctctggc agctgttgcc tcacgagggc tttgagcaga gtcaggtctt gatggtgttc 5341 atcatagcgt tttatcatgg aggcgctcag aggtgctttg gtgatctcag tgttgacccg 5401 gagtatgtcg ctcagcagaa tggcgtcgga gagattctta gcagccagaa agagatcggc 5461 gtactggtcg cctatctgtg cgagcaggtt gtccagatca tcgtcatagg tgtccttgga 5521 gagctggagt ttagcatctt cggccagatc aaaattggac ttgaagttag gtgtcaggcc 5581 caggctcagg gcgatgaggt tcccaaacag gccgttcttc ttttctcctg gcagttgggc 5641 aatcagattc tccagtctgc gtgacttgga cagccgagcg gacagaatag ccttggcatc 5701 cacaccagaa gcgtttatgg gattctcctc gaacagttgg ttatatgtct gcaccagttg 5761 aatgaagagt ttatccacat cggaattatc gggattcagg tcgccctcga tcagaaagtg 5821 tcctctaaac tttatcatat gagccagggc cagatagatg agcctcaggt ctgctttatc 5881 ggtgctgtcc accagcttct tcctcagatg gtagattgta ggatactttt catggtaagc 5941 cacctcatcc acgatatttc cgaatatagg gtgcctctcg tgtttcttat cctcctccac 6001 cagaaagctc tcttccaggc ggtgaaagaa ggagtcgtcc accttagcca tttcgttgct 6061 aaagatctct tgcagataac atatccgatt cttgcggcgg gtgtatctcc gccttgcggt 6121 ccgcttcagc cgagtagctt cagcggtttc accggagtcg aagaggagtg ctccgatcag 6181 gttcttcttg attgaatggc ggtcagtatt acccagcacc ttgaatttct tgcttggcac 6241 cttatactcg tcggttatga cggcccagcc aacggagttt gtcccgatat ccagtccaat 6301 agagtatttc ttgtctctag tgtgggtccg ctggtgtctg gtcagagcac cagactgaga 6361 gaaagattta ccacactctg ggcatttgta tggcttctcg ccgggttcca gtctagattt 6421 atcgtcgtca tccttgtagt cagcggccgc caccttcctc tttttcttag gtcccatggt 6481 gctagccagc ttgggtctcc ctatagtgag tcgtattaat ttcgataagc cagtaagcag 6541 tgggttctct agttagccag agagctctgc ttatatagac ctcccaccgt acacgcctac 6601 cgcccatttg cgtcaatggg gcggagttgt tacgacattt tggaaagtcc cgttgatttt 6661 ggtgccaaaa caaactccca ttgacgtcaa tggggtggag acttggaaat ccccgtgagt 6721 caaaccgcta tccacgccca ttgatgtact gccaaaaccg catcaccatg gtaatagcga 6781 tgactaatac gtagatgtac tgccaagtag gaaagtccca taaggtcatg tactgggcat 6841 aatgccaggc gggccattta ccgtcattga cgtcaatagg gggcgtactt ggcatatgat 6901 acacttgatg tactgccaag tgggcagttt accgtaaata ctccacccat tgacgtcaat 6961 ggaaagtccc tattggcgtt actatgggaa catacgtcat tattgacgtc aatgggcggg 7021 ggtcgttggg cggtcagcca ggcgggccat ttaccgtaag ttatgtaacg cggaactcca 7081 tatatgggct atgaactaat gaccccgtaa ttgattacta ttaataacta gtcaataatc 7141 aatgtcaacg cgtatatctg gcccgtacat cgcgaagcag cgcaaaacgc ctaaccctaa 7201 gcagattctt catgcaattg tcggtcaagc cttgccttgt tgtagcttaa attttgctcg 7261 cgcactactc agcgacctcc aacacacaag cagggagcag atactggctt aactatgcgg 7321 catcagagca gattgtactg agagtgcacc ataggggatc gggagatctc ccgatccgtc 7381 gacgtcaggt ggcacttttc ggggaaatgt gcgcggaacc cctatttgtt tatttttcta 7441 aatacattca aatatgtatc cgctcatgag acaataaccc tgataaatgc ttcaataata 7501 ttgaaaaagg aagagtatga gtattcaaca tttccgtgtc gcccttattc ccttttttgc 7561 ggcattttgc cttcctgttt ttgctcaccc agaaacgctg gtgaaagtaa aagatgctga 7621 agatcagttg ggtgcacgag tgggttacat cgaactggat ctcaacagcg gtaagatcct 7681 tgagagtttt cgccccgaag aacgttttcc aatgatgagc acttttaaag ttctgctatg 7741 tggcgcggta ttatcccgta ttgacgccgg gcaagagcaa ctcggtcgcc gcatacacta 7801 ttctcagaat gacttggttg agtactcacc agtcacagaa aagcatctta cggatggcat 7861 gacagtaaga gaattatgca gtgctgccat aaccatgagt gataacactg cggccaactt 7921 acttctgaca acgatcggag gaccgaagga gctaaccgct tttttgcaca acatggggga 7981 tcatgtaact cgccttgatc gttgggaacc ggagctgaat gaagccatac caaacgacga 8041 gcgtgacacc acgatgcctg tagcaatggc aacaacgttg cgcaaactat taactggcga 8101 actacttact ctagcttccc ggcaacaatt aatagactgg atggaggcgg ataaagttgc 8161 aggaccactt ctgcgctcgg cccttccggc tggctggttt attgctgata aatctggagc 8221 cggtgagcgt gggtctcgcg gtatcattgc agcactgggg ccagatggta agccctcccg 8281 tatcgtagtt atctacacga cggggagtca ggcaactatg gatgaacgaa atagacagat 8341 cgctgagata ggtgcctcac tgattaagca ttggtaactg tcagaccaag tttactcata 8401 tatactttag attgatttaa aacttcattt ttaatttaaa aggatctagg tgaagatcct 8461 ttttgataat ctcatgacca aaatccctta acgtgagttt tcgttccact gagcgtcaga 8521 ccccgtagaa aagatcaaag gatcttcttg agatcctttt tttctgcgcg taatctgctg 8581 cttgcaaaca aaaaaaccac cgctaccagc ggtggtttgt ttgccggatc aagagctacc 8641 aactcttttt ccgaaggtaa ctggcttcag cagagcgcag ataccaaata ctgttcttct 8701 agtgtagccg tagttaggcc accacttcaa gaactctgta gcaccgccta catacctcgc 8761 tctgctaatc ctgttaccag tggctgctgc cagtggcgat aagtcgtgtc ttaccgggtt 8821 ggactcaaga cgatagttac cggataaggc gcagcggtcg ggctgaacgg ggggttcgtg 8881 cacacagccc agcttggagc gaacgaccta caccgaactg agatacctac agcgtgagct 8941 atgagaaagc gccacgcttc ccgaagggag aaaggcggac aggtatccgg taagcggcag 9001 ggtcggaaca ggagagcgca cgagggagct tccaggggga aacgcctggt atctttatag 9061 tcctgtcggg tttcgccacc tctgacttga gcgtcgattt ttgtgatgct cgtcaggggg 9121 gcggagccta tggaaaaacg ccagcaacgc ggccttttta cggttcctgg ccttttgctg 9181 gccttttgct cacatgttct ttcctgcgtt atcccctgat tctgtggata accgtattac 9241 cgcctttgag tgagctgata ccgctcgccg cagccgaacg accgagcgca gcgagtcagt 9301 gagcgaggaa gcggaag //
