pTRE-Tight-MitoTimer

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pTRE-Tight-MitoTimer
出品公司: Addgene
目录编号: 50547
存储实验室: Roberta Gottlieb

载体骨架基本信息
载体名称: pTRE Tight
载体出品公司: Clontech
空载体大小: 2516 bp
完整质粒大小: 3325 bp
载体类型: 哺乳细胞表达
载体抗性: 氨苄霉素100 μg/mL
生长温度: 37 ℃
宿主菌: XL1 Blue
拷贝数: 高拷贝

插入基因信息
插入基因名称: MitoTimer
插入大小: 809 bp
基因突变: F12S mutation in Timer
克隆方法: 限制性内切酶
5’克隆位点: EcoRI(未破坏)
3’克隆位点: XbaI(未破坏)
5’测序引物 AGG CGT ATC ACG AGG CCC TTT CGT
3’测序引物 TAT TAC CGC CTT TGA GTG AGC TGA

文献引用方法
材料和方法部分: pTRE-Tight-MitoTimer was a gift from Roberta Gottlieb (Addgene plasmid # 50547 ; http://n2t.net/addgene:50547 ; RRID:Addgene_50547)
参考文献部分: MitoTimer: A novel tool for monitoring mitochondrial turnover. Hernandez G, Thornton C, Stotland A, Lui D, Sin J, Ramil J, Magee N, Andres A, Quarato G, Carreira RS, Sayen MR, Wolkowicz R, Gottlieb RA. Autophagy. 2013 Nov 1;9(11):1852-61. doi: 10.4161/auto.26501. Epub 2013 Oct 11. 10.4161/auto.26501 PubMed 24128932

载体图谱质粒图谱和多克隆位点信息

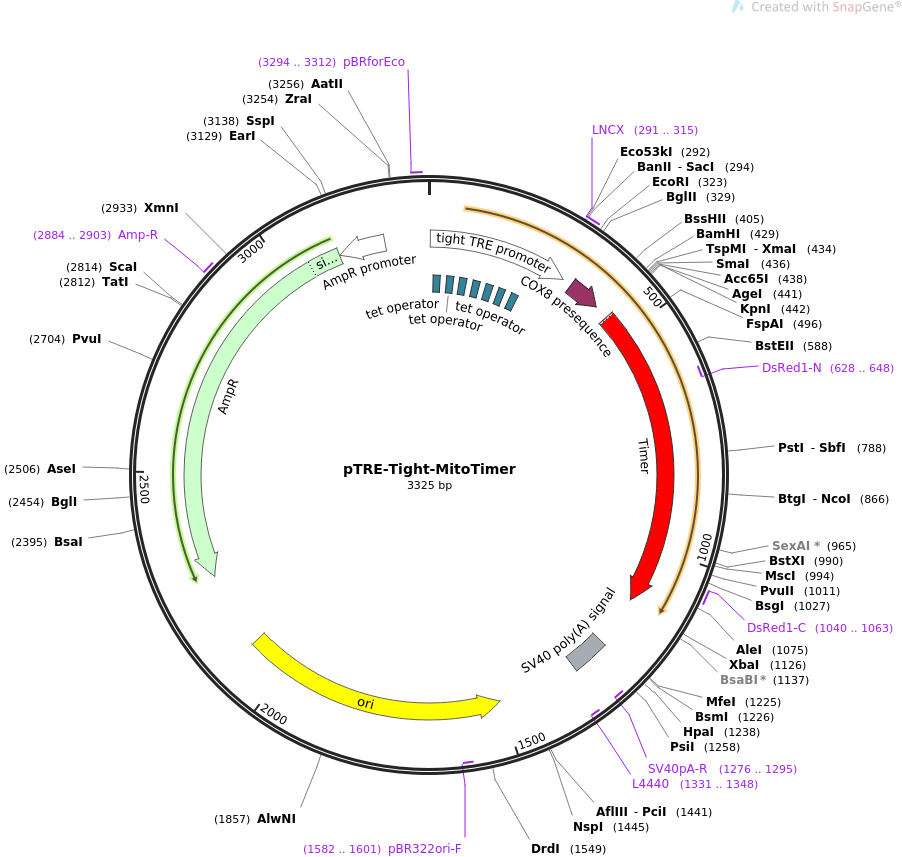

pTRE-Tight-MitoTimer载体图谱

载体简介

载体序列

LOCUS        pTRE-Tight-MitoTimer  3325 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Expresses the Timer protein targeted to the mitochondria under a
            Tet-inducible promoter.
ACCESSION   .
VERSION     .
KEYWORDS    pTRE-Tight-MitoTimer
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3325)
  AUTHORS   Hernandez G, Thornton C, Stotland A, Lui D, Sin J, Ramil J, Magee N,
            Andres A, Quarato G, Carreira RS, Sayen MR, Wolkowicz R, Gottlieb RA
  TITLE     MitoTimer: A novel tool for monitoring mitochondrial turnover.
  JOURNAL   Autophagy. 2013 Nov 1;9(11):1852-61. doi: 10.4161/auto.26501. Epub
            2013 Oct 11.
  PUBMED    24128932
REFERENCE   2  (bases 1 to 3325)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..3325
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        4..318
                     /label=tight TRE promoter
                     /note="Tet-responsive promoter PTight, consisting of seven
                     tet operator sequences followed by the minimal CMV
                     promoter"
     protein_bind    12..30
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    48..66
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    83..101
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    119..137
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    155..173
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    190..208
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    226..244
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     primer_bind     291..315
                     /label=LNCX
                     /note="Human CMV promoter, forward primer"
     CDS             340..414
                     /codon_start=1
                     /product="mitochondrial presequence of human cytochrome c
                     oxidase subunit VIII (Rizutto et al., 1989)"
                     /label=COX8 presequence
                     /translation="MSVLTPLLLRGLTGSARRLPVPRAK"
     CDS             448..1125
                     /codon_start=1
                     /product="green-to-red fluorescent timer derivative of
                     DsRed (Terskikh et al., 2000)"
                     /label=Timer
                     /note="mammalian codon-optimized"
                     /translation="VRSSKNVIKESMRFKVRMEGTVNGHEFEIEGEGEGRPYEGHNTVK
                     LKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDGGV
                     ATVTQDSSLQDGCFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGEIHK
                     ALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDTKLDITSHNEDYTIVEQYERTEGRHH
                     LFL"
     primer_bind     complement(628..648)
                     /label=DsRed1-N
                     /note="DsRed1, reverse primer"
     primer_bind     1040..1063
                     /label=DsRed1-C
                     /note="DsRed1, forward primer"
     polyA_signal    1239..1320
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1276..1295)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     complement(1331..1348)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(1502..2090)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(1582..1601)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(2261..3121)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     2884..2903
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(3122..3226)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     3294..3312
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
ORIGIN
        1 ctcgagttta ctccctatca gtgatagaga acgtatgtcg agtttactcc ctatcagtga
       61 tagagaacga tgtcgagttt actccctatc agtgatagag aacgtatgtc gagtttactc
      121 cctatcagtg atagagaacg tatgtcgagt ttactcccta tcagtgatag agaacgtatg
      181 tcgagtttat ccctatcagt gatagagaac gtatgtcgag tttactccct atcagtgata
      241 gagaacgtat gtcgaggtag gcgtgtacgg tgggaggcct atataagcag agctcgttta
      301 gtgaaccgtc agatcgcctg gagaattcag atctccacca tgtccgtcct gacgccgctg
      361 ctgctgcggg gcttgacagg ctcggcccgg cggctcccag tgccgcgcgc caagatccat
      421 tcgttggggg atccccgggt accggtcgtg cgctcctcca agaacgtcat caaggagtcc
      481 atgcgcttca aggtgcgcat ggagggcacc gtgaacggcc acgagttcga gatcgagggc
      541 gagggcgagg gccgccccta cgagggccac aacaccgtga agctgaaggt gaccaagggc
      601 ggccccctgc ccttcgcctg ggacatcctg tccccccagt tccagtacgg ctccaaggtg
      661 tacgtgaagc accccgccga catccccgac tacaagaagc tgtccttccc cgagggcttc
      721 aagtgggagc gcgtgatgaa cttcgaggac ggcggcgtgg cgaccgtgac ccaggactcc
      781 tccctgcagg acggctgctt catctacaag gtgaagttca tcggcgtgaa cttcccctcc
      841 gacggccccg tgatgcagaa gaagaccatg ggctgggagg cctccaccga gcgcctgtac
      901 ccccgcgacg gcgtgctgaa gggcgagatc cacaaggccc tgaagctgaa ggacggcggc
      961 cactacctgg tggagttcaa gtccatctac atggccaaga agcccgtgca gctgcccggc
     1021 tactactacg tggacaccaa gctggacatc acctcccaca acgaggacta caccatcgtg
     1081 gagcagtacg agcgcaccga gggccgccac cacctgttcc tgtagtctag aggatcataa
     1141 tcagccatac cacatttgta gaggttttac ttgctttaaa aaacctccca cacctccccc
     1201 tgaacctgaa acataaaatg aatgcaattg ttgttgttaa cttgtttatt gcagcttata
     1261 atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc
     1321 ctcgagcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
     1381 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
     1441 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
     1501 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
     1561 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
     1621 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
     1681 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
     1741 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
     1801 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
     1861 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
     1921 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
     1981 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg
     2041 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
     2101 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
     2161 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
     2221 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
     2281 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     2341 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     2401 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     2461 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     2521 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     2581 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     2641 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     2701 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     2761 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     2821 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaacac
     2881 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     2941 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     3001 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     3061 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     3121 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     3181 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     3241 aagtgccacc tgacgtctaa gaaaccatta ttatcatgac attaacctat aaaaataggc
     3301 gtatcacgag gccctttcgt cttca
//
