pTriEx-mCherry-LOV2

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pTriEx-mCherry-LOV2
出品公司: 爱迪基因
目录编号: 81041
存储实验室: Klaus Hahn

载体骨架基本信息
载体名称: pTriEx
载体抗性: 氨苄青霉素
空载体大小: 5040 bp
完整质粒大小: 6000 bp
载体类型: 哺乳动物表达,细菌表达,昆虫表达
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: LOV2
物种来源: Synthetic
插入大小: 432 bp
标签/融合蛋白: mCherry(插入件上的N端子)
5' 测序引物 aagtatcgggccctttgtgc
3' 测序引物 GGCAGCCTGCACCTGAGGTTAATCAC

文献引用方法
材料和方法部分: pTriEx-mCherry-LOV2 was a gift from Klaus Hahn (Addgene plasmid # 81041 ; http://n2t.net/addgene:81041 ; RRID:Addgene_81041)
参考文献部分: LOVTRAP: an optogenetic system for photoinduced protein dissociation. Wang H, Vilela M, Winkler A, Tarnawski M, Schlichting I, Yumerefendi H, Kuhlman B, Liu R, Danuser G, Hahn KM. Nat Methods. 2016 Jul 18. doi: 10.1038/nmeth.3926. 10.1038/nmeth.3926 PubMed 27427858

载体图谱质粒图谱和多克隆位点信息

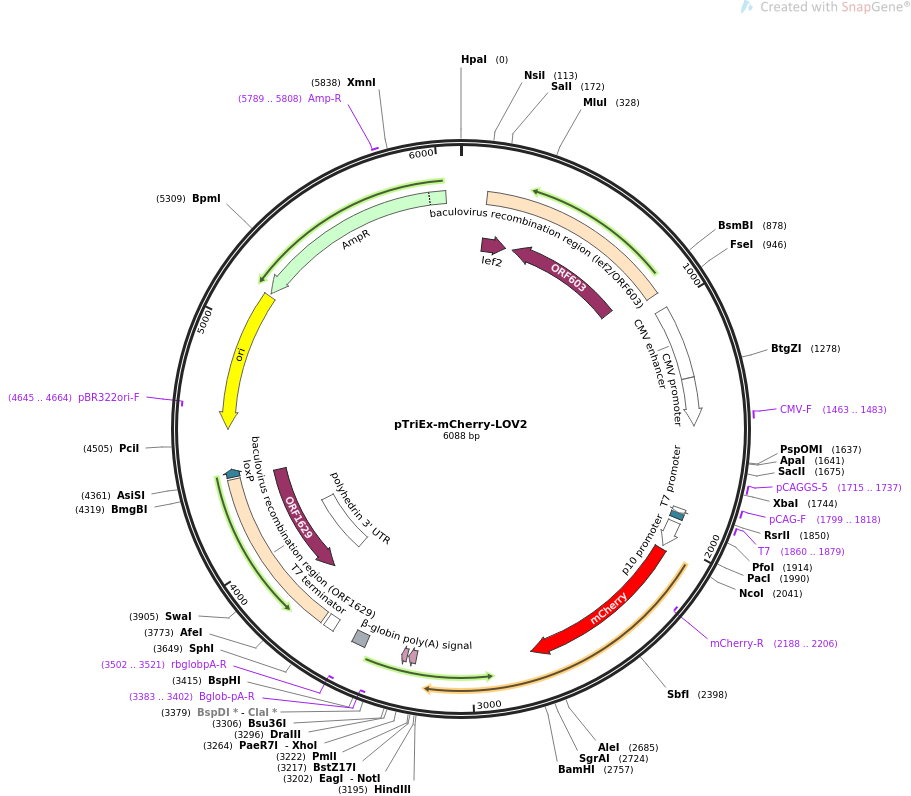

pTriEx-mCherry-LOV2质粒图谱

载体简介

载体序列

LOCUS       pTriEx-mCherry-LOV2                6088 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  mammalian expression for wt LOV2.
ACCESSION   .
VERSION     .
KEYWORDS    pTriEx-mCherry-LOV2
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6088)
  AUTHORS   Wang H, Vilela M, Winkler A, Tarnawski M, Schlichting I, Yumerefendi
            H, Kuhlman B, Liu R, Danuser G, Hahn KM
  TITLE     LOVTRAP: an optogenetic system for photoinduced protein
            dissociation.
  JOURNAL   Nat Methods. 2016 Jul 18. doi: 10.1038/nmeth.3926.
  PUBMED    27427858
REFERENCE   2  (bases 1 to 6088)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6088
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     misc_recomb     110..937
                     /label=baculovirus recombination region (lef2/ORF603)
                     /note="contains ORF603 and part of lef2"
     CDS             110..234
                     /codon_start=3
                     /product="baculovirus late expression factor 2"
                     /label=lef2
                     /translation="HLLIKSQDVYKPPNCQKMKTVDKLCPFAGNCKGLNPICNY"
     CDS             complement(272..877)
                     /codon_start=1
                     /product="baculovirus ORF603 protein"
                     /label=ORF603
                     /translation="MAVIFNNKQLLADNSIEKGGELFLFNGSYNILESYVNPVLLKNGV
                     IELEEAAYYAGNILYKTDDPKFIDYINLIIKATHSEELPENSTVVNYRKTMRSGTIHPI
                     KKDIYIYDNKKFTLYDRYIYGYDNNYVNFYEEKNEKEKEYEEEDDKASSLCENKIILSQ
                     INCESFENDFKYYLSDYNYAFSIIDNTTNVLVAFGLYR"
     enhancer        1005..1308
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        1310..1509
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     1463..1483
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     1715..1737
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1799..1818
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     primer_bind     1860..1879
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        1860..1878
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     protein_bind    1879..1903
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        1919..2028
                     /label=p10 promoter
                     /note="baculovirus promoter for expression in insect cells"
     CDS             2043..2750
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(2188..2206)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     CDS             3231..3263
                     /codon_start=1
                     /product="HSV (herpes simplex virus) epitope tag"
                     /label=HSV tag
                     /translation="QPELAPEDPED"
     CDS             3270..3293
                     /codon_start=1
                     /product="8xHis affinity tag"
                     /label=8xHis
                     /translation="HHHHHHHH"
     primer_bind     complement(3383..3402)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_site      3448..3503
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal"
     primer_bind     complement(3502..3521)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     terminator      3591..3638
                     /label=T7 terminator
                     /note="transcription terminator for bacteriophage T7 RNA
                     polymerase"
     misc_recomb     3651..4356
                     /label=baculovirus recombination region (ORF1629)
                     /note="contains part of ORF1629"
     3'UTR           3739..4111
                     /label=polyhedrin 3' UTR
                     /note="3' UTR from the Autographa californica
                     nucleopolyhedrovirus polyhedrin gene (Suzuki et al., 2006)"
     CDS             complement(3768..4356)
                     /codon_start=2
                     /product="baculovirus capsid-associated protein"
                     /label=ORF1629
                     /note="required for viral replication"
                     /translation="IPKSSTTNLIADVLADTINRRRVAMAKSSSEATSNDEGWDDDDNR
                     PNKANTPDVKYVQALFNVFTSSQLYTNDSDERNTKAHNILNDVEPLLQNKTQTNIDKAR
                     LLLQDLASFVALSENPLDSPAIGSEKQPLFETNRNLFYKSIEDLIFKFRYKDAENHLIF
                     ALTYHPKDYKFNELLKYVQQLSVNQQRTESSA"
     protein_bind    4365..4398
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     rep_origin      complement(4566..5153)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4645..4664)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5166..6026)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5789..5808
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
ORIGIN
        1 aactgttaca ttgcaaacgt ggtttcgtgt gccaagtgtg aaaaccgatg tttaatcaag
       61 gctctgacgc atttctacaa ccacgactcc aagtgtgtgg gtgaagtcat gcatctttta
      121 atcaaatccc aagatgtgta taaaccacca aactgccaaa aaatgaaaac tgtcgacaag
      181 ctctgtccgt ttgctggcaa ctgcaagggt ctcaatccta tttgtaatta ttgaataata
      241 aaacaattat aaatgtcaaa tttgtttttt attaacgata caaaccaaac gcaacaagaa
      301 catttgtagt attatctata attgaaaacg cgtagttata atcgctgagg taatatttaa
      361 aatcattttc aaatgattca cagttaattt gcgacaatat aattttattt tcacataaac
      421 tagacgcctt gtcgtcttct tcttcgtatt ccttctcttt ttcatttttc tcttcataaa
      481 aattaacata gttattatcg tatccatata tgtatctatc gtatagagta aattttttgt
      541 tgtcataaat atatatgtct tttttaatgg ggtgtatagt accgctgcgc atagtttttc
      601 tgtaatttac aacagtgcta ttttctggta gttcttcgga gtgtgttgct ttaattatta
      661 aatttatata atcaatgaat ttgggatcgt cggttttgta caatatgttg ccggcatagt
      721 acgcagcttc ttctagttca attacaccat tttttagcag caccggatta acataacttt
      781 ccaaaatgtt gtacgaaccg ttaaacaaaa acagttcacc tcccttttct atactattgt
      841 ctgcgagcag ttgtttgttg ttaaaaataa cagccattgt aatgagacgc acaaactaat
      901 atcacaaact ggaaatgtct atcaatatat agttgctgat ggccggccta ttaatagtaa
      961 tcaattacgg ggtcattagt tcatagccca tatatggagt tccgcgttac ataacttacg
     1021 gtaaatggcc cgcctggctg accgcccaac gacccccgcc cattgacgtc aataatgacg
     1081 tatgttccca tagtaacgcc aatagggact ttccattgac gtcaatgggt ggagtattta
     1141 cggtaaactg cccacttggc agtacatcaa gtgtatcata tgccaagtcc gccccctatt
     1201 gacgtcaatg acggtaaatg gcccgcctgg cattatgccc agtacatgac cttacgggac
     1261 tttcctactt ggcagtacat ctacgtatta gtcatcgcta ttaccatgct gatgcggttt
     1321 tggcagtaca ccaatgggcg tggatagcgg tttgactcac ggggatttcc aagtctccac
     1381 cccattgacg tcaatgggag tttgttttgg caccaaaatc aacgggactt tccaaaatgt
     1441 cgtaataacc ccgccccgtt gacgcaaatg ggcggtaggc gtgtacggtg ggaggtctat
     1501 ataagcagac gtcgtttagt gaaccgtcag atcactagat gctttattgc ggtagtttat
     1561 cacagttaaa ttgctaacgc cagtctcgaa cttaacgtgc agaagttggt cgtgaggcac
     1621 tgggcaggta agtatcgggc cctttgtgcg gggggagcgg ctcggggctg tccgcggggg
     1681 gacggctgcc ttcggggggg acggggcagg gcggggttcg gcttctggcg tgtgaccggc
     1741 ggctctagag cctctgctaa ccatgttcat gccttcttct ttttcctaca gctcctgggc
     1801 aacgtgctgg ttattgtgct gtctcatcat tttggcaaag aattggatcg gaccgaaatt
     1861 aatacgactc actatagggg aattgtgagc ggataacaat tccccggagt taatccggga
     1921 cctttaattc aacccaacac aatatattat agttaaataa gaattattat caaatcattt
     1981 gtatattaat taaaatacta tactgtaaat tacattttat ttacaatcaa aggagatata
     2041 ccatggtgag caagggcgag gaggataaca tggccatcat caaggagttc atgcgcttca
     2101 aggtgcacat ggagggctcc gtgaacggcc acgagttcga gatcgagggc gagggcgagg
     2161 gccgccccta cgagggcacc cagaccgcca agctgaaggt gaccaagggt ggccccctgc
     2221 ccttcgcctg ggacatcctg tcccctcagt tcatgtacgg ctccaaggcc tacgtgaagc
     2281 accccgccga catccccgac tacttgaagc tgtccttccc cgagggcttc aagtgggagc
     2341 gcgtgatgaa cttcgaggac ggcggcgtgg tgaccgtgac ccaggactcc tccctgcagg
     2401 acggcgagtt catctacaag gtgaagctgc gcggcaccaa cttcccctcc gacggccctg
     2461 taatgcagaa gaagactatg ggctgggagg cctcctccga gcggatgtac cccgaggacg
     2521 gcgccctgaa gggcgagatc aagcagaggc tgaagctgaa ggacggcggc cactacgacg
     2581 ctgaggtcaa gaccacctac aaggccaaga agcccgtgca gctgcccggc gcctacaacg
     2641 tcaacatcaa gttggacatc acctcccaca acgaggacta caccatcgtg gaacagtacg
     2701 aacgcgccga gggccgccac tccaccggcg gcatggacga gctgtacaag ggttctggat
     2761 ccttggctac tacacttgaa cgtattgaga agaactttgt cattactgac ccaagattgc
     2821 cagataatcc cattatattc gcgtccgata gtttcttgca gttgacagaa tatagccgtg
     2881 aagaaatttt gggaagaaac tgcaggtttc tacaaggtcc tgaaactgat cgcgcgacag
     2941 tgagaaaaat tagagatgcc atagataacc aaacagaggt cactgttcag ctgattaatt
     3001 atacaaagag tggtaaaaag ttctggaacc tctttcactt gcagcctatg cgagatcaga
     3061 agggagatgt ccagtacttt attggggttc agttggatgg aactgagcat gtccgagatg
     3121 ctgccgagag agagggagtc atgctgatta agaaaactgc agaaaatatt gatgaggcgg
     3181 caaaagaact ttaaaagctt gcggccgcac agctgtatac acgtgcaagc cagccagaac
     3241 tcgccccgga agaccccgag gatctcgagc accaccatca ccatcaccat cactaagtga
     3301 ttaacctcag gtgcaggctg cctatcagaa ggtggtggct ggtgtggcca atgccctggc
     3361 tcacaaatac cactgagatc gatctttttc cctctgccaa aaattatggg gacatcatga
     3421 agccccttga gcatctgact tctggctaat aaaggaaatt tattttcatt gcaatagtgt
     3481 gttggaattt tttgtgtctc tcactcggaa ggacatatgg gagggcaaat catttaaaac
     3541 atcagaatga gtatttggtt tagagtttgg caacatatgc ccatatgtaa ctagcataac
     3601 cccttggggc ctctaaacgg gtcttgaggg gttttttgct gaaagcatgc ggaggaaatt
     3661 ctccttgaag tttccctggt gttcaaagta aaggagtttg caccagacgc acctctgttc
     3721 actggtccgg cgtattaaaa cacgatacat tgttattagt acatttatta agcgctagat
     3781 tctgtgcgtt gttgatttac agacaattgt tgtacgtatt ttaataattc attaaattta
     3841 taatctttag ggtggtatgt tagagcgaaa atcaaatgat tttcagcgtc tttatatctg
     3901 aatttaaata ttaaatcctc aatagatttg taaaataggt ttcgattagt ttcaaacaag
     3961 ggttgttttt ccgaaccgat ggctggacta tctaatggat tttcgctcaa cgccacaaaa
     4021 cttgccaaat cttgtagcag caatctagct ttgtcgatat tcgtttgtgt tttgttttgt
     4081 aataaaggtt cgacgtcgtt caaaatatta tgcgcttttg tatttctttc atcactgtcg
     4141 ttagtgtaca attgactcga cgtaaacacg ttaaatagag cttggacata tttaacatcg
     4201 ggcgtgttag ctttattagg ccgattatcg tcgtcgtccc aaccctcgtc gttagaagtt
     4261 gcttccgaag acgattttgc catagccaca cgacgcctat taattgtgtc ggctaacacg
     4321 tccgcgatca aatttgtagt tgagcttttt ggaattgcga tcgcataact tcgtatagca
     4381 tacattatac gaagttataa gctcggaacg ctgcgctcgg tcgttcggct gcggcgagcg
     4441 gtatcagctc actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga
     4501 aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg
     4561 gcgtttttcc ataggctccg ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga
     4621 ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga agctccctcg
     4681 tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt ctcccttcgg
     4741 gaagcgtggc gctttctcaa tgctcacgct gtaggtatct cagttcggtg taggtcgttc
     4801 gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc gccttatccg
     4861 gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg gcagcagcca
     4921 ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc ttgaagtggt
     4981 ggcctaacta cggctacact agaagaacag tatttggtat ctgcgctctg ctgaagccag
     5041 ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc gctggtagcg
     5101 gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct caagaagatc
     5161 ctttgttacc aatgcttaat cagtgaggca cctatctcag cgatctgtct atttcgttca
     5221 tccatagttg cctgactccc cgtcgtgtag ataactacga tacgggaggg cttaccatct
     5281 ggccccagtg ctgcaatgat accgcgagac ccacgctcac cggctccaga tttatcagca
     5341 ataaaccagc cagccggaag ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc
     5401 atccagtcta ttaattgttg ccgggaagct agagtaagta gttcgccagt taatagtttg
     5461 cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct
     5521 tcattcagct ccggttccca acgatcaagg cgagttacat gatcccccat gttgtgcaaa
     5581 aaagcggtta gctccttcgg tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta
     5641 tcactcatgg ttatggcagc actgcataat tctcttactg tcatgccatc cgtaagatgc
     5701 ttttctgtga ctggtgagta ctcaaccaag tcattctgag aatagtgtat gcggcgaccg
     5761 agttgctctt gcccggcgtc aatacgggat aataccgcgc cacatagcag aactttaaaa
     5821 gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct caaggatctt accgctgttg
     5881 agatccagtt cgatgtaacc cactcgtgca cccaactgat cttcagcatc ttttactttc
     5941 accagcgttt ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg
     6001 gcgacacgga aatgttgaat actcatactc ttcctttttc aatattattg aagcatttat
     6061 cagggttatt gtctcatgtc cgcgcgtt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
