pVH21-Tier1-PhEF1a

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pVH21-Tier1-PhEF1a
出品公司: Addgene
目录编号: 169561
存储实验室: Martin Fussenegger

载体骨架基本信息
载体名称: pMM1 (pcDNA3.1-based)
空载体大小: 4435 bp
完整质粒大小: 5793 bp
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

文献引用方法
材料和方法部分: pVH21-Tier1-PhEF1a was a gift from Martin Fussenegger (Addgene plasmid # 169561 ; http://n2t.net/addgene:169561 ; RRID:Addgene_169561)
参考文献部分: A versatile plasmid architecture for mammalian synthetic biology (VAMSyB). Haellman V, Strittmatter T, Bertschi A, Stucheli P, Fussenegger M. Metab Eng. 2021 Jul;66:41-50. doi: 10.1016/j.ymben.2021.04.003. Epub 2021 Apr 18. 10.1016/j.ymben.2021.04.003 PubMed 33857582

载体图谱质粒图谱和多克隆位点信息

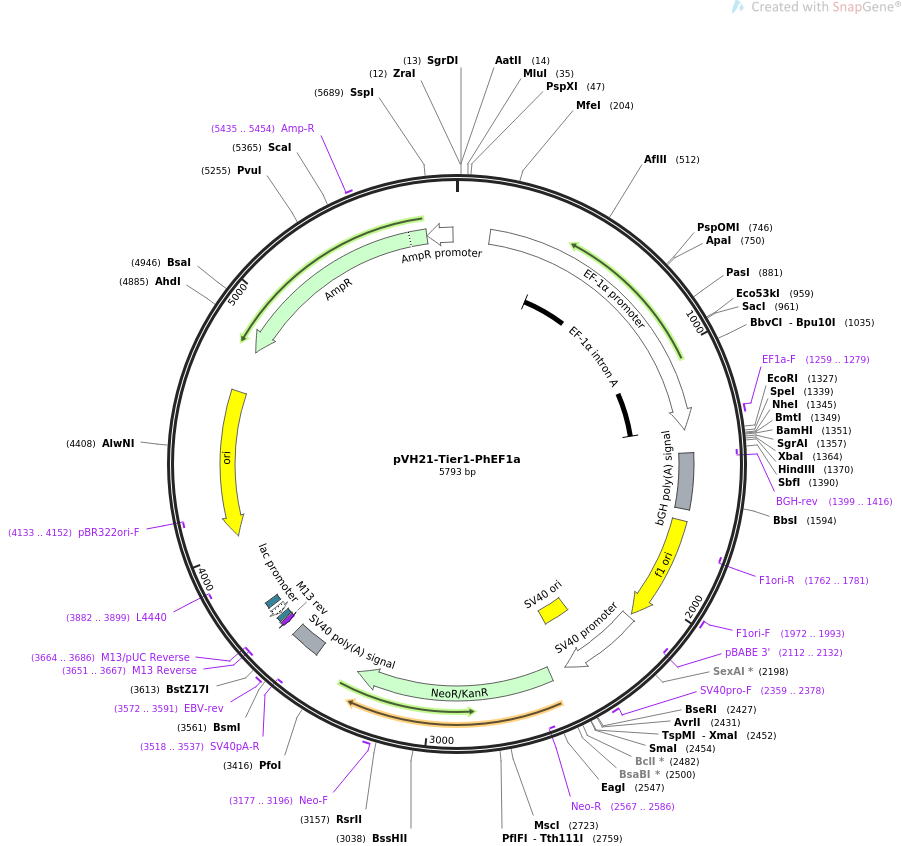

pVH21-Tier1-PhEF1a载体图谱

载体简介

载体序列

LOCUS      pVH21-Tier1-PhEF1a                5793 bp ds-DNA     circular SYN 22-JUN-2022
DEFINITION  Tier-1 PhEF1a-driven expression vector (PhEF1a-MCS-pA). .
ACCESSION   .
VERSION     .
KEYWORDS    pVH21-Tier1-PhEF1a
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5793)
  TITLE     Mammalian Synthetic biology vectors designed to provide a platform
            for easy building of gene circuits as well as exchange and
            recombination of single modules.
REFERENCE   2  (bases 1 to 5793)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jun 22, 2022 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5793
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        133..1311
                     /label=EF-1-alpha promoter
                     /note="strong constitutive promoter for human elongation
                     factor EF-1-alpha"
     intron          364..1302
                     /label=EF-1-alpha intron A
                     /note="intron upstream of the start codon of human
                     EF-1-alpha"
     primer_bind     1259..1279
                     /label=EF1a-F
                     /note="Human elongation factor-1a promoter, forward primer"
     primer_bind     complement(1399..1416)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    1405..1629
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      1675..2103
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1762..1781)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     1972..1993
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(2112..2132)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        2117..2446
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2297..2432
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2359..2378
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2513..3307
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2567..2586)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3177..3196
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    3481..3602
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3518..3537)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3572..3591
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3651..3667)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3651..3667)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3664..3686)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3675..3691
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3699..3729)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3744..3765
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(3882..3899)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4053..4641)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4133..4152)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4812..5672)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5435..5454
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5673..5777)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtgccacctg acgtcgacgg atcgggagat ctccacgcgt ggtaccctcg agtgcaaaga
       61 tggataaagt tttaaacaga gaggaatctt tgcagctaat ggaccttcta ggtcttgaaa
      121 ggagtgggaa ttggctccgg tgcccgtcag tgggcagagc gcacatcgcc cacagtcccc
      181 gagaagttgg ggggaggggt cggcaattga accggtgcct agagaaggtg gcgcggggta
      241 aactgggaaa gtgatgtcgt gtactggctc cgcctttttc ccgagggtgg gggagaaccg
      301 tatataagtg cagtagtcgc cgtgaacgtt ctttttcgca acgggtttgc cgccagaaca
      361 caggtaagtg ccgtgtgtgg ttcccgcggg cctggcctct ttacgggtta tggcccttgc
      421 gtgccttgaa ttacttccac ctggctgcag tacgtgattc ttgatcccga gcttcgggtt
      481 ggaagtgggt gggagagttc gaggccttgc gcttaaggag ccccttcgcc tcgtgcttga
      541 gttgaggcct ggcctgggcg ctggggccgc cgcgtgcgaa tctggtggca ccttcgcgcc
      601 tgtctcgctg ctttcgataa gtctctagcc atttaaaatt tttgatgacc tgctgcgacg
      661 ctttttttct ggcaagatag tcttgtaaat gcgggccaag atctgcacac tggtatttcg
      721 gtttttgggg ccgcgggcgg cgacggggcc cgtgcgtccc agcgcacatg ttcggcgagg
      781 cggggcctgc gagcgcggcc accgagaatc ggacgggggt agtctcaagc tggccggcct
      841 gctctggtgc ctggcctcgc gccgccgtgt atcgccccgc cctgggcggc aaggctggcc
      901 cggtcggcac cagttgcgtg agcggaaaga tggccgcttc ccggccctgc tgcagggagc
      961 tcaaaatgga ggacgcggcg ctcgggagag cgggcgggtg agtcacccac acaaaggaaa
     1021 agggcctttc cgtcctcagc cgtcgcttca tgtgactcca cggagtaccg ggcgccgtcc
     1081 aggcacctcg attagttctc gagcttttgg agtacgtcgt ctttaggttg gggggagggg
     1141 ttttatgcga tggagtttcc ccacactgag tgggtggaga ctgaagttag gccagcttgg
     1201 cacttgatgt aattctcctt ggaatttgcc ctttttgagt ttggatcttg gttcattctc
     1261 aagcctcaga cagtggttca aagttttttt cttccatttc aggtgtcgtg aggtaccttc
     1321 gaagcggaat tcaccatgac tagtgctagc ggatccaccg gtgtctagaa agctttgagg
     1381 ccggcctgca gggatcagcc tcgactgtgc cttctagttg ccagccatct gttgtttgcc
     1441 cctcccccgt gccttccttg accctggaag gtgccactcc cactgtcctt tcctaataaa
     1501 atgaggaaat tgcatcgcat tgtctgagta ggtgtcattc tattctgggg ggtggggtgg
     1561 ggcaggacag caagggggag gattgggaag acaatagcag gcatgctggg gatgcggtgg
     1621 gctctatggc ttctgaggcg gaaagaacca gctggggctc tagggggtat ccccacgcgc
     1681 cctgtagcgg cgcattaagc gcggcgggtg tggtggttac gcgcagcgtg accgctacac
     1741 ttgccagcgc cctagcgccc gctcctttcg ctttcttccc ttcctttctc gccacgttcg
     1801 ccggctttcc ccgtcaagct ctaaatcggg ggctcccttt agggttccga tttagtgctt
     1861 tacggcacct cgaccccaaa aaacttgatt agggtgatgg ttcacgtagt gggccatcgc
     1921 cctgatagac ggtttttcgc cctttgacgt tggagtccac gttctttaat agtggactct
     1981 tgttccaaac tggaacaaca ctcaacccta tctcggtcta ttcttttgat ttataaggga
     2041 ttttgccgat ttcggcctat tggttaaaaa atgagctgat ttaacaaaaa tttaacgcga
     2101 attaattctg tggaatgtgt gtcagttagg gtgtggaaag tccccaggct ccccagcagg
     2161 cagaagtatg caaagcatgc atctcaatta gtcagcaacc aggtgtggaa agtccccagg
     2221 ctccccagca ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa ccatagtccc
     2281 gcccctaact ccgcccatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca
     2341 tggctgacta atttttttta tttatgcaga ggccgaggcc gcctctgcct ctgagctatt
     2401 ccagaagtag tgaggaggct tttttggagg cctaggcttt tgcaaaaagc tcccgggagc
     2461 ttgtatatcc attttcggat ctgatcaaga gacaggatga ggatcgtttc gcatgattga
     2521 acaagatgga ttgcacgcag gttctccggc cgcttgggtg gagaggctat tcggctatga
     2581 ctgggcacaa cagacaatcg gctgctctga tgccgccgtg ttccggctgt cagcgcaggg
     2641 gcgcccggtt ctttttgtca agaccgacct gtccggtgcc ctgaatgaac tgcaggacga
     2701 ggcagcgcgg ctatcgtggc tggccacgac gggcgttcct tgcgcagctg tgctcgacgt
     2761 tgtcactgaa gcgggaaggg actggctgct attgggcgaa gtgccggggc aggatctcct
     2821 gtcatctcac cttgctcctg ccgagaaagt atccatcatg gctgatgcaa tgcggcggct
     2881 gcatacgctt gatccggcta cctgcccatt cgaccaccaa gcgaaacatc gcatcgagcg
     2941 agcacgtact cggatggaag ccggtcttgt cgatcaggat gatctggacg aagagcatca
     3001 ggggctcgcg ccagccgaac tgttcgccag gctcaaggcg cgcatgcccg acggcgagga
     3061 tctcgtcgtg acccatggcg atgcctgctt gccgaatatc atggtggaaa atggccgctt
     3121 ttctggattc atcgactgtg gccggctggg tgtggcggac cgctatcagg acatagcgtt
     3181 ggctacccgt gatattgctg aagagcttgg cggcgaatgg gctgaccgct tcctcgtgct
     3241 ttacggtatc gccgctcccg attcgcagcg catcgccttc tatcgccttc ttgacgagtt
     3301 cttctgagcg ggactctggg gttcgaaatg accgaccaag cgacgcccaa cctgccatca
     3361 cgagatttcg attccaccgc cgccttctat gaaaggttgg gcttcggaat cgttttccgg
     3421 gacgccggct ggatgatcct ccagcgcggg gatctcatgc tggagttctt cgcccacccc
     3481 aacttgttta ttgcagctta taatggttac aaataaagca atagcatcac aaatttcaca
     3541 aataaagcat ttttttcact gcattctagt tgtggtttgt ccaaactcat caatgtatct
     3601 tatcatgtct gtataccgtc gacctctagc tagagcttgg cgtaatcatg gtcatagctg
     3661 tttcctgtgt gaaattgtta tccgctcaca attccacaca acatacgagc cggaagcata
     3721 aagtgtaaag cctggggtgc ctaatgagtg agctaactca cattaattgc gttgcgctca
     3781 ctgcccgctt tccagtcggg aaacctgtcg tgccagctgc attaatgaat cggccaacgc
     3841 gcggggagag gcggtttgcg tattgggcgc tcttccgctt cctcgctcac tgactcgctg
     3901 cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt aatacggtta
     3961 tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc
     4021 aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag
     4081 catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac
     4141 caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc
     4201 ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt
     4261 aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc
     4321 gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga
     4381 cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta
     4441 ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag aagaacagta
     4501 tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga
     4561 tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca gcagattacg
     4621 cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag
     4681 tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc
     4741 tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact
     4801 tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt
     4861 cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta
     4921 ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta
     4981 tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc
     5041 gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat
     5101 agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt
     5161 atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg
     5221 tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca
     5281 gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta
     5341 agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg
     5401 cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact
     5461 ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg
     5521 ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt
     5581 actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga
     5641 ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc
     5701 atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa
     5761 caaatagggg ttccgcgcac atttccccga aaa
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
