pWSK29

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pWSK29
出品公司: Addgene
目录编号: 172972
存储实验室: Renato Morona

载体骨架基本信息
载体名称: pWSK29
载体出品公司: --
空载体大小: 5400 bp
完整质粒大小: --
载体修饰: --
载体类型: 细菌表达
筛选标记: --
载体抗性: 氨苄霉素100 μg/mL
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 低拷贝

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子: --
标签/融合蛋白: --
克隆方法: --
5’克隆位点: --
3’克隆位点: --
5’测序引物 --
3’测序引物 --

文献引用方法
材料和方法部分: pWSK29 was a gift from Renato Morona (Addgene plasmid # 172972 ; http://n2t.net/addgene:172972 ; RRID:Addgene_172972)
参考文献部分: Altering the length of the lipopolysaccharide O antigen has an impact on the interaction of Salmonella enterica serovar Typhimurium with macrophages and complement. Murray GL, Attridge SR, Morona R. J Bacteriol. 2006 Apr;188(7):2735-9. doi: 10.1128/JB.188.7.2735-2739.2006. 10.1128/JB.188.7.2735-2739.2006 PubMed 16547065

载体图谱质粒图谱和多克隆位点信息

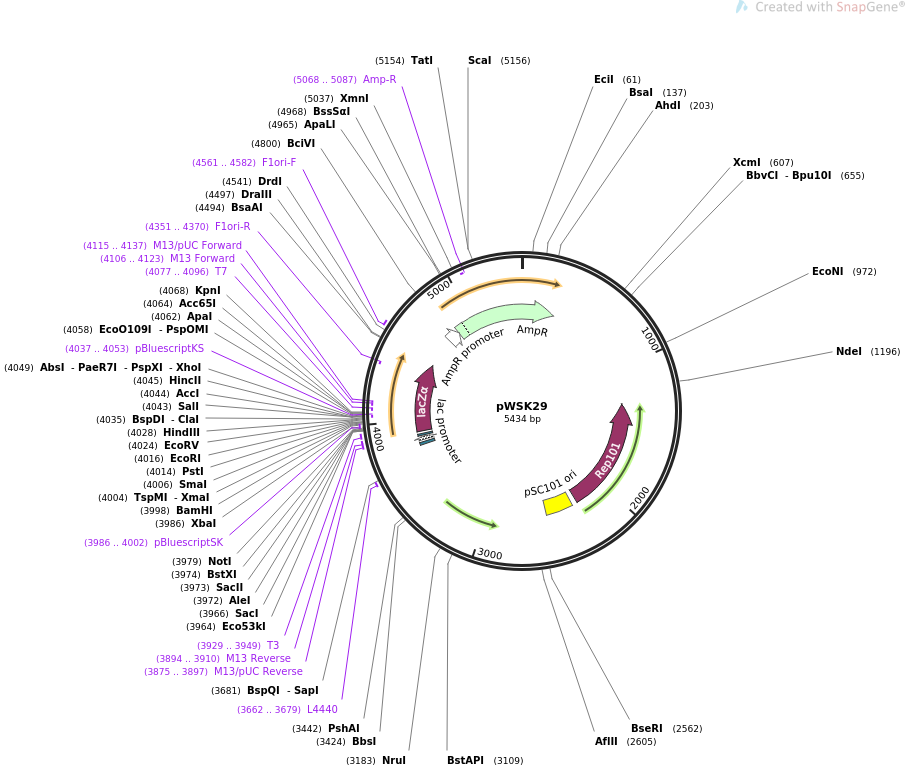

pWSK29载体图谱

载体简介

载体序列

LOCUS       pWSK29                5434 bp ds-DNA     circular SYN 23-AUG-2021
DEFINITION  Low copy number cloning vector.
ACCESSION   .
VERSION     .
KEYWORDS    pWSK29
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5434)
  AUTHORS   Murray GL, Attridge SR, Morona R
  TITLE     Altering the length of the lipopolysaccharide O antigen has an
            impact on the interaction of Salmonella enterica serovar Typhimurium
            with macrophages and complement.
  JOURNAL   J Bacteriol. 2006 Apr;188(7):2735-9. doi:
            10.1128/JB.188.7.2735-2739.2006.
  PUBMED    16547065
REFERENCE   2  (bases 1 to 5434)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 23, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5434
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     CDS             complement(1297..2247)
                     /codon_start=1
                     /gene="rep101"
                     /product="RepA protein needed for replication with the
                     pSC101 origin"
                     /label=Rep101
                     /translation="MSELVVFKANELAISRYDLTEHETKLILCCVALLNPTIENPTRKE
                     RTVSFTYNQYAQMMNISRENAYGVLAKATRELMTRTVEIRNPLVKGFEIFQWTNYAKFS
                     SEKLELVFSEEILPYLFQLKKFIKYNLEHVKSFENKYSMRIYEWLLKELTQKKTHKANI
                     EISLDEFKFMLMLENNYHEFKRLNQWVLKPISKDLNTYSNMKLVVDKRGRPTDTLIFQV
                     ELDRQMDLVTELENNQIKMNGDKIPTTITSDSYLHNGLRKTLHDALTAKIQLTSFEAKF
                     LSDMQSKYDLNGSFSWLTQKQRTTLENILAKYGRI"
     rep_origin      2295..2517
                     /label=pSC101 ori
                     /note="low-copy replication origin that requires the Rep101
                     protein"
     primer_bind     3662..3679
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    3796..3817
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        3832..3862
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3870..3886
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     3875..3897
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     3894..3910
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     3894..3910
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     CDS             3906..4481
                     /codon_start=1
                     /gene="lacZ fragment"
                     /product="LacZ-alpha fragment of beta-galactosidase"
                     /label=lacZ-alpha
                     /translation="MTMITPSAQLTLTKGNKSWSSTAVAAALELVDPPGCRNSISSLSI
                     PSTSRGGPVPNSPYSESYYARSLAVVLQRRDWENPGVTQLNRLAAHPPFASWRNSEEAR
                     TDRPSQQLRSLNGEWDAPCSGALSAAGVVVTRSVTATLASALAPAPFAFFPSFLATFAG
                     FPRQALNRGLPLGFRFSALRHLDPKKLD"
     primer_bind     3929..3949
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        3931..3949
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     misc_feature    3962..4069
                     /label=MCS
                     /note="pBluescript multiple cloning site"
     primer_bind     3986..4002
                     /label=SK primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     3986..4002
                     /label=pBluescriptSK
                     /note="For pBluescript vector"
     primer_bind     complement(4036..4052)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4037..4053)
                     /label=pBluescriptKS
                     /note="For pBluescript vector"
     primer_bind     complement(4077..4096)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(4078..4096)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(4106..4123)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(4106..4122)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4115..4137)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     rep_origin      4264..4719
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4351..4370)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4561..4582
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     promoter        4745..4849
                     /gene="bla"
                     /label=AmpR promoter
     CDS             4850..276
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(5068..5087)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
ORIGIN
        1 ctacttactc tagcttcccg gcaacaatta atagactgga tggaggcgga taaagttgca
       61 ggaccacttc tgcgctcggc ccttccggct ggctggttta ttgctgataa atctggagcc
      121 ggtgagcgtg ggtctcgcgg tatcattgca gcactggggc cagatggtaa gccctcccgt
      181 atcgtagtta tctacacgac ggggagtcag gcaactatgg atgaacgaaa tagacagatc
      241 gctgagatag gtgcctcact gattaagcat tggtaactgt cagaccaagt ttactcatat
      301 atactttaga ttgatttaaa acttcatttt taatttaaaa ggatctaggt gaagatcctt
      361 tttgataatc tcatgaccaa aatcccttaa cgtgagtttt cgttccactg agcgtcagat
      421 ctctgttcgg gggttcactg acgctgcgtg actacgatgg tcaggttgcg gaggctatgg
      481 ccctggtacg agcgctgaac aaaatgacga aagcaggtat gcctgaaagc gtgcgtattg
      541 cctgaaaaca caacccgcta cgggggagac ttacccgaaa tctgatttat tcaacaaagc
      601 cactttcagt atggatttgg gtgttacggg ggggggttgg tgcttaaaat cgcgctgagg
      661 atttctgatg gtgttaagcg ggcggttttg agatgtaaac tcgcccgttt aacataatgg
      721 atcttgcgcg caccgcccga acaccactcg ccacaaaaaa ccgccggaac gtccaaaagt
      781 acgggttttg ctgcccgcaa acgggctgtt ctggtgttgc tagtttgtta tcagaatcgc
      841 agatccggct tcagccggtt tgccggctga aagcgctatt tcttccagaa ttgccatgat
      901 tttttcccca cgggaggcgt cactggctcc cgtgttgtcg gcagctttga ttcgataagc
      961 agcatcgcct gtttcaggct gtctatgtgt gactgttgag ctgtaacaag ttgtctcagg
     1021 tgttcaattt catgttctag ttgctttgtt ttactggttt cacctgttct attaggtgtt
     1081 acatgctgtt catctgttac attgtcgatc tgttcatggt gaacagcttt gaatgcacca
     1141 aaaactcgta aaagctctga tgtatctatc ttttttacac cgttttcatc tgtgcatatg
     1201 gacagttttc cctttgatat gtaacggtga acagttgttc tacttttgtt tgttagtctt
     1261 gatgcttcac tgatagatac aagagccata agaacctcag atccttccgt atttagccag
     1321 tatgttctct agtgtggttc gttgtttttg cgtgagccat gagaacgaac cattgagatc
     1381 atacttactt tgcatgtcac tcaaaaattt tgcctcaaaa ctggtgagct gaatttttgc
     1441 agttaaagca tcgtgtagtg tttttcttag tccgttatgt aggtaggaat ctgatgtaat
     1501 ggttgttggt attttgtcac cattcatttt tatctggttg ttctcaagtt cggttacgag
     1561 atccatttgt ctatctagtt caacttggaa aatcaacgta tcagtcgggc ggcctcgctt
     1621 atcaaccacc aatttcatat tgctgtaagt gtttaaatct ttacttattg gtttcaaaac
     1681 ccattggtta agccttttaa actcatggta gttattttca agcattaaca tgaacttaaa
     1741 ttcatcaagg ctaatctcta tatttgcctt gtgagttttc ttttgtgtta gttcttttaa
     1801 taaccactca taaatcctca tagagtattt gttttcaaaa gacttaacat gttccagatt
     1861 atattttatg aattttttta actggaaaag ataaggcaat atctcttcac taaaaactaa
     1921 ttctaatttt tcgcttgaga acttggcata gtttgtccac tggaaaatct caaagccttt
     1981 aaccaaagga ttcctgattt ccacagttct cgtcatcagc tctctggttg ctttagctaa
     2041 tacaccataa gcattttccc tactgatgtt catcatctga gcgtattggt tataagtgaa
     2101 cgataccgtc cgttctttcc ttgtagggtt ttcaatcgtg gggttgagta gtgccacaca
     2161 gcataaaatt agcttggttt catgctccgt taagtcatag cgactaatcg ctagttcatt
     2221 tgctttgaaa acaactaatt cagacataca tctcaattgg tctaggtgat tttaatcact
     2281 ataccaattg agatgggcta gtcaatgata attactagtc cttttccttt gagttgtggg
     2341 tatctgtaaa ttctgctaga cctttgctgg aaaacttgta aattctgcta gaccctctgt
     2401 aaattccgct agacctttgt gtgttttttt tgtttatatt caagtggtta taatttatag
     2461 aataaagaaa gaataaaaaa agataaaaag aatagatccc agccctgtgt ataactcact
     2521 actttagtca gttccgcagt attacaaaag gatgtcgcaa acgctgtttg ctcctctaca
     2581 aaacagacct taaaacccta aaggcttaag tagcaccctc gcaagctcgg gcaaatcgct
     2641 gaatattcct tttgtctccg accatcaggc acctgagtcg ctgtcttttt cgtgacattc
     2701 agttcgctgc gctcacggct ctggcagtga atgggggtaa atggcactac aggcgccttt
     2761 tatggattca tgcaaggaaa ctacccataa tacaagaaaa gcccgtcacg ggcttctcag
     2821 ggcgttttat ggcgggtctg cggagtggtg aatccgttag cgaggtgccg ccggcttcca
     2881 ttcaggtcga ggtggcccgg ctccatgcac cgcgacgcaa cgcggggagg cagacaaggt
     2941 atagggcggc gcctacaatc catgccaacc cgttccatgt gctcgccgag gcggcataaa
     3001 tcgccgtgac gatcagcggt ccaatgatcg aagttaggct ggtaagagcc gcgagcgatc
     3061 cttgaagctg tccctgatgg tcgtcatcta cctgcctgga cagcatggcc tgcaacgcgg
     3121 gcatcccgat gccgccggaa gcgagaagaa tcataatggg gaaggccatc cagcctcgcg
     3181 tcgcgaacgc cagcaagacg tagcccagcg cgtcggccgc catgccggcg ataatggcct
     3241 gcttctcgcc gaaacgtttg gtggcgggac cagtgacgaa ggcttgagcg agggcgtgca
     3301 agattccgaa taccgcaagc gacaggccga tcatcgtcgc gctccagcga aagcggtcct
     3361 cgccgaaaat gacccagagc gctgccggca ccctgtccta cgagttgcat gataaagaag
     3421 acagtcataa gtgcggcgac gatagtcatg ccccgcgccc accggaagga gctgactggg
     3481 ttgaaggctc tcaagggcat cggcattcgc cattcaggct gcctcctacc aagacgactt
     3541 caaatccgac ccgtagagat ctcacatgtt ctttcctgcg ttatcccctg attctgtgga
     3601 taaccgtatt accgcctttg agtgagctga taccgctcgc cgcagccgaa cgaccgagcg
     3661 cagcgagtca gtgagcgagg aagcggaaga gcgcccaata cgcaaaccgc ctctccccgc
     3721 gcgttggccg attcattaat gcagctggca cgacaggttt cccgactgga aagcgggcag
     3781 tgagcgcaac gcaattaatg tgagttagct cactcattag gcaccccagg ctttacactt
     3841 tatgcttccg gctcgtatgt tgtgtggaat tgtgagcgga taacaatttc acacaggaaa
     3901 cagctatgac catgattacg ccaagcgcgc aattaaccct cactaaaggg aacaaaagct
     3961 ggagctccac cgcggtggcg gccgctctag aactagtgga tcccccgggc tgcaggaatt
     4021 cgatatcaag cttatcgata ccgtcgacct cgaggggggg cccggtaccc aattcgccct
     4081 atagtgagtc gtattacgcg cgctcactgg ccgtcgtttt acaacgtcgt gactgggaaa
     4141 accctggcgt tacccaactt aatcgccttg cagcacatcc ccctttcgcc agctggcgta
     4201 atagcgaaga ggcccgcacc gatcgccctt cccaacagtt gcgcagcctg aatggcgaat
     4261 gggacgcgcc ctgtagcggc gcattaagcg cggcgggtgt ggtggttacg cgcagcgtga
     4321 ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc tttcttccct tcctttctcg
     4381 ccacgttcgc cggctttccc cgtcaagctc taaatcgggg gctcccttta gggttccgat
     4441 ttagtgcttt acggcacctc gaccccaaaa aacttgatta gggtgatggt tcacgtagtg
     4501 ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg ttctttaata
     4561 gtggactctt gttccaaact ggaacaacac tcaaccctat ctcggtctat tcttttgatt
     4621 tataagggat tttgccgatt tcggcctatt ggttaaaaaa tgagctgatt taacaaaaat
     4681 ttaacgcgaa ttttaacaaa atattaacgc ttacaattta ggtggcactt ttcggggaaa
     4741 tgtgcgcgga acccctattt gtttattttt ctaaatacat tcaaatatgt atccgctcat
     4801 gagacaataa ccctgataaa tgcttcaata atattgaaaa aggaagagta tgagtattca
     4861 acatttccgt gtcgccctta ttcccttttt tgcggcattt tgccttcctg tttttgctca
     4921 cccagaaacg ctggtgaaag taaaagatgc tgaagatcag ttgggtgcac gagtgggtta
     4981 catcgaactg gatctcaaca gcggtaagat ccttgagagt tttcgccccg aagaacgttt
     5041 tccaatgatg agcactttta aagttctgct atgtggcgcg gtattatccc gtattgacgc
     5101 cgggcaagag caactcggtc gccgcataca ctattctcag aatgacttgg ttgagtactc
     5161 accagtcaca gaaaagcatc ttacggatgg catgacagta agagaattat gcagtgctgc
     5221 cataaccatg agtgataaca ctgcggccaa cttacttctg acaacgatcg gaggaccgaa
     5281 ggagctaacc gcttttttgc acaacatggg ggatcatgta actcgccttg atcgctggga
     5341 accggagctg aatgaagcca taccaaacga cgagcgtgac accacgatgc ctgtagcaat
     5401 ggcaacaacg ttgcgcaaac tattaactgg cgaa
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
