pX459V2.0+K848A

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pX459V2.0+K848A
出品公司: 爱迪基因
目录编号: 108296
存储实验室: Yuichiro Miyaoka

载体骨架基本信息
载体名称: pX459
载体出品公司: Dr. Feng Zhang's Lab
载体抗性: 氨苄青霉素
空载体大小: 9175 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达, CRISPR
筛选标记: 嘌呤霉素
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 ACTATCATATGCTTACCGTAAC
3' 测序引物 --

文献引用方法
材料和方法部分: pX459V2.0+K848A was a gift from Yuichiro Miyaoka (Addgene plasmid # 108296 ; http://n2t.net/addgene:108296 ; RRID:Addgene_108296)
参考文献部分: Clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated protein 9 with improved proof-reading enhances homology-directed repair. Tomoko Kato-Inui, Gou Takahashi, Szuyin Hsu, Yuichiro Miyaoka. Nucleic Acids Research 10.1093/nar/gky264

载体图谱质粒图谱和多克隆位点信息

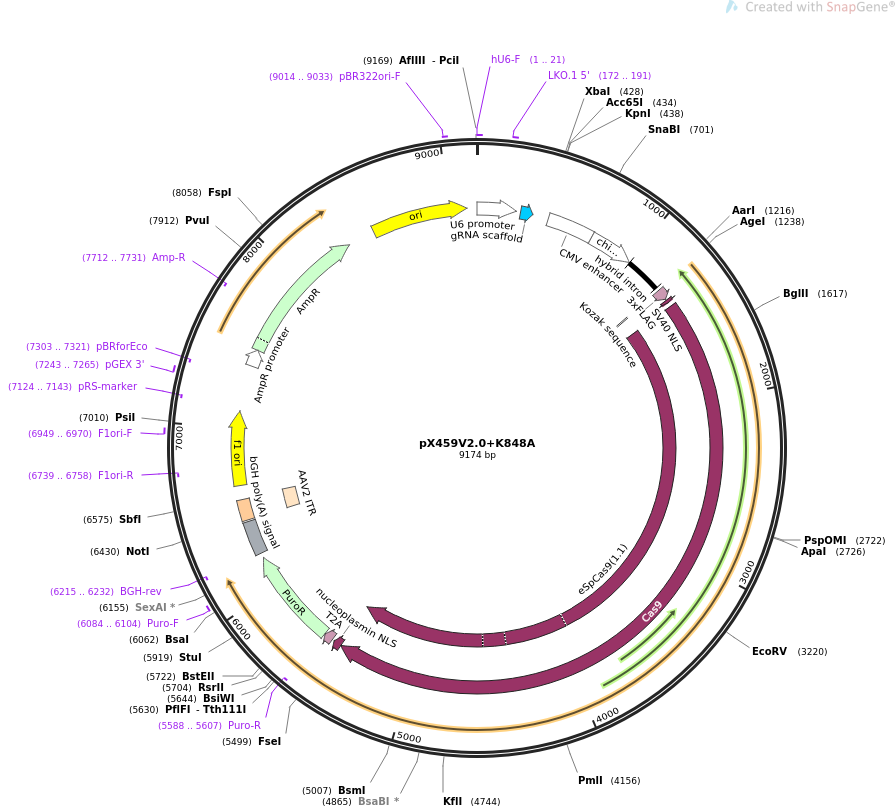

pX459V2.0+K848A质粒图谱

载体简介

载体序列

LOCUS       pX459V2.0+K848A              9174 bp ds-DNA     circular SYN 07-AUG-2018
DEFINITION  pX459 V2.0 (Plasmid #62988) with the K848A mutation.
ACCESSION   .
VERSION     .
KEYWORDS    pX459V2.0+K848A
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9174)
  AUTHORS   Tomoko Kato-Inui, Gou Takahashi, Szuyin Hsu, Yuichiro Miyaoka
  TITLE     Clustered regularly interspaced short palindromic repeats
            (CRISPR)/CRISPR-associated protein 9 with improved proof-reading
            enhances homology-directed repair
  JOURNAL   Nucleic Acids Research
REFERENCE   2  (bases 1 to 9174)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 7, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..9174
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        1..241
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     1..21
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     172..191
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     misc_RNA        268..343
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     enhancer        440..725
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer;
                     contains an 18-bp deletion relative to the standard CMV
                     enhancer"
     promoter        727..1004
                     /label=chicken beta-actin promoter
     intron          1005..1232
                     /label=hybrid intron
                     /note="hybrid between chicken beta-actin (CBA) and minute
                     virus of mice (MMV) introns (Gray et al., 2011)"
     regulatory      1244..1253
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1253..1318
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     CDS             1325..1345
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             1370..5470
                     /codon_start=1
                     /product="Cas9 endonuclease from the Streptococcus pyogenes
                     Type II CRISPR/Cas system, mutated to improve targeting
                     specificity (Slaymaker et al., 2016)"
                     /label=eSpCas9(1.1)
                     /note="carries the mutations K848A, K1003A, and R1060A"
                     /translation="DKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN
                     LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF
                     LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF
                     RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE
                     NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI
                     GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ
                     QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR
                     KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN
                     SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF
                     TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS
                     VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL
                     KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ
                     LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH
                     KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL
                     YYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLADDSIDNKVLTRSDKNRGKSDNVPS
                     EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV
                     AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN
                     AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE
                     SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT
                     IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL
                     ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA
                     NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD
                     ATLIHQSITGLYETRIDLSQLGGD"
     CDS             1370..5470
                     /codon_start=1
                     /product="Cas9 (Csn1) endonuclease from the Streptococcus
                     pyogenes Type II CRISPR/Cas system"
                     /label=Cas9
                     /note="generates RNA-guided double strand breaks in DNA"
                     /translation="DKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN
                     LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF
                     LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF
                     RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE
                     NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI
                     GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ
                     QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR
                     KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN
                     SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF
                     TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS
                     VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL
                     KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ
                     LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH
                     KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL
                     YYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLADDSIDNKVLTRSDKNRGKSDNVPS
                     EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV
                     AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN
                     AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE
                     SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT
                     IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL
                     ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA
                     NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD
                     ATLIHQSITGLYETRIDLSQLGGD"
     CDS             5471..5518
                     /codon_start=1
                     /product="bipartite nuclear localization signal from
                     nucleoplasmin"
                     /label=nucleoplasmin NLS
                     /translation="KRPAATKKAGQAKKKK"
     CDS             5534..5587
                     /codon_start=1
                     /product="2A peptide from Thosea asigna virus capsid
                     protein"
                     /label=T2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="EGRGSLLTCGDVEENPGP"
     CDS             5588..6187
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(5588..5607)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     6084..6104
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     primer_bind     complement(6215..6232)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    6221..6428
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     repeat_region   6437..6577
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   6437..6566
                     /label=AAV2 ITR
     rep_origin      6652..7107
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(6739..6758)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     6949..6970
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(7124..7143)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     7243..7265
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(7303..7321)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        7389..7493
                     /gene="bla"
                     /label=AmpR promoter
     CDS             7494..8354
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(7712..7731)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      8525..9113
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     9014..9033
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 gagggcctat ttcccatgat tccttcatat ttgcatatac gatacaaggc tgttagagag
       61 ataattggaa ttaatttgac tgtaaacaca aagatattag tacaaaatac gtgacgtaga
      121 aagtaataat ttcttgggta gtttgcagtt ttaaaattat gttttaaaat ggactatcat
      181 atgcttaccg taacttgaaa gtatttcgat ttcttggctt tatatatctt gtggaaagga
      241 cgaaacaccg ggtcttcgag aagacctgtt ttagagctag aaatagcaag ttaaaataag
      301 gctagtccgt tatcaacttg aaaaagtggc accgagtcgg tgcttttttg ttttagagct
      361 agaaatagca agttaaaata aggctagtcc gtttttagcg cgtgcgccaa ttctgcagac
      421 aaatggctct agaggtaccc gttacataac ttacggtaaa tggcccgcct ggctgaccgc
      481 ccaacgaccc ccgcccattg acgtcaatag taacgccaat agggactttc cattgacgtc
      541 aatgggtgga gtatttacgg taaactgccc acttggcagt acatcaagtg tatcatatgc
      601 caagtacgcc ccctattgac gtcaatgacg gtaaatggcc cgcctggcat tgtgcccagt
      661 acatgacctt atgggacttt cctacttggc agtacatcta cgtattagtc atcgctatta
      721 ccatggtcga ggtgagcccc acgttctgct tcactctccc catctccccc ccctccccac
      781 ccccaatttt gtatttattt attttttaat tattttgtgc agcgatgggg gcgggggggg
      841 ggggggggcg cgcgccaggc gggggggggg ggggcggggg gggggggggg gcggggcgga
      901 gaggtgcggc ggcagccaat cagagcggcg cgctccgaaa gtttcctttt atggcgaggc
      961 ggcggcggcg gcggccctat aaaaagcgaa gcgcgcggcg ggcgggagtc gctgcgcgct
     1021 gccttcgccc cgtgccccgc tccgccgccg cctcgcgccg cccgccccgg ctctgactga
     1081 ccgcgttact cccacaggtg agcgggcggg acggcccttc tcctccgggc tgtaattagc
     1141 tgagcaagag gtaagggttt aagggatggt tggttggtgg ggtattaatg tttaattacc
     1201 tggagcacct gcctgaaatc actttttttc aggttggacc ggtgccacca tggactataa
     1261 ggaccacgac ggagactaca aggatcatga tattgattac aaagacgatg acgataagat
     1321 ggccccaaag aagaagcgga aggtcggtat ccacggagtc ccagcagccg acaagaagta
     1381 cagcatcggc ctggacatcg gcaccaactc tgtgggctgg gccgtgatca ccgacgagta
     1441 caaggtgccc agcaagaaat tcaaggtgct gggcaacacc gaccggcaca gcatcaagaa
     1501 gaacctgatc ggagccctgc tgttcgacag cggcgaaaca gccgaggcca cccggctgaa
     1561 gagaaccgcc agaagaagat acaccagacg gaagaaccgg atctgctatc tgcaagagat
     1621 cttcagcaac gagatggcca aggtggacga cagcttcttc cacagactgg aagagtcctt
     1681 cctggtggaa gaggataaga agcacgagcg gcaccccatc ttcggcaaca tcgtggacga
     1741 ggtggcctac cacgagaagt accccaccat ctaccacctg agaaagaaac tggtggacag
     1801 caccgacaag gccgacctgc ggctgatcta tctggccctg gcccacatga tcaagttccg
     1861 gggccacttc ctgatcgagg gcgacctgaa ccccgacaac agcgacgtgg acaagctgtt
     1921 catccagctg gtgcagacct acaaccagct gttcgaggaa aaccccatca acgccagcgg
     1981 cgtggacgcc aaggccatcc tgtctgccag actgagcaag agcagacggc tggaaaatct
     2041 gatcgcccag ctgcccggcg agaagaagaa tggcctgttc ggaaacctga ttgccctgag
     2101 cctgggcctg acccccaact tcaagagcaa cttcgacctg gccgaggatg ccaaactgca
     2161 gctgagcaag gacacctacg acgacgacct ggacaacctg ctggcccaga tcggcgacca
     2221 gtacgccgac ctgtttctgg ccgccaagaa cctgtccgac gccatcctgc tgagcgacat
     2281 cctgagagtg aacaccgaga tcaccaaggc ccccctgagc gcctctatga tcaagagata
     2341 cgacgagcac caccaggacc tgaccctgct gaaagctctc gtgcggcagc agctgcctga
     2401 gaagtacaaa gagattttct tcgaccagag caagaacggc tacgccggct acattgacgg
     2461 cggagccagc caggaagagt tctacaagtt catcaagccc atcctggaaa agatggacgg
     2521 caccgaggaa ctgctcgtga agctgaacag agaggacctg ctgcggaagc agcggacctt
     2581 cgacaacggc agcatccccc accagatcca cctgggagag ctgcacgcca ttctgcggcg
     2641 gcaggaagat ttttacccat tcctgaagga caaccgggaa aagatcgaga agatcctgac
     2701 cttccgcatc ccctactacg tgggccctct ggccagggga aacagcagat tcgcctggat
     2761 gaccagaaag agcgaggaaa ccatcacccc ctggaacttc gaggaagtgg tggacaaggg
     2821 cgcttccgcc cagagcttca tcgagcggat gaccaacttc gataagaacc tgcccaacga
     2881 gaaggtgctg cccaagcaca gcctgctgta cgagtacttc accgtgtata acgagctgac
     2941 caaagtgaaa tacgtgaccg agggaatgag aaagcccgcc ttcctgagcg gcgagcagaa
     3001 aaaggccatc gtggacctgc tgttcaagac caaccggaaa gtgaccgtga agcagctgaa
     3061 agaggactac ttcaagaaaa tcgagtgctt cgactccgtg gaaatctccg gcgtggaaga
     3121 tcggttcaac gcctccctgg gcacatacca cgatctgctg aaaattatca aggacaagga
     3181 cttcctggac aatgaggaaa acgaggacat tctggaagat atcgtgctga ccctgacact
     3241 gtttgaggac agagagatga tcgaggaacg gctgaaaacc tatgcccacc tgttcgacga
     3301 caaagtgatg aagcagctga agcggcggag atacaccggc tggggcaggc tgagccggaa
     3361 gctgatcaac ggcatccggg acaagcagtc cggcaagaca atcctggatt tcctgaagtc
     3421 cgacggcttc gccaacagaa acttcatgca gctgatccac gacgacagcc tgacctttaa
     3481 agaggacatc cagaaagccc aggtgtccgg ccagggcgat agcctgcacg agcacattgc
     3541 caatctggcc ggcagccccg ccattaagaa gggcatcctg cagacagtga aggtggtgga
     3601 cgagctcgtg aaagtgatgg gccggcacaa gcccgagaac atcgtgatcg aaatggccag
     3661 agagaaccag accacccaga agggacagaa gaacagccgc gagagaatga agcggatcga
     3721 agagggcatc aaagagctgg gcagccagat cctgaaagaa caccccgtgg aaaacaccca
     3781 gctgcagaac gagaagctgt acctgtacta cctgcagaat gggcgggata tgtacgtgga
     3841 ccaggaactg gacatcaacc ggctgtccga ctacgatgtg gaccatatcg tgcctcagag
     3901 ctttctggcc gacgactcca tcgacaacaa ggtgctgacc agaagcgaca agaaccgggg
     3961 caagagcgac aacgtgccct ccgaagaggt cgtgaagaag atgaagaact actggcggca
     4021 gctgctgaac gccaagctga ttacccagag aaagttcgac aatctgacca aggccgagag
     4081 aggcggcctg agcgaactgg ataaggccgg cttcatcaag agacagctgg tggaaacccg
     4141 gcagatcaca aagcacgtgg cacagatcct ggactcccgg atgaacacta agtacgacga
     4201 gaatgacaag ctgatccggg aagtgaaagt gatcaccctg aagtccaagc tggtgtccga
     4261 tttccggaag gatttccagt tttacaaagt gcgcgagatc aacaactacc accacgccca
     4321 cgacgcctac ctgaacgccg tcgtgggaac cgccctgatc aaaaagtacc ctaagctgga
     4381 aagcgagttc gtgtacggcg actacaaggt gtacgacgtg cggaagatga tcgccaagag
     4441 cgagcaggaa atcggcaagg ctaccgccaa gtacttcttc tacagcaaca tcatgaactt
     4501 tttcaagacc gagattaccc tggccaacgg cgagatccgg aagcggcctc tgatcgagac
     4561 aaacggcgaa accggggaga tcgtgtggga taagggccgg gattttgcca ccgtgcggaa
     4621 agtgctgagc atgccccaag tgaatatcgt gaaaaagacc gaggtgcaga caggcggctt
     4681 cagcaaagag tctatcctgc ccaagaggaa cagcgataag ctgatcgcca gaaagaagga
     4741 ctgggaccct aagaagtacg gcggcttcga cagccccacc gtggcctatt ctgtgctggt
     4801 ggtggccaaa gtggaaaagg gcaagtccaa gaaactgaag agtgtgaaag agctgctggg
     4861 gatcaccatc atggaaagaa gcagcttcga gaagaatccc atcgactttc tggaagccaa
     4921 gggctacaaa gaagtgaaaa aggacctgat catcaagctg cctaagtact ccctgttcga
     4981 gctggaaaac ggccggaaga gaatgctggc ctctgccggc gaactgcaga agggaaacga
     5041 actggccctg ccctccaaat atgtgaactt cctgtacctg gccagccact atgagaagct
     5101 gaagggctcc cccgaggata atgagcagaa acagctgttt gtggaacagc acaagcacta
     5161 cctggacgag atcatcgagc agatcagcga gttctccaag agagtgatcc tggccgacgc
     5221 taatctggac aaagtgctgt ccgcctacaa caagcaccgg gataagccca tcagagagca
     5281 ggccgagaat atcatccacc tgtttaccct gaccaatctg ggagcccctg ccgccttcaa
     5341 gtactttgac accaccatcg accggaagag gtacaccagc accaaagagg tgctggacgc
     5401 caccctgatc caccagagca tcaccggcct gtacgagaca cggatcgacc tgtctcagct
     5461 gggaggcgac aaaaggccgg cggccacgaa aaaggccggc caggcaaaaa agaaaaagga
     5521 attcggcagt ggagagggca gaggaagtct gctaacatgc ggtgacgtcg aggagaatcc
     5581 tggcccaatg accgagtaca agcccacggt gcgcctcgcc acccgcgacg acgtccccag
     5641 ggccgtacgc accctcgccg ccgcgttcgc cgactacccc gccacgcgcc acaccgtcga
     5701 tccggaccgc cacatcgagc gggtcaccga gctgcaagaa ctcttcctca cgcgcgtcgg
     5761 gctcgacatc ggcaaggtgt gggtcgcgga cgacggcgcc gcggtggcgg tctggaccac
     5821 gccggagagc gtcgaagcgg gggcggtgtt cgccgagatc ggcccgcgca tggccgagtt
     5881 gagcggttcc cggctggccg cgcagcaaca gatggaaggc ctcctggcgc cgcaccggcc
     5941 caaggagccc gcgtggttcc tggccaccgt cggagtctcg cccgaccacc agggcaaggg
     6001 tctgggcagc gccgtcgtgc tccccggagt ggaggcggcc gagcgcgccg gggtgcccgc
     6061 cttcctggag acctccgcgc cccgcaacct ccccttctac gagcggctcg gcttcaccgt
     6121 caccgccgac gtcgaggtgc ccgaaggacc gcgcacctgg tgcatgaccc gcaagcccgg
     6181 tgcctgagaa ttctaactag agctcgctga tcagcctcga ctgtgccttc tagttgccag
     6241 ccatctgttg tttgcccctc ccccgtgcct tccttgaccc tggaaggtgc cactcccact
     6301 gtcctttcct aataaaatga ggaaattgca tcgcattgtc tgagtaggtg tcattctatt
     6361 ctggggggtg gggtggggca ggacagcaag ggggaggatt gggaagagaa tagcaggcat
     6421 gctggggagc ggccgcagga acccctagtg atggagttgg ccactccctc tctgcgcgct
     6481 cgctcgctca ctgaggccgg gcgaccaaag gtcgcccgac gcccgggctt tgcccgggcg
     6541 gcctcagtga gcgagcgagc gcgcagctgc ctgcaggggc gcctgatgcg gtattttctc
     6601 cttacgcatc tgtgcggtat ttcacaccgc atacgtcaaa gcaaccatag tacgcgccct
     6661 gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg
     6721 ccagcgcctt agcgcccgct cctttcgctt tcttcccttc ctttctcgcc acgttcgccg
     6781 gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt agtgctttac
     6841 ggcacctcga ccccaaaaaa cttgatttgg gtgatggttc acgtagtggg ccatcgccct
     6901 gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt ggactcttgt
     6961 tccaaactgg aacaacactc aactctatct cgggctattc ttttgattta taagggattt
     7021 tgccgatttc ggtctattgg ttaaaaaatg agctgattta acaaaaattt aacgcgaatt
     7081 ttaacaaaat attaacgttt acaattttat ggtgcactct cagtacaatc tgctctgatg
     7141 ccgcatagtt aagccagccc cgacacccgc caacacccgc tgacgcgccc tgacgggctt
     7201 gtctgctccc ggcatccgct tacagacaag ctgtgaccgt ctccgggagc tgcatgtgtc
     7261 agaggttttc accgtcatca ccgaaacgcg cgagacgaaa gggcctcgtg atacgcctat
     7321 ttttataggt taatgtcatg ataataatgg tttcttagac gtcaggtggc acttttcggg
     7381 gaaatgtgcg cggaacccct atttgtttat ttttctaaat acattcaaat atgtatccgc
     7441 tcatgagaca ataaccctga taaatgcttc aataatattg aaaaaggaag agtatgagta
     7501 ttcaacattt ccgtgtcgcc cttattccct tttttgcggc attttgcctt cctgtttttg
     7561 ctcacccaga aacgctggtg aaagtaaaag atgctgaaga tcagttgggt gcacgagtgg
     7621 gttacatcga actggatctc aacagcggta agatccttga gagttttcgc cccgaagaac
     7681 gttttccaat gatgagcact tttaaagttc tgctatgtgg cgcggtatta tcccgtattg
     7741 acgccgggca agagcaactc ggtcgccgca tacactattc tcagaatgac ttggttgagt
     7801 actcaccagt cacagaaaag catcttacgg atggcatgac agtaagagaa ttatgcagtg
     7861 ctgccataac catgagtgat aacactgcgg ccaacttact tctgacaacg atcggaggac
     7921 cgaaggagct aaccgctttt ttgcacaaca tgggggatca tgtaactcgc cttgatcgtt
     7981 gggaaccgga gctgaatgaa gccataccaa acgacgagcg tgacaccacg atgcctgtag
     8041 caatggcaac aacgttgcgc aaactattaa ctggcgaact acttactcta gcttcccggc
     8101 aacaattaat agactggatg gaggcggata aagttgcagg accacttctg cgctcggccc
     8161 ttccggctgg ctggtttatt gctgataaat ctggagccgg tgagcgtgga agccgcggta
     8221 tcattgcagc actggggcca gatggtaagc cctcccgtat cgtagttatc tacacgacgg
     8281 ggagtcaggc aactatggat gaacgaaata gacagatcgc tgagataggt gcctcactga
     8341 ttaagcattg gtaactgtca gaccaagttt actcatatat actttagatt gatttaaaac
     8401 ttcattttta atttaaaagg atctaggtga agatcctttt tgataatctc atgaccaaaa
     8461 tcccttaacg tgagttttcg ttccactgag cgtcagaccc cgtagaaaag atcaaaggat
     8521 cttcttgaga tccttttttt ctgcgcgtaa tctgctgctt gcaaacaaaa aaaccaccgc
     8581 taccagcggt ggtttgtttg ccggatcaag agctaccaac tctttttccg aaggtaactg
     8641 gcttcagcag agcgcagata ccaaatactg ttcttctagt gtagccgtag ttaggccacc
     8701 acttcaagaa ctctgtagca ccgcctacat acctcgctct gctaatcctg ttaccagtgg
     8761 ctgctgccag tggcgataag tcgtgtctta ccgggttgga ctcaagacga tagttaccgg
     8821 ataaggcgca gcggtcgggc tgaacggggg gttcgtgcac acagcccagc ttggagcgaa
     8881 cgacctacac cgaactgaga tacctacagc gtgagctatg agaaagcgcc acgcttcccg
     8941 aagggagaaa ggcggacagg tatccggtaa gcggcagggt cggaacagga gagcgcacga
     9001 gggagcttcc agggggaaac gcctggtatc tttatagtcc tgtcgggttt cgccacctct
     9061 gacttgagcg tcgatttttg tgatgctcgt caggggggcg gagcctatgg aaaaacgcca
     9121 gcaacgcggc ctttttacgg ttcctggcct tttgctggcc ttttgctcac atgt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
