phU6-gRNA

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: phU6-gRNA
出品公司: 爱迪基因
目录编号: 53188
存储实验室: Charles Gersbach

载体骨架基本信息
载体名称: pzDonor
载体抗性: 卡那霉素
空载体大小: 3515 bp
载体类型: 哺乳细胞表达,CRISPR
高拷贝/低拷贝: 未知
生长条件: 37 ℃

插入基因信息
启动子 human U6
克隆方法: 限制性内切酶
3' 测序引物 M13 Reverse

文献引用方法
材料和方法部分: phU6-gRNA was a gift from Charles Gersbach (爱迪基因 plasmid # 53188)
参考文献部分: Multiplex CRISPR/Cas9-based genome engineering from a single lentiviral vector. Kabadi AM, Ousterout DG, Hilton IB, Gersbach CA. Nucleic Acids Res. 2014 Aug 13. pii: gku749. 10.1093/nar/gku749 PubMed 25122746

载体图谱质粒图谱和多克隆位点信息

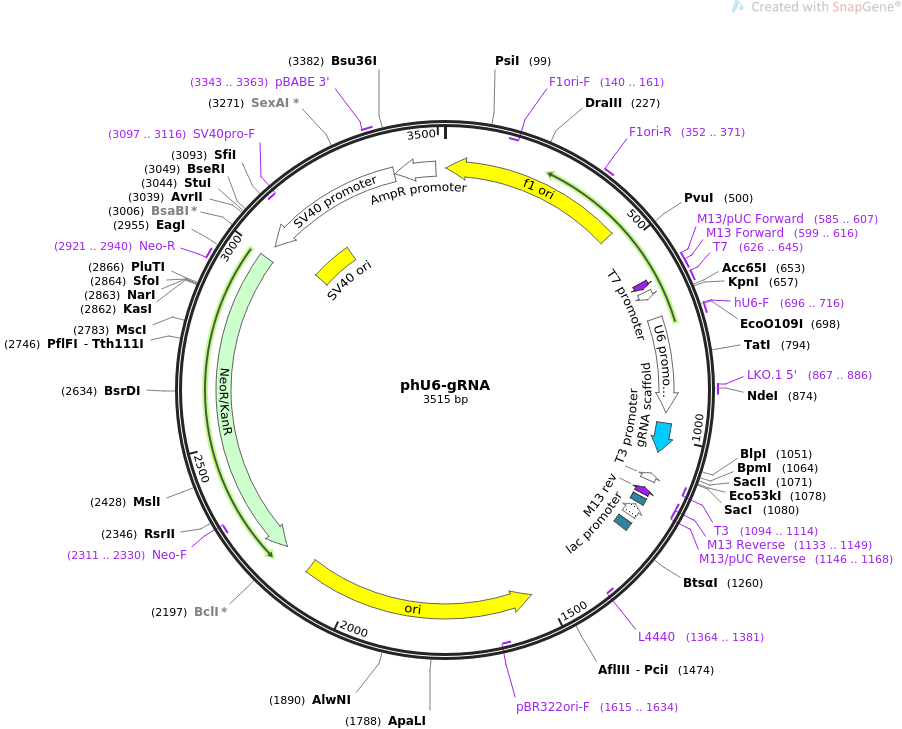

phU6-gRNA质粒图谱

载体简介

载体序列

LOCUS       phU6-gRNA                3515 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  Expresses the S. pyogenes sgRNA from the human U6 promoter.
ACCESSION   .
VERSION     .
KEYWORDS    phU6-gRNA
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3515)
  AUTHORS   Kabadi AM, Ousterout DG, Hilton IB, Gersbach CA
  TITLE     Multiplex CRISPR/Cas9-based genome engineering from a single
            lentiviral vector.
  JOURNAL   Nucleic Acids Res. 2014 Aug 13. pii: gku749.
  PUBMED    25122746
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|phU6-gRNA|
FEATURES             Location/Qualifiers
     source          1..3515
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     rep_origin      complement(3..458)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(140..161)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     352..371
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     585..607
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     599..616
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     600..616
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     626..645
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        626..644
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     promoter        696..936
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     696..716
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     867..886
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     misc_RNA        963..1038
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     primer_bind     complement(1094..1114)
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        complement(1094..1112)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     primer_bind     complement(1133..1149)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(1133..1149)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(1146..1168)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    1157..1173
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(1181..1211)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    1226..1247
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(1364..1381)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(1535..2123)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(1615..1634)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(2200..2994)
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2311..2330)
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     2921..2940
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     promoter        complement(3029..3386)
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3043..3178
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(3097..3116)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     3343..3363
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        complement(3388..3492)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ctaaattgta agcgttaata ttttgttaaa attcgcgtta aatttttgtt aaatcagctc
       61 attttttaac caataggccg aaatcggcaa aatcccttat aaatcaaaag aatagaccga
      121 gatagggttg agtgttgttc cagtttggaa caagagtcca ctattaaaga acgtggactc
      181 caacgtcaaa gggcgaaaaa ccgtctatca gggcgatggc ccactacgtg aaccatcacc
      241 ctaatcaagt tttttggggt cgaggtgccg taaagcacta aatcggaacc ctaaagggag
      301 cccccgattt agagcttgac ggggaaagcc ggcgaacgtg gcgagaaagg aagggaagaa
      361 agcgaaagga gcgggcgcta gggcgctggc aagtgtagcg gtcacgctgc gcgtaaccac
      421 cacacccgcc gcgcttaatg cgccgctaca gggcgcgtcc cattcgccat tcaggctgcg
      481 caactgttgg gaagggcgat cggtgcgggc ctcttcgcta ttacgccagc tggcgaaagg
      541 gggatgtgct gcaaggcgat taagttgggt aacgccaggg ttttcccagt cacgacgttg
      601 taaaacgacg gccagtgagc gcgcgtaata cgactcacta tagggcgaat tgggtacccg
      661 tctcacaggc ggatcgatcc aaggtcgggc aggaagaggg cctatttccc atgattcctt
      721 catatttgca tatacgatac aaggctgtta gagagataat tggaattaat ttgactgtaa
      781 acacaaagat attagtacaa aatacgtgac gtagaaagta ataatttctt gggtagtttg
      841 cagttttaaa attatgtttt aaaatggact atcatatgct taccgtaact tgaaagtatt
      901 tcgatttctt ggctttatat atcttgtgga aaggacgaaa caccgggtct tcgagaagac
      961 ctgttttaga gctagaaata gcaagttaaa ataaggctag tccgttatca acttgaaaaa
     1021 gtggcaccga gtcggtgctt tttttctccg ctgagcgtac tgagacgccg cggtggagct
     1081 ccagcttttg ttccctttag tgagggttaa ttgcgcgctt ggcgtaatca tggtcatagc
     1141 tgtttcctgt gtgaaattgt tatccgctca caattccaca caacatacga gccggaagca
     1201 taaagtgtaa agcctggggt gcctaatgag tgagctaact cacattaatt gcgttgcgct
     1261 cactgcccgc tttccagtcg ggaaacctgt cgtgccagct gcattaatga atcggccaac
     1321 gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc
     1381 tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt
     1441 tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg
     1501 ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg
     1561 agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat
     1621 accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta
     1681 ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct
     1741 gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc
     1801 ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa
     1861 gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg
     1921 taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact agaaggacag
     1981 tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt
     2041 gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta
     2101 cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc
     2161 agtggaacga aaactcacgt taagggattt tggtcatgat cagaagaact cgtcaagaag
     2221 gcgatagaag gcgatgcgct gcgaatcggg agcggcgata ccgtaaagca cgaggaagcg
     2281 gtcagcccat tcgccgccaa gctcttcagc aatatcacgg gtagccaacg ctatgtcctg
     2341 atagcggtcc gccacaccca gccggccaca gtcgatgaat ccagaaaagc ggccattttc
     2401 caccatgata ttcggcaagc aggcatcgcc atgggtcacg acgagatcct cgccgtcggg
     2461 catgctcgcc ttgagcctgg cgaacagttc ggctggcgcg agcccctgat gctcttcgtc
     2521 cagatcatcc tgatcgacaa gaccggcttc catccgagta cgtgctcgct cgatgcgatg
     2581 tttcgcttgg tggtcgaatg ggcaggtagc cggatcaagc gtatgcagcc gccgcattgc
     2641 atcagccatg atggatactt tctcggcagg agcaaggtga gatgacagga gatcctgccc
     2701 cggcacttcg cccaatagca gccagtccct tcccgcttca gtgacaacgt cgagcacagc
     2761 tgcgcaagga acgcccgtcg tggccagcca cgatagccgc gctgcctcgt cttgcagttc
     2821 attcagggca ccggacaggt cggtcttgac aaaaagaacc gggcgcccct gcgctgacag
     2881 ccggaacacg gcggcatcag agcagccgat tgtctgttgt gcccagtcat agccgaatag
     2941 cctctccacc caagcggccg gagaacctgc gtgcaatcca tcttgttcaa tcatgcgaaa
     3001 cgatcctcat cctgtctctt gatcgatctt tgcaaaagcc taggcctcca aaaaagcctc
     3061 ctcactactt ctggaatagc tcagaggccg aggcggcctc ggcctctgca taaataaaaa
     3121 aaattagtca gccatggggc ggagaatggg cggaactggg cggagttagg ggcgggatgg
     3181 gcggagttag gggcgggact atggttgctg actaattgag atgcatgctt tgcatacttc
     3241 tgcctgctgg ggagcctggg gactttccac acctggttgc tgactaattg agatgcatgc
     3301 tttgcatact tctgcctgct ggggagcctg gggactttcc acaccctaac tgacacacat
     3361 tccacagctg gttctttccg cctcaggact cttccttttt caatattatt gaagcattta
     3421 tcagggttat tgtctcatga gcggatacat atttgaatgt atttagaaaa ataaacaaat
     3481 aggggttccg cgcacatttc cccgaaaagt gccac
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
