rEstus

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: rEstus
出品公司: addgene
目录编号: 209767
存储实验室: Stefan Heinemann

载体骨架基本信息
载体名称: pcDNA3.1(+)_Puro
完整质粒大小: 6427 bp
载体类型: 哺乳细胞表达
筛选标记: Puromycin
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 未知

插入基因信息
插入基因名称: rEstus / ASAP3-N138G-Y141T-S318A-Q396R
物种来源: G. gallus (chicken); A.victoria
插入大小: 1281 bp
克隆方法: 限制性内切酶
5’克隆位点: EcoRI(未破坏)
3’克隆位点: NotI(未破坏)
5’测序引物 GGC TAA CTA GAG AAC CCA CTG
3’测序引物 TAG AAG GCA CAG TCG AGG

文献引用方法
材料和方法部分: rEstus was a gift from Stefan Heinemann (Addgene plasmid # 209767 ; http://n2t.net/addgene:209767 ; RRID:Addgene_209767)
参考文献部分: An ultrasensitive voltage indicator uncovers the electrical activity of non-excitable cells. Rühl P., Nair, A. G., Gawande, N., Dehiwalage, S. N. C. W., Münster, L., Schönherr, R., & Heinemann, S. H.. bioRxiv 2023. 10.1101/2023.10.05.560122

载体图谱质粒图谱和多克隆位点信息

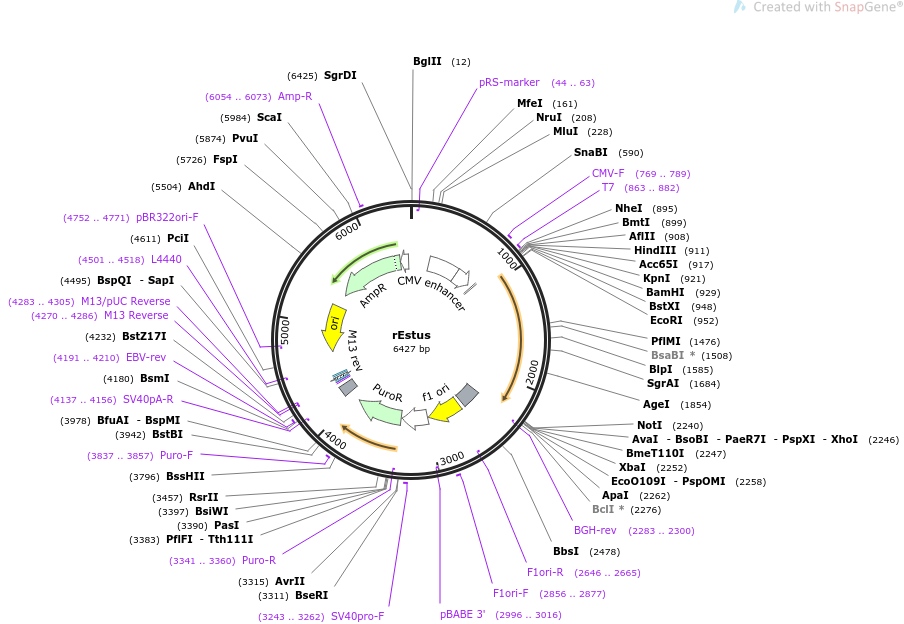

rEstus载体图谱

载体简介

载体序列

LOCUS       rEstus               6427 bp ds-DNA     circular SYN 06-NOV-2023
DEFINITION  To express a bright and sensitive genetically encoded voltage
            indicator in mammalian cells..
ACCESSION   .
VERSION     .
KEYWORDS    rEstus
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6427)
  TITLE     An ultrasensitive voltage indicator uncovers the electrical activity
            of non-excitable cells
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 6427)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Nov 6, 2023 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6427
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(44..63)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     769..789
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     863..882
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(2283..2300)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    2289..2513
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2559..2987
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2646..2665)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     2856..2877
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(2996..3016)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        3001..3330
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3181..3316
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3243..3262
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3341..3940
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(3341..3360)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     3837..3857
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     polyA_signal    4100..4221
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4137..4156)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4191..4210
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(4270..4286)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4270..4286)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4283..4305)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4294..4310
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4318..4348)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4363..4384
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4501..4518)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4672..5260)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4752..4771)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5431..6291)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6054..6073
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6292..6396)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccactagt ccagtgtggt ggaattcatg
      961 gagacgactg tgaggtatga acaggggtca gagctcacta aaacttcgag ctctccaaca
     1021 gcagatgagc ccacgataaa gattgatgat ggtcgtgatg agggtaatga acaagacagc
     1081 tgttccaata ccattaggag aaaaatttcc ccgtttgtga tgtcatttgg attcagagta
     1141 tttggagttg tgcttattat tgtagacatc atagtggtga ttgtggatct ggccatcagt
     1201 gagaagaaaa gaggcattag agagattctt gaaggtgttt ccctggctat agcactcttc
     1261 ttccttgttg atgttctcat gagagtgttt gttgaaggct tcaagaacta tttccggtcc
     1321 aaactgaata ctttggatgc agtcatagta gtgggcactc tgctaattgg tatgaccacc
     1381 tccttctctg acggtacttt tcgcggcgat aacgtgtata ttaccgcgga taaacagaaa
     1441 aacggcatta aagcgaactt taccgtgcgc cataacgtgg aagatggcag cgtgcagctg
     1501 gcggatcatt atcagcagaa caccccgatt ggcgatggcc cggtgctgct accggataac
     1561 cattatctga gcacccagac cgtgctgagc aaagatccga acgaaaaacg cgatcacatg
     1621 gtgctgctgg aatttgtgac cgcagcgggc attacacacg gcatggatga actgtatggc
     1681 ggcaccggcg gcagcgcgag ccagggcgaa gaactgttta ccggcgtggt gccgattctg
     1741 gtggaactgg atggcgatgt gaacggccat aaatttagcg tgcgcggcga aggcgaaggc
     1801 gatgcgacca ttggcaaact gaccctgaaa tttatttgca ccaccggcaa actaccggtg
     1861 ccgtggccga ccctggtgac caccttaacc tatggcgtgc agtgctttgc ccgctatccg
     1921 gatcatatga aacgccatga tttttttaaa agcgcgatgc cggaaggcta tgtgcaggaa
     1981 cgcaccatta gctttaaaga tgatggcaaa tataaaaccc gcgcggtggt gaaatttgaa
     2041 ggcgataccc tggtgaaccg cattgaactg aaaggcaccg attttaaaga agatggcaac
     2101 attctggggc ataaactgga atataacaca gatcagatgc cgcggatggt tactcttctt
     2161 cgagttctga gaattgttat cttaataaga atatttcagc tggcttcaca gaagaaacaa
     2221 cttgaagtgg taacctaagc ggccgctcga gtctagaggg cccgtttaaa cccgctgatc
     2281 agcctcgact gtgccttcta gttgccagcc atctgttgtt tgcccctccc ccgtgccttc
     2341 cttgaccctg gaaggtgcca ctcccactgt cctttcctaa taaaatgagg aaattgcatc
     2401 gcattgtctg agtaggtgtc attctattct ggggggtggg gtggggcagg acagcaaggg
     2461 ggaggattgg gaagacaata gcaggcatgc tggggatgcg gtgggctcta tggcttctga
     2521 ggcggaaaga accagctggg gctctagggg gtatccccac gcgccctgta gcggcgcatt
     2581 aagcgcggcg ggtgtggtgg ttacgcgcag cgtgaccgct acacttgcca gcgccctagc
     2641 gcccgctcct ttcgctttct tcccttcctt tctcgccacg ttcgccggct ttccccgtca
     2701 agctctaaat cgggggctcc ctttagggtt ccgatttagt gctttacggc acctcgaccc
     2761 caaaaaactt gattagggtg atggttcacg tagtgggcca tcgccctgat agacggtttt
     2821 tcgccctttg acgttggagt ccacgttctt taatagtgga ctcttgttcc aaactggaac
     2881 aacactcaac cctatctcgg tctattcttt tgatttataa gggattttgc cgatttcggc
     2941 ctattggtta aaaaatgagc tgatttaaca aaaatttaac gcgaattaat tctgtggaat
     3001 gtgtgtcagt tagggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc
     3061 atgcatctca attagtcagc aaccaggtgt ggaaagtccc caggctcccc agcaggcaga
     3121 agtatgcaaa gcatgcatct caattagtca gcaaccatag tcccgcccct aactccgccc
     3181 atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt
     3241 tttatttatg cagaggccga ggccgcctct gcctctgagc tattccagaa gtagtgagga
     3301 ggcttttttg gaggcctagg cttttgcaaa aagctcccgc atgaccgagt acaagcccac
     3361 ggtgcgcctc gccacccgcg acgacgtccc cagggccgta cgcaccctcg ccgccgcgtt
     3421 cgccgactac cccgccacgc gccacaccgt cgatccggac cgccacatcg agcgggtcac
     3481 cgagctgcaa gaactcttcc tcacgcgcgt cgggctcgac atcggcaagg tgtgggtcgc
     3541 ggacgacggc gccgcggtgg cggtctggac cacgccggag agcgtcgaag cgggggcggt
     3601 gttcgccgag atcggcccgc gcatggccga gttgagcggt tcccggctgg ccgcgcagca
     3661 acagatggaa ggcctcctgg cgccgcaccg gcccaaggag cccgcgtggt tcctggccac
     3721 cgtcggcgtc tcgcccgacc accagggcaa gggtctgggc agcgccgtcg tgctccccgg
     3781 agtggaggcg gccgagcgcg ccggggtgcc cgccttcctg gagacctccg cgccccgcaa
     3841 cctccccttc tacgagcggc tcggcttcac cgtcaccgcc gacgtcgagg tgcccgaagg
     3901 accgcgcacc tggtgcatga cccgcaagcc cggtgcctga ttcgaaatga ccgaccaagc
     3961 gacgcccaac ctgccatcac gagatttcga ttccaccgcc gccttctatg aaaggttggg
     4021 cttcggaatc gttttccggg acgccggctg gatgatcctc cagcgcgggg atctcatgct
     4081 ggagttcttc gcccacccca acttgtttat tgcagcttat aatggttaca aataaagcaa
     4141 tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc
     4201 caaactcatc aatgtatctt atcatgtctg tataccgtcg acctctagct agagcttggc
     4261 gtaatcatgg tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa
     4321 catacgagcc ggaagcataa agtgtaaagc ctggggtgcc taatgagtga gctaactcac
     4381 attaattgcg ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt gccagctgca
     4441 ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt attgggcgct cttccgcttc
     4501 ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat cagctcactc
     4561 aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga acatgtgagc
     4621 aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag
     4681 gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc
     4741 gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt
     4801 tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct
     4861 ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg
     4921 ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta actatcgtct
     4981 tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg gtaacaggat
     5041 tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc ctaactacgg
     5101 ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta ccttcggaaa
     5161 aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt
     5221 ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc
     5281 tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt
     5341 atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta aatcaatcta
     5401 aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg aggcacctat
     5461 ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg tgtagataac
     5521 tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc gagacccacg
     5581 ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg agcgcagaag
     5641 tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg aagctagagt
     5701 aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag gcatcgtggt
     5761 gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat caaggcgagt
     5821 tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc cgatcgttgt
     5881 cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc ataattctct
     5941 tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa ccaagtcatt
     6001 ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac gggataatac
     6061 cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt cggggcgaaa
     6121 actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc gtgcacccaa
     6181 ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa caggaaggca
     6241 aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca tactcttcct
     6301 ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat acatatttga
     6361 atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa aagtgccacc
     6421 tgacgtc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
