GFPUb载体基本信息

质粒名称: GFP-Ub
出品公司: Addgene
目录编号: 11928
存储实验室: Nico Dantuma

载体骨架基本信息
载体名称: EGFP-C1
载体出品公司: Clontech
载体抗性: 卡那霉素
空载体大小: 4731 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: Ubiquitin,Ub,ubiquitin C,UBC
物种来源: H. sapiens (human)
插入大小: 245 bp
基因突变: --
GenBank编号 NM_021009
启动子 --
标签/融合蛋白: GFP(主干网上的N个终端)
克隆方法: 限制性内切酶
5' 克隆位点: HindIII(未破坏)
3' 克隆位点: KpnI(未破坏)
5' 测序引物 EGFP-C (CATGGTCCTGCTGGAGTTCGTG)
3' 测序引物 --

文献引用方法
材料和方法部分: GFP-Ub was a gift from Nico Dantuma (Addgene plasmid # 11928 ; http://n2t.net/addgene:11928 ; RRID:Addgene_11928)
参考文献部分: A dynamic ubiquitin equilibrium couples proteasomal activity to chromatin remodeling. Dantuma NP, Groothuis TA, Salomons FA, Neefjes J. J Cell Biol. 2006 Apr 10. 173(1):19-26. 10.1083/jcb.200510071 PubMed 16606690

GFPUb载体图谱质粒图谱和多克隆位点信息

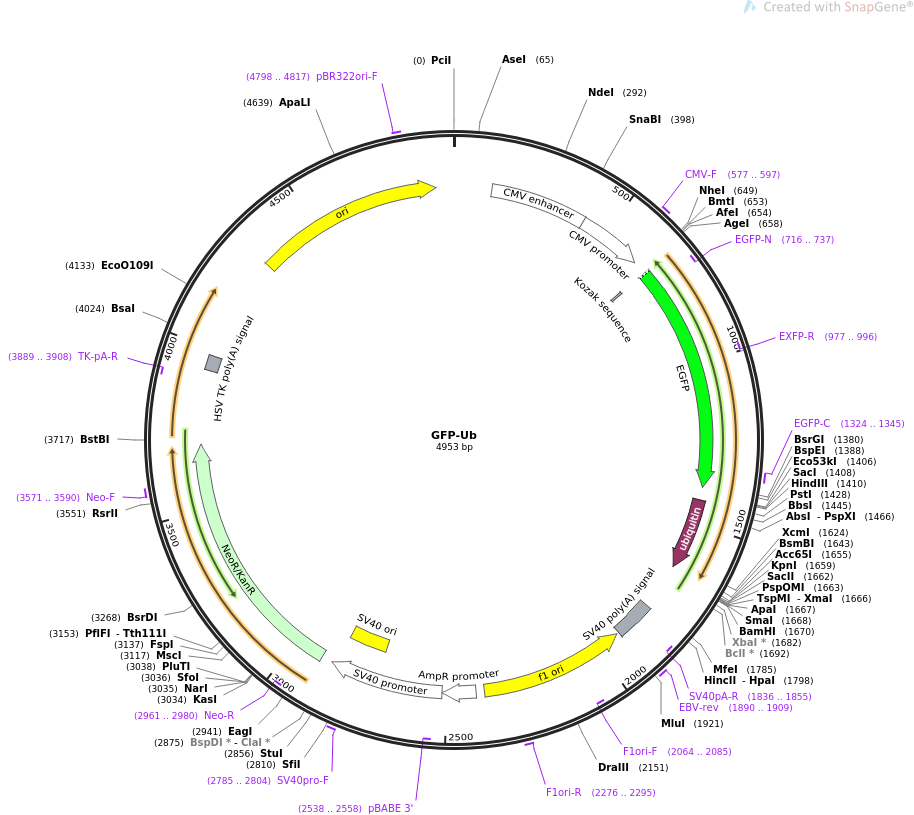

GFP-Ub质粒图谱

GFPUb载体简介

GFPUb载体序列

LOCUS       GFP-Ub                4953 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  Used for in vivo monitoring of ubiquitin localization..
ACCESSION   .
VERSION     .
KEYWORDS    GFP-Ub
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4953)
  AUTHORS   Dantuma NP, Groothuis TA, Salomons FA, Neefjes J
  TITLE     A dynamic ubiquitin equilibrium couples proteasomal activity to
            chromatin remodeling.
  JOURNAL   J Cell Biol. 2006 Apr 10. 173(1):19-26.
  PUBMED    16606690
REFERENCE   2  (bases 1 to 4953)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4953
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        119..422
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        423..626
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     577..597
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      665..674
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             671..1387
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(716..737)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(977..996)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     1324..1345
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     CDS             1427..1651
                     /codon_start=1
                     /product="human ubiquitin"
                     /label=ubiquitin
                     /translation="QIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFA
                     GKQLEDGRTLSDYNIQKESTLHLVLRLRGG"
     polyA_signal    1799..1920
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1836..1855)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1890..1909
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(1927..2382)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2064..2085)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2276..2295
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2409..2513
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2515..2872
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2538..2558)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      2723..2858
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2785..2804
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2907..3701
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2961..2980)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3571..3590
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(3889..3908)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    3933..3980
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4309..4897
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     4798..4817
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 catgttcttt cctgcgttat cccctgattc tgtggataac cgtattaccg ccatgcatta
       61 gttattaata gtaatcaatt acggggtcat tagttcatag cccatatatg gagttccgcg
      121 ttacataact tacggtaaat ggcccgcctg gctgaccgcc caacgacccc cgcccattga
      181 cgtcaataat gacgtatgtt cccatagtaa cgccaatagg gactttccat tgacgtcaat
      241 gggtggagta tttacggtaa actgcccact tggcagtaca tcaagtgtat catatgccaa
      301 gtacgccccc tattgacgtc aatgacggta aatggcccgc ctggcattat gcccagtaca
      361 tgaccttatg ggactttcct acttggcagt acatctacgt attagtcatc gctattacca
      421 tggtgatgcg gttttggcag tacatcaatg ggcgtggata gcggtttgac tcacggggat
      481 ttccaagtct ccaccccatt gacgtcaatg ggagtttgtt ttggcaccaa aatcaacggg
      541 actttccaaa atgtcgtaac aactccgccc cattgacgca aatgggcggt aggcgtgtac
      601 ggtgggaggt ctatataagc agagctggtt tagtgaaccg tcagatccgc tagcgctacc
      661 ggtcgccacc atggtgagca agggcgagga gctgttcacc ggggtggtgc ccatcctggt
      721 cgagctggac ggcgacgtaa acggccacaa gttcagcgtg tccggcgagg gcgagggcga
      781 tgccacctac ggcaagctga ccctgaagtt catctgcacc accggcaagc tgcccgtgcc
      841 ctggcccacc ctcgtgacca ccctgaccta cggcgtgcag tgcttcagcc gctaccccga
      901 ccacatgaag cagcacgact tcttcaagtc cgccatgccc gaaggctacg tccaggagcg
      961 caccatcttc ttcaaggacg acggcaacta caagacccgc gccgaggtga agttcgaggg
     1021 cgacaccctg gtgaaccgca tcgagctgaa gggcatcgac ttcaaggagg acggcaacat
     1081 cctggggcac aagctggagt acaactacaa cagccacaac gtctatatca tggccgacaa
     1141 gcagaagaac ggcatcaagg tgaacttcaa gatccgccac aacatcgagg acggcagcgt
     1201 gcagctcgcc gaccactacc agcagaacac ccccatcggc gacggccccg tgctgctgcc
     1261 cgacaaccac tacctgagca cccagtccgc cctgagcaaa gaccccaacg agaagcgcga
     1321 tcacatggtc ctgctggagt tcgtgaccgc cgccgggatc actctcggca tggacgagct
     1381 gtacaagtcc ggactcagat ctcgagctca agcttcgggc cgcctgcaga tcttcgtgaa
     1441 gactctgact ggtaagacca tcaccctcga ggttgagccc agtgacacca ttgagaatgt
     1501 caaggcaaag atccaagata aggaaggcat ccctcctgac cagcagaggc tgatctttgc
     1561 tggaaaacag ctggaagatg ggcgcaccct gtctgactac aacatccaga aagagtccac
     1621 cctgcacctg gtactccgtc tcagaggtgg gtgaggtacc gcgggcccgg gatccaccgg
     1681 atctagataa ctgatcataa tcagccatac cacatttgta gaggttttac ttgctttaaa
     1741 aaacctccca cacctccccc tgaacctgaa acataaaatg aatgcaattg ttgttgttaa
     1801 cttgtttatt gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa
     1861 taaagcattt ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta
     1921 acgcgtaaat tgtaagcgtt aatattttgt taaaattcgc gttaaatttt tgttaaatca
     1981 gctcattttt taaccaatag gccgaaatcg gcaaaatccc ttataaatca aaagaataga
     2041 ccgagatagg gttgagtgtt gttccagttt ggaacaagag tccactatta aagaacgtgg
     2101 actccaacgt caaagggcga aaaaccgtct atcagggcga tggcccacta cgtgaaccat
     2161 caccctaatc aagttttttg gggtcgaggt gccgtaaagc actaaatcgg aaccctaaag
     2221 ggagcccccg atttagagct tgacggggaa agccggcgaa cgtggcgaga aaggaaggga
     2281 agaaagcgaa aggagcgggc gctagggcgc tggcaagtgt agcggtcacg ctgcgcgtaa
     2341 ccaccacacc cgccgcgctt aatgcgccgc tacagggcgc gtcaggtggc acttttcggg
     2401 gaaatgtgcg cggaacccct atttgtttat ttttctaaat acattcaaat atgtatccgc
     2461 tcatgagaca ataaccctga taaatgcttc aataatattg aaaaaggaag agtcctgagg
     2521 cggaaagaac cagctgtgga atgtgtgtca gttagggtgt ggaaagtccc caggctcccc
     2581 agcaggcaga agtatgcaaa gcatgcatct caattagtca gcaaccaggt gtggaaagtc
     2641 cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccat
     2701 agtcccgccc ctaactccgc ccatcccgcc cctaactccg cccagttccg cccattctcc
     2761 gccccatggc tgactaattt tttttattta tgcagaggcc gaggccgcct cggcctctga
     2821 gctattccag aagtagtgag gaggcttttt tggaggccta ggcttttgca aagatcgatc
     2881 aagagacagg atgaggatcg tttcgcatga ttgaacaaga tggattgcac gcaggttctc
     2941 cggccgcttg ggtggagagg ctattcggct atgactgggc acaacagaca atcggctgct
     3001 ctgatgccgc cgtgttccgg ctgtcagcgc aggggcgccc ggttcttttt gtcaagaccg
     3061 acctgtccgg tgccctgaat gaactgcaag acgaggcagc gcggctatcg tggctggcca
     3121 cgacgggcgt tccttgcgca gctgtgctcg acgttgtcac tgaagcggga agggactggc
     3181 tgctattggg cgaagtgccg gggcaggatc tcctgtcatc tcaccttgct cctgccgaga
     3241 aagtatccat catggctgat gcaatgcggc ggctgcatac gcttgatccg gctacctgcc
     3301 cattcgacca ccaagcgaaa catcgcatcg agcgagcacg tactcggatg gaagccggtc
     3361 ttgtcgatca ggatgatctg gacgaagagc atcaggggct cgcgccagcc gaactgttcg
     3421 ccaggctcaa ggcgagcatg cccgacggcg aggatctcgt cgtgacccat ggcgatgcct
     3481 gcttgccgaa tatcatggtg gaaaatggcc gcttttctgg attcatcgac tgtggccggc
     3541 tgggtgtggc ggaccgctat caggacatag cgttggctac ccgtgatatt gctgaagagc
     3601 ttggcggcga atgggctgac cgcttcctcg tgctttacgg tatcgccgct cccgattcgc
     3661 agcgcatcgc cttctatcgc cttcttgacg agttcttctg agcgggactc tggggttcga
     3721 aatgaccgac caagcgacgc ccaacctgcc atcacgagat ttcgattcca ccgccgcctt
     3781 ctatgaaagg ttgggcttcg gaatcgtttt ccgggacgcc ggctggatga tcctccagcg
     3841 cggggatctc atgctggagt tcttcgccca ccctaggggg aggctaactg aaacacggaa
     3901 ggagacaata ccggaaggaa cccgcgctat gacggcaata aaaagacaga ataaaacgca
     3961 cggtgttggg tcgtttgttc ataaacgcgg ggttcggtcc cagggctggc actctgtcga
     4021 taccccaccg agaccccatt ggggccaata cgcccgcgtt tcttcctttt ccccacccca
     4081 ccccccaagt tcgggtgaag gcccagggct cgcagccaac gtcggggcgg caggccctgc
     4141 catagcctca ggttactcat atatacttta gattgattta aaacttcatt tttaatttaa
     4201 aaggatctag gtgaagatcc tttttgataa tctcatgacc aaaatccctt aacgtgagtt
     4261 ttcgttccac tgagcgtcag accccgtaga aaagatcaaa ggatcttctt gagatccttt
     4321 ttttctgcgc gtaatctgct gcttgcaaac aaaaaaacca ccgctaccag cggtggtttg
     4381 tttgccggat caagagctac caactctttt tccgaaggta actggcttca gcagagcgca
     4441 gataccaaat actgttcttc tagtgtagcc gtagttaggc caccacttca agaactctgt
     4501 agcaccgcct acatacctcg ctctgctaat cctgttacca gtggctgctg ccagtggcga
     4561 taagtcgtgt cttaccgggt tggactcaag acgatagtta ccggataagg cgcagcggtc
     4621 gggctgaacg gggggttcgt gcacacagcc cagcttggag cgaacgacct acaccgaact
     4681 gagataccta cagcgtgagc tatgagaaag cgccacgctt cccgaaggga gaaaggcgga
     4741 caggtatccg gtaagcggca gggtcggaac aggagagcgc acgagggagc ttccaggggg
     4801 aaacgcctgg tatctttata gtcctgtcgg gtttcgccac ctctgacttg agcgtcgatt
     4861 tttgtgatgc tcgtcagggg ggcggagcct atggaaaaac gccagcaacg cggccttttt
     4921 acggttcctg gccttttgct ggccttttgc tca
//

GFPUb载体图谱质粒图谱pdf版和相关资料下载

GFPUb载体质粒应用举例
