MP-R

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

MPR载体基本信息

质粒名称: MP-R
出品公司: 爱迪基因
目录编号: 69684
存储实验室: David Liu

载体骨架基本信息
载体名称: CloDF13
载体出品公司: David Liu Lab
载体抗性: 氯霉素
空载体大小: 2992 bp
完整质粒大小: --
载体修饰: --
载体类型: 细菌表达
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: dnaQ926 dam seqA ugi AID (opt)
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 E. coli PBAD
标签/融合蛋白: --
克隆方法: Ligation Independent Cloning
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 pBAD-F
3' 测序引物 CAT-F

文献引用方法
材料和方法部分: MP-R was a gift from David Liu (Addgene plasmid # 69684 ; http://n2t.net/addgene:69684 ; RRID:Addgene_69684)
参考文献部分: Development of potent in vivo mutagenesis plasmids with broad mutational spectra. Badran AH, Liu DR. Nat Commun. 2015 Oct 7;6:8425. doi: 10.1038/ncomms9425. 10.1038/ncomms9425 PubMed 26443021

MPR载体图谱质粒图谱和多克隆位点信息

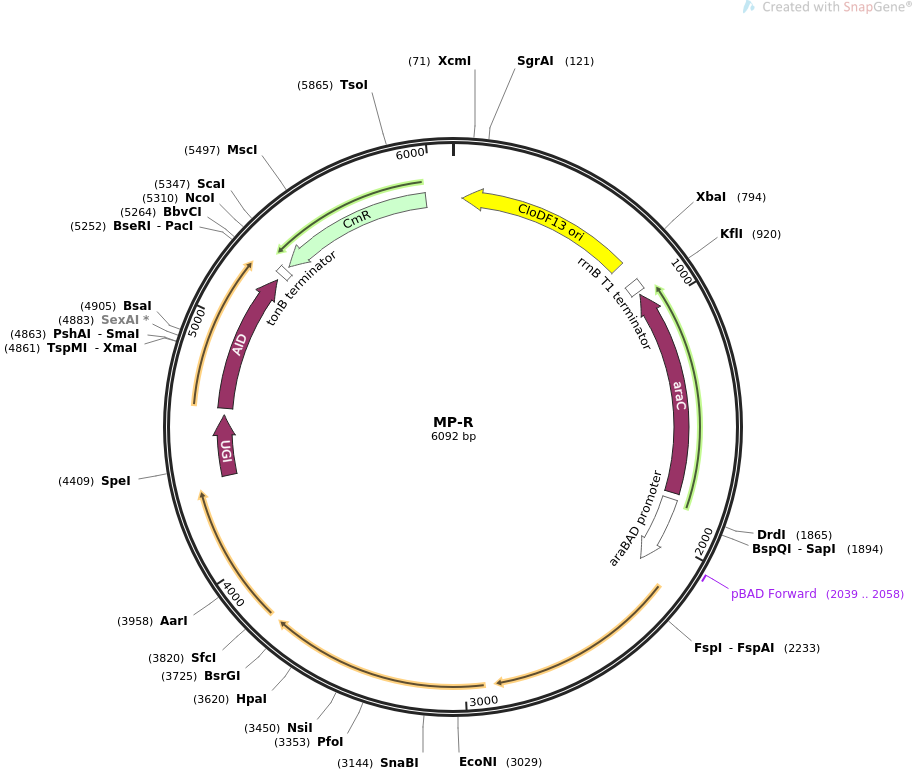

MP-R质粒图谱

MPR载体简介

MPR载体序列

LOCUS       MP-R               6092 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  Untargetted Bacterial Mutagenesis.
ACCESSION   .
VERSION     .
KEYWORDS    MP-R
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6092)
  AUTHORS   Badran AH, Liu DR
  TITLE     Development of potent in vivo mutagenesis plasmids with broad
            mutational spectra.
  JOURNAL   Nat Commun. 2015 Oct 7;6:8425. doi: 10.1038/ncomms9425.
  PUBMED    26443021
REFERENCE   2  (bases 1 to 6092)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6092
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     rep_origin      complement(39..777)
                     /direction=LEFT
                     /label=CloDF13 ori
                     /note="Plasmids containing the CloDF13 (CDF) origin of
                     replication can be propagated in E. coli cells that contain
                     additional plasmids with compatible origins."
     terminator      867..912
                     /label=rrnB T1 terminator
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     CDS             complement(927..1805)
                     /codon_start=1
                     /gene="araC"
                     /product="L-arabinose regulatory protein"
                     /label=araC
                     /translation="MAEAQNDPLLPGYSFNAHLVAGLTPIEANGYLDFFIDRPLGMKGY
                     ILNLTIRGQGVVKNQGREFVCRPGDILLFPPGEIHHYGRHPEAREWYHQWVYFRPRAYW
                     HEWLNWPSIFANTGFFRPDEAHQPHFSDLFGQIINAGQGEGRYSELLAINLLEQLLLRR
                     MEAINESLHPPMDNRVREACQYISDHLADSNFDIASVAQHVCLSPSRLSHLFRQQLGIS
                     VLSWREDQRISQAKLLLSTTRMPIATVGRNVGFDDQLYFSRVFKKCTGASPSEFRAGCE
                     EKVNDVAVKLS"
     promoter        1832..2116
                     /gene="araBAD"
                     /label=araBAD promoter
                     /note="promoter of the L-arabinose operon of E. coli; the
                     araC regulatory gene is transcribed in the opposite
                     direction (Guzman et al., 1995)"
     primer_bind     2039..2058
                     /label=pBAD Forward
                     /note="For vectors with E. coli araBAD promoter, forward
                     primer"
     CDS             4365..4619
                     /codon_start=1
                     /product="uracil-DNA glycosylase inhibitor from a Bacillus
                     subtilis bacteriophage (Mol et al., 1995)"
                     /label=UGI
                     /translation="MTNLSDIIEKETGKQLVIQESILMLPEEVEEVIGNKPESDILVHT
                     AYDESTDENVMLLTSDAPEYKPWALVIQDSNGENKIKML"
     CDS             4649..5245
                     /codon_start=1
                     /gene="AICDA"
                     /product="human activation-induced cytidine deaminase
                     (Dickerson et al., 2003)"
                     /label=AID
                     /translation="MDSLLMNRRKFLYQFKNVRWAKGRRETYLCYVVKRRDSATSFSLD
                     FGYLRNKNGCHVELLFLRYISDWDLDPGRCYRVTWFTSWSPCYDCARHVADFLRGNPNL
                     SLRIFTARLYFCEDRKAEPEGLRRLHRAGVQIAIMTFKDYFYCWNTFVENHERTFKAWE
                     GLHENSVRLSRQLRRILLPLYEVDDLRDAFRTLGL"
     terminator      5272..5303
                     /label=tonB terminator
                     /note="bidirectional E. coli tonB-P14 transcription
                     terminator"
     CDS             complement(5319..5978)
                     /codon_start=1
                     /gene="cat"
                     /product="chloramphenicol acetyltransferase"
                     /label=CmR
                     /note="confers resistance to chloramphenicol"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVTQCTYNQTVQLDITAFL
                     KTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETFSS
                     LWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNVANM
                     DNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGGA"
ORIGIN
        1 cactcggtcg ctacgctccg ggcgtgagac tgcggcgggc gctgcggaca catacaaagt
       61 tacccacaga ttccgtggat aagcagggga ctaacatgtg aggcaaaaca gcagggccgc
      121 gccggtggcg tttttccata ggctccgccc tcctgccaga gttcacataa acagacgctt
      181 ttccggtgca tctgtgggag ccgtgaggct caaccatgaa tctgacagta cgggcgaaac
      241 ccgacaggac ttaaagatcc ccaccgtttc cggcgggtcg ctccctcttg cgctctcctg
      301 ttccgaccct gccgtttacc ggatacctgt tccgcctttc tcccttacgg gaagtgtggc
      361 gctttctcat agctcacaca ctggtatctc ggctcggtgt aggtcgttcg ctccaagctg
      421 ggctgtaagc aagaactccc cgttcagccc gactgctgcg ccttatccgg taactgttca
      481 cttgagtcca acccggaaaa gcacggtaaa acgccactgg cagcagccat tggtaactgg
      541 gagttcgcag aggatttgtt tagctaaaca cgcggttgct cttgaagtgt gcgccaaagt
      601 ccggctacac tggaaggaca gatttggttg ctgtgctctg cgaaagccag ttaccacggt
      661 taagcagttc cccaactgac ttaaccttcg atcaaaccac ctccccaggt ggttttttcg
      721 tttacagggc aaaagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt
      781 tctactgaac cgctctagat ttcagtgcaa tttatctctt caaatgtagc acctgaagtc
      841 agcccaggag gaagaggaca tccggtcaaa taaaacgaaa ggctcagtcg aaagactggg
      901 cctttcgttt tagacttagg gaccctttat gacaacttga cggctacatc attcactttt
      961 tcttcacaac cggcacggaa ctcgctcggg ctggccccgg tgcatttttt aaatacccgc
     1021 gagaaataga gttgatcgtc aaaaccaaca ttgcgaccga cggtggcgat aggcatccgg
     1081 gtggtgctca aaagcagctt cgcctggctg atacgttggt cctcgcgcca gcttaagacg
     1141 ctaatcccta actgctggcg gaaaagatgt gacagacgcg acggcgacaa gcaaacatgc
     1201 tgtgcgacgc tggcgatatc aaaattgctg tctgccaggt gatcgctgat gtactgacaa
     1261 gcctcgcgta cccgattatc catcggtgga tggagcgact cgttaatcgc ttccatgcgc
     1321 cgcagtaaca attgctcaag cagatttatc gccagcagct ccgaatagcg cccttcccct
     1381 tgcccggcgt taatgatttg cccaaacagg tcgctgaaat gcggctggtg cgcttcatcc
     1441 gggcgaaaga accccgtatt ggcaaatatt gacggccagt taagccattc atgccagtag
     1501 gcgcgcggac gaaagtaaac ccactggtga taccattcgc gagcctccgg atgacgaccg
     1561 tagtgatgaa tctctcctgg cgggaacagc aaaatatcac ccggtcggca aacaaattct
     1621 cgtccctgat ttttcaccac cccctgaccg cgaatggtga gattgagaat ataacctttc
     1681 attcccagcg gtcggtcgat aaaaaaatcg agataaccgt tggcctcaat cggcgttaaa
     1741 cccgccacca gatgggcatt aaacgagtat cccggcagca ggggatcatt ttgcgcttca
     1801 gccatacttt tcatactccc accattcaga gaagaaacca attgtccata ttgcatcaga
     1861 cattgccgtc actgcgtctt ttactggctc ttctcgctaa cccaaccggt aaccccgctt
     1921 attaaaagca ttctgtaaca aagcgggacc aaagccatga caaaaacgcg taacaaaagt
     1981 gtctataatc acggcagaaa agtccacatt gattatttgc acggcgtcac actttgctat
     2041 gccatagcat ttttatccat aagattagcg gatcctacct gacgcttttt atcgcaactc
     2101 tctactgttt ctccataccc gtttttttgg acgcgtacaa ctcaagtctg acataaatga
     2161 ccgctatgag cactgcaatt acacgccaga tcgttctcgc taccgcaacc accggtatga
     2221 accagatcgg tgcgcactat gaaggccaca agatcattga gattggtgcc gttgaagtgg
     2281 tgaaccgtcg cctgacgggc aacaacttcc atgtttatct caaacccgat cggctggtgg
     2341 atccggaagc ctttggcgta catggtattg ccgatgaatt tttgctcgat aagcccacgt
     2401 ttgccgaagt agccgatgag ttcatggact atattcgcgg cgcggagttg gtgatccata
     2461 acgcagcgtt cgatatcggc tttatggact acgagttttc gttgcttaag cgcgatattc
     2521 cgaagaccaa tactttctgt aaggtcaccg atagccttgc ggtggcgagg aaaatgtttc
     2581 ccggtaagcg caacagcctc gatgcgttat gtgctcgcta cgaaatagat aacagtaaac
     2641 gaacgctgca cggggcatta ctcgatgccc agatccttgc ggaagtttat ctggcgatga
     2701 ccggtggtca aacgtcgatg gcttttgcga tggaaggaga gacacaacag caacaaggtg
     2761 aagcaacaat tcagcgcatt gtacgtcagg caagtaagtt acgcgttgtt tttgcgacag
     2821 atgaagagat tgcagctcat gaagcccgtc tcgatctggt gcagaagaaa ggcggaagtt
     2881 gcctctggcg agcataattc aacatcagta aaccggacat aacccatgaa gaaaaatcgc
     2941 gcttttttga agtgggcagg gggcaagtat cccctgcttg atgatattaa acggcatttg
     3001 cccaagggcg aatgtctggt tgagcctttt gtaggtgccg ggtcggtgtt tctcaacacc
     3061 gacttttctc gttacatcct tgccgatatc aatagcgacc tgatcagtct ctataacatt
     3121 gtgaagatgc gtactgatga gtacgtacag gccgcacgcg agctgtttgt tcccgaaaca
     3181 aattgcgccg aggtttacta tcagttccgc gaagagttca acaaaagcca ggatccgttc
     3241 cgtcgggcgg tactgttctt atatttgaac cgctacggtt acaacggcct gtgtcgttac
     3301 aatctgcgcg gtgagtttaa cgtgccgttc ggccgctaca aaaaacccta tttcccggaa
     3361 gcagagttgt atcacttcgc tgaaaaagcg cagaacgcct ttttctattg tgagtcttac
     3421 gccgacagca tggcgcgcgc agatgatgca tccgtcgtct attgcgatcc gccttatgca
     3481 ccgctgtctg cgaccgccaa ctttacggcg tatcacacaa acagttttac gcttgaacaa
     3541 caagcgcatc tggcggagat cgccgaaggt ctggttgagc gccatattcc agtgctgatc
     3601 tccaatcacg atacgatgtt aacgcgtgag tggtatcagc gcgcgaagct gcatgtcgtc
     3661 aaagttcgac gcagcataag cagcaacggc ggcacacgta aaaaggtgga cgaactgctg
     3721 gctttgtaca aaccaggagt cgtttcaccc gcgaaaaaat aattcagcta agacactgca
     3781 ctggattaag atgaaaacga tcgaagttga tgacgaactc tacagctata tcgccagcca
     3841 cactaagcat atcggcgaga gcgcatccga cattttacgg cgtatgttga aattttccgc
     3901 cgcatcacag cctgctgctc cggtgacgaa agaggttcgc gttgcgtcac ctgctatcgt
     3961 cgaagcgaag ccggtcaaaa cgattaaaga caaggttcgc gcaatgcgtg aacttctgct
     4021 ttcggatgaa tacgcagagc aaaagcgagc ggtcaatcgc tttatgctgc tgttgtctac
     4081 actatattct cttgacgccc aggcgtttgc cgaagcaacg gaatcgttgc acggtcgtac
     4141 acgcgtttac tttgcggcag atgaacaaac gctgctgaaa aacggtaatc agaccaagcc
     4201 gaaacatgtg ccaggcacgc cgtattgggt gatcaccaac accaacaccg gccgtaaatg
     4261 cagcatgatc gaacacatca tgcagtcgat gcaattcccg gcggaactga ttgagaaggt
     4321 ttgcggaact atctaataat acaaaaacta ggaggaactt caacatgaca aatttatctg
     4381 acatcattga aaaagaaaca ggaaaacaac tagtgattca agaatcaatt ctaatgttac
     4441 cagaagaagt agaggaagta atcgggaata aaccagaaag tgatatttta gttcatactg
     4501 cttatgacga aagtacagat gaaaacgtaa tgctattaac ttcagatgct ccagaataca
     4561 aaccttgggc gttagtaatt caagacagta atggagaaaa caagattaaa atgttgtaag
     4621 tcgagattaa gtaaaccgga atctgaagat ggactctctg ctgatgaacc gtcgcaaatt
     4681 cctgtaccag ttcaaaaacg ttcgttgggc gaaaggtcgt cgtgaaacct acctgtgcta
     4741 cgttgttaaa cgtcgtgact ctgcgacctc tttctctctg gacttcggtt acctgcgtaa
     4801 caaaaacggt tgccacgttg aactgctgtt cctgcgttac atctctgact gggacctgga
     4861 cccgggtcgt tgctaccgtg ttacctggtt cacctcttgg tctccgtgct acgactgcgc
     4921 gcgtcacgtt gcggacttcc tgcgtggtaa cccgaacctg tctctgcgta tcttcaccgc
     4981 gcgtctgtac ttctgcgaag accgtaaagc ggaaccggaa ggtctgcgtc gtctgcaccg
     5041 tgcgggtgtt cagatcgcga tcatgacctt caaagactac ttctactgct ggaacacctt
     5101 cgttgaaaac cacgaacgta ccttcaaagc gtgggaaggt ctacacgaaa actctgttcg
     5161 tctgtctcgt cagctgcgtc gtatcctgct gccgctgtac gaagttgacg acctgcgtga
     5221 cgcgttccgt accctgggtc tgtaaactta attaacggca ctcctcagcc aagtcaaaag
     5281 cctccgaccg gaggcttttg actacatgcc catggcgttt acgccccgcc ctgccactca
     5341 tcgcagtact gttgtaattc attaagcatt ctgccgacat ggaagccatc acaaacggca
     5401 tgatgaacct gaatcgccag cggcatcagc accttgtcgc cttgcgtata atatttgccc
     5461 atagtgaaaa cgggggcgaa gaagttgtcc atattggcca cgtttaaatc aaaactggtg
     5521 aaactcaccc agggattggc tgagacgaaa aacatattct caataaaccc tttagggaaa
     5581 taggccaggt tttcaccgta acacgccaca tcttgcgaat atatgtgtag aaactgccgg
     5641 aaatcgtcgt ggtattcact ccagagcgat gaaaacgttt cagtttgctc atggaaaacg
     5701 gtgtaacaag ggtgaacact atcccatatc accagctcac cgtctttcat tgccatacgg
     5761 aactccggat gagcattcat caggcgggca agaatgtgaa taaaggccgg ataaaacttg
     5821 tgcttatttt tctttacggt ctttaaaaag gccgtaatat ccagctgaac ggtctggtta
     5881 taggtacatt gagtaactga ctgaaatgcc tcaaaatgtt ctttacgatg ccattgggat
     5941 atatcaacgg tggtatatcc agtgattttt ttctccattt tagcttcctt agctcctgaa
     6001 aatctcgata actcaaaaaa tacgcccggt agtgatctta tttcattatg gtgaaagttg
     6061 gaacctctta cgtgccaagc caaataggcc gt
//

MPR载体图谱质粒图谱pdf版和相关资料下载

MPR载体质粒应用举例
