Paxillin-pEGFP

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: Paxillin-pEGFP
出品公司: 爱迪基因
目录编号: 15233
存储实验室: Rick Horwitz

载体骨架基本信息
载体名称: pEGFP-N3
载体出品公司: Clontech
载体抗性: 卡那霉素
空载体大小: 4700 bp
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: paxillin
物种来源: G. gallus (chicken)
插入大小: 1700 bp
GenBank编号 L30099
标签/融合蛋白: GFP(C端)
克隆方法: 限制性内切酶
5' 克隆位点: Bgl II(克隆期间被破坏)
3' 克隆位点: Kpn (未破坏)
5' 测序引物 CMV immediate early gene forward primer
3' 测序引物

文献引用方法
材料和方法部分: Paxillin-pEGFP was a gift from Rick Horwitz (Addgene plasmid # 15233)
参考文献部分: Differential dynamics of alpha 5 integrin, paxillin, and alpha-actinin during formation and disassembly of adhesions in migrating cells. Laukaitis CM, Webb DJ, Donais K, Horwitz AF. J Cell Biol. 2001 Jun 25. 153(7):1427-40. 10.1083/jcb.153.7.1427 PubMed 11425873

载体图谱质粒图谱和多克隆位点信息

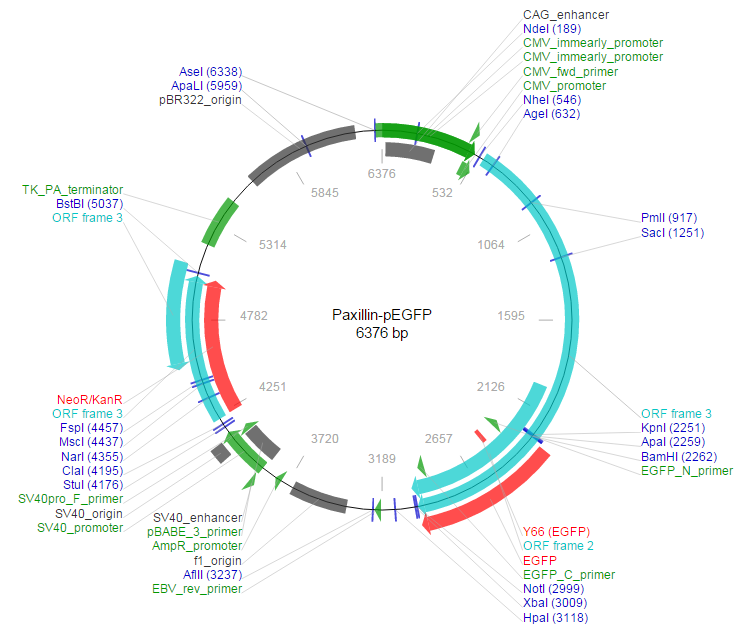

Paxillin-pEGFP载体图谱

载体简介

载体序列

LOCUS       Paxillin-pEGFP Sequencing Result	6376 bp 	DNA	SYN
DEFINITION  Paxillin-pEGFP Sequencing Result
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6376
                     /organism="Paxillin-pEGFP Sequencing Result"
                     /mol_type="other DNA"
     promoter        1..517
                     /label="CMV_immearly_promoter"
     misc_feature    20..307
                     /label="CAG_enhancer"
     misc_feature    474..494
                     /label="CMV_fwd_primer"
     promoter        475..544
                     /label="CMV_promoter"
     CDS             570..2996
                     /label="ORF frame 3"
     CDS             1985..3013
                     /label="ORF frame 2"
     gene            2280..2993
                     /label="EGFP"
                     /gene="EGFP"
     misc_feature    complement(2322..2343)
                     /label="EGFP_N_primer"
     misc_feature    2460..2489
                     /label="Y66 (EGFP)"
     misc_feature    2930..2951
                     /label="EGFP_C_primer"
     misc_feature    3210..3229
                     /label="EBV_rev_primer"
     rep_origin      complement(3379..3685)
                     /label="f1_origin"
     promoter        3764..3792
                     /label="AmpR_promoter"
     misc_feature    complement(3858..3878)
                     /label="pBABE_3_primer"
     misc_feature    complement(3864..4079)
                     /label="SV40_enhancer"
     promoter        3876..4144
                     /label="SV40_promoter"
     rep_origin      4043..4120
                     /label="SV40_origin"
     misc_feature    4105..4124
                     /label="SV40pro_F_primer"
     CDS             4227..5021
                     /label="ORF frame 3"
     gene            4230..5018
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
     CDS             complement(4536..5072)
                     /label="ORF frame 3"
     terminator      5196..5465
                     /label="TK_PA_terminator"
     rep_origin      5613..6232
                     /label="pBR322_origin"
     promoter        6341..517
                     /label="CMV_immearly_promoter"
ORIGIN
    1 ATATATGGAG TTCCGCGTTA CATAACTTAC GGTAAATGGC CCGCCTGGCT GACCGCCCAA
   61 CGACCCCCGC CCATTGACGT CAATAATGAC GTATGTTCCC ATAGTAACGC CAATAGGGAC
  121 TTTCCATTGA CGTCAATGGG TGGAGTATTT ACGGTAAACT GCCCACTTGG CAGTACATCA
  181 AGTGTATCAT ATGCCAAGTA CGCCCCCTAT TGACGTCAAT GACGGTAAAT GGCCCGCCTG
  241 GCATTATGCC CAGTACATGA CCTTATGGGA CTTTCCTACT TGGCAGTACA TCTACGTATT
  301 AGTCATCGCT ATTACCATGG TGATGCGGTT TTGGCAGTAC ATCAATGGGC GTGGATAGCG
  361 GTTTGACTCA CGGGGATTTC CAAGTCTCCA CCCCATTGAC GTCAATGGGA GTTTGTTTTG
  421 GCACCAAAAT CAACGGGACT TTCCAAAATG TCGTAACAAC TCCGCCCCAT TGACGCAAAT
  481 GGGCGGTAGG CGTGTACGGT GGGAGGTCTA TATAAGCAGA GCTGGTTTAG TGAACCGTCA
  541 GATCCGCTAG CGCTACCGGA CTCAGATCCA TGGACGACCT CGATGCCTTA CTGGCAGACC
  601 TGGAATCCAC CACCTCGCAT ATCTCTAAGC GACCGGTGTT TCTAACAGAG GAAACGCCTT
  661 ACTCCTACCC AACTGGAAAC CATACGTACC AGGAGATTGC TGTGCCACCG CCGGTGCCCC
  721 CGCCGCCTTC CAGTGAGGCC CTAAATGGCA CTGTGATTGA CCCCTTAGAC CAGTGGCAAC
  781 CCAGCGTGTC CAGATACGGC CACCAGCAAC CTCAGTCCCA GTCTCCGATA TACAGCTCTA
  841 GTGCCAAAAG CTCCAGTGCC TCTGTTCCTA GAGACGGGCT CAGCTCCCCT TCTCCCCGTG
  901 CCAGTGAGGA GGAACACGTG TACAGCTTCC CAAACAAGCA GAAGTCTGCA GAACCATCTC
  961 CCACAATGAC CAGCACCTCC CTGGGCAGCA ACCTCTCGGA ACTGGACAGG CTTCTCCTGG
 1021 AACTGAATGC TGTTCAACAT AATCCCCCCA GTGGCTTCTC AGCAGATGAA GTCAGCAGAA
 1081 GCCCATCACT GCCCAATGTG ACCGGACCTC ACTATGTCAT CCCAGAGAGC AGCAGCTCTG
 1141 CAGGAGGGAA GGCTGCACCC CCTACAAAAG AAAAACCAAA GCGGAATGGT GGGCGTGGGA
 1201 TTGAAGATGT GCGTCCCAGT GTGGAGAGCC TGCTGGATGA GCTGGAGAGC TCTGTGCCAA
 1261 GCCCAGTCCC TGCAATCACT GTGAGCCAAG GGGAGGTGAG CAGCCCCCAG CGTGTCAACG
 1321 CCAGTCAGCA GCAGACCCGT ATCTCTGCTT CTTCAGCTAC ACGAGAACTG GATGAGCTGA
 1381 TGGCGTCCCT CTCTGACTTT AAGTTCATGG CACAGGGGAA AGCCGGCGGC AGCAGCTCCC
 1441 CACCATCCAC CACCCCAAAG CCTGGCAGTC AGCTGGACAC CATGCTGGGA AGTCTGCAGT
 1501 CTGACCTGAA CAAACTGGGG GTAGCGACGG TCGCCAAGGG TGTGTGCGGA GCCTGCAAGA
 1561 AGCCGATTGC TGGGCAGGTA GTTACAGCCA TGGGGAAGAC CTGGCACCCT GAGCACTTCG
 1621 TCTGCACCCA CTGCCAGGAG GAGATTGGAT CACGGAACTT CTTTGAGCGG GATGGGCAGC
 1681 CCTACTGTGA GAAGGACTAT CACAACCTCT TCTCTCCTCG CTGCTACTAC TGCAATGGGC
 1741 CAATCCTTGA TAAAGTGGTG ACGGCTTTGG ACAGGACGTG GCACCCTGAA CACTTTTTCT
 1801 GTGCCCAGTG TGGAGTTTTC TTTGGACCTG AAGGATTTCA TGAGAAGGAT GGCAAAGCCT
 1861 ATTGCCGCAA GGACTACTTT GACATGTTTG CTCCCAAGTG TGGAGGCTGT GCCCGGGCTA
 1921 TCCTGGAAAA TTACATTTCT GCCTTAAACA CCCTGTGGCA CCCTGAGTGC TTTGTCTGTC
 1981 GGGAATGTTT CACACCGTTC ATCAACGGCA GCTTCTTCGA GCACGACGGG CAGCCCTACT
 2041 GCGAGGTGCA TTACCACGAG CGCCGCGGCT CGCTGTGCTC TGGCTGCCAG AAGCCCATCA
 2101 CGGGACGCTG CATCACTGCC ATGGGCAAGA AATTTCACCC CGAACACTTT GTCTGTGCCT
 2161 TCTGCCTCAA GCAGCTCAAC AAAGGAACCT TCAAAGAACA GAACGACAAG CCCTACTGTC
 2221 AGAACTGCTT TCTCAAACTC TTCTGTGGTA CCGCGGGCCC GGGATCCATC GCCACCATGG
 2281 TGAGCAAGGG CGAGGAGCTG TTCACCGGGG TGGTGCCCAT CCTGGTCGAG CTGGACGGCG
 2341 ACGTAAACGG CCACAAGTTC AGCGTGTCCG GCGAGGGCGA GGGCGATGCC ACCTACGGCA
 2401 AGCTGACCCT GAAGTTCATC TGCACCACCG GCAAGCTGCC CGTGCCCTGG CCCACCCTCG
 2461 TGACCACCCT GACCTACGGC GTGCAGTGCT TCAGCCGCTA CCCCGACCAC ATGAAGCAGC
 2521 ACGACTTCTT CAAGTCCGCC ATGCCCGAAG GCTACGTCCA GGAGCGCACC ATCTTCTTCA
 2581 AGGACGACGG CAACTACAAG ACCCGCGCCG AGGTGAAGTT CGAGGGCGAC ACCCTGGTGA
 2641 ACCGCATCGA GCTGAAGGGC ATCGACTTCA AGGAGGACGG CAACATCCTG GGGCACAAGC
 2701 TGGAGTACAA CTACAACAGC CACAACGTCT ATATCATGGC CGACAAGCAG AAGAACGGCA
 2761 TCAAGGTGAA CTTCAAGATC CGCCACAACA TCGAGGACGG CAGCGTGCAG CTCGCCGACC
 2821 ACTACCAGCA GAACACCCCC ATCGGCGACG GCCCCGTGCT GCTGCCCGAC AACCACTACC
 2881 TGAGCACCCA GTCCGCCCTG AGCAAAGACC CCAACGAGAA GCGCGATCAC ATGGTCCTGC
 2941 TGGAGTTCGT GACCGCCGCC GGGATCACTC TCGGCATGGA CGAGCTGTAC AAGTAAAGCG
 3001 GCCGCGACTC TAGATCATAA TCAGCCATAC CACATTTGTA GAGGTTTTAC TTGCTTTAAA
 3061 AAACCTCCCA CACCTCCCCC TGAACCTGAA ACATAAAATG AATGCAATTG TTGTTGTTAA
 3121 CTTGTTTATT GCAGCTTATA ATGGTTACAA ATAAAGCAAT AGCATCACAA ATTTCACAAA
 3181 TAAAGCATTT TTTTCACTGC ATTCTAGTTG TGGTTTGTCC AAACTCATCA ATGTATCTTA
 3241 AGGCGTAAAT TGTAAGCGTT AATATTTTGT TAAAATTCGC GTTAAATTTT TGTTAAATCA
 3301 GCTCATTTTT TAACCAATAG GCCGAAATCG GCAAAATCCC TTATAAATCA AAAGAATAGA
 3361 CCGAGATAGG GTTGAGTGTT GTTCCAGTTT GGAACAAGAG TCCACTATTA AAGAACGTGG
 3421 ACTCCAACGT CAAAGGGCGA AAAACCGTCT ATCAGGGCGA TGGCCCACTA CGTGAACCAT
 3481 CACCCTAATC AAGTTTTTTG GGGTCGAGGT GCCGTAAAGC ACTAAATCGG AACCCTAAAG
 3541 GGAGCCCCCG ATTTAGAGCT TGACGGGGAA AGCCGGCGAA CGTGGCGAGA AAGGAAGGGA
 3601 AGAAAGCGAA AGGAGCGGGC GCTAGGGCGC TGGCAAGTGT AGCGGTCACG CTGCGCGTAA
 3661 CCACCACACC CGCCGCGCTT AATGCGCCGC TACAGGGCGC GTCAGGTGGC ACTTTTCGGG
 3721 GAAATGTGCG CGGAACCCCT ATTTGTTTAT TTTTCTAAAT ACATTCAAAT ATGTATCCGC
 3781 TCATGAGACA ATAACCCTGA TAAATGCTTC AATAATATTG AAAAAGGAAG AGTCCTGAGG
 3841 CGGAAAGAAC CAGCTGTGGA ATGTGTGTCA GTTAGGGTGT GGAAAGTCCC CAGGCTCCCC
 3901 AGCAGGCAGA AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCAGGT GTGGAAAGTC
 3961 CCCAGGCTCC CCAGCAGGCA GAAGTATGCA AAGCATGCAT CTCAATTAGT CAGCAACCAT
 4021 AGTCCCGCGC CTAACTCCGC CCATCCCGCC CCTAACTCCG CCCAGTTCCG CCCATTCTCC
 4081 GCCCCATGGC TGACTAATTT TTTTTATTTA TGCAGAGGCC GAGGCCGCCT CGGCCTCTGA
 4141 GCTATTCCAG AAGTAGTGAG GAGGCTTTTT TGGAGGCCTA GGCTTTTGCA AAGATCGATC
 4201 AAGAGACAGG ATGAGGATCG TTTCGCATGA TTGAACAAGA TGGATTGCAC GCAGGTTCTC
 4261 CGGCCGCTTG GGTGGAGAGG CTATTCGGCT ATGACTGGGC ACAACAGACA ATCGGCTGCT
 4321 CTGATGCCGC CGTGTTCCGG CTGTCAGCGC AGGGGCGCCC GGTTCTTTTT GTCAAGACCG
 4381 ACCTGTCCGG TGCCCTGAAT GAACTGCAAG ACGAGGCAGC GCGGCTATCG TGGCTGGCCA
 4441 CGACGGGCGT TCCTTGCGCA GCTGTGCTCG ACGTTGTCAC TGAAGCGGGA AGGGACTGGC
 4501 TGCTATTGGG CGAAGTGCCG GGGCAGGATC TCCTGTCATC TCACCTTGCT CCTGCCGAGA
 4561 AAGTATCCAT CATGGCTGAT GCAATGCGGC GGCTGCATAC GCTTGATCCG GCTACCTGCC
 4621 CATTCGACCA CCAAGCGAAA CATCGCATCG AGCGAGCACG TACTCGGATG GAAGCCGGTC
 4681 TTGTCGATCA GGATGATCTG GACGAAGAGC ATCAGGGGCT CGCGCCAGCC GAACTGTTCG
 4741 CCAGGCTCAA GGCGAGCATG CCCGACGGCG AGGATCTCGT CGTGACCCAT GGCGATGCCT
 4801 GCTTGCCGAA TATCATGGTG GAAAATGGCC GCTTTTCTGG ATTCATCGAC TGTGGCCGGC
 4861 TGGGTGTGGC GGACCGCTAT CAGGACATAG CGTTGGCTAC CCGTGATATT GCTGAAGAGC
 4921 TTGGCGGCGA ATGGGCTGAC CGCTTCCTCG TGCTTTACGG TATCGCCGCT CCCGATTCGC
 4981 AGCGCATCGC CTTCTATCGC CTTCTTGACG AGTTCTTCTG AGCGGGACTC TGGGGTTCGA
 5041 AATGACCGAC CAAGCGACGC CCAACCTGCC ATCACGAGAT TTCGATTCCA CCGCCGCCTT
 5101 CTATGAAAGG TTGGGCTTCG GAATCGTTTT CCGGGACGCC GGCTGGATGA TCCTCCAGCG
 5161 CGGGGATCTC ATGCTGGAGT TCTTCGCCCA CCCTAGGGGG AGGCTAACTG AAACACGGAA
 5221 GGAGACAATA CCGGAAGGAA CCCGCGCTAT GACGGCAATA AAAAGACAGA ATAAAACGCA
 5281 CGGTGTTGGG TCGTTTGTTC ATAAACGCGG GGTTCGGTCC CAGGGCTGGC ACTCTGTCGA
 5341 TACCCCACCG AGACCCCATT GGGGCCAATA CGCCCGCGTT TCTTCCTTTT CCCCACCCCA
 5401 CCCCCCAAGT TCGGGTGAAG GCCCAGGGCT CGCAGCCAAC GTCGGGGCGG CAGGCCCTGC
 5461 CATAGCCTCA GGTTACTCAT ATATACTTTA GATTGATTTA AAACTTCATT TTTAATTTAA
 5521 AAGGATCTAG GTGAAGATCC TTTTTGATAA TCTCATGACC AAAATCCCTT AACGTGAGTT
 5581 TTCGTTCCAC TGAGCGTCAG ACCCCGTAGA AAAGATCAAA GGATCTTCTT GAGATCCTTT
 5641 TTTTCTGCGC GTAATCTGCT GCTTGCAAAC AAAAAAACCA CCGCTACCAG CGGTGGTTTG
 5701 TTTGCCGGAT CAAGAGCTAC CAACTCTTTT TCCGAAGGTA ACTGGCTTCA GCAGAGCGCA
 5761 GATACCAAAT ACTGTTCTTC TAGTGTAGCC GTAGTTAGGC CACCACTTCA AGAACTCTGT
 5821 AGCACCGCCT ACATACCTCG CTCTGCTAAT CCTGTTACCA GTGGCTGCTG CCAGTGGCGA
 5881 TAAGTCGTGT CTTACCGGGT TGGACTCAAG ACGATAGTTA CCGGATAAGG CGCAGCGGTC
 5941 GGGCTGAACG GGGGGTTCGT GCACACAGCC CAGCTTGGAG CGAACGACCT ACACCGAACT
 6001 GAGATACCTA CAGCGTGAGC TATGAGAAAG CGCCACGCTT CCCGAAGGGA GAAAGGCGGA
 6061 CAGGTATCCG GTAAGCGGCA GGGTCGGAAC AGGAGAGCGC ACGAGGGAGC TTCCAGGGGG
 6121 AAACGCCTGG TATCTTTATA GTCCTGTCGG GTTTCGCCAC CTCTGACTTG AGCGTCGATT
 6181 TTTGTGATGC TCGTCAGGGG GGCGGAGCCT ATGGAAAAAC GCCAGCAACG CGGCCTTTTT
 6241 ACGGTTCCTG GCCTTTTGCT GGCCTTTTGC TCACATGTTC TTTCCTGCGT TATCCCCTGA
 6301 TTCTGTGGAT AACCGTATTA CCGCcatgca ttagttatta atagtaatca attacggggt
 6361 cattagttca tagccc
//
