mCherry-TOMM20-N-10

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: mCherry-TOMM20-N-10
出品公司: 爱迪基因
目录编号: 55146
存储实验室: Michael Davidson

载体骨架基本信息
载体名称: mCherry-N1
载体出品公司: --
载体抗性: 卡那霉素
空载体大小: 4750 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: TOMM20,NM_014765.2
物种来源: H. sapiens (human)
插入大小: --
基因突变: --
GenBank编号 --
启动子 CMV
标签/融合蛋白: mCherry(主干上的C终端)
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 CMV-F
3' 测序引物 SV40pA-R

文献引用方法
材料和方法部分: mCherry-TOMM20-N-10 was a gift from Michael Davidson (Addgene plasmid # 55146 ; http://n2t.net/addgene:55146 ; RRID:Addgene_55146)

载体图谱质粒图谱和多克隆位点信息

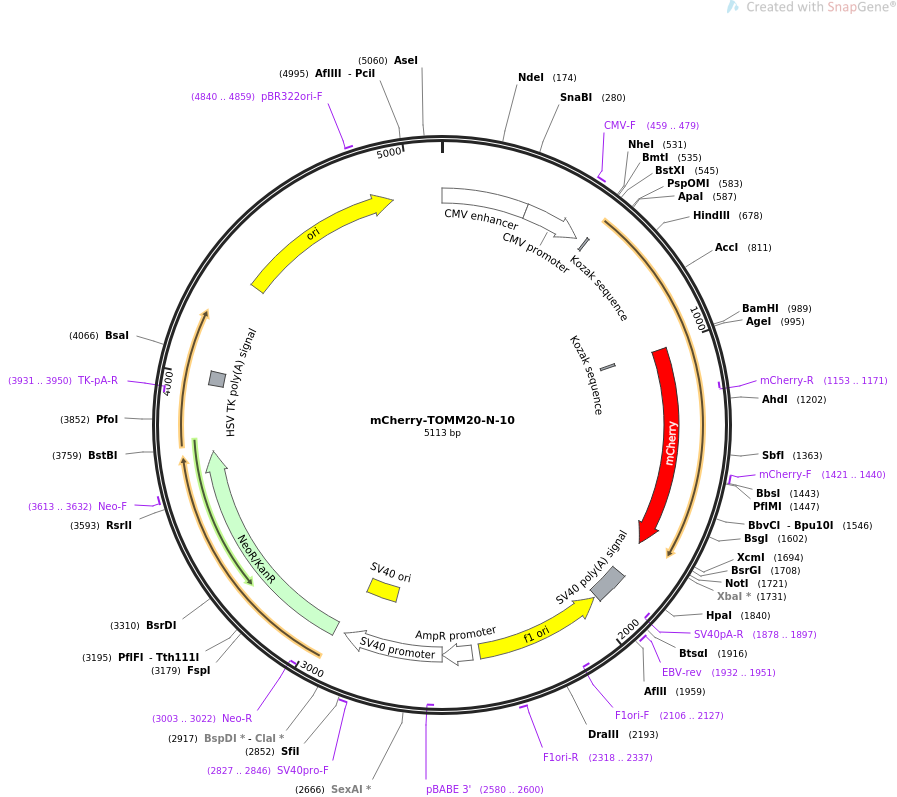

mCherry-TOMM20-N-10质粒图谱

载体简介

载体序列

LOCUS       mCherry-TOMM20-N-10               5113 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Localization: Outer Mitochondrial Membrane, Excitation: 587,
            Emission: 610.
ACCESSION   .
VERSION     .
KEYWORDS    mCherry-TOMM20-N-10
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5113)
  TITLE     Davidson lab - mCherry constructs
REFERENCE   2  (bases 1 to 5113)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5113
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        1..304
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        305..508
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     459..479
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      537..546
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     regulatory      1002..1011
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1008..1718
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(1153..1171)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     1421..1440
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     polyA_signal    1841..1962
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1878..1897)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1932..1951
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(1969..2424)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2106..2127)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2318..2337
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2451..2555
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2557..2914
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2580..2600)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      2765..2900
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2827..2846
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2949..3743
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3003..3022)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3613..3632
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(3931..3950)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    3975..4022
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4351..4939
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     4840..4859
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
       61 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      121 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      181 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      241 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      301 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      361 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      421 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      481 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcca
      541 ccatggtggg tcggaacagc gccatcgccg ccggtgtatg cggggccctt ttcattgggt
      601 actgcatcta cttcgaccgc aaaagacgaa gtgaccccaa cttcaagaac aggcttcgag
      661 aacgaagaaa gaaacagaag cttgccaagg agagagctgg gctttccaag ttacctgacc
      721 ttaaagatgc tgaagctgtt cagaagttct tccttgaaga aatacagctt ggtgaagagt
      781 tactagctca aggtgaatat gagaagggcg tagaccatct gacaaatgca attgctgtgt
      841 gtggacagcc acagcagtta ctgcaggtct tacagcaaac tcttccacca ccagtgttcc
      901 agatgcttct gactaagctc ccaacaatta gtcagagaat tgtaagtgct cagagcttgg
      961 ctgaagatga tgtggaaggc ggtagcgggg atccaccggt cgccaccatg gtgagcaagg
     1021 gcgaggagga taacatggcc atcatcaagg agttcatgcg cttcaaggtg cacatggagg
     1081 gctccgtgaa cggccacgag ttcgagatcg agggcgaggg cgagggccgc ccctacgagg
     1141 gcacccagac cgccaagctg aaggtgacca agggtggccc cctgcccttc gcctgggaca
     1201 tcctgtcccc tcagttcatg tacggctcca aggcctacgt gaagcacccc gccgacatcc
     1261 ccgactactt gaagctgtcc ttccccgagg gcttcaagtg ggagcgcgtg atgaacttcg
     1321 aggacggcgg cgtggtgacc gtgacccagg actcctccct gcaggacggc gagttcatct
     1381 acaaggtgaa gctgcgcggc accaacttcc cctccgacgg ccccgtaatg cagaagaaga
     1441 ccatgggctg ggaggcctcc tccgagcgga tgtaccccga ggacggcgcc ctgaagggcg
     1501 agatcaagca gaggctgaag ctgaaggacg gcggccacta cgacgctgag gtcaagacca
     1561 cctacaaggc caagaagccc gtgcagctgc ccggcgccta caacgtcaac atcaagttgg
     1621 acatcacctc ccacaacgag gactacacca tcgtggaaca gtacgaacgc gccgagggcc
     1681 gccactccac cggcggcatg gacgagctgt acaagtaaag cggccgcgac tctagatcat
     1741 aatcagccat accacatttg tagaggtttt acttgcttta aaaaacctcc cacacctccc
     1801 cctgaacctg aaacataaaa tgaatgcaat tgttgttgtt aacttgttta ttgcagctta
     1861 taatggttac aaataaagca atagcatcac aaatttcaca aataaagcat ttttttcact
     1921 gcattctagt tgtggtttgt ccaaactcat caatgtatct taaggcgtaa attgtaagcg
     1981 ttaatatttt gttaaaattc gcgttaaatt tttgttaaat cagctcattt tttaaccaat
     2041 aggccgaaat cggcaaaatc ccttataaat caaaagaata gaccgagata gggttgagtg
     2101 ttgttccagt ttggaacaag agtccactat taaagaacgt ggactccaac gtcaaagggc
     2161 gaaaaaccgt ctatcagggc gatggcccac tacgtgaacc atcaccctaa tcaagttttt
     2221 tggggtcgag gtgccgtaaa gcactaaatc ggaaccctaa agggagcccc cgatttagag
     2281 cttgacgggg aaagccggcg aacgtggcga gaaaggaagg gaagaaagcg aaaggagcgg
     2341 gcgctagggc gctggcaagt gtagcggtca cgctgcgcgt aaccaccaca cccgccgcgc
     2401 ttaatgcgcc gctacagggc gcgtcaggtg gcacttttcg gggaaatgtg cgcggaaccc
     2461 ctatttgttt atttttctaa atacattcaa atatgtatcc gctcatgaga caataaccct
     2521 gataaatgct tcaataatat tgaaaaagga agagtcctga ggcggaaaga accagctgtg
     2581 gaatgtgtgt cagttagggt gtggaaagtc cccaggctcc ccagcaggca gaagtatgca
     2641 aagcatgcat ctcaattagt cagcaaccag gtgtggaaag tccccaggct ccccagcagg
     2701 cagaagtatg caaagcatgc atctcaatta gtcagcaacc atagtcccgc ccctaactcc
     2761 gcccatcccg cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat
     2821 tttttttatt tatgcagagg ccgaggccgc ctcggcctct gagctattcc agaagtagtg
     2881 aggaggcttt tttggaggcc taggcttttg caaagatcga tcaagagaca ggatgaggat
     2941 cgtttcgcat gattgaacaa gatggattgc acgcaggttc tccggccgct tgggtggaga
     3001 ggctattcgg ctatgactgg gcacaacaga caatcggctg ctctgatgcc gccgtgttcc
     3061 ggctgtcagc gcaggggcgc ccggttcttt ttgtcaagac cgacctgtcc ggtgccctga
     3121 atgaactgca agacgaggca gcgcggctat cgtggctggc cacgacgggc gttccttgcg
     3181 cagctgtgct cgacgttgtc actgaagcgg gaagggactg gctgctattg ggcgaagtgc
     3241 cggggcagga tctcctgtca tctcaccttg ctcctgccga gaaagtatcc atcatggctg
     3301 atgcaatgcg gcggctgcat acgcttgatc cggctacctg cccattcgac caccaagcga
     3361 aacatcgcat cgagcgagca cgtactcgga tggaagccgg tcttgtcgat caggatgatc
     3421 tggacgaaga gcatcagggg ctcgcgccag ccgaactgtt cgccaggctc aaggcgagca
     3481 tgcccgacgg cgaggatctc gtcgtgaccc atggcgatgc ctgcttgccg aatatcatgg
     3541 tggaaaatgg ccgcttttct ggattcatcg actgtggccg gctgggtgtg gcggaccgct
     3601 atcaggacat agcgttggct acccgtgata ttgctgaaga gcttggcggc gaatgggctg
     3661 accgcttcct cgtgctttac ggtatcgccg ctcccgattc gcagcgcatc gccttctatc
     3721 gccttcttga cgagttcttc tgagcgggac tctggggttc gaaatgaccg accaagcgac
     3781 gcccaacctg ccatcacgag atttcgattc caccgccgcc ttctatgaaa ggttgggctt
     3841 cggaatcgtt ttccgggacg ccggctggat gatcctccag cgcggggatc tcatgctgga
     3901 gttcttcgcc caccctaggg ggaggctaac tgaaacacgg aaggagacaa taccggaagg
     3961 aacccgcgct atgacggcaa taaaaagaca gaataaaacg cacggtgttg ggtcgtttgt
     4021 tcataaacgc ggggttcggt cccagggctg gcactctgtc gataccccac cgagacccca
     4081 ttggggccaa tacgcccgcg tttcttcctt ttccccaccc caccccccaa gttcgggtga
     4141 aggcccaggg ctcgcagcca acgtcggggc ggcaggccct gccatagcct caggttactc
     4201 atatatactt tagattgatt taaaacttca tttttaattt aaaaggatct aggtgaagat
     4261 cctttttgat aatctcatga ccaaaatccc ttaacgtgag ttttcgttcc actgagcgtc
     4321 agaccccgta gaaaagatca aaggatcttc ttgagatcct ttttttctgc gcgtaatctg
     4381 ctgcttgcaa acaaaaaaac caccgctacc agcggtggtt tgtttgccgg atcaagagct
     4441 accaactctt tttccgaagg taactggctt cagcagagcg cagataccaa atactgttct
     4501 tctagtgtag ccgtagttag gccaccactt caagaactct gtagcaccgc ctacatacct
     4561 cgctctgcta atcctgttac cagtggctgc tgccagtggc gataagtcgt gtcttaccgg
     4621 gttggactca agacgatagt taccggataa ggcgcagcgg tcgggctgaa cggggggttc
     4681 gtgcacacag cccagcttgg agcgaacgac ctacaccgaa ctgagatacc tacagcgtga
     4741 gctatgagaa agcgccacgc ttcccgaagg gagaaaggcg gacaggtatc cggtaagcgg
     4801 cagggtcgga acaggagagc gcacgaggga gcttccaggg ggaaacgcct ggtatcttta
     4861 tagtcctgtc gggtttcgcc acctctgact tgagcgtcga tttttgtgat gctcgtcagg
     4921 ggggcggagc ctatggaaaa acgccagcaa cgcggccttt ttacggttcc tggccttttg
     4981 ctggcctttt gctcacatgt tctttcctgc gttatcccct gattctgtgg ataaccgtat
     5041 taccgccatg cattagttat taatagtaat caattacggg gtcattagtt catagcccat
     5101 atatggagtt ccg
//
