p3TP-lux

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

p3TPlux载体基本信息

质粒名称: p3TP-lux
出品公司: 爱迪基因
目录编号: 11767
存储实验室: Joan Massague, Jeff Wrana

载体骨架基本信息
载体名称: pGL2-Basic
载体出品公司: Promega
载体抗性: 氨苄青霉素
空载体大小: 5600 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达,荧光素酶
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: 3TP
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: XhoI (未破坏)
3' 克隆位点: EcoRI(未破坏)
5' 测序引物 LucNrev
3' 测序引物 --

文献引用方法
材料和方法部分: p3TP-lux was a gift from Joan Massague & Jeff Wrana (Addgene plasmid # 11767 ; http://n2t.net/addgene:11767 ; RRID:Addgene_11767)
参考文献部分: TGF beta signals through a heteromeric protein kinase receptor complex. Wrana JL, Attisano L, Carcamo J, Zentella A, Doody J, Laiho M, Wang XF, Massague J. Cell. 1992 Dec 11. 71(6):1003-14. 10.1016/0092-8674(92)90395-S PubMed 1333888

p3TPlux载体图谱质粒图谱和多克隆位点信息

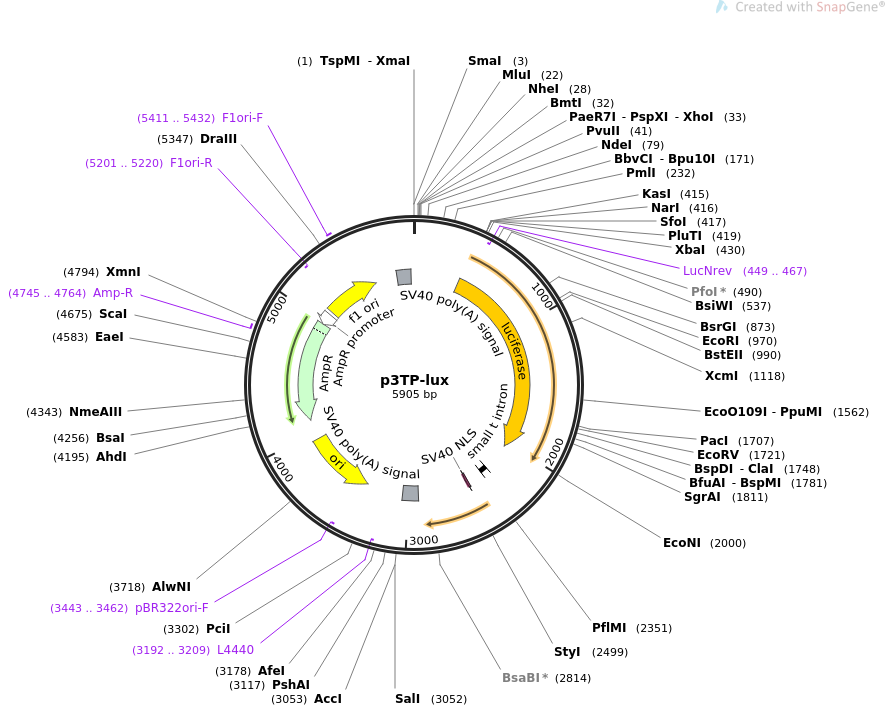

p3TP-lux质粒图谱

p3TPlux载体简介

p3TPlux载体序列

LOCUS       p3TP-lux                5905 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    p3TP-lux
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5905)
  AUTHORS   Wrana JL, Attisano L, Carcamo J, Zentella A, Doody J, Laiho M, Wang
            XF, Massague J
  TITLE     TGF beta signals through a heteromeric protein kinase receptor
            complex.
  JOURNAL   Cell. 1992 Dec 11. 71(6):1003-14.
  PUBMED    1333888
REFERENCE   2  (bases 1 to 5905)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5905
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     CDS             383..2035
                     /codon_start=1
                     /gene="luc"
                     /product="firefly luciferase"
                     /label=luciferase
                     /translation="MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTDA
                     HIEVNITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAVAP
                     ANDIYNERELLNSMNISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQGFQS
                     MYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVRFSHA
                     RDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRSLQDYK
                     IQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLPGIRQGY
                     GLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCVRGPMIMS
                     GYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVAPAELESIL
                     LQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTTAKKLRGGVV
                     FVDEVPKGLTGKLDARKIREILIKAKKGGKSKL"
     primer_bind     complement(449..467)
                     /label=LucNrev
                     /note="Firefly luciferase, reverse primer"
     intron          2276..2341
                     /label=small t intron
                     /note="SV40 (simian virus 40) small t antigen intron"
     CDS             2471..2491
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     polyA_signal    2916..3050
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3192..3209)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3363..3951)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3443..3462)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4122..4982)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     4745..4764
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(4983..5087)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      5114..5569
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(5201..5220)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     5411..5432
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     polyA_signal    5759..5880
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
ORIGIN
        1 cccgggaggt accgagctct tacgcgtgct agctcgagca gctgaagctc ccttccagaa
       61 agcagaggtg tctgactcat atgagtcaga cacctctggc tgtctggaag ggatgagtca
      121 gacacctctg gctttctgga agggagcttg catgccctag aggatccaac ctcagccaga
      181 caaggttgtt gacacaagag agccctcagg ggcacagaga gagtctggac acgtgggggt
      241 cagccgtgta tcatcggagg atccccagtc ctatatatac tcgctctgca cttggccctt
      301 ttttacactg tgactgattg agctggtgcc gtgtcggggt accgagctcg aattagcttg
      361 gcattccggt actgttggta aaatggaaga cgccaaaaac ataaagaaag gcccggcgcc
      421 attctatcct ctagaggatg gaaccgctgg agagcaactg cataaggcta tgaagagata
      481 cgccctggtt cctggaacaa ttgcttttac agatgcacat atcgaggtga acatcacgta
      541 cgcggaatac ttcgaaatgt ccgttcggtt ggcagaagct atgaaacgat atgggctgaa
      601 tacaaatcac agaatcgtcg tatgcagtga aaactctctt caattcttta tgccggtgtt
      661 gggcgcgtta tttatcggag ttgcagttgc gcccgcgaac gacatttata atgaacgtga
      721 attgctcaac agtatgaaca tttcgcagcc taccgtagtg tttgtttcca aaaaggggtt
      781 gcaaaaaatt ttgaacgtgc aaaaaaaatt accaataatc cagaaaatta ttatcatgga
      841 ttctaaaacg gattaccagg gatttcagtc gatgtacacg ttcgtcacat ctcatctacc
      901 tcccggtttt aatgaatacg attttgtacc agagtccttt gatcgtgaca aaacaattgc
      961 actgataatg aattcctctg gatctactgg gttacctaag ggtgtggccc ttccgcatag
     1021 aactgcctgc gtcagattct cgcatgccag agatcctatt tttggcaatc aaatcattcc
     1081 ggatactgcg attttaagtg ttgttccatt ccatcacggt tttggaatgt ttactacact
     1141 cggatatttg atatgtggat ttcgagtcgt cttaatgtat agatttgaag aagagctgtt
     1201 tttacgatcc cttcaggatt acaaaattca aagtgcgttg ctagtaccaa ccctattttc
     1261 attcttcgcc aaaagcactc tgattgacaa atacgattta tctaatttac acgaaattgc
     1321 ttctgggggc gcacctcttt cgaaagaagt cggggaagcg gttgcaaaac gcttccatct
     1381 tccagggata cgacaaggat atgggctcac tgagactaca tcagctattc tgattacacc
     1441 cgagggggat gataaaccgg gcgcggtcgg taaagttgtt ccattttttg aagcgaaggt
     1501 tgtggatctg gataccggga aaacgctggg cgttaatcag agaggcgaat tatgtgtcag
     1561 aggacctatg attatgtccg gttatgtaaa caatccggaa gcgaccaacg ccttgattga
     1621 caaggatgga tggctacatt ctggagacat agcttactgg gacgaagacg aacacttctt
     1681 catagttgac cgcttgaagt ctttaattaa atacaaagga tatcaggtgg cccccgctga
     1741 attggaatcg atattgttac aacaccccaa catcttcgac gcgggcgtgg caggtcttcc
     1801 cgacgatgac gccggtgaac ttcccgccgc cgttgttgtt ttggagcacg gaaagacgat
     1861 gacggaaaaa gagatcgtgg attacgtcgc cagtcaagta acaaccgcga aaaagttgcg
     1921 cggaggagtt gtgtttgtgg acgaagtacc gaaaggtctt accggaaaac tcgacgcaag
     1981 aaaaatcaga gagatcctca taaaggccaa gaagggcgga aagtccaaat tgtaaaatgt
     2041 aactgtattc agcgatgacg aaattcttag ctattgtaat actgcgatga gtggcagggc
     2101 ggggcgtaat ttttttaagg cagttattgg tgcccttaaa cgcctggttg ctacgcctga
     2161 ataagtgata ataagcggat gaatggcaga aattcgccgg atctttgtga aggaacctta
     2221 cttctgtggt gtgacataat tggacaaact acctacagag atttaaagct ctaaggtaaa
     2281 tataaaattt ttaagtgtat aatgtgttaa actactgatt ctaattgttt gtgtatttta
     2341 gattccaacc tatggaactg atgaatggga gcagtggtgg aatgccttta atgaggaaaa
     2401 cctgttttgc tcagaagaaa tgccatctag tgatgatgag gctactgctg actctcaaca
     2461 ttctactcct ccaaaaaaga agagaaaggt agaagacccc aaggactttc cttcagaatt
     2521 gctaagtttt ttgagtcatg ctgtgtttag taatagaact cttgcttgct ttgctattta
     2581 caccacaaag gaaaaagctg cactgctata caagaaaatt atggaaaaat attctgtaac
     2641 ctttataagt aggcataaca gttataatca taacatactg ttttttctta ctccacacag
     2701 gcatagagtg tctgctatta ataactatgc tcaaaaattg tgtaccttta gctttttaat
     2761 ttgtaaaggg gttaataagg aatatttgat gtattgtgcc ttgactagag atcataatca
     2821 gccataccac atttgtagag gttttacttg ctttaaaaaa cctcccacac ctccccctga
     2881 acctgaaaca taaaatgaat gcaattgttg ttgttaactt gtttattgca gcttataatg
     2941 gttacaaata aagcaatagc atcacaaatt tcacaaataa agcatttttt tcactgcatt
     3001 ctagttgtgg tttgtccaaa ctcatcaatg tatcttatca tgtctggatc cgtcgaccga
     3061 tgcccttgag agccttcaac ccagtcagct ccttccggtg ggcgcggggc atgactatcg
     3121 tcgccgcact tatgactgtc ttctttatca tgcaactcgt aggacaggtg ccggcagcgc
     3181 tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta
     3241 tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa cgcaggaaag
     3301 aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg
     3361 tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc aagtcagagg
     3421 tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag ctccctcgtg
     3481 cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct cccttcggga
     3541 agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc
     3601 tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc cttatccggt
     3661 aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc agcagccact
     3721 ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt gaagtggtgg
     3781 cctaactacg gctacactag aagaacagta tttggtatct gcgctctgct gaagccagtt
     3841 accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc tggtagcggt
     3901 ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct
     3961 ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg
     4021 gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt
     4081 aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt
     4141 gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc
     4201 gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg
     4261 cgagacccac gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc
     4321 gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg
     4381 gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca
     4441 ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga
     4501 tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct
     4561 ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg
     4621 cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca
     4681 accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata
     4741 cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct
     4801 tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact
     4861 cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa
     4921 acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc
     4981 atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga
     5041 tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga
     5101 aaagtgccac ctgacgcgcc ctgtagcggc gcattaagcg cggcgggtgt ggtggttacg
     5161 cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc tttcttccct
     5221 tcctttctcg ccacgttcgc cggctttccc cgtcaagctc taaatcgggg gctcccttta
     5281 gggttccgat ttagtgcttt acggcacctc gaccccaaaa aacttgatta gggtgatggt
     5341 tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg
     5401 ttctttaata gtggactctt gttccaaact ggaacaacac tcaaccctat ctcggtctat
     5461 tcttttgatt tataagggat tttgccgatt tcggcctatt ggttaaaaaa tgagctgatt
     5521 taacaaaaat ttaacgcgaa ttttaacaaa atattaacgc ttacaatttg ccattcgcca
     5581 ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg cctcttcgct attacgccag
     5641 cccaagctac catgataagt aagtaatatt aaggtacgtg gaggttttac ttgctttaaa
     5701 aaacctccca cacctccccc tgaacctgaa acataaaatg aatgcaattg ttgttgttaa
     5761 cttgtttatt gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa
     5821 taaagcattt ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta
     5881 tggtactgta actgagctaa cataa
//

p3TPlux载体图谱质粒图谱pdf版和相关资料下载

p3TPlux载体质粒应用举例
