质粒名称: | pcDNA3-TLR3-CFP |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 13641 |
存储实验室: | Doug Golenbock |
载体骨架基本信息 |
|
载体名称: | pcDNA3-CFP |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | 6100 bp |
完整质粒大小: | -- |
载体修饰: | -- |
载体类型: | 哺乳细胞表达 |
筛选标记: | 新霉素(G418) |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | Toll-Like Receptor 3,TLR3 |
物种来源: | H. sapiens (human) |
插入大小: | -- |
基因突变: | -- |
GenBank编号 | -- |
启动子 | -- |
标签/融合蛋白: | CFP(主干上的C终端) |
克隆方法: | 限制性内切酶 |
5' 克隆位点: | HindIII(未破坏) |
3' 克隆位点: | XhoI(未破坏) |
5' 测序引物 | T7 |
3' 测序引物 | GTCTTGTAGTTGCCGTCGTC |
文献引用方法 |
|
材料和方法部分: | pcDNA3-TLR3-CFP was a gift from Doug Golenbock (Addgene plasmid # 13641 ; http://n2t.net/addgene:13641 ; RRID:Addgene_13641) |
买家导航
载体基本信息

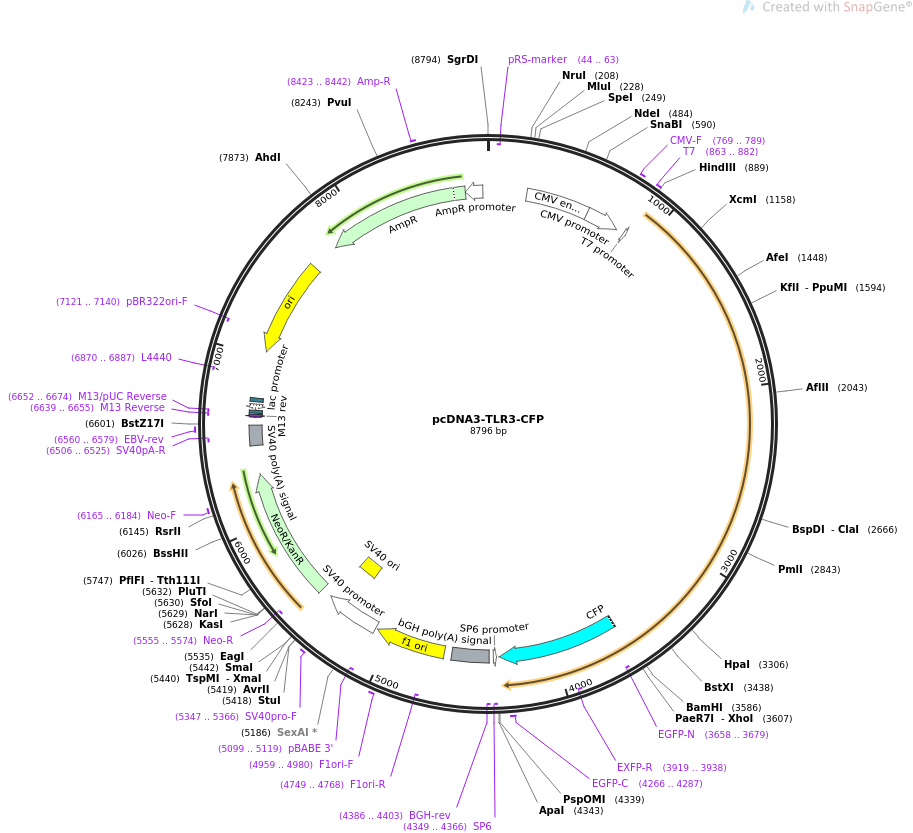

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pcDNA3-TLR3-CFP 8796 bp ds-DNA circular SYN 06-AUG-2018 DEFINITION synthetic circular DNA ACCESSION . VERSION . KEYWORDS pcDNA3-TLR3-CFP SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 8796) TITLE TLR Signaling Plasmids REFERENCE 2 (bases 1 to 8796) AUTHORS . TITLE Direct Submission JOURNAL Exported Aug 6, 2018 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..8796 /organism="synthetic DNA construct" /mol_type="other DNA" primer_bind complement(44..63) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" enhancer 235..614 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" promoter 615..818 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 769..789 /label=CMV-F /note="Human CMV immediate early promoter, forward primer" primer_bind 863..882 /label=T7 /note="T7 promoter, forward primer" promoter 863..881 /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" CDS 3613..4332 /codon_start=1 /product="cyan variant of GFP" /label=CFP /note="mammalian codon-optimized" /translation="MVSKGEELFTGVVPILVELDGDVNGHRFSVSGEGEGDATYGKLTL KFICTTGKLPVPWPTLVTTLTWGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYISHNVYITADKQKNGIK AHFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL EFVTAAGITLGMDELYK" primer_bind complement(3658..3679) /label=EGFP-N /note="EGFP, reverse primer" primer_bind complement(3919..3938) /label=EXFP-R /note="For distinguishing EGFP variants, reverse primer" primer_bind 4266..4287 /label=EGFP-C /note="EGFP, forward primer" promoter complement(4348..4366) /label=SP6 promoter /note="promoter for bacteriophage SP6 RNA polymerase" primer_bind complement(4349..4366) /label=SP6 /note="SP6 promoter, forward primer" primer_bind complement(4386..4403) /label=BGH-rev /note="Bovine growth hormone terminator, reverse primer. Also called BGH reverse" polyA_signal 4392..4616 /label=bGH poly(A) signal /note="bovine growth hormone polyadenylation signal" rep_origin 4662..5090 /direction=RIGHT /label=f1 ori /note="f1 bacteriophage origin of replication; arrow indicates direction of (+) strand synthesis" primer_bind complement(4749..4768) /label=F1ori-R /note="F1 origin, reverse primer" primer_bind 4959..4980 /label=F1ori-F /note="F1 origin, forward primer" primer_bind complement(5099..5119) /label=pBABE 3' /note="SV40 enhancer, reverse primer for pBABE vectors" promoter 5104..5434 /label=SV40 promoter /note="SV40 enhancer and early promoter" rep_origin 5285..5420 /label=SV40 ori /note="SV40 origin of replication" primer_bind 5347..5366 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" CDS 5501..6295 /codon_start=1 /gene="aph(3')-II (or nptII)" /product="aminoglycoside phosphotransferase from Tn5" /label=NeoR/KanR /note="confers resistance to neomycin, kanamycin, and G418 (Geneticin(R))" /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF" primer_bind complement(5555..5574) /label=Neo-R /note="Neomycin resistance gene, reverse primer" primer_bind 6165..6184 /label=Neo-F /note="Neomycin resistance gene, forward primer" polyA_signal 6469..6590 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(6506..6525) /label=SV40pA-R /note="SV40 polyA, reverse primer" primer_bind 6560..6579 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" primer_bind complement(6639..6655) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(6639..6655) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(6652..6674) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 6663..6679 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(6687..6717) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 6732..6753 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(6870..6887) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(7041..7629) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(7121..7140) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(7800..8660) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 8423..8442 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(8661..8765) /gene="bla" /label=AmpR promoter ORIGIN 1 gacggatcgg gagatctccc gatcccctat ggtcgactct cagtacaatc tgctctgatg 61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg 121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc 181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt 241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata 301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc 361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc 421 attgacgtca atgggtggac tatttacggt aaactgccca cttggcagta catcaagtgt 481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt 541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca 601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg 661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc 721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg 781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca 841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gcttatgaga 901 cagactttgc cttgtatcta cttttggggg ggcctcttgc cctttgggat gctgtgtgca 961 tcctccacca ccaagtgcac tgttagccat gaagttgctg actgcagcca cctgaagttg 1021 actcaggtac ccgatgatct acccacaaac ataacagtgt tgaaccttac ccataatcaa 1081 ctcagaagat taccagccgc caacttcaca aggtatagcc agctaactag cttggatgta 1141 ggatttaaca ccatctcaaa actggagcca gaattgtgcc agaaacttcc catgttaaaa 1201 gttttgaacc tccagcacaa tgagctatct caactttctg ataaaacctt tgccttctgc 1261 acgaatttga ctgaactcca tctcatgtcc aactcaatcc agaaaattaa aaataatccc 1321 tttgtcaagc agaagaattt aatcacatta gatctgtctc ataatggctt gtcatctaca 1381 aaattaggaa ctcaggttca gctggaaaat ctccaagagc ttctattatc aaacaataaa 1441 attcaagcgc taaaaagtga agaactggat atctttgcca attcatcttt aaaaaaatta 1501 gagttgtcat cgaatcaaat taaagagttt tctccagggt gttttcacgc aattggaaga 1561 ttatttggcc tctttctgaa caatgtccag ctgggtccca gccttacaga gaagctatgt 1621 ttggaattag caaacacaag cattcggaat ctgtctctga gtaacagcca gctgtccacc 1681 accagcaata caactttctt gggactaaag tggacaaatc tcactatgct cgatctttcc 1741 tacaacaact taaatgtggt tggtaacgat tcctttgctt ggcttccaca actagaatat 1801 ttcttcctag agtataataa tatacagcat ttgttttctc actctttgca cgggcttttc 1861 aatgtgaggt acctgaattt gaaacggtct tttactaaac aaagtatttc ccttgcctca 1921 ctccccaaga ttgatgattt ttcttttcag tggctaaaat gtttggagca ccttaacatg 1981 gaagataatg atattccagg cataaaaagc aatatgttca caggattgat aaacctgaaa 2041 tacttaagtc tatccaactc ctttacaagt ttgcgaactt tgacaaatga aacatttgta 2101 tcacttgctc attctccctt acacatactc aacctaacca agaataaaat ctcaaaaata 2161 gagagtgatg ctttctcttg gttgggccac ctagaagtac ttgacctggg ccttaatgaa 2221 attgggcaag aactcacagg ccaggaatgg agaggtctag aaaatatttt cgaaatctat 2281 ctttcctaca acaagtacct gcagctgact aggaactcct ttgccttggt cccaagcctt 2341 caacgactga tgctccgaag ggtggccctt aaaaatgtgg atagctctcc ttcaccattc 2401 cagcctcttc gtaacttgac cattctggat ctaagcaaca acaacatagc caacataaat 2461 gatgacatgt tggagggtct tgagaaacta gaaattctcg atttgcagca taacaactta 2521 gcacggctct ggaaacacgc aaaccctggt ggtcccattt atttcctaaa gggtctgtct 2581 cacctccaca tccttaactt ggagtccaac ggctttgacg agatcccagt tgaggtcttc 2641 aaggatttat ttgaactaaa gatcatcgat ttaggattga ataatttaaa cacacttcca 2701 gcatctgtct ttaataatca ggtgtctcta aagtcattga accttcagaa gaatctcata 2761 acatccgttg agaagaaggt tttcgggcca gctttcagga acctgactga gttagatatg 2821 cgctttaatc cctttgattg cacgtgtgaa agtattgcct ggtttgttaa ttggattaac 2881 gagacccata ccaacatccc tgagctgtca agccactacc tttgcaacac tccacctcac 2941 tatcatgggt tcccagtgag actttttgat acatcatctt gcaaagacag tgcccccttt 3001 gaactctttt tcatgatcaa taccagtatc ctgttgattt ttatctttat tgtacttctc 3061 atccactttg agggctggag gatatctttt tattggaatg tttcagtaca tcgagttctt 3121 ggtttcaaag aaatagacag acagacagaa cagtttgaat atgcagcata tataattcat 3181 gcctataaag ataaggattg ggtctgggaa catttctctt caatggaaaa ggaagaccaa 3241 tctctcaaat tttgtctgga agaaagggac tttgaggcgg gtgtttttga actagaagca 3301 attgttaaca gcatcaaaag aagcagaaaa attatttttg ttataacaca ccatctatta 3361 aaagacccat tatgcaaaag attcaaggta catcatgcag ttcaacaagc tattgaacaa 3421 aatctggatt ccattatatt ggttttcctt gaggagattc cagattataa actgaaccat 3481 gcactctgtt tgcgaagagg aatgtttaaa tctcactgca tcttgaactg gccagttcag 3541 aaagaacgga taggtgcctt tcgtcataaa ttgcaagtag cacttggatc caaaaactct 3601 gtacatctcg agatggtgag caagggcgag gagctgttca ccggggtggt gcccatcctg 3661 gtcgagctgg acggcgacgt aaacggccac aggttcagcg tgtccggcga gggcgagggc 3721 gatgccacct acggcaagct gaccctgaag ttcatctgca ccaccggcaa gctgcccgtg 3781 ccctggccca ccctcgtgac caccctgacc tggggcgtgc agtgcttcag ccgctacccc 3841 gaccacatga agcagcacga cttcttcaag tccgccatgc ccgaaggcta cgtccaggag 3901 cgtaccatct tcttcaagga cgacggcaac tacaagaccc gcgccgaggt gaagttcgag 3961 ggcgacaccc tggtgaaccg catcgagctg aagggcatcg acttcaagga ggacggcaac 4021 atcctggggc acaagctgga gtacaactac atcagccaca acgtctatat caccgccgac 4081 aagcagaaga acggcatcaa ggcccacttc aagatccgcc acaacatcga ggacggcagc 4141 gtgcagctcg ccgaccacta ccagcagaac acccccatcg gcgacggccc cgtgctgctg 4201 cccgacaacc actacctgag cacccagtcc gccctgagca aagaccccaa cgagaagcgc 4261 gatcacatgg tcctgctgga gttcgtgacc gccgccggga tcactctcgg catggacgag 4321 ctgtacaagt aatctagagg gccctattct atagtgtcac ctaaatgcta gagctcgctg 4381 atcagcctcg actgtgcctt ctagttgcca gccatctgtt gtttgcccct cccccgtgcc 4441 ttccttgacc ctggaaggtg ccactcccac tgtcctttcc taataaaatg aggaaattgc 4501 atcgcattgt ctgagtaggt gtcattctat tctggggggt ggggtggggc aggacagcaa 4561 gggggaggat tgggaagaca atagcaggca tgctggggat gcggtgggct ctatggcttc 4621 tgaggcggaa agaaccagct ggggctctag ggggtatccc cacgcgccct gtagcggcgc 4681 attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg ccagcgccct 4741 agcgcccgct cctttcgctt tcttcccttc ctttctcgcc acgttcgccg gctttccccg 4801 tcaagctcta aatcggggca tccctttagg gttccgattt agtgctttac ggcacctcga 4861 ccccaaaaaa cttgattagg gtgatggttc acgtagtggg ccatcgccct gatagacggt 4921 ttttcgccct ttgacgttgg agtccacgtt ctttaatagt ggactcttgt tccaaactgg 4981 aacaacactc aaccctatct cggtctattc ttttgattta taagggattt tggggatttc 5041 ggcctattgg ttaaaaaatg agctgattta acaaaaattt aacgcgaatt aattctgtgg 5101 aatgtgtgtc agttagggtg tggaaagtcc ccaggctccc caggcaggca gaagtatgca 5161 aagcatgcat ctcaattagt cagcaaccag gtgtggaaag tccccaggct ccccagcagg 5221 cagaagtatg caaagcatgc atctcaatta gtcagcaacc atagtcccgc ccctaactcc 5281 gcccatcccg cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat 5341 tttttttatt tatgcagagg ccgaggccgc ctctgcctct gagctattcc agaagtagtg 5401 aggaggcttt tttggaggcc taggcttttg caaaaagctc ccgggagctt gtatatccat 5461 tttcggatct gatcaagaga caggatgagg atcgtttcgc atgattgaac aagatggatt 5521 gcacgcaggt tctccggccg cttgggtgga gaggctattc ggctatgact gggcacaaca 5581 gacaatcggc tgctctgatg ccgccgtgtt ccggctgtca gcgcaggggc gcccggttct 5641 ttttgtcaag accgacctgt ccggtgccct gaatgaactg caggacgagg cagcgcggct 5701 atcgtggctg gccacgacgg gcgttccttg cgcagctgtg ctcgacgttg tcactgaagc 5761 gggaagggac tggctgctat tgggcgaagt gccggggcag gatctcctgt catctcacct 5821 tgctcctgcc gagaaagtat ccatcatggc tgatgcaatg cggcggctgc atacgcttga 5881 tccggctacc tgcccattcg accaccaagc gaaacatcgc atcgagcgag cacgtactcg 5941 gatggaagcc ggtcttgtcg atcaggatga tctggacgaa gagcatcagg ggctcgcgcc 6001 agccgaactg ttcgccaggc tcaaggcgcg catgcccgac ggcgaggatc tcgtcgtgac 6061 ccatggcgat gcctgcttgc cgaatatcat ggtggaaaat ggccgctttt ctggattcat 6121 cgactgtggc cggctgggtg tggcggaccg ctatcaggac atagcgttgg ctacccgtga 6181 tattgctgaa gagcttggcg gcgaatgggc tgaccgcttc ctcgtgcttt acggtatcgc 6241 cgctcccgat tcgcagcgca tcgccttcta tcgccttctt gacgagttct tctgagcggg 6301 actctggggt tcgaaatgac cgaccaagcg acgcccaacc tgccatcacg agatttcgat 6361 tccaccgccg ccttctatga aaggttgggc ttcggaatcg ttttccggga cgccggctgg 6421 atgatcctcc agcgcgggga tctcatgctg gagttcttcg cccaccccaa cttgtttatt 6481 gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt 6541 ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta tcatgtctgt 6601 ataccgtcga cctctagcta gagcttggcg taatcatggt catagctgtt tcctgtgtga 6661 aattgttatc cgctcacaat tccacacaac atacgagccg gaagcataaa gtgtaaagcc 6721 tggggtgcct aatgagtgag ctaactcaca ttaattgcgt tgcgctcact gcccgctttc 6781 cagtcgggaa acctgtcgtg ccagctgcat taatgaatcg gccaacgcgc ggggagaggc 6841 ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt 6901 cggctgcggc gagcggtatc agctcactca aaggcggtaa tacggttatc cacagaatca 6961 ggggataacg caggaaagaa catgtgagca aaaggccagc aaaaggccag gaaccgtaaa 7021 aaggccgcgt tgctggcgtt tttccatagg ctccgccccc ctgacgagca tcacaaaaat 7081 cgacgctcaa gtcagaggtg gcgaaacccg acaggactat aaagatacca ggcgtttccc 7141 cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc 7201 gcctttctcc cttcgggaag cgtggcgctt tctcaatgct cacgctgtag gtatctcagt 7261 tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg aaccccccgt tcagcccgac 7321 cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc cggtaagaca cgacttatcg 7381 ccactggcag cagccactgg taacaggatt agcagagcga ggtatgtagg cggtgctaca 7441 gagttcttga agtggtggcc taactacggc tacactagaa ggacagtatt tggtatctgc 7501 gctctgctga agccagttac cttcggaaaa agagttggta gctcttgatc cggcaaacaa 7561 accaccgctg gtagcggtgg tttttttgtt tgcaagcagc agattacgcg cagaaaaaaa 7621 ggatctcaag aagatccttt gatcttttct acggggtctg acgctcagtg gaacgaaaac 7681 tcacgttaag ggattttggt catgagatta tcaaaaagga tcttcaccta gatcctttta 7741 aattaaaaat gaagttttaa atcaatctaa agtatatatg agtaaacttg gtctgacagt 7801 taccaatgct taatcagtga ggcacctatc tcagcgatct gtctatttcg ttcatccata 7861 gttgcctgac tccccgtcgt gtagataact acgatacggg agggcttacc atctggcccc 7921 agtgctgcaa tgataccgcg agacccacgc tcaccggctc cagatttatc agcaataaac 7981 cagccagccg gaagggccga gcgcagaagt ggtcctgcaa ctttatccgc ctccatccag 8041 tctattaatt gttgccggga agctagagta agtagttcgc cagttaatag tttgcgcaac 8101 gttgttgcca ttgctacagg catcgtggtg tcacgctcgt cgtttggtat ggcttcattc 8161 agctccggtt cccaacgatc aaggcgagtt acatgatccc ccatgttgtg caaaaaagcg 8221 gttagctcct tcggtcctcc gatcgttgtc agaagtaagt tggccgcagt gttatcactc 8281 atggttatgg cagcactgca taattctctt actgtcatgc catccgtaag atgcttttct 8341 gtgactggtg agtactcaac caagtcattc tgagaatagt gtatgcggcg accgagttgc 8401 tcttgcccgg cgtcaatacg ggataatacc gcgccacata gcagaacttt aaaagtgctc 8461 atcattggaa aacgttcttc ggggcgaaaa ctctcaagga tcttaccgct gttgagatcc 8521 agttcgatgt aacccactcg tgcacccaac tgatcttcag catcttttac tttcaccagc 8581 gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa aaaagggaat aagggcgaca 8641 cggaaatgtt gaatactcat actcttcctt tttcaatatt attgaagcat ttatcagggt 8701 tattgtctca tgagcggata catatttgaa tgtatttaga aaaataaaca aataggggtt 8761 ccgcgcacat ttccccgaaa agtgccacct gacgtc //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
