pAAV-hSyn-EGFP

价格:1100元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pAAV-hSyn-EGFP
出品公司: Addgene
目录编号: 50465
存储实验室: Bryan Roth

载体骨架基本信息
载体名称: pAAV
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 4818 bp
完整质粒大小: 5265 bp
载体修饰: --
载体类型: AAV
筛选标记: --
高拷贝/低拷贝: 低拷贝
生长条件: 30 ℃

插入基因信息
插入基因名称: EGFP
物种来源: 维多利亚多管发光水母
插入大小: 726 bp
基因突变: --
GenBank编号 --
启动子 human Synapsin 1
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: BamH I(未破坏)
3' 克隆位点: EcoR I (未破坏)
5' 测序引物 TCGTGTCGTGCCTGAGAGCG
3' 测序引物 GCATTAAAGCAGCGTATCCACATAGC

文献引用方法
材料和方法部分: pAAV-hSyn-EGFP was a gift from Bryan Roth (Addgene plasmid # 50465 ; http://n2t.net/addgene:50465 ; RRID:Addgene_50465)

载体图谱质粒图谱和多克隆位点信息

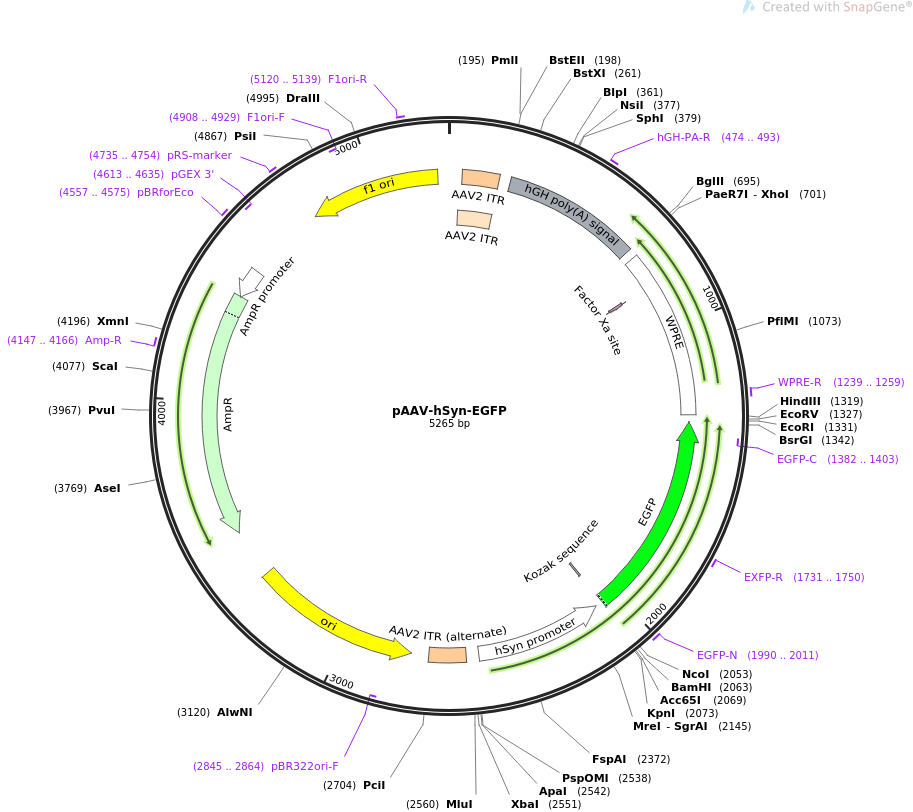

pAAV-hSyn-EGFP质粒图谱

载体简介

载体序列

LOCUS       pAAV-hSyn-EGFP                5265 bp ds-DNA     circular SYN 09-APR-2019
DEFINITION  EGFP under the control of human synapsin promoter.
ACCESSION   .
VERSION     .
KEYWORDS    pAAV-hSyn-EGFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5265)
  AUTHORS   Bryan Roth
  TITLE     Roth lab DREADDs
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 5265)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Apr 9, 2019 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5265
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     repeat_region   6..135
                     /label=AAV2 ITR (alternate)
                     /note="Functional equivalent of wild-type AAV2 ITR"
     promoter        180..627
                     /label=hSyn promoter
                     /note="human synapsin I promoter; confers neuron-specific
                     expression (Kugler et al., 2003)"
     regulatory      647..656
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             653..1372
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(698..719)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(959..978)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     1306..1327
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     misc_feature    1397..1985
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(1450..1470)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(1868..1879)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    2017..2493
                     /label=hGH poly(A) signal
                     /note="human growth hormone polyadenylation signal"
     primer_bind     complement(2216..2235)
                     /label=hGH-PA-R
                     /note="Human growth hormone terminator, reverse primer"
     repeat_region   2533..2673
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   2533..2662
                     /label=AAV2 ITR
     rep_origin      2748..3203
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2835..2854)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     3045..3066
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(3220..3239)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     3339..3361
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(3399..3417)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        3485..3589
                     /gene="bla"
                     /label=AmpR promoter
     CDS             3590..4450
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(3808..3827)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      4621..5209
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5110..5129
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 catgtcctgc aggcagctgc gcgctcgctc gctcactgag gccgcccggg cgtcgggcga
       61 cctttggtcg cccggcctca gtgagcgagc gagcgcgcag agagggagtg gccaactcca
      121 tcactagggg ttcctgcggc cgcacgcgtg tgtctagact gcagagggcc ctgcgtatga
      181 gtgcaagtgg gttttaggac caggatgagg cggggtgggg gtgcctacct gacgaccgac
      241 cccgacccac tggacaagca cccaaccccc attccccaaa ttgcgcatcc cctatcagag
      301 agggggaggg gaaacaggat gcggcgaggc gcgtgcgcac tgccagcttc agcaccgcgg
      361 acagtgcctt cgcccccgcc tggcggcgcg cgccaccgcc gcctcagcac tgaaggcgcg
      421 ctgacgtcac tcgccggtcc cccgcaaact ccccttcccg gccaccttgg tcgcgtccgc
      481 gccgccgccg gcccagccgg accgcaccac gcgaggcgcg agataggggg gcacgggcgc
      541 gaccatctgc gctgcggcgc cggcgactca gcgctgcctc agtctgcggt gggcagcgga
      601 ggagtcgtgt cgtgcctgag agcgcagtcg agaaggtacc ggatccgcca ccatggtgag
      661 caagggcgag gagctgttca ccggggtggt gcccatcctg gtcgagctgg acggcgacgt
      721 aaacggccac aagttcagcg tgtccggcga gggcgagggc gatgccacct acggcaagct
      781 gaccctgaag ttcatctgca ccaccggcaa gctgcccgtg ccctggccca ccctcgtgac
      841 caccctgacc tacggcgtgc agtgcttcag ccgctacccc gaccacatga agcagcacga
      901 cttcttcaag tccgccatgc ccgaaggcta cgtccaggag cgcaccatct tcttcaagga
      961 cgacggcaac tacaagaccc gcgccgaggt gaagttcgag ggcgacaccc tggtgaaccg
     1021 catcgagctg aagggcatcg acttcaagga ggacggcaac atcctggggc acaagctgga
     1081 gtacaactac aacagccaca acgtctatat catggccgac aagcagaaga acggcatcaa
     1141 ggtgaacttc aagatccgcc acaacatcga ggacggcagc gtgcagctcg ccgaccacta
     1201 ccagcagaac acccccatcg gcgacggccc cgtgctgctg cccgacaacc actacctgag
     1261 cacccagtcc gccctgagca aagaccccaa cgagaagcgc gatcacatgg tcctgctgga
     1321 gttcgtgacc gccgccggga tcactctcgg catggacgag ctgtacaagt aggaattcga
     1381 tatcaagctt atcgataatc aacctctgga ttacaaaatt tgtgaaagat tgactggtat
     1441 tcttaactat gttgctcctt ttacgctatg tggatacgct gctttaatgc ctttgtatca
     1501 tgctattgct tcccgtatgg ctttcatttt ctcctccttg tataaatcct ggttgctgtc
     1561 tctttatgag gagttgtggc ccgttgtcag gcaacgtggc gtggtgtgca ctgtgtttgc
     1621 tgacgcaacc cccactggtt ggggcattgc caccacctgt cagctccttt ccgggacttt
     1681 cgctttcccc ctccctattg ccacggcgga actcatcgcc gcctgccttg cccgctgctg
     1741 gacaggggct cggctgttgg gcactgacaa ttccgtggtg ttgtcgggga aatcatcgtc
     1801 ctttccttgg ctgctcgcct atgttgccac ctggattctg cgcgggacgt ccttctgcta
     1861 cgtcccttcg gccctcaatc cagcggacct tccttcccgc ggcctgctgc cggctctgcg
     1921 gcctcttccg cgtcttcgcc ttcgccctca gacgagtcgg atctcccttt gggccgcctc
     1981 cccgcatcga taccgagcgc tgctcgagag atctacgggt ggcatccctg tgacccctcc
     2041 ccagtgcctc tcctggccct ggaagttgcc actccagtgc ccaccagcct tgtcctaata
     2101 aaattaagtt gcatcatttt gtctgactag gtgtccttct ataatattat ggggtggagg
     2161 ggggtggtat ggagcaaggg gcaagttggg aagacaacct gtagggcctg cggggtctat
     2221 tgggaaccaa gctggagtgc agtggcacaa tcttggctca ctgcaatctc cgcctcctgg
     2281 gttcaagcga ttctcctgcc tcagcctccc gagttgttgg gattccaggc atgcatgacc
     2341 aggctcagct aatttttgtt tttttggtag agacggggtt tcaccatatt ggccaggctg
     2401 gtctccaact cctaatctca ggtgatctac ccaccttggc ctcccaaatt gctgggatta
     2461 caggcgtgaa ccactgctcc cttccctgtc cttctgattt tgtaggtaac cacgtgcgga
     2521 ccgagcggcc gcaggaaccc ctagtgatgg agttggccac tccctctctg cgcgctcgct
     2581 cgctcactga ggccgggcga ccaaaggtcg cccgacgccc gggctttgcc cgggcggcct
     2641 cagtgagcga gcgagcgcgc agctgcctgc aggggcgcct gatgcggtat tttctcctta
     2701 cgcatctgtg cggtatttca caccgcatac gtcaaagcaa ccatagtacg cgccctgtag
     2761 cggcgcatta agcgcggcgg gtgtggtggt tacgcgcagc gtgaccgcta cacttgccag
     2821 cgccttagcg cccgctcctt tcgctttctt cccttccttt ctcgccacgt tcgccggctt
     2881 tccccgtcaa gctctaaatc gggggctccc tttagggttc cgatttagtg ctttacggca
     2941 cctcgacccc aaaaaacttg atttgggtga tggttcacgt agtgggccat cgccctgata
     3001 gacggttttt cgccctttga cgttggagtc cacgttcttt aatagtggac tcttgttcca
     3061 aactggaaca acactcaact ctatctcggg ctattctttt gatttataag ggattttgcc
     3121 gatttcggtc tattggttaa aaaatgagct gatttaacaa aaatttaacg cgaattttaa
     3181 caaaatatta acgtttacaa ttttatggtg cactctcagt acaatctgct ctgatgccgc
     3241 atagttaagc cagccccgac acccgccaac acccgctgac gcgccctgac gggcttgtct
     3301 gctcccggca tccgcttaca gacaagctgt gaccgtctcc gggagctgca tgtgtcagag
     3361 gttttcaccg tcatcaccga aacgcgcgag acgaaagggc ctcgtgatac gcctattttt
     3421 ataggttaat gtcatgataa taatggtttc ttagacgtca ggtggcactt ttcggggaaa
     3481 tgtgcgcgga acccctattt gtttattttt ctaaatacat tcaaatatgt atccgctcat
     3541 gagacaataa ccctgataaa tgcttcaata atattgaaaa aggaagagta tgagtattca
     3601 acatttccgt gtcgccctta ttcccttttt tgcggcattt tgccttcctg tttttgctca
     3661 cccagaaacg ctggtgaaag taaaagatgc tgaagatcag ttgggtgcac gagtgggtta
     3721 catcgaactg gatctcaaca gcggtaagat ccttgagagt tttcgccccg aagaacgttt
     3781 tccaatgatg agcactttta aagttctgct atgtggcgcg gtattatccc gtattgacgc
     3841 cgggcaagag caactcggtc gccgcataca ctattctcag aatgacttgg ttgagtactc
     3901 accagtcaca gaaaagcatc ttacggatgg catgacagta agagaattat gcagtgctgc
     3961 cataaccatg agtgataaca ctgcggccaa cttacttctg acaacgatcg gaggaccgaa
     4021 ggagctaacc gcttttttgc acaacatggg ggatcatgta actcgccttg atcgttggga
     4081 accggagctg aatgaagcca taccaaacga cgagcgtgac accacgatgc ctgtagcaat
     4141 ggcaacaacg ttgcgcaaac tattaactgg cgaactactt actctagctt cccggcaaca
     4201 attaatagac tggatggagg cggataaagt tgcaggacca cttctgcgct cggcccttcc
     4261 ggctggctgg tttattgctg ataaatctgg agccggtgag cgtgggtctc gcggtatcat
     4321 tgcagcactg gggccagatg gtaagccctc ccgtatcgta gttatctaca cgacggggag
     4381 tcaggcaact atggatgaac gaaatagaca gatcgctgag ataggtgcct cactgattaa
     4441 gcattggtaa ctgtcagacc aagtttactc atatatactt tagattgatt taaaacttca
     4501 tttttaattt aaaaggatct aggtgaagat cctttttgat aatctcatga ccaaaatccc
     4561 ttaacgtgag ttttcgttcc actgagcgtc agaccccgta gaaaagatca aaggatcttc
     4621 ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa acaaaaaaac caccgctacc
     4681 agcggtggtt tgtttgccgg atcaagagct accaactctt tttccgaagg taactggctt
     4741 cagcagagcg cagataccaa atactgttct tctagtgtag ccgtagttag gccaccactt
     4801 caagaactct gtagcaccgc ctacatacct cgctctgcta atcctgttac cagtggctgc
     4861 tgccagtggc gataagtcgt gtcttaccgg gttggactca agacgatagt taccggataa
     4921 ggcgcagcgg tcgggctgaa cggggggttc gtgcacacag cccagcttgg agcgaacgac
     4981 ctacaccgaa ctgagatacc tacagcgtga gctatgagaa agcgccacgc ttcccgaagg
     5041 gagaaaggcg gacaggtatc cggtaagcgg cagggtcgga acaggagagc gcacgaggga
     5101 gcttccaggg ggaaacgcct ggtatcttta tagtcctgtc gggtttcgcc acctctgact
     5161 tgagcgtcga tttttgtgat gctcgtcagg ggggcggagc ctatggaaaa acgccagcaa
     5221 cgcggccttt ttacggttcc tggccttttg ctggcctttt gctca
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
