pAB035h

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pAB035h
出品公司: 爱迪基因
目录编号: 79191
存储实验室: David Liu

载体骨架基本信息
载体名称: SC101
载体出品公司: David Liu Lab
载体抗性: 氨苄青霉素
空载体大小: 2992 bp
完整质粒大小: --
载体修饰: --
载体类型: 细菌表达
筛选标记: --
高拷贝/低拷贝: 低拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: Plac62 gIII, luxAB; Ptet rpoZ-HA4
物种来源: Synthetic
插入大小: --
基因突变: --
GenBank编号 --
启动子 Plac62; Ptet
标签/融合蛋白: --
克隆方法: Ligation Independent 克隆
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: pAB035h was a gift from David Liu (Addgene plasmid # 79191 ; http://n2t.net/addgene:79191 ; RRID:Addgene_79191)
参考文献部分: Continuous evolution of Bacillus thuringiensis toxins overcomes insect resistance. Badran AH, Guzov VM, Huai Q, Kemp MM, Vishwanath P, Kain W, Nance AM, Evdokimov A, Moshiri F, Turner KH, Wang P, Malvar T, Liu DR. Nature. 2016 May 5;533(7601):58-63. doi: 10.1038/nature17938. Epub 2016 Apr 27. 10.1038/nature17938 PubMed 27120167

载体图谱质粒图谱和多克隆位点信息

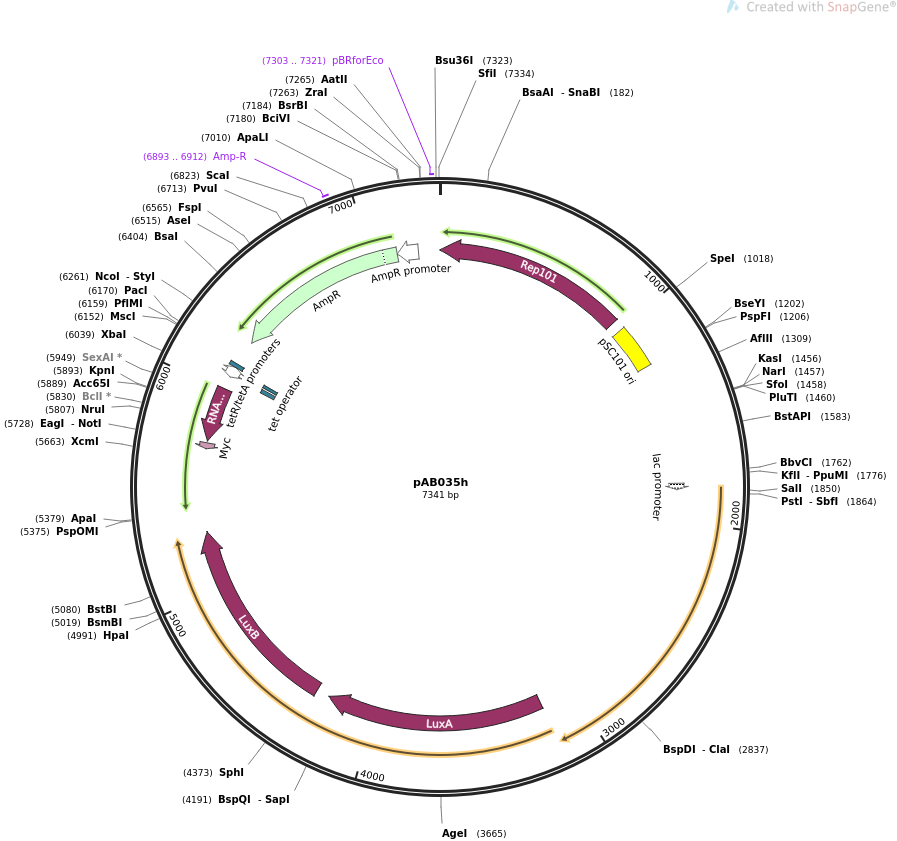

pAB035h质粒图谱

载体简介

载体序列

LOCUS       pAB035h                7341 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Directed Evolution of Protein-Protein Interactions.
ACCESSION   .
VERSION     .
KEYWORDS    pAB035h
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7341)
  AUTHORS   Badran AH, Guzov VM, Huai Q, Kemp MM, Vishwanath P, Kain W, Nance
            AM, Evdokimov A, Moshiri F, Turner KH, Wang P, Malvar T, Liu DR
  TITLE     Continuous evolution of Bacillus thuringiensis toxins overcomes
            insect resistance.
  JOURNAL   Nature. 2016 May 5;533(7601):58-63. doi: 10.1038/nature17938. Epub
            2016 Apr 27.
  PUBMED    27120167
REFERENCE   2  (bases 1 to 7341)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7341
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     CDS             complement(1..951)
                     /codon_start=1
                     /gene="rep101"
                     /product="RepA protein needed for replication with the
                     pSC101 origin"
                     /label=Rep101
                     /translation="MSELVVFKANELAISRYDLTEHETKLILCCVALLNPTIENPTRKE
                     RTVSFTYNQYAQMMNISRENAYGVLAKATRELMTRTVEIRNPLVKGFEIFQWTNYAKFS
                     SEKLELVFSEEILPYLFQLKKFIKYNLEHVKSFENKYSMRIYEWLLKELTQKKTHKANI
                     EISLDEFKFMLMLENNYHEFKRLNQWVLKPISKDLNTYSNMKLVVDKRGRPTDTLIFQV
                     ELDRQMDLVTELENNQIKMNGDKIPTTITSDSYLRNGLRKTLHDALTAKIQLTSFEAKF
                     LSDMQSKHDLNGSFSWLTQKQRTTLENILAKYGRI"
     rep_origin      999..1221
                     /label=pSC101 ori
                     /note="low-copy replication origin that requires the Rep101
                     protein"
     promoter        1818..1848
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     CDS             3162..4241
                     /codon_start=1
                     /gene="luxA"
                     /product="LuxA luciferase subunit"
                     /label=LuxA
                     /note="from the Photorhabdus luminescens bioluminescence
                     operon"
                     /translation="MKFGNFLLTYQPPQFSQTEVMKRLVKLGRISEECGFDTVWLLEHH
                     FTEFGLLGNPYVAAAYLLGATKKLNVGTAAIVLPTAHPVRQLEDVNLLDQMSKGRFRFG
                     ICRGLYNKDFRVFGTDMNNSRALAECWYGLIKNGMTEGYMEADNEHIKFHKVKVNPAAY
                     SRGGAPVYVVAESASTTEWAAQFGLPMILSWIINTNEKKAQLELYNEVAQEYGHDIHNI
                     DHCLSYITSVDHDSIKAKEICRKFLGHWYDSYVNATTIFDDSDQTRGYDFNKGQWRDFV
                     LKGHKDTNRRIDYSYEINPVGTPQECIDIIQKDIDATGISNICCGFEANGTVDEIIASM
                     KLFQSDVMPFLKEKQRSLLY"
     CDS             4305..5285
                     /codon_start=1
                     /gene="luxB"
                     /product="LuxB luciferase subunit"
                     /label=LuxB
                     /note="from the Photorhabdus luminescens bioluminescence
                     operon"
                     /translation="KFGLFFLNFINSTTVQEQSIVRMQEITEYVDKLNFEQILVYENHF
                     SDNGVVGAPLTVSGFLLGLTEKIKIGSLNHIITTHHPVRIAEEACLLDQLSEGRFILGF
                     SDCEKKDEMHFFNRPVEYQQQLFEECYEIINDALTTGYCNPDNDFYSFPKISVNPHAYT
                     PGGPRKYVTATSHHIVEWAAKKGIPLIFKWDDSNDVRYEYAERYKAVADKYDVDLSEID
                     HQLMILVNYNEDSNKAKQETRAFISDYVLEMHPNENFENKLEEIIAENAVGNYTECITA
                     AKLAIEKCGAKSVLLSFEPMNDLMSQKNVINIVDDNIKKYHTEYT"
     CDS             complement(5696..5725)
                     /codon_start=1
                     /product="Myc (human c-Myc proto-oncogene) epitope tag"
                     /label=Myc
                     /translation="EQKLISEEDL"
     CDS             complement(5735..6007)
                     /codon_start=1
                     /gene="E. coli rpoZ"
                     /product="DNA-directed RNA polymerase subunit omega"
                     /label=RNAP omega
                     /note="promotes RNA polymerase assembly"
                     /translation="MARVTVQDAVEKIGNRFDLVLVAARRARQMQVGGKDPLVPEENDK
                     TTVIALREIEEGLINNQILDVRERQEQQEQEAAELQAVTAIAEGRR"
     promoter        6071..6125
                     /gene="tetR"
                     /label=tetR/tetA promoters
                     /note="overlapping promoters for bacterial tetR and tetA"
     protein_bind    6072..6090
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    6102..6120
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O1 for the tetR and tetA genes"
     protein_bind    6126..6144
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     CDS             complement(6270..7130)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6893..6912
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(7131..7235)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7303..7321
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
ORIGIN
        1 tcagatcctt ccgtatttag ccagtatgtt ctctagtgtg gttcgttgtt tttgcgtgag
       61 ccatgagaac gaaccattga gatcatgctt actttgcatg tcactcaaaa attttgcctc
      121 aaaactggtg agctgaattt ttgcagttaa agcatcgtgt agtgtttttc ttagtccgtt
      181 acgtaggtag gaatctgatg taatggttgt tggtattttg tcaccattca tttttatctg
      241 gttgttctca agttcggtta cgagatccat ttgtctatct agttcaactt ggaaaatcaa
      301 cgtatcagtc gggcggcctc gcttatcaac caccaatttc atattgctgt aagtgtttaa
      361 atctttactt attggtttca aaacccattg gttaagcctt ttaaactcat ggtagttatt
      421 ttcaagcatt aacatgaact taaattcatc aaggctaatc tctatatttg ccttgtgagt
      481 tttcttttgt gttagttctt ttaataacca ctcataaatc ctcatagagt atttgttttc
      541 aaaagactta acatgttcca gattatattt tatgaatttt tttaactgga aaagataagg
      601 caatatctct tcactaaaaa ctaattctaa tttttcgctt gagaacttgg catagtttgt
      661 ccactggaaa atctcaaagc ctttaaccaa aggattcctg atttccacag ttctcgtcat
      721 cagctctctg gttgctttag ctaatacacc ataagcattt tccctactga tgttcatcat
      781 ctgagcgtat tggttataag tgaacgatac cgtccgttct ttccttgtag ggttttcaat
      841 cgtggggttg agtagtgcca cacagcataa aattagcttg gtttcatgct ccgttaagtc
      901 atagcgacta atcgctagtt catttgcttt gaaaacaact aattcagaca tacatctcaa
      961 ttggtctagg tgattttaat cactatacca attgagatgg gctagtcaat gataattact
     1021 agtccttttc ctttgagttg tgggtatctg taaattctgc tagacctttg ctggaaaact
     1081 tgtaaattct gctagaccct ctgtaaattc cgctagacct ttgtgtgttt tttttgttta
     1141 tattcaagtg gttataattt atagaataaa gaaagaataa aaaaagataa aaagaataga
     1201 tcccagccct gtgtataact cactacttta gtcagttccg cagtattaca aaaggatgtc
     1261 gcaaacgctg tttgctcctc tacaaaacag accttaaaac cctaaaggct taagtagcac
     1321 cctcgcaagc tcgggcaaat cgctgaatat tccttttgtc tccgaccatc aggcacctga
     1381 gtcgctgtct ttttcgtgac attcagttcg ctgcgctcac ggctctggca gtgaatgggg
     1441 gtaaatggca ctacaggcgc cttttatgga ttcatgcaag gaaactaccc ataatacaag
     1501 aaaagcccgt cacgggcttc tcagggcgtt ttatggcggg tctgctatgt ggtgctatct
     1561 gactttttgc tgttcagcag ttcctgccct ctgattttcc agtctgacca cttcggatta
     1621 tcccgtgaca ggtcattcag actggctaat gcacccagta aggcagcggt atcatcaaca
     1681 ggcttacccg tcttactgtc aagaggacat ccggtcaaat aaaacgaaag gctcagtcga
     1741 aagactgggc ctttcgtttt gctgaggaga cttagggacc ctacaacacg cacggtgtta
     1801 cattaggcac cccgggcttt acactttatg cttccggctc gtatgttgtg tcgaccgacc
     1861 tgcaggtgca gtaaggagga aaaaaaaatg aaaaaattat tattcgcaat tcctttagtt
     1921 gttcctttct attctcactc cgctgaaact gttgaaagtt gtttagcaaa accccataca
     1981 gaaaattcat ttactaacgt ctggaaagac gacaaaactt tagatcgtta cgctaactat
     2041 gagggctgtc tgtggaatgc tacaggcgtt gtagtttgta ctggtgacga aactcagtgt
     2101 tacggtacat gggttcctat tgggcttgct atccctgaaa atgagggtgg tggctctgag
     2161 ggtggcggtt ctgagggtgg cggttctgag ggtggcggta ctaaacctcc tgagtacggt
     2221 gatacaccta ttccgggcta tacttatatc aaccctctcg acggcactta tccgcctggt
     2281 actgagcaaa accccgctaa tcctaatcct tctcttgagg agtctcagcc tcttaatact
     2341 ttcatgtttc agaataatag gttccgaaat aggcaggggg cattaactgt ttatacgggc
     2401 actgttactc aaggcactga ccccgttaaa acttattacc agtacactcc tgtatcatca
     2461 aaagccatgt atgacgctta ctggaacggt aaattcagag actgcgcttt ccattctggc
     2521 tttaatgagg atccattcgt ttgtgaatat caaggccaat cgtctgacct gcctcaacct
     2581 cctgtcaatg ctggcggcgg ctctggtggt ggttctggtg gcggctctga gggtggtggc
     2641 tctgagggtg gcggttctga gggtggcggc tctgagggag gcggttccgg tggtggctct
     2701 ggttccggtg attttgatta tgaaaagatg gcaaacgcta ataagggggc tatgaccgaa
     2761 aatgccgatg aaaacgcgct acagtctgac gctaaaggca aacttgattc tgtcgctact
     2821 gattacggtg ctgctatcga tggtttcatt ggtgacgttt ccggccttgc taatggtaat
     2881 ggtgctactg gtgattttgc tggctctaat tcccaaatgg ctcaagtcgg tgacggtgat
     2941 aattcacctt taatgaataa tttccgtcaa tatttacctt ccctccctca atcggttgaa
     3001 tgtcgccctt ttgtctttgg cgctggtaaa ccttacgagt tcagtatcga ctgcgataag
     3061 atcaacctgt tccgcggtgt ctttgcgttt cttttatatg ttgccacctt tatgtatgta
     3121 ttttctacgt ttgctaacat actgcgtaat aaggagtctt aatgaaattt ggaaactttt
     3181 tgcttacata ccaacctccc caattttccc aaacagaggt aatgaaacgt ttggttaaat
     3241 taggtcgcat ctctgaggag tgtggttttg ataccgtatg gttactggag catcatttca
     3301 cggagtttgg tttgcttggt aacccttatg tcgctgctgc atatttactt ggcgcgacta
     3361 aaaaattgaa tgtaggaact gccgctattg ttcttcccac agcccatcca gtacgccaac
     3421 ttgaagatgt gaatttattg gatcaaatgt caaaaggacg atttcggttt ggtatttgcc
     3481 gagggcttta caacaaggac tttcgcgtat tcggcacaga tatgaataac agtcgcgcct
     3541 tagcggaatg ctggtacggg ctgataaaga atggcatgac agagggatat atggaagctg
     3601 ataatgaaca tatcaagttc cataaggtaa aagtaaaccc cgcggcgtat agcagaggtg
     3661 gcgcaccggt ttatgtggtg gctgaatcag cttcgacgac tgagtgggct gctcaatttg
     3721 gcctaccgat gatattaagt tggattataa atactaacga aaagaaagca caacttgagc
     3781 tttataatga agtggctcaa gaatatgggc acgatattca taatatcgac cattgcttat
     3841 catatataac atctgtagat catgactcaa ttaaagcgaa agagatttgc cggaaatttc
     3901 tggggcattg gtatgattct tatgtgaatg ctacgactat ttttgatgat tcagaccaaa
     3961 caagaggtta tgatttcaat aaagggcagt ggcgtgactt tgtattaaaa ggacataaag
     4021 atactaatcg ccgtattgat tacagttacg aaatcaatcc cgtgggaacg ccgcaggaat
     4081 gtattgacat aattcaaaaa gacattgatg ctacaggaat atcaaatatt tgttgtggat
     4141 ttgaagctaa tggaacagta gacgaaatta ttgcttccat gaagctcttc cagtctgatg
     4201 tcatgccatt tcttaaagaa aaacaacgtt cgctattata ttatggcggt ggcggtagcg
     4261 gcggtggcgg tagcggcggt ggcggtagcg gcggtggcgg tagcaaattt ggattgttct
     4321 tccttaactt catcaattca acaactgttc aagaacagag tatagttcgc atgcaggaaa
     4381 taacggagta tgttgataag ttgaattttg aacagatttt agtgtatgaa aatcattttt
     4441 cagataatgg tgttgtcggc gctcctctga ctgtttctgg ttttctgctc ggtttaacag
     4501 agaaaattaa aattggttca ttaaatcaca tcattacaac tcatcatcct gtccgcatag
     4561 cggaggaagc ttgcttattg gatcagttaa gtgaagggag atttatttta gggtttagtg
     4621 attgcgaaaa aaaagatgaa atgcattttt ttaatcgccc ggttgaatat caacagcaac
     4681 tatttgaaga gtgttatgaa atcattaacg atgctttaac aacaggctat tgtaatccag
     4741 ataacgattt ttatagcttc cctaaaatat ctgtaaatcc ccatgcttat acgccaggcg
     4801 gacctcggaa atatgtaaca gcaaccagtc atcatattgt tgagtgggcg gccaaaaaag
     4861 gtattcctct catctttaag tgggatgatt ctaatgatgt tagatatgaa tatgctgaaa
     4921 gatataaagc cgttgcggat aaatatgacg ttgacctatc agagatagac catcagttaa
     4981 tgatattagt taactataac gaagatagta ataaagctaa acaagagacg cgtgcattta
     5041 ttagtgatta tgttcttgaa atgcacccta atgaaaattt cgaaaataaa cttgaagaaa
     5101 taattgcaga aaacgctgtc ggaaattata cggagtgtat aactgcggct aagttggcaa
     5161 ttgaaaagtg tggtgcgaaa agtgtattgc tgtcctttga accaatgaat gatttgatga
     5221 gccaaaaaaa tgtaatcaat attgttgatg ataatattaa gaagtaccac acggaatata
     5281 cctaaacgga gccaatgtac gcaaaaaacc ccgcttcagc ggggtttttt cgccaaaaaa
     5341 aaccccgccc tgtcaggggc ggggtttttt tttagggccc tactgactgt tagcaggtgc
     5401 ggtaattgat actaatcgga gaatacatga acatgtaacc cgcgctatct tcgccccatg
     5461 cataaaccgt gatggtgtaa tccacacccg ggctcaggcc actaatcgtc gcggtagagc
     5521 tactatacgg aaccgtaaat tcctgcaccg ggctgttacc gcccgtttca ccgtaggtga
     5581 tacgatagta atacacagag ctactagaca tcggggcatc ccaagaaatc agcaggctcg
     5641 tcggggttgc tgcaaccact tccagtttgg tcggaacgct actcacagag ctgcccaagt
     5701 cctcttcaga aataagcttt tgttccgcgg ccgcacgacg accttcagca atagcggtaa
     5761 cggcttgtaa ttcagcggct tcctgctctt gctgttcctg gcgttcgcga acgtcgagga
     5821 tctggttgtt gatcagacct tcttcgattt cgcgcagcgc gattacagtg gttttatcgt
     5881 tttcttccgg taccagcgga tcctttccgc ctacctgcat ctgacgagcg cgacgcgcgg
     5941 cgaccagtac caggtcaaaa cggttaccaa ttttctctac agcgtcctga acagttacgc
     6001 gtgccatttt tttttcctcc ttataagggg gtagggggtc tagatttttg tcgaactatt
     6061 catttcactt ttctctatca ctgataggga gtggtaaaat aactctatca atgatagagt
     6121 gtcaatctct atcactgata gggatcatct ggccattcga tggacttaat taacggcact
     6181 gcgaaaaaac cccgccgaag cggggttttt tgcgaaatat aatgaccctc ttgataaccc
     6241 aagagggcat tttttaatgc ccatggcgtt taccaatgct taatcagtga ggcacctatc
     6301 tcagcgatct gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact
     6361 acgatacggg agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc
     6421 tcaccggctc cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt
     6481 ggtcctgcaa ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta
     6541 agtagttcgc cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg
     6601 tcacgctcgt cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt
     6661 acatgatccc ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc
     6721 agaagtaagt tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt
     6781 actgtcatgc catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc
     6841 tgagaatagt gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc
     6901 gcgccacata gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa
     6961 ctctcaagga tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac
     7021 tgatcttcag catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa
     7081 aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt
     7141 tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa
     7201 tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct
     7261 gacgtctaag aaaccattat tatcatgaca ttaacctata aaaataggcg tatcacgagg
     7321 cccttaggcc aaataggccg t
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
