pALB-GFP

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pALB-GFP载体基本信息

质粒名称: pALB-GFP
出品公司: 爱迪基因
目录编号: 55759
存储实验室: Snorri Thorgeirsson

载体骨架基本信息
载体名称: pEGFP-1
载体出品公司: Clontech
载体抗性: 卡那霉素
空载体大小: 4151 bp
完整质粒大小: 6550 bp
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: albumin enhancer/promoter
物种来源: M. musculus (mouse)
插入大小: 2335 bp
基因突变: --
GenBank编号 --
启动子 Mouse Albumin Enhancer/Promoter
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: SacI (未破坏)
3' 克隆位点: KpnI (未破坏)
5' 测序引物 pBR322ori-F
3' 测序引物 EGFP-N

文献引用方法
材料和方法部分: pALB-GFP was a gift from Snorri Thorgeirsson (Addgene plasmid # 55759 ; http://n2t.net/addgene:55759 ; RRID:Addgene_55759)
参考文献部分: Hepatic precursors derived from murine embryonic stem cells contribute to regeneration of injured liver. Heo J, Factor VM, Uren T, Takahama Y, Lee JS, Major M, Feinstone SM, Thorgeirsson SS. Hepatology. 2006 Dec;44(6):1478-86. 10.1002/hep.21441 PubMed 17133486

pALB-GFP载体图谱质粒图谱和多克隆位点信息

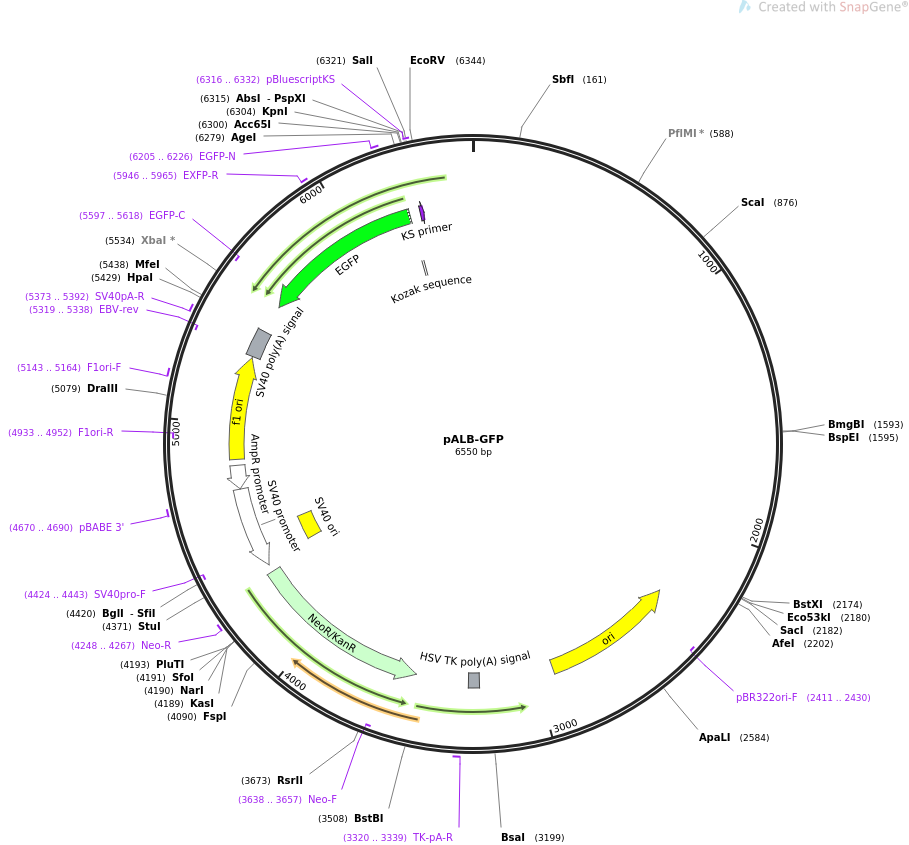

pALB-GFP质粒图谱

pALB-GFP载体简介

pALB-GFP载体序列

LOCUS       pALB-GFP                6550 bp ds-DNA     circular SYN 02-OCT-2020
DEFINITION  Fluorescent marker for hepatocytic lineage.
ACCESSION   .
VERSION     .
KEYWORDS    pALB-GFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6550)
  AUTHORS   Heo J, Factor VM, Uren T, Takahama Y, Lee JS, Major M, Feinstone SM,
            Thorgeirsson SS
  TITLE     Hepatic precursors derived from murine embryonic stem cells
            contribute to regeneration of injured liver.
  JOURNAL   Hepatology. 2006 Dec;44(6):1478-86.
  PUBMED    17133486
REFERENCE   2  (bases 1 to 6550)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Oct 2, 2020 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6550
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     rep_origin      complement(2331..2919)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(2411..2430)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     polyA_signal    3248..3295
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     primer_bind     3320..3339
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     CDS             complement(3527..4321)
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3638..3657)
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     4248..4267
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     promoter        complement(4356..4713)
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      4370..4505
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(4424..4443)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     4670..4690
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        complement(4715..4819)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      4846..5301
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4933..4952)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     5143..5164
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     polyA_signal    5308..5429
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(5319..5338)
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     5373..5392
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     CDS             complement(5552..6271)
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(5597..5618)
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     primer_bind     5946..5965
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     6205..6226
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     regulatory      6268..6277
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     primer_bind     6316..6332
                     /label=pBluescriptKS
                     /note="For pBluescript vector"
     primer_bind     6317..6333
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 atctggagct gttcccctct aaccccaccc ccacccccat gcacaagact ttgtccattc
       61 attaaagtta tgtaaaacag caaattttac ataagagctt aatctctttg tctcccattt
      121 gagcatttca gtgtgggcct tggcatggaa gcatgcctgc aggtcgatcc caagctggag
      181 aacgagttca agccaagctg caccactgct tttcacacac tcttcactct gcatcagctt
      241 agtatttctt aagaaattaa aagatggcaa aacacatcta aactgtatta ataaagtgct
      301 tctttcatat ttaatgtttt tccagataaa gaaaactatg atgaatgcct gcatgcttat
      361 ctatgtttca tagatcagca agtagaatgt ataaaatgga agtgtcagta attctgctca
      421 taattattgc tgcagattga attcacccct aagcaaatat acctctgaac atctgctcac
      481 agtctgtatg ttctccagac acaatccaaa agacttatta tctgaaagat taatgtcaca
      541 aagccagagc tttataatct cttataaaac atagattgta gccaggcagt ggtggcacat
      601 gcttttaatc ctagcacttg caaggcagag gcaagcagat ctctgagttc aagaccaacc
      661 tggtctacag agcaaggtcc aggacagcca aagctagaca gaaaaaactg tatctcaaaa
      721 gaaaatagac aacaaattac attgttacag ctaaaattat cttatgttga aatttctgta
      781 gctcaacttt ggaatatttt cattagaggg taatatttga ttatgatcac ttctaaaact
      841 ttagaattta ttgttttata atctcttggt ttcagtactt acctaaaatt ttccaaccag
      901 tcacccagct aaaacttaaa atatttaagt cctagaattc cagttagttt tgcaagtaac
      961 tataaatggt attacagtga gaaatggagc atctgatgtc tactcacatg taaactttac
     1021 acatatcaaa tagatgattg tctatggtct ttcttctttt ttagagtata tagagtatat
     1081 agagatagat tcatccataa taagctcaat aaacaaatgt ttaaaaatga ttgttagata
     1141 ttattgggta tataagtacc taattattaa aattgacttt tttataacat tgagataaat
     1201 taaaattcat ttattaaaat aatatatatg aatttgaagg ggtttttttt gcaaaacaat
     1261 ttcagcaagc aataccatga caaaagtgtg tattcaaatg gaatgggaaa cgaatgtcag
     1321 taacttatgg tccccgtgta ctcattccca gacatgcctg attggtagct gtgacagctc
     1381 cagcgtactt aacaccaaga ctttaaataa gctgccaaaa atgtgtaaga ctgccatttc
     1441 attagtttta atttttatat ctataccctt tctacagcca catactaaac gtagacaagt
     1501 tggccttttc ctattgcttt aaaggcagag gactgtattg atcagtccaa acttctttct
     1561 gcatgtacat ggaaaactgg ccaaggcaaa cacgtccgga atgatggtat ttaagaacaa
     1621 acattccctg gtatcagcaa gtacagtgcc ctgctgacag agcaggagac acaaagtacc
     1681 atctcgtccc tatgttaagt agtgtcacct catgctcaag ggatactgag tggatgctgt
     1741 aacgcaggtt attttctagg ctgtgaggat acaagaaaat gaaagtaatt aaagtagaac
     1801 attgctctgt gctatgcttg cagaatgtgt agtgtagtct aggaacagag aggggaaggt
     1861 tctaaatcaa aaaaaatcaa gctcatgcct aaggatgtgt gggttgccac ctctttagct
     1921 acctatgcga tccaaacaac tataaaactt agaatttatt ttctctggat gaatttgtgc
     1981 ttgtggagca atgttggtag ggggcagggt cagctggaaa agtggaatga gcaagcagaa
     2041 aactgagaga agcagaagct taggaagatg ggtaatttcc aaaagtttca caaaagatca
     2101 aatcaaagaa gtaagctcca ccttagaaaa aagtggaacg tcatgctaag gaagctagag
     2161 cggccgccac cgcggtggag ctcgagatct gagtccggta gcgctagtaa taactaatgc
     2221 atggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     2281 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     2341 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     2401 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     2461 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     2521 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     2581 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     2641 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     2701 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     2761 tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     2821 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt
     2881 tgcaagcagc agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct
     2941 acggggtctg acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta
     3001 tcaaaaagga tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa
     3061 agtatatatg agtaacctga ggctatggca gggcctgccg ccccgacgtt ggctgcgagc
     3121 cctgggcctt cacccgaact tggggggtgg ggtggggaaa aggaagaaac gcgggcgtat
     3181 tggccccaat ggggtctcgg tggggtatcg acagagtgcc agccctggga ccgaaccccg
     3241 cgtttatgaa caaacgaccc aacaccgtgc gttttattct gtctttttat tgccgtcata
     3301 gcgcgggttc cttccggtat tgtctccttc cgtgtttcag ttagcctccc cctagggtgg
     3361 gcgaagaact ccagcatgag atccccgcgc tggaggatca tccagccggc gtcccggaaa
     3421 acgattccga agcccaacct ttcatagaag gcggcggtgg aatcgaaatc tcgtgatggc
     3481 aggttgggcg tcgcttggtc ggtcatttcg aaccccagag tcccgctcag aagaactcgt
     3541 caagaaggcg atagaaggcg atgcgctgcg aatcgggagc ggcgataccg taaagcacga
     3601 ggaagcggtc agcccattcg ccgccaagct cttcagcaat atcacgggta gccaacgcta
     3661 tgtcctgata gcggtccgcc acacccagcc ggccacagtc gatgaatcca gaaaagcggc
     3721 cattttccac catgatattc ggcaagcagg catcgccatg ggtcacgacg agatcctcgc
     3781 cgtcgggcat gctcgccttg agcctggcga acagttcggc tggcgcgagc ccctgatgct
     3841 cttcgtccag atcatcctga tcgacaagac cggcttccat ccgagtacgt gctcgctcga
     3901 tgcgatgttt cgcttggtgg tcgaatgggc aggtagccgg atcaagcgta tgcagccgcc
     3961 gcattgcatc agccatgatg gatactttct cggcaggagc aaggtgagat gacaggagat
     4021 cctgccccgg cacttcgccc aatagcagcc agtcccttcc cgcttcagtg acaacgtcga
     4081 gcacagctgc gcaaggaacg cccgtcgtgg ccagccacga tagccgcgct gcctcgtctt
     4141 gcagttcatt cagggcaccg gacaggtcgg tcttgacaaa aagaaccggg cgcccctgcg
     4201 ctgacagccg gaacacggcg gcatcagagc agccgattgt ctgttgtgcc cagtcatagc
     4261 cgaatagcct ctccacccaa gcggccggag aacctgcgtg caatccatct tgttcaatca
     4321 tgcgaaacga tcctcatcct gtctcttgat cgatctttgc aaaagcctag gcctccaaaa
     4381 aagcctcctc actacttctg gaatagctca gaggccgagg cggcctcggc ctctgcataa
     4441 ataaaaaaaa ttagtcagcc atggggcgga gaatgggcgg aactgggcgg agttaggggc
     4501 gggatgggcg gagttagggg cgggactatg gttgctgact aattgagatg catgctttgc
     4561 atacttctgc ctgctgggga gcctggggac tttccacacc tggttgctga ctaattgaga
     4621 tgcatgcttt gcatacttct gcctgctggg gagcctgggg actttccaca ccctaactga
     4681 cacacattcc acagctggtt ctttccgcct caggactctt cctttttcaa tattattgaa
     4741 gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata
     4801 aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgacgcg ccctgtagcg
     4861 gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt gaccgctaca cttgccagcg
     4921 ccctagcgcc cgctcctttc gctttcttcc cttcctttct cgccacgttc gccggctttc
     4981 cccgtcaagc tctaaatcgg gggctccctt tagggttccg atttagtgct ttacggcacc
     5041 tcgaccccaa aaaacttgat tagggtgatg gttcacgtag tgggccatcg ccctgataga
     5101 cggtttttcg ccctttgacg ttggagtcca cgttctttaa tagtggactc ttgttccaaa
     5161 ctggaacaac actcaaccct atctcggtct attcttttga tttataaggg attttgccga
     5221 tttcggccta ttggttaaaa aatgagctga tttaacaaaa atttaacgcg aattttaaca
     5281 aaatattaac gcttacaatt tacgccttaa gatacattga tgagtttgga caaaccacaa
     5341 ctagaatgca gtgaaaaaaa tgctttattt gtgaaatttg tgatgctatt gctttatttg
     5401 taaccattat aagctgcaat aaacaagtta acaacaacaa ttgcattcat tttatgtttc
     5461 aggttcaggg ggaggtgtgg gaggtttttt aaagcaagta aaacctctac aaatgtggta
     5521 tggctgatta tgatctagag tcgcggccgc tttacttgta cagctcgtcc atgccgagag
     5581 tgatcccggc ggcggtcacg aactccagca ggaccatgtg atcgcgcttc tcgttggggt
     5641 ctttgctcag ggcggactgg gtgctcaggt agtggttgtc gggcagcagc acggggccgt
     5701 cgccgatggg ggtgttctgc tggtagtggt cggcgagctg cacgctgccg tcctcgatgt
     5761 tgtggcggat cttgaagttc accttgatgc cgttcttctg cttgtcggcc atgatataga
     5821 cgttgtggct gttgtagttg tactccagct tgtgccccag gatgttgccg tcctccttga
     5881 agtcgatgcc cttcagctcg atgcggttca ccagggtgtc gccctcgaac ttcacctcgg
     5941 cgcgggtctt gtagttgccg tcgtccttga agaagatggt gcgctcctgg acgtagcctt
     6001 cgggcatggc ggacttgaag aagtcgtgct gcttcatgtg gtcggggtag cggctgaagc
     6061 actgcacgcc gtaggtcagg gtggtcacga gggtgggcca gggcacgggc agcttgccgg
     6121 tggtgcagat gaacttcagg gtcagcttgc cgtaggtggc atcgccctcg ccctcgccgg
     6181 acacgctgaa cttgtggccg tttacgtcgc cgtccagctc gaccaggatg ggcaccaccc
     6241 cggtgaacag ctcctcgccc ttgctcacca tggtggcgac cggtggatcc cgggcccgcg
     6301 gtaccgggcc ccccctcgag gtcgacggta tcgataagct tgatatcgaa ttcctgcagc
     6361 ccgggggatc ccggggttga taggaaaggt gatctgtgtg cagaaagact cgctctaata
     6421 tacttcttta accaataact gtagatcatt aaccatactt acctcgcatt tcattggttc
     6481 ctaccccatt acaaaatcat accatctttg ccaaaaagtt gtttgactaa atcccttgcg
     6541 tatgtttgcc
//

pALB-GFP载体图谱质粒图谱pdf版和相关资料下载

pALB-GFP载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
