质粒名称: | pBAV1k-T5-LUX |
---|---|
出品公司: | Addgene |
目录编号: | 55800 |
存储实验室: | Ichiro Matsumura |
载体骨架基本信息 |
|
载体名称: | pBAV1k |
空载体大小: | 2709bp |
完整质粒大小: | 8599 bp |
载体类型: | Synthetic Biology细胞表达 |
载体抗性: | Kanamycin |
生长温度: | 30 ℃ |
宿主菌: | DH5a |
拷贝数: | 低拷贝 |
插入基因信息 |
|
插入基因名称1: | luxA |
物种来源: | Photorhabdus luminescens |
插入大小: | 1082 bp |
启动子: | T5 |
克隆方法: | 限制性内切酶 |
5’克隆位点: | EcoRI(未破坏) |
3’克隆位点: | SpeI(未破坏) |
5’测序引物: | 未知 |
3’测序引物: | 未知 |
插入基因名称2: | luxB |
物种来源: | Photorhabdus luminescens |
插入大小: | 983bp |
克隆方法: | 限制性内切酶 |
5’克隆位点: | XbaI (destroyed during cloning) |
3’克隆位点: | SpeI (destroyed during cloning) |
5’测序引物: | 未知 |
3’测序引物: | 未知 |
插入基因名称3: | luxC |
物种来源: | Photorhabdus luminescens |
插入大小: | 1442bp |
克隆方法: | 限制性内切酶 |
5’克隆位点: | XbaI (destroyed during cloning) |
3’克隆位点: | SpeI (destroyed during cloning) |
5’测序引物: | 未知 |
3’测序引物: | 未知 |
插入基因名称4: | luxD |
物种来源: | Photorhabdus luminescens |
插入大小: | 923bp |
克隆方法: | 限制性内切酶 |
5’克隆位点: |
XbaI (destroyed during cloning)
|
3’克隆位点: | PstI (not destroyed) |
5’测序引物: | 未知 |
3’测序引物: | 未知 |
文献引用方法 |
|
材料和方法部分: | pBAV1k-T5-LUX was a gift from Ichiro Matsumura (Addgene plasmid # 55800) |
参考文献部分: |
pBAV1k-T5-LUX was a gift from Ichiro Matsumura (Addgene plasmid # 55800)
For your References section:
Rational design of a plasmid origin that replicates efficiently in both gram-positive and gram-negative bacteria. Bryksin AV, Matsumura I. PLoS One. 2010 . 5(10):e13244. 10.1371/journal.pone.0013244 PubMed 20949038
|
买家导航
载体基本信息

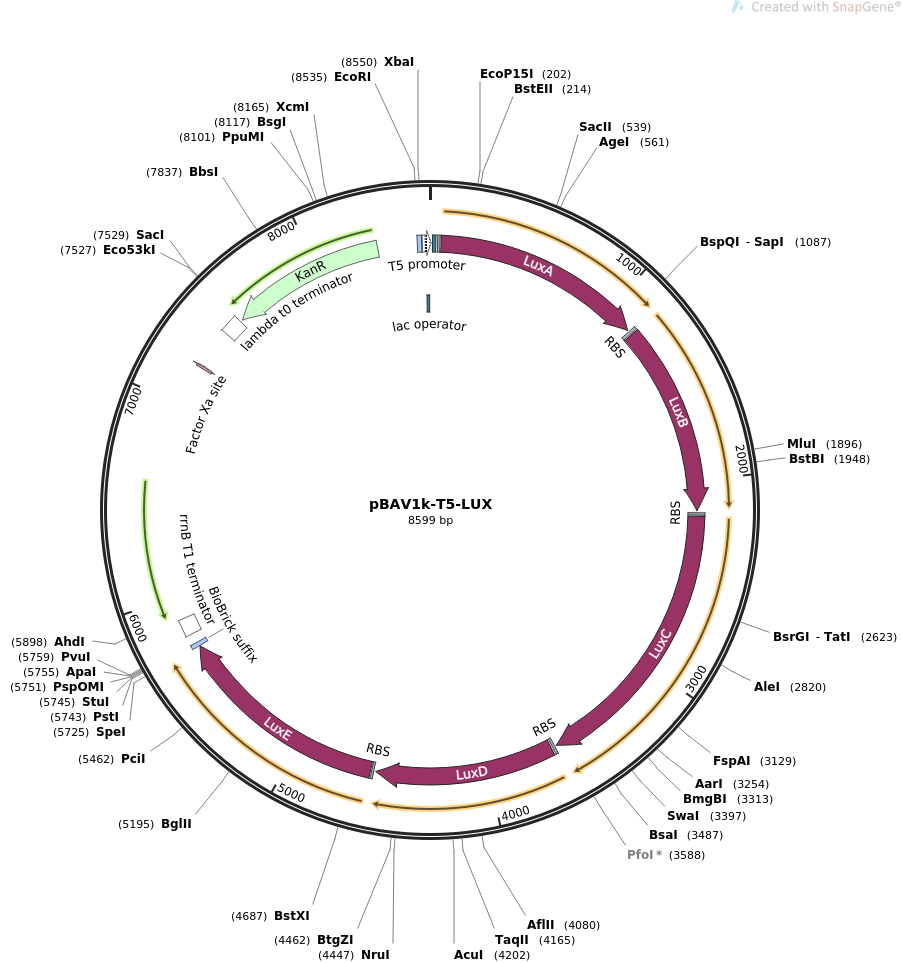

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pBAV1k-T5-LUX 8599 bp ds-DNA circular SYN 12-MAY-2021 DEFINITION Expresses the Photorhabdus luminescens lux operon in bacterial cells. ACCESSION . VERSION . KEYWORDS pBAV1k-T5-LUX SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 8599) AUTHORS Bryksin AV, Matsumura I TITLE Rational design of a plasmid origin that replicates efficiently in both gram-positive and gram-negative bacteria. JOURNAL PLoS One. 2010 . 5(10):e13244. PUBMED 20949038 REFERENCE 2 (bases 1 to 8599) AUTHORS . TITLE Direct Submission JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58 http://www.biofeng.com FEATURES Location/Qualifiers source 1..8599 /organism="synthetic DNA construct" /mol_type="other DNA" protein_bind 14..30 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." RBS 40..51 /note="strong bacterial ribosome binding site (Elowitz and Leibler, 2000)" CDS 58..1140 /codon_start=1 /gene="luxA" /product="LuxA luciferase subunit" /label=LuxA /note="from the Photorhabdus luminescens bioluminescence operon" /translation="MKFGNFLLTYQPPQFSQTEVMKRLVKLGRISEECGFDTVWLLEHH FTEFGLLGNPYVAAAYLLGATKKLNVGTAAIVLPTAHPVRQLEDVNLLDQMSKGRFRFG ICRGLYNKDFRVFGTDMNNSRALAECWYGLIKNGMTEGYMEADNEHIKFHKVKVNPAAY SRGGAPVYVVAESASTTEWAAQFGLPMILSWIINTNEKKAQLELYNEVAQEYGHDIHNI DHCLSYITSVDHDSIKAKEICRKFLGHWYDSYVNATTIFDDSDQTRGYDFNKGQWRDFV LKGHKDTNRRIDYSYEINPVGTPQECIDIIQKDIDATGISNICCGFEANGTVDEIIASM KLFQSDVMPFLKEKQRSLLY" RBS 1152..1163 /note="strong bacterial ribosome binding site (Elowitz and Leibler, 2000)" CDS 1170..2153 /codon_start=1 /gene="luxB" /product="LuxB luciferase subunit" /label=LuxB /note="from the Photorhabdus luminescens bioluminescence operon" /translation="MKFGLFFLNFINSTTVQEQSIVRMQEITEYVDKLNFEQILVYENH FSDNGVVGAPLTVSGFLLGLTEKIKIGSLNHIITTHHPVRIAEEACLLDQLSEGRFILG FSDCEKKDEMHFFNRPVEYQQQLFEECYEIINDALTTGYCNPDNDFYSFPKISVNPHAY TPGGPRKYVTATSHHIVEWAAKKGIPLIFKWDDSNDVRYEYAERYKAVADKYDVDLSEI DHQLMILVNYNEDSNKAKQETRAFISDYVLEMHPNENFENKLEEIIAENAVGNYTECIT AAKLAIEKCGAKSVLLSFEPMNDLMSQKNVINIVDDNIKKYHMEYT" RBS 2165..2176 /note="strong bacterial ribosome binding site (Elowitz and Leibler, 2000)" CDS 2183..3625 /codon_start=1 /gene="luxC" /product="LuxC fatty acid reductase" /label=LuxC /note="from the Photorhabdus luminescens bioluminescence operon" /translation="MTKKISFIINGQVEIFPESDDLVQSINFGDNSVYLPILNDSHVKN IIDCNGNNELRLHNIVNFLYTVGQRWKNEEYSRRRTYIRDLKKYMGYSEEMAKLEANWI SMILCSKGGLYDVVENELGSRHIMDEWLPQDESYVRAFPKGKSVHLLAGNVPLSGIMSI LRAILTKNQCIIKTSSTDPFTANALALSFIDVDPNHPITRSLSVIYWPHQGDTSLAKEI MRHADVIVAWGGPDAINWAVEHAPSYADVIKFGSKKSLCIIDNPVDLTSAATGAAHDVC FYDQRACFSAQNIYYMGNHYEEFKLALIEKLNLYAHILPNAKKDFDEKAAYSLVQKESL FAGLKVEVDIHQRWMIIESNAGVEFNQPLGRCVYLHHVDNIEQILPYVQKNKTQTISIF PWESSFKYRDALALKGAERIVEAGMNNIFRVGGSHDGMRPLQRLVTYISHERPSNYTAK DVAVEIEQTRFLEEDKFLVFVP" RBS 3637..3648 /note="strong bacterial ribosome binding site (Elowitz and Leibler, 2000)" CDS 3655..4578 /codon_start=1 /gene="luxD" /product="LuxD acyltransferase" /label=LuxD /note="from the Photorhabdus luminescens bioluminescence operon" /translation="MENESKYKTIDHVICVEGNKKIHVWETLPEENSPKRKNAIIIASG FARRMDHFAGLAEYLSRNGFHVIRYDSLHHVGLSSGTIDEFTMSIGKQSLLAVVDWLTT RKINNFGMLASSLSARIAYASLSEINASFLITAVGVVNLRYSLERALGFDYLSLPINEL PDNLDFEGHKLGAEVFARDCLDFGWEDLASTINNMMYLDIPFIAFTANNDNWVKQDEVI TLLSNIRSNRCKIYSLLGSSHDLSENLVVLRNFYQSVTKAAIAMDNDHLDIDVDITEPS FEHLTIATVNERRMRIEIENQAISLS" RBS 4590..4601 /note="strong bacterial ribosome binding site (Elowitz and Leibler, 2000)" CDS 4608..5720 /codon_start=1 /gene="luxE" /product="LuxE" /label=LuxE /note="from the Photorhabdus luminescens bioluminescence operon" /translation="MTSYVDKQEITASSEIDDLIFSSDPLVWSYDEQEKIRKKLVLDAF RNHYKHCREYRHYCQAHKVDDNITEIDDIPVFPTSVFKFTRLLTSQENEIESWFTSSGT NGLKSQVARDRLSIERLLGSVSYGMKYVGSWFDHQIELVNLGPDRFNAHNIWFKYVMSL VELLYPTTFTVTEERIDFVKTLNSLERIKNQGKDLCLIGSPYFIYLLCHYMKDKKISFS GDKSLYIITGGGWKSYEKESLKRDDFNHLLFDTFNLSDISQIRDIFNQVELNTCFFEDE MQRKHVPPWVYARALDPETLKPVPDGTPGLMSYMDASATSYPAFIVTDDVGIISREYGK YPGVLVEILRRVNTRTQKGCALSLTEAFDS" misc_feature 5724..5744 /label=BioBrick suffix /note="universal suffix for all parts" terminator 5795..5881 /gene="Escherichia coli rrnB" /label=rrnB T1 terminator /note="transcription terminator T1 from the E. coli rrnB gene" CDS 7212..7223 /codon_start=1 /product="Factor Xa recognition and cleavage site" /label=Factor Xa site /translation="IEGR" terminator 7425..7519 /label=lambda t0 terminator /note="transcription terminator from phage lambda" CDS complement(7535..8329) /codon_start=1 /gene="aphA-3" /product="aminoglycoside phosphotransferase" /label=KanR /note="confers resistance to kanamycin" /translation="MAKMRISPELKKLIEEYRCVKDTEGMSPAKVYKLVGENEILYLKM TDSRYKGTTYDVEREKDMMLWLEGKLPVPKVLHFERHDGWSNLLMSEADGVLCSEGYED EQSPEKTIELYAECIRLFHSIDISDCPYTNSLDGRLAELDYLLNNDLADVDCENWEEDT PFKDPRELYDFLKTEKPEEELVFSHGDLGDSNIFVKDGKVSGFIDLGRSGRADKWYDIA FCVRSIREDIGEEQYVELFFDLLGIKPDWEKIKYYILLDELF" misc_feature 8535..8556 /label=BioBrick prefix /note="BioBrick prefix for parts that do not start with ""ATG""" promoter 8561..6 /label=T5 promoter /note="bacteriophage T5 promoter for E. coli RNA polymerase, with embedded lac operator" protein_bind 8581..8597 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." ORIGIN 1 ataatagatt caattgtgag cggataacaa ttactagaga aagaggagaa atactagatg 61 aaatttggaa actttttgct tacataccaa cctccccaat tttctcaaac agaggtaatg 121 aaacgtttgg ttaaattagg tcgcatctct gaggagtgtg gttttgatac cgtatggtta 181 ctggagcatc atttcacgga gtttggtttg cttggtaacc cttatgtcgc tgctgcatat 241 ttacttggcg cgactaaaaa attgaatgta ggaactgccg ctattgttct tcccacagcc 301 catccagtac gccaacttga agatgtgaat ttattggatc aaatgtcaaa aggacgattt 361 cggtttggta tttgccgagg gctttacaac aaggactttc gcgtattcgg cacagatatg 421 aataacagtc gcgccttagc ggaatgctgg tacgggctga taaagaatgg catgacagag 481 ggatatatgg aagctgataa tgaacatatc aagttccata aggtaaaagt aaaccccgcg 541 gcgtatagca gaggtggcgc accggtttat gtggtggctg aatcagcttc gacgactgag 601 tgggctgctc aatttggcct accgatgata ttaagttgga ttataaatac taacgaaaag 661 aaagcacaac ttgagcttta taatgaagtg gctcaagaat atgggcacga tattcataat 721 atcgaccatt gcttatcata tataacatct gtagatcatg actcaattaa agcgaaagag 781 atttgccgga aatttctggg gcattggtat gattcttatg tgaatgctac gactattttt 841 gatgattcag accaaacaag aggttatgat ttcaataaag ggcagtggcg tgactttgta 901 ttaaaaggac ataaagatac taatcgccgt attgattaca gttacgaaat caatcccgtg 961 ggaacgccgc aggaatgtat tgacataatt caaaaagaca ttgatgctac aggaatatca 1021 aatatttgtt gtggatttga agctaatgga acagtagacg aaattattgc ttccatgaag 1081 ctcttccagt ctgatgtcat gccatttctt aaagaaaaac aacgttcgct attatattaa 1141 taatactaga gaaagaggag aaatactaga tgaaatttgg attgttcttc cttaacttca 1201 tcaattcaac aactgttcaa gaacaaagta tagttcgcat gcaggaaata acggagtatg 1261 ttgataagtt gaattttgaa cagattttag tgtatgaaaa tcatttttca gataatggtg 1321 ttgtcggcgc tcctctgact gtttctggtt ttctgctcgg tttaacagag aaaattaaaa 1381 ttggttcatt aaatcacatc attacaactc atcatcctgt ccgcatagcg gaggaagctt 1441 gcttattgga tcagttaagt gaagggagat ttattttagg gtttagtgat tgcgaaaaaa 1501 aagatgaaat gcattttttt aatcgcccgg ttgaatatca acagcaacta tttgaagagt 1561 gttatgaaat cattaacgat gctttaacaa caggctattg taatccagat aacgattttt 1621 atagcttccc taaaatatct gtaaatcccc atgcttatac gccaggcgga cctcggaaat 1681 atgtaacagc aaccagtcat catattgttg agtgggcggc caaaaaaggt attcctctca 1741 tctttaagtg ggatgattct aatgatgtta gatatgaata tgctgaaaga tataaagccg 1801 ttgcggataa atatgacgtt gacctatcag agatagacca tcagttaatg atattagtta 1861 actataacga agatagtaat aaagctaaac aagagacgcg tgcatttatt agtgattatg 1921 ttcttgaaat gcaccctaat gaaaatttcg aaaataaact tgaagaaata attgcagaaa 1981 acgctgtcgg aaattatacg gagtgtataa ctgcggctaa gttggcaatt gaaaagtgtg 2041 gtgcgaaaag tgtattgctg tcctttgaac caatgaatga tttgatgagc caaaaaaatg 2101 taatcaatat tgttgatgat aatattaaga agtaccacat ggaatatacc taataatact 2161 agagaaagag gagaaatact agatgactaa aaaaatttca ttcattatta acggccaggt 2221 tgaaatcttt cccgaaagtg atgatttagt gcaatccatt aattttggtg ataatagtgt 2281 ttacctgcca atattgaatg actctcatgt aaaaaacatt attgattgta atggaaataa 2341 cgaattacgg ttgcataaca ttgtcaattt tctctatacg gtagggcaaa gatggaaaaa 2401 tgaagaatac tcaagacgca ggacatacat tcgtgactta aaaaaatata tgggatattc 2461 agaagaaatg gctaagctag aggccaattg gatatctatg attttatgtt ctaaaggcgg 2521 cctttatgat gttgtagaaa atgaacttgg ttctcgccat atcatggatg aatggctacc 2581 tcaggatgaa agttatgttc gggcttttcc gaaaggtaaa tctgtacatc tgttggcagg 2641 taatgttcca ttatctggga tcatgtctat attacgcgca attttaacta agaatcagtg 2701 tattataaaa acatcgtcaa ccgatccttt taccgctaat gcattagcgt taagttttat 2761 tgatgtagac cctaatcatc cgataacgcg ctctttatct gttatatatt ggccccacca 2821 aggtgataca tcactcgcaa aagaaattat gcgacatgcg gatgttattg tcgcttgggg 2881 agggccagat gcgattaatt gggcggtaga gcatgcgcca tcttatgctg atgtgattaa 2941 atttggttct aaaaagagtc tttgcattat cgataatcct gttgatttga cgtccgcagc 3001 gacaggtgcg gctcatgatg tttgttttta cgatcagcga gcttgttttt ctgcccaaaa 3061 catatattac atgggaaatc attatgagga atttaagtta gcgttgatag aaaaacttaa 3121 tctatatgcg catatattac cgaatgccaa aaaagatttt gatgaaaagg cggcctattc 3181 tttagttcaa aaagaaagct tgtttgctgg attaaaagta gaggtggata ttcatcaacg 3241 ttggatgatt attgagtcaa atgcaggtgt ggaatttaat caaccacttg gcagatgtgt 3301 gtaccttcat cacgtcgata atattgagca aatattgcct tatgttcaaa aaaataagac 3361 gcaaaccata tctatttttc cttgggagtc atcatttaaa tatcgagatg cgttagcatt 3421 aaaaggtgcg gaaaggattg tagaagcagg aatgaataac atatttcgag ttggtggatc 3481 tcatgacgga atgagaccgt tgcaacgatt agtgacatat atttctcatg aaaggccatc 3541 taactatacg gctaaggatg ttgcggttga aatagaacag actcgattcc tggaagaaga 3601 taagttcctt gtatttgtcc cataataata ctagagaaag aggagaaata ctagatggaa 3661 aatgaatcaa aatataaaac catcgaccac gttatttgtg ttgaaggaaa taaaaaaatt 3721 catgtttggg aaacgctgcc agaagaaaac agcccaaaga gaaagaatgc cattattatt 3781 gcgtctggtt ttgcccgcag gatggatcat tttgctggtc tggcggaata tttatcgcgg 3841 aatggatttc atgtgatccg ctatgattcg cttcaccacg ttggattgag ttcagggaca 3901 attgatgaat ttacaatgtc tataggaaag cagagcttgt tagcagtggt tgattggtta 3961 actacacgaa aaataaataa cttcggtatg ttggcttcaa gcttatctgc gcggatagct 4021 tatgcaagcc tatctgaaat caatgcttcg tttttaatca ccgcagtcgg tgttgttaac 4081 ttaagatatt ctcttgaaag agctttaggg tttgattatc tcagtctacc cattaatgaa 4141 ttgccggata atctggattt tgaaggccat aaattgggtg ctgaagtctt tgcgagagat 4201 tgtcttgatt ttggttggga agatttagct tctacaatta ataacatgat gtatcttgat 4261 ataccgttta ttgcttttac tgcaaataac gataattggg tcaagcaaga tgaagttatc 4321 acattgttat caaatattcg tagtaatcga tgcaagatat attctttgtt aggaagttcg 4381 catgacttga gtgaaaattt agtggtcctg cgcaattttt atcaatcggt tacgaaagcc 4441 gctatcgcga tggataatga tcatctggat attgatgttg atattactga accgtcattt 4501 gaacatttaa ctattgcgac agtcaatgaa cgccgaatga gaattgagat tgaaaatcaa 4561 gcaatttctc tgtcttaata atactagaga aagaggagaa atactagatg acttcatatg 4621 ttgataaaca agaaattaca gcaagctcag aaattgatga tttgattttt tcgagcgatc 4681 cattagtgtg gtcttacgac gagcaggaaa aaatcagaaa gaaacttgtg cttgatgcat 4741 ttcgtaatca ttataaacat tgtcgagaat atcgtcacta ctgtcaggca cacaaagtag 4801 atgacaatat tacggaaatt gatgacatac ctgtattccc aacatcggtt tttaagttta 4861 ctcgcttatt aacttctcag gaaaacgaga ttgaaagttg gtttaccagt agcggcacga 4921 atggtttaaa aagtcaggtg gcgcgtgaca gattaagtat tgagagactc ttaggctctg 4981 tgagttatgg catgaaatat gttggtagtt ggtttgatca tcaaatagaa ttagtcaatt 5041 tgggaccaga tagatttaat gctcataata tttggtttaa atatgttatg agtttggtgg 5101 aattgttata tcctacgaca tttaccgtaa cagaagaacg aatagatttt gttaaaacat 5161 tgaatagtct tgaacgaata aaaaatcaag ggaaagatct ttgtcttatt ggttcgccat 5221 actttattta tttactctgc cattatatga aagataaaaa aatctcattt tctggagata 5281 aaagccttta tatcataacc ggaggcggct ggaaaagtta cgaaaaagaa tctctgaaac 5341 gtgatgattt caatcatctt ttatttgata ctttcaatct cagtgatatt agtcagatcc 5401 gagatatatt taatcaagtt gaactcaaca cttgtttctt tgaggatgaa atgcagcgta 5461 aacatgttcc gccgtgggta tatgcgcgag cgcttgatcc tgaaacgttg aaacctgtac 5521 ctgatggaac gccggggttg atgagttata tggatgcgtc agcaaccagt tatccagcat 5581 ttattgttac cgatgatgtc gggataatta gcagagaata tggtaagtat cccggcgtgc 5641 tcgttgaaat tttacgtcgc gtcaatacga ggacgcagaa agggtgtgct ttaagcttaa 5701 ccgaagcgtt tgatagttaa taatactagt agcggccgct gcaggcctca gggcccgatc 5761 gatgccgccg cttaattaat taatccagag gcatcaaata aaacgaaagg ctcagtcgaa 5821 agactgggcc tttcgtttta tctgttgttt gtcggtgaac gctctcctga gtaggacaaa 5881 tccgccgccc tagacctagt gtcattttat ttcccccgtt tcagcatcaa gaacctttgc 5941 ataacttgct ctatatccac actgataatt gccctcaaac cataatctaa aggcgctaga 6001 gtttgttgaa acaatatctt ttacatcatt cgtatttaaa attccaaact ccgctcccct 6061 aaggcgaata aaagccatta aatcttttgt atttaccaaa ttatagtcat ccactatatc 6121 taagagtaaa ttcttcaatt ctcttttttg gctttcatca agtgttatat agcggtcaat 6181 atcaaaatca ttaatgttca aaatatcttt tttgtcgtat atatgtttat tcttagcaat 6241 agcgtccttt gattcatgag tcaaatattc atatgaacct ttgatataat caagtatctc 6301 aacatgagca actgaactat tccccaattt tcgcttaatc ttgttcctaa cgctttctat 6361 tgttacagga tttcgtgcaa tatatataac gtgatagtgt ggttttttat agtgctttcc 6421 atttcgtata acatcactac tattccatgt atctttatct tttttttcgt ccatatcgtg 6481 taaaggactg acagccatag atacgcccaa actctctaat ttttccttcc aatcattagg 6541 aattgagtca ggatataata aaaatccaaa atttctagct ttagtatttt taatagccat 6601 gatataatta ccttatcaaa aacaagtagc gaaaactcgt atccttctaa aaacgcgagc 6661 tttcgcttat tttttttgtt ctgattcctt tcttgcatat tcttctatag ctaacgccgc 6721 aaccgcagat tttgaaaaac ctttttgttt cgccatatct gttaattttt tatcttgctc 6781 ttttgtcaga gaaatcataa ctcttttttt cgattctgaa atcaccattt aaaaaactcc 6841 aatcaaataa ttttataaag ttagtgtatc actttgtaat cataaaaaca acaataaagc 6901 tacttaaata tagatttata aaaaacgttg gcgaaaacgt tggcgattcg ttggcgattg 6961 aaaaacccct taaacccttg agccagttgg gatagagcgt ttttggcaca aaaattggca 7021 ctcggcactt aatggggggt cgtagtacgg aagcaaaatt cgcttccttt ccccccattt 7081 ttttccaaat tccagatttt tttcaaaaat tttccagcgc taccgctcgg caaaattgca 7141 agcaattttt aaaatcaaac ccatgaggga atttcattcc ctcatactcc cttgagcctc 7201 ctccaaccga aatagaaggg cgctgcgctt attatttcat tcagtcatcg gctttcataa 7261 tctaacagac aacatcttcg ctgcaaagcc acgctacgct caagggcttt tacgctacga 7321 taacgcctgt tttaacgatt atgccgataa ctaaacgaaa taaacgctaa aacgtctcag 7381 aaacgatttt gagacgtttt aataaaaaat cgcctagtgc ttggattctc accaataaaa 7441 aacgcccggc ggcaaccgag cgttctgaac aaatccagat ggagttctga ggtcattact 7501 ggatctatca acgggagtcc aagcgagctc ggtactaaaa caattcatcc agtaaaatat 7561 aatattttat tttctcccaa tcaggcttga tccccagtaa gtcaaaaaat agctcgacat 7621 actgttcttc cccgatatcc tccctgatcg accggacgca gaaggcaatg tcataccact 7681 tgtccgccct gccgcttctc ccaagatcaa taaagccact tactttgcca tctttcacaa 7741 agatgttgct gtctcccagg tcgccgtggg aaaagacaag ttcctcttcg ggcttttccg 7801 tctttaaaaa atcatacagc tcgcgcggat ctttaaatgg agtgtcttct tcccagtttt 7861 cgcaatccac atcggccaga tcgttattca gtaagtaatc caattcggct aagcggccgt 7921 ctaagctatt cgtataggga caatccgata tgtcgatgga gtgaaagagc ctgatgcact 7981 ccgcatacag ctcgatagtc ttttcagggc tttgttcatc ttcataccct tccgagcaaa 8041 ggacgccatc ggcctcactc atgagcagat tgctccagcc atcatgccgt tcaaagtgca 8101 ggacctttgg aacaggcagc tttccttcca gccatagcat catgtccttt tcccgttcca 8161 catcataggt ggtcccttta taccggctgt ccgtcatttt taaatatagg atttcatttt 8221 ctcccaccag cttatatacc ttagcaggag acattccttc cgtatctttt acgcagcggt 8281 attcttcgat cagttttttc aattccggtg atattctcat tttagccatt tattatttcc 8341 ttcctctttt ctacagtatt taaagatacc ccaagaagct aattataaca agacgaactc 8401 caattcactg ttccttgcat tctaaaacct taaatacaga aaacagcctt ttcaaagttg 8461 ttttcaaagt tggcgtataa catagtatcg acggagccga ttttgaaacc acaattatga 8521 tagaatttga cgtcgaattc gcggccgctt ctagaggaaa tcataaaaaa tttatttgct 8581 ttgtgagcgg ataacaatt //
