pBiFC-CrN173

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pBiFC-CrN173
出品公司: 爱迪基因
目录编号: 22016
存储实验室: Chang-Deng Hu

载体骨架基本信息
载体名称: pFLAG-CMV
载体抗性: 氨苄霉素
空载体大小: 4694 bp
载体类型: 哺乳细胞表达
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: CrN173
物种来源: 维多利亚水母
插入大小: 522 bp
基因突变: N/A
标签/融合蛋白: FLAG(N端)
克隆方法: 限制性内切酶
5' 克隆位点: XbaI(未破坏)
3' 克隆位点: BamHI(未破坏)
5' 测序引物 CMV-F
3' 测序引物 hGH-PA-R

文献引用方法
材料和方法部分: pBiFC-CrN173 was a gift from Chang-Deng Hu (Addgene plasmid # 22016)
参考文献部分: Identification of new fluorescent protein fragments for bimolecular fluorescence complementation analysis under physiological conditions. Shyu YJ, Liu H, Deng X, Hu CD. Biotechniques. 2006 Jan . 40(1):61-6. 10.2144/000112036 PubMed 16454041

载体图谱质粒图谱和多克隆位点信息

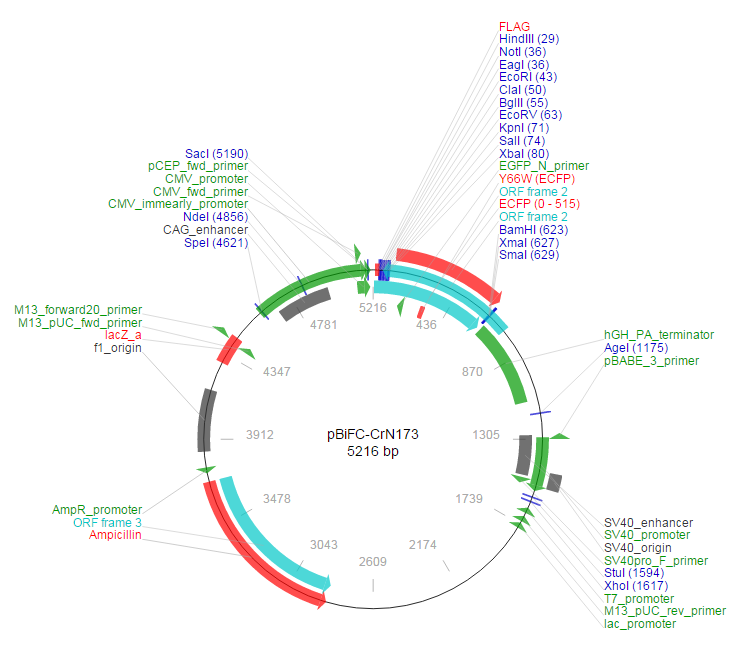

pBiFC-CrN173载体图谱

载体简介

载体序列

LOCUS       pBiFC-CrN173	5216 bp 	DNA	SYN
DEFINITION  pBiFC-CrN173
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5216
                     /organism="pBiFC-CrN173"
                     /mol_type="other DNA"
     CDS             5..622
                     /label="ORF frame 2"
     misc_feature    8..31
                     /label="FLAG"
     CDS             complement(47..730)
                     /label="ORF frame 2"
     gene            104..619
                     /label="ECFP (0 - 515)"
                     /gene="ECFP (0 - 515)"
     misc_feature    complement(146..167)
                     /label="EGFP_N_primer"
     misc_feature    284..313
                     /label="Y66W (ECFP)"
     terminator      640..1106
                     /label="hGH_PA_terminator"
     misc_feature    complement(1276..1296)
                     /label="pBABE_3_primer"
     misc_feature    complement(1282..1497)
                     /label="SV40_enhancer"
     promoter        1294..1562
                     /label="SV40_promoter"
     rep_origin      1461..1538
                     /label="SV40_origin"
     misc_feature    1523..1542
                     /label="SV40pro_F_primer"
     promoter        complement(1649..1667)
                     /label="T7_promoter"
     misc_feature    complement(1694..1716)
                     /label="M13_pUC_rev_primer"
     promoter        complement(1730..1759)
                     /label="lac_promoter"
     gene            complement(2842..3702)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(2842..3702)
                     /label="ORF frame 3"
     promoter        complement(3744..3772)
                     /label="AmpR_promoter"
     rep_origin      3851..4157
                     /label="f1_origin"
     misc_feature    complement(4301..4444)
                     /label="lacZ_a"
     misc_feature    4415..4437
                     /label="M13_pUC_fwd_primer"
     promoter        4430..4446
                     /label="M13_forward20_primer"
     promoter        4608..5184
                     /label="CMV_immearly_promoter"
     misc_feature    4687..4974
                     /label="CAG_enhancer"
     promoter        5130..5201
                     /label="CMV_promoter"
     misc_feature    5141..5161
                     /label="CMV_fwd_primer"
     misc_feature    5185..5204
                     /label="pCEP_fwd_primer"
ORIGIN
    1 TACCATGGAC TACAAAGACG ATGACGACAA GCTTGCGGCC GCGAATTCAT CGATAGATCT
   61 GATATCGGTA CCAGTCGACT CTAGAAGATC CAGCGCCACC ATGGTGAGCA AGGGCGAGGA
  121 GCTGTTCACC GGGGTGGTGC CCATCCTGGT CGAGCTGGAC GGCGACGTAA ACGGCCACAA
  181 GTTCAGCGTG TCCGGCGAGG GCGAGGGCGA TGCCACCTAC GGCAAGCTGA CCCTGAAGTT
  241 CATCTGCACC ACCGGCAAGC TGCCCGTGCC CTGGCCCACC CTCGTGACCA CCCTGACCTG
  301 GGGCGTGCAG TGCTTCGCCC GCTACCCCGA CCACATGAAG CAGCACGACT TCTTCAAGTC
  361 CGCCATGCCC GAAGGCTACG TCCAGGAGCG CACCATCTTC TTCAAGGACG ACGGCAACTA
  421 CAAGACCCGC GCCGAGGTGA AGTTCGAGGG CGACACCCTG GTGAACCGCA TCGAGCTGAA
  481 GGGCATCGAC TTCAAGGAGG ACGGCAACAT CCTGGGGCAC AAGCTGGAGT ACAACGCCAT
  541 CAGCGACAAC GTCTATATCA CCGCCGACAA GCAGAAGAAC GGCATCAAGG CCAACTTCAA
  601 GATCCGCCAC AACATCGAGT AGGGATCCCG GGTGGCATCC CTGTGACCCC TCCCCAGTGC
  661 CTCTCCTGGC CCTGGAAGTT GCCACTCCAG TGCCCACCAG CCTTGTCCTA ATAAAATTAA
  721 GTTGCATCAT TTTGTCTGAC TAGGTGTCCT TCTATAATAT TATGGGGTGG AGGGGGGTGG
  781 TATGGAGCAA GGGGCAAGTT GGGAAGACAA CCTGTAGGGC CTGCGGGGTC TATTGGGAAC
  841 CAAGCTGGAG TGCAGTGGCA CAATCTTGGC TCACTGCAAT CTCCGCCTCC TGGGTTCAAG
  901 CGATTCTCCT GCCTCAGCCT CCCGAGTTGT TGGGATTCCA GGCATGCATG ACCAGGCTCA
  961 GCTAATTTTT GTTTTTTTGG TAGAGACGGG GTTTCACCAT ATTGGCCAGG CTGGTCTCCA
 1021 ACTCCTAATC TCAGGTGATC TACCCACCTT GGCCTCCCAA ATTGCTGGGA TTACAGGCGT
 1081 GAACCACTGC TCCCTTCCCT GTCCTTCTGA TTTTAAAATA ACTATACCAG CAGGAGGACG
 1141 TCCAGACACA GCATAGGCTA CCTGGCCATG CCCAACCGGT GGGACATTTG AGTTGCTTGC
 1201 TTGGCACTGT CCTCTCATGC GTTGGGTCCA CTCAGTAGAT GCCTGTTGAA TTGGGTACGC
 1261 GGCCAGCTTG GCTGTGGAAT GTGTGTCAGT TAGGGTGTGG AAAGTCCCCA GGCTCCCCAG
 1321 CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC AACCAGGTGT GGAAAGTCCC
 1381 CAGGCTCCCC AGCAGGCAGA AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCATAG
 1441 TCCCGCCCCT AACTCCGCCC ATCCCGCCCC TAACTCCGCC CAGTTCCGCC CATTCTCCGC
 1501 CCCATGGCTG ACTAATTTTT TTTATTTATG CAGAGGCCGA GGCCGCCTCG GCCTCTGAGC
 1561 TATTCCAGAA GTAGTGAGGA GGCTTTTTTG GAGGCCTAGG CTTTTGCAAA AAGCTCCTCG
 1621 AGGAACTGAA AAACCAGAAA GTTAATTCCC TATAGTGAGT CGTATTAAAT TCGTAATCAT
 1681 GTCATAGCTG TTTCCTGTGT GAAATTGTTA TCCGCTCACA ATTCCACACA ACATACGAGC
 1741 CGGAAGCATA AAGTGTAAAG CCTGGGGTGC CTAATGAGTG AGCTAACTCA CATTAATTGC
 1801 GTTGCGCTCA CTGCCCGCTT TCCAGTCGGG AAACCTGTCG TGCCAGCTGC ATTAATGAAT
 1861 CGGCCAACGC GCGGGGAGAG GCGGTTTGCG TATTGGGCGC TCTTCCGCTT CCTCGCTCAC
 1921 TGACTCGCTG CGCTCGGTCG TTCGGCTGCG GCGAGCGGTA TCAGCTCACT CAAAGGCGGT
 1981 AATACGGTTA TCCACAGAAT CAGGGGATAA CGCAGGAAAG AACATGTGAG CAAAAGGCCA
 2041 GCAAAAGGCC AGGAACCGTA AAAAGGCCGC GTTGCTGGCG TTTTTCCATA GGCTCCGCCC
 2101 CCCTGACGAG CATCACAAAA ATCGACGCTC AAGTCAGAGG TGGCGAAACC CGACAGGACT
 2161 ATAAAGATAC CAGGCGTTTC CCCCTGGAAG CTCCCTCGTG CGCTCTCCTG TTCCGACCCT
 2221 GCCGCTTACC GGATACCTGT CCGCCTTTCT CCCTTCGGGA AGCGTGGCGC TTTCTCATAG
 2281 CTCACGCTGT AGGTATCTCA GTTCGGTGTA GGTCGTTCGC TCCAAGCTGG GCTGTGTGCA
 2341 CGAACCCCCC GTTCAGCCCG ACCGCTGCGC CTTATCCGGT AACTATCGTC TTGAGTCCAA
 2401 CCCGGTAAGA CACGACTTAT CGCCACTGGC AGCAGCCACT GGTAACAGGA TTAGCAGAGC
 2461 GAGGTATGTA GGCGGTGCTA CAGAGTTCTT GAAGTGGTGG CCTAACTACG GCTACACTAG
 2521 AAGAACAGTA TTTGGTATCT GCGCTCTGCT GAAGCCAGTT ACCTTCGGAA AAAGAGTTGG
 2581 TAGCTCTTGA TCCGGCAAAC AAACCACCGC TGGTAGCGGT GGTTTTTTTG TTTGCAAGCA
 2641 GCAGATTACG CGCAGAAAAA AAGGATCTCA AGAAGATCCT TTGATCTTTT CTACGGGGTC
 2701 TGACGCTCAG TGGAACGAAA ACTCACGTTA AGGGATTTTG GTCATGAGAT TATCAAAAAG
 2761 GATCTTCACC TAGATCCTTT TAAATTAAAA ATGAAGTTTT AAATCAATCT AAAGTATATA
 2821 TGAGTAAACT TGGTCTGACA GTTACCAATG CTTAATCAGT GAGGCACCTA TCTCAGCGAT
 2881 CTGTCTATTT CGTTCATCCA TAGTTGCCTG ACTCCCCGTC GTGTAGATAA CTACGATACG
 2941 GGAGGGCTTA CCATCTGGCC CCAGTGCTGC AATGATACCG CGAGACCCAC GCTCACCGGC
 3001 TCCAGATTTA TCAGCAATAA ACCAGCCAGC CGGAAGGGCC GAGCGCAGAA GTGGTCCTGC
 3061 AACTTTATCC GCCTCCATCC AGTCTATTAA TTGTTGCCGG GAAGCTAGAG TAAGTAGTTC
 3121 GCCAGTTAAT AGTTTGCGCA ACGTTGTTGC CATTGCTACA GGCATCGTGG TGTCACGCTC
 3181 GTCGTTTGGT ATGGCTTCAT TCAGCTCCGG TTCCCAACGA TCAAGGCGAG TTACATGATC
 3241 CCCCATGTTG TGCAAAAAAG CGGTTAGCTC CTTCGGTCCT CCGATCGTTG TCAGAAGTAA
 3301 GTTGGCCGCA GTGTTATCAC TCATGGTTAT GGCAGCACTG CATAATTCTC TTACTGTCAT
 3361 GCCATCCGTA AGATGCTTTT CTGTGACTGG TGAGTACTCA ACCAAGTCAT TCTGAGAATA
 3421 GTGTATGCGG CGACCGAGTT GCTCTTGCCC GGCGTCAATA CGGGATAATA CCGCGCCACA
 3481 TAGCAGAACT TTAAAAGTGC TCATCATTGG AAAACGTTCT TCGGGGCGAA AACTCTCAAG
 3541 GATCTTACCG CTGTTGAGAT CCAGTTCGAT GTAACCCACT CGTGCACCCA ACTGATCTTC
 3601 AGCATCTTTT ACTTTCACCA GCGTTTCTGG GTGAGCAAAA ACAGGAAGGC AAAATGCCGC
 3661 AAAAAAGGGA ATAAGGGCGA CACGGAAATG TTGAATACTC ATACTCTTCC TTTTTCAATA
 3721 TTATTGAAGC ATTTATCAGG GTTATTGTCT CATGAGCGGA TACATATTTG AATGTATTTA
 3781 GAAAAATAAA CAAATAGGGG TTCCGCGCAC ATTTCCCCGA AAAGTGCCAC CTGACGCGCC
 3841 CTGTAGCGGC GCATTAAGCG CGGCGGGTGT GGTGGTTACG CGCAGCGTGA CCGCTACACT
 3901 TGCCAGCGCC CTAGCGCCCG CTCCTTTCGC TTTCTTCCCT TCCTTTCTCG CCACGTTCGC
 3961 CGGCTTTCCC CGTCAAGCTC TAAATCGGGG GCTCCCTTTA GGGTTCCGAT TTAGTGCTTT
 4021 ACGGCACCTC GACCCCAAAA AACTTGATTA GGGTGATGGT TCACGTAGTG GGCCATCGCC
 4081 CTGATAGACG GTTTTTCGCC CTTTGACGTT GGAGTCCACG TTCTTTAATA GTGGACTCTT
 4141 GTTCCAAACT GGAACAACAC TCAACCCTAT CTCGGTCTAT TCTTTTGATT TATAAGGGAT
 4201 TTTGCCGATT TCGGCCTATT GGTTAAAAAA TGAGCTGATT TAACAAAAAT TTAACGCGAA
 4261 TTTTAACAAA ATATTAACGC TTACAATTTC CATTCGCCAT TCAGGCTGCG CAACTGTTGG
 4321 GAAGGGCGAT CGGTGCGGGC CTCTTCGCTA TTACGCCAGC TGGCGAAAGG GGGATGTGCT
 4381 GCAAGGCGAT TAAGTTGGGT AACGCCAGGG TTTTCCCAGT CACGACGTTG TAAAACGACG
 4441 GCCAGTGCCA AGCTGATCTA TACATTGAAT CAATATTGGC AATTAGCCAT ATTAGTCATT
 4501 GGTTATATAG CATAAATCAA TATTGGCTAT TGGCCATTGC ATACGTTGTA TCTATATCAT
 4561 AATATGTACA TTTATATTGG CTCATGTCCA ATATGACCGC CATGTTGACA TTGATTATTG
 4621 ACTAGTTATT AATAGTAATC AATTACGGGG TCATTAGTTC ATAGCCCATA TATGGAGTTC
 4681 CGCGTTACAT AACTTACGGT AAATGGCCCG CCTGGCTGAC CGCCCAACGA CCCCCGCCCA
 4741 TTGACGTCAA TAATGACGTA TGTTCCCATA GTAACGCCAA TAGGGACTTT CCATTGACGT
 4801 CAATGGGTGG AGTATTTACG GTAAACTGCC CACTTGGCAG TACATCAAGT GTATCATATG
 4861 CCAAGTCCGC CCCCTATTGA CGTCAATGAC GGTAAATGGC CCGCCTGGCA TTATGCCCAG
 4921 TACATGACCT TACGGGACTT TCCTACTTGG CAGTACATCT ACGTATTAGT CATCGCTATT
 4981 ACCATGGTGA TGCGGTTTTG GCAGTACACC AATGGGCGTG GATAGCGGTT TGACTCACGG
 5041 GGATTTCCAA GTCTCCACCC CATTGACGTC AATGGGAGTT TGTTTTGGCA CCAAAATCAA
 5101 CGGGACTTTC CAAAATGTCG TAATAACCCC GCCCCGTTGA CGCAAATGGG CGGTAGGCGT
 5161 GTACGGTGGG AGGTCTATAT AAGCAGAGCT CGTTTAGTGA ACCGTCAGAA TTGATC

//
