pCAG-VSVM

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pCAG-VSVM
出品公司: Addgene
目录编号: 64086
质粒用途: 水泡性口炎病毒matrix基因的表达载体
存储实验室: Ian Wickersham
相关质粒: pCAG-VSVG
pCAG-VSVL
pCAG-VSVM
pCAG-VSVN
pCAG-VSVP

载体骨架基本信息
载体名称: pCAGEN
空载体大小: 4795 bp
完整质粒大小: 5485 bp
载体类型: 哺乳细胞表达
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: VSV matrix protein
物种来源: Vesicular Stomatitis Virus
插入大小: 690 bp
启动子: CAG
克隆方法: 未知
5’测序引物 CTCTAGAGCCTCTGCTAACc
3’测序引物 CAGAAGTCAGATGCTCAAG

文献引用方法
材料和方法部分: pCAG-VSVG was a gift from Ian Wickersham (Addgene plasmid # 64084 ; http://n2t.net/addgene:64084 ; RRID:Addgene_64084)
参考文献部分: 未发表

载体图谱质粒图谱和多克隆位点信息

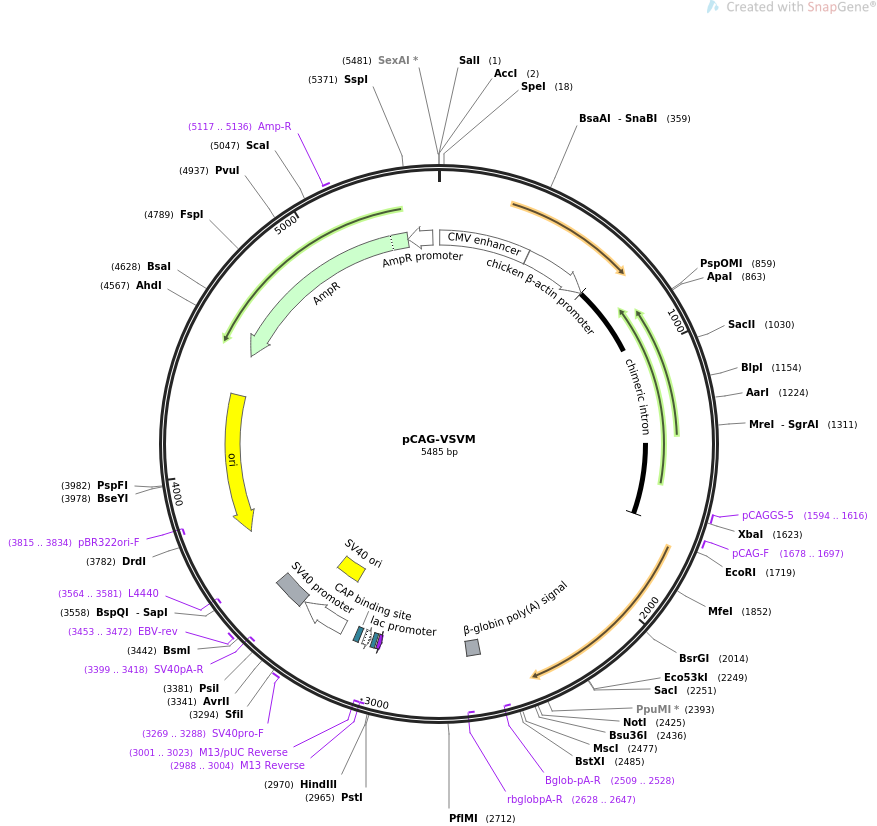

pCAG-VSVM载体图谱

载体简介

载体序列

LOCUS       pCAG-VSVM                5485 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Expression vector for Vesicular Stomatitis Virus Indiana strain
            matrix gene.
ACCESSION   .
VERSION     .
KEYWORDS    pCAG-VSVM
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5485)
  TITLE     Genetic Neuroengineering Group Plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 5485)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5485
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        4..383
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        386..661
                     /label=chicken beta-actin promoter
     intron          662..1670
                     /label=chimeric intron
                     /note="chimera between introns from chicken beta-actin and
                     rabbit beta-globin"
     primer_bind     1594..1616
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1678..1697
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     primer_bind     complement(2509..2528)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_signal    2574..2629
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal (Gil and
                     Proudfoot, 1987)"
     primer_bind     complement(2628..2647)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(2988..3004)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2988..3004)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3001..3023)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3012..3028
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3036..3066)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3081..3102
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        3161..3356
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      3207..3342
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3269..3288
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     polyA_signal    3362..3496
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3399..3418)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3453..3472
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3564..3581)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3735..4323)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3815..3834)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4494..5354)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5117..5136
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5355..5459)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacattg attattgact agttattaat agtaatcaat tacggggtca ttagttcata
       61 gcccatatat ggagttccgc gttacataac ttacggtaaa tggcccgcct ggctgaccgc
      121 ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt tcccatagta acgccaatag
      181 ggactttcca ttgacgtcaa tgggtggact atttacggta aactgcccac ttggcagtac
      241 atcaagtgta tcatatgcca agtacgcccc ctattgacgt caatgacggt aaatggcccg
      301 cctggcatta tgcccagtac atgaccttat gggactttcc tacttggcag tacatctacg
      361 tattagtcat cgctattacc atgggtcgag gtgagcccca cgttctgctt cactctcccc
      421 atctcccccc cctccccacc cccaattttg tatttattta ttttttaatt attttgtgca
      481 gcgatggggg cggggggggg gggggcgcgc gccaggcggg gcggggcggg gcgaggggcg
      541 gggcggggcg aggcggagag gtgcggcggc agccaatcag agcggcgcgc tccgaaagtt
      601 tccttttatg gcgaggcggc ggcggcggcg gccctataaa aagcgaagcg cgcggcgggc
      661 gggagtcgct gcgttgcctt cgccccgtgc cccgctccgc gccgcctcgc gccgcccgcc
      721 ccggctctga ctgaccgcgt tactcccaca ggtgagcggg cgggacggcc cttctcctcc
      781 gggctgtaat tagcgcttgg tttaatgacg gctcgtttct tttctgtggc tgcgtgaaag
      841 ccttaaaggg ctccgggagg gccctttgtg cgggggggag cggctcgggg ggtgcgtgcg
      901 tgtgtgtgtg cgtggggagc gccgcgtgcg gcccgcgctg cccggcggct gtgagcgctg
      961 cgggcgcggc gcggggcttt gtgcgctccg cgtgtgcgcg aggggagcgc ggccgggggc
     1021 ggtgccccgc ggtgcggggg ggctgcgagg ggaacaaagg ctgcgtgcgg ggtgtgtgcg
     1081 tgggggggtg agcagggggt gtgggcgcgg cggtcgggct gtaacccccc cctgcacccc
     1141 cctccccgag ttgctgagca cggcccggct tcgggtgcgg ggctccgtgc ggggcgtggc
     1201 gcggggctcg ccgtgccggg cggggggtgg cggcaggtgg gggtgccggg cggggcgggg
     1261 ccgcctcggg ccggggaggg ctcgggggag gggcgcggcg gccccggagc gccggcggct
     1321 gtcgaggcgc ggcgagccgc agccattgcc ttttatggta atcgtgcgag agggcgcagg
     1381 gacttccttt gtcccaaatc tggcggagcc gaaatctggg aggcgccgcc gcaccccctc
     1441 tagcgggcgc gggcgaagcg gtgcggcgcc ggcaggaagg aaatgggcgg ggagggcctt
     1501 cgtgcgtcgc cgcgccgccg tccccttctc catctccagc ctcggggctg ccgcaggggg
     1561 acggctgcct tcggggggga cggggcaggg cggggttcgg cttctggcgt gtgaccggcg
     1621 gctctagagc ctctgctaac catgttcatg ccttcttctt tttcctacag ctcctgggca
     1681 acgtgctggt tattgtgctg tctcatcatt ttggcaaaga attcgccgcc accatgagtt
     1741 ccttaaagaa gattctcggt ctgaagggga aaggtaagaa atctaagaaa ttagggatcg
     1801 caccaccccc ttatgaagag gacactagca tggagtatgc tccgagcgct ccaattgaca
     1861 aatcctattt tggagttgac gagatggaca cctatgatcc gaatcaatta agatatgaga
     1921 aattcttctt tacagtgaaa atgacggtta gatctaatcg tccgttcaga acatactcag
     1981 atgtggcagc cgctgtatcc cattgggatc acatgtacat cggaatggca gggaaacgtc
     2041 ccttctacaa aatcttggct tttttgggtt cttctaatct aaaggccact ccagcggtat
     2101 tggcagatca aggtcaacca gagtatcacg ctcactgcga aggcagggct tatttgccac
     2161 ataggatggg gaagacccct cccatgctca atgtaccaga gcacttcaga agaccattca
     2221 atataggtct ttacaaggga acgattgagc tcacaatgac catctacgat gatgagtcac
     2281 tggaagcagc tcctatgatc tgggatcatt tcaattcttc caaattttct gatttcagag
     2341 agaaggcctt aatgtttggc ctgattgtcg agaaaaaggc atctggagcg tgggtcctgg
     2401 attctatcag ccacttcaaa tgagcggccg cactcctcag gtgcaggctg cctatcagaa
     2461 ggtggtggct ggtgtggcca atgccctggc tcacaaatac cactgagatc tttttccctc
     2521 tgccaaaaat tatggggaca tcatgaagcc ccttgagcat ctgacttctg gctaataaag
     2581 gaaatttatt ttcattgcaa tagtgtgttg gaattttttg tgtctctcac tcggaaggac
     2641 atatgggagg gcaaatcatt taaaacatca gaatgagtat ttggtttaga gtttggcaac
     2701 atatgccata tgctggctgc catgaacaaa ggtggctata aagaggtcat cagtatatga
     2761 aacagccccc tgctgtccat tccttattcc atagaaaagc cttgacttga ggttagattt
     2821 tttttatatt ttgttttgtg ttattttttt ctttaacatc cctaaaattt tccttacatg
     2881 ttttactagc cagatttttc ctcctctcct gactactccc agtcatagct gtccctcttc
     2941 tcttatgaag atccctcgac ctgcagccca agcttggcgt aatcatggtc atagctgttt
     3001 cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg aagcataaag
     3061 tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt gcgctcactg
     3121 cccgctttcc agtcgggaaa cctgtcgtgc cagcggatcc gcatctcaat tagtcagcaa
     3181 ccatagtccc gcccctaact ccgcccatcc cgcccctaac tccgcccagt tccgcccatt
     3241 ctccgcccca tggctgacta atttttttta tttatgcaga ggccgaggcc gcctcggcct
     3301 ctgagctatt ccagaagtag tgaggaggct tttttggagg cctaggcttt tgcaaaaagc
     3361 taacttgttt attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac
     3421 aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc
     3481 ttatcatgtc tggatccgct gcattaatga atcggccaac gcgcggggag aggcggtttg
     3541 cgtattgggc gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg
     3601 cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat
     3661 aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc
     3721 gcgttgctgg cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc
     3781 tcaagtcaga ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga
     3841 agctccctcg tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt
     3901 ctcccttcgg gaagcgtggc gctttctcaa tgctcacgct gtaggtatct cagttcggtg
     3961 taggtcgttc gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc
     4021 gccttatccg gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg
     4081 gcagcagcca ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc
     4141 ttgaagtggt ggcctaacta cggctacact agaaggacag tatttggtat ctgcgctctg
     4201 ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc
     4261 gctggtagcg gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct
     4321 caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga aaactcacgt
     4381 taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct tttaaattaa
     4441 aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga cagttaccaa
     4501 tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc catagttgcc
     4561 tgactccccg tcgtgtagat aactacgata cgggagggct taccatctgg ccccagtgct
     4621 gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat aaaccagcca
     4681 gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat ccagtctatt
     4741 aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg caacgttgtt
     4801 gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc attcagctcc
     4861 ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa agcggttagc
     4921 tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc actcatggtt
     4981 atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt ttctgtgact
     5041 ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag ttgctcttgc
     5101 ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt gctcatcatt
     5161 ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag atccagttcg
     5221 atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac cagcgtttct
     5281 gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc gacacggaaa
     5341 tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca gggttattgt
     5401 ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg ggttccgcgc
     5461 acatttcccc gaaaagtgcc acctg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
