pCAG-VSVP

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pCAG-VSVP
出品公司: Addgene
目录编号: 64088
质粒用途: 水泡性口炎病毒phosphoprotein基因的表达载体
存储实验室: Ian Wickersham
相关质粒: pCAG-VSVG
pCAG-VSVL
pCAG-VSVM
pCAG-VSVN
pCAG-VSVP

载体骨架基本信息
载体名称: pCAGEN
空载体大小: 4795 bp
完整质粒大小: 5593 bp
载体类型: 哺乳细胞表达
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: VSV phosphoprotein
物种来源: Vesicular Stomatitis Virus
插入大小: 798 bp
启动子: CAG
克隆方法: 未知
5’测序引物 CTCTAGAGCCTCTGCTAACc
3’测序引物 CAGAAGTCAGATGCTCAAG

文献引用方法
材料和方法部分: pCAG-VSVG was a gift from Ian Wickersham (Addgene plasmid # 64084 ; http://n2t.net/addgene:64084 ; RRID:Addgene_64084)
参考文献部分: 未发表

载体图谱质粒图谱和多克隆位点信息

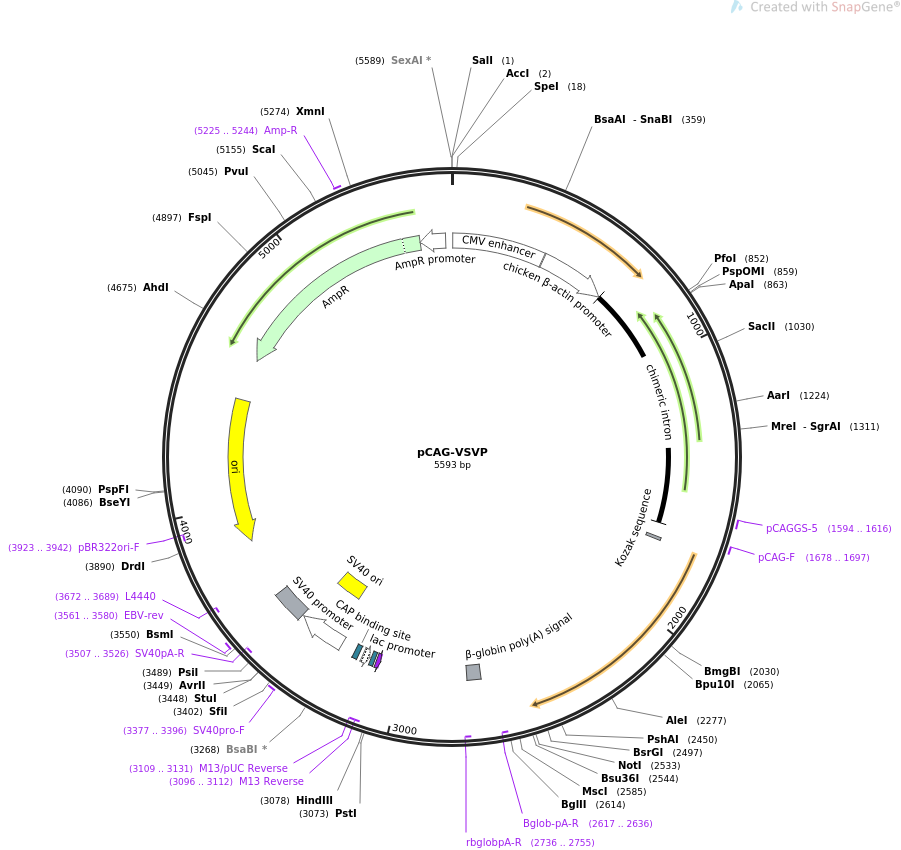

pCAG-VSVP载体图谱

载体简介

载体序列

LOCUS       pCAG-VSVP                5593 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Expression vector for Vesicular Stomatitis Virus Indiana strain
            phosphoprotein gene.
ACCESSION   .
VERSION     .
KEYWORDS    pCAG-VSVP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5593)
  TITLE     Genetic Neuroengineering Group Plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 5593)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5593
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        4..383
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        386..661
                     /label=chicken beta-actin promoter
     intron          662..1670
                     /label=chimeric intron
                     /note="chimera between introns from chicken beta-actin and
                     rabbit beta-globin"
     primer_bind     1594..1616
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1678..1697
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     regulatory      1728..1737
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     primer_bind     complement(2617..2636)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_signal    2682..2737
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal (Gil and
                     Proudfoot, 1987)"
     primer_bind     complement(2736..2755)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(3096..3112)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3096..3112)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3109..3131)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3120..3136
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3144..3174)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3189..3210
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        3269..3464
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      3315..3450
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3377..3396
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     polyA_signal    3470..3604
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3507..3526)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3561..3580
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3672..3689)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3843..4431)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3923..3942)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4602..5462)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5225..5244
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5463..5567)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacattg attattgact agttattaat agtaatcaat tacggggtca ttagttcata
       61 gcccatatat ggagttccgc gttacataac ttacggtaaa tggcccgcct ggctgaccgc
      121 ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt tcccatagta acgccaatag
      181 ggactttcca ttgacgtcaa tgggtggact atttacggta aactgcccac ttggcagtac
      241 atcaagtgta tcatatgcca agtacgcccc ctattgacgt caatgacggt aaatggcccg
      301 cctggcatta tgcccagtac atgaccttat gggactttcc tacttggcag tacatctacg
      361 tattagtcat cgctattacc atgggtcgag gtgagcccca cgttctgctt cactctcccc
      421 atctcccccc cctccccacc cccaattttg tatttattta ttttttaatt attttgtgca
      481 gcgatggggg cggggggggg gggggcgcgc gccaggcggg gcggggcggg gcgaggggcg
      541 gggcggggcg aggcggagag gtgcggcggc agccaatcag agcggcgcgc tccgaaagtt
      601 tccttttatg gcgaggcggc ggcggcggcg gccctataaa aagcgaagcg cgcggcgggc
      661 gggagtcgct gcgttgcctt cgccccgtgc cccgctccgc gccgcctcgc gccgcccgcc
      721 ccggctctga ctgaccgcgt tactcccaca ggtgagcggg cgggacggcc cttctcctcc
      781 gggctgtaat tagcgcttgg tttaatgacg gctcgtttct tttctgtggc tgcgtgaaag
      841 ccttaaaggg ctccgggagg gccctttgtg cgggggggag cggctcgggg ggtgcgtgcg
      901 tgtgtgtgtg cgtggggagc gccgcgtgcg gcccgcgctg cccggcggct gtgagcgctg
      961 cgggcgcggc gcggggcttt gtgcgctccg cgtgtgcgcg aggggagcgc ggccgggggc
     1021 ggtgccccgc ggtgcggggg ggctgcgagg ggaacaaagg ctgcgtgcgg ggtgtgtgcg
     1081 tgggggggtg agcagggggt gtgggcgcgg cggtcgggct gtaacccccc cctgcacccc
     1141 cctccccgag ttgctgagca cggcccggct tcgggtgcgg ggctccgtgc ggggcgtggc
     1201 gcggggctcg ccgtgccggg cggggggtgg cggcaggtgg gggtgccggg cggggcgggg
     1261 ccgcctcggg ccggggaggg ctcgggggag gggcgcggcg gccccggagc gccggcggct
     1321 gtcgaggcgc ggcgagccgc agccattgcc ttttatggta atcgtgcgag agggcgcagg
     1381 gacttccttt gtcccaaatc tggcggagcc gaaatctggg aggcgccgcc gcaccccctc
     1441 tagcgggcgc gggcgaagcg gtgcggcgcc ggcaggaagg aaatgggcgg ggagggcctt
     1501 cgtgcgtcgc cgcgccgccg tccccttctc catctccagc ctcggggctg ccgcaggggg
     1561 acggctgcct tcggggggga cggggcaggg cggggttcgg cttctggcgt gtgaccggcg
     1621 gctctagagc ctctgctaac catgttcatg ccttcttctt tttcctacag ctcctgggca
     1681 acgtgctggt tattgtgctg tctcatcatt ttggcaaaga attcgccgcc accatggata
     1741 atctcacaaa agttcgtgag tatctcaagt cctactctcg tctagatcag gcggtaggag
     1801 agatagatga gatcgaagca caacgagctg aaaagtccaa ttatgagttg ttccaagagg
     1861 acggagtgga agagcatact aggccctctt attttcaggc agcagatgat tctgacacag
     1921 aatctgaacc agaaattgaa gacaatcaag gcttgtatgt accagatccg gaagctgagc
     1981 aagttgaagg ctttatacag gggcctttag atgactatgc agatgaggac gtggatgttg
     2041 tattcacttc ggactggaaa cagcctgagc ttgaatccga cgagcatgga aagaccttac
     2101 ggttgacatt gccagagggt ttaagtggag agcagaaatc ccagtggctt ttgacgatta
     2161 aagcagtcgt tcaaagtgcc aaacactgga atctggcaga gtgcacattt gaagcatcgg
     2221 gagaaggggt catcataaaa aagcgccaga taactccgga tgtatataag gtcactccag
     2281 tgatgaacac acatccgtac caatcagaag ccgtatcaga tgtttggtct ctctcaaaga
     2341 catccatgac tttccaaccc aagaaagcaa gtcttcagcc tctcaccata tccttggatg
     2401 aattgttctc atctagagga gaattcatct ctgtcggagg taacggacga atgtctcata
     2461 aagaggccat cctgctcggt ctgaggtaca aaaagttgta caatcaggcg agagtcaaat
     2521 attctctgta ggcggccgca ctcctcaggt gcaggctgcc tatcagaagg tggtggctgg
     2581 tgtggccaat gccctggctc acaaatacca ctgagatctt tttccctctg ccaaaaatta
     2641 tggggacatc atgaagcccc ttgagcatct gacttctggc taataaagga aatttatttt
     2701 cattgcaata gtgtgttgga attttttgtg tctctcactc ggaaggacat atgggagggc
     2761 aaatcattta aaacatcaga atgagtattt ggtttagagt ttggcaacat atgccatatg
     2821 ctggctgcca tgaacaaagg tggctataaa gaggtcatca gtatatgaaa cagccccctg
     2881 ctgtccattc cttattccat agaaaagcct tgacttgagg ttagattttt tttatatttt
     2941 gttttgtgtt atttttttct ttaacatccc taaaattttc cttacatgtt ttactagcca
     3001 gatttttcct cctctcctga ctactcccag tcatagctgt ccctcttctc ttatgaagat
     3061 ccctcgacct gcagcccaag cttggcgtaa tcatggtcat agctgtttcc tgtgtgaaat
     3121 tgttatccgc tcacaattcc acacaacata cgagccggaa gcataaagtg taaagcctgg
     3181 ggtgcctaat gagtgagcta actcacatta attgcgttgc gctcactgcc cgctttccag
     3241 tcgggaaacc tgtcgtgcca gcggatccgc atctcaatta gtcagcaacc atagtcccgc
     3301 ccctaactcc gcccatcccg cccctaactc cgcccagttc cgcccattct ccgccccatg
     3361 gctgactaat tttttttatt tatgcagagg ccgaggccgc ctcggcctct gagctattcc
     3421 agaagtagtg aggaggcttt tttggaggcc taggcttttg caaaaagcta acttgtttat
     3481 tgcagcttat aatggttaca aataaagcaa tagcatcaca aatttcacaa ataaagcatt
     3541 tttttcactg cattctagtt gtggtttgtc caaactcatc aatgtatctt atcatgtctg
     3601 gatccgctgc attaatgaat cggccaacgc gcggggagag gcggtttgcg tattgggcgc
     3661 tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta
     3721 tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa cgcaggaaag
     3781 aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg
     3841 tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc aagtcagagg
     3901 tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag ctccctcgtg
     3961 cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct cccttcggga
     4021 agcgtggcgc tttctcaatg ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc
     4081 tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc cttatccggt
     4141 aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc agcagccact
     4201 ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt gaagtggtgg
     4261 cctaactacg gctacactag aaggacagta tttggtatct gcgctctgct gaagccagtt
     4321 accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc tggtagcggt
     4381 ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct
     4441 ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg
     4501 gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt
     4561 aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt
     4621 gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc
     4681 gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg
     4741 cgagacccac gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc
     4801 gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg
     4861 gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca
     4921 ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga
     4981 tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct
     5041 ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg
     5101 cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca
     5161 accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata
     5221 cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct
     5281 tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact
     5341 cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa
     5401 acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc
     5461 atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga
     5521 tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga
     5581 aaagtgccac ctg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
