pCAG-luciferase

价格:1000元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pCAG-luciferase
出品公司: 爱迪基因
目录编号: 55764
存储实验室: Snorri Thorgeirsson

载体骨架基本信息
载体名称: pGL4.17[luc2/Neo]
载体出品公司: Promega
载体抗性: 氨苄霉素
空载体大小: 5599 bp
完整质粒大小: 7323 bp
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: CMV enhancer/chicken beta actin promoter
插入大小: 1732 bp
启动子 CMV enhancer/chicken beta actin promoter
克隆方法: 限制性内切酶
5' 克隆位点: SalI(未破坏)
3' 克隆位点: EcoRV(未破坏)
5' 测序引物 RV3 primer
3' 测序引物 pCAG-F

文献引用方法
材料和方法部分: pCAG-luciferase was a gift from Snorri Thorgeirsson (爱迪基因 plasmid # 55764)
参考文献部分: Definition of ubiquitination modulator COP1 as a novel therapeutic target in human hepatocellular carcinoma. Lee YH, Andersen JB, Song HT, Judge AD, Seo D, Ishikawa T, Marquardt JU, Kitade M, Durkin ME, Raggi C, Woo HG, Conner EA, Avital I, Maclachlan I, Factor VM, Thorgeirsson SS. Cancer Res. 2010 Nov 1;70(21):8264-9. doi: 10.1158/0008-5472.CAN-10-0749. Epub 2010 Oct 19. 10.1158/0008-5472.CAN-10-0749 PubMed 20959491

载体图谱质粒图谱和多克隆位点信息

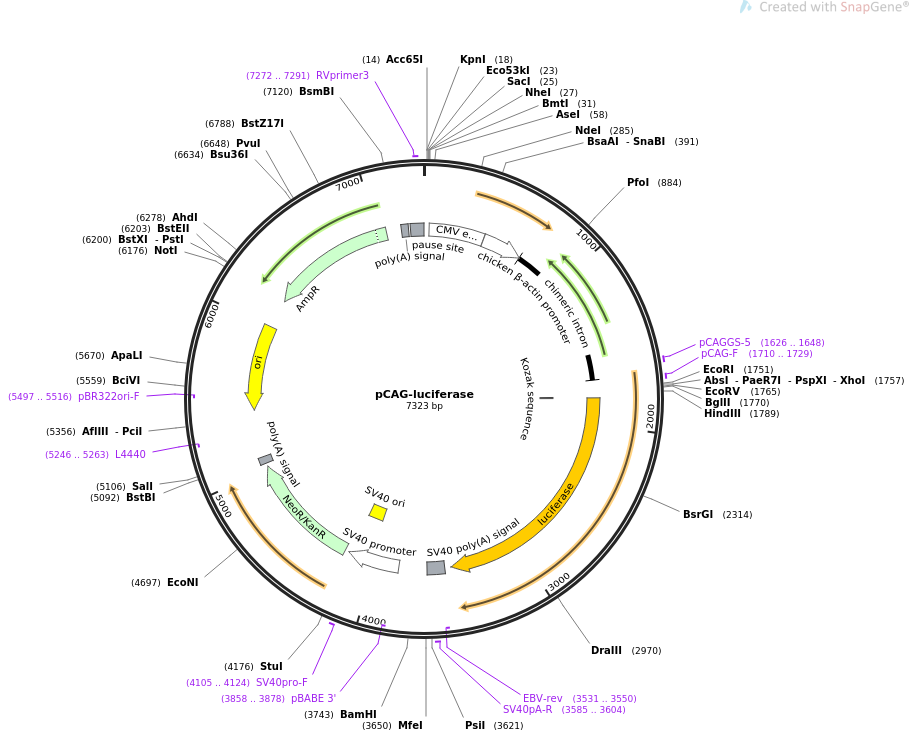

pCAG-luciferase质粒图谱

载体简介

载体序列

LOCUS       pCAG-luciferase                7323 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  luciferase reporter for in vivo bioluminescence imaging.
ACCESSION   .
VERSION     .
KEYWORDS    pCAG-luciferase
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7323)
  AUTHORS   Lee YH, Andersen JB, Song HT, Judge AD, Seo D, Ishikawa T, Marquardt
            JU, Kitade M, Durkin ME, Raggi C, Woo HG, Conner EA, Avital I,
            Maclachlan I, Factor VM, Thorgeirsson SS
  TITLE     Definition of ubiquitination modulator COP1 as a novel therapeutic
            target in human hepatocellular carcinoma.
  JOURNAL   Cancer Res. 2010 Nov 1;70(21):8264-9. doi:
            10.1158/0008-5472.CAN-10-0749. Epub 2010 Oct 19.
  PUBMED    20959491
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|pCAG-luciferase|
FEATURES             Location/Qualifiers
     source          1..7323
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        36..415
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        418..693
                     /label=chicken beta-actin promoter
     intron          694..1702
                     /label=chimeric intron
                     /note="chimera between introns from chicken beta-actin and
                     rabbit beta-globin"
     primer_bind     1626..1648
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1710..1729
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     regulatory      1818..1827
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1824..3476
                     /codon_start=1
                     /product="firefly luciferase"
                     /label=luciferase
                     /note="synthetic luc2 version of the luciferase gene"
                     /translation="MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTDA
                     HIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAVAP
                     ANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQGFQS
                     MYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVRFSHA
                     RDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRSLQDYK
                     IQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLPGIRQGY
                     GLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCVRGPMIMS
                     GYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVAPAELESIL
                     LQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTTAKKLRGGVV
                     FVDEVPKGLTGKLDARKIREILIKAKKGGKIAV"
     polyA_signal    3520..3641
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3531..3550)
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     3585..3604
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     promoter        3835..4192
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(3858..3878)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      4043..4178
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     4105..4124
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             4223..5017
                     /codon_start=1
                     /product="aminoglycoside phosphotransferase"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    5042..5090
                     /note="synthetic polyadenylation signal"
     primer_bind     complement(5246..5263)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5417..6005)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5497..5516)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6205..7065)
                     /codon_start=1
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     polyA_signal    7170..7218
                     /note="synthetic polyadenylation signal"
     misc_feature    7232..7323
                     /label=pause site
                     /note="RNA polymerase II transcriptional pause signal from
                     the human alpha-2 globin gene"
     primer_bind     7272..7291
                     /label=RVprimer3
                     /note="pGL3 vector, forward primer"
ORIGIN
        1 ggcctaactg gccggtacct gagctcgcta gcctcgacat tgattattga ctagttatta
       61 atagtaatca attacggggt cattagttca tagcccatat atggagttcc gcgttacata
      121 acttacggta aatggcccgc ctggctgacc gcccaacgac ccccgcccat tgacgtcaat
      181 aatgacgtat gttcccatag taacgccaat agggactttc cattgacgtc aatgggtgga
      241 ctatttacgg taaactgccc acttggcagt acatcaagtg tatcatatgc caagtacgcc
      301 ccctattgac gtcaatgacg gtaaatggcc cgcctggcat tatgcccagt acatgacctt
      361 atgggacttt cctacttggc agtacatcta cgtattagtc atcgctatta ccatgggtcg
      421 aggtgagccc cacgttctgc ttcactctcc ccatctcccc cccctcccca cccccaattt
      481 tgtatttatt tattttttaa ttattttgtg cagcgatggg ggcggggggg gggggggcgc
      541 gcgccaggcg gggcggggcg gggcgagggg cggggcgggg cgaggcggag aggtgcggcg
      601 gcagccaatc agagcggcgc gctccgaaag tttcctttta tggcgaggcg gcggcggcgg
      661 cggccctata aaaagcgaag cgcgcggcgg gcgggagtcg ctgcgttgcc ttcgccccgt
      721 gccccgctcc gcgccgcctc gcgccgcccg ccccggctct gactgaccgc gttactccca
      781 caggtgagcg ggcgggacgg cccttctcct ccgggctgta attagcgctt ggtttaatga
      841 cggctcgttt cttttctgtg gctgcgtgaa agccttaaag ggctccggga gggccctttg
      901 tgcggggggg agcggctcgg ggggtgcgtg cgtgtgtgtg tgcgtgggga gcgccgcgtg
      961 cggcccgcgc tgcccggcgg ctgtgagcgc tgcgggcgcg gcgcggggct ttgtgcgctc
     1021 cgcgtgtgcg cgaggggagc gcggccgggg gcggtgcccc gcggtgcggg ggggctgcga
     1081 ggggaacaaa ggctgcgtgc ggggtgtgtg cgtggggggg tgagcagggg gtgtgggcgc
     1141 ggcggtcggg ctgtaacccc cccctgcacc cccctccccg agttgctgag cacggcccgg
     1201 cttcgggtgc ggggctccgt gcggggcgtg gcgcggggct cgccgtgccg ggcggggggt
     1261 ggcggcaggt gggggtgccg ggcggggcgg ggccgcctcg ggccggggag ggctcggggg
     1321 aggggcgcgg cggccccgga gcgccggcgg ctgtcgaggc gcggcgagcc gcagccattg
     1381 ccttttatgg taatcgtgcg agagggcgca gggacttcct ttgtcccaaa tctggcggag
     1441 ccgaaatctg ggaggcgccg ccgcaccccc tctagcgggc gcgggcgaag cggtgcggcg
     1501 ccggcaggaa ggaaatgggc ggggagggcc ttcgtgcgtc gccgcgccgc cgtccccttc
     1561 tccatctcca gcctcggggc tgccgcaggg ggacggctgc cttcgggggg gacggggcag
     1621 ggcggggttc ggcttctggc gtgtgaccgg cggctctaga gcctctgcta accatgttca
     1681 tgccttcttc tttttcctac agctcctggg caacgtgctg gttattgtgc tgtctcatca
     1741 ttttggcaaa gaattcctcg aggatatcaa gatctggcct cggcggccaa gcttggcaat
     1801 ccggtactgt tggtaaagcc accatggaag atgccaaaaa cattaagaag ggcccagcgc
     1861 cattctaccc actcgaagac gggaccgccg gcgagcagct gcacaaagcc atgaagcgct
     1921 acgccctggt gcccggcacc atcgccttta ccgacgcaca tatcgaggtg gacattacct
     1981 acgccgagta cttcgagatg agcgttcggc tggcagaagc tatgaagcgc tatgggctga
     2041 atacaaacca tcggatcgtg gtgtgcagcg agaatagctt gcagttcttc atgcccgtgt
     2101 tgggtgccct gttcatcggt gtggctgtgg ccccagctaa cgacatctac aacgagcgcg
     2161 agctgctgaa cagcatgggc atcagccagc ccaccgtcgt attcgtgagc aagaaagggc
     2221 tgcaaaagat cctcaacgtg caaaagaagc taccgatcat acaaaagatc atcatcatgg
     2281 atagcaagac cgactaccag ggcttccaaa gcatgtacac cttcgtgact tcccatttgc
     2341 cacccggctt caacgagtac gacttcgtgc ccgagagctt cgaccgggac aaaaccatcg
     2401 ccctgatcat gaacagtagt ggcagtaccg gattgcccaa gggcgtagcc ctaccgcacc
     2461 gcaccgcttg tgtccgattc agtcatgccc gcgaccccat cttcggcaac cagatcatcc
     2521 ccgacaccgc tatcctcagc gtggtgccat ttcaccacgg cttcggcatg ttcaccacgc
     2581 tgggctactt gatctgcggc tttcgggtcg tgctcatgta ccgcttcgag gaggagctat
     2641 tcttgcgcag cttgcaagac tataagattc aatctgccct gctggtgccc acactattta
     2701 gcttcttcgc taagagcact ctcatcgaca agtacgacct aagcaacttg cacgagatcg
     2761 ccagcggcgg ggcgccgctc agcaaggagg taggtgaggc cgtggccaaa cgcttccacc
     2821 taccaggcat ccgccagggc tacggcctga cagaaacaac cagcgccatt ctgatcaccc
     2881 ccgaagggga cgacaagcct ggcgcagtag gcaaggtggt gcccttcttc gaggctaagg
     2941 tggtggactt ggacaccggt aagacactgg gtgtgaacca gcgcggcgag ctgtgcgtcc
     3001 gtggccccat gatcatgagc ggctacgtta acaaccccga ggctacaaac gctctcatcg
     3061 acaaggacgg ctggctgcac agcggcgaca tcgcctactg ggacgaggac gagcacttct
     3121 tcatcgtgga ccggctgaag agcctgatca aatacaaggg ctaccaggta gccccagccg
     3181 aactggagag catcctgctg caacacccca acatcttcga cgccggggtc gccggcctgc
     3241 ccgacgacga tgccggcgag ctgcccgccg cagtcgtcgt gctggaacac ggtaaaacca
     3301 tgaccgagaa ggagatcgtg gactatgtgg ccagccaggt tacaaccgcc aagaagctgc
     3361 gcggtggtgt tgtgttcgtg gacgaggtgc ctaaaggact gaccggcaag ttggacgccc
     3421 gcaagatccg cgagattctc attaaggcca agaagggcgg caagatcgcc gtgtaataat
     3481 tctagagtcg gggcggccgg ccgcttcgag cagacatgat aagatacatt gatgagtttg
     3541 gacaaaccac aactagaatg cagtgaaaaa aatgctttat ttgtgaaatt tgtgatgcta
     3601 ttgctttatt tgtaaccatt ataagctgca ataaacaagt taacaacaac aattgcattc
     3661 attttatgtt tcaggttcag ggggaggtgt gggaggtttt ttaaagcaag taaaacctct
     3721 acaaatgtgg taaaatcgat aaggatccgt ttgcgtattg ggcgctcttc cgctgatctg
     3781 cgcagcacca tggcctgaaa taacctctga aagaggaact tggttagcta ccttctgagg
     3841 cggaaagaac cagctgtgga atgtgtgtca gttagggtgt ggaaagtccc caggctcccc
     3901 agcaggcaga agtatgcaaa gcatgcatct caattagtca gcaaccaggt gtggaaagtc
     3961 cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccat
     4021 agtcccgccc ctaactccgc ccatcccgcc cctaactccg cccagttccg cccattctcc
     4081 gccccatggc tgactaattt tttttattta tgcagaggcc gaggccgcct ctgcctctga
     4141 gctattccag aagtagtgag gaggcttttt tggaggccta ggcttttgca aaaagctcga
     4201 ttcttctgac actagcgcca ccatgatcga acaagacggc ctccatgctg gcagtcccgc
     4261 agcttgggtc gaacgcttgt tcgggtacga ctgggcccag cagaccatcg gatgtagcga
     4321 tgcggccgtg ttccgtctaa gcgctcaagg ccggcccgtg ctgttcgtga agaccgacct
     4381 gagcggcgcc ctgaacgagc ttcaagacga ggctgcccgc ctgagctggc tggccaccac
     4441 cggcgtaccc tgcgccgctg tgttggatgt tgtgaccgaa gccggccggg actggctgct
     4501 gctgggcgag gtccctggcc aggatctgct gagcagccac cttgcccccg ctgagaaggt
     4561 ttctatcatg gccgatgcaa tgcggcgcct gcacaccctg gaccccgcta cctgcccctt
     4621 cgaccaccag gctaagcatc ggatcgagcg tgctcggacc cgcatggagg ccggcctggt
     4681 ggaccaggac gacctggacg aggagcatca gggcctggcc cccgctgaac tgttcgcccg
     4741 actgaaagcc cgcatgccgg acggtgagga cctggttgtc acacacggag atgcctgcct
     4801 ccctaacatc atggtcgaga atggccgctt ctccggcttc atcgactgcg gtcgcctagg
     4861 agttgccgac cgctaccagg acatcgccct ggccacccgc gacatcgctg aggagcttgg
     4921 cggcgagtgg gccgaccgct tcttagtctt gtacggcatc gcagctcccg acagccagcg
     4981 catcgccttc taccgcttgc tcgacgagtt cttttaatga tctagaaccg gtcatggccg
     5041 caataaaata tctttatttt cattacatct gtgtgttggt tttttgtgtg ttcgaactag
     5101 atgctgtcga ccgatgccct tgagagcctt caacccagtc agctccttcc ggtgggcgcg
     5161 gggcatgact atcgtcgccg cacttatgac tgtcttcttt atcatgcaac tcgtaggaca
     5221 ggtgccggca gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc
     5281 tgcggcgagc ggtatcagct cactcaaagg cggtaatacg gttatccaca gaatcagggg
     5341 ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg
     5401 ccgcgttgct ggcgtttttc cataggctcc gcccccctga cgagcatcac aaaaatcgac
     5461 gctcaagtca gaggtggcga aacccgacag gactataaag ataccaggcg tttccccctg
     5521 gaagctccct cgtgcgctct cctgttccga ccctgccgct taccggatac ctgtccgcct
     5581 ttctcccttc gggaagcgtg gcgctttctc atagctcacg ctgtaggtat ctcagttcgg
     5641 tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct
     5701 gcgccttatc cggtaactat cgtcttgagt ccaacccggt aagacacgac ttatcgccac
     5761 tggcagcagc cactggtaac aggattagca gagcgaggta tgtaggcggt gctacagagt
     5821 tcttgaagtg gtggcctaac tacggctaca ctagaagaac agtatttggt atctgcgctc
     5881 tgctgaagcc agttaccttc ggaaaaagag ttggtagctc ttgatccggc aaacaaacca
     5941 ccgctggtag cggtggtttt tttgtttgca agcagcagat tacgcgcaga aaaaaaggat
     6001 ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc tcagtggaac gaaaactcac
     6061 gttaagggat tttggtcatg agattatcaa aaaggatctt cacctagatc cttttaaatt
     6121 aaaaatgaag ttttaaatca atctaaagta tatatgagta aacttggtct gacagcggcc
     6181 gcaaatgcta aaccactgca gtggttacca gtgcttgatc agtgaggcac cgatctcagc
     6241 gatctgccta tttcgttcgt ccatagtggc ctgactcccc gtcgtgtaga tcactacgat
     6301 tcgtgagggc ttaccatcag gccccagcgc agcaatgatg ccgcgagagc cgcgttcacc
     6361 ggcccccgat ttgtcagcaa tgaaccagcc agcagggagg gccgagcgaa gaagtggtcc
     6421 tgctactttg tccgcctcca tccagtctat gagctgctgt cgtgatgcta gagtaagaag
     6481 ttcgccagtg agtagtttcc gaagagttgt ggccattgct actggcatcg tggtatcacg
     6541 ctcgtcgttc ggtatggctt cgttcaactc tggttcccag cggtcaagcc gggtcacatg
     6601 atcacccata ttatgaagaa atgcagtcag ctccttaggg cctccgatcg ttgtcagaag
     6661 taagttggcc gcggtgttgt cgctcatggt aatggcagca ctacacaatt ctcttaccgt
     6721 catgccatcc gtaagatgct tttccgtgac cggcgagtac tcaaccaagt cgttttgtga
     6781 gtagtgtata cggcgaccaa gctgctcttg cccggcgtct atacgggaca acaccgcgcc
     6841 acatagcagt actttgaaag tgctcatcat cgggaatcgt tcttcggggc ggaaagactc
     6901 aaggatcttg ccgctattga gatccagttc gatatagccc actcttgcac ccagttgatc
     6961 ttcagcatct tttactttca ccagcgtttc ggggtgtgca aaaacaggca agcaaaatgc
     7021 cgcaaagaag ggaatgagtg cgacacgaaa atgttggatg ctcatactcg tcctttttca
     7081 atattattga agcatttatc agggttacta gtacgtctct caaggataag taagtaatat
     7141 taaggtacgg gaggtattgg acaggccgca ataaaatatc tttattttca ttacatctgt
     7201 gtgttggttt tttgtgtgaa tcgatagtac taacatacgc tctccatcaa aacaaaacga
     7261 aacaaaacaa actagcaaaa taggctgtcc ccagtgcaag tgcaggtgcc agaacatttc
     7321 tct
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
