质粒名称: | pCas12f1 |
---|---|
出品公司: | Addgene |
目录编号: | 171182 |
存储实验室: | Kohsuke Honda |
载体骨架基本信息 |
|
载体名称: | pCas |
载体出品公司: | -- |
空载体大小: | 8576 bp |
完整质粒大小: | 12545 bp |
载体修饰: | 将靶向pTargetF的sgRNA序列替换为靶向pTarget12f1的序列。 |
载体类型: | 细菌表达,CRISPR |
筛选标记: | -- |
载体抗性: | 卡那霉素50 μg/mL |
生长温度: | 30 ℃ |
宿主菌: | DH5a |
拷贝数: | 低拷贝 |
插入基因信息 |
|
插入基因名称: | Cas12f1,Cas14a1 |
物种来源: | Synthetic |
插入大小: | 1587 bp |
基因突变: | -- |
GenBank编号 | -- |
启动子: | cas9 promoter from Streptococcus pyogenes |
标签/融合蛋白: | -- |
克隆方法: | 限制性内切酶 |
5’克隆位点: | SalI/XhoI(克隆期间销毁) |
3’克隆位点: | KpnI(未破坏) |
5’测序引物 | GTATTGGGTAATATTTTTTGAAGAGATATTTTG |
3’测序引物 | CATTCAAATATGTATCCGCTCATG |
文献引用方法 |
|
材料和方法部分: | pCas12f1 was a gift from Kohsuke Honda (Addgene plasmid # 171182 ; http://n2t.net/addgene:171182 ; RRID:Addgene_171182) |
参考文献部分: | Genome editing by miniature CRISPR/Cas12f1 enzyme in Escherichia coli. Okano K, Sato Y, Hizume T, Honda K. J Biosci Bioeng. 2021 Aug;132(2):120-124. doi: 10.1016/j.jbiosc.2021.04.009. Epub 2021 May 19. 10.1016/j.jbiosc.2021.04.009 PubMed 34023220 |
买家导航
载体基本信息

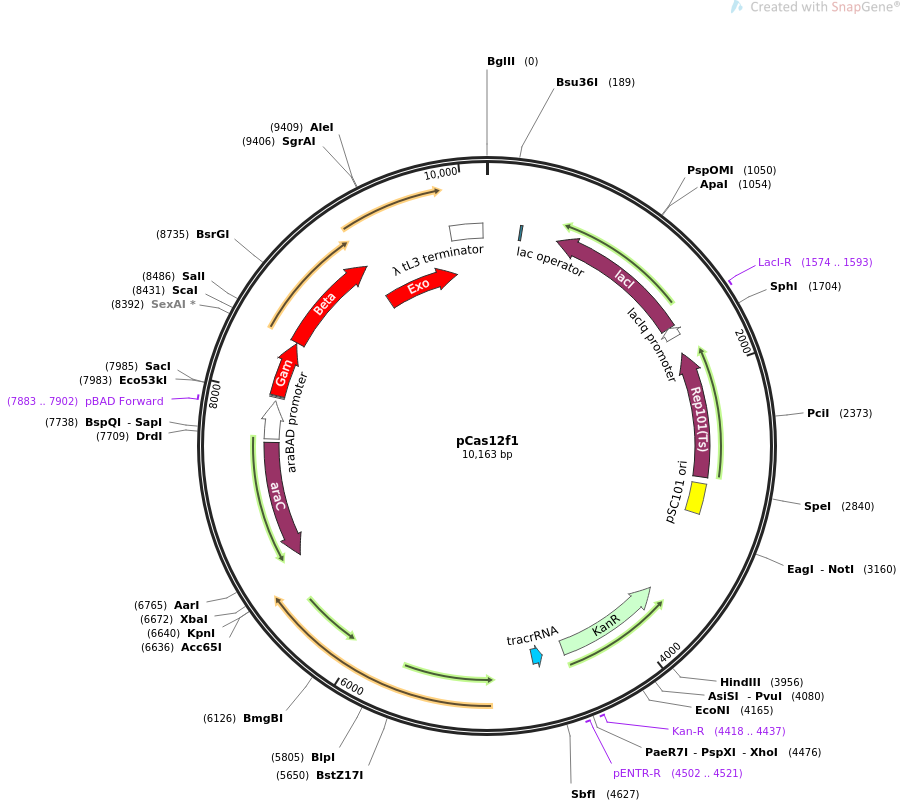

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pCas12f1 10163 bp ds-DNA circular SYN 29-JUN-2021 DEFINITION Constitutive expression of cas12f1, arabinose-inducible expression of lambda recombinase, and IPTG-inducible expression of sgRNA for curing of pTarget12f1. ACCESSION . VERSION . KEYWORDS pCas12f1 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 10163) TITLE Genome editing by miniature CRISPR/Cas12f1 enzyme in Escherichia coli JOURNAL Unpublished REFERENCE 2 (bases 1 to 10163) AUTHORS . TITLE Direct Submission JOURNAL Exported Jun 29, 2021 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..10163 /organism="synthetic DNA construct" /mol_type="other DNA" protein_bind 245..261 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." CDS complement(530..1612) /codon_start=1 /gene="lacI" /product="lac repressor" /label=lacI /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR ALADSLMQLARQVSRLESGQ" primer_bind 1574..1593 /label=LacI-R /note="LacI, reverse primer" promoter complement(1613..1690) /gene="lacI (mutant)" /label=lacIq promoter /note="In the lacIq allele, a single base change in the promoter boosts expression of the lacI gene about 10-fold." CDS complement(1823..2773) /codon_start=1 /gene="rep101 encoding an A56V mutation" /product="temperature-sensitive version of the RepA protein needed for replication with the pSC101 origin (Armstrong et al., 1984)" /label=Rep101(Ts) /translation="MSELVVFKANELAISRYDLTEHETKLILCCVALLNPTIENPTRKE RTVSFTYNQYVQMMNISRENAYGVLAKATRELMTRTVEIRNPLVKGFEIFQWTNYAKFS SEKLELVFSEEILPYLFQLKKFIKYNLEHVKSFENKYSMRIYEWLLKELTQKKTHKANI EISLDEFKFMLMLENNYHEFKRLNQWVLKPISKDLNTYSNMKLVVDKRGRPTDTLIFQV ELDRQMDLVTELENNQIKMNGDKIPTTITSDSYLHNGLRKTLHDALTAKIQLTSFEAKF LSDMQSKYDLNGSFSWLTQKQRTTLENILAKYGRI" rep_origin 2821..3043 /label=pSC101 ori /note="low-copy replication origin that requires the Rep101 protein" CDS complement(3695..4510) /codon_start=1 /gene="aph(3')-Ia" /product="aminoglycoside phosphotransferase" /label=KanR /note="confers resistance to kanamycin in bacteria or G418 (Geneticin(R)) in eukaryotes" /translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF" primer_bind 4418..4437 /label=Kan-R /note="Kanamycin resistance gene, reverse primer" primer_bind 4502..4521 /label=pENTR-R /note="pENTR vectors, reverse primer" misc_RNA complement(4666..4744) /label=tracrRNA /note="trans-activating CRISPR RNA for the Streptococcus pyogenes CRISPR/Cas9 system" CDS complement(6771..7649) /codon_start=1 /gene="araC" /product="L-arabinose regulatory protein" /label=araC /translation="MAEAQNDPLLPGYSFNAHLVAGLTPIEANGYLDFFIDRPLGMKGY ILNLTIRGQGVVKNQGREFVCRPGDILLFPPGEIHHYGRHPEAREWYHQWVYFRPRAYW HEWLNWPSIFANTGFFRPDEAHQPHFSDLFGQIINAGQGEGRYSELLAINLLEQLLLRH MEAINESLHPPMDNRVREACQYISDHLADSNFDIASVAQHVCLSPSRLSHLFRQQLGIS VLSWREDQRISQAKLLLSTTRMPIATVGRNVGFDDQLYFSRVFKKCTGASPSEFRAGCE EKVNDVAVKLS" promoter 7676..7960 /gene="araBAD" /label=araBAD promoter /note="promoter of the L-arabinose operon of E. coli; the araC regulatory gene is transcribed in the opposite direction (Guzman et al., 1995)" primer_bind 7883..7902 /label=pBAD Forward /note="For vectors with E. coli araBAD promoter, forward primer" RBS 7987..7995 /label=Shine-Dalgarno sequence /note="full consensus sequence for ribosome-binding sites upstream of start codons in E. coli; complementary to a region in the 3' end of the 16S rRNA (Chen et al., 1994)" CDS 8004..8420 /codon_start=1 /gene="gam" /product="inhibitor of the host RecBCD nuclease in the lambda Red system" /label=Gam /note="protects the double-stranded DNA substrate for recombination" /translation="MDINTETEIKQKHSLTPFPVFLISPAFRGRYFHSYFRSSAMNAYY IQDRLEAQSWARHYQQLAREEKEAELADDMEKGLPQHLFESLCIDHLQRHGASKKSITR AFDDDVEFQERMAEHIRYMVETIAHHQVDIDSEV" CDS 8426..9211 /codon_start=1 /gene="bet" /product="single-stranded DNA binding recombinase in the lambda Red system" /label=Beta /note="mediates pairing of a single-stranded DNA with a complementary target" /translation="MSTALATLAGKLAERVGMDSVDPQELITTLRQTAFKGDASDAQFI ALLIVANQYGLNPWTKEIYAFPDKQNGIVPVVGVDGWSRIINENQQFDGMDFEQDNESC TCRIYRKDRNHPICVTEWMDECRREPFKTREGREITGPWQSHPKRMLRHKAMIQCARLA FGFAGIYDKDEAERIVENTAYTAERQPERDITPVNDETMQEINTLLIALDKTWDDDLLP LCSQIFRRDIRASSELTQAEAVKALGFLKQKAAEQKVAA" CDS 9208..9888 /codon_start=1 /gene="exo" /product="5' to 3' double-stranded DNA exonuclease in the lambda Red system" /label=Exo /note="creates 3' single-stranded DNA tails" /translation="MTPDIILQRTGIDVRAVEQGDDAWHKLRLGVITASEVHNVIAKPR SGKKWPDMKMSYFHTLLAEVCTGVAPEVNAKALAWGKQYENDARTLFEFTSGVNVTESP IIYRDESMRTACSPDGLCSDGNGLELKCPFTSRDFMKFRLGGFEAIKSAYMAQVQYSMW VTRKNAWYFANYDPRMKREGLHYVVIERDEKYMASFDEIVPEFIEKMDEALAEIGFVFG EQWR" terminator 9889..10133 /label=-lambda tL3 terminator /note="transcription terminator tL3 from phage lambda" ORIGIN 1 gatctcaaaa aaacgccccc ctgacgagca tcagttgcat tccttcattc gtctattcgg 61 gttctgcaac tttcttgtgc agaattggag aggaaaaatg aatttgtttc gagggttact 121 ttccgaagaa agcacttctc gacattaggc tgatgcaagc agcccacctt cactcaagtt 181 ctaatcccct aagggacagc ttttggtgaa gcggttctcc actttatcag tgaagtgtgt 241 gaaattgtta tccgctcaca attccacaca acatacgagc cggatgatta attgtcaaca 301 gctcatttca gaatatttgc cagaaccgtt atgatgtcgg cgcaaaaaac attatccaga 361 acgggagtgc gccttgagcg acacgaatta tgcagtgatt tacgacctgc acagccatac 421 cacagcttcc gatggctgcc tgacgccaga agcattggtg caccgtgcag tcgatgataa 481 gctgtcaaac cagatcaatt cgcgctaact tacattaatt gcgttgcgct cactgcccgc 541 tttccagtcg ggaaacctgt cgtgccagct gcattaatga atcggccaac gcgcggggag 601 aggcggtttg cgtattgggc gccagggtgg tttttctttt caccagtgag acgggcaaca 661 gctgattgcc cttcaccgcc tggccctgag agagttgcag caagcggtcc acgctggttt 721 gccccagcag gcgaaaatcc tgtttgatgg tggttaacgg cgggatataa catgagctgt 781 cttcggtatc gtcgtatccc actaccgaga tatccgcacc aacgcgcagc ccggactcgg 841 taatggcgcg cattgcgccc agcgccatct gatcgttggc aaccagcatc gcagtgggaa 901 cgatgccctc attcagcatt tgcatggttt gttgaaaacc ggacatggca ctccagtcgc 961 cttcccgttc cgctatcggc tgaatttgat tgcgagtgag atatttatgc cagccagcca 1021 gacgcagacg cgccgagaca gaacttaatg ggcccgctaa cagcgcgatt tgctggtgac 1081 ccaatgcgac cagatgctcc acgcccagtc gcgtaccgtc ttcatgggag aaaataatac 1141 tgttgatggg tgtctggtca gagacatcaa gaaataacgc cggaacatta gtgcaggcag 1201 cttccacagc aatggcatcc tggtcatcca gcggatagtt aatgatcagc ccactgacgc 1261 gttgcgcgag aagattgtgc accgccgctt tacaggcttc gacgccgctt cgttctacca 1321 tcgacaccac cacgctggca cccagttgat cggcgcgaga tttaatcgcc gcgacaattt 1381 gcgacggcgc gtgcagggcc agactggagg tggcaacgcc aatcagcaac gactgtttgc 1441 ccgccagttg ttgtgccacg cggttgggaa tgtaattcag ctccgccatc gccgcttcca 1501 ctttttcccg cgttttcgca gaaacgtggc tggcctggtt caccacgcgg gaaacggtct 1561 gataagagac accggcatac tctgcgacat cgtataacgt tactggtttc acattcacca 1621 ccctgaattg actctcttcc gggcgctatc atgccatacc gcgaaaggtt ttgcaccatt 1681 cgatggtgtc aacgtaaatg catgccgctc gccttccatg ggtatggaca gttttccctt 1741 tgatatgtaa cggtgaacag ttgttctact tttgtttgtt agtcttgatg cttcactgat 1801 agatacaaga gccataagaa cctcagatcc ttccgtattt agccagtatg ttctctagtg 1861 tggttcgttg tttttgcgtg agccatgaga acgaaccatt gagatcatac ttactttgca 1921 tgtcactcaa aaattttgcc tcaaaactgg tgagctgaat ttttgcagtt aaagcatcgt 1981 gtagtgtttt tcttagtccg ttatgtaggt aggaatctga tgtaatggtt gttggtattt 2041 tgtcaccatt catttttatc tggttgttct caagttcggt tacgagatcc atttgtctat 2101 ctagttcaac ttggaaaatc aacgtatcag tcgggcggcc tcgcttatca accaccaatt 2161 tcatattgct gtaagtgttt aaatctttac ttattggttt caaaacccat tggttaagcc 2221 ttttaaactc atggtagtta ttttcaagca ttaacatgaa cttaaattca tcaaggctaa 2281 tctctatatt tgccttgtga gttttctttt gtgttagttc ttttaataac cactcataaa 2341 tcctcataga gtatttgttt tcaaaagact taacatgttc cagattatat tttatgaatt 2401 tttttaactg gaaaagataa ggcaatatct cttcactaaa aactaattct aatttttcgc 2461 ttgagaactt ggcatagttt gtccactgga aaatctcaaa gcctttaacc aaaggattcc 2521 tgatttccac agttctcgtc atcagctctc tggttgcttt agctaataca ccataagcat 2581 tttccctact gatgttcatc atctgaacgt attggttata agtgaacgat accgtccgtt 2641 ctttccttgt agggttttca atcgtggggt tgagtagtgc cacacagcat aaaattagct 2701 tggtttcatg ctccgttaag tcatagcgac taatcgctag ttcatttgct ttgaaaacaa 2761 ctaattcaga catacatctc aattggtcta ggtgatttta atcactatac caattgagat 2821 gggctagtca atgataatta ctagtccttt tcctttgagt tgtgggtatc tgtaaattct 2881 gctagacctt tgctggaaaa cttgtaaatt ctgctagacc ctctgtaaat tccgctagac 2941 ctttgtgtgt tttttttgtt tatattcaag tggttataat ttatagaata aagaaagaat 3001 aaaaaaagat aaaaagaata gatcccagcc ctgtgtataa ctcactactt tagtcagttc 3061 cgcagtatta caaaaggatg tcgcaaacgc tgtttgctcc tctacaaaac agaccttaaa 3121 accctaaagg cttaagtagc accctcgcaa gctcggttgc ggccgcaatc gggcaaatcg 3181 ctgaatattc cttttgtctc cgaccatcag gcacctgagt cgctgtcttt ttcgtgacat 3241 tcagttcgct gcgctcacgg ctctggcagt gaatgggggt aaatggcact acaggcgcct 3301 tttatggatt catgcaagga aactacccat aatacaagaa aagcccgtca cgggcttctc 3361 agggcgtttt atggcgggtc tgctatgtgg tgctatctga ctttttgctg ttcagcagtt 3421 cctgccctct gattttccag tctgaccact tcggattatc ccgtgacagg tcattcagac 3481 tggctaatgc acccagtaag gcagcggtat catcaacggg gtctgacgct cagtggaacg 3541 aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc 3601 ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg 3661 acagttacgt ttccaaccaa ttaaccaatt ctgattagaa aaactcatcg agcatcaaat 3721 gaaactgcaa tttattcata tcaggattat caataccata tttttgaaaa agccgtttct 3781 gtaatgaagg agaaaactca ccgaggcagt tccataggat ggcaagatcc tggtatcggt 3841 ctgcgattcc gactcgtcca acatcaatac aacctattaa tttcccctcg tcaaaaataa 3901 ggttatcaag tgagaaatca ccatgagtga cgactgaatc cggtgagaat ggcaaaagct 3961 tatgcatttc tttccagact tgttcaacag gccagccatt acgctcgtca tcaaaatcac 4021 tcgcatcaac caaaccgtta ttcattcgtg attgcgcctg agcgagacga aatacgcgat 4081 cgctgttaaa aggacaatta caaacaggaa tcgaatgcaa ccggcgcagg aacactgcca 4141 gcgcatcaac aatattttca cctgaatcag gatattcttc taatacctgg aatgctgttt 4201 tcccggggat cgcagtggtg agtaaccatg catcatcagg agtacggata aaatgcttga 4261 tggtcggaag aggcataaat tccgtcagcc agtttagtct gaccatctca tctgtaacat 4321 cattggcaac gctacctttg ccatgtttca gaaacaactc tggcgcatcg ggcttcccat 4381 acaatcgata gattgtcgca cctgattgcc cgacattatc gcgagcccat ttatacccat 4441 ataaatcagc atccatgttg gaatttaatc gcggcctcga gcaagacgtt tcccgttgaa 4501 tatggctcat aacacccctt gtattactgt ttatgtaagc agacagtttt attgttcatg 4561 atgatatatt tttatcttgt gcaatgtaac atcagagatt ttgagacaca acgtggcttt 4621 ccctgcaggg tttgcagtca gagtagaata gaagtatcaa aaaaagcacc gactcggtgc 4681 cactttttca agttgataac ggactagcct tattttaact tgctatgctg ttttgaatgg 4741 ttccaacaag attattttat aacttttata acaaataatc aaggagaaat tcaaagaaat 4801 ttatcagcca taaaacaata cttaatacta tagaatgata acaaaataaa ctacttttta 4861 aaagaatttt gtgttataat ctatttatta ttaagtattg ggtaatattt tttgaagaga 4921 tattttgaaa aagaaaaatt aaagcatatt aaactaattt cggaggtcat taaaactatt 4981 attgaaatca tcaaactcat tatggattta atttaaactt tttattttag gaggcaaaag 5041 tcgagatggc caaaaacacc attaccaaaa cactgaaact gcgtattgtg cgtccgtata 5101 atagcgcaga agtggaaaaa attgttgccg acgaaaaaaa caaccgcgaa aaaatcgcac 5161 tggaaaagaa caaagacaaa gtgaaagaag cctgcagcaa acatctgaaa gttgcagcat 5221 attgtaccac acaggttgaa cgtaatgcat gtctgttttg taaagcccgt aaactggatg 5281 acaagttcta tcaaaaactg cgtggtcagt ttccggatgc agttttttgg caagaaatca 5341 gcgaaatttt tcgccagctg cagaaacagg cagcagaaat ctataatcag agcctgatcg 5401 aactgtacta cgagattttt atcaaaggca aaggtattgc aaatgccagc agcgttgaac 5461 attatctgag tgatgtttgt tatacccgtg cagcagaact gtttaaaaac gcagcaattg 5521 caagcggtct gcgtagcaaa atcaaaagca attttcgtct gaaagaactg aaaaacatga 5581 aaagtggtct gccgaccacc aaaagcgata attttccgat tccgctggtt aaacagaaag 5641 gtggtcagta taccggtttt gaaattagca atcataatag cgacttcatc atcaagattc 5701 cgtttggtcg ttggcaggtc aaaaaagaga ttgataaata tcgtccgtgg gagaaatttg 5761 actttgaaca ggttcagaaa agcccgaaac cgattagcct gctgctgagc acccagcgtc 5821 gtaaacgtaa taaaggttgg agcaaagatg aaggcaccga agccgaaatc aaaaaagtta 5881 tgaatggcga ttatcagacc agctacattg aagttaaacg tggcagcaaa atcggtgaaa 5941 aaagcgcatg gatgctgaat ctgagcattg atgttccgaa aattgataaa ggtgtggatc 6001 cgagcattat tggtggtatt gatgttggtg ttaaatcacc gctggtttgc gcaattaaca 6061 atgcatttag ccgttatagc atcagcgata acgacctgtt tcacttcaac aagaaaatgt 6121 ttgcacgtcg tcgtatcctg ctgaaaaaaa accgtcataa acgtgcaggt catggtgcaa 6181 aaaacaaact gaaaccgatc accattctga ccgaaaaaag tgaacgtttt cgcaaaaagc 6241 tgattgaacg ttgggcatgt gaaatcgcgg atttcttcat taaaaacaaa gttggcaccg 6301 tgcagatgga aaatctggaa agcatgaaac gtaaagagga cagctatttt aacattcgcc 6361 tgcgtggctt ttggccgtat gcagaaatgc agaacaaaat cgagtttaag ctgaaacagt 6421 atggcatcga aattcgtaaa gtggcaccga ataataccag caaaacctgt agcaaatgtg 6481 gccatctgaa caactatttc aacttcgagt accgcaagaa aaacaaattc ccgcacttta 6541 aatgcgaaaa atgcaacttc aaagaaaacg ccgattataa tgcagccctg aatatttcaa 6601 acccgaaact gaaaagcacc aaagaggaac cgtaaggtac cagtatattt tagatgaaga 6661 ttatttctta atctagacat gagcggatac atatttgaat gtatttagaa aaataaacaa 6721 ataggggttc cgcgcacatt tccccgaaaa gtgccacctg catcgattta ttatgacaac 6781 ttgacggcta catcattcac tttttcttca caaccggcac ggaactcgct cgggctggcc 6841 ccggtgcatt ttttaaatac ccgcgagaag tagagttgat cgtcaaaacc aacattgcga 6901 ccgacggtgg cgataggcat ccgggtggtg ctcaaaagca gcttcgcctg gctgatacgt 6961 tggtcctcgc gccagcttaa gacgctaatc cctaactgct ggcggaaaag atgtgacaga 7021 cgcgacggcg acaagcaaac atgctgtgcg acgctggcga tatcaaaatt gctgtctgcc 7081 aggtgatcgc tgatgtactg acaagcctcg cgtacccgat tatccatcgg tggatggagc 7141 gactcgttaa tcgcttccat gtgccgcagt aacaattgct caagcagatt tatcgccagc 7201 agctccgaat agcgcccttc cccttgcccg gcgttaatga tttgcccaaa caggtcgctg 7261 aaatgcggct ggtgcgcttc atccgggcga aagaaccccg tattggcaaa tattgacggc 7321 cagttaagcc attcatgcca gtaggcgcgc ggacgaaagt aaacccactg gtgataccat 7381 tcgcgagcct ccggatgacg accgtagtga tgaatctctc ctggcgggaa cagcaaaata 7441 tcacccggtc ggcaaacaaa ttctcgtccc tgatttttca ccaccccctg accgcgaatg 7501 gtgagattga gaatataacc tttcattccc agcggtcggt cgataaaaaa atcgagataa 7561 ccgttggcct caatcggcgt taaacccgcc accagatggg cattaaacga gtatcccggc 7621 agcaggggat cattttgcgc ttcagccata cttttcatac tcccgccatt cagagaagaa 7681 accaattgtc catattgcat cagacattgc cgtcactgcg tcttttactg gctcttctcg 7741 ctaaccaaac cggtaacccc gcttattaaa agcattctgt aacaaagcgg gaccaaagcc 7801 atgacaaaaa cgcgtaacaa aagtgtctat aatcacggca gaaaagtcca cattgattat 7861 ttgcacggcg tcacactttg ctatgccata gcatttttat ccataagatt agcggatcct 7921 acctgacgct ttttatcgca actctctact gtttctccat acccgttttt ttgggaattc 7981 gagctctaag gaggttataa aaaatggata ttaatactga aactgagatc aagcaaaagc 8041 attcactaac cccctttcct gttttcctaa tcagcccggc atttcgcggg cgatattttc 8101 acagctattt caggagttca gccatgaacg cttattacat tcaggatcgt cttgaggctc 8161 agagctgggc gcgtcactac cagcagctcg cccgtgaaga gaaagaggca gaactggcag 8221 acgacatgga aaaaggcctg ccccagcacc tgtttgaatc gctatgcatc gatcatttgc 8281 aacgccacgg ggccagcaaa aaatccatta cccgtgcgtt tgatgacgat gttgagtttc 8341 aggagcgcat ggcagaacac atccggtaca tggttgaaac cattgctcac caccaggttg 8401 atattgattc agaggtataa aacgaatgag tactgcactc gcaacgctgg ctgggaagct 8461 ggctgaacgt gtcggcatgg attctgtcga cccacaggaa ctgatcacca ctcttcgcca 8521 gacggcattt aaaggtgatg ccagcgatgc gcagttcatc gcattactga tcgttgccaa 8581 ccagtacggc cttaatccgt ggacgaaaga aatttacgcc tttcctgata agcagaatgg 8641 catcgttccg gtggtgggcg ttgatggctg gtcccgcatc atcaatgaaa accagcagtt 8701 tgatggcatg gactttgagc aggacaatga atcctgtaca tgccggattt accgcaagga 8761 ccgtaatcat ccgatctgcg ttaccgaatg gatggatgaa tgccgccgcg aaccattcaa 8821 aactcgcgaa ggcagagaaa tcacggggcc gtggcagtcg catcccaaac ggatgttacg 8881 tcataaagcc atgattcagt gtgcccgtct ggccttcgga tttgctggta tctatgacaa 8941 ggatgaagcc gagcgcattg tcgaaaatac tgcatacact gcagaacgtc agccggaacg 9001 cgacatcact ccggttaacg atgaaaccat gcaggagatt aacactctgc tgatcgccct 9061 ggataaaaca tgggatgacg acttattgcc gctctgttcc cagatatttc gccgcgacat 9121 tcgtgcatcg tcagaactga cacaggccga agcagtaaaa gctcttggat tcctgaaaca 9181 gaaagccgca gagcagaagg tggcagcatg acaccggaca ttatcctgca gcgtaccggg 9241 atcgatgtga gagctgtcga acagggggat gatgcgtggc acaaattacg gctcggcgtc 9301 atcaccgctt cagaagttca caacgtgata gcaaaacccc gctccggaaa gaagtggcct 9361 gacatgaaaa tgtcctactt ccacaccctg cttgctgagg tttgcaccgg tgtggctccg 9421 gaagttaacg ctaaagcact ggcctgggga aaacagtacg agaacgacgc cagaaccctg 9481 tttgaattca cttccggcgt gaatgttact gaatccccga tcatctatcg cgacgaaagt 9541 atgcgtaccg cctgctctcc cgatggttta tgcagtgacg gcaacggcct tgaactgaaa 9601 tgcccgttta cctcccggga tttcatgaag ttccggctcg gtggtttcga ggccataaag 9661 tcagcttaca tggcccaggt gcagtacagc atgtgggtga cgcgaaaaaa tgcctggtac 9721 tttgccaact atgacccgcg tatgaagcgt gaaggcctgc attatgtcgt gattgagcgg 9781 gatgaaaagt acatggcgag ttttgacgag atcgtgccgg agttcatcga aaaaatggac 9841 gaggcactgg ctgaaattgg ttttgtattt ggggagcaat ggcgatgacg catcctcacg 9901 ataatatccg ggtaggcgca atcactttcg tctactccgt tacaaagcga ggctgggtat 9961 ttcccggcct ttctgttatc cgaaatccac tgaaagcaca gcggctggct gaggagataa 10021 ataataaacg aggggctgta tgcacaaagc atcttctgtt gagttaagaa cgagtatcga 10081 gatggcacat agccttgctc aaattggaat caggtttgtg ccaataccag tagaaacaga 10141 cgaagaatcc atgggtatgg aca //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
