质粒名称: | pCpf1-sp |
---|---|
出品公司: | Addgene |
目录编号: | 122186 |
存储实验室: | Cheng-Cai Zhang |
载体骨架基本信息 |
|
载体名称: | 未知 |
完整质粒大小: | 12595bp |
载体类型: | 细菌细胞表达、CRISPR |
载体抗性: | Spectinomycin |
生长温度: | 37 ℃ |
宿主菌: | DH5a |
拷贝数: | 低拷贝 |
插入基因信息 |
|
克隆方法: | Ligation Independent Cloning |
文献引用方法 |
|
材料和方法部分: | pCpf1-sp was a gift from Cheng-Cai Zhang (Addgene plasmid # 122186 ; http://n2t.net/addgene:122186 ; RRID:Addgene_122186) |
参考文献部分: |
Expanding the potential of CRISPR-Cpf1 based genome editing technology in the cyanobacterium Anabaena PCC 7120. Niu TC, Lin GM, Xie LR, Wang ZQ, Xing WY, Zhang JY, Zhang CC. ACS Synth Biol. 2018 Dec 10. doi: 10.1021/acssynbio.8b00437. 10.1021/acssynbio.8b00437 PubMed 30525474
Cloned using mAzurite-C1 (#54583)
|
买家导航
载体基本信息

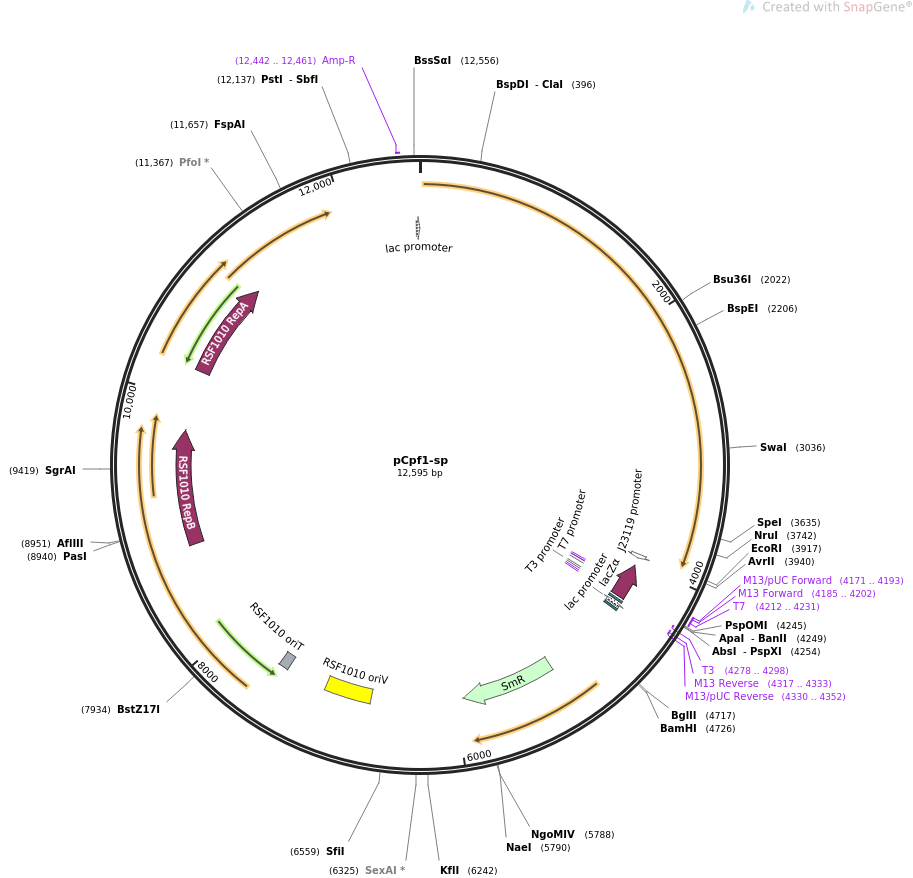

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pCpf1-sp 12595 bp ds-DNA circular SYN 12-MAY-2021 DEFINITION Bacterial genome editing plasmid with spectinomycin resistance marker. ACCESSION . VERSION . KEYWORDS pCpf1-sp SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 12595) AUTHORS Niu TC, Lin GM, Xie LR, Wang ZQ, Xing WY, Zhang JY, Zhang CC TITLE Expanding the potential of CRISPR-Cpf1 based genome editing technology in the cyanobacterium Anabaena PCC 7120. JOURNAL ACS Synth Biol. 2018 Dec 10. doi: 10.1021/acssynbio.8b00437. PUBMED 30525474 REFERENCE 2 (bases 1 to 12595) AUTHORS . TITLE Direct Submission JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58 http://www.biofeng.com FEATURES Location/Qualifiers source 1..12595 /organism="synthetic DNA construct" /mol_type="other DNA" promoter 3923..3957 /label=J23119 promoter /note="bacterial promoter (Registry of Standard Biological Parts BBa_J23119)" CDS complement(4025..4321) /codon_start=1 /gene="lacZ fragment" /product="LacZ-alpha fragment of beta-galactosidase" /label=lacZ-alpha /translation="MTMITPSAQLTLTKGNKSWRTSRGGPVPNSPYSESYYARSLAVVL QRRDWENPGVTQLNRLAAHPPFASWRNSEEARTDRPSQQLRSLNGEWDAPCSG" primer_bind 4171..4193 /label=M13/pUC Forward /note="In lacZ gene" primer_bind 4185..4202 /label=M13 Forward /note="In lacZ gene. Also called M13-F20 or M13 (-21) Forward" primer_bind 4186..4202 /label=M13 fwd /note="common sequencing primer, one of multiple similar variants" primer_bind 4212..4231 /label=T7 /note="T7 promoter, forward primer" promoter 4212..4230 /label=T7 promoter /note="promoter for bacteriophage T7 RNA polymerase" primer_bind complement(4278..4298) /label=T3 /note="T3 promoter, forward primer" promoter complement(4278..4296) /label=T3 promoter /note="promoter for bacteriophage T3 RNA polymerase" primer_bind complement(4317..4333) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(4317..4333) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(4330..4352) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 4341..4357 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(4365..4395) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 4410..4431 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." CDS 5141..5932 /codon_start=1 /gene="aadA" /product="aminoglycoside adenylyltransferase (Murphy, 1985)" /label=SmR /note="confers resistance to spectinomycin and streptomycin" /translation="MREAVIAEVSTQLSEVVGVIERHLEPTLLAVHLYGSAVDGGLKPH SDIDLLVTVTVRLDETTRRALINDLLETSASPGESEILRAVEVTIVVHDDIIPWRYPAK RELQFGEWQRNDILAGIFEPATIDIDLAILLTKAREHSVALVGPAAEELFDPVPEQDLF EALNETLTLWNSPPDWAGDERNVVLTLSRIWYSAVTGKIAPKDVAADWAMERLPAQYQP VILEARQAYLGQEEDRLASRADQLEEFVHYVKGEITKVVGK" rep_origin 6711..7105 /label=RSF1010 oriV /note="replication origin of the broad-host-range plasmid RSF1010; requires the RSF1010 RepA/B/C proteins for replication (Scholz et al., 1989)" oriT 7447..7534 /label=RSF1010 oriT /note="origin of transfer of the broad-host-range plasmid RSF1010 (Scholz et al., 1989)" CDS 8773..9744 /codon_start=1 /gene="repB" /product="replication protein B of the broad-host-range plasmid RSF1010 (Scholz et al., 1989)" /label=RSF1010 RepB /translation="MKNDRTLQAIGRQLKAMGCERFDIGVRDATTGQMMNREWSAAEVL QNTPWLKRMNAQGNDVYIRPAEQERHGLVLVDDLSEFDLDDMKAEGREPALVVETSPKN YQAWVKVADAAGGELRGQIARTLASEYDADPASADSRHYGRLAGFTNRKDKHTTRAGYQ PWVLLRESKGKTATAGPALVQQAGQQIEQAQRQQEKARRLASLELPERQLSRHRRTALD EYRSEMAGLVKRFGDDLSKCDFIAAQKLASRGRSAEEIGKAMAEASPALAERKPGHEAD YIERTVSKVMGLPSVQLARAELARAPAPRQRGMDRGGPDFSM" CDS 10255..11094 /codon_start=1 /gene="repA" /product="replication protein A of the broad-host-range plasmid RSF1010 (Scholz et al., 1989)" /label=RSF1010 RepA /translation="MATHKPINILEAFAAAPPPLDYVLPNMVAGTVGALVSPGGAGKSM LALQLAAQIAGGPDLLEVGELPTGPVIYLPAEDPPTAIHHRLHALGAHLSAEERQAVAD GLLIQPLIGSLPNIMAPEWFDGLKRAAEGRRLMVLDTLRRFHIEEENASGPMAQVIGRM EAIAADTGCSIVFLHHASKGAAMMGAGDQQQASRGSSVLVDNIRWQSYLSSMTSAEAEE WGVDDDQRRFFVRFGVSKANYGAPFADRWFRRHDGGVLKPAVLERQRKSKGVPRGEA" primer_bind 12442..12461 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter 12565..12594 /label=lac promoter /note="promoter for the E. coli lac operon" ORIGIN 1 ggaggtcttt atcatgtcaa tttatcaaga atttgttaat aaatatagtt taagtaaaac 61 tctaagattt gagttaatcc cacagggtaa aacacttgaa aacataaaag caagaggttt 121 gattttagat gatgagaaaa gagctaaaga ctacaaaaag gctaaacaaa taattgataa 181 atatcatcag ttttttatag aggagatatt aagttcggtt tgtattagcg aagatttatt 241 acaaaactat tctgatgttt attttaaact taaaaagagt gatgatgata atctacaaaa 301 agattttaaa agtgcaaaag atacgataaa gaaacaaata tctgaatata taaaggactc 361 agagaaattt aagaatttgt ttaatcaaaa ccttatcgat gctaaaaaag ggcaagagtc 421 agatttaatt ctatggctaa agcaatctaa ggataatggt atagaactat ttaaagccaa 481 tagtgatatc acagatatag atgaggcgtt agaaataatc aaatctttta aaggttggac 541 aacttatttt aagggttttc atgaaaatag aaaaaatgtt tatagtagca atgatattcc 601 tacatctatt atttatagga tagtagatga taatttgcct aaatttctag aaaataaagc 661 taagtatgag agtttaaaag acaaagctcc agaagctata aactatgaac aaattaaaaa 721 agatttggca gaagagctaa cctttgatat tgactacaaa acatctgaag ttaatcaaag 781 agttttttca cttgatgaag tttttgagat agcaaacttt aataattatc taaatcaaag 841 tggtattact aaatttaata ctattattgg tggtaaattt gtaaatggtg aaaatacaaa 901 gagaaaaggt ataaatgaat atataaatct atactcacag caaataaatg ataaaacact 961 caaaaaatat aaaatgagtg ttttatttaa gcaaatttta agtgatacag aatctaaatc 1021 ttttgtaatt gataagttag aagatgatag tgatgtagtt acaacgatgc aaagttttta 1081 tgagcaaata gcagctttta aaacagtaga agaaaaatct attaaagaaa cactatcttt 1141 attatttgat gatttaaaag ctcaaaaact tgatttgagt aaaatttatt ttaaaaatga 1201 taaatctctt actgatctat cacaacaagt ttttgatgat tatagtgtta ttggtacagc 1261 ggtactagaa tatataactc aacaaatagc acctaaaaat cttgataacc ctagtaagaa 1321 agagcaagaa ttaatagcca aaaaaactga aaaagcaaaa tacttatctc tagaaactat 1381 aaagcttgcc ttagaagaat ttaataagca tagagatata gataaacagt gtaggtttga 1441 agaaatactt gcaaactttg cggctattcc gatgatattt gatgaaatag ctcaaaacaa 1501 agacaatttg gcacagatat ctatcaaata tcaaaatcaa ggtaaaaaag acctacttca 1561 agctagtgcg gaagatgatg ttaaagctat caaggatctt ttagatcaaa ctaataatct 1621 cttacataaa ctaaaaatat ttcatattag tcagtcagaa gataaggcaa atattttaga 1681 caaggatgag catttttatc tagtatttga ggagtgctac tttgagctag cgaatatagt 1741 gcctctttat aacaaaatta gaaactatat aactcaaaag ccatatagtg atgagaaatt 1801 taagctcaat tttgagaact cgactttggc taatggttgg gataaaaata aagagcctga 1861 caatacggca attttattta tcaaagatga taaatattat ctgggtgtga tgaataagaa 1921 aaataacaaa atatttgatg ataaagctat caaagaaaat aaaggcgagg gttataaaaa 1981 aattgtttat aaacttttac ctggcgcaaa taaaatgtta cctaaggttt tcttttctgc 2041 taaatctata aaattttata atcctagtga agatatactt agaataagaa atcattccac 2101 acatacaaaa aatggtagtc ctcaaaaagg atatgaaaaa tttgagttta atattgaaga 2161 ttgccgaaaa tttatagatt tttataaaca gtctataagt aagcatccgg agtggaaaga 2221 ttttggattt agattttctg atactcaaag atataattct atagatgaat tttatagaga 2281 agttgaaaat caaggctaca aactaacttt tgaaaatata tcagagagct atattgatag 2341 cgtagttaat cagggtaaat tgtacctatt ccaaatctat aataaagatt tttcagctta 2401 tagcaaaggg cgaccaaatc tacatacttt atattggaaa gcgctgtttg atgagagaaa 2461 tcttcaagat gtggtttata agctaaatgg tgaggcagag cttttttatc gtaaacaatc 2521 aatacctaaa aaaatcactc acccagctaa agaggcaata gctaataaaa acaaagataa 2581 tcctaaaaaa gagagtgttt ttgaatatga tttaatcaaa gataaacgct ttactgaaga 2641 taagtttttc tttcactgtc ctattacaat caattttaaa tctagtggag ctaataagtt 2701 taatgatgaa atcaatttat tgctaaaaga aaaagcaaat gatgttcata tattaagtat 2761 agatagaggt gaaagacatt tagcttacta tactttggta gatggtaaag gcaatatcat 2821 caaacaagat actttcaaca tcattggtaa tgatagaatg aaaacaaact accatgataa 2881 gcttgctgca atagagaaag atagggattc agctaggaaa gactggaaaa agataaataa 2941 catcaaagag atgaaagagg gctatctatc tcaggtagtt catgaaatag ctaagctagt 3001 tatagagtat aatgctattg tggtttttga ggatttaaat tttggattta aaagagggcg 3061 tttcaaggta gagaagcagg tctatcaaaa gttagaaaaa atgctaattg agaaactaaa 3121 ctatctagtt ttcaaagata atgagtttga taaaactggg ggagtgctta gagcttatca 3181 gctaacagca ccttttgaga cttttaaaaa gatgggtaaa caaacaggta ttatctacta 3241 tgtaccagct ggttttactt caaaaatttg tcctgtaact ggttttgtaa atcagttata 3301 tcctaagtat gaaagtgtca gcaaatctca agagttcttt agtaagtttg acaagatttg 3361 ttataacctt gataagggct attttgagtt tagttttgat tataaaaact ttggtgacaa 3421 ggctgccaaa ggcaagtgga ctatagctag ctttgggagt agattgatta actttagaaa 3481 ttcagataaa aatcataatt gggatactcg agaagtttat ccaactaaag agttggagaa 3541 attgctaaaa gattattcta tcgaatatgg gcatggcgaa tgtatcaaag cagctatttg 3601 cggtgagagc gacaaaaagt tttttgctaa gctaactagt gtcctaaata ctatcttaca 3661 aatgcgtaac tcaaaaacag gtactgagtt agattatcta atttcaccag tagcagatgt 3721 aaatggcaat ttctttgatt cgcgacaggc gccaaaaaat atgcctcaag atgctgatgc 3781 caatggtgct tatcatattg ggctaaaagg tctgatgcta ctaggtagga tcaaaaataa 3841 tcaagagggc aaaaaactca atttggttat caaaaatgaa gagtattttg agttcgtgca 3901 gaataggaat aactaagaat tcttgacagc tagctcagtc ctaggtataa tgctagcgct 3961 gatttaggca aaaacgggtc taagaacttt aaataatttc tactgttgta gatgagagca 4021 ggtgtcagcc gctacagggc gcgtcccatt cgccattcag gctgcgcaac tgttgggaag 4081 ggcgatcggt gcgggcctct tcgctattac gccagctggc gaaaggggga tgtgctgcaa 4141 ggcgattaag ttgggtaacg ccagggtttt cccagtcacg acgttgtaaa acgacggcca 4201 gtgagcgcgc gtaatacgac tcactatagg gcgaattggg taccgggccc cccctcgagg 4261 tcctccagct tttgttccct ttagtgaggg ttaattgcgc gcttggcgta atcatggtca 4321 tagctgtttc ctgtgtgaaa ttgttatccg ctcacaattc cacacaacat acgagccgga 4381 agcataaagt gtaaagcctg gggtgcctaa tgagtgagct aactcacatt aattgcgttg 4441 cgctcactgc ccgctttcca cccacctgca aaagtctaag aactttaaat aatttctact 4501 gttgtagatg ctactattcc tgtgccttca gataattcag tctaagaact ttaaataatt 4561 tctactgttg tagatgtcta gagccttttg tattagtagc cggtctaaga actttaaata 4621 atttctactg ttgtagatta gcgatttatg aaggtcattt ttttgtctag ctttaatgcg 4681 gtagttggta ccgtcgatgg cagaaattcg atatctagat ctcatggatc cgcaatggca 4741 acaacgttgc gctcgactct agaagaccga aaccttgcgc tcgttcgcca gccaggacag 4801 aaatgcctcg acttcgctgc tgcccaaggt tgccgggtga cgcacaccgt ggaaacggat 4861 gaaggcacga acccagtgga cataagcctg ttcggttcgt aagctgtaat gcaagtagcg 4921 tatgcgctca cgcaactggt ccagaacctt gaccgaacgc agcggtggta acggcgcagt 4981 ggcggttttc atggcttgtt atgactgttt ttttggggta cagtctatgc ctcgggcatc 5041 caagcagcaa gcgcgttacg ccgtgggtcg atgtttgatg ttatggagca gcaacgatgt 5101 tacgcagcag ggcagtcgcc ctaaaacaaa gttaaacatc atgagggaag cggtgatcgc 5161 cgaagtatcg actcaactat cagaggtagt tggcgtcatc gagcgccatc tcgaaccgac 5221 gttgctggcc gtacatttgt acggctccgc agtggatggc ggcctgaagc cacacagtga 5281 tattgatttg ctggttacgg tgaccgtaag gcttgatgaa acaacgcggc gagctttgat 5341 caacgacctt ttggaaactt cggcttcccc tggagagagc gagattctcc gcgctgtaga 5401 agtcaccatt gttgtgcacg acgacatcat tccgtggcgt tatccagcta agcgcgaact 5461 gcaatttgga gaatggcagc gcaatgacat tcttgcaggt atcttcgagc cagccacgat 5521 cgacattgat ctggctatct tgctgacaaa agcaagagaa catagcgttg ccttggtagg 5581 tccagcggcg gaggaactct ttgatccggt tcctgaacag gatctatttg aggcgctaaa 5641 tgaaacctta acgctatgga actcgccgcc cgactgggct ggcgatgagc gaaatgtagt 5701 gcttacgttg tcccgcattt ggtacagcgc agtaaccggc aaaatcgcgc cgaaggatgt 5761 cgctgccgac tgggcaatgg agcgcctgcc ggcccagtat cagcccgtca tacttgaagc 5821 tagacaggct tatcttggac aagaagaaga tcgcttggcc tcgcgcgcag atcagttgga 5881 agaatttgtc cactacgtga aaggcgagat caccaaggta gtcggcaaat aatgtctaac 5941 aattcgttca agccgacgcc gcttcgcggc gcggcttaac tcaagcgtta gatgcactaa 6001 gcacataatt gctcacagcc aaactatcag gtcaagtctg cttttattat ttttaagcgt 6061 gcataataag ccctacacaa attgggagat atatcatgaa aggctggctt tttcttgtta 6121 tcgcaatagt tggcgaagta atcgcaacat ccgcattaaa atctagcgag ggctttacta 6181 agctgatccg gtggatgacc ttttgaatga cctttaatag attatattac taattaattg 6241 gggaccctag aggtcccctt ttttatttta aaaatttttt cacaaaacgg tttacaagca 6301 taaagcttgc tcaatctgaa agcgaccagg tgctcggcgt ggcaagactc gcagcgaacc 6361 cgtagaaagc catgctccag ccgcccgcat tggagaaatt cttcaaattc ccgttgcaca 6421 tagcccggca attcctttcc ctgctctgcc ataagcgcag cgaatgccgg gtaatactcg 6481 tcaacgatct gatagagaag ggtttgctcg ggtcggtggc tctggtaacg accagtatcc 6541 cgatcccggc tggccgtcct ggccgccaca tgaggcatgt tccgcgtcct tgcaatactg 6601 tgtttacata cagtctatcg cttagcggaa agttctttta ccctcagccg aaatgcctgc 6661 cgttgctaga cattgccagc cagtgcccgt cactcccgta ctaactgtca cgaacccctg 6721 caataactgt cacgcccccc tgcaataact gtcacgaacc cctgcaataa ctgtcacgcc 6781 cccaaacctg caaacccagc aggggcgggg gctggcgggg tgttggaaaa atccatccat 6841 gattatctaa gaataatcca ctaggcgcgg ttatcagcgc ccttgtgggg cgctgctgcc 6901 cttgcccaat atgcccggcc agaggccgga tagctggtct attcgctgcg ctaggctaca 6961 caccgcccca ccgctgcgcg gcagggggaa aggcgggcaa agcccgctaa accccacacc 7021 aaaccccgca gaaatacgct ggagcgcttt tagccgcttt agcggccttt ccccctaccc 7081 gaagggtggg ggcgcgtgtg cagccccgca gggcctgtct cggtcgatca ttcagcccgg 7141 ctcatccttc tggcgtggcg gcagaccgaa caaggcgcgg tcgtggtcgc gttcaaggta 7201 cgcatccatt gccgccatga gccgatcctc cggccactcg ctgctgttca ccttggccaa 7261 aatcatggcc cccaccagca ccttgcgcct tgtttcgttc ttgcgctctt gctgctgttc 7321 ccttgcccgc acccgctgaa tttcggcatt gattcgcgct cgttgttctt cgagcttggc 7381 cagccgatcc gccgccttgt tgctcccctt aaccatcttg acaccccatt gttaatgtgc 7441 tgtctcgtag gctatcatgg aggcacagcg gcggcaatcc cgaccctact ttgtagggga 7501 gggcgcactt accggtttct cttcgagaaa ctggcctaac ggccaccctt cgggcggtgc 7561 gctctccgag ggccattgca tggagccgaa aagcaaaagc aacagcgagg cagcatggcg 7621 atttatcacc ttacggcgaa aaccggcagc aggtcgggcg gccaatcggc cagggccaag 7681 gccgactaca tccagcgcga aggcaagtat gcccgcgaca tggatgaagt cttgcacgcc 7741 gaatccgggc acatgccgga gttcgtcgag cggcccgccg actactggga tgctgccgac 7801 ctgtatgaac gcgccaatgg gcggctgttc aaggaggtcg aatttgccct gccggtcgag 7861 ctgaccctcg accagcagaa ggcgctggcg tccgagttcg cccagcacct gaccggtgcc 7921 gagcgcctgc cgtatacgct ggccatccat gccggtggcg gcgagaaccc gcactgccac 7981 ctgatgatct ccgagcggat caatgacggc atcgagcggc ccgccgctca gtggttcaag 8041 cggtacaacg gcaagacccc ggagaagggc ggggcacaga agaccgaagc gctcaagccc 8101 aaggcatggc ttgagcagac ccgcgaggca tgggccgacc atgccaaccg ggcattagag 8161 cgggctggcc acgacgcccg cattgaccac agaacacttg aggcgcaggg catcgagcgc 8221 ctgcccggtg ttcacctggg gccgaacgtg gtggagatgg aaggccgggg catccgcacc 8281 gaccgggcag acgtggccct gaacatcgac accgccaacg cccagatcat cgacttacag 8341 gaataccggg aggcaataga ccatgaacgc aatcgacaga gtgaagaaat ccagaggcat 8401 caacgagtta gcggagcaga tcgaaccgct ggcccagagc atggcgacac tggccgacga 8461 agcccggcag gtcatgagcc agacccagca ggccagcgag gcgcaggcgg cggagtggct 8521 gaaagcccag cgccagacag gggcggcatg ggtggagctg gccaaagagt tgcgggaggt 8581 agccgccgag gtgagcagcg ccgcgcagag cgcccggagc gcgtcgcggg ggtggcactg 8641 gaagctatgg ctaaccgtga tgctggcttc catgatgcct acggtggtgc tgctgatcgc 8701 atcgttgctc ttgctcgacc tgacgccact gacaaccgag gacggctcga tctggctgcg 8761 cttggtggcc cgatgaagaa cgacaggact ttgcaggcca taggccgaca gctcaaggcc 8821 atgggctgtg agcgcttcga tatcggcgtc agggacgcca ccaccggcca gatgatgaac 8881 cgggaatggt cagccgccga agtgctccag aacacgccat ggctcaagcg gatgaatgcc 8941 cagggcaatg acgtgtatat caggcccgcc gagcaggagc ggcatggtct ggtgctggtg 9001 gacgacctca gcgagtttga cttggatgac atgaaagccg agggccggga gcctgccctg 9061 gtagtggaaa ccagcccgaa gaactatcag gcatgggtca aggtggccga cgccgcaggc 9121 ggtgaacttc gggggcagat tgcccggacg ctggccagcg agtacgacgc cgacccggcc 9181 agcgccgaca gccgccacta tggccgcttg gcgggcttca ccaaccgcaa ggacaagcac 9241 accacccgcg ccggttatca gccgtgggtg ctgctgcgtg aatccaaggg caagaccgcc 9301 accgctggcc cggcgctggt gcagcaggct ggccagcaga tcgagcaggc ccagcggcag 9361 caggagaagg cccgcaggct ggccagcctc gaactgcccg agcggcagct tagccgccac 9421 cggcgcacgg cgctggacga gtaccgcagc gagatggccg ggctggtcaa gcgcttcggt 9481 gatgacctca gcaagtgcga ctttatcgcc gcgcagaagc tggccagccg gggccgcagt 9541 gccgaggaaa tcggcaaggc catggccgag gccagcccag cgctggcaga gcgcaagccc 9601 ggccacgaag cggattacat cgagcgcacc gtcagcaagg tcatgggtct gcccagcgtc 9661 cagcttgcgc gggccgagct ggcacgggca ccggcacccc gccagcgagg catggacagg 9721 ggcgggccag atttcagcat gtagtgcttg cgttggtact cacgcctgtt atactatgag 9781 tactcacgca cagaaggggg ttttatggaa tacgaaaaaa gcgcttcagg gtcggtctac 9841 ctgatcaaaa gtgacaaggg ctattggttg cccggtggct ttggttatac gtcaaacaag 9901 gccgaggctg gccgcttttc agtcgctgat atggccagcc ttaaccttga cggctgcacc 9961 ttgtccttgt tccgcgaaga caagcctttc ggccccggca agtttctcgg tgactgatat 10021 gaaagaccaa aaggacaagc agaccggcga cctgctggcc agccctgacg ctgtacgcca 10081 agcgcgatat gccgagcgca tgaaggccaa agggatgcgt cagcgcaagt tctggctgac 10141 cgacgacgaa tacgaggcgc tgcgcgagtg cctggaagaa ctcagagcgg cgcagggcgg 10201 gggtagtgac cccgccagcg cctaaccacc aactgcctgc aaaggaggca atcaatggct 10261 acccataagc ctatcaatat tctggaggcg ttcgcagcag cgccgccacc gctggactac 10321 gttttgccca acatggtggc cggtacggtc ggggcgctgg tgtcgcccgg tggtgccggt 10381 aaatccatgc tggccctgca actggccgca cagattgcag gcgggccgga tctgctggag 10441 gtgggcgaac tgcccaccgg cccggtgatc tacctgcccg ccgaagaccc gcccaccgcc 10501 attcatcacc gcctgcacgc ccttggggcg cacctcagcg ccgaggaacg gcaagccgtg 10561 gctgacggcc tgctgatcca gccgctgatc ggcagcctgc ccaacatcat ggccccggag 10621 tggttcgacg gcctcaagcg cgccgccgag ggccgccgcc tgatggtgct ggacacgctg 10681 cgccggttcc acatcgagga agaaaacgcc agcggcccca tggcccaggt catcggtcgc 10741 atggaggcca tcgccgccga taccgggtgc tctatcgtgt tcctgcacca tgccagcaag 10801 ggcgcggcca tgatgggcgc aggcgaccag cagcaggcca gccggggcag ctcggtactg 10861 gtcgataaca tccgctggca gtcctacctg tcgagcatga ccagcgccga ggccgaggaa 10921 tggggtgtgg acgacgacca gcgccggttc ttcgtccgct tcggtgtgag caaggccaac 10981 tatggcgcac cgttcgctga tcggtggttc aggcggcatg acggcggggt gctcaagccc 11041 gccgtgctgg agaggcagcg caagagcaag ggggtgcccc gtggtgaagc ctaagaacaa 11101 gcacagcctc agccacgtcc ggcacgaccc ggcgcactgt ctggcccccg gcctgttccg 11161 tgccctcaag cggggcgagc gcaagcgcag caagctggac gtgacgtatg actacggcga 11221 cggcaagcgg atcgagttca gcggcccgga gccgctgggc gctgatgatc tgcgcatcct 11281 gcaagggctg gtggccatgg ctgggcctaa tggcctagtg cttggcccgg aacccaagac 11341 cgaaggcgga cggcagctcc ggctgttcct ggaacccaag tgggaggccg tcaccgctga 11401 tgccatggtg gtcaaaggta gctatcgggc gctggcaaag gaaatcgggg cagaggtcga 11461 tagtggtggg gcgctcaagc acatacagga ctgcatcgag cgcctttgga aggtatccat 11521 catcgcccag aatggccgca agcggcaggg gtttcggctg ctgtcggagt acgccagcga 11581 cgaggcggac gggcgcctgt acgtggccct gaaccccttg atcgcgcagg ccgtcatggg 11641 tggcggccag catgtgcgca tcagcatgga cgaggtgcgg gcgctggaca gcgaaaccgc 11701 ccgcctgctg caccagcggc tgtgtggctg gatcgacccc ggcaaaaccg gcaaggcttc 11761 catagatacc ttgtgcggct atgtctggcc gtcagaggcc agtggttcga ccatgcgcaa 11821 gcgccgccag cgggtgcgcg aggcgttgcc ggagctggtc gcgctgggct ggacggtaac 11881 cgagttcgcg gcgggcaagt acgacatcac ccggcccaag gcggcaggct gacccccccc 11941 actctattgt aaacaagaca tttttatctt ttatattcaa tggcttattt tcctgctaat 12001 tggtaatacc atgaaaaata ccatgctcag aaaaggctta acaatatttt gaaaaattgc 12061 ctactgagcg ctgccgcaca gctccatagg ccgctttcct ggctttgctt ccagatgtat 12121 gctcttctgc tcctgcaggc atcgtggtgt cacgctcgtc gtttggtatg gcttcattca 12181 gctccggttc ccaacgatca aggcgagtta catgatcccc catgttgtgc aaaaaagcgg 12241 ttagctcctt cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg ttatcactca 12301 tggttatggc agcactgcat aattctctta ctgtcatgcc atccgtaaga tgcttttctg 12361 tgactggtga gtactcaacc aagtcattct gagaatagtg tatgcggcga ccgagttgct 12421 cttgcccggc gtcaacacgg gataataccg cgccacatag cagaacttta aaagtgctca 12481 tcattggaaa acgttcttcg gggcgaaaac tctcaaggat cttaccgctg ttgagatcca 12541 gttcgatgta acccactcgt gcactttaca ctttatgctt ccggctcgta tgtta //
