pGTMV

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pGTMV
出品公司: 爱迪基因
目录编号: 118755
存储实验室: Jose-Antonio Daros

载体骨架基本信息
载体名称: pCLEAN-G181
载体出品公司: --
载体抗性: 卡那霉素
空载体大小: --
完整质粒大小: 9669 bp
载体修饰: --
载体类型: 植物表达
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: Tobacco mosaic virus,TMV
物种来源: Tobacco mosaic virus
插入大小: --
基因突变: --
GenBank编号 --
启动子 Cauliflower mosaic virus 35S
标签/融合蛋白: --
克隆方法: Gibson克隆
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: pGTMV was a gift from Jose-Antonio Daros (Addgene plasmid # 118755 ; http://n2t.net/addgene:118755 ; RRID:Addgene_118755)
参考文献部分: Efficient production of antifungal proteins in plants using a new transient expression vector derived from tobacco mosaic virus. Shi X, Cordero T, Garrigues S, Marcos JF, Daròs JA, Coca M.. Plant Biotech Journal (2018) 10.1111/pbi.13038

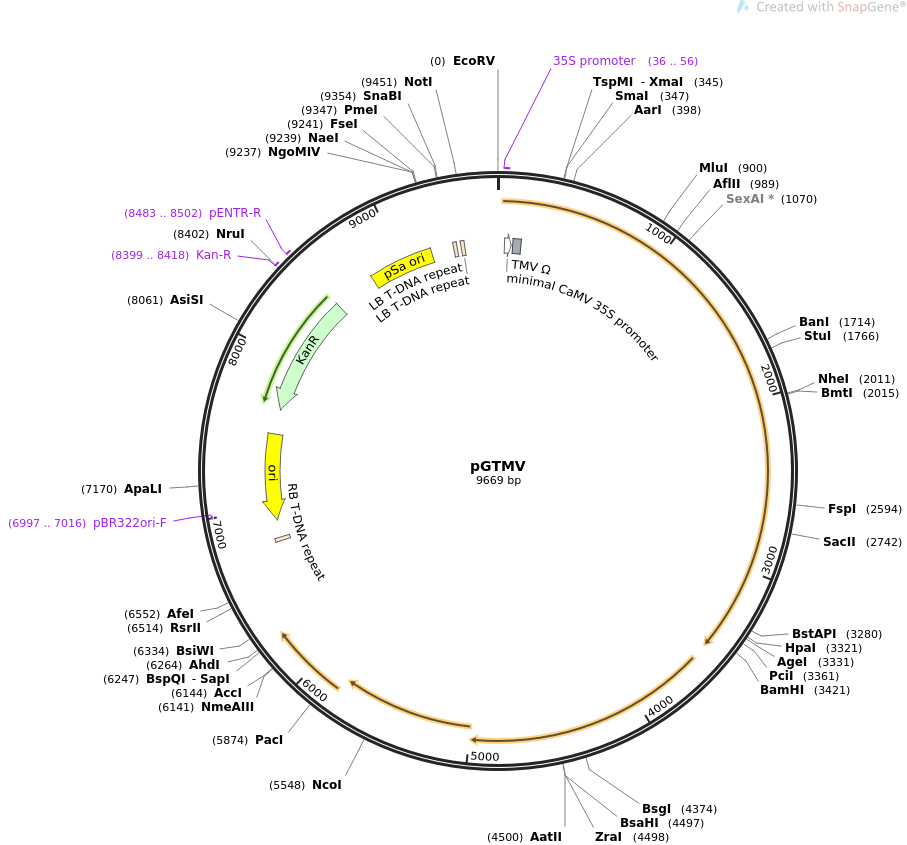

载体图谱质粒图谱和多克隆位点信息

pGTMV质粒图谱

载体简介

载体序列

LOCUS       pGTMV               9669 bp ds-DNA     circular SYN 30-NOV-2018
DEFINITION  Binary plasmid with a tobacco mosaic virus infectious clone.
ACCESSION   .
VERSION     .
KEYWORDS    pGTMV
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9669)
  TITLE     Tobacco mosaic virus-derived system to express recombinant proteins
            in plants with Gibson assembly
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 9669)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Nov 30, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..9669
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     36..56
                     /label=35S promoter
                     /note="CaMV 35S promoter, forward primer"
     promoter        45..90
                     /label=minimal CaMV 35S promoter
                     /note="minimal 35S promoter from cauliflower mosaic virus"
     misc_feature    101..156
                     /label=TMV Omega
                     /note="translational enhancer from the tobacco mosaic virus
                     5'-leader sequence (Gallie et al., 1988)"
     misc_feature    6774..6798
                     /label=RB T-DNA repeat
                     /note="right border repeat from nopaline C58 T-DNA"
     rep_origin      complement(6917..7505)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(6997..7016)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(7676..8491)
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /label=KanR
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG
                     KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
                     TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA
                     SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI
                     ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     primer_bind     8399..8418
                     /label=Kan-R
                     /note="Kanamycin resistance gene, reverse primer"
     primer_bind     8483..8502
                     /label=pENTR-R
                     /note="pENTR vectors, reverse primer"
     rep_origin      8782..9217
                     /label=pSa ori
                     /note="origin of replication from bacterial plasmid pSa"
     misc_feature    9368..9392
                     /label=LB T-DNA repeat
                     /note="left border repeat from nopaline C58 T-DNA"
     misc_feature    9419..9443
                     /label=LB T-DNA repeat
                     /note="left border repeat from nopaline C58 T-DNA"
ORIGIN
        1 atctccactg acgtaaggga tgacgcacaa tcccactatc cttcgcaaga cccttcctct
       61 atataaggaa gttcatttca tttggagagg tatttttaca acaattacca acaacaacaa
      121 acaacaaaca acattacaat tactatttac aattacaatg gcatacacac agacagctac
      181 cacatcagct ttgctggaca ctgtccgagg aaacaactcc ttggtcaatg atctagcaaa
      241 gcgtcgtctt tacgacacag cggttgaaga gtttaacgct cgtgaccgca ggcccaaggt
      301 gaacttttca aaagtaataa gcgaggagca gacgcttatt gctacccggg cgtatccaga
      361 attccaaatt acattttata acacgcaaaa tgccgtgcat tcgcttgcag gtggattgcg
      421 atctttagaa ctggaatatc tgatgatgca aattccctac ggatcattga cttatgacat
      481 aggcgggaat tttgcatcgc atctgttcaa gggacgagca tatgtacact gctgcatgcc
      541 caacctggac gttcgagaca tcatgcggca cgaaggccag aaagacagta ttgaactata
      601 cctttctagg ctagagagag gggggaaaac agtccccaac ttccaaaagg aagcatttga
      661 cagatacgca gaaattcctg aagacgctgt ctgtcacaat actttccaga catgcgaaca
      721 tcagccgatg cagcaatcag gcagagtgta tgccattgcg ctacacagca tatatgacat
      781 accagccgat gagttcgggg cggcactctt gaggaaaaat gtccatacgt gctatgccgc
      841 tttccacttc tccgagaacc tgcttcttga agattcatgc gtcaatttgg acgaaatcaa
      901 cgcgtgtttt tcgcgcgatg gagacaagtt gaccttttct tttgcatcag agagtactct
      961 taattactgt catagttatt ctaatattct taagtatgtg tgcaaaactt acttcccggc
     1021 ctctaataga gaggtttaca tgaaggagtt tttagtcacc agagttaata cctggttttg
     1081 taagttttct agaatagata cttttctttt gtacaaaggt gtggcccata aaagtgtaga
     1141 tagtgagcag ttttatactg caatggaaga cgcatggcat tacaaaaaga ctcttgcaat
     1201 gtgcaacagc gagagaatcc tccttgagga ttcatcatca gtcaattact ggtttcccaa
     1261 aatgagggat atggtcatcg taccattatt cgacatttct ttggagacta gtaagaggac
     1321 gcgcaaggaa gtcttagtgt ccaaggattt cgtgtttaca gtgcttaacc acattcgaac
     1381 ataccaggcg aaagctctta catacgcaaa tgttttgtcc ttcgtcgaat cgattcgatc
     1441 gagggtaatc attaacggtg tgacagcgag gtccgaatgg gatgtggaca aatctttgtt
     1501 acaatccttg tccatgacgt tttacctgca tactaagctt gccgttctaa aggatgactt
     1561 actgattagc aagtttagtc tcggttcgaa aacggtgtgc cagcatgtgt gggatgagat
     1621 ttcgctggcg tttgggaacg catttccctc cgtgaaagag aggctcttga acaggaaact
     1681 tatcagagtg gcaggcgacg cattagagat cagggtgcct gatctatatg tgaccttcca
     1741 cgacagatta gtgactgagt acaaggcctc tgtggacatg cctgcgcttg acattaggaa
     1801 gaagatggaa gaaacggaag tgatgtacaa tgcactttca gaattatcgg tgttaaggga
     1861 gtctgacaaa ttcgatgttg atgttttttc ccagatgtgc caatctttgg aagttgaccc
     1921 aatgacggca gcgaaggtta tagtcgcggt catgagcaat gagagcggtc tgactctcac
     1981 atttgaacga cctactgagg cgaatgttgc gctagcttta caggatcaag agaaggcttc
     2041 agaaggtgca ttggtagtta cctcaagaga agttgaagaa ccgtccatga agggttcgat
     2101 ggccagagga gagttacaat tagctggtct tgctggagat catccggaat cgtcctattc
     2161 taagaacgag gagatagagt ctttagagca gtttcatatg gcgacggcag attcgttaat
     2221 tcgtaagcag atgagctcga ttgtgtacac gggtccgatt aaagttcagc aaatgaaaaa
     2281 ctttatcgat agcctggtag catcactatc tgctgcggtg tcgaatctcg tcaagatcct
     2341 caaagataca gctgctattg accttgaaac ccgtcaaaag tttggagtct tggatgttgc
     2401 atctaggaag tggttaatca aaccaacggc caagagtcat gcatggggtg ttgttgaaac
     2461 ccacgcgagg aagtatcatg tggcgctttt ggaatatgat gagcagggtg tggtgacatg
     2521 cgatgattgg agaagagtag ctgttagctc tgagtctgtt gtttattccg acatggcgaa
     2581 actcagaact ctgcgcagac tgcttcgaaa cggagaaccg catgtcagta gcgcaaaggt
     2641 tgttcttgtg gacggagttc cgggctgtgg aaaaaccaaa gaaattcttt ccagggttaa
     2701 ttttgatgaa gatctaattt tagtacctgg gaagcaagcc gcggaaatga tcagaagacg
     2761 tgcgaattcc tcagggatta ttgtggccac gaaggacaac gttaaaaccg ttgattcttt
     2821 catgatgaat tttgggaaaa gcacacgctg tcagttcaag aggttattca ttgatgaagg
     2881 gttgatgttg catactggtt gtgttaattt tcttgtggcg atgtcattgt gcgaaattgc
     2941 atatgtttac ggagacacac agcagattcc atacatcaat agagtttcag gattcccgta
     3001 ccccgcccat tttgccaaat tggaagttga cgaggtggag acacgcagaa ctactctccg
     3061 ttgtccagcc gatgtcacac attatctgaa caggagatat gagggctttg tcatgagcac
     3121 ttcttcggtt aaaaagtctg tttcgcagga gatggtcggc ggagccgccg tgatcaatcc
     3181 gatctcaaaa cccttgcatg gcaagatcct gacttttacc caatcggata aagaagctct
     3241 gctttcaaga gggtattcag atgttcacac tgtgcatgaa gtgcaaggcg agacatactc
     3301 tgatgtttca ctagttaggt taacccctac accggtctcc atcattgcag gagacagccc
     3361 acatgttttg gtcgcattgt caaggcacac ctgttcgctc aagtactaca ctgttgttat
     3421 ggatccttta gttagtatca ttagagatct agagaaactt agctcgtact tgttagatat
     3481 gtataaggtc gatgcaggaa cacaatagca attacagatt gactcggtgt tcaaaggttc
     3541 caatcttttt gttgcagcgc caaagactgg tgatatttct gatatgcagt tttactatga
     3601 taagtgtctc ccaggcaaca gcaccatgat gaataatttt gatgctgtta ccatgaggtt
     3661 gactgacatt tcattgaatg tcaaagattg catattggat atgtctaagt ctgttgctgc
     3721 gcctaaggat caaatcaaac cactaatacc tatggtacga acggcggcag aaatgccacg
     3781 ccagactgga ctattggaaa atttagtggc gatgattaaa agaaacttta acgcacccga
     3841 gttgtctggc atcattgata ttgaaaatac tgcatctttg gttgtagata agttttttga
     3901 tagttatttg cttaaagaaa aaagaaaacc aaataaaaat gtttctttgt tcagtagaga
     3961 gtctctcaat agatggttag aaaagcagga acaggtaaca ataggccagc tcgcagattt
     4021 tgattttgtg gatttgccag cagttgatca gtacagacac atgattaaag cacaacccaa
     4081 acaaaagttg gacacttcaa tccaaacgga gtacccggct ttgcagacga ttgtgtacca
     4141 ttcaaaaaag atcaatgcaa tattcggccc gttgtttagt gagcttacta ggcaattact
     4201 ggacagtgtt gattcgagca gatttttgtt tttcacaaga aagacaccag cgcagattga
     4261 ggatttcttc ggagatctcg acagtcatgt gccgatggat gtcttggagc tggatatatc
     4321 aaaatacgac aaatctcaga atgaattcca ctgtgcagta gaatacgaga tctggcgaag
     4381 attgggtttt gaagacttct tgggagaagt ttggaaacaa gggcatagaa agaccaccct
     4441 caaggattat accgcaggta taaaaacttg catctggtat caaagaaaga gcggggacgt
     4501 cacgacgttc attggaaaca ctgtgatcat tgctgcatgt ttggcctcga tgcttccgat
     4561 ggagaaaata atcaaaggag ccttttgcgg tgacgatagt ctgctgtact ttccaaaggg
     4621 ttgtgagttt ccggatgtgc aacactccgc aaatcttatg tggaattttg aagcaaaact
     4681 gtttaaaaaa cagtatggat acttttgcgg aagatatgta atacatcacg acagaggatg
     4741 cattgtgtat tacgatcccc taaagttgat ctcgaaactt ggtgctaaac acatcaagga
     4801 ttgggaacac ttggaggagt tcagaaggtc tctttgtgat gttgctgttt cgttgaacaa
     4861 ttgtgcgtat tacacacagt tggacgacgc tgtatgggag gttcataaga ccgcccctcc
     4921 aggttcgttt gtttataaaa gtctggtgaa gtatttgtct gataaagttc tttttagaag
     4981 tttgtttata gatggctcta gttgttaaag gaaaagtgaa tatcaatgag tttatcgacc
     5041 tgtcaaaaat ggagaagatc ttaccgtcga tgtttacccc tgtaaagagt gttatgtgtt
     5101 ccaaagttga taaaataatg gttcatgaga atgagtcatt gtcagaggtg aaccttctta
     5161 aaggagttaa gcttattgat agtggatacg tctgtttagc cggtttggtc gtcacgggcg
     5221 agtggaactt gcctgacaat tgcagaggag gtgtgagcgt gtgtctggtg gacaaaagga
     5281 tggaaagagc cgacgaggcc actctcggat cttactacac agcagctgca aagaaaagat
     5341 ttcagttcaa ggtcgttccc aattatgcta taaccaccca ggacgcgatg aaaaacgtct
     5401 ggcaagtttt agttaatatt agaaatgtga agatgtcagc gggtttctgt ccgctttctc
     5461 tggagtttgt gtcggtgtgt attgtttata gaaataatat aaaattaggt ttgagagaga
     5521 agattacaaa cgtgagagac ggagggccca tggaacttac agaagaagtc gttgatgagt
     5581 tcatggaaga tgtccctatg tcgatcaggc ttgcaaagtt tcgatctcga accggaaaaa
     5641 agagtgatgt ccgcaaaggg aaaaatagta gtagtgatcg gtcagtgccg aacaagaact
     5701 atagaaatgt taaggatttt ggaggaatga gttttaaaaa gaataattta atcgatgatg
     5761 attcggaggc tactgtcgcc gaatcggatt cgttttaaat atgtcttaca gtatcactac
     5821 tccatctcag ttcgtgttct tgtcatcagc gtgggccgac ccaatagagt taattaattt
     5881 atgtactaat gccttaggaa atcagtttca aacacaacaa gctcgaactg tcgttcaaag
     5941 acaattcagt gaggtgtgga aaccttcacc acaagtaact gttaggttcc ctgacagtga
     6001 ctttaaggtg tacaggtaca atgcggtatt agacccgcta gtcacagcac tgttaggtgc
     6061 attcgacact agaaatagaa taatagaagt tgaaaatcag gcgaacccca cgactgccga
     6121 gacgttagat gctactcgta gagtagacga cgcaacggtg gccataagga gcgcgataaa
     6181 taatttaata gtagaattga tcagaggaac cggatcttat aatcggagct ctttcgagag
     6241 ctcttctggt ttggtttgga cctctggtcc tgcaacttga ggtagtcaag atgcataata
     6301 aataacggat tgtgtccgta atcacacgtg gtgcgtacga taacgcatag tgtttttccc
     6361 tccacttaaa tcgaagggtt gtgtcttgga tcgcgcgggt caaatgtata tggttcatat
     6421 acatccgcag gcacgtaata aagcgagggg ttcgaatccc cccgttaccc ccggtagggg
     6481 cccagggtcg gcatggcatc tccacctcct cgcggtccga cctgggctac ttcggtaggc
     6541 taagggagaa gcgctgaaat caccagtctc tctctacaaa tctatctctc tctattttct
     6601 ccataaataa tgtgtgagta gtttcccgat aagggaaatt agggttctta tagggtttcg
     6661 ctcatgtgtt gagcatataa gaaaccctta gtatgtattt gtatttgtaa aatacttcta
     6721 tcaataaaat ttctaattcc taaaaccaaa atccaggggc cctcgacgtt ccttgacagg
     6781 atatattggc gggtaaacta agtcgctgta tgtgtttgtt tgagatcctc tagggcatgc
     6841 aagctgatct ggatctcatg tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg
     6901 ccgcgttgct ggcgtttttc cataggctcc gcccccctga cgagcatcac aaaaatcgac
     6961 gctcaagtca gaggtggcga aacccgacag gactataaag ataccaggcg tttccccctg
     7021 gaagctccct cgtgcgctct cctgttccga ccctgccgct taccggatac ctgtccgcct
     7081 ttctcccttc gggaagcgtg gcgctttctc atagctcacg ctgtaggtat ctcagttcgg
     7141 tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct
     7201 gcgccttatc cggtaactat cgtcttgagt ccaacccggt aagacacgac ttatcgccac
     7261 tggcagcagc cactggtaac aggattagca gagcgaggta tgtaggcggt gctacagagt
     7321 tcttgaagtg gtggcctaac tacggctaca ctagaagaac agtatttggt atctgcgctc
     7381 tgctgaagcc agttaccttc ggaagaagag ttggtagctc ttgatccggc aaacaaacca
     7441 ccgctggtag cggtggtttt tttgtttgca agcagcagat tacgcgcaga aaaaaaggat
     7501 ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc tcagtggaac gaaaactcac
     7561 gttaagggat tttggtcatg agattatcaa aaaggatctt cacctagatc cttttaaatt
     7621 aaaaatgaag ttttaaatca atctaaagta tatatgtgta acattggtct agtgattaga
     7681 aaaactcatc gagcatcaaa tgaaactgta atttattcat atcaggatta tcaataccat
     7741 atttttgaaa aagccgtttc tgtaatgaag gagaaaactc accgaggcag ttccatagga
     7801 tggcaagatc ctggtatcgg tctgcgattc cgactcgtcc aacatcaata caacctatta
     7861 atttcccctc gtcaaaaata aggttatcaa gtgagaaatc accatgagtg acgactgaat
     7921 ccggtgagaa tggcaaaagt ttatgcattt ctttccagac ttgttcaaca ggccagccat
     7981 tacgctcgtc atcaaaatca ctcgcatcaa ccaaaccgtt attcattcgt gattgcgcct
     8041 gagcaagacg aaatacgcga tcgctgttaa aaggacaatt acaaacagga atcgaatgca
     8101 accggcgcag gaacactgcc agcgcatcaa caatattttc acctgaatca ggatattctt
     8161 ctaatacctg gaatgctgtt ttccctggga tcgcagtggt gagtaaccat gcatcatcag
     8221 gagtacggat aaaatgcttg atggtcggaa gaggcataaa ttccgtcagc cagtttagtc
     8281 tgaccatctc atctgtaaca tcattggcaa cgctaccttt gccatgtttc agaaacaact
     8341 ctggcgcatc gggcttccca tacaatcggt agattgtcgc acctgattgc ccgacattat
     8401 cgcgagccca tttataccca tataaatcag catccatgtt ggaatttaat cgcggccttg
     8461 agcaagacgt ttcccgttga atatggctca taacacccct tgtattactg tttatgtaag
     8521 cagacagttt tattgttcat gatgatatat ttttatcttg tgcaatgtaa catcagagat
     8581 tttgagacac aacgtggctt tgttgaataa atcgaacttt tgctgagttg aaggatcaga
     8641 tcacgcatct tcccgacaac gcagaccgtt ccgtggcaaa gcaaaagttc aaaatcacca
     8701 actggtccac ctacaacaaa gctctcatca accgtggctc cctcactttc tggctggatg
     8761 atggggcgat tcaggcgatc cccatccaac agcccgccgt cgagcgggct tttttatccc
     8821 cggaagcctg tggatagagg gtagttatcc acgtgaaacc gctaatgccc cgcaaagcct
     8881 tgattcacgg ggctttccgg cccgctccaa aaactatcca cgtgaaatcg ctaatcaggg
     8941 tacgtgaaat cgctaatcgg agtacgtgaa atcgctaata aggtcacgtg aaatcgctaa
     9001 tcaaaaaggc acgtgagaac gctaatagcc ctttcagatc aacagcttgc aaacacccct
     9061 cgctccggca agtagttaca gcaagtagta tgttcaatta gcttttcaat tatgaatata
     9121 tatatcaatt attggtcgcc cttggcttgt ggacaatgcg ctacgcgcac cggctccgcc
     9181 cgtggacaac cgcaagcggt tgcccaccgt cgagcgcctt tgcccacaac ccggcggccg
     9241 gccgcaacag atcgttttat aaattttttt ttttgaaaaa gaaaaagccc gaaaggcggc
     9301 aacctctcgg gcttctggat ttccgatccc cggaattaga tccgtttaaa ctacgtaaga
     9361 tcgatcttgg caggatatat tgtggtgtaa acgttcctgc ggcggtcgag atggatcttg
     9421 gcaggatata ttgtggtgta aacgttcctg cggccgcgat tccattgccc agctatctgt
     9481 cactttattg tgaagatagt ggaaaaggaa ggtggctcct acaaatgcca tcattgcgat
     9541 aaaggaaagg ccatcgttga agatgcctct gccgacagtg gtcccaaaga tggaccccca
     9601 cccacgagga gcatcgtgga aaaagaagac gttccaacca cgtcttcaaa gcaagtggat
     9661 tgatgtgat
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
