pMD2-VSVGmut

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pMD2-VSVGmut
出品公司: addgene
目录编号: 182229
存储实验室: Vladislav Verkhusha

载体骨架基本信息
载体名称: pMD2
空载体大小: 4284 bp
完整质粒大小: 5820 bp
载体类型: 哺乳细胞表达
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: VSVGmut/G glycoprotein
物种来源: Vesicular Stomatitis Virus
插入大小: 1536 bp
基因突变: K47Q, R354A
启动子: CMV
克隆方法: Gibson Cloning
5’测序引物 tgtgtgctggcccatcactttggcaaagcacgtgagatct
3’测序引物 tgtgtgctggcccatcactttggcaaagcacgtgagatct

文献引用方法
材料和方法部分: pMD2-VSVGmut was a gift from Michael Birnbaum (Addgene plasmid # 182229 ; http://n2t.net/addgene:182229 ; RRID:Addgene_182229)
参考文献部分: Antigen identification and high-throughput interaction mapping by reprogramming viral entry. Dobson CS, Reich AN, Gaglione S, Smith BE, Kim EJ, Dong J, Ronsard L, Okonkwo V, Lingwood D, Dougan M, Dougan SK, Birnbaum ME. Nat Methods. 2022 Apr;19(4):449-460. doi: 10.1038/s41592-022-01436-z. Epub 2022 Apr 8. 10.1038/s41592-022-01436-z PubMed 35396484

载体图谱质粒图谱和多克隆位点信息

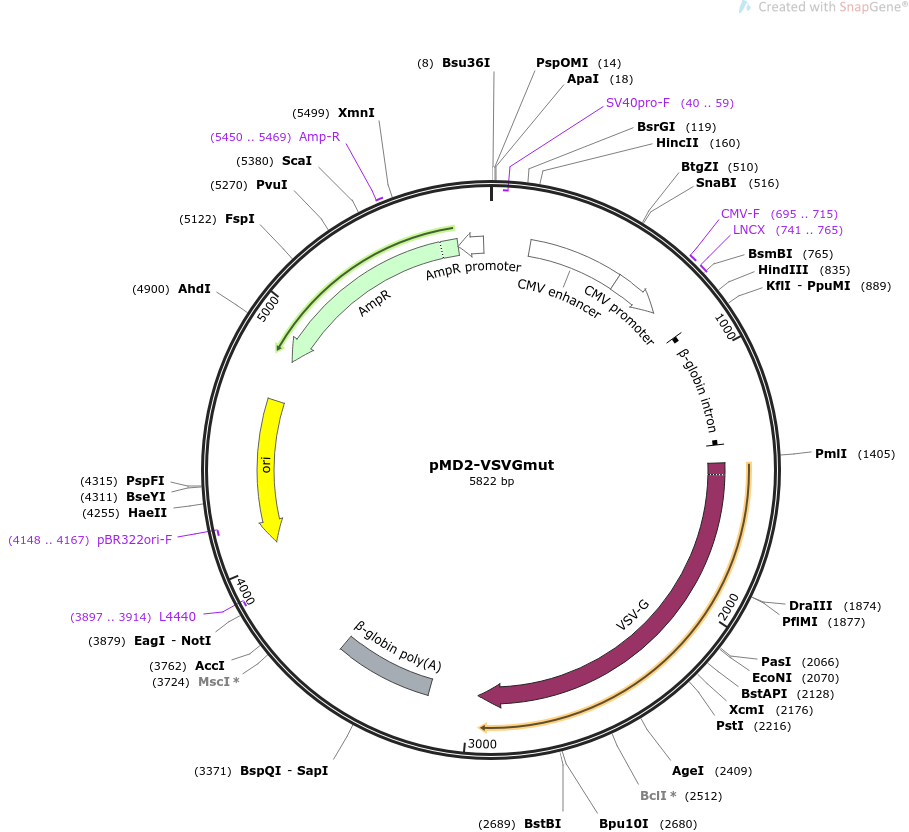

pMD2-VSVGmut质粒图谱

载体简介

载体序列

LOCUS       pMD2-VSVGmut                5822 bp ds-DNA     circular SYN 05-JUL-2022
DEFINITION  Expresses VSVGmut protein in mammalian cells for lentiviral
            pseudotyping.
ACCESSION   .
VERSION     .
KEYWORDS    pMD2-VSVGmut
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5822)
  TITLE     Antigen identification and high-throughput interaction mapping by
            reprogramming viral entry
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 5822)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 5, 2022 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5822
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(40..59)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     enhancer        161..540
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        541..744
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     695..715
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     741..765
                     /label=LNCX
                     /note="Human CMV promoter, forward primer"
     intron          878..1353
                     /label=-beta-globin intron
                     /note="internally truncated intron from human beta-globin"
     CDS             1428..2963
                     /codon_start=1
                     /product="vesicular stomatitis virus G glycoprotein"
                     /label=VSV-G
                     /note="Indiana strain"
                     /translation="MKCLLYLAFLFIGVNCKFTIVFPHNQKGNWKNVPSNYHYCPSSSD
                     LNWHNDLIGTALQVKMPQSHKAIQADGWMCHASKWVTTCDFRWYGPKYITHSIRSFTPS
                     VEQCKESIEQTKQGTWLNPGFPPQSCGYATVTDAEAVIVQVTPHHVLVDEYTGEWVDSQ
                     FINGKCSNYICPTVHNSTTWHSDYKVKGLCDSNLISMDITFFSEDGELSSLGKEGTGFR
                     SNYFAYETGGKACKMQYCKHWGVRLPSGVWFEMADKDLFAAARFPECPEGSSISAPSQT
                     SVDVSLIQDVERILDYSLCQETWSKIRAGLPISPVDLSYLAPKNPGTGPAFTIINGTLK
                     YFETRYIRVDIAAPILSRMVGMISGTTTEAELWDDWAPYEDVEIGPNGVLRTSSGYKFP
                     LYMIGHGMLDSDLHLSSKAQVFEHPHIQDAASQLPDDESLFFGDTGLSKNPIELVEGWF
                     SSWKSSIASFFFIIGLIIGLFLVLRVGIHLCIKLKHTKKRQIYTDIEMNRLGK"
     polyA_signal    3164..3558
                     /label=-beta-globin poly(A)
                     /note="human beta-globin polyadenylation signal"
     primer_bind     complement(3897..3914)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4068..4656)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4148..4167)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4827..5687)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5450..5469
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5688..5792)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ggatcccctg agggggcccc catgggctag aggatccggc ctcggcctct gcataaataa
       61 aaaaaattag tcagccatga gcttggccca ttgcatacgt tgtatccata tcataatatg
      121 tacatttata ttggctcatg tccaacatta ccgccatgtt gacattgatt attgactagt
      181 tattaatagt aatcaattac ggggtcatta gttcatagcc catatatgga gttccgcgtt
      241 acataactta cggtaaatgg cccgcctggc tgaccgccca acgacccccg cccattgacg
      301 tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg acgtcaatgg
      361 gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca tatgccaagt
      421 acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc ccagtacatg
      481 accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc tattaccatg
      541 gtgatgcggt tttggcagta catcaatggg cgtggatagc ggtttgactc acggggattt
      601 ccaagtctcc accccattga cgtcaatggg agtttgtttt ggcaccaaaa tcaacgggac
      661 tttccaaaat gtcgtaacaa ctccgcccca ttgacgcaaa tgggcggtag gcgtgtacgg
      721 tgggaggtct atataagcag agctcgttta gtgaaccgtc agatcgcctg gagacgccat
      781 ccacgctgtt ttgacctcca tagaagacac cgggaccgat ccagcctccc ctcgaagctt
      841 acatgtggta ccgagctcgg atcctgagaa cttcagggtg agtctatggg acccttgatg
      901 ttttctttcc ccttcttttc tatggttaag ttcatgtcat aggaagggga gaagtaacag
      961 ggtacacata ttgaccaaat cagggtaatt ttgcatttgt aattttaaaa aatgctttct
     1021 tcttttaata tacttttttg tttatcttat ttctaatact ttccctaatc tctttctttc
     1081 agggcaataa tgatacaatg tatcatgcct ctttgcacca ttctaaagaa taacagtgat
     1141 aatttctggg ttaaggcaat agcaatattt ctgcatataa atatttctgc atataaattg
     1201 taactgatgt aagaggtttc atattgctaa tagcagctac aatccagcta ccattctgct
     1261 tttattttat ggttgggata aggctggatt attctgagtc caagctaggc ccttttgcta
     1321 atcatgttca tacctcttat cttcctccca cagctcctgg gcaacgtgct ggtctgtgtg
     1381 ctggcccatc actttggcaa agcacgtgag atctgaattc tgacactatg aagtgccttt
     1441 tgtacttagc ctttttattc attggggtga attgcaagtt caccatagtt tttccacaca
     1501 accaaaaagg aaactggaaa aatgttcctt ctaattacca ttattgcccg tcaagctcag
     1561 atttaaattg gcataatgac ttaataggca cagccttaca agtcaaaatg ccccagagtc
     1621 acaaggctat tcaagcagac ggttggatgt gtcatgcttc caaatgggtc actacttgtg
     1681 atttccgctg gtatggaccg aagtatataa cacattccat ccgatccttc actccatctg
     1741 tagaacaatg caaggaaagc attgaacaaa cgaaacaagg aacttggctg aatccaggct
     1801 tccctcctca aagttgtgga tatgcaactg tgacggatgc cgaagcagtg attgtccagg
     1861 tgactcctca ccatgtgctg gttgatgaat acacaggaga atgggttgat tcacagttca
     1921 tcaacggaaa atgcagcaat tacatatgcc ccactgtcca taactctaca acctggcatt
     1981 ctgactataa ggtcaaaggg ctatgtgatt ctaacctcat ttccatggac atcaccttct
     2041 tctcagagga cggagagcta tcatccctgg gaaaggaggg cacagggttc agaagtaact
     2101 actttgctta tgaaactgga ggcaaggcct gcaaaatgca atactgcaag cattggggag
     2161 tcagactccc atcaggtgtc tggttcgaga tggctgataa ggatctcttt gctgcagcca
     2221 gattccctga atgcccagaa gggtcaagta tctctgctcc atctcagacc tcagtggatg
     2281 taagtctaat tcaggacgtt gagaggatct tggattattc cctctgccaa gaaacctgga
     2341 gcaaaatcag agcgggtctt ccaatctctc cagtggatct cagctatctt gctcctaaaa
     2401 acccaggaac cggtcctgct ttcaccataa tcaatggtac cctaaaatac tttgagacca
     2461 gatacatcag agtcgatatt gctgctccaa tcctctcaag aatggtcgga atgatcagtg
     2521 gaactaccac agaagccgaa ctgtgggatg actgggcacc atatgaagac gtggaaattg
     2581 gacccaatgg agttctgagg accagttcag gatataagtt tcctttatac atgattggac
     2641 atggtatgtt ggactccgat cttcatctta gctcaaaggc tcaggtgttc gaacatcctc
     2701 acattcaaga cgctgcttcg caacttcctg atgatgagag tttatttttt ggtgatactg
     2761 ggctatccaa aaatccaatc gagcttgtag aaggttggtt cagtagttgg aaaagctcta
     2821 ttgcctcttt tttctttatc atagggttaa tcattggact attcttggtt ctccgagttg
     2881 gtatccatct ttgcattaaa ttaaagcaca ccaagaaaag acagatttat acagacatag
     2941 agatgaaccg acttggaaag taactcaaat cctgcacaac agattcttca tgtttggacc
     3001 aaatcaactt gtgataccat gctcaaagag gcctcaatta tatttgagtt tttaattttt
     3061 atgnaaaaaa aaaaaaaaaa cggaattcac cccaccagtg caggctgcct atcagaaagt
     3121 ggtggctggt gtggctaatg ccctggccca caagtatcac taagctcgct ttcttgctgt
     3181 ccaatttcta ttaaaggttc ctttgttccc taagtccaac tactaaactg ggggatatta
     3241 tgaagggcct tgagcatctg gattctgcct aataaaaaac atttattttc attgcaatga
     3301 tgtatttaaa ttatttctga atattttact aaaaagggaa tgtgggaggt cagtgcattt
     3361 aaaacataaa gaaatgaaga gctagttcaa accttgggaa aatacactat atcttaaact
     3421 ccatgaaaga aggtgaggct gcaaacagct aatgcacatt ggcaacagcc cctgatgcct
     3481 atgccttatt catccctcag aaaaggattc aagtagaggc ttgatttgga ggttaaagtt
     3541 ttgctatgct gtattttaca ttacttattg ttttagctgt cctcatgaat gtcttttcac
     3601 tacccatttg cttatcctgc atctctcagc cttgactcca ctcagttctc ttgcttagag
     3661 ataccacctt tcccctgaag tgttccttcc atgttttacg gcgagatggt ttctcctcgc
     3721 ctggccactc agccttagtt gtctctgttg tcttatagag gtctacttga agaaggaaaa
     3781 acagggggca tggtttgact gtcctgtgag cccttcttcc ctgcctcccc cactcacagt
     3841 gacccggaat ccctcgacat ggcagtctag cactagtgcg gccgcagatc tgcttcctcg
     3901 ctcactgact cgctgcgctc ggtcgttcgg ctgcggcgag cggtatcagc tcactcaaag
     3961 gcggtaatac ggttatccac agaatcaggg gataacgcag gaaagaacat gtgagcaaaa
     4021 ggccagcaaa aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc
     4081 cgcccccctg acgagcatca caaaaatcga cgctcaagtc agaggtggcg aaacccgaca
     4141 ggactataaa gataccaggc gtttccccct ggaagctccc tcgtgcgctc tcctgttccg
     4201 accctgccgc ttaccggata cctgtccgcc tttctccctt cgggaagcgt ggcgctttct
     4261 catagctcac gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt
     4321 gtgcacgaac cccccgttca gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag
     4381 tccaacccgg taagacacga cttatcgcca ctggcagcag ccactggtaa caggattagc
     4441 agagcgaggt atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa ctacggctac
     4501 actagaagaa cagtatttgg tatctgcgct ctgctgaagc cagttacctt cggaaaaaga
     4561 gttggtagct cttgatccgg caaacaaacc accgctggta gcggtggttt ttttgtttgc
     4621 aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg
     4681 gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca
     4741 aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt
     4801 atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca
     4861 gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta gataactacg
     4921 atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca
     4981 ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt
     5041 cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt
     5101 agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca
     5161 cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca
     5221 tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga
     5281 agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact
     5341 gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga
     5401 gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg
     5461 ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc
     5521 tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga
     5581 tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat
     5641 gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt
     5701 caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt
     5761 atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctgac
     5821 gt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
