pPolI_SARS-CoV-2_NLuc

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pPolI_SARS-CoV-2_NLuc
出品公司: addgene
目录编号: 183953
存储实验室: AJ te Velthuis

载体骨架基本信息
载体名称: pMK-RQ
载体出品公司: Invitrogen
空载体大小: 2278 bp
完整质粒大小: 4830 bp
载体类型: 哺乳细胞表达
载体抗性: Kanamycin, 50 μg/mL
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: SARS-CoV-2 minigenome with Nano luciferase
物种来源: SARS coronavirus 2
插入大小: 2252 bp
基因突变:
N (a.k.a. GU280_gp10)
Entrez GeneORF10 (a.k.a. GU280_gp11)
GenBank编号 NC_045512.2
启动子: Mammalian Pol I
标签/融合蛋白: 人细胞色素c氧化酶亚基VIII(N端)
克隆方法: 未知
5’测序引物 GTGAGCGCGACGTAATAC
3’测序引物 GCTGGCACGACAGGTTTC

文献引用方法
材料和方法部分: pPolI_SARS-CoV-2_NLuc was a gift from AJ te Velthuis (Addgene plasmid # 183953 ; http://n2t.net/addgene:183953 ; RRID:Addgene_183953)
参考文献部分: A SARS-CoV-2 mini-genome assay based on negative-sense RNA to study replication inhibitors and emerging mutations. Vial TK, Oade MS, Russell CA, Eggink D, te Velthuis AJW. bioRxiv 2021.06.28.450211 10.1101/2021.06.28.450211

载体图谱质粒图谱和多克隆位点信息

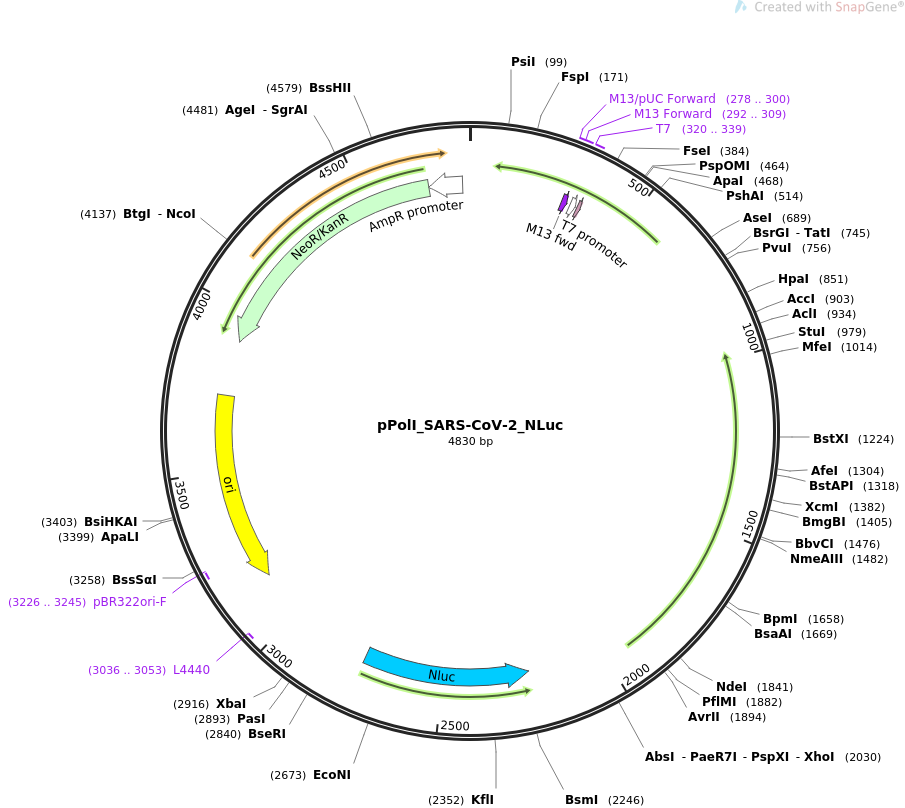

pPolI_SARS-CoV-2_NLuc质粒图谱

载体简介

载体序列

LOCUS       AJ te Velthuis                4830 bp ds-DNA     circular SYN 24-JUN-2022
DEFINITION  Encodes SARS-CoV-2 minigenome with nano-luciferase reporter gene.
            Minigenome is under control of the Pol I promoter.
ACCESSION   .
VERSION     .
KEYWORDS    pPolI_SARS-CoV-2_NLuc
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4830)
  AUTHORS   Vial TK, Oade MS, Russell CA, Eggink D, te Velthuis AJW
  TITLE     A SARS-CoV-2 mini-genome assay based on negative-sense RNA to study
            replication inhibitors and emerging mutations
  JOURNAL   bioRxiv 2021.06.28.450211
REFERENCE   2  (bases 1 to 4830)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jun 24, 2022 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4830
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     278..300
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     292..309
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     293..309
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     320..339
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        320..338
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             343..354
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     CDS             complement(2232..2747)
                     /codon_start=1
                     /product="NanoLuc(R) luciferase"
                     /label=Nluc
                     /note="human codon-optimized"
                     /translation="MVFTLEDFVGDWRQTAGYNLDQVLEQGGVSSLFQNLGVSVTPIQR
                     IVLSGENGLKIDIHVIIPYEGLSGDQMGQIEKIFKVVYPVDDHHFKVILHYGTLVIDGV
                     TPNMIDYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDERLINPDGSLLFRVTINGVTGW
                     RLCERILA"
     primer_bind     complement(3036..3053)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3146..3734)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3226..3245)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(3908..4702)
                     /codon_start=1
                     /product="aminoglycoside phosphotransferase"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     promoter        complement(4703..4807)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ctaaattgta agcgttaata ttttgttaaa attcgcgtta aatttttgtt aaatcagctc
       61 attttttaac caataggccg aaatcggcaa aatcccttat aaatcaaaag aatagaccga
      121 gatagggttg agtggccgct acagggcgct cccattcgcc attcaggctg cgcaactgtt
      181 gggaagggcg tttcggtgcg ggcctcttcg ctattacgcc agctggcgaa agggggatgt
      241 gctgcaaggc gattaagttg ggtaacgcca gggttttccc agtcacgacg ttgtaaaacg
      301 acggccagtg agcgcgacgt aatacgactc actatagggc gaattgaagg aaggccgtca
      361 aggccgcata agcttacggg ccggcccctg cttgtggcac gggcggccgg gagggcgtcc
      421 ccggcccggc gctgctcccg cgtgtgtcct ggggttgacc agagggcccc gggcgctccg
      481 tgtgtggctg cgatggtggc gtttttgggg acaggtgtcc gtgtcgcgcg tcgcctgggc
      541 cggcggcgtg gtcggtgacg cgacctcccg gccccggggg aggtatatct ttcgctccga
      601 gtcggcattt tgggccgccg ggttattttt tttttttgtc attctcctaa gaagctatta
      661 aaatcacatg gggatagcac tactaaaatt aattttacac attagggctc ttccatatag
      721 gcagctctcc ctagcattgt tcactgtaca ctcgatcgta ctccgcgtgg cctcggtgaa
      781 aatgtggtgg ctctttcaag tcctccctaa tgttacacac tgattaaaga ttgctatgtg
      841 agattaaagt taactacatc tacttgtgct atgtagttac gagaattcat tctgcacaag
      901 agtagactat atatcgtaaa cggaaaagcg aaaacgttta tatagcccat ctgccttgtg
      961 tggtctgcat gagtttaggc ctgagttgag tcagcactgc tcatggattg ttgcaattgt
     1021 ttggagaaat catccaaatc tgcagcagga agaagagtca cagtttgctg tttcttctgt
     1081 ctctgcggta aggcttgagt ttcatcagcc ttcttctttt tgtccttttt aggctctgtt
     1141 ggtgggaatg ttttgtatgc gtcaatatgc ttattcagca aaatgacttg atctttgaaa
     1201 tttggatctt tgtcatccaa tttgatggca cctgtgtagg tcaaccacgt tcccgaaggt
     1261 gtgacttcca tgccaatgcg cgacattccg aagaacgctg aagcgctggg ggcaaattgt
     1321 gcaatttgcg gccaatgttt gtaatcagtt ccttgtctga ttagttcctg gtccccaaaa
     1381 tttccttggg tttgttctgg accacgtctg ccgaaagctt gtgttacatt gtatgcttta
     1441 gtggcagtac gtttttgccg aggcttctta gaagcctcag cagcagattt cttagtgaca
     1501 gtttggcctt gttgttgttg gcctttacca gacattttgc tctcaagctg gttcaatctg
     1561 tcaagcagca gcaaagcaag agcagcatca ccgccattgc cagccattct agcaggagaa
     1621 gttcccctac tgctgcctgg agttgaattt cttgaactgt tgcgactacg tgatgaggaa
     1681 cgagaagagg cttgactgcc gcctctgctc ccttctgcgt agaagccttt tggcaatgtt
     1741 gttccttgag gaagttgtag cacgattgca gcattgttag caggattgcg ggtgccaatg
     1801 tgatcttttg gtgtattcaa ggctccctca gttgcaaccc atatgatgcc gtctttgtta
     1861 gcaccatagg gaagtccagc ttctggccca gttcctaggt agtagaaata ccatcttgga
     1921 ctgagatctt tcattttacc gtcaccacca cgaattcgtc tggtagctct tcggtagtag
     1981 ccaatttggt catctggact gctattggtg ttaattggaa cgccttgtcc tcgagggaat
     2041 ttaaggtctt ccttgccatg ttgagtgaga gcggtgaacc aagacgcagt attattgggt
     2101 aaaccttggg gccgacgttg ttttgatcgc gccccactgc gttctccatt ctggttactg
     2161 ccagttgaat ctgagggtcc accaaacgta atgcggggtg catttcgctg attttggggt
     2221 ccattatcag attacgccag aatgcgttcg cacagccgcc agccggtcac tccgttgatg
     2281 gttactcgga acagcaggga gccgtcgggg ttgatcaggc gctcgtcgat aattttgttg
     2341 ccgttccaca gggtccctgt tacagtgatc tttttgccgt cgaacacggc gatgccttca
     2401 tacggccgtc cgaaatagtc gatcatgttc ggcgtaaccc cgtcgattac cagtgtgcca
     2461 tagtgcagga tcaccttaaa gtgatgatca tccacagggt acaccacctt aaaaattttt
     2521 tcgatctggc ccatttggtc gccgctcaga ccttcatacg ggatgatgac atggatgtcg
     2581 atcttcagcc cattttcacc gctcaggaca atcctttgga tcggagttac ggacaccccg
     2641 agattctgaa acaaactgga cacacctccc tgttcaagga cttggtccag gttgtagccg
     2701 gctgtctgtc gccagtcccc aacgaaatct tcgagtgtga agaccatttt agtttgttcg
     2761 tttagagaac agatctacaa gagatcgaaa gttggttggt ttgttacctg ggaaggtata
     2821 aacctttaat ggccggcatg gtcccagcct cctcgctggc gccggctggg caacattccg
     2881 aggggaccgt cccctgggta atggcgaatg ggacctctag actgggcctc atgggccttc
     2941 ctttcactgc ccgctttcca gtcgggaaac ctgtcgtgcc agctgcatta acatggtcat
     3001 agctgtttcc ttgcgtattg ggcgctctcc gcttcctcgc tcactgactc gctgcgctcg
     3061 gtcgttcggg taaagcctgg ggtgcctaat gagcaaaagg ccagcaaaag gccaggaacc
     3121 gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac gagcatcaca
     3181 aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga taccaggcgt
     3241 ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt accggatacc
     3301 tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc
     3361 tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc
     3421 ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta agacacgact
     3481 tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat gtaggcggtg
     3541 ctacagagtt cttgaagtgg tggcctaact acggctacac tagaagaaca gtatttggta
     3601 tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct tgatccggca
     3661 aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa
     3721 aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct cagtggaacg
     3781 aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc
     3841 ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg
     3901 acagttatta gaaaaattca tccagcagac gataaaacgc aatacgctgg ctatccggtg
     3961 ccgcaatgcc atacagcacc agaaaacgat ccgcccattc gccgcccagt tcttccgcaa
     4021 tatcacgggt ggccagcgca atatcctgat aacgatccgc cacgcccaga cggccgcaat
     4081 caataaagcc gctaaaacgg ccattttcca ccataatgtt cggcaggcac gcatcaccat
     4141 gggtcaccac cagatcttcg ccatccggca tgctcgcttt cagacgcgca aacagctctg
     4201 ccggtgccag gccctgatgt tcttcatcca gatcatcctg atccaccagg cccgcttcca
     4261 tacgggtacg cgcacgttca atacgatgtt tcgcctgatg atcaaacgga caggtcgccg
     4321 ggtccagggt atgcagacga cgcatggcat ccgccataat gctcactttt tctgccggcg
     4381 ccagatggct agacagcaga tcctgacccg gcacttcgcc cagcagcagc caatcacggc
     4441 ccgcttcggt caccacatcc agcaccgccg cacacggaac accggtggtg gccagccagc
     4501 tcagacgcgc cgcttcatcc tgcagctcgt tcagcgcacc gctcagatcg gttttcacaa
     4561 acagcaccgg acgaccctgc gcgctcagac gaaacaccgc cgcatcagag cagccaatgg
     4621 tctgctgcgc ccaatcatag ccaaacagac gttccaccca cgctgccggg ctacccgcat
     4681 gcaggccatc ctgttcaatc atactcttcc tttttcaata ttattgaagc atttatcagg
     4741 gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa caaatagggg
     4801 ttccgcgcac atttccccga aaagtgccac
//

载体图谱质粒图谱pdf版和相关资料下载
