pMXs-hc-MYC

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pMXs-hc-MYC
出品公司: 爱迪基因
目录编号: 17220
存储实验室: Shinya Yamanaka

质粒骨架基本信息
质粒名称: pMXs
质粒抗性: 氨苄霉素
空质粒大小: 4600 bp
质粒类型: 哺乳细胞表达
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: c-MYC
物种来源: H. sapiens (human)
插入大小: 1320 bp
基因突变: None
GenBank编号 BAA01375.1
克隆方法: 限制性内切酶
5' 克隆位点: attB1(未破坏)
3' 克隆位点: attB2(未破坏)
5' 测序引物 pMX-S1811

文献引用方法
材料和方法部分: pMXs-hc-MYC was a gift from Shinya Yamanaka (Addgene plasmid # 17220)
参考文献部分: Induction of pluripotent stem cells from adult human fibroblasts by defined factors. Takahashi K, Tanabe K, Ohnuki M, Narita M, Ichisaka T, Tomoda K, Yamanaka S. Cell. 2007 Nov 30. 131(5):861-72. 10.1016/j.cell.2007.11.019 PubMed 18035408

载体图谱质粒图谱和多克隆位点信息

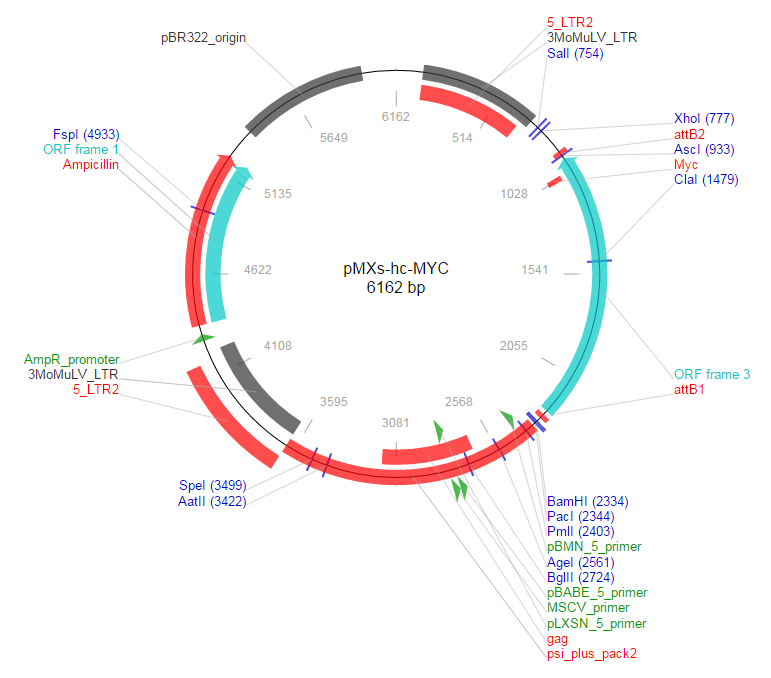

pMXs-hc-MYC载体图谱

载体简介

载体序列

LOCUS       pMXs-hc-MYC Sequencing Result	6162 bp 	DNA	SYN
DEFINITION  pMXs-hc-MYC Sequencing Result
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6162
                     /organism="pMXs-hc-MYC Sequencing Result"
                     /mol_type="other DNA"
     misc_feature    complement(130..711)
                     /label="3MoMuLV_LTR"
     misc_feature    complement(130..669)
                     /label="5_LTR2"
     misc_feature    complement(906..930)
                     /label="attB2"
     CDS             complement(947..2266)
                     /label="ORF frame 3"
     misc_feature    complement(1010..1039)
                     /label="Myc"
     misc_feature    complement(2287..2311)
                     /label="attB1"
     misc_feature    complement(2360..3641)
                     /label="psi_plus_pack2"
     misc_feature    complement(2408..2424)
                     /label="pBMN_5_primer"
     misc_feature    complement(2677..3156)
                     /label="gag"
     misc_feature    complement(2762..2778)
                     /label="pBABE_5_primer"
     misc_feature    complement(2794..2816)
                     /label="MSCV_primer"
     misc_feature    complement(2794..2816)
                     /label="pLXSN_5_primer"
     misc_feature    complement(3641..4234)
                     /label="3MoMuLV_LTR"
     misc_feature    complement(3641..4192)
                     /label="5_LTR2"
     promoter        4299..4327
                     /label="AmpR_promoter"
     gene            4369..5229
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             4369..5229
                     /label="ORF frame 1"
     rep_origin      5377..5996
                     /label="pBR322_origin"
ORIGIN
    1 agcgcccaat acgcaaaccg cctctccccg cgcgttggcc gattcattaa tgCAACTATG
   61 GCCATTTAAT GTAAATACTT AAGAAAAAAA ACCAAATTAA TTTTGATACA TGCTGCATGT
  121 GAAAGACCCC CGCTGACGGG TAGTCAATCA CTCAGAGGAG ACCCTCCCAA GGAACAGCGA
  181 GACCACAAGT CGGATGCAAC TGCAAGAGGG TTTATTGGAT ACACGGGTAC CCGGGCGACT
  241 CAGTCAATCG GAGGACTGGC GCCCCGAGTG AGGGGTTGTG GGCTCTTTTA TTGAGCTCGG
  301 GGAGCAGAAG CGCGCGAACA GAAGCGAGAA GCGAACTGAT TGGTTAGTTC AAATAAGGCA
  361 CAGGGTCATT TCAGGTCCTT GGGGCACCCT GGAAACATCT GATGGTTCTC TAGAAACTGC
  421 TGAGGGCTGG ACCGCATCTG GGGACCATCT GTTCTTGGCC CTGAGCCGGG GCAGGAACTG
  481 CTTACCACAG ATATCCTGTT TGGCCCATAT TCAGCTGTTC CATCTGTTCT TGGCCCTGAG
  541 CCGGGGCAGG AACTGCTTAC CACAGATATC CTGTTTGGCC CATATTCAGC TGTTCCATCT
  601 GTTCCTGACC TTGATCTGAA CTTTTCTATT CTCAGTTATG TATTTTTCCA TGCCTTGCAA
  661 AATGGCGTTA CTTAAGCTAG CTTGCCAAAC CTACAGGTGG GGTCTTTCAT TCCCCCCTTT
  721 TTCTGGAGAC TAAATAAAAT CTTTTATTTT ATCGTCGACC ACTGTGCTGG CGGCCGCTCG
  781 AGTTTAAATA GTACATAATG GATTTCCTTA CGCGAAATAC GGGCAGACAT GGCCTGCCCG
  841 GTTATTATTA TTTTTGACAC CAGACCAACT GGTAATGGTA GCGACCGGCG CTCAGCTGGA
  901 ATATCACCAC TTTGTACAAG AAAGCTGGGT CGGCGCGCCC ACCCTTTCAC GCACAAGAGT
  961 TCCGTAGCTG TTCAAGTTTG TGTTTCAACT GTTCTCGTCG TTTCCGCAAC AAGTCCTCTT
 1021 CAGAAATGAG CTTTTGCTCC TCTGCTTGGA CGGACAGGAT GTATGCTGTG GCTTTTTTAA
 1081 GGATAACTAC CTTGGGGGCC TTTTCATTGT TTTCCAACTC CGGGATCTGG TCACGCAGGG
 1141 CAAAAAAGCT CCGTTTTAGC TCGTTCCTCC TCTGGCGCTC CAAGACGTTG TGTGTTCGCC
 1201 TCTTGACATT CTCCTCGGTG TCCGAGGACC TGGGGCTGGT GCATTTTCGG TTGTTGCTGA
 1261 TCTGTCTCAG GACTCTGACA CTGTCCAACT TGACCCTCTT GGCAGCAGGA TAGTCCTTCC
 1321 GAGTGGAGGG AGGCGCTGCG TAGTTGTGCT GATGTGTGGA GACGTGGCAC CTCTTGAGGA
 1381 CCAGTGGGCT GTGAGGAGGT TTGCTGTGGC CTCCAGCAGA AGGTGATCCA GACTCTGACC
 1441 TTTTGCCAGG AGCCTGCCTC TTTTCCACAG AAACAACATC GATTTCTTCC TCATCTTCTT
 1501 GTTCCTCCTC AGAGTCGCTG CTGGTGGTGG GCGGTGTCTC CTCATGGAGC ACCAGGGGCT
 1561 CGGGGCTGCC CTGCGGGGAG GACTCCGTCG AGGAGAGCAG AGAATCCGAG GACGGAGAGA
 1621 AGGCGCTGGA GTCTTGCGAG GCGCAGGACT TGGGCGAGCT GCTGTCGTTG AGAGGGTAGG
 1681 GGAAGACCAC CGAGGGGTCG ATGCACTCTG AGGCGGCGGC GCTCAGATCC TGCAGGTACA
 1741 AGCTGGAGGT GGAGCAGACG CTGTGGCCGC GGGCGGGGTT CGGGCTGCCG CTGTCTTTGC
 1801 GCGCAGCCTG GTAGGAGGCC AGCTTCTCTG AGACGAGCTT GGCGGCGGCC GAGAAGCCGC
 1861 TCCACATACA GTCCTGGATG ATGATGTTTT TGATGAAGGT CTCGTCGTCC GGGTCGCAGA
 1921 TGAAACTCTG GTTCACCATG TCTCCTCCCA GCAGCTCGGT CACCATCTCC AGCTGGTCGG
 1981 CCGTGGAGAA GCTCCCGCCA CCGCCGTCGT TGTCTCCCCG AAGGGAGAAG GGTGTGACCG
 2041 CAACGTAGGA GGGCGAGCAG AGCCCGGAGC GGCGGCTAGG GGACAGGGGC GGGGTGGGCA
 2101 GCAGCTCGAA TTTCTTCCAG ATATCCTCGC TGGGCGCCGG GGGCTGCAGC TCGCTCTGCT
 2161 GCTGCTGCTG GTAGAAGTTC TCCTCCTCGT CGCAGTAGAA ATACGGCTGC ACCGAGTCGT
 2221 AGTCGAGGTC ATAGTTCCTG TTGGTGAAGC TAACGTTGAG GGGCATGGTG AAGGGGGCGG
 2281 CCGCGGAGCC TGCTTTTTTG TACAAACTTG TGATTTCCCG TACCACCACA CTGGGATCCT
 2341 TAATTAACTA GCTAGATCCG GCAGTCTAGA GGATGGTCCA CCCCCGGGGT CGGCAGCCTT
 2401 CACGTGGGCG GCGTGTATCC AAGCTGCGAT GCCGTCTACT TTGAGGGCGG TGGGGGTGGT
 2461 CAGCAGGACT GTGTAAGGTC CTTTCCAGCG AGGTTCTAGG TTCTTAGTCT GGTGTCGGCG
 2521 GACCCACACT GTGTCGCCGA CTCGGTAAGG GTGAGGTACC ACCGGTCGGT CCAGTTGTTC
 2581 TTGGTAGGCT GCCGCCAGAG GTCTCCAGAC TTCGTGCTGG ACTAAGTAGA GAGCCTGTAA
 2641 GTGAGCTTGG AGAGAGGGGC TGTTAGTAAC TCTTGTCATG TCAGGGTCAG GGAAGTTTAC
 2701 AAGGGGCGGG GGTGCCCCAT ATAAGATCTC ATATGGCCAT ATGGGGGCGC CTAGAGAAGG
 2761 AGTGAGGGCT GGATAAAGGG AGGATCGAGG CGGGGTCGAA CGAGGAGGTT CAAGGGGGAG
 2821 AGACGGGGCG GATGGAGGAA GAGGAGGCGG AGGCTTAGGG TGTACAAAGG GCTTGACCCA
 2881 GGGAGGGGGG TCAAAAGCCA AGGCTTCCCA GGTCACGATG TAGGGGACCT GGTCTGGGTG
 2941 TCCATGCGGG CCAGGTGAAA AGACCTTGAT CTTAACCTGG GTGATGAGGT CTCGGTTAAA
 3001 GGTGCCGTCT CGCGGCCATC CGACGTTAAA GGTTGGCCAT TCTGCAGAGC AGAAGGTAAC
 3061 CCAACGTCTC TTCTTGACAT CTACCGACTG GTTGTGAGCG ATCCGCTCGA CATCTTTCCA
 3121 GTGACCTAAG GTCAAACTTA AGGGAGTGGT AACAGTCTGG CCCTAATTTT CAGACAAATA
 3181 CAGAAACACA GTCAGACAGA GACAACACAG AACGATGCTG CAGCAGACAA GACGCGCGGC
 3241 GCGGCTTCGG TCCCAAACCG AAAGCAAAAA TTCAGACGGA GGCGGGAACT GTTTTAGGTT
 3301 CTCGTCTCCT ACCAGAACCA CATATCCCTC CTATTAGGGG GGTGCACCAA AGAGTCCAAA
 3361 ACGATCGGGA TTTTTGGACT CAGGTCGGGC CACAAAAACG GCCCCCGAAG TCCCTGGGAC
 3421 GTCTCCCAGG GTTGCGGCCG GGTGTTCCGA ACTCGTCAGT TCCACCACGG GTCCGCCAGA
 3481 TACAGAGCTA GTTAGCTAAC TAGTACCGAC GCAGGCGCAT AAAATCAGTC ATAGACACTA
 3541 GACAATCGGA CAGACACAGA TAAGTTGCTG GCCAGCTTAC CTCCCGGTGG TGGGTCGGTG
 3601 GTCCCTGGGC AGGGGTCTCC CGATCCCGGA CGAGCCCCCA AATGAAAGAC CCCCGCTGAC
 3661 GGGTAGTCAA TCACTCAGAG GAGACCCTCC CAAGGAACAG CGAGACCACA AGTCGGATGC
 3721 AACTGCAAGA GGGTTTATTG GATACACGGG TACCCGGGCG ACTCAGTCAA TCGGAGGACT
 3781 GGCGCCCCGA GTGAGGGGTT GTGGGCTCTT TTATTGAGCT CGGGGAGCAG AAGCGCGCGA
 3841 ACAGAAGCGA GAAGCGAACT GATTGGTTAG TTCAAATAAG GCACAGGGTC ATTTCAGGTC
 3901 CTTGGGGCAC CCTGGAAACA TCTGATGGTT CTCTAGAAAC TGCTGAGGGC TGGACCGCAT
 3961 CTGGGGACCA TCTGTTCTTG GCCCTGAGCC GGGGCAGGAA CTGCTTACCA CAGATATCCT
 4021 GTTTGGCCCA TATTCAGCTG TTCCATCTGT TCTTGGCCCT GAGCCGGGGC AGGAACTGCT
 4081 TACCACAGAT ATCCTGTTTG GCCCATATTC AGCTGTTCCA TCTGTTCCTG ACCTTGATCT
 4141 GAACTTTTCT ATTCTCAGTT ATGTATTTTT CCATGCCTTG CAAAATGGCG TTACTTAAGC
 4201 TAGCTTGCCA AACCTACAGG TGGGGTCTTT CATTATGCAG GTGGCACTTT TCGGGGAAAT
 4261 GTGCGCGGAA CCCCTATTTG TTTATTTTTC TAAATACATT CAAATATGTA TCCGCTCATG
 4321 AGACAATAAC CCTGATAAAT GCTTCAATAA TATTGAAAAA GGAAGAGTAT GAGTATTCAA
 4381 CATTTCCGTG TCGCCCTTAT TCCCTTTTTT GCGGCATTTT GCCTTCCTGT TTTTGCTCAC
 4441 CCAGAAACGC TGGTGAAAGT AAAAGATGCT GAAGATCAGT TGGGTGCACG AGTGGGTTAC
 4501 ATCGAACTGG ATCTCAACAG CGGTAAGATC CTTGAGAGTT TTCGCCCCGA AGAACGTTTT
 4561 CCAATGATGA GCACTTTTAA AGTTCTGCTA TGTGGCGCGG TATTATCCCG TATTGACGCC
 4621 GGGCAAGAGC AACTCGGTCG CCGCATACAC TATTCTCAGA ATGACTTGGT TGAGTACTCA
 4681 CCAGTCACAG AAAAGCATCT TACGGATGGC ATGACAGTAA GAGAATTATG CAGTGCTGCC
 4741 ATAACCATGA GTGATAACAC TGCGGCCAAC TTACTTCTGA CAACGATCGG AGGACCGAAG
 4801 GAGCTAACCG CTTTTTTGCA CAACATGGGG GATCATGTAA CTCGCCTTGA TCGTTGGGAA
 4861 CCGGAGCTGA ATGAAGCCAT ACCAAACGAC GAGCGTGACA CCACGATGCC TGTAGCAATG
 4921 GCAACAACGT TGCGCAAACT ATTAACTGGC GAACTACTTA CTCTAGCTTC CCGGCAACAA
 4981 TTAATAGACT GGATGGAGGC GGATAAAGTT GCAGGACCAC TTCTGCGCTC GGCCCTTCCG
 5041 GCTGGCTGGT TTATTGCTGA TAAATCTGGA GCCGGTGAGC GTGGGTCTCG CGGTATCATT
 5101 GCAGCACTGG GGCCAGATGG TAAGCCCTCC CGTATCGTAG TTATCTACAC GACGGGGAGT
 5161 CAGGCAACTA TGGATGAACG AAATAGACAG ATCGCTGAGA TAGGTGCCTC ACTGATTAAG
 5221 CATTGGTAAC TGTCAGACCA AGTTTACTCA TATATACTTT AGATTGATTT GCGGCCGGCC
 5281 GCAAAAGGAT CTAGGTGAAG ATCCTTTTTG ATAATCTCAT GACCAAAATC CCTTAACGTG
 5341 AGTTTTCGTT CCACTGAGCG TCAGACCCCG TAGAAAAGAT CAAAGGATCT TCTTGAGATC
 5401 CTTTTTTTCT GCGCGTAATC TGCTGCTTGC AAACAAAAAA ACCACCGCTA CCAGCGGTGG
 5461 TTTGTTTGCC GGATCAAGAG CTACCAACTC TTTTTCCGAA GGTAACTGGC TTCAGCAGAG
 5521 CGCAGATACC AAATACTGTT CTTCTAGTGT AGCCGTAGTT AGGCCACCAC TTCAAGAACT
 5581 CTGTAGCACC GCCTACATAC CTCGCTCTGC TAATCCTGTT ACCAGTGGCT GCTGCCAGTG
 5641 GCGATAAGTC GTGTCTTACC GGGTTGGACT CAAGACGATA GTTACCGGAT AAGGCGCAGC
 5701 GGTCGGGCTG AACGGGGGGT TCGTGCACAC AGCCCAGCTT GGAGCGAACG ACCTACACCG
 5761 AACTGAGATA CCTACAGCGT GAGCTATGAG AAAGCGCCAC GCTTCCCGAA GGGAGAAAGG
 5821 CGGACAGGTA TCCGGTAAGC GGCAGGGTCG GAACAGGAGA GCGCACGAGG GAGCTTCCAG
 5881 GGGGAAACGC CTGGTATCTT TATAGTCCTG TCGGGTTTCG CCACCTCTGA CTTGAGCGTC
 5941 GATTTTTGTG ATGCTCGTCA GGGGGGCGGA GCCTATGGAA AAACGCCAGC AACGCGGCCT
 6001 TTTTACGGTT CCTGGCCTTT TGCTGGCCTT TTGCTCACAT GTTCTTTCCT GCGTTATCCC
 6061 CTGATTCTGT GGATAACCGT ATTACCGCCT TTGAGTGAGC TGATACCGCT CGCCGCAGCC
 6121 GAACGACCGA GCGCAGCGAG TCAGTGAGCG AGGAAGCGGA AG
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
