| 质粒名称: | pNI3 |
|---|---|
| 出品公司: | 爱迪基因 |
| 目录编号: | 30998 |
| 存储实验室: | Adam Bogdanove, Daniel Voytas |
|
载体骨架基本信息 |
|
| 载体名称: | pTC14 |
| 载体抗性: | 四环素 |
| 空载体大小: | 2989 bp |
| 高拷贝/低拷贝: | 高拷贝 |
| 生长条件: | 37 ℃ |
|
插入基因信息 |
|
| 插入基因名称: | repeat NI3 |
| 物种来源: | Xanthamonas oryzae |
| 插入大小: | 117 bp |
| 克隆方法: | 限制性内切酶 |
| 5' 克隆位点: | XbaI(未破坏) |
| 3' 克隆位点: | XhoI (未破坏) |
| 5' 测序引物 | pTC14_F2 (caagcctgattgggagaaaa) |
|
文献引用方法 |
|
| 材料和方法部分: | pNI3 was a gift from Adam Bogdanove & Daniel Voytas (Addgene plasmid # 30998 ; http://n2t.net/addgene:30998 ; RRID:Addgene_30998) |
| 参考文献部分: | Efficient design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting. Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller JA, Somia NV, Bogdanove AJ, Voytas DF. Nucleic Acids Res. 2011 Apr 14. ():. 10.1093/nar/gkr218 PubMed 21493687 |
买家导航
载体基本信息

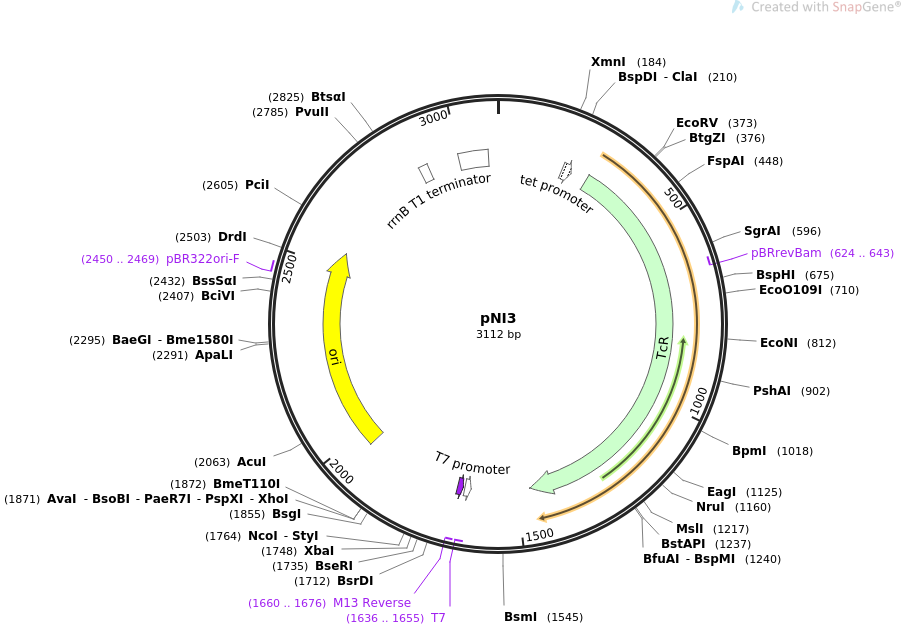

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pNI3 3112 bp ds-DNA circular SYN 13-MAY-2021
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS pNI3
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 3112)
AUTHORS Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller
JA, Somia NV, Bogdanove AJ, Voytas DF
TITLE Efficient design and assembly of custom TALEN and other TAL
effector-based constructs for DNA targeting.
JOURNAL Nucleic Acids Res. 2011 Apr 14. ():.
PUBMED 21493687
REFERENCE 2 (bases 1 to 3112)
AUTHORS .
TITLE Direct Submission
JOURNAL Exported May 13, 2021 from SnapGene Server 1.1.58
http://www.snapgene.com
FEATURES Location/Qualifiers
source 1..3112
/organism="synthetic DNA construct"
/mol_type="other DNA"
promoter 196..224
/label=tet promoter
/note="E. coli promoter for tetracycline efflux protein
gene"
CDS 272..1462
/codon_start=1
/gene="tet"
/product="tetracycline efflux protein"
/label=TcR
/note="confers resistance to tetracycline"
/translation="MKSNNALIVILGTVTLDAVGIGLVMPVLPGLLRDIVHSDSIASHY
GVLLALYALMQFLCAPVLGALSDRFGRRPVLLASLLGATIDYAIMATTPVLWILYAGRI
VAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLHAPF
LAAAVLNGLNLLLGCFLMQESHKGERRPMPLRAFNPVSSFRWARGMTIVAALMTVFFIM
QLVGQVPAALWVIFGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGEKQAII
AGMAADALGYVLLAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQGQLQGSL
AALTSLTSIIGPLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSRATST"
primer_bind complement(624..643)
/label=pBRrevBam
/note="pBR322 vectors, tet region, downstream of BamHI,
reverse primer"
primer_bind complement(1636..1655)
/label=T7
/note="T7 promoter, forward primer"
promoter complement(1637..1655)
/label=T7 promoter
/note="promoter for bacteriophage T7 RNA polymerase"
primer_bind complement(1660..1676)
/label=M13 rev
/note="common sequencing primer, one of multiple similar
variants"
primer_bind complement(1660..1676)
/label=M13 Reverse
/note="In lacZ gene. Also called M13-rev"
rep_origin 1961..2549
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
primer_bind 2450..2469
/label=pBR322ori-F
/note="pBR322 origin, forward primer"
terminator 2879..2906
/label=rrnB T2 terminator
/note="transcription terminator T2 from the E. coli rrnB
gene"
terminator 2998..3084
/gene="Escherichia coli rrnB"
/label=rrnB T1 terminator
/note="transcription terminator T1 from the E. coli rrnB
gene"
ORIGIN
1 ctgcattaat gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc
61 gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct
121 cactcaaagg cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg
181 aattaattct catgtttgac agcttatcat cgattagctt taatgcggta gtttatcaca
241 gttaaattgc taacgcagtc aggcaccgtg tatgaaatct aacaatgcgc tcatcgtcat
301 cctcggcacc gtcaccctgg atgctgtagg cataggcttg gttatgccgg tactgccggg
361 cctcttgcgg gatatcgtcc attccgacag catcgccagt cactatggcg tgctgctagc
421 gctatatgcg ttgatgcaat ttctatgcgc acccgttctc ggagcactgt ccgaccgctt
481 tggccgccgc ccagtcctgc tcgcttcgct acttggagcc actatcgact acgcgatcat
541 ggcgaccaca cccgtcctgt ggattctcta cgccggacgc atcgtggccg gcatcaccgg
601 cgccacaggt gcggttgctg gcgcctatat cgccgacatc accgatgggg aagatcgggc
661 tcgccacttc gggctcatga gcgcttgttt cggcgtgggt atggtggcag gccccgtggc
721 cgggggactg ttgggcgcca tctccttaca tgcaccattc cttgcggcgg cggtgctcaa
781 cggcctcaac ctactactgg gctgcttcct aatgcaggag tcgcataagg gagagcgccg
841 acccatgccc ttgagagcct tcaacccagt cagctccttc cggtgggcgc ggggcatgac
901 tatcgtcgcc gcacttatga ctgtcttctt tatcatgcaa ctcgtaggac aggtgccggc
961 agcgctctgg gtcattttcg gcgaggaccg ctttcgctgg agcgcgacga tgatcggcct
1021 gtcgcttgcg gtattcggaa tcttgcacgc cctcgctcaa gccttcgtca ctggtcccgc
1081 caccaaacgt ttcggcgaga agcaggccat tatcgccggc atggcggccg acgcgctggg
1141 ctacgtcttg ctggcgttcg cgacgcgagg ctggatggcc ttccccatta tgattcttct
1201 cgcttccggc ggcatcggga tgcccgcgtt gcaggccatg ctgtccaggc aggtagatga
1261 cgaccatcag ggacagcttc aaggatcgct cgcggctctt accagcctaa cttcgatcat
1321 tggaccgctg atcgtcacgg cgatttatgc cgcctcggcg agcacatgga acgggttggc
1381 atggattgta ggcgccgccc tataccttgt ctgcctcccc gcgttgcgtc gcggtgcatg
1441 gagccgggcc acctcgacct gaatggaagc cggcggcacc tcgctaacgg attcaccact
1501 ccaagaattg gagccaatca attcttgcgg agaactgtga atgcgcaaac caacccttga
1561 tcggggaaga acagtatgtc gagctatttt ttgacttact ggggatcaag cctgattggg
1621 agaaaataaa atatccccta tagtgagtcg tattacatgg tcatagctgt ttcctggcag
1681 ctctggcccg tgtctcaaaa tctctgatgt tacattgcac aagataaaaa tatatcatca
1741 tgcctcctct agaggtctca ggaccatggc ctgaccccgg accaagtggt ggctatcgcc
1801 agcaacattg gcggcaagca agcgctcgaa acggtgcagc ggctgttgcc ggtgctgtgc
1861 cagggagacc ctcgagccac ccatgaccaa aatcccttaa cgtgagttac gcgtcgttcc
1921 actgagcgtc agaccccgta gaaaagatca aaggatcttc ttgagatcct ttttttctgc
1981 gcgtaatctg ctgcttgcaa acaaaaaaac caccgctacc agcggtggtt tgtttgccgg
2041 atcaagagct accaactctt tttccgaagg taactggctt cagcagagcg cagataccaa
2101 atactgttct tctagtgtag ccgtagttag gccaccactt caagaactct gtagcaccgc
2161 ctacatacct cgctctgcta atcctgttac cagtggctgc tgccagtggc gataagtcgt
2221 gtcttaccgg gttggactca agacgatagt taccggataa ggcgcagcgg tcgggctgaa
2281 cggggggttc gtgcacacag cccagcttgg agcgaacgac ctacaccgaa ctgagatacc
2341 tacagcgtga gctatgagaa agcgccacgc ttcccgaagg gagaaaggcg gacaggtatc
2401 cggtaagcgg cagggtcgga acaggagagc gcacgaggga gcttccaggg ggaaacgcct
2461 ggtatcttta tagtcctgtc gggtttcgcc acctctgact tgagcgtcga tttttgtgat
2521 gctcgtcagg ggggcggagc ctatggaaaa acgccagcaa cgcggccttt ttacggttcc
2581 tggccttttg ctggcctttt gctcacatgt tctttcctgc gttatcccct gattctgtgg
2641 ataaccgtat taccgccttt gagtgagctg ataccgctcg ccgcagccga acgaccgagc
2701 gcagcgagtc agtgagcgag gaagcggaag agcgcccaat acgcaaaccg cctctccccg
2761 cgcgttggcc gattcattaa tgcagctggc acgacaggtt tcccgactgg aaagcgggca
2821 gtgagcgcaa cgcaattaat acgcgtaccg ctagccagga agagtttgta gaaacgcaaa
2881 aaggccatcc gtcaggatgg ccttctgctt agtttgatgc ctggcagttt atggcgggcg
2941 tcctgcccgc caccctccgg gccgttgctt cacaacgttc aaatccgctc ccggcggatt
3001 tgtcctactc aggagagcgt tcaccgacaa acaacagata aaacgaaagg cccagtcttc
3061 cgactgagcc tttcgtttta tttgatgcct ggcagttccc tactctcgcg tt
//
